Edge Products Attitude Service manual

2006-2007 GM Duramax 6.6L LLY / LBZ
Edge Juice and Attitude
Installation Instructions and Manual
OLD P/N: EJC1000BWAM
NEW P/N: 20102

GM Juice/Attitude Manual Edge Products
2
Table of Contents
DISCLAIMER OF LIABILITY ___________________________________________ 4
LIMITATION OF WARRANTY___________________________________________ 4
About the Chevy/GM Juice _______________________________________________ 7
Chevy/GM Juice Getting Connected________________________________________ 8
Supplied Items:_____________________________________________________________ 8
Required Tools: ____________________________________________________________ 8
The Edge Juice Module ______________________________________________________ 8
Harness Connector__________________________________________________________ 9
Mounting the Juice Module__________________________________________________ 10
Connecting the Harness_____________________________________________________ 10
Final Inspection ___________________________________________________________ 10
Using the Juice________________________________________________________ 11
Adjusting Power Levels_____________________________________________________ 11
Towing___________________________________________________________________ 11
Power Gains __________________________________________________________ 12
Power Gains __________________________________________________________ 12
Making Sense of It All__________________________________________________ 13
EGT_____________________________________________________________________ 14
The Juice Module and your Transmission______________________________________ 14
Transmission Relearning________________________________________________ 15
Transmission Relearning________________________________________________ 15
Edge Attitude Monitor __________________________________________________ 16
About the Attitude _____________________________________________________ 17
Power Gains __________________________________________________________ 18
Chevy/GM Attitude Getting Connected_____________________________________ 19
Changing the Display_______________________________________________________ 25
Two Function Bar Graph Display Sample______________________________________ 26
Two Function Digital Display Sample _________________________________________ 26
Three Function Digital Display Sample________________________________________ 26
Four Function Digital Display Sample_________________________________________ 27
Changing Variables on the Screen ________________________________________ 28
Display___________________________________________________________________ 28
Adjusting the Backlight _________________________________________________ 31

GM Juice/Attitude Manual Edge Products
3
Juice Configuration____________________________________________________ 32
Juice Configuration ________________________________________________________ 33
Max EGT Set Point ________________________________________________________ 33
Disabling Backdown at Set EGT _____________________________________________ 35
Low Boost Fueling Adjustment_______________________________________________ 36
Shift Defuel Setting ________________________________________________________ 37
Tire Size _________________________________________________________________ 38
Turbo Cool-Down Setup ____________________________________________________ 39
Use EGT ______________________________________________________________________ 39
Use Time ______________________________________________________________________ 40
Alerts________________________________________________________________ 41
Records______________________________________________________________ 44
Performance Tests _____________________________________________________ 45
Adjusting Juice Power Levels ____________________________________________ 47
Power Gains ______________________________________________________________ 47
Retrieve / Clear Diagnostic Trouble Codes (DTC)____________________________ 48
Clearing Trouble Codes_________________________________________________ 49
HOT UNLOCK CODE__________________________________________________ 50
Edge Products Technical Support_________________________________________ 50
© 2007, Edge Products
All rights reserved.
Edge Products
1080 South Depot Dr.
Ogden, UT 84404
(1-888-360-3343
www.edgeproducts.com
Manual Version 5

GM Juice/Attitude Manual Edge Products
4
THIS IS A HIGH PERFORMANCE PRODUCT. USE AT YOUR OWN RISK.
Do not use this product until you have carefully read the following agreement.
This sets forth the terms and conditions for the use of this product. The installation of this product
indicates that the BUYER has read and understands this agreement and accepts its terms and
conditions DISCLAIMER OF LIABILITY
Edge Products, LLC and its successors, distributors, jobbers, and dealers (hereafter SELLER) shall in no
way be responsible for the product's proper use and service. THE BUYER HEREBY WAIVES ALL
LIABILITY CLAIMS.
The BUYER acknowledges that he/she is not relying on the SELLER’s skill or judgment to select or furnish
goods suitable for any particular purpose and that there are no liabilities which extend beyond the
description on the face hereof and the BUYER hereby waives all remedies or liabilities, expressed or
implied, arising by law or otherwise, (including without any obligations of the SELLER with respect to fitness,
merchantability and consequential damages) or whether or not occasioned by the SELLER's negligence.
The SELLER disclaims any warranty and expressly disclaims any liability for personal injury or damages.
The BUYER acknowledges and agrees that the disclaimer of any liability for personal injury is a material
term for this agreement and the BUYER agrees to indemnify the SELLER and to hold the SELLER
harmless from any claim related to the item of the equipment purchased. Under no circumstances will the
SELLER be liable for any damages or expenses by reason of use or sale of any such equipment.
The SELLER assumes no liability regarding the improper installation or misapplication of its products.
It is the installer's responsibility to check for proper installation and if in doubt, contact the manufacturer.
LIMITATION OF WARRANTY
Edge Products, LLC (hereafter "SELLER") gives Limited Warranty as to description, quality,
merchantability, fitness for any product’s purpose, productiveness, or any other matter of SELLER's product
sold herewith. The SELLER shall be in no way responsible for the product’s open use and service and the
BUYER hereby waives all rights other than those expressly written herein. This Warranty shall not be
extended or varied except by a written instrument signed by SELLER and BUYER.
The Warranty is Limited to one (1) year from the date of sale and limited solely to the parts contained within
the product's kit. All products that are in question of Warranty must be returned shipping prepaid to the
SELLER and must be accompanied by a dated proof of purchase receipt. All Warranty claims are subject to
approval by Edge Products, LLC
Under no circumstances shall the SELLER be liable for any labor charged or travel time incurred in
diagnosis for defects, removal, or reinstallation of this product, or any other contingent expenses.
If the BUYER sends back a failed unit that is out of warranty and chooses to buy a refurbished unit, the
refurbished unit will only carry a 60 day warranty. If the BUYER purchases a new unit at a predetermined
discounted rate, it will have the standard 1 year warranty.
Under no circumstances will the SELLER be liable for any damage or expenses insured by reason of the
use or sale of any such equipment.
IN THE EVENT THAT THE BUYER DOES NOT AGREE WITH THIS AGREEMENT: THE
BUYER MAY PROMPTLY RETURN THIS PRODUCT, IN A NEW AND UNUSED CONDITION,
WITH A DATED PROOF OF PURCHASE, TO THE PLACE OF PURCHASE WITHIN SIXTY (60)
DAYS FROM DATE OF PURCHASE FOR A FULL REFUND.
THE INSTALLATION OF THIS PRODUCT INDICATES THAT THE BUYER HAS READ AND
UNDERSTANDS THIS AGREEMENT AND ACCEPTS ITS TERMS AND CONDITIONS.

GM Juice/Attitude Manual Edge Products
5
AFTERMARKET PRODUCTS AND YOUR VEHICLE’S WARRANTY
Many of our customers ask, “Will your product void my vehicle
manufacturer’s warranty?” While the answer is straightforward from a legal
standpoint, we also want to educate our customers (and after-market
consumers) on some industry realities and offer some common sense
precautions to minimize your risk.
Consumers of aftermarket products are protected by The Federal
Magnusson-Moss Warranty Act. The Act states that if something breaks on
your car and you take it in for warranty repair, the dealer must honor your
warranty unless they can prove that whatever modifications you have added
to your car actually caused the problem. Please keep in mind that towing in
anything higher than level two and hard driving in levels four and five are
not recommended.
While as a consumer, you have strong legal protection with regards to your
vehicle’s warranty, there is also a practical reality that different automotive
manufacturers and dealers have greatly varying views on aftermarket
products, in particular those that produce horsepower, such as performance
enhancement chips, modified intake manifolds, or aftermarket exhaust
systems. There are dealers and manufacturers out there that will use the
presence of a horsepower upgrade to void your vehicle’s warranty. They
will do this regardless of whose product you are using. Any aftermarket
company that does not acknowledge this is misleading you.
The bottom line is that while the law protects the consumer and provides for
enforcement of the warranty, it is very difficult for most people to hire an
attorney and fight a voided warranty. Edge recommends that you always
disconnect and remove your module and monitor when you take your
vehicle to a dealer for warranty work in order not to interfere with
diagnostic equipment.
This warranty is void for any new products purchased through
auction websites. Warranty is valid only for new products
purchased through Authorized Dealers (proof of purchase
required for all warranty claims).

GM Juice/Attitude Manual Edge Products
6
All Edge modules and programmers are built to operate with OEM
calibrations. When you take your vehicle to a service center they may, by
your request or otherwise, update your vehicles calibrations. Therefore it
is important that you return your vehicle to stock before taking it in for
service. Edge updates its active products (i.e. those currently being
manufactured) to work effectively with updated OEM calibrations.
However, this process can take some time as Edge is not always made
aware of calibration changes made by the OEM. In the case of
discontinued products, Edge cannot ensure that your unit will work
effectively if you take your vehicle to a dealership and you are given, by
your request or otherwise, a new calibration.

GM Juice/Attitude Manual Edge Products
7
About the Chevy/GM Juice
Thank you for purchasing the Edge Juice Module for the Chevy/GM
Duramax Diesel®. The Juice module has been developed and produced
from the highest quality materials available to ensure the best performance
for years to come. If you have any questions, please contact Edge Products.
We will be very happy to answer your questions about our complete product
line.
The Juice Module is an add-on Engine Control Module (ECM) for the
Duramax® Engine that offers additional features not available with the
factory setup. Since it is an add-on ECM, it uses all the factory data, and
then enhances the factory settings to optimize your truck’s performance.
These features include:
•Engine temperature monitoring and power increase from the Juice module
as engine reaches operating temperature
•Three selectable power level settings when using the Juice with the
supplied toggle switch(6 on-the-fly selectable power settings with the
Attitude)
•Transmission slip monitoring - If any transmission slip is detected power is
decreased to prevent the transmission from slipping
The Juice module offers a large power increase over stock throughout the
rpm range, but the power is most noticeable in the midrange rpm’s. This
greatly improves drivability and towing performance. Transmission
downshifting is greatly reduced, especially while passing or towing.
The Juice also regulates power delivery and timing based on engine
temperature. This means that while the engine temperature is below 130° F
no additional fueling or timing is delivered. At 130° F the module begins
delivering fuel. The Juice delivers 100% of the calculated additional fuel at
150° F, and at 160° F the Juice also starts modifying timing.

GM Juice/Attitude Manual Edge Products
8
Chevy/GM Juice Getting Connected
Supplied Items:
1. Edge Juice Module
2. Three Wire Ties
3. Two Velcro Strips
4. Brass Fuse Tap
Required Tools:
None
Please read these instructions completely so that you understand each step
prior to installation.

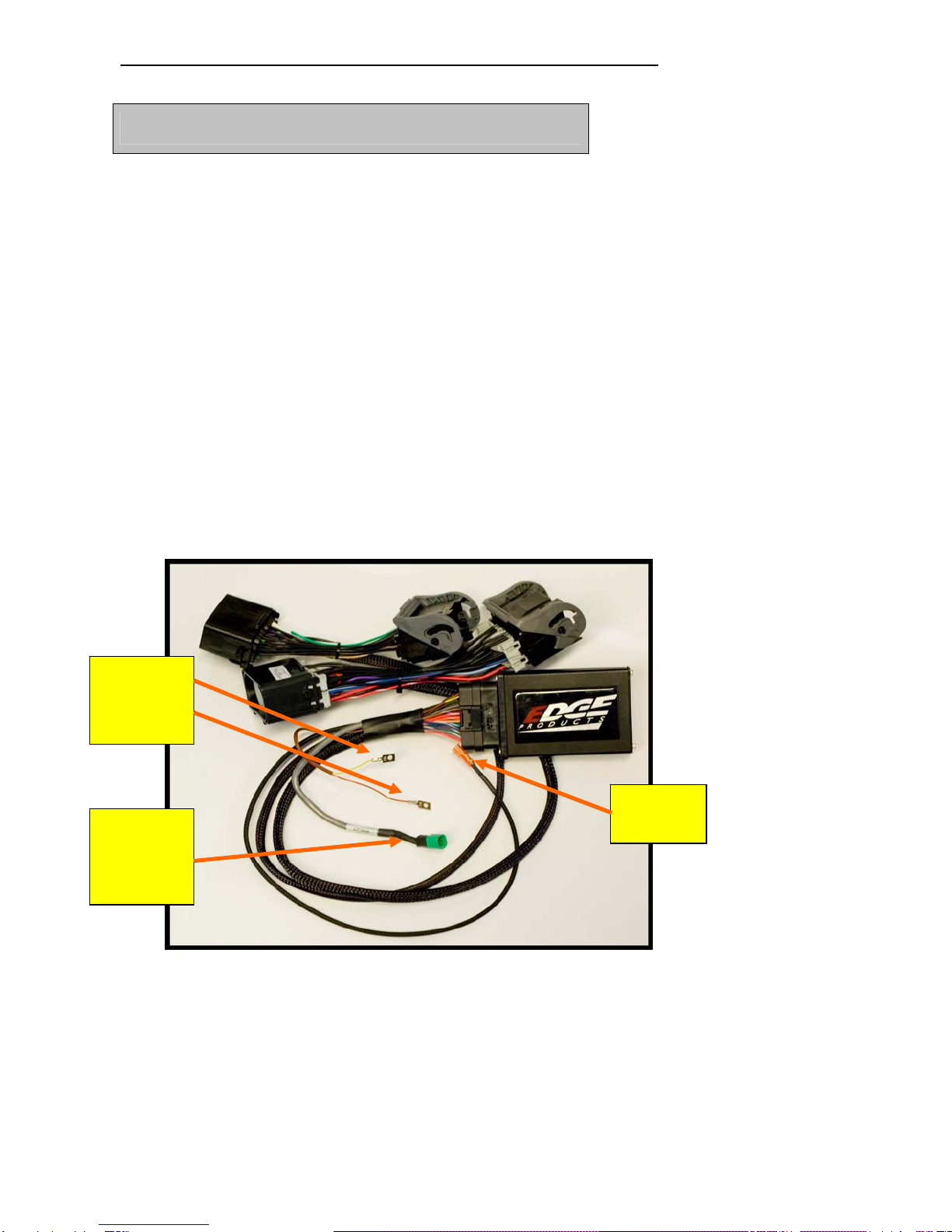

The Edge Juice Module
This picture shows the Edge Juice Module with the harness cable and Edge
Attitude Display wiring (Attitude instructions on pg.13)
These two
connectors are
EGT
thermocouple
connections.
This cable is
where the
optional Edge
Attitude Display
module gets
connected.
This is the
turbo timer
connecter

GM Juice/Attitude Manual Edge Products
9
Harness Connector – Your Juice module is equipped with a
harness that can be disconnected at the Juice module itself (See
figure 1A). It is important to make sure that your juice module is
always connected to the harness when the wiring harness is
connected to the truck, otherwise the truck may not run properly, or
may trigger engine “codes.”
FIGURE 1A

GM Juice/Attitude Manual Edge Products
10
Mounting the Juice Module
1. The Power Edge Juice Module can mount on top of or to the side of the
black plastic fuse box cover located on the driver’s side fender (Use caution
when mounting the Juice on top of the fuse box as the Hood may sometimes
come in contact with the module). Attach the module using the supplied
Velcro, allowing enough harness movement for removal of the fuse box
cover.

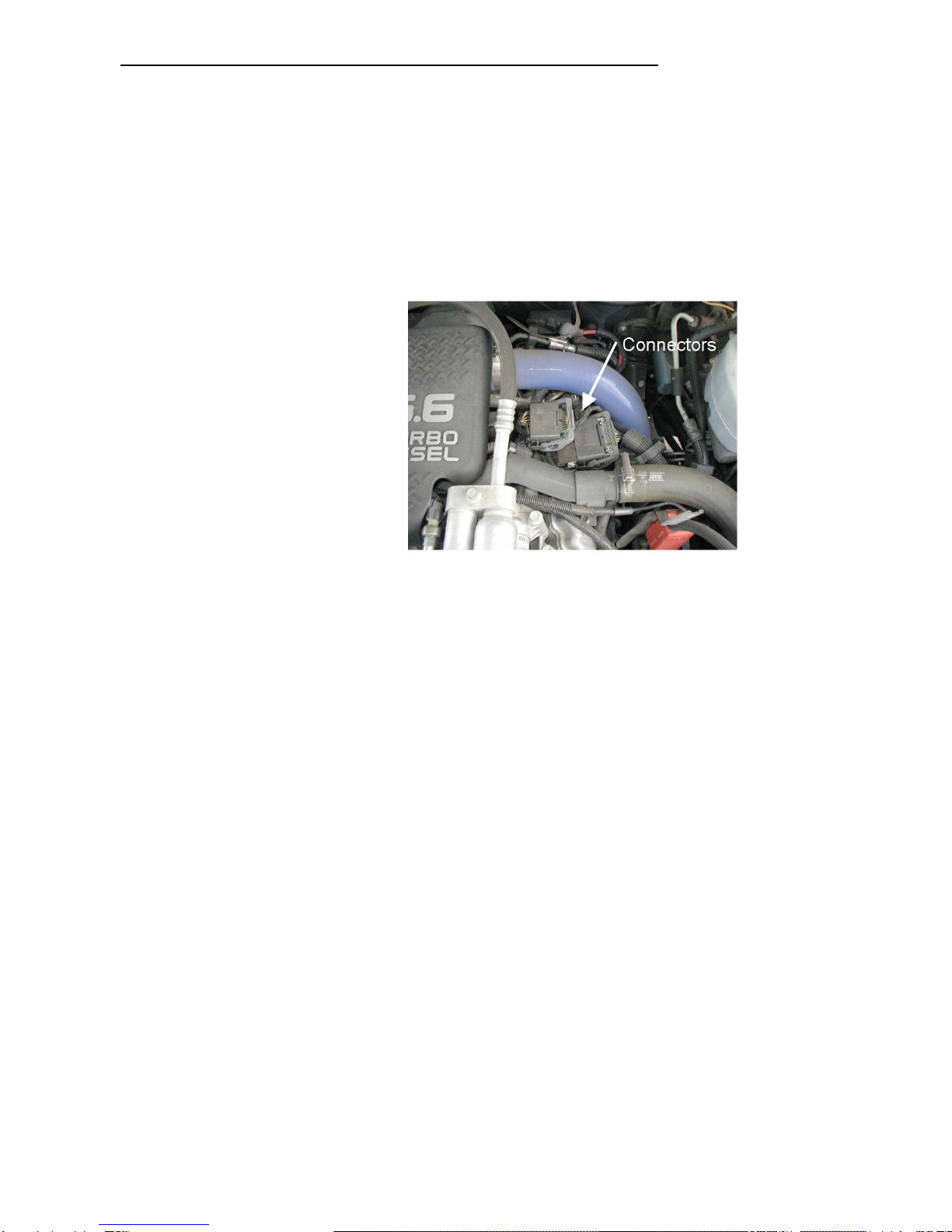

Connecting the Harness
2. Disconnect both stock
connectors by squeezing the ears
on the backside of the connector
and pulling the gray lever.
3. Gently insert the Juice
connectors and lock in place with
the gray levers, and then gently
connect the stock connectors to the
other end of the Juice connectors.
Notice: Use caution when inserting connector bodies. If the connector does not slide
smoothly, remove the connector, inspect the pins, and retry installation.
Final Inspection
4. Recheck all connections for a properly secure installation. Using the
supplied wire ties, secure the wiring harness to prevent possible damage.
5. Start the engine. The engine should start and run like a stock truck. If the
engine does not start or run properly, turn off the motor, remove the keys
from the ignition, then remove the juice module and inspect the pins inside
both connectors. Straighten pins or clear foreign material from the pins and
connector surfaces, and then re-install the connectors. If failure conditions
still exist, contact your dealer or Edge Products, LLC. When trying to
restart, make sure that the key has been turned off for at least 10 seconds
before cranking the engine.

GM Juice/Attitude Manual Edge Products
11
Using the Juice
Adjusting Power Levels
The Juice has three power levels. The Juice module was designed to allow
the user to select any of the three power levels on the fly with the supplied
three position switch. Level 3 is with the switch towards the tab.
Towing
It is recommended that you use the Tow/Haul transmission mode while
towing. This provides torque converter lockup in gears 2-6, which reduces
transmission heat and also raises the shift rpm threshold to keep the rpm’s
higher. It is recommended that you maintain engine rpm above 1800 while
towing.
While towing, the Juice module allows the engine to pull many grades in the
mid rpm’s rather than having to downshift and pull them in the high rpm’s.
This provides for lower EGT (Exhaust Gas Temperature) with the same
power output. EGT rises significantly with rpm--especially above 2500. It
is highly recommended that you install an EGT gauge while using the Edge
Juice. The Edge Attitude monitor displays EGT’s and can limit the EGT to
a user definable set point by reducing additional fueling. This is a great
safety feature that comes only with the Edge Attitude.
Notice: It is recommended while towing you use power levels 1 or 2 due
to EGT and transmission stress

GM Juice/Attitude Manual Edge Products
12
Power Gains
The following power gains are representative of an actual test vehicle.
These gains were measured on a SuperFlow Dyno at an altitude of 4400 ft
above sea level, and represent power delivered to the rear wheels of the test
truck. The only modification made to the test truck was the addition of the
Edge Juice module. Power gains may vary somewhat on a different vehicle
or in different geographic settings.
Horsepower Torque
30 60
40 80
50 90
Warning: It is strongly advised that you do not combine, or “stack”
chips to gain more horsepower.
Power Gains

GM Juice/Attitude Manual Edge Products
13
Making Sense of It All
The first thing you will probably notice, especially if this is your first time
driving a diesel truck with a performance module, is that this is a whole
different animal. You will experience more power, quicker take-offs, better
passing and acceleration, and even better fuel economy.
If you are towing, not only does the extra power the Edge Juice module
delivers enable you to maintain speed going up a hill, but the added power
will also keep you in a higher gear, so your transmission will not keep
“hunting” for lower gears. We recommend level one or level two for towing
applications. Only use level two if you are towing a light load.
The remaining power levels are designed to match fueling with any
additional upgrades you may have done to your vehicle. Level 3 is as far as
you should go on a stock truck and should never be used while towing.
Levels four, five, and the optional power level 6 are race levels and are
designed to be used with upgraded drive trains. If you have modified your
injectors, upgraded the transmission, installed an aftermarket turbo or
performed other similar enhancements, levels four and five will match
fueling to the additional performance created by these upgrades. On a stock
truck, it is possible to overstress the engine and transmission while driving in
levels four and five.

GM Juice/Attitude Manual Edge Products
14
EGT
EGT stands for exhaust gas temperature, and is the single most important
indicator of how a diesel engine is performing. Unlike a gasoline motor, a
diesel motor will continue to make power as more fuel is added. As more
fuel is added, heat will be generated until the motor just gets too hot and
things start to melt. This is a situation you want to avoid. Exhaust gas
temperature is the ideal measurement of how hot the motor is, since
temperature fluctuations in exhaust gas are almost instantaneous. Just so
you know, it is possible to generate excessive EGT on a stock truck,
particularly if you are towing. This is why we always recommend installing
an EGT gauge, and why we built the Attitude monitor, which monitors EGT
and will automatically defuel your truck when EGTs get too high.
In our experience 1350 degrees is about as high as you want to let your
EGTs go. Keep in mind, the stress on your engine created by the heat is a
function of both temperature and time. A brief spike to 1400 that lasts a
second is not that big of a deal. Pulling up a hill for several minutes at 1400
is far worse.
As you drive your truck in the various power settings, keep your eye on the
EGTs. Depending on how you drive and where you drive, you may find a
particular power level is more suitable to your power needs.
The Juice Module and your Transmission
The automatic transmission has a fluid-filled clutch-like device called a
torque converter. This device uses the spinning motion of the motor to drive
the transmission which drives your wheels. As the truck speed stabilizes,
the torque converter engages a mechanical connection which locks the two
halves of the torque converter, so the output shaft is going the same speed as
the input shaft. This mechanical linking of the two halves is called
Transmission Lock-up. If the motor produces too much power, this
mechanical lock-up can start to slip. When this slipping occurs, the Juice
module reduces the power output to allow the transmission to function
properly. This is a great feature that provides an extra level of protection for
your vehicle. Please keep in mind however, that if you run in level 4 or 5,
the additional power is so great that it is possible to overstress a stock
Allison transmission if you drive too hard.

GM Juice/Attitude Manual Edge Products
15
Transmission Relearning
The Allison transmission is a “Smart” transmission. This means that it pays
attention to how smoothly the transmission is changing gears, and modifies
the shifting to improve drivability. When the motor delivers more power (by
adding the Juice module), the transmission has to ‘re-learn’ how to shift.
After first installing the Juice module, you may notice rough shifting. The
best way to re-teach the transmission is to set the truck in the power level
you will be using most of the time. Then set out to drive, some city, some
highway, varying the driving and the speed. A good rule of thumb would be
200 to 300 miles. You will notice the shifting becoming better, and your
truck responding better to the additional power as you go through the
learning cycle.
Transmission Relearning

GM Juice/Attitude Manual Edge Products
16
Edge Attitude Monitor
Installation Instructions & Manual

GM Juice/Attitude Manual Edge Products
17
About the Attitude
The Attitude allows you to monitor the performance of your vehicle’s vital
engine components and output values. The following parameters can be
displayed on the main Attitude screen:
•EGT (exhaust gas temperature)
•Barometric PSI
•Speed MPH
•1Gear (torque converter lock)
•Intake Air Temp
•Load %
•Transmission Temp
•Throttle %
•Turbo Boost PSI
•RPM
•Back down (Percent back down due to high EGT)
•ECM Volts
•Engine Coolant Temp
•Fuel Temp (measure in the fuel rail)
•Module Temp
One of the most powerful features of the Attitude is the option to monitor
the EGT of your vehicle and automatically lower the power output to
maintain an EGT below a maximum desired level. The Attitude will also
alert you both visually and audibly at pre-set engine parameter thresholds
and also record the maximum values reached in each of the parameters.
1A lock symbol will appear next to the current gear on the Attitude display if the torque converter is
locked.

Attitude Edge Products
18
Power Gains
The following power gains are representative of an actual test vehicle.
These gains were measured on a SuperFlow Dyno at an altitude of 4400 ft
above sea level, and represent power delivered to the rear wheels of the test
truck. The only modification made to the test truck was the addition of the
Edge Juice module. Power gains may vary somewhat on a different vehicle
or in different geographic settings.
HP Torque
Level 1 30 60
Level 2 40 80
Level 3 50 90
Level 4 60 100
Level 5 80 130
*Level 6 100 200
Warning: It is strongly advised that you do not combine, or “stack” chips
to gain more horsepower.
*NOTE:
Level 6 is a high performance level that is classified as “HOT”, and is not
recommended for stock trucks. In order to unlock level 6 you will need to
complete the “Hot Unlock Form” and there is an additional fee. You can
find the form at www.edgeproducts.com, under “Hot Unlock Form”.
NOTE:
The Edge Juice Module for the LBZ engine may cause an apparent power
surge or oscillation. This happens when transmission clutch slip is detected
by the Juice Module which then compensates for the slip by decreasing
engine power output in order to reduce wear on the transmission by
eliminating slip. This occurs primarily in Level 5 or 6. To eliminate this
surge it is recommended that the vehicle operator not use level 5 or 6 power
level when the transmission is in gear 6.
Formatted: Bullets and Numbering

Attitude Edge Products
19
Chevy/GM Attitude Getting Connected
The Attitude monitor connects under the hood to the Edge Juice module.
Follow these steps to install the Attitude:
1. Place your Attitude monitor on the dash of your vehicle approximately
where you want it installed and, with the driver’s door open, feed the cable
through the open door, and into the engine compartment via the slot near the
hood hinge.
2. Determine where you want to attach the Attitude mounting bracket and
insert it into your dashboard. The bracket fits well in the seam of the dash
board by separating the seam slightly and sliding in the bottom portion of the
bracket until it snaps into place (see figure 1). The following pictures
demonstrate how to best mount the Attitude with the new bracket.
Figure 1
Figure 2
The bracket fits well in
the seam of the dash
board by separating the
seam slightly and sliding
in the bottom portion of
the bracket until it snaps
into place.
After the bracket is
mounted, use the supplied
two sided tape to secure
the Attitude to the
bracke
t
.

Attitude Edge Products
20
3. Connect the Attitude to your Edge Juice module by snapping together the
cables with the green connections (see figure 3). Secure any excess cable to
prevent entanglement with moving engine parts.
Figure 3
Connect
the attitude
to the juice
with this
connecter
Run this wire
into the fuse
box to
connect the
turbo timer
