Edimax Ar-7025um User manual

AR-7025Um

User’s Manual

December 2006

this publication may be reproduced, transmitted, transcribed, stored in a

retrieval system, or translated into any language or computer language, in any

form or by any means, electronic, mechanical, magnetic,optical, chemical,

manual or otherwise, without the prior written permission of this company

This company makes no representations or warranties, either expressed or

implied, with respect to the contents hereof and specifically disclaims any

warranties, merchantability or fitness for any particular purpose. Any

software described in this manual is sold or licensed "as is". Should the

programs prove defective following their purchase, the buyer (and not this

company, its distributor, or its dealer) assumes the entire cost of all necessary

servicing, repair, and any incidental or consequential damages resulting from

any defect in the software. Further, this company reserves the right to revise

this publication and to make changes from time to time in the contents

hereof without obligation to notify any person of such revision or changes.

The product you have purchased and the setup screen may appear slightly

different from those shown in this QIG. For more detailed information about

this product, please refer to the User's Manual on the CD-ROM.The software

and specifications subject to change without notice. Please visit our web site

product names mentioned in this manual are trademarks and/or

registeredtrademarks of their respective holders.

Linux Open Source Code

Certain Edimax products include software code developed by third parties,

including software code subject to the GNU General Public License

("GPL") or GNU Lesser General Public License ("LGPL"). Please see the

GNU (www.gnu.org) and LPGL (www.gnu.org) Web sites to view the terms

of eachlicense.

The GPL Code and LGPL Code used in Edimax products are distributed

without any warranty and are subject to the copyrights of their authors.

For details, see the GPL Code and LGPL Code licenses. You can

download the firmware-files at http://www.edimax.com under

"Download" page.

※ The product you have purchased and the setup screen may appear slightly

different from those shown in this QIG. For more detailed information

about this product, please refer to the User's Manual on the CD-ROM.

※ Software and specifications subject to change without notice. Please visit

our web site for the update.

of their respective

Contents

1. Introduction .......................................................................................5

1.1 System Requirements............................................................................... 5

1.2 Package Contents...................................................................................... 5

2. Product Features...............................................................................6

2.1 Features and Benefits ............................................................................... 6

2.2 Applications ............................................................................................... 6

2.3 ADSL Compliant......................................................................................... 6

2.4 ATM and PPP Protocols............................................................................ 6

2.5 Encapsulation Mode.................................................................................. 6

2.6 Supported OS............................................................................................. 7

2.7 Interface...................................................................................................... 7

3. Hardware Indicators and Connectors .............................................8

3.1 LED Descriptions....................................................................................... 8

3.2 Front Panel................................................................................................. 8

3.3 Rear Panel .................................................................................................. 8

3.4 Connect the Related Devices.................................................................... 8

4. Hardware Installation........................................................................9

4.1 Before You Start…..................................................................................... 9

4.2 Hardware Installation................................................................................. 9

5. Software Installation.......................................................................10

5.1 Before You Start…................................................................................... 10

5.2 Windows Installation............................................................................... 11

5.3 Linux Installation ..................................................................................... 21

5.3.1 Directory Structure......................................................................... 21

5.3.2 Compiling the Driver...................................................................... 21

5.3.3 Loading Modem Driver .................................................................. 22

5.3.4 Verification of driver loading successfully...................................... 23

6. Customizing Communication Settings .........................................24

6.1 Accessing Communication Settings on Windows ............................... 24

7. The DSL Status Application...........................................................26

7.1 Windows DSL Status Application .......................................................... 26

8. Software Uninstall...........................................................................28

8.1 Windows Uninstall................................................................................... 28

9. Modifying TCP/IP Networking Option............................................30

9.1 WAN USB Driver ...................................................................................... 30

9.1.1 Microsoft Windows XP................................................................... 30

9.1.2 Microsoft Windows 2000................................................................ 32

9.1.3 Microsoft Windows ME .................................................................. 35

9.1.4 Microsoft Windows 98SE............................................................... 38

9.2 LAN USB Driver........................................................................................ 40

9.2.1 Microsoft Windows XP................................................................... 40

9.2.2 Microsoft Windows 2000................................................................ 42

9.2.3 Microsoft Windows ME .................................................................. 44

9.2.4 Microsoft Windows 98SE............................................................... 46

1. Introduction

This USB ADSL Modem is an external ADSL modem that connecting broadband ADSL

line to USB connector of PC system. The USB ADSL Modem uses advanced ADSL chipset

solution with complete set of industry standard features for high-speed Internet access. The

USB ADSL Modem offers easy installation and cost-effective connection for SOHO and

residential users. USB bus powered modem without external power is convenient for using.

This product complies with FCC part15 regulations and CE approval.

1.1 System Requirements

zPentium II 233MHz processor or above

zAt lease 32MB RAM (64MB recommended)

z20MB available hard disk or more

zWindows 98SE/2000/ME/XP

zAvailable USB port

zCD-ROM drive

zADSL service enabled on your telephone line

zWindows 98SE installation CD, which will be prompted for during installation

1.2 Package Contents

zADSL Modem

zRJ-11 phone cable

zUSB cable

zSoftware driver CD

zEZ setup guide

If any of above items is missing or damaged, please contact your local dealer

immediately.

2. Product Features

2.1 Features and Benefits

zUSB specifications v1.1 compliant

zUSB bus power. Additional power adapter is unnecessary.

zFull rate operation with up to 8 Mbps downstream data rate and up to 1 Mbps

upstream data rate enables high-speed Internet access.

zFriendly GUI configuration and management software

zFirmware downloadable feature provides performance and feature enhancements in

the future release

zEnables end-to-end ATM support, which allows traffic management and QoS.

2.2 Applications

zHigh-speed Internet access

zVideo-On-Demand

zTelecommuting

zE-Commerce

zOn-line gaming

zVideo conferencing

2.3 ADSL Compliant

zANSI T1.413 issue 2

zITU-T G.992.1 (G.dmt)

zITU-T G.992.2 (G.lite)

zG.994.1 (G.hs, Multimode)

2.4 ATM and PPP Protocols

zRFC 2516 (PPP over Ethernet)

zRFC 2364 (PPP over ATM)

zRFC 1577 (Classical IP over ATM)

zMulti Protocol over AAL5 (RFC1483 / 2684)

zVC and LLC multiplexing

2.5Encapsulation Mode

For WAN Connection

zPPP over ATM LLC (RFC 2364)

zPPP over ATM NULL (RFC 2364)

zPPP over Ethernet (RFC 2516)

For LAN Connection

zClassical IP over ATM (RFC 1577)

zIP over ATM Bridged LLC (RFC 2684)

zIP over ATM Bridged VC (RFC 2684)

zIP over ATM Routed LLC (RFC 2684)

zIP over ATM Routed VC (RFC 2684)

VPI / VCI Settings

zVPI value: 0~255

zVCI value: 32~65535

2.6 Supported OS

zWindows 98SE, ME, 2000, XP

zMac / Linux (optional)

2.7 Interface

zOne USB port compliant with USB v1.1, full speed (12Mbps)

zOne RJ11 port for ADSL connection

3. Hardware Indicators and Connectors

3.1 LED Descriptions

zWhen modem is establishing the connection, the LED will be blinking.

zWhen modem is connected, the LED will be on steadily.

3.2 Front Panel

Connect this connector with Type-B end of USB cable.

3.3 Rear Panel

Connect this connector with RJ-11 cable.

3.4 Connect the Related Devices

1) Connect the provided RJ-11 cable into LINE port on the real panel of the modem and

insert the other end to splitter.

2) Connect the Type-A end of USB cable to your PC.

The diagram below illustrates a connection example,

4. Hardware Installation

4.1 Before You Start…

In MAC operating systems, you need to install the device drivers first (see next chapter)

and then perform the hardware installation steps below

4.2 Hardware Installation

Install the USB ADSL Modem by following these steps with the PC running:

1. Insert the rectangular end of a USB cable into the USB port of your PC.

2. Insert the square end of the USB cable into the USB port pf the USB ADSL Modem.

In Windows operating systems, the USB ADSL Modem will be detected and the “Found

New Hardware Wizard” will be displayed on the PC’s screen. Proceed with the software

installation in the next section, using the operating system appropriate to you.

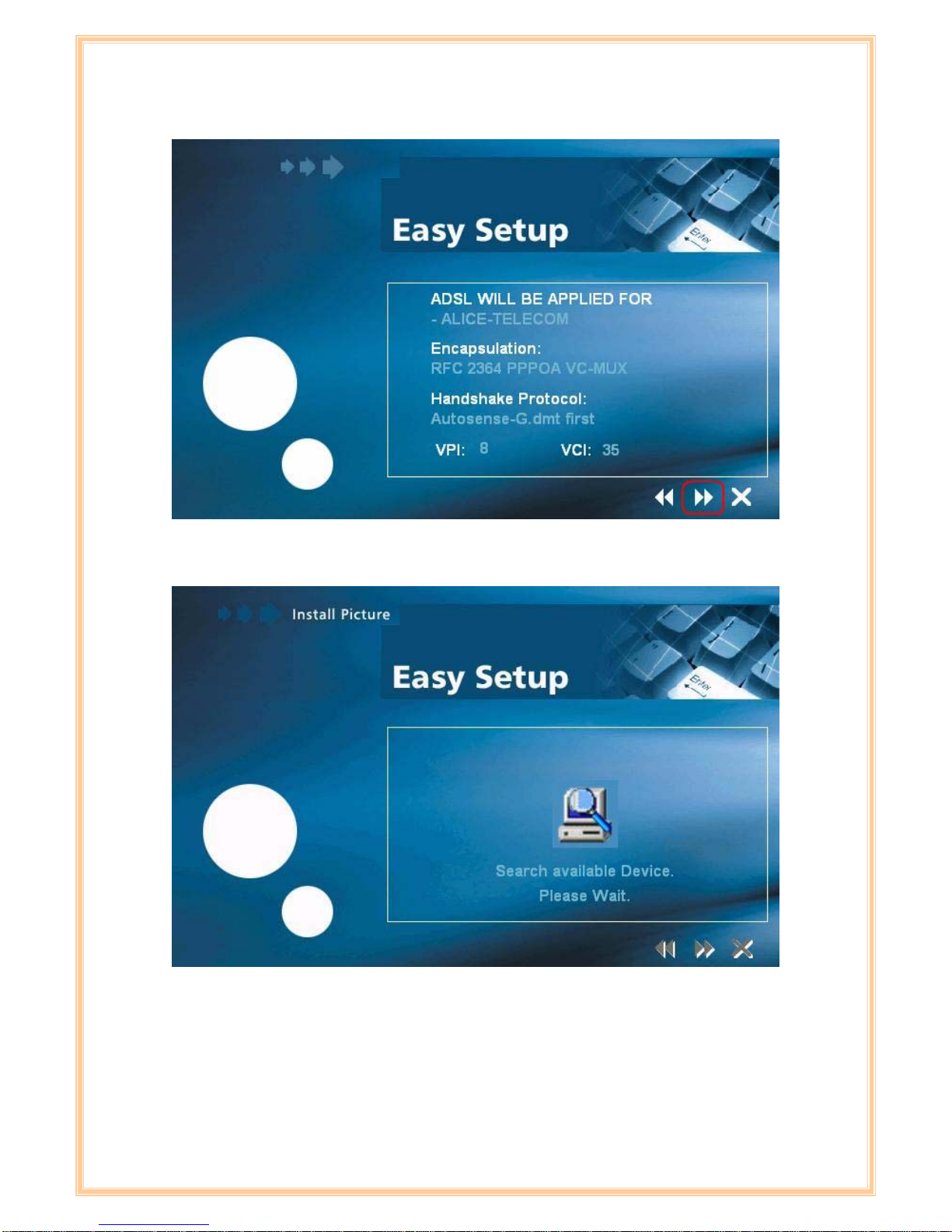

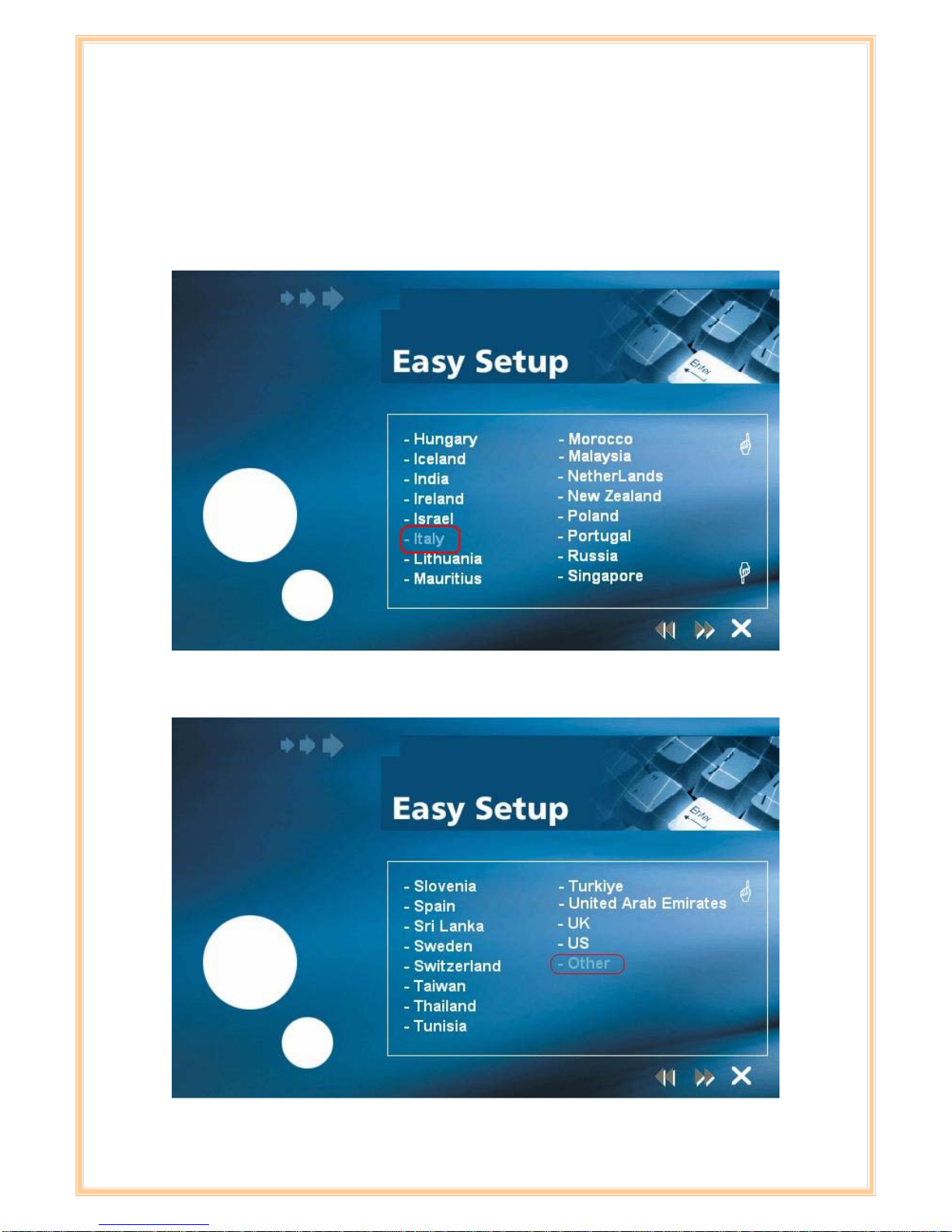

5. Software Installation

The software installation procedures vary depending upon the operating system of your

PC. Be sure to follow the instructions provided for the operating system appropriate for you.

5.1 Before You Start…

The following information may be required for software installation. Contact your DSL

service provider before proceeding with software installation.

•IP Address Settings – the software installation process allows the server to dynamically

assign IP Address settings. If your application requires static setting of specific address

information you will need to know:

IP Address

Subnet Mask (for Bridged Ethernet applications only)

Default Gateway (for Bridged Ethernet applications only)

•Name Server Information – the software installation process allows the server to

dynamically assign Name Server Address settings. If your application requires static

setting of specific address information you will need to know:

Primary DNS Address

Secondary DNS Address

Primary WINS Address

Secondary WINS Address

•Type of Driver to be installed – WAN and LAN software drivers are supported.
