Edimax NS-1500n User manual

1

2
Copyrightby Edimax Technology Co, LTD. all rights reserved. No
part of this publication may be reproduced, transmitted, transcribed,
stored in a retrieval system, or translated into any language or
computer language, in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, manual or otherwise,
without the prior written permission of this Company.
This company makes no representations or warranties, either
expressed or implied, with respect to the contents hereof and
specifically disclaims any warranties, merchantability or fitness for
any particular purpose. Any software described in this manual is
sold or licensed "as is". Should the programs prove defective
following their purchase, the buyer (and not this company, its
distributor, or its dealer) assumes the entire cost of all necessary
servicing, repair, and any incidental or consequential damages
resulting from any defect in the software. Further, this company
reserves the right to revise this publication and to make changes
from time to time in the contents hereof without obligation to notify
any person of such revision or changes.
The product you have purchased and the setup screen may appear
slightly different from those shown in this QIG. For more detailed
information about this product, please refer to the User's Manual on
the CD-ROM. The software and specifications could be subjected
to change without notice. Please visit our web site
www.edimax.com for the update. All right reserved including all
brand and product names mentioned in this manual are trademarks
and/or registered trademarks of their respective holders.
Notice according to GNU/GPL-Version 2
This product includes software that is subject to the
GNU/GPL-Version 2. You find the text of the license on the
product cd/dvd. The program is free software and distributed
without any warranty of the author. We offer, valid for at least
three years, to give you, for a charge no more than the costs of
physically performing source distribution, a complete
machine-readable

3
copy of the corresponding source code.
Please contact Edimax at: Edimax Technology co., Ltd, NO. 3,
Wu-Chuan 3rd RD Wu-Ku-Industrial Park, Taipei Hsien, Taiwan.
R.O.C., TEL : +886-2-77396888, FAX : +886-2-77396887,

4
Table of Contents
Chapter 1 Product Information……………………………………………………..4
1-1 Product Introduction……………………………………………………….4
1-2 Features…………………………………………………………………….4
1-3 Package Contents…………………………………………………………4
1-4 System Requirements………………………………………………...…..4
Chapter 2 Familiar with the Compact Storage Server……………………………6
2-1 Back Panel………………………………………………………………….6
2-2 Front Panel…………………………………………………………………7
2-3 LED………………………………………………………………………….7
Chapter 3 Device Installation……………………………………………………….9
3-1 Hardware Installation……………………………………………………...9
3-2 Software Installation……………………………………………………...11
Chapter 4 Getting Start Your Compact Storage Server………………………..14
4-1 Auto-search for Storage Server…………………………………………14
4-2 Login Storage Server…………………………………………………….15
4-3 Quick Setup……………………………………………………………….15
4-4 Build Disks………………………………………………………………...16
4-5 Configure Password of Administrator…………………………………..18
4-6 Configure Network Setting………………………………………………19
4-7 Storage Server Name……………………………………………………21
4-8 Choose the Functions You Want to Turn On…………………………..22
4-9 Add User Accounts……………………………………………………….23
4-10 Configure Time and Time Zone………………………………………..25
4-11 Confirm Your Configuration……………………………………………26
Chapter 5 Start using the Storage Server……………………………………….29
5-1 Start Using Download Manager………………………………………...29
5-1-1 Search for Storage Server……………………………………………29
5-1-2 Login Storage Server………………………………………………….29
5-1-3 Manage Download Items……………………………………………...30
5-2 Start Using NetDisk Explorer……………………………………………33
5-3 Shared Folders Created…………………………………………………35

5
Chapter 1 Product Information
1-1 Product Introduction
Thank you for purchasing this Wireless 11n Compact Storage Server. This
Compact Storage Server lets you easily share your files in your network.
Simply plug your external hard disk to the Compact Storage Server, connect
the LAN port to your network, and do some basic settings, and you're ready to
share files. This Compact Storage Server provides a total solution for the
Small and Medium-sized Business (SMB) and the Small Office/Home Office
(SOHO) markets, giving you an instant way to share and manage your files
through network.
1-2 Features
Built-in FTP and Samba server
Provides USB mass storage sharing function
Share files via FTP or Network Neighborhood
Supports FTP/ HTTP download agent
Supports P2P (BitTorrent) download
Supports UPnP/DLNA Media Server, iTunes Server
Supports Web Configuration
Firmware Upgradable
Supports Workgroup setup
Supports User Account management
Supports Samba, FTP share permission management
Supports HDD partition tool
1-3 Package Contents
One Wireless 11n Compact Storage Server
One Quick Installation Guide
One Power Adapter
One Antenna
One UTP cable
One CDROM (Utility, Multi-language QIG & Manual)
1-4 System Requirements
CPU: Intel Pentium III 750MHz above or Intel Celeron I GHz above
OS: Windows 2000/XP/Vista/Windows 7
Browser: IE 6.0 or above, Netscape Navigator 7.2 or above, Firefox 2.0.0.3
or above
External USB Storage:
Flash drive x 1

6
Maximum 3.5” USB HDD x 1 (Capacity: up to 2TB)
Performance Notes:
We've packed a lot of neat functionality into a small, affordable package with
this Wireless 11n Compact Storage Server.
Here are some notes regarding the performance of your device.
-For the best disk performance, please follow the wizard to format your disk
into either FAT32 or EXT2 file system.
-Limit the number of simultaneous movie or music streams being served by
the Wireless 11n Compact Storage Server.
-Scanning your USB drives for music will slow down the Wireless 11n
Compact Storage Server. You'll get better performance when music
scanning is turned off or after a scan is finished.
-Too much network traffic or wireless network interference can slow down
file transfers and media streaming.

7
Chapter 2 Familiar with the NS-1500n
2-1 Back Panel
1) LAN Port
You should connect the LAN port of the NS-1500n to your hub/switch, or
one LAN port of your router etc.
2) Power Jack
Plug the power adapter of the NS-1500n.
3) Release/R.T.D Button
Press this button release it immediately, the system will release the
external USB hard disk attached to the storage server. After the Storage
LED turning off, you can unplug the attached USB hard disk safely.
Press this button for more than 5 seconds until the Storage LED starts to
flash, the system will restore the factory default settings for the storage
server and restart it.
4) Antenna SMA Connector
Attach the antenna of the NS-1500n to get good wireless signal.
Antenna SMA
Connector
Release/R.T.D
Button
LAN Port
Power Jack

8
2-2 Front Panel
1) USB Port
The USB port allows you to share your files stored in the USB mass
storage device plugged in.
Note: Please plug the external power of your USB mass storage devices
before you connect them to the storage server.
2-3 LED
On top of the NS-1500n there are LEDs, which show the status of the
NS-1500n. Below is the list of each LED and its description.
LED Light
Status Description
Storage ON Plugged USB mass storage device is ready for
USB
Port
LAN LED
Storage LED
WLAN LED

9
file server
Off There is no plugged USB mass storage device
Slow
Flashing
Storage server is starting; or the used space of
the USB mass storage is over 95%.
Fast
Flashing
The USB mass storage is full; or the storage
server is restoring factory default settings; or
some error happens.
LAN
ON LAN port is connected
Off LAN port is unconnected
Flashing
Data is transferring through the network
WLAN
ON Wireless LAN is on and connected.
Off Wireless LAN is disabled.
Flashing
Wireless LAN is enabled, but is not connected.

10
Chapter 3 Device Installation
3-1 Hardware Installation
This is a step-by-step instruction on how to start using the NS-1500n
1. Plug your USB hard disk to the USB port of the NS-1500n. If your USB hard
disk has external power adapter, please make sure that the external power
adapter is plugged and is supplying power to your USB hard disk.
2. Connect the NS-1500n to your network as shown in the setup diagram
below.

11
3. Plug the power adaptor to the NS-1500n as shown in the setup diagram
below.
4. When the Storage LED is steady lit, the NS-1500n is ready.

12
3-2 Software Installation
1. Insert the Storage Server Wizard utility CD into your PC. The Installation
program of the Storage Server utilities will be executed automatically. If the
Installation program is not executed, please execute it manually.
2. Click “Next” to continue.

13
3. Select “Administrator Tool” and click “Next” to install Administrator Tool
wizard utility.
4. The installation program starts to install the Storage Server Wizard utilities.

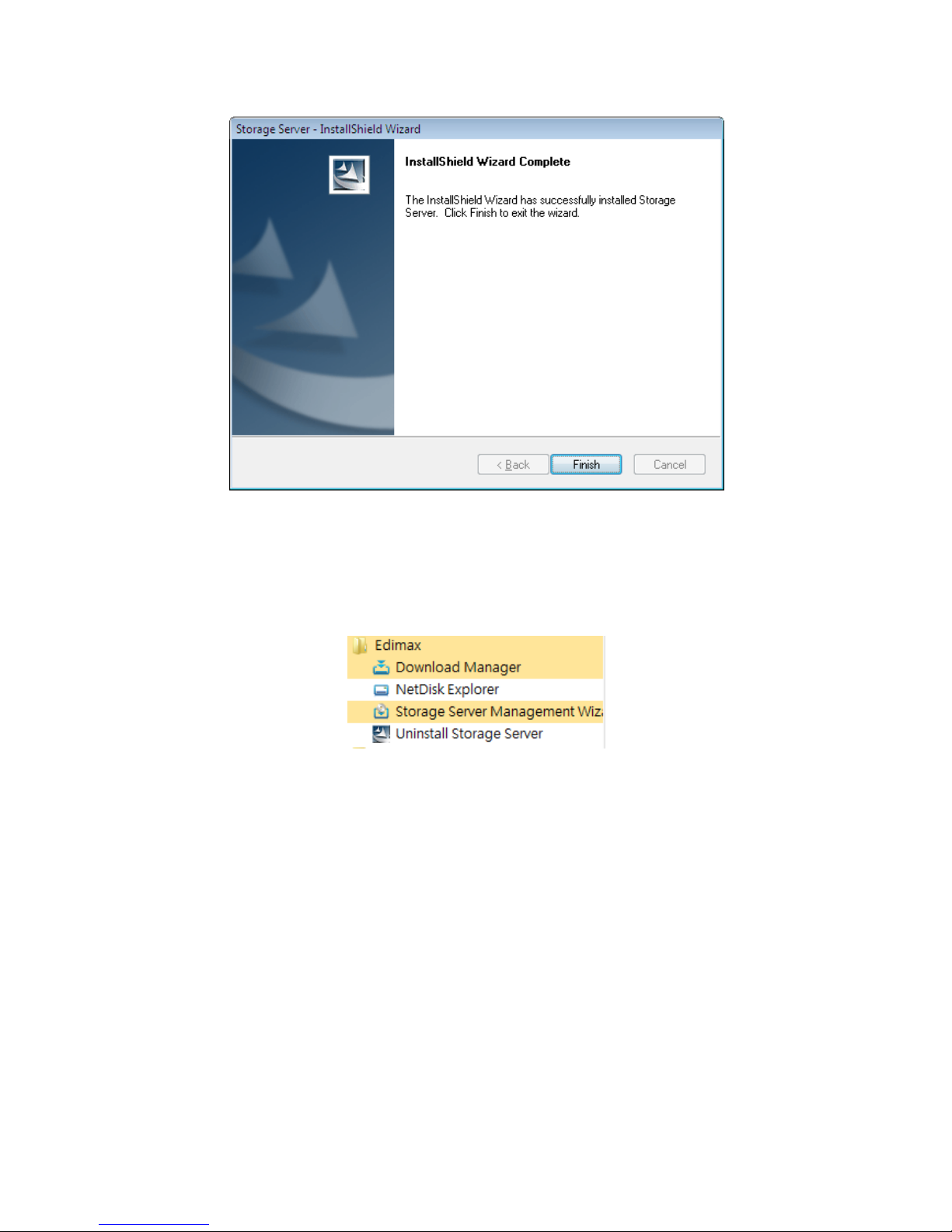

5. Click “Finish” when the installation is finished.

14
6. After the installation, there are three utilities installed: Download
Manager, NetDisk Explorer and Storage Server Management Wizard. They
are located under “Start All Programs Edimax” shown as the
following picture.

15
Chapter 4 Getting Start Your Compact Storage Server
The Installation program will start Storage Server Management Wizard
automatically after the installation is finished.
4-1 Auto-search for Storage Server
When the Storage Server Management Wizard starts, all Storage Servers in
your local area network will be listed. Select the Storage Server you want to
configure, and click “Next”. If you do not find the Storage Server you want to
configure, please check the network connection, and then click “Rescan” to
restart searching.
4-2 Login Storage Server
Type the password and click “Next” to login the Storage Server that you want

16
to configure. (The default password is “1234” if you never change it.)
4-3 Quick Setup
After login, click “Quick Setup” and the wizard will guide you through all the
procedures of Storage Server basic settings.
4-4 Build Disks
If this is the first time that the hard disk drive is used in this Storage Server,
select “Auto-Build Disks & Create Shared Folders”. If the hard disk drive was

17
used in the Storage Server before and you want to keep the data in the hard
disk drive, select “Leave Disks Unchanged”. If the hard disk drive was used in
the Storage Server before and you want to erase all data and rebuild the disk,
select “Clear & Rebuild All Disks”.
If you select “Auto-Build Disks & Create Shared Folders” or “Clear & Rebuild
All Disks”, the data in the hard disk drive will be ERASED. The following page
lets you confirm it or abort the erasing operation. If you want to let the Storage
Server build disk for you, please select the file system format to build.
Note: If you will move the USB hard disk to a Windows PC, you should select
FAT32 as file system format. But FAT32 file system has a limitation that the
max size of each file is 4GB. If the USB hard disk is dedicate for the Storage
Server and will not be moved to a Windows PC, EXT2 file system format is
recommended, because it does not have 4GB file size limitation.

18
Click “Next” if you want to continue. Click “Exit” if you want to abort the
configuration.

19
4-5 Configure Password of Administrator
Enter a new administrator’s password for the Storage Server, and click “Next”,
or just click “Next” directly to keep the current password.
Click “Exit” to abort configuration, and all the modification you did will not be
applied.
Parameter Description
New Password 0~30 alphanumeric characters.
Confirm Password
0~30 alphanumeric characters. Must be same
with New Password.

20
4-6 Configure Network Setting
The wizard will detect your network environment and searching for an
available IP address for the Storage Server.
After the detection, the wizard will provide a suggested IP address setting to
you. You can apply it or modify it based on your requirement.
If your PC is configured to obtain an IP address from the DHCP server, the
“Obtain IP address automatically” option is selected as default.
If the IP address of your PC is configured manually, the Storage Server Wizard
will also let you configure IP of the Storage Server manually, and Storage
Server Wizard will search for an available IP address as the recommended
value of “Storage Server IP Address” if the IP address currently used by
Storage Server is not in the same subnet with your computer. Storage Server
Wizard will search all the legal IP addresses of the subnet of your computer
The recommended values ensure you can access the Storage Server from this
computer and IP conflict problem will be avoided. You also can ignore the
Other manuals for NS-1500n
1
Table of contents
Other Edimax Network Storage Server manuals
Popular Network Storage Server manuals by other brands

D-Link
D-Link ShareCenter Shadow DNS-325 Quick installation guide

Buffalo
Buffalo TeraStation 3020 Quick setup guide

Dell
Dell PowerVault NX3600 Command line interface guide

American Megatrends
American Megatrends StorTrends 1312-J Specifications

IEI Technology
IEI Technology IBX-660 series user manual

IBM
IBM totalstorage 200 Hardware installation guide
