Edirol FA-66 User manual

OWNER’S MANUAL
201a
Before using this unit, carefully read the sections entitled: “USING THE UNIT
SAFELY” and “IMPORTANT NOTES” (p. 3–p. 6). These sections provide important
information concerning the proper operation of the unit. Additionally, in order to
feel assured that you have gained a good grasp of every feature provided by your
new unit, OWNER’S MANUAL should be read in its entirety. The manual should be
saved and kept on hand as a convenient reference.
Copyright © 2005 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form
without the written permission of ROLAND CORPORATION.
FA-66_e.book 1 ページ ２００６年１月１２日 木曜日 午前１１時３２分

2
IMPORTANT: THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE.
BLUE:
BROWN:
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying
the terminals in your plug, proceed as follows:
The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.
Under no circumstances must either of the above wires be connected to the earth terminal of a three pin plug.
NEUTRAL
LIVE
For the U.K.
This product complies with the requirements of European Directive 89/336/EEC.
For EU Countries
For Canada
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.
NOTICE
AVIS
For the USA
FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Unauthorized changes or modification to this system can void the users authority to operate this equipment.
This equipment requires shielded interface cables in order to meet FCC class B Limit.
For the USA
DECLARATION OF CONFORMITY
Compliance Information Statement
Model Name :
Type of Equipment :
Responsible Party :
Address :
Telephone :
FA-66
FireWire Audio Interface
Roland Corporation U.S.
5100 S. Eastern Avenue Los Angeles, CA 90040-2938
[phone]
FA-66_e.book 2 ページ ２００６年１月１２日 木曜日 午前１１時３２分

3
USING THE UNIT SAFELY
001
• Before using this unit, make sure to read the
instructions below, and the Owner’s
Manual.
...................................................................................................................
002c
• Do not open (or modify in any way) the unit
or its AC adaptor.
...................................................................................................................
003
• Do not attempt to repair the unit, or replace
parts within it (except when this manual
provides specific instructions directing you
to do so). Refer all servicing to your retailer, the
nearest Roland Service Center, or an authorized
Roland distributor, as listed on the “Information”
page.
...................................................................................................................
004
• Never use or store the unit in places that
are:
• Subject to temperature extremes (e.g.,
direct sunlight in an enclosed vehicle,
near a heating duct, on top of heat-gener-
ating equipment); or are
• Damp (e.g., baths, washrooms, on wet
floors); or are
• Humid; or are
• Exposed to rain; or are
• Dusty; or are
• Subject to high levels of vibration.
...................................................................................................................
007
• Make sure you always have the unit placed
so it is level and sure to remain stable.
Never place it on stands that could wobble,
or on inclined surfaces.
...................................................................................................................
008c
• Be sure to use only the AC adaptor supplied
with the unit. Also, make sure the line
voltage at the installation matches the input
voltage specified on the AC adaptor’s body. Other
AC adaptors may use a different polarity, or be
designed for a different voltage, so their use could
result in damage, malfunction, or electric shock.
...................................................................................................................
008e
• Use only the attached power-supply cord.
Also, the supplied power cord must not be
used with any other device.
..................................................................................................................
009
• Do not excessively twist or bend the power
cord, nor place heavy objects on it. Doing so
can damage the cord, producing severed
elements and short circuits. Damaged cords are fire
and shock hazards!
..................................................................................................................
010
• This unit, either alone or in combination
with an amplifier and headphones or
speakers, may be capable of producing
sound levels that could cause permanent hearing
loss. Do not operate for a long period of time at a
high volume level, or at a level that is uncom-
fortable. If you experience any hearing loss or
ringing in the ears, you should immediately stop
using the unit, and consult an audiologist.
..................................................................................................................
011
• Do not allow any objects (e.g., flammable
material, coins, pins); or liquids of any kind
(water, soft drinks, etc.) to penetrate the
unit.
..................................................................................................................
012b
• Immediately turn the power off, remove the
AC adaptor from the outlet, and request
servicing by your retailer, the nearest
Roland Service Center, or an authorized Roland
distributor, as listed on the “Information” page
when:
• The AC adaptor, the power-supply cord, or the
plug has been damaged; or
• If smoke or unusual odor occurs
• Objects have fallen into, or liquid has been
spilled onto the unit; or
• The unit has been exposed to rain (or otherwise
has become wet); or
• The unit does not appear to operate normally or
exhibits a marked change in performance.
..................................................................................................................
Used for instructions intended to alert
the user to the risk of injury or material
damage should the unit be used
improperly.
* Material damage refers to damage or
other adverse effects caused with
respect to the home and all its
furnishings, as well to domestic
animals or pets.
Used for instructions intended to alert
the user to the risk of death or severe
injury should the unit be used
improperly.
The ●symbol alerts the user to things that must be
carried out. The specific thing that must be done is
indicated by the design contained within the circle. In
the case of the symbol at left, it means that the power-
cord plug must be unplugged from the outlet.
The symbol alerts the user to important instructions
or warnings.The specific meaning of the symbol is
determined by the design contained within the
triangle. In the case of the symbol at left, it is used for
general cautions, warnings, or alerts to danger.
The symbol alerts the user to items that must never
be carried out (are forbidden). The specific thing that
must not be done is indicated by the design contained
within the circle. In the case of the symbol at left, it
means that the unit must never be disassembled.
FA-66_e.book 3 ページ ２００６年１月１２日 木曜日 午前１１時３２分

4
012d
• Immediately turn the power off, and
request servicing by your retailer, the
nearest Roland Service Center, or an autho-
rized Roland distributor, as listed on the “Infor-
mation” page when:
• If smoke or unusual odor occurs
• Objects have fallen into, or liquid has been
spilled onto the unit; or
• The unit has been exposed to rain (or otherwise
has become wet); or
• The unit does not appear to operate normally or
exhibits a marked change in performance.
...................................................................................................................
013
• In households with small children, an adult
should provide supervision until the child
is capable of following all the rules essential
for the safe operation of the unit.
...................................................................................................................
014
• Protect the unit from strong impact.
(Do not drop it!)
...................................................................................................................
015
• Do not force the unit’s power-supply cord
to share an outlet with an unreasonable
number of other devices. Be especially
careful when using extension cords—the total power
used by all devices you have connected to the
extension cord’s outlet must never exceed the power
rating (watts/amperes) for the extension cord.
Excessive loads can cause the insulation on the cord
to heat up and eventually melt through.
...................................................................................................................
016
• Before using the unit in a foreign country,
consult with your retailer, the nearest
Roland Service Center, or an authorized
Roland distributor, as listed on the “Information”
page.
...................................................................................................................
023
• DO NOT play a CD-ROM disc on a conven-
tional audio CD player. The resulting sound
may be of a level that could cause
permanent hearing loss. Damage to speakers or
other system components may result.
...................................................................................................................
101b
• The unit and the AC adaptor should be
located so their location or position does not
interfere with their proper ventilation.
..................................................................................................................
102c
• Always grasp only the plug on the AC
adaptor cord when plugging into, or
unplugging from, an outlet or this unit.
..................................................................................................................
103b
• At regular intervals, you should unplug the
AC adaptor and clean it by using a dry cloth
to wipe all dust and other accumulations
away from its prongs. Also, disconnect the power
plug from the power outlet whenever the unit is to
remain unused for an extended period of time. Any
accumulation of dust between the power plug and
the power outlet can result in poor insulation and
lead to fire.
..................................................................................................................
104
• Try to prevent cords and cables from
becoming entangled. Also, all cords and
cables should be placed so they are out of
the reach of children.
..................................................................................................................
106
• Never climb on top of, nor place heavy
objects on the unit.
..................................................................................................................
107c
• Never handle the AC adaptor or its plugs
with wet hands when plugging into, or
unplugging from, an outlet or this unit.
..................................................................................................................
108b
• Before moving the unit, disconnect the AC
adaptor and all cords coming from external
devices.
..................................................................................................................
108c
• Disconnect all cords coming from external
devices before moving the unit.
..................................................................................................................
109b
• Before cleaning the unit, turn off the power
and unplug the AC adaptor from the outlet.
..................................................................................................................
110b
• Whenever you suspect the possibility of
lightning in your area, disconnect the AC
adaptor from the outlet.
..................................................................................................................
118a
• Should you remove the ground terminal
screw, keep them in a safe place out of
children's reach, so there is no chance of
them being swallowed accidentally.
..................................................................................................................
120
• Always turn the phantom power off when
connecting any device other than condenser
microphones that require phantom power.
You risk causing damage if you mistakenly supply
phantom power to dynamic microphones, audio
playback devices, or other devices that don't require
such power. Be sure to check the specifications of
any microphone you intend to use by referring to
the manual that came with it.
(This instrument's phantom power:
48 V DC, 20 mA Max)
..................................................................................................................
FA-66_e.book 4 ページ ２００６年１月１２日 木曜日 午前１１時３２分

5
IMPORTANT NOTES
291a
In addition to the items listed under “USING THE UNIT SAFELY” on page 3, please read and
observe the following:
Power Supply
301
• Do not connect this unit to same electrical
outlet that is being used by an electrical
appliance that is controlled by an inverter
(such as a refrigerator, washing machine,
microwave oven, or air conditioner), or that
contains a motor. Depending on the way in
which the electrical appliance is used, power
supply noise may cause this unit to
malfunction or may produce audible noise. If
it is not practical to use a separate electrical
outlet, connect a power supply noise filter
between this unit and the electrical outlet.
302
• The AC adaptor will begin to generate heat
after long hours of consecutive use. This is
normal, and is not a cause for concern.
307
• Before connecting this unit to other devices,
turn off the power to all units. This will help
prevent malfunctions and/or damage to
speakers or other devices.
Placement
351
• Using the unit near power amplifiers (or other
equipment containing large power trans-
formers) may induce hum. To alleviate the
problem, change the orientation of this unit;
or move it farther away from the source of
interference.
352a
• This device may interfere with radio and
television reception. Do not use this device in
the vicinity of such receivers.
352b
• Noise may be produced if wireless communi-
cations devices, such as cell phones, are
operated in the vicinity of this unit. Such noise
could occur when receiving or initiating a call,
or while conversing. Should you experience
such problems, you should relocate such
wireless devices so they are at a greater
distance from this unit, or switch them off.
355b
• When moved from one location to another
where the temperature and/or humidity is
very different, water droplets (condensation)
may form inside the unit. Damage or
malfunction may result if you attempt to use
the unit in this condition. Therefore, before
using the unit, you must allow it to stand for
several hours, until the condensation has
completely evaporated.
Maintenance
401a
• For everyday cleaning wipe the unit with a
soft, dry cloth or one that has been slightly
dampened with water. To remove stubborn
dirt, use a cloth impregnated with a mild,
non-abrasive detergent. Afterwards, be sure
to wipe the unit thoroughly with a soft, dry
cloth.
402
• Never use benzine, thinners, alcohol or
solvents of any kind, to avoid the possibility
of discoloration and/or deformation.
Additional Precautions
553
• Use a reasonable amount of care when using
the unit’s buttons, sliders, or other controls;
and when using its jacks and connectors.
Rough handling can lead to malfunctions.
556
• When connecting / disconnecting all cables,
grasp the connector itself—never pull on the
cable. This way you will avoid causing shorts,
or damage to the cable’s internal elements.
557
• A small amount of heat will radiate from the
unit during normal operation.
558a
• To avoid disturbing your neighbors, try to
keep the unit’s volume at reasonable levels.
You may prefer to use headphones, so you do
not need to be concerned about those around
you (especially when it is late at night).
FA-66_e.book 5 ページ ２００６年１月１２日 木曜日 午前１１時３２分

6
IMPORTANT NOTES
559a
• When you need to transport the unit, package
it in the box (including padding) that it came
in, if possible. Otherwise, you will need to use
equivalent packaging materials.
562
• Use a cable from Roland to make the
connection. If using some other make of
connection cable, please note the following
precautions.
• Some connection cables contain resistors.
Do not use cables that incorporate resistors
for connecting to this unit. The use of such
cables can cause the sound level to be
extremely low, or impossible to hear. For
information on cable specifications, contact
the manufacturer of the cable.
Handling CD-ROMs
801
• Avoid touching or scratching the shiny
underside (encoded surface) of the disc.
Damaged or dirty CD-ROM discs may not be
read properly. Keep your discs clean using a
commercially available CD cleaner.
Copyright
851
• Unauthorized recording, distribution, sale,
lending, public performance, broadcasting, or
the like, in whole or in part, of a work
(musical composition, video, broadcast, public
performance, or the like) whose copyright is
held by a third party is prohibited by law.
852a
• When exchanging audio signals through a
digital connection with an external
instrument, this unit can perform recording
without being subject to the restrictions of the
Serial Copy Management System (SCMS).
This is because the unit is intended solely for
musical production, and is designed not to be
subject to restrictions as long as it is used to
record works (such as your own composi-
tions) that do not infringe on the copyrights of
others. (SCMS is a feature that prohibits
second-generation and later copying through
a digital connection. It is built into MD
recorders and other consumer digital-audio
equipment as a copyright-protection feature.)
853
• Do not use this unit for purposes that could
infringe on a copyright held by a third party.
We assume no responsibility whatsoever with
regard to any infringements of third-party
copyrights arising through your use of this
unit.
204
* Microsoft and Windows are registered trademarks of Microsoft Corporation.
206e
* The screen shots in this document are used in compliance with the guidelines of the
Microsoft Corporation.
206j
* Windows
®
is known officially as: “Microsoft
®
Windows
®
operating system.”
207
* Apple and Macintosh are registered trademarks of Apple Computer, Inc.
209
* Mac OS is a trademark of Apple Computer, Inc.
220
* All product names mentioned in this document are trademarks or registered trademarks
of their respective owners.
FA-66_e.book 6 ページ ２００６年１月１２日 木曜日 午前１１時３２分

7
Contents
Contents of the package..............................................................................8
Front and rear panel...................................................................................10
Front panel.........................................................................................................................10

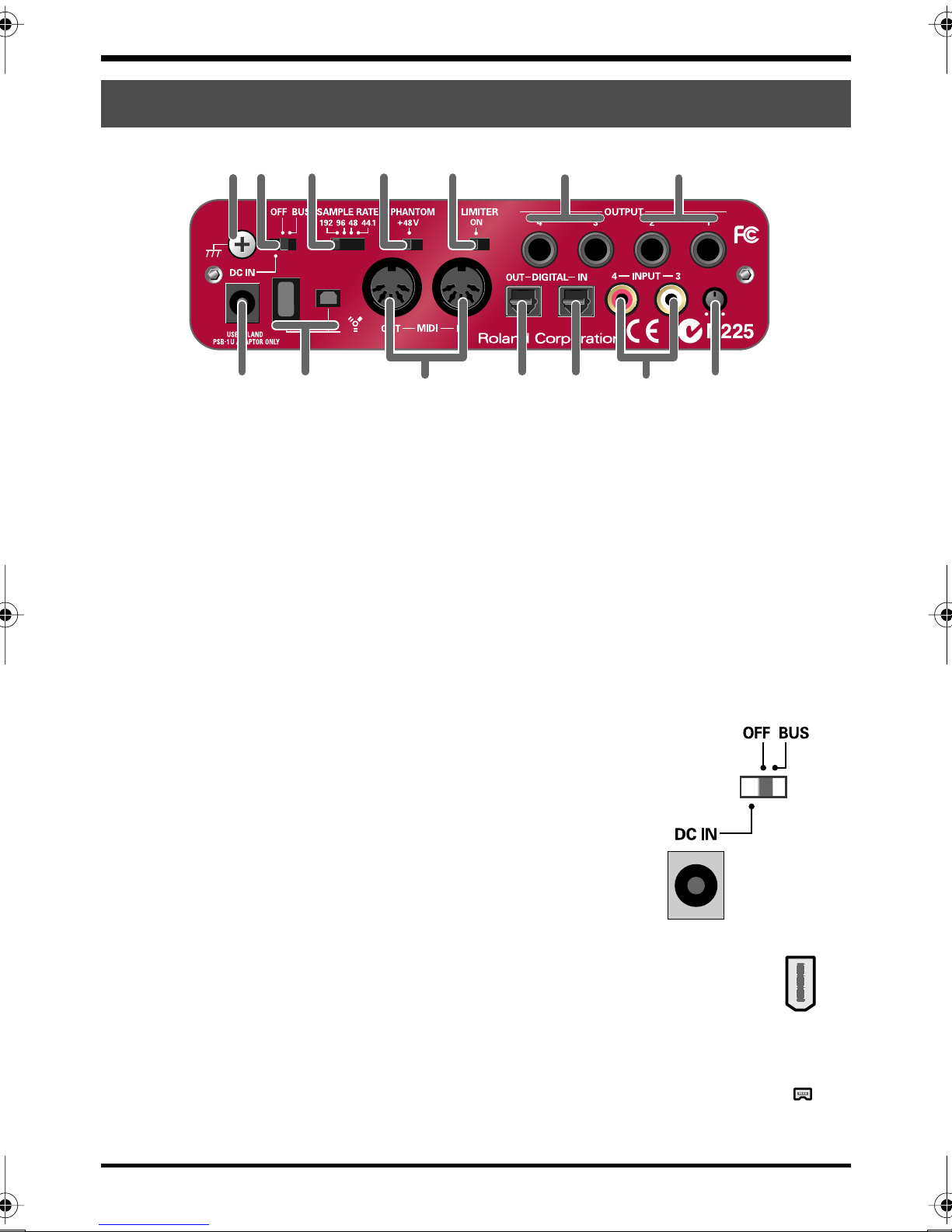

Rear panel ..........................................................................................................................14
Before you begin using the FA-66 with your Macintosh
(Mac OS X users) .......................................................................................18
Audio and MIDI settings.................................................................................................19
Software settings...............................................................................................................23
Installing the driver (Windows) .................................................................24
Giving priority to background services.........................................................................29
Driver settings ...................................................................................................................30
Basic connections and settings................................................................ 35
Basic connections ..............................................................................................................35
Recording a mic or guitar ................................................................................................36
Recording a digital signal................................................................................................38
Connecting various types of equipment .......................................................................39
Software settings........................................................................................ 40
SONAR 4............................................................................................................................40
Digital Performer ..............................................................................................................43
Logic ...................................................................................................................................44
Cubase SX/SL ...................................................................................................................45
FA-66 Driver Settings dialog box (Windows)...............................................................46
Troubleshooting .........................................................................................48
Driver-related problems (Windows)..............................................................................48
No sound............................................................................................................................51
Noise or pops are heard when recording/playing on your computer.....................55
Noise or distortion occurs when the FA-66 is not connected to your computer.....59
The sound is too weak......................................................................................................59
Others .................................................................................................................................61
Main specifications ....................................................................................62
Index ............................................................................................................64
FA-66_e.book 7 ページ ２００６年１月１２日 木曜日 午前１１時３２分

8

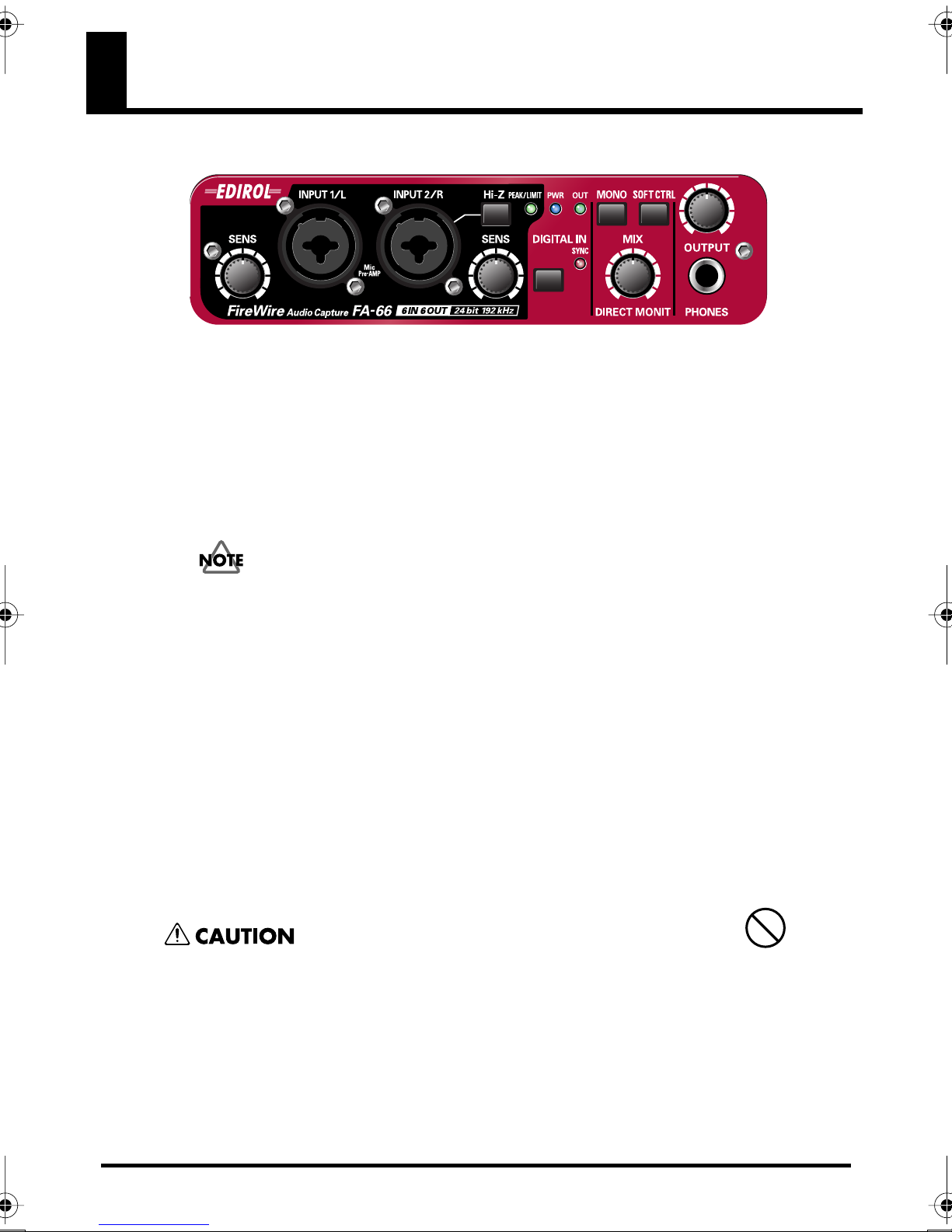

Contents of the package
■ FA-66
fig.FA-66
■ AC adaptor
This is the dedicated AC adaptor for the FA-66. Use only the supplied AC
adaptor.
■ FireWire (IEEE 1394) cables
(one 6-pin ↔ 6-pin cable, one 6-pin ↔ 4-pin cable)
Use one of these cables to connect the FA-66 to the IEEE 1394 connector
(FireWire connector, iLink connector, DV connector) of your computer.
The 6-pin ↔ 4-pin cable cannot supply bus power.
* Use only the FireWire (IEEE 1394) cables. If the supplied FireWire (IEEE 1394)
cable becomes damaged or lost and you need a replacement, please contact the nearest
Roland Service Center, or an authorized Roland distributor, as listed on the
“Information” page.
■ Owner’s manual
This is the manual you are reading. Please keep it at hand for reference.
■ CD-ROM
This contains Windows drivers for the FA-66 and demo songs.
* Be careful not to touch or scratch the recorded surface (unprinted surface) of the disc.
Doing so may render the disc unreadable. If the disc gets dirty, use a commercially
available CD cleaner to clean it.
Do not play back the CD-ROM in a conventional audio
CD player. Doing so may produce high-volume sound
that can damage your hearing and/or speakers.
FA-66_e.book 8 ページ ２００６年１月１２日 木曜日 午前１１時３２分

9
Contents of the package
You will need to provide these items yourself
An external amp, speakers, headphones, and mic are not included
The external amp, speakers, or headphones you’ll need to hear the sound
output from the FA-66 and the cables you’ll need to connect these items are not
included. Nor is a mic included, which you will need to connect to the FA-66 in
order to input audio. You will need to obtain these items yourself.
An MD or DAT recorder and digital input/output cables are not included
You can use an MD or DAT digital recorder to record, but the cables needed to
connect these devices to the FA-66 are not included. You will need to obtain
these items yourself.
FA-66_e.book 9 ページ ２００６年１月１２日 木曜日 午前１１時３２分

10

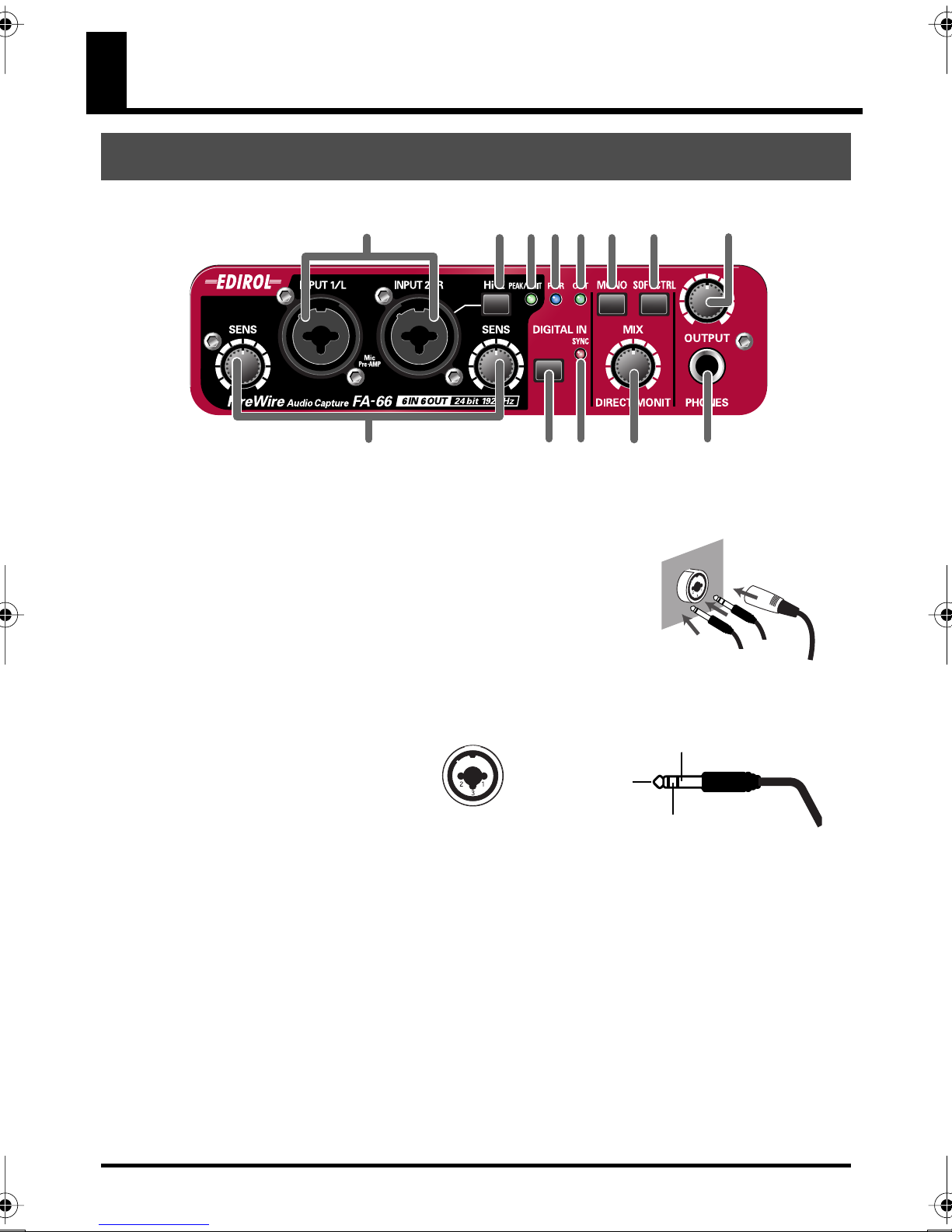

Front and rear panel
fig.front.eps_60
fig.jack-type_70
1.
Combo input jacks
These are analog audio input jacks with mic preamps. They
accommodate either XLR or phone plugs, allowing you to
connect a variety of equipment. Either balanced or unbalanced
signals may be connected.
Phantom power (48 V) is provided for XLR type connections,
allowing you to connect condenser mics that require phantom
power. In this case, turn on the phantom power switch
(19) located on the rear panel.
fig.XLR-TRS
* This instrument is equipped
with balanced (XLR/TRS) type
input jacks. Wiring diagrams for
these jacks are shown on the
right. Make connections after
first checking the wiring
diagrams of other equipment you intend to connect.
2.
Input sensitivity knobs
These adjust the input level of the signals input to the front panel combo input
jacks (1) .
3.
Input impedance select switch
This switch selects either high impedance (Hi-Z) or low impedance (Lo-Z) as the
type of device connected to the INPUT 2 phone jack of the combo input jacks
(1) . If you have connected a guitar or bass to this jack, select the high impedance
(Hi-Z) setting; if you have connected a mic, select the low impedance (Lo-Z) setting.
* Combo input jack INPUT 1 is fixed at low impedance (Lo-Z).
fig.front.eps
Front panel
27 8 11 13
1495 6 10 123
XLR plug
TRS phone
plug
(balanced)
Phone plug
(unbalanced)
1:GND
2:HOT
3:COLD
GND(SLEEVE)
HOT(TIP)
COLD(RING)
FA-66_e.book 10 ページ ２００６年１月１２日 木曜日 午前１１時３２分

11

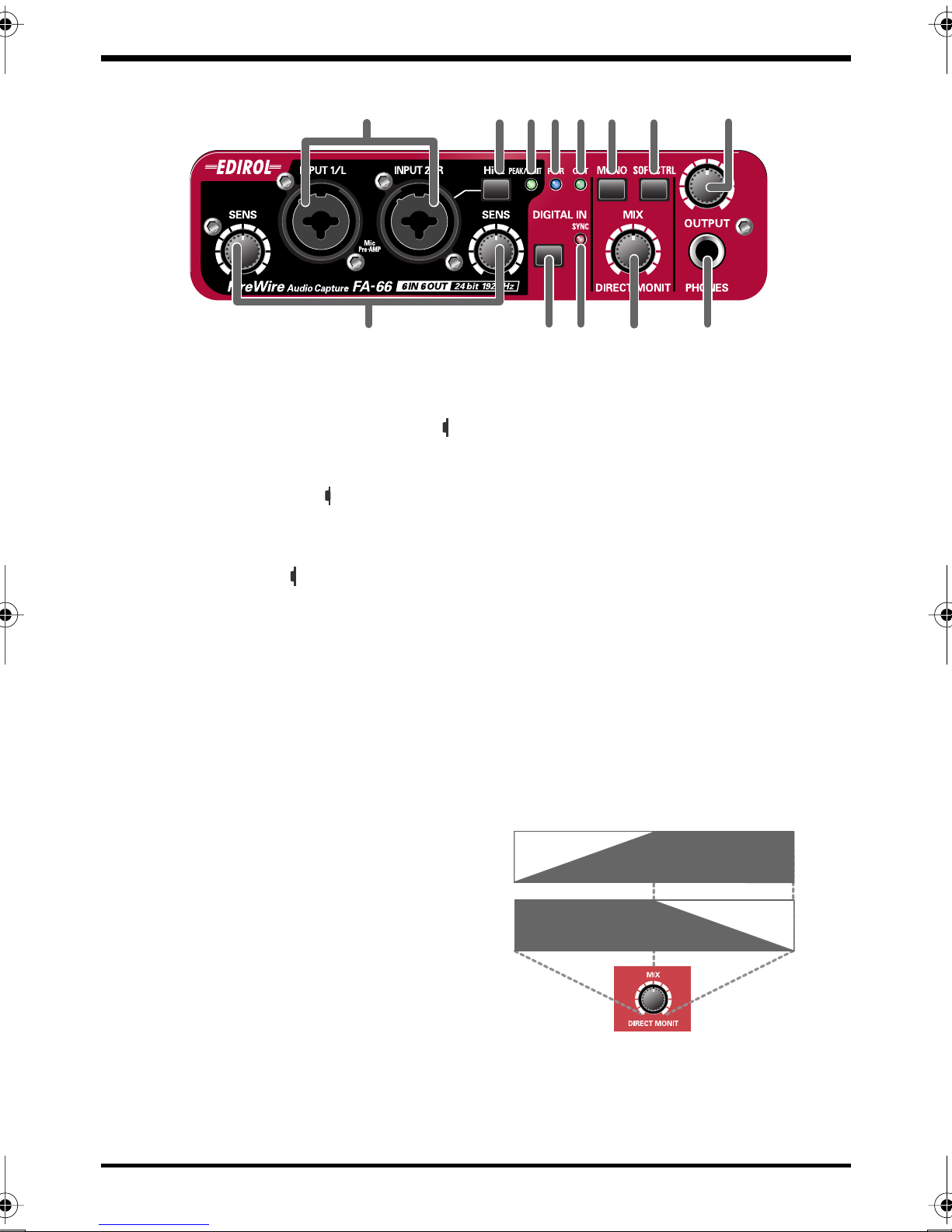

Front and rear panel
4.
Peak/Limiter indicator
This indicates whether the signal being input via the combo input jacks (1) is
distorting, or whether the limiter is operating.
5. Power indicator
Lights when the power is on.
6.
Output indicator
This will light green if signals are being sent from the computer’s audio output
ports 1 and 2 (OUT 1/2).
(see block diagram ➔ front cover)
7.
Digital input switch
If you want to record a digital input, turn this on ( pressed inward). This lets the
FA-66 synchronize to an external digital device connected to the digital input
connector (25)
8.
Sync indicator
When the digital input switch (7) is on, this indicator shows the status of
synchronization with a digital device connected to the digital input connector
(25) . (external synchronization mode)

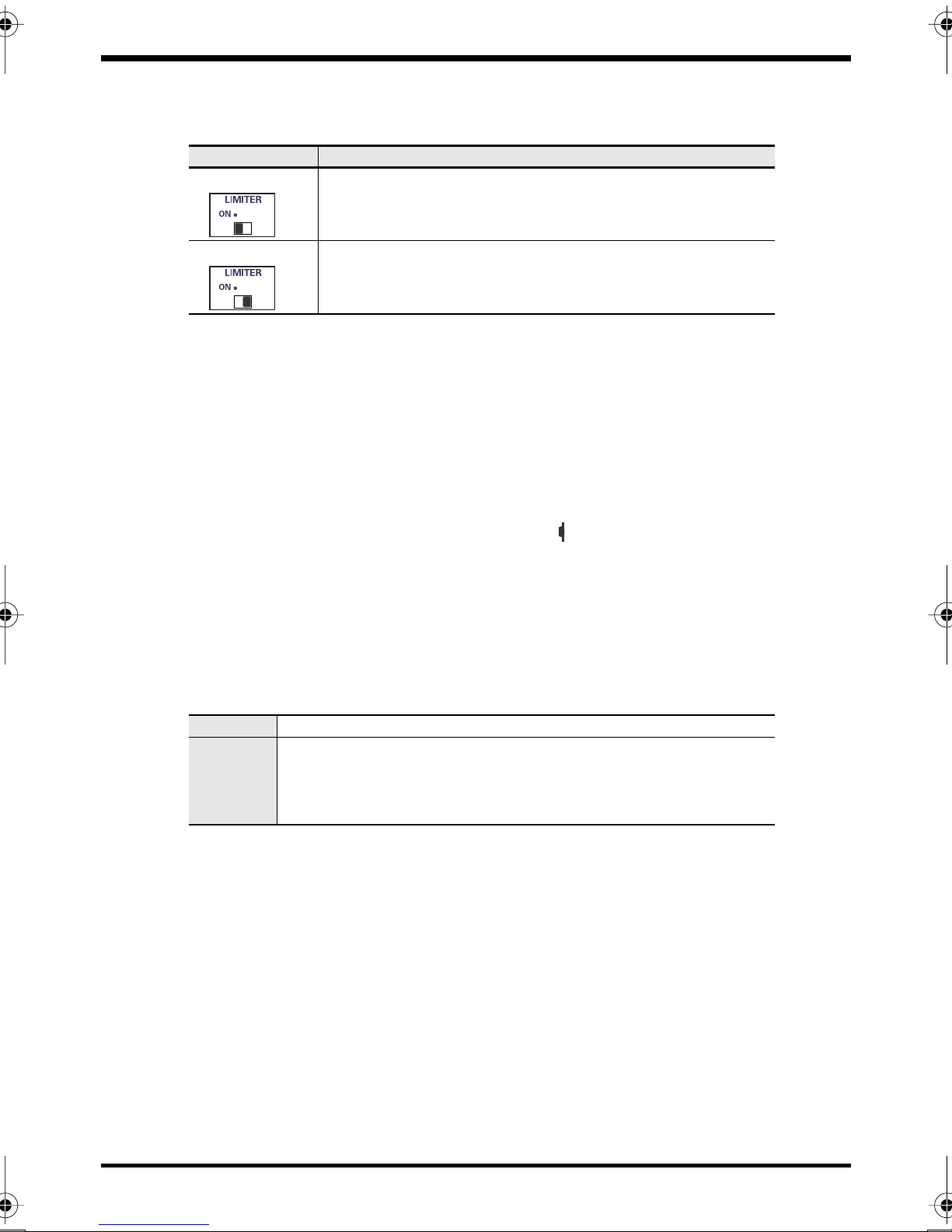

Limiter switch Status
Limiter on The indicator will function as a limiter indicator. When the input sig-
nal exceeds a certain level, the limiter will operate and the indicator
will light green.
Limiter off The indicator will function as a peak indicator. Use the input sensi-
tivity knobs for each input jack to adjust the input level so that the
peak indicator does not light red. The red LED will light if the sound
distorts.
Lit Synchronized correctly.
Blinking
Not synchronized. Check that your digital device is correctly connected to
the digital input connector.
Also make sure that the connected digital device is set to the same sam-
pling frequency as that selected by the FA-66’s sample rate select
switch (18) .
FA-66_e.book 11 ページ ２００６年１月１２日 木曜日 午前１１時３２分

12
Front and rear panel
fig.front.eps_60
9. STEREO/MONO select switch (direct monitor section)
This selects whether the input signal is to be monitored in stereo (STEREO) or in
monaural (MONO). Turn this on ( pressed inward) if you want to monitor in
monaural.
For example, if you’ve connected a guitar only to INPUT 2/R, you would use the
monaural setting ( inward position). Even with the monaural (MONO) setting, the
audio signal being sent via FireWire (IEEE 1394) to the computer will be stereo.
10.
Direct monitor soft control switch (direct monitor mixer section)
Turn this on ( pressed inward) if you want to control the direct monitor mixer (see
block diagram ➔ front cover) from your ASIO 2.0 compatible software. If this is on,
your software will be able to control the monitor volume, pan, and on/off status of
each input jack.
If this is off, all settings of the direct monitor mixer will be ignored (= bypassed),
allowing you to monitor the input signals from all input jacks. This is convenient if
you want to check the connections while temporarily ignoring the software settings.
* This function is available only on Windows.
11.
Direct monitor volume (direct monitor section)
fig.direct-volume
This adjusts the monitor volume.
Turning this knob toward the left
(OUT1/2) will decrease the level of the
sound being input through the input
jacks. Turning the knob toward the
right (MONITOR) will decrease the
level of the sound being output from
your computer. At the center position,
the sound being output from your
computer and the sound being input
via the input jacks will both be at 100%
of their level.
27 8 11 13
1495 6 10 123
Volume
0%
0%
100%
100%
MONITOR
MONITOR
OUT 1/2
FA-66_e.book 12 ページ ２００６年１月１２日 木曜日 午前１１時３２分

13
Front and rear panel
12.
Output volume
This adjusts the volume that is output from the headphone jack (13) and Main
output jacks (22) .
13.
Headphone jack
This jack outputs the mixed sound being input via the input jacks and the sound
being output from the computer (WAVE OUT 1/2 (in the case of WDM, EDIROL
FA-66 Out 1 ➔ see p. 31)). The balance of these two is adjusted by the direct
monitor volume (11) .
Even if headphones are connected, the sound being sent from the rear panel’s main
output jacks (MAIN OUT) (22) will not be cut off.
FA-66_e.book 13 ページ ２００６年１月１２日 木曜日 午前１１時３２分

14
Front and rear panel
fig.rear.eps_60
14. Grounding terminal
Depending on the circumstances of a particular setup, you may experience a
discomforting sensation, or perceive that the surface feels gritty to the touch when
you touch this device, microphones connected to it, or the metal portions of other
objects, such as guitars. This is due to an infinitesimal electrical charge, which is
absolutely harmless. However, if you are concerned about this, connect the ground
terminal (see figure) with an external ground. When the unit is grounded, a slight
hum may occur, depending on the particulars of your installation. If you are unsure
of the connection method, contact the nearest Roland Service Center, or an
authorized Roland distributor, as listed on the “Information” page.
Unsuitable places for connection
• Water pipes (may result in shock or electrocution)
• Gas pipes (may result in fire or explosion)
• Telephone-line ground or lightning rod (may be dangerous in the event of lightning)
fig.power-sw
15. Power switch
Used to switch the power on (DC IN) or off (OFF), and for
switching to bus power (BUS).
BUS
The FA-66 can operate on bus power if it’s connected to your
computer via a 6-pin ↔ 6-pin FireWire (IEEE 1394) cable.
In this case, power is supplied from your computer via the
FireWire (IEEE 1394) cable. If you want to use bus power, set
the power switch to the BUS position.
fig.6-pin
• 6-pin type
You can use bus power if your computer has a 6-pin IEEE 1394 connector
(FireWire connector, iLink connector, DV connector).
* With some computers, the FA-66 may not operate on bus power. If so, connect the
included AC adaptor to an AC outlet and use it to supply power to the FA-66. In this
case, the power will be on when you set the power switch to the DC IN position.
fig.4-pin
• 4-pin type
If your computer has a 4-pin FireWire (IEEE 1394) connector, you cannot use bus
power. Connect the included AC adaptor to the AC adaptor jack, and set the
power switch to DC IN.
Rear panel
20 21
14 15 18 19 22
16 24 25 2717 23 26
FA-66_e.book 14 ページ ２００６年１月１２日 木曜日 午前１１時３２分

15
Front and rear panel
16.
AC adaptor jack
Connect the included AC adaptor to this jack.
* Never use any AC adaptor other than the supplied unit; doing so may cause
malfunction.
17.
FireWire (IEEE 1394) connectors
Use a FireWire (IEEE 1394) cable to connect these to your computer.
We recommend that you use a 6-pin cable to connect the FA-66 to your computer,
and a 4-pin cable to connect the FA-66 to any peripheral device you may be using.
fig.6-pin
• 6-pin connector
If the IEEE 1394 connector (FireWire connector, iLink connector, DV connector)
of your computer is a 6-pin type, use the included 6-pin ↔ 6-pin cable.
The FA-66 will be able to operate on bus power. Normally you should use this
method of connection.
If the IEEE 1394 connector (FireWire connector, iLink connector, DV connector) of
your computer is a 4-pin type, use the included 6-pin ↔ 4-pin cable. However, in
this case, the FA-66 will not operate on bus power.
fig.4-pin
• 4-pin connector
Normally, the 4-pin connector is used when connecting the FA-66 to a peripheral
device.
18.
Sample rate select switch
This specifies the sampling frequency at which audio data will be recorded and
played back. In order to get this setting to take effect, you must exit all of your
software, then cycle the power to the FA-66 (switch it off, then back on again).
* If you are using Macintosh and want to change the sampling frequency, you must
first power down the FA-66. Then, access the Mac OS System Preferences -
Sound , and verify that EDIROL FA-66 has disappeared from the Input and
Output panes. Then, power up the FA-66 again. For information on how to display
the Mac OS System Preferences - Sound, refer to “Audio settings” (p. 19).
You must set the sample rate select switch to match the sampling frequency
selected in the software you are using. If you use external synchronization mode
(i.e., the DIGITAL IN switch turned on), the external device’s sampling frequency
must also be the same.
[ Limitations when using the FA-66 at 192 kHz ]
• You will not be able to use the digital input connector or digital output
connector.
FA-66_e.book 15 ページ ２００６年１月１２日 木曜日 午前１１時３２分

16
Front and rear panel

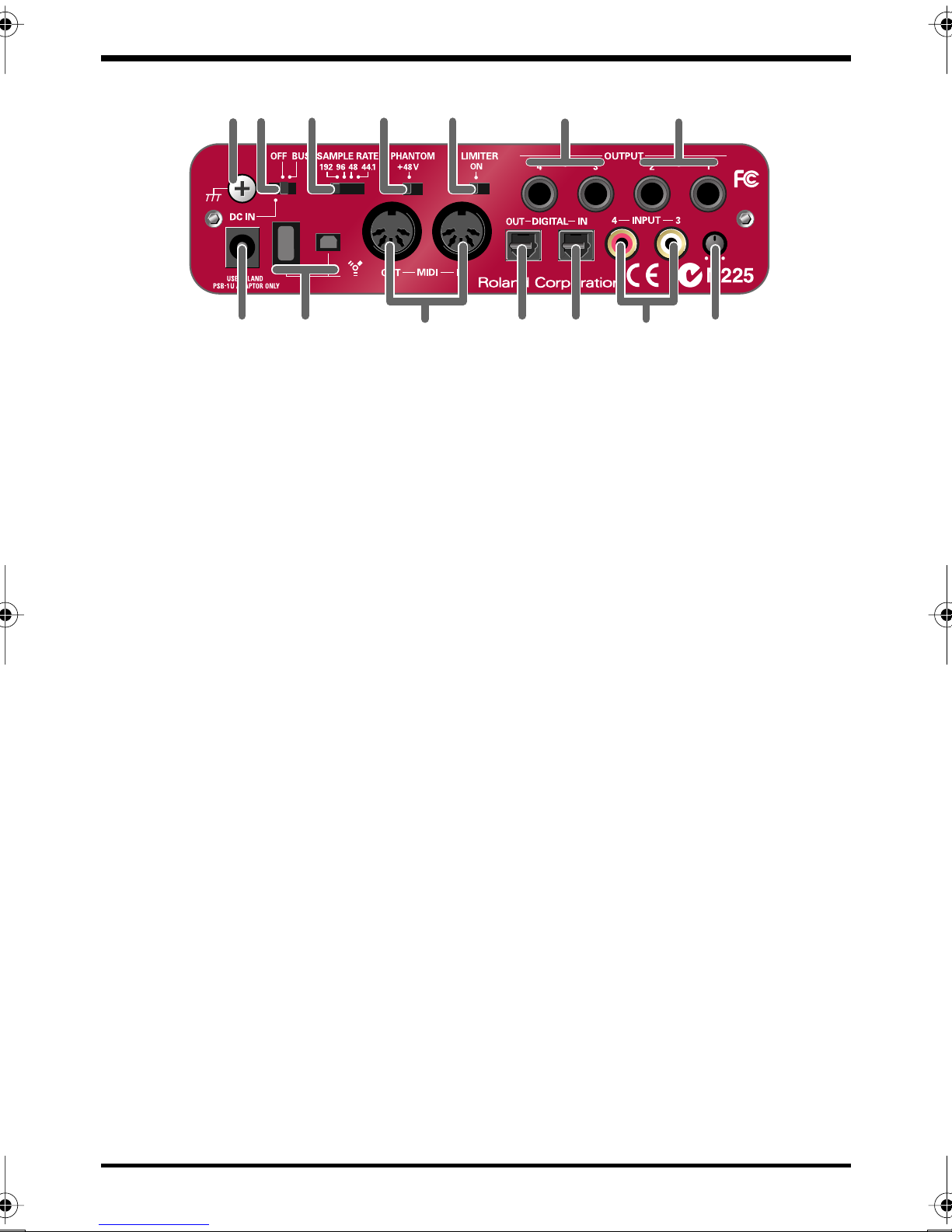

fig.rear.eps_60
19. Phantom power switch
This is an on/off switch for the phantom power supplied to the XLR connectors of
the combo input jacks (1) on the front panel.
* You must leave the phantom power turned off (right position) unless condenser mics
requiring phantom power are connected to the XLR jacks. Supplying phantom power
to a dynamic mic or an audio playback device may cause malfunction. For details on
the requirements of your mic, refer to its owner’s manual.
(The FA-66’s phantom power supply: DC 48 V, 20 mA maximum)
20.
Limiter switch
This turns the FA-66’s hardware limiter on/off.
If a sudden, high-volume sound is input to the combo input jacks (1) , the limiter
applies mild compression to prevent clipping from occurring at the AD converter.
* Clipping noise will be heard if the input signal exceeds the capacity of the limiter.
21.
Output jacks 3, 4 (Nominal output: +4 dBu)
These jacks output analog audio signals. Balanced output is supported.
22. Main output jacks (output jacks 1, 2) (Nominal output: +4 dBu)
These output the mixed sound that is being input via the input jacks and being
output from the computer. You can use the output volume control (12) to adjust
the volume.
23.
MIDI IN/OUT connectors
You can connect these to the MIDI connectors of your MIDI equipment to send and
receive MIDI messages.
24.
Digital output connector (optical)
Use this when you want to digitally connect an audio device, such as an MD or DAT
unit.
The signals sent from OUTPUT 5 and 6 (if using WDM, EDIROL FA-66 OUT 3 ➔
see p. 31) are output to the digital output connector .
20 21
14 15 18 19 22
16 24 25 2717 23 26
FA-66_e.book 16 ページ ２００６年１月１２日 木曜日 午前１１時３２分

17
Front and rear panel
25.
Digital input connector (optical)
Use this when you want to input a digital audio signal from a CD/MD/DAT or
similar device.
The signal input to the digital input connector is input as INPUT 5 and 6 (in
the case of WDM, EDIROL FA-66 In 3 ➔ see p. 31).
If you want to record this digital input signal, turn on the digital input switch
(7) .
You must input a signal of the same sampling frequency as that selected by the
sample rate select switch (18) .

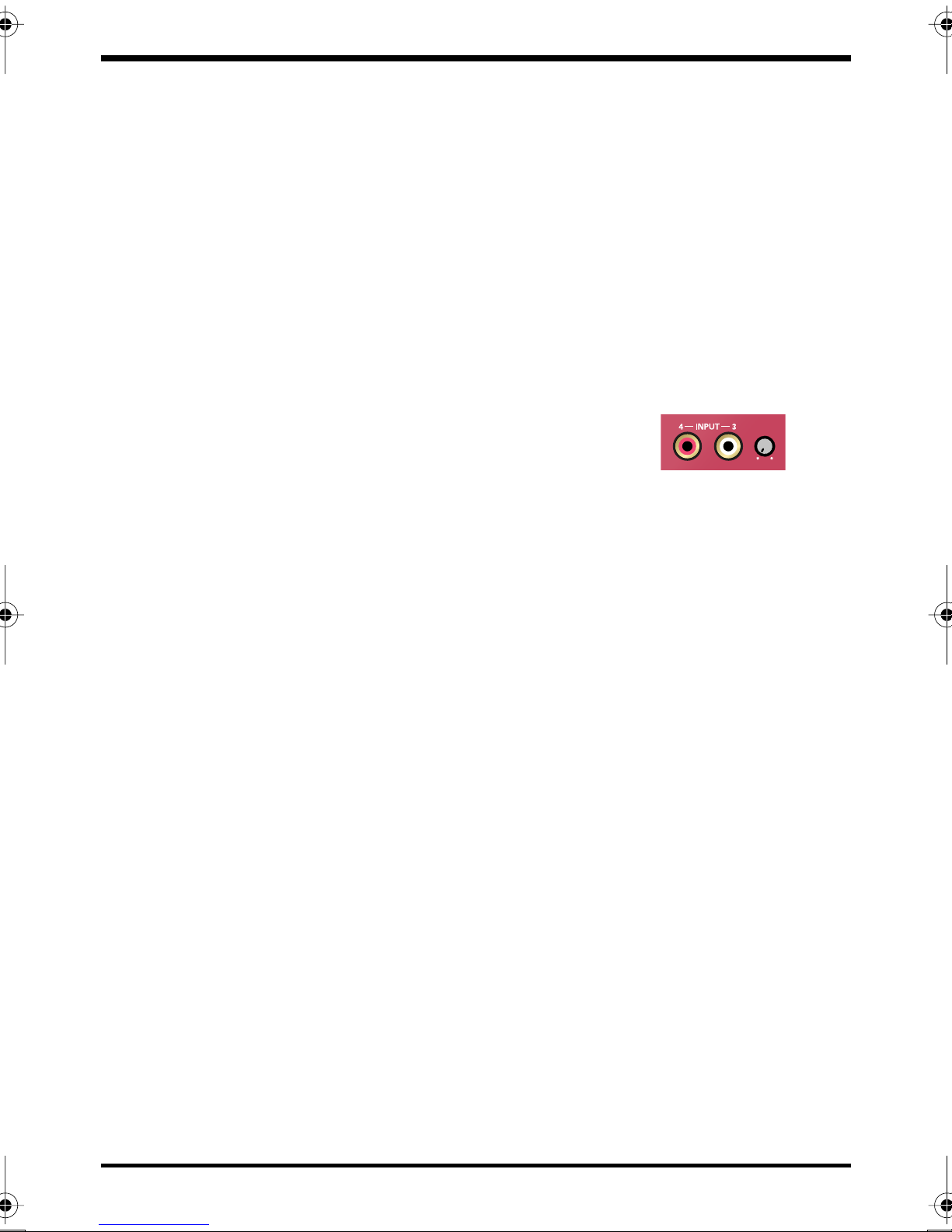

26.
Input jacks 3-4
Input jacks 3 and 4 are designed with a higher gain so that you can connect them
to audio devices that have a lower output level, such as CD players or MIDI sound
modules. If you connect these inputs to a device that has a higher output level, such
as a mixer, use this input level adjustment knob (27) to adjust the level.
If no device is connected to the Input jacks 3 and 4 , turn the
input level adjustment knob (27) all the way toward the
left.
27.
Input level adjustment knob
This adjusts the level of the sound that is input at input jacks 3 and 4 (26) .
FA-66_e.book 17 ページ ２００６年１月１２日 木曜日 午前１１時３２分

18
Before you begin using the FA-66
with your Macintosh (Mac OS X users)
If you are using the FA-66 with Windows, please read
“Installing the driver (Windows)” (p. 24).
If you’re using the FA-66 with Mac OS X, you don’t need to
install a driver.
Simply connect the FA-66 to your Macintosh as described
below.
1
With the FA-66 disconnected, start up your Macintosh.
2
Use a FireWire (IEEE 1394) cable to connect the FA-66 to
your Macintosh.
1.
With the FA-66’s power switch off, connect the power
cord to it.
2.
Plug the AC adaptor cable into an AC outlet.
3.
Use a FireWire (IEEE 1394) cable to connect the FA-66
to your Macintosh.
3
Turn on the FA-66’s power switch .
The driver will be installed automatically.
Next, you need to make audio device and MIDI device
settings.
Once the connections have
b
een completed, turn on
power to your various devices
in the order specified. By
turning on devices in the
wrong order, you risk causing
malfunction and/or damage to
speakers and other devices.
This unit is equipped with a
protection circuit. A brief
interval (a few seconds) after
power up is required before
the unit will operate normally.
Once the connections have
b
een completed, turn on
power to your various devices
in the order specified. By
turning on devices in the
wrong order, you risk causing
malfunction and/or damage to
speakers and other devices.
FA-66_e.book 18 ページ ２００６年１月１２日 木曜日 午前１１時３２分

19
Before you begin using the FA-66 with your Macintosh (Mac OS X users)
If you want to use the FA-66 with the iTunes software
included with your Macintosh, specify the input/output
devices as follows.
The procedure for making device settings differs
depending on the software you are using. For details, refer
to the owner’s manual for your software.
1
From the Apple menu, choose the System Preferences
dialog box, and click Sound .
2
Click the Sound Effects tab, and choose EDIROL FA-66
for the “Play alerts and sound effects through” setting.
3
Click the Output tab, and choose EDIROL FA-66 for the
“Choose a device for sound output” setting.
4
If the Input tab is shown, choose EDIROL FA-66 for the
“Choose a device for sound output” setting.
Audio and MIDI settings
Audio settings If you want sound to be played
from the internal speakers of
your Macintosh, choose
“Internal speakers” in the
Output tab. If you don’t want
alerts to be played through the
FA-66, choose “Internal
speakers” for the “Play alerts
and sound effects through”
setting.
Cautions for use
Before you use your software with the FA-66, please note the following.
• Before you start up your software, use a FireWire (IEEE 1394) cable to
connect the FA-66 with your computer, and turn on the power.
• Do not disconnect the FA-66’s FireWire (IEEE 1394) cable or switch off the
power to the FA-66 while your software is running.
• Close your software before you switch off the FA-66’s power.
• Turn off the Sleep setting of your Macintosh.
• The FA-66 will not work in the Classic environment of Mac OS X. Use it
when the Classic environment is not running.
• Turn off the energy conservation settings of your Macintosh.
• If the Options pane of the Energy Saver preferences on your Macintosh
has a Processor Performance setting, choose the “Highest” setting.
FA-66_e.book 19 ページ ２００６年１月１２日 木曜日 午前１１時３２分

20
Before you begin using the FA-66 with your Macintosh (Mac OS X users)
* Depending on the model of Macintosh you are using, starting
up the Macintosh when the FA-66 is connected may cause
operation to become unstable. In this case, start up the
Macintosh and then connect the FA-66.
* If you want to change the FA-66’s sample rate, turn the FA-66
off, change the sample rate, and then turn the FA-66 on again.
If, in the Mac OS System Preferences - Sound - Output, the
EDIROL FA-66 is not shown in the “Choose a device for
sound output” setting, this means that the FA-66 is
completely powered down.
FA-66_e.book 20 ページ ２００６年１月１２日 木曜日 午前１１時３２分
