Edmonds AiroMatic User manual

Product Manual

2
Item Checklist & Additional Tools Required For Installation
1
2
3
Additional Parts & Tools Required (Not Supplied)
Soft Rubber Hammer
Roof Sealant & Caulking Gun
Cable Ties
Cordless Drill & Screwdriver
Marker Pen
Foil Tape (Sarked Roofs Only)
Knife ( Sarked Roofs Only)
Tek Screws or Sealed Rivets x 10 (Metal Roof Only)
Nibbler or Similar Cutting tool (Metal Roof Only)
Included Parts: QTY:
1 AiroMatic (1)
2 Speed Controller (1)
3 Power Supply (1)
4 Fixing Strap (1)
5 Speed Controller Fixing
Screws 6Gx13mm (2)
6 Product Manual (1)
7 Warranty Document (1)
4

3
Important Notes
 The Airomatic is designed for general household ventilation only. DO
NOT use to exhaust hazardous or explosive materials and vapours
 The Airomatic has an unguarded fan assembly. DO NOT use in locations
readily accessible to people or animals. The fan is intended for use
facing an unoccupied space only.
 Always use the provided power supply and speed controller to power
the fan. Failure to do so can damage the product.
 Power supply and speed controller are for dry indoor use only. Ensure
that the power supply and speed controller are not left on damp
surfaces, fasten to the structure with screws or cable ties as required.
 Only use one Airomatic per speed controller and power supply
Important Notices and Warnings
WARNING: Do not proceed with the installation until you have read the
entire instructions, including these warnings.
Install at your own risk
The installation of this product may be dangerous and includes the potential
of death, personal injury or property damage. Please be aware of the following
before installing this product.
 Installation requires climbing and working at heights. Use caution to
minimise risks by:
 Clearing the area below the workspace
 Avoid walking on surfaces that are slippery, wet or dusty
 Using appropriate equipment (tie off ladders etc.)
 There are sharp edges on the flashing, Take care and wear appropriate
personal protective equipment when handling and installing products
 DO NOT attempt to install if you are uncomfortable with working at
heights or on sloping roof surfaces

4
STEP 1
Remove one tile
from the third row
down from ridge
cap.
If the gap
produced is less
than a 250mm
square opening
then either push
the tiles above
upwards or cut the
tiles to provide
clearance
Installation—Tiled Roof
The removal of a tile higher than this may damage the integrity of
the ridge tile pointing and is NOT recommended
STEP 2
If the roof is
‘sarked’ , Cut
sarking in a cross
folding back the
corners outwards
to give a 250mm
square opening.
Tape the corners
down with foil tape
to prevent them
from fouling the
fan

5
STEP 4
Fold down the
bottom edge of the
flashing to seal
against the lower
tiles.
Using a soft
hammer if required,
carefully dress the
front and sides of
the flashing into the
shape of the tiles.
Make sure that the cable is through the opening and not caught
under the flashing.
STEP 3
Taking the Airomatic
unit slide the
flashing under the
tiles above the
opening.
Ensure the motor
cable is on the low
side for correct
orientation.
Centre the unit over
the opening.
Installation—Tiled Roof

6
Installation—Tiled Roof

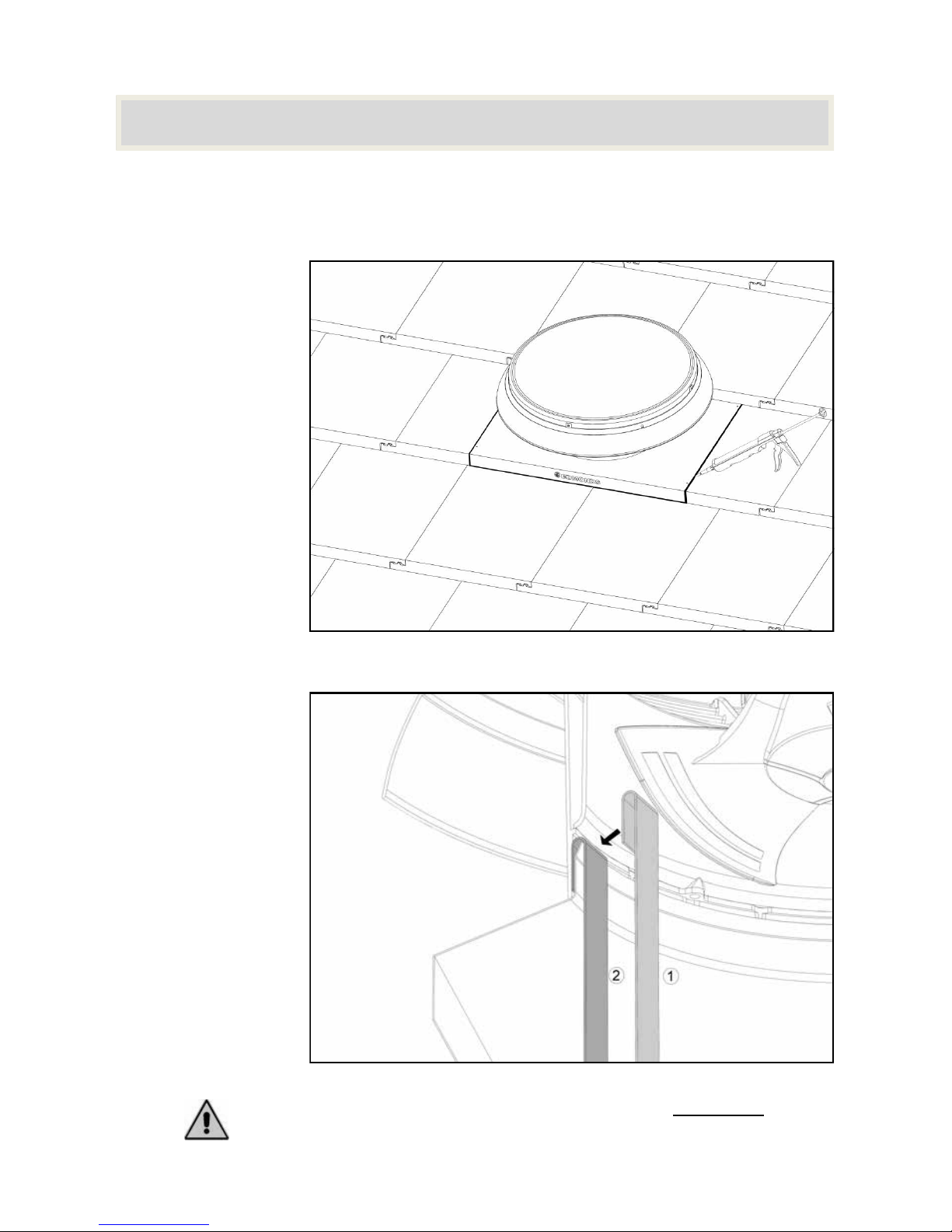

STEP 5
To ensure a
weatherproof
installation, apply
a bead of silicone
under the side
and front edges of
the flashing.
STEP 6
From within the
roof space, fit the
fixing strap by
hooking it
between the
flashing up stand
and the outer
housing.
The fixing strap
should be hooked
near to the cable
exit.
Ensure the fixing strap is seated firmly and that it DOES NOT
interfere with the fan

7
STEP 7
Take the fixing
strap and screw/
nail (not supplied)
it to the bottom
batten
The strap can be
deformed as
required to
achieve this.
For additional
weather proofing
turn the rear edge
of the flashing up
so that it seals
against the tiles
above.
Installation—Tiled Roof
Turning the rear of the flashing upwards allows it
to act as a gutter to prevent any wind driven
water from entering the roof space.

8
Installation—Metal Roof
STEP 1
Position the vent in
an appropriate
position and slip the
top edge of the
flashing under the
ridge capping.
Mark the centre of
each side to
determine where the
centre of the vent will
be.
Ensure the flashing covers the corrugations or ribs equally and that
it is located between the roof joists.
STEP 2
Remove the vent and
using the marks to
determine the centre
cut a 250mm square
opening.
Turn up corrugations
or pans around the
opening

9
Installation—Metal Roof
STEP 3
Place the vent back
on the roof by
slipping the top of
the flashing under
the ridge capping.
Line up the centre
marks made earlier
to ensure that the
vent is centred on
the opening
Ensure that the cable is through the opening and not caught under
the flashing.
STEP 4
Using a soft
hammer, carefully
dress the flashing
into the corrugations
of the metal sheet
profile.

10
Installation—Metal Roof
STEP 5
Lift the flashing
and run a bead of
silicone along the
underside of the
flashing, following
the edge along the
three exposed
sides.
STEP 6
Secure the flashing
to the metal sheeting
with Tek screws or
sealed rivets along
the 3 exposed edges
of the flashing.
Approximately 10
required (not
supplied)
The fixing strap is not required for metal roof installations and can
be discarded

11

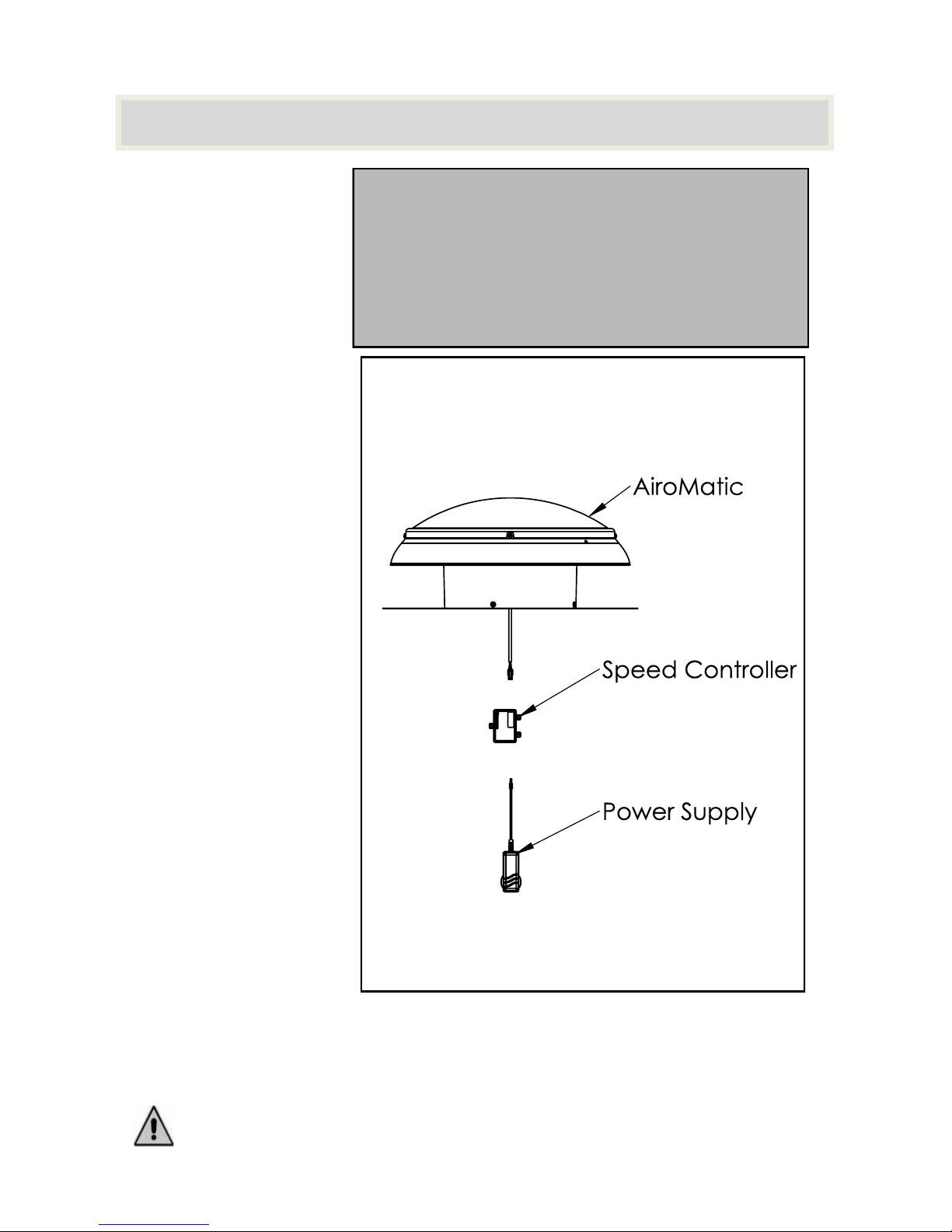

Installation—Electrical Connection
STEP 1
Connect the lead
coming from the
AiroMatic fan unit to
the speed controller
STEP 2
Connect the power
supply lead to the
speed controller
STEP 3
Connect the power
supply to a mains
socket. Turn on and
check fan runs
freely
STEP 4
Using either the
supplied screws or
cable ties mount the
speed controller on a
suitable piece of
structure that does not
place the controller in
either direct sunlight or
the airflow of the
AiroMatic™
STEP 5
Set the control mode by
pressing the button on the
side of the speed controller.
Ensure the power supply is not in contact with
damp or wet areas
How the connectors clip together

12

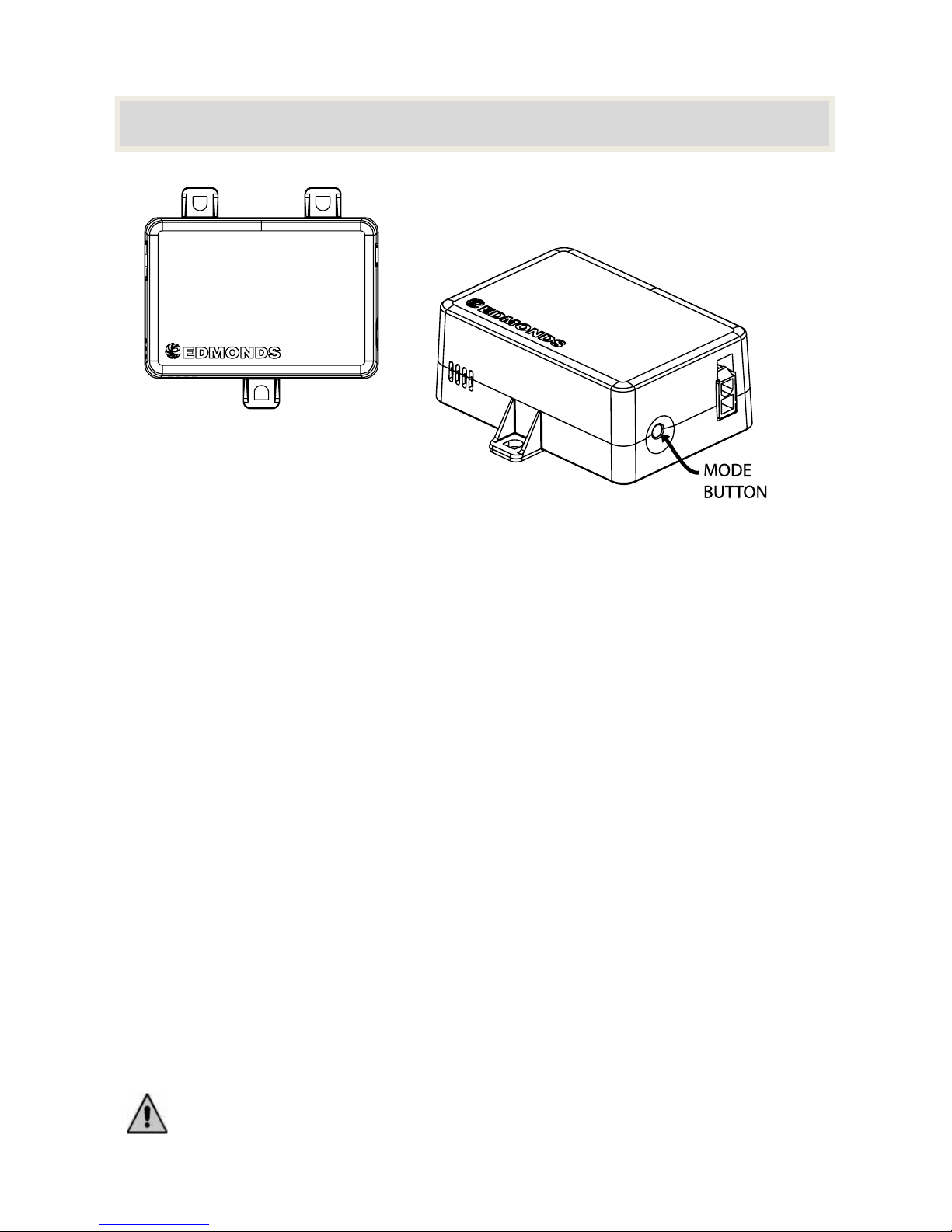

Installation—Speed Control Mode
The speed controller has 4 operating modes. These can be cycled
through by pressing the button on the speed controller.
The order of modes are: LO. MED. HI, AUTO. When engaging AUTO
mode the fan will speed up to full speed and then slow down to a
stop to provide feedback that AUTO has been selected. Once this
startup procedure is complete the fan will analyse the environment
and run at the appropriate speed.
MODES:
LO (Default) - Continuous operation, low speed, low flow rate,
very quiet, very low power consumption.
MED - Continuous operation, moderate speed, moderate flow
rate.
HI - Continuous operation, high speed, high flow rate.
AUTO - Variable speed. The AiroMatic will automatically
increase or decrease the speed of the fan depending on
roof cavity temperature (30°C - 45°C) and roof cavity
relative humidity (65%rH—80%rH).
In AUTO mode the AiroMatic will run based off the environmental
conditions. When the conditions are deemed suitable for no ventilation
the unit will enter power saving mode and the motor will not run.

13
Painting the Airomatic
STEP 1
Remove the 4
screws securing
the dome.
Lift the dome off
the Airomatic and
place on a soft
surface to prevent
marks or
scratches.
STEP 2
Remove the 4
screws securing
the flashing to the
Airomatic
housing.
Remove flashing
from Airomatic,
being careful not
to damage the
cable
WARNING: Do not disassemble the Airomatic unless you are confident
that you understand the process. Damage caused by incorrect
disassembly and reassembly can void the product warranty.

14
Painting the Airomatic
STEP 3
Turn the Airomatic
over and whilst
supporting the fan
housing remove
the 4 screws
securing it.
Be careful to
prevent the
housing from
dropping away as
the screws are
removed
STEP 4
Paint Airomatic
housing and
flashing and allow
to dry.
The plastic used for the Airomatic housing is suitable for painting with
standard spray paints without priming. The surface must be clean before
painting.

15
Painting the Airomatic
 Check that the cable is sitting in the notch of the flashing.
 Check that the fan is orientated correctly with the motor/fan
unit in exhaust configuration
 Check all screws are in place
 Check that the fan blades rotate freely and are not impeded
All screws should be hand tightened until snug. Do not over tighten screws
as this may cause them to strip out of the plastic
STEPS 5,6,7
Reassemble the
Airomatic using
the reverse of the
steps used to
disassemble.
When attaching
the flashing make
sure to align the
notch in the
flashing up stand
with the cable exit
STEP 8
Post assembly check.

16
Material:
Dome: Plastic (PMMA –Clear, High Impact)
Housing: Plastic (ASA)
Flashing: Aluminium (Soft)
Fan & Motor Housing: Plastic (PP-TD20)
Fan Impeller: Plastic (PA6-GF30)
Weight: 2.7 kg
Electrical:
Power Supply
Type: Electronic Switching Mode
Input: 100-240VAC, 1~, 50/60Hz, 2A
Output: 24 VDC
Fan Motor: Electronic Commutating (EC) motor
Input Voltage: 24 VDC
Protection Class: IP54
Speed Control
Type: Temperature & Humidity Sensing
Electronic Variable Speed Controller
Input Voltage: 24 VDC
Fixed Speed Operation: Three fixed speeds (LO, MED & HI),
manually selectable via button
Technical Data
Automac Variable
Speed Operaon:
Variable speed response relative to
environmental conditions of speed
controller location.
- See tech data sheet for additional
information.

17
Performance Data & Product Dimensions
Speed
Sound Pressure
Level (SPL) LA
@ psF=0
[dB(A)]
Max. running power
consumption [W]
Flow rate qv@ psF=0
[m3/hr]
LO 35.4 4 291
MED 45.1 12 434
HI 52.9 30 647
NOTE—Sound pressure level measured 1m from fan inlet

18
FAQ & Troubleshooting
Troubleshooting
Problem Possible Actions
Motor / Fan Not Running
Controller may be in AUTO Mode and may have
determined that no ventilation is necessary.
Change to LO to confirm controller is functioning
correctly
Check all connections are secure
Check power supply is plugged in
Check power point is turned on
Water leaks when raining
Check installation integrity
Reseal around edge of flashing
Q: Do I need an electrician to install the Airomatic?
A: If you have an available power point that can be reached then no
electrician is required. If a power point is unavailable then an
electrician will be required to install one.
Q: Can I wire it directly into the mains power?
A: No, you must use the supplied power supply and speed controller for the
Airomatic to work correctly. Failure to do so may damage the product.
Q: Can I duct the Airomatic?
A: Yes, however a suitable collar or adaptor would be required to
attach the ducting (Not Supplied). This must allow the cable of the
Airomatic to be passed through.
Q: Can I paint the Airomatic?
A: Yes, standard spray paint can be used to paint the Airomatic. No
plastic primer is required, however the surface must be clean before
paint application. Do not get any paint on the motor/fan module. The
Airomatic can be disassembled to facilitate easier painting. Instructions
for disassembly can be seen on pages 13-15 of this manual.

19
Edmonds | business division of CSR Building Products Limited ABN 55 008 631 356
10 Stanton Road, Seven Hills NSW 2147 Australia | www.edmonds.com.au
Contact Details
General Enquiries and Support
PH: 1300 858 674
Email: [e-mail]
Technical Ventilation Enquiries
PH: [phone]
March 2017
I-040-B
Please fill out for your reference in case support is required
Serial Number Purchase Date
__ __ __ __ __ __ __ __ __ __ __ __ / __ __ / __ __

edmonds.com.au
