EENOUR GC-1078 User manual

Please read the manual before using the detector.
GC-1078 Metal Detector
Owner’s Manual

01 INTRODUCTION ……………………………………………………………………01
02 FEATURES …………………………………………………………………………
01
03 EASY ASSEMBLY …………………………………………………………… 02-03
O4 INSTALLING THE BATTERIES …………………………………………….…… 04
05 USING HEADPHONES ………………………………………………………… 04
06 LAYOUT OF THE CONTROL PANEL …………………………………………… 05
07 CONTROL BUTTONS ……………………………………………………………06
08 SEARCH MODES ……………………………………………………………… 06-08
09 OPERATION ……………………………………………………………………… 09
10 TEST PROCEDURE
…………………………………………………………….
10
11 TROUBLE SHOOTING GUIDE
……………………………………………
11
12 WARRANTY
……………………………………………………………………
12
CONTENT
A-M(ALL METAL) MODE
DISC (DISCRIMINATION) MODE
NOTCH MODE
PP (PINPOINT) MODE

Thanks for choosing our GC-1078 metal detector. With this metal detector, you can
hunt for coins, relics, jewelry, gold, and silver just about anywhere. The detector
comes with high sensitivity and strong ability of discrimination.
LCD Display: Shows the probable type of metal, the depth of the target, range of
DISC, the level of VOLUME and SENS, as well as battery condition.
Three Tone Audio Discrimination: Sounds three distinctive tones (high, medium,
and low) for different types of metal.
Seven Controls:
• POWER: To turn on or turn off the power.
• SET: To adjust the sensitivity or volume level working with "+" or " -".
• DISC: To adjust the range of discrimination or eliminate undesired metal target.
• INCREASE (+): To increase the level of volume, sensitivity and the range of
discrimination working with SET or DISC.
• DECREASE (-): To decrease the level of volume, sensitivity and the range of
discrimination working with SET or DISC.
• PP: Pinpoints the location of the target accurately.
• BACKLIGHT: To turn on or turn off the backlight.
Headphone Jack: You can connect headphones of 3.5mm and operate without
trouble.
10"Waterproof Search coil: You can use the detector even if you must put it under
shallow water.
Adjustable Shaft: You can adjust the length of shaft for comfortable use.
Power: The detector requires two 9-volt alkaline batteries.
INTRODUCTION
FEATURES
010101

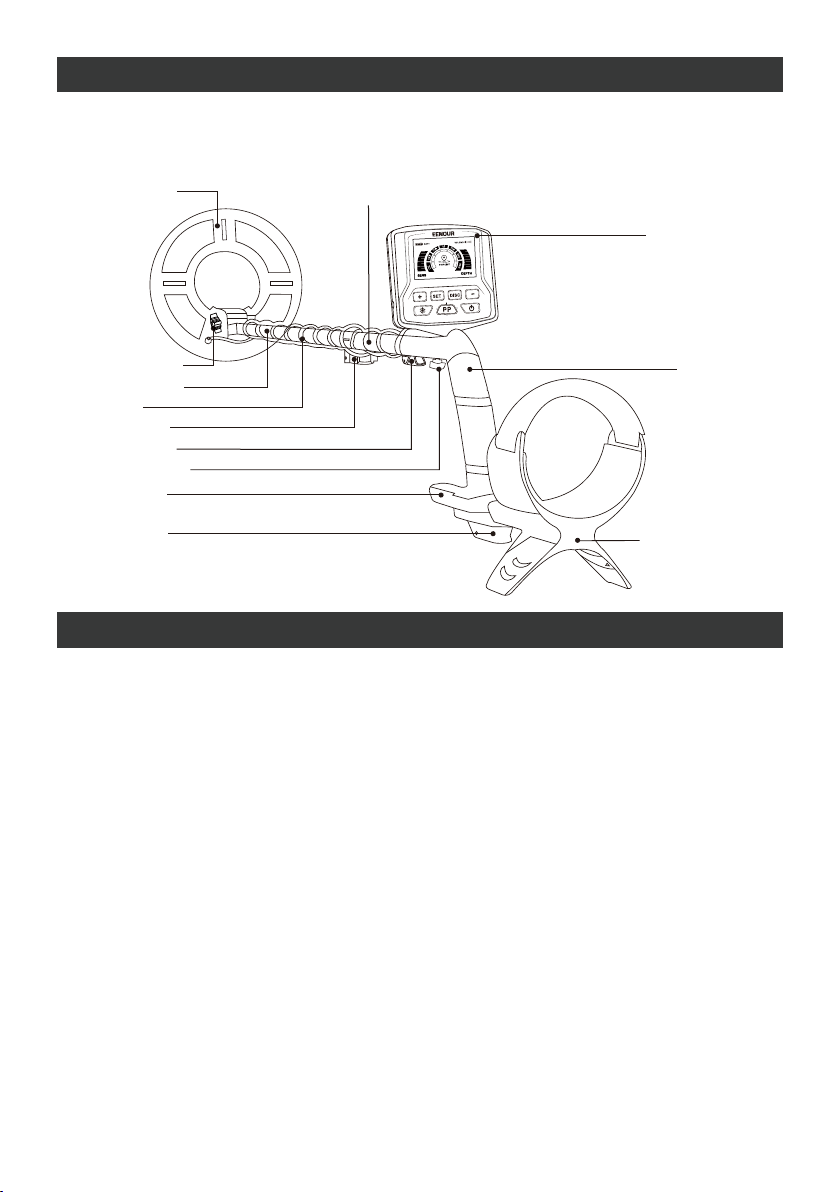

search coil
fixing screw
top stem
cam lock arm support
handle
control box
fixing knob
lower stem
middle stem
cable
cam lock
cam lock

STEP 1
Release the cam lock on the handle and insert
the middle stem into the top stem. Tighten the
cam lock.
STEP 2
Put the control box on the top of the handle.
Secure the control box by fixing the screw prop-
erly.
STEP 3
Release the cam lock on the middle stem and
insert the lower stem into the middle stem.
Then tighten the cam lock.
STEP 4
Unscrew the fixing knob on the lower stem and
remove the knob connector
STEP 5
Place the washers into the groove of the lower
stem.
cam lock
fixing
screw
handle
control box
middle stem
cam lock
lower stem
knob
connector
fixing knob
top stem
search coil
1
3
5
EASY ASSEMBLY
02
Assembling your detector is easy and requires no special tools.
2
4
Release
Release
Tighten
Tighten
JUST FOLLOW THESE STEPS:

STEP 6
Insert the stem and align the holes on the
search coil bracket and the stem.
STEP 7
Push the connector through the holes and tight-
en the knob.
STEP 8
Wind the search coil cable around the stem.
Insert the search coil’s cable plug into the
five-pin jack at the back of the control box and
tighten the nut properly.
CAUTIONS:
• Do not over-tighten the search coil or use tools such as pliers to tighten it.
• The search coil’ s plug fits into the connector only in one way. Do not force the
plug and do not pull on the cable or you could damage it.
8
STEP 9
Release the cam lock on the top stem, adjust the stem length as you need and then
tighten the lock.
03
6
7
search coil
fixing screw
top stem
cam lock arm support
handle
control box
fixing knob
lower stem
middle stem
cable
cam lock
cam lock

Note: The detector will maintain full performance until the batteries need to be
replaced. Replace batteries when there is no segment remaining on the battery
level indicator. Alkaline batteries should be used.
Warning: Dispose of old batteries properly. Never bury or burn them.
Cautions:
• Use only fresh alkaline batteries of the required size.
• Do not mix the old and new batteries or different types of batteries.
• If you don’t plan to use the detector for a week or more time, remove the batter-
ies. Batteries can leak chemicals that can destroy electronic parts.
1. It is recommended to choose the headphones with volume control.
2. Insert the headphones’ 3.5mm plug into the headphone jack on the left side of
the control box. At this time the internal speaker disconnects.
Note: As the light consumes more power, it’s better to turn off the backlight in a
normal environment.

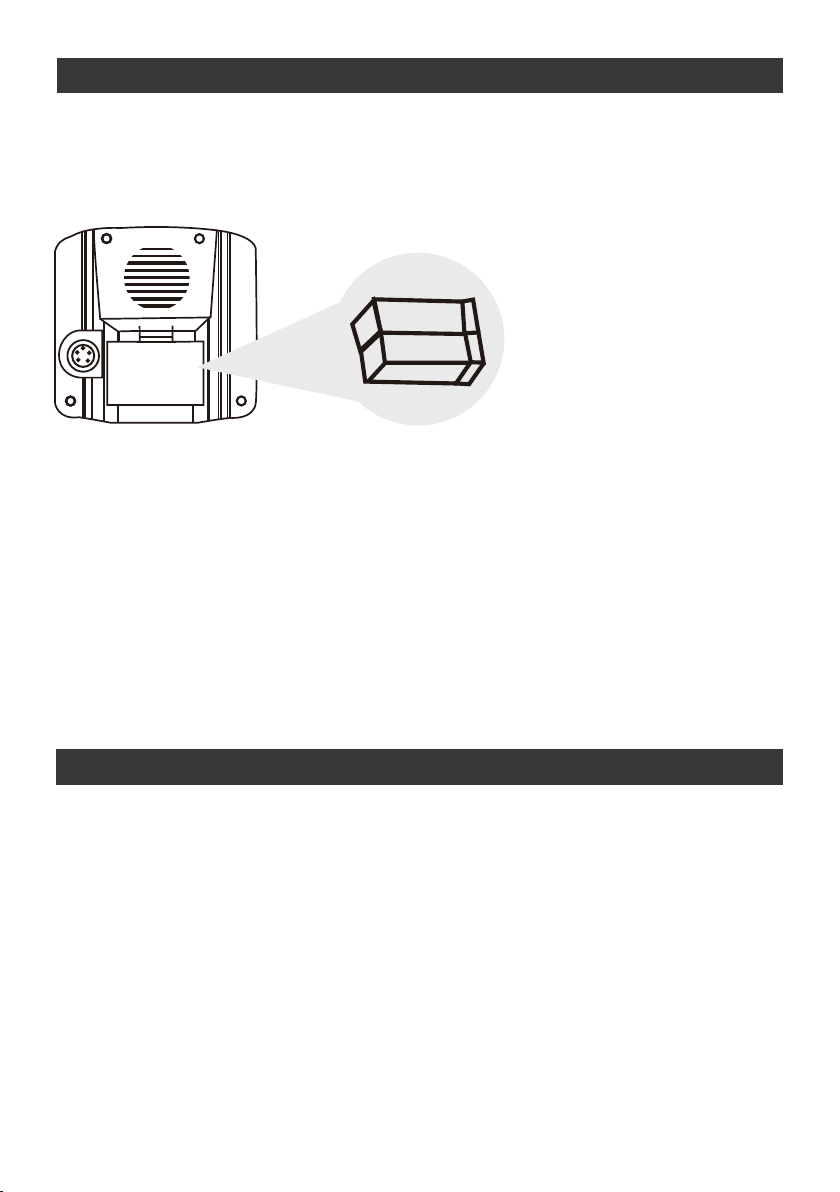

1. Turn off the power before installing the batteries.
2. Take the battery cover off.
3. Place two 9V alkaline batteries into the battery compartment matching the po-
larity symbols ("+ "and "-") marked inside.
INSTALLING THE BATTERIES
04
USING HEADPHONES ( NOT INCLUDED)

LOW BATT
Indicator
DISC/NOTCH
INDICATOR
SENSITIVITY
Indicator
INCREASE
Control button
SET
Control button
BACKLIGHT
Control button
VOLUME
Indicator
TARGET ID
COIN DEPTH
INDICATOR
LOW BATT
Indicator
DISC/NOTCH
Indicator
SENSITIVITY
Indicator
VOLUME
Indicator
TARGET ID
COIN DEPTH
Indicator
DECREASE
Control button
POWER
Control button
PINPOINT
Control button
DISC/NOTCH
CONTROL BUTTON
05
LAYOUT OF THE CONTROL PANEL
LCD DISPLAY

POWER: Press the button to power on the detector. Press it again to power
off the detector.
SET: Press the button to set the level of sensitivity or volume.
DISC: Press the button to set the discrimination range working with "+" or "-".
BACKLIGHT: Press it to turn on the backlight. Press it again to turn the light
off
Note: As the backlight consumes more power, it’s better to turn off it in light
places.
INCREASE: Press it to increase the level of sensitivity or volume and the
range of DISC (discrimination).
DECREASE: Press it to decrease the level of sensitivity or volume and the
range of DISC (discrimination).
PP: Press it to find the precise target location at any time.
Note: Search coil motion is not required, a motionless search coil over a
metal target will induce sound.
The detector includes four search modes: A-M (ALL METAL), DISC, NOTCH,
PINPOINT, and MEMORY function. Select the mode that suits the targets you hope
to find.
01 A-M(ALL METAL) MODE
PP
+
-
SET
DISC
CONTROL BUTTONS
SEARCH MODES
This mode is designed to detect all types of
metal.
If you don’t set the discrimination range or elimi-
nate any metal target, there will not be a cross
mark in the blank frame under any metal target
icon. In this case, the detector can detect all
kinds of metal. When the detector finds metal, it
sounds and the target icon flashes. Meanwhile,
LCD displays the depth of the target.
06

02 DISC (DISCRIMINATION) MODE
The DISC mode can eliminate the unwanted metal targets in sequence and works
with “+” or “-”.
03 NOTCH MODE
You can eliminate the unwanted target(s) in sequence from left to right. Press
DISC, the blank frame below the target icon flashes. Then press “+”. Press DISC
again to confirm the elimination. At this time, a cross mark will appear in the
frame below the unwanted target icon which means this target will not be detected
by the detector. For example, if you don't want iron, press DISC, the blank frame
below the nail icon flashes. Then press DISC again. A cross mark will appear in the
frame. In this case, the detector will have no response to iron.
The NOTCH mode can freely eliminate the unwanted metal targets and works with
“+” or “-”.
You can also choose any unwanted metal target by pressing "+" or "-" to move the
cursor to the unwanted metal icon. Then press DISC again to confirm the elimina-
tion. A cross mark will appear in the frame below the eliminated target icon. The
detector will not detect such a target.
Note:
• Users can choose several targets to be eliminated by using DISC and NOTCH
mode. But silver target such as 50 cents coin or 25 cents can’t be eliminated.
Because they are valuable.
• To recover the eliminated target ID, simply move the cursor to the relative target
icon by pressing "+" or " -" and press DISC again. Then the cross mark will disap-
pear.
07

04 PP (PINPOINT) MODE
After you find a metal object, you can use PP to find the exact location of the target.
a. Press and hold the PP button, PINPOINT icon on the LCD flashes. When LCD
displays steady PINPOINT, you can start to move the search coil slowly above the
sound area. If the detector finds the target, it sounds a tone and the target icon
flashes. Meanwhile, the depth of the target is displayed on LCD.
b. Press the PP button again. After PINPOINT displays steady, sweep the search
coil, keeping the same distance search coil, the sound disappears. Closer the
search coil to the sound area, the detector sounds again.
Note:Repeat the above steps until the detector displays the constant signal where
the location of the target is.
MEMORY FUNCTION
ADJUSTING SENSITIVITY
Press SET, SENSITIVITY indicator flashes. Then press "+" or "–" to set the
desired sensitivity level.
Note:
• Cell phones, cell phone towers, and all produce interference signals will cause the
detector to beep when no metal is present, and sometimes to beep erratically.
• If the detector beeps erratically or beeps when there are no metal objects being
detected, reduce the sensitivity.
ADJUSTING VOLUME
Press SET twice, VOLUME indicator flashes. Then press “+ ”or “– ” to set the
desired volume level.
08
The detector will automatically memorize your settings until you reset them.

OPERATION
Hold the search coil level to the ground about 1~2 inches above the surface, and
slowly move the search coil over the area where you placed the sample, sweeping
the search coil in a side-to-side motion.
ADJUSTING SENSITIVITY
Press SET, SENSITIVITY indicator flashes. Then press "+" or "–" to set the
desired sensitivity level.
Note:
• Cell phones, cell phone towers, and all produce interference signals will cause the
detector to beep when no metal is present, and sometimes to beep erratically.
• If the detector beeps erratically or beeps when there are no metal objects being
detected, reduce the sensitivity.
ADJUSTING VOLUME
Press SET twice, VOLUME indicator flashes. Then press “+ ”or “– ” to set the
desired volume level.
Never sweep the search coil as if it were a pendulum. Raising the search coil
while sweeping or at the end of a sweep will cause false readings.
Sweep slowly, being hurry will cause you to miss targets.
01
02
03 It’s better to sweep the search coil from side to side in an arc line of 3 inches
motion and keep the search coil parallel with the ground.
If the detector detects the item, it sounds a tone, and the target icon flashes. Mean-
while, LCD displays the depth of the target.
If the detector does not detect the item, make sure that the DISC (discrimination) is
set correctly for the type of metal you’re searching for. Please also make sure that
you’re moving the search coil correctly.
Note:
• The detector responds with a signal when it detects the most valuable metal
objects. If a signal does not repeat after you sweep the search coil over the target
a few times, the target is probably junk metal.
• False signals can be caused by trashy ground, electrical interference, or large
irregular piece of junk metal.
• False signals are usually broken or non-repeatable.
• If you are using a coin, the detector will detect it more easily when the coin's flat
side is parallel with the flat side of the search coil. Otherwise, a sweep with the side
of the coin over the search coil might cause a false indication or an unstable target
display.
wrong
correcct
1-2inch
3ft/soc 3ft/soc
09

TEST PROCEDURE
Note: There is a wide variety of metals and no target can be identified for certain
until unearthed. This table is for general reference only.
FACTORS THAT AFFECT THE DETECTING
It’s difficult to have an accurate detecting result. Sometimes the detection may be
restricted by some factors:
• The angle of the target buried in the soil.
• The depth of the target.
• The level of oxidation of the target.
• The size of the target.
• Electromagnetic and electrical interference surrounding the target.
Note: Areas of highly mineralized ground, fertile ground, or wet sand, the detector
will sound even if there is no metal. In this case, you can lower the sensitivity.
Meantime enhance the distance between the search coil and the ground. Metallic
digging tools will also affect the detection if they are near the search coil. It’s better
to place them a little far away.
Turning on the detector
Find a ground without metal Place the test metal
Setting DISC Adjusting sensitivity
Start testing
Target Iron 5-cent
Pull tab
S-caps
Jewelry
1cent/zinc
S-caps
10-cent
Copper
25-cent
Silver
coin
50-cent
Silver
coin
110 25 50
5
TARGET INDICATIONS
10
High High HighMedium Medium MediumLow
ID
Display
(flash)
Tone

TROUBLESHOOTING GUIDE
The detector
displays and
sounds
without
detecting any
target
The detector
sounds false
signals
The detector
does not
detect
anything
LCD displays
multiple targets
categories or
emits several
sounds at once
The detector
does not
function
1.The detector may
receive interference
and a false signal from
the broadcast antenna
and other electronic lines.
2.The humidity of the
environment may be
extremely high.
1.Change searching
place.
2.Wait for some time to
check again.
1.Reduce sensitivity.
2.Sweep the search coil
more slowly and hold the
detector correctly.
3.Keep two detectors at
least 6 meters (20’ )
apart.
1.Reduce the sensitivity
to eliminate the detection
of the deeper target.
2.Sweep the search coil
with different angles.
1.Increase sensitivity
2.Recover all target
range.
3.Adjust the search coil
angel to be parallel to the
ground.
1.Re-plug it properly.
2.Replace batteries.
1.Sensitivity set too high or
environmental
electromagnetic
interference.
2.Sweeping the detecto’ s
search coil too fast or at a
wrong angle.
3.Using 2 detectors in
close proximity.
1. Sensitivity set too low
2.Target range is elimi-
nated.
3.Search coil is not
parallel to the ground.
1.Five-pin cable not
connected well.
2.Dead battery.
1.There may be more than
one kind of metal targets.
2.The detector can’ t
identify the target.
Sometimes, oxidized
metal also causes the
excursion of target arrow
and tone.
11
Problems Reasons Suggestions

WARRANTY PERIOD
The warranty period is 24 months. In each case, the warranty period is measured
starting on the date of purchase by the original consumer purchaser. The sales
receipt from the first consumer purchase, or other reasonable documentary proof,
is required in order to establish the start date of the warranty period.
If you experience any problems, please feel free to contact us at support@EE-
NOUR.com. EENOUR offer a lifetime friendly consumer service. Any issues can
get response within 24 hours.
WARRANTY
CONTACT US
12
Made in China
www.eenour.com
E-mail:[e-mail]
