Atonm MDSC-1000B User manual

User Manual for MDSC-1000B
Metal Double-sheet Detector
Atonm (Guangzhou) Intelligent Technology Co., Ltd.

MDSC-1000B 使用指南
2
I. Introduction to MDSC-1000B
Thank you for purchasing MDSC-1000B series metal double-sheet detectors
independently developed and manufactured by Atonm (Guangzhou) Intelligent
Technology Co., Ltd.. The product is mainly used in automatic feeding system of
various industries to detect the thickness difference of various kinds of metals (such
as aluminum sheets, iron sheets, copper sheets, stainless steel sheets, etc.) and can
effectively prevent double-sheet or multiple sheets together being sent to the next
process, so as to avoid the damage to the equipment. This product is composed of
two parts: detecting host and sensors.
This manual is mainly to describe the specifications, properties, and using
methods, etc. of MDSC-10000B series metal double-sheet detectors. Before using the
product, please carefully read this manual, so as to clearly know the properties of the
product and safely use it.
II. Safety cautions
◆Please ensure the operating environment suitable to the limiting conditions as
Sensors
Host

MDSC-1000B 使用指南
3
stipulated in the hardware specifications (Refer to the “parameters and properties” for
details);
◆Please don’t install the product in such places where the magnetic filed is too
strong, or there is direct sunlight or high temperature, or strong mechanical vibration.
And don’t use the product in the places where there exist inflammable gases, or
vapour, or dusts. Otherwise, explosion hazard may occur;
◆Please don’t use the product in the environment where drastic temperature change
may occur or the humidity is very large. Otherwise, condensed water may be
produced in the interior of the equipment and causes damage to the product;
◆Please ensure that all the cable joints be firmly connected to this product. In case
of loose connection, the wrong input or output signals may be generated;
◆During usage, it is not allowed to use any tool to contact the display panel. Any
damage to the panel due to over external force should be borne by the user;
◆To avoid being electric shocked, please first cut off the power source before
connecting the product to its power supply;
◆The input voltage of the product is DC24V±20％. Please regularly check whether
the DC power is stable or not;
◆The port of NPN and PNP can only be connected to the DC system less than 48V;
◆The sensor’s wire routing should be separated from that of the power line,
especially when the wiring place has strong interference caused by frequency
converter, etc.
III. Parameters and properties of the product
Product name
MDSC-1000B metal double-sheet detector
Host size
132mm * 116mm * 48mm
Hole size
121mm * 105mm
Sensor size
Rectangular sensor: 45mm * 30mm * 12mm, with

MDSC-1000B 使用指南
4
standard configuration of 5m cables
Circular sensor: 18mm (Diameter) * 50mm(Length), with
standard configuration of 5m cables
Circular sensor: 30mm (Diameter) * 65mm (Length), with
standard configuration of 5m cables
Input voltage
DC24V/500mA
Control output
1. NPN single and double-sheet switch signal output,
maximum drive: 50mA/48V
2. PNP single and double-sheet switch signal output,
maximum drive: 50mA/48V
3. double-sheet relay signal output (Normally open),
maximum: 1A/60VDC
Note: The switch signal output width of the single and
double sheets is more than 50ms.
Testing materials
Steel sheets, iron sheets, copper sheets, aluminum sheets,
zinc-plated sheets, and stainless steel sheets, etc.
Testing thickness
0.05~4.5mm for iron sheets, copper sheets and
stainless steel sheets, 0.1~10mm for aluminum sheets
Response speed
0~1200Pcs/min
IV. Panel and function description of the product

MDSC-1000B 使用指南
5
单张：Single sheet 频道：Channel
双张：Double-sheet 幅度：Amplitude
返回：Return 确认：Confirm
自动调节：Automatic adjustment
零张设定：Zero sheet setting
单张设定：Single sheet setting
双张设定：Double-sheet setting
零张：Zero sheet 单张：Single sheet 双张：Double-sheet
(1) LED display
Items
Content
displayed
Description
Single sheet
sensitivity
0~99
Adjusting the identifying sensitivity between zero
sheet and single sheet; adjustable under setting mode;
the bigger the number, the higher sensitivity.
Double-sheet
sensitivity
0~99
Adjusting the identifying sensitivity between single
sheet and double sheets; adjustable under setting
mode; the bigger the number, the higher sensitivity.
Key operation
LED display
LED indicating

MDSC-1000B 使用指南
6
Channel
display
0~23
Displaying the present selected channel; automatic
selecting and unadjustable.
Amplitude
display
0~99
Displaying the present signal output Amplitude;
automatic selecting and unadjustable.
Signal
Amplitude
bars
0~16
grids
Displaying the metal signal value that has been
detected; the more grids, the stronger of the signal.
(2) Operating functions of the keys
Name of keys
Function description
Confirm
1. Long press it for 3s and enter the setting mode (including
automatic adjustment and study modes). Then the LED screen
is lighted, and the electric control outputs of the
NPN/PNP/RELAY are prohibited. Shortly press it to confirm
the current operation;
2. Under setting mode, Shortly press the "Confirm" key and
the single-sheet/double-sheet sensitivity can be chosen and set;
3. Under study mode, Shortly press the "Confirm" key and the
current study data can be saved.
Return
1. Cancel the previous operation;
2. Under setting mode, long press it for 3s to exit the setting
mode and enter the working state.
Up/+
Shortly press the corresponding set value to add 1, and long
press the set value to continuously add.
Down/-
Shortly press the corresponding set value to subtract 1, and
long press the set value to continuously subtract.

MDSC-1000B 使用指南
7
Auto
adjustment
Shortly press the "Auto adjustment" key and enter the
automatic adjustment mode.
Zero-sheet
Setting
Without metal sheets being placed, Shortly press the
"Zero-sheet setting" until the Zero-sheet LED flickeres and
enter the zero-sheet study mode. Press the "Confirm" key to
save.
Single-sheet
Setting
1. Under Auto adjustment mode: Place one single testing metal
sheet and Shortly press the "Single-sheet setting" key, and then
the 3 LED lamps flicker. Waiting for a few seconds until only
the Double-sheet LED flickering, then the single-sheet
automatic adjustment is completed.
2. Under dynamic learning mode: Shortly press the
"Single-sheet Setting" and the Single-sheet LED will flicker. At
the time the feeding control system will convey one testing
metal sheet. After finishing the convey, press the "Confirm"
key to save.
Double-sheet
Setting
1. Under Auto adjustment mode: Place double testing metal
sheets and Shortly press the "Double-sheet Setting" key, and
then the 3 LED lamps flicker. Waiting for a few seconds until
the three LED lamps are continuously lit, then the double-sheet
automatic adjustment is completed.
2.Under dynamic learning mode: Shortly press the
"Double-sheet Setting" and the Double-sheet LED will flicker.
At the time the feeding control system will convey two stuck
metal sheets for test. After finishing the convey, press the
"Confirm" key to save.

MDSC-1000B 使用指南
8
Notes: All the pressing keys can only be operated after long pressing the "Confirm"
key to enter the setting mode. Otherwise, it is void!
(3) LED indication
LED is used to indicate the real-time testing state of the sensors. When it is zero
sheet, the blue LED is on; when it is single sheet, both the blue and green LED lamps
are on; when it is double-sheet, all the blue, green and red LED lamps get
illuminated.
Under study mode, the corresponding LED indicating lamps flickering means
that they are undergoing study at their corresponding states.
V. Installation and wiring instructions
(1) Host installation
Open a rectangular hole of 121mm * 105mm in the equipment panel at the
installation position and put the testing host into it. Then insert the fixing clumps at
the hole opening position of the top and bottom sides of the host and tighten the
screws.
(2) Installation of sensors
It is suggested that the sensors for the metal double-sheet detector be installed
on the metal or plastic supports as shown in the diagram: the transmitting port T is at
the bottom and the receiving port R is at the top; the working sides (with black
circular plate) are installed at opposition. The distance between the working sides
allowed is 30~50mm and 40mm is recommended. When the testing sheet is relatively
thick (The magnetic material whose thickness is over 2mm.) or its area is relatively
small (Its diameter is less than 10cm), the distance can be adjusted to 30mm; when
the testing sheet is thin (such as the non-magnetic material is less than 0.5mm), the
distance can be adjusted to 50mm.
When material feeding is being tested, the testing metal sheets should pass

MDSC-1000B 使用指南
9
through the valid induction area (at least it should approximately align with the
internal edge of the sensor, or more deeper into the area). The installation position is
recommended as the following diagram.
Note: Net space is required for the sensors' facing area and can't be sheltered by
other metals.
(3) Wiring diagram
Position No.
Wiring description
1,2
DC power input, DC24V±20%; Recommending 24V/500mA
3,4,5
Double-sheet signal output of the Relay (NO position), maximum:
1A/60V
6,7,8
NPN single-sheet/double-sheet signal output, maximum drive:
50mA/48V; PLC or Driving relay can be connected.
9,10,11
PNP single-sheet/double-sheet signal output, maximum drive:
50mA/48V; PLC or Driving relay can be connected.
12,13,14
Transmitting sensors (T), 12 connecting to the red terminal, 13
connecting to the blue terminal, and 14 connecting to the black
terminal.
15,16,17
Receiving （R）sensors, 15 connecting to the red terminal,
16connecting to the blue terminal, and 17 connecting to the black
terminal.
Induction area
Ø4mm through-hole
Distance

MDSC-1000B 使用指南
10
双：Double 单：Single 双：Double 单：Single
红：Red 蓝：Blue 黑：Black 红：Red 蓝：Blue 黑：Black
(4) Electric control wiring diagram
（i）Connection of PNP/NPN ports to relays to realize various controls
单张：Single-sheet 双张：Double-sheet 单张：Single-sheet 双张：Double-sheet
主机 NPN 接口：Host NPN Ports 主机 PNP 接口：Host PNP Ports
(ii) Connection of PNP/NPN ports to PLC to realize various controls
+
+
-
-

MDSC-1000B 使用指南
11
接PLC 正极(+V)：Connecting PLC Positive Pole (+V)
接PLC(单张)输入端：Connecting PLC (single-sheet) input port
接PLC(双张)输入端：Connecting PLC (double-sheet) input port
主机 PNP 接口：Host’s PNP port
接PLC 负极(-V)：Connecting PLC Negative Pole (-V)
接PLC(单张)输入端：Connecting PLC (single-sheet) input port
接PLC(双张)输入端：Connecting PLC (double-sheet) input port
主机 NPN 接口：Host’s NPN port
(iii) Outputs of RELAY ports to realize various controls
COM(公共端): COM (Common terminal)
NC(常闭): NC (Normally close)
NO(常开): NO (Normally open)
(双张信号): (Double-sheet signal)
主机 RELAY 接口：Host’s REALY Ports

MDSC-1000B 使用指南
12
VI. Host debugging procedures
Preparations: Install the testing host and sensors well as request and connect the
electric wires. Switch on the power, and the LCD displays normally, which means
that the host is under the working mode. If all the parameters have been set earlier
and the metal sheets conveyed remain unchanged, then the host can directly work.
Otherwise, the setting should be done as the following procedures.

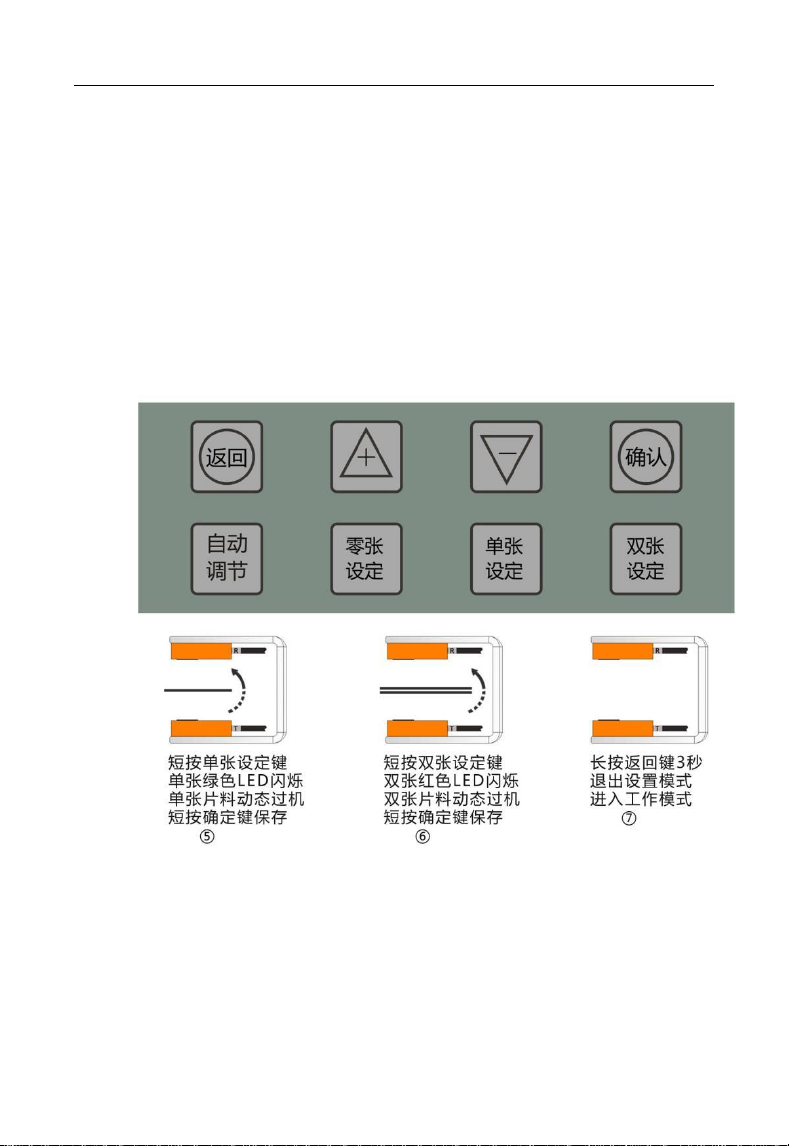

(i)Auto adjustment
返回：Return 确认：Confirm
自动调节：Auto Adjustment 零张设定：Zero-sheet Setting
单张设定：Single-sheet Setting 双张设定：Double-sheet Setting
长按确认键 3秒，短按自动调节键，单张 LED 闪烁，进入自动调节模式：
Long press the Confirm Key for 3s; Shortly press the Auto Adjustment Key; the Single-sheet LED
flicks; enter theAutoAdjustment mode.
静置一张片料，短按单张设定键，等到双张 LED 闪烁，移开片料：

MDSC-1000B 使用指南
13
Place a metal sheet and Shortly press the Single-sheet Setting Key. Until the Double-sheet LED
flickers, move away the metal sheet.
不放片料，短按零张设定键，短按确定键保存，长按返回键退出：
Do not place the metal sheet, and press the Zero-sheet Setting Key. Shortly press the Confirm Key to
save and long Press the Return Key to exit.
①Long press the “Confirm”key for 3s until the LCD gets illuminated, and
then the setting mode is entered. Shortly press the “Auto Adjustment”key. At the
time the “Single-sheet”indicating lamp flickers and the automatic adjustment mode
is entered.
②Let the feeding control system convey one metal sheet to the middle of the
sensors and stop. At the time the largest area of the metal sheet lies in the center of
the sensors (If it cannot be realized by the feeding control system, the operator can
also manually take one metal sheet into the center of the sensors. The position where
the metal sheet being placed should be consistent with that made by the feeding
control system as much as possible.). Shortly press the “Single-sheet Setting”key
and only until the “Double-sheet”red indicating lamp flickers can the single metal
sheet be moved away. Then the single-sheet adjustment has been completed.
③Let the feeding control system convey two metal sheets together to the
center of the sensors (If it cannot be realized by the feeding control system, the
operator can also manually take one metal sheet into the center of the sensors. The
position where the metal sheet being placed should be consistent with that made by
the feeding control system as much as possible.). Shortly press the “Double-sheet
Setting”key and until the three LED indicating lamps get illuminated move away the
double-sheet. Then the double-sheet adjustment has been completed.
④Move away the metal sheets and let the middle of the sensors not be sheltered.
Shortly press the “Zero-sheet Setting” key, and at the time the “Zero-sheet”
indicating lamp flickers. Shortly press the “Confirm” key to save and then the

MDSC-1000B 使用指南
14
zero-sheet setting has been completed. Long press the “Return” key to exit the auto
adjustment mode and enter the working mode.
(ii) dynamic learning (not a must)
If the operation effect is not idea after the auto adjustment has been done, such
as too many wrong reports and missing inspections, etc. (especially when the metal
sheets appear up-and-down moving phenomenon during detecting, it is difficult to
control the dynamic learning.). Therefore, suggest increasing dynamic learning after
finishing the auto adjustment.
返回：Return 确认：Confirm
自动调节：Auto Adjustment 零张设定：Zero-sheet Setting
单张设定：Single-sheet Setting 双张设定：Double-sheet Setting
短按单张设定键，单张绿色 LED 闪烁，单张片料动态过机，短按确定键保
存：
Shortly press the “Single-sheet Setting”key and the Single-sheet green LED

MDSC-1000B 使用指南
15
flickers. Then the single metal sheet passes through the equipment under dynamic
conditions. Shortly press the “Confirm”key to save.
短按双张设定键，双张红色 LED 闪烁，双张片料动态过机，短按确定键保
存：
Shortly press the “Double-sheet Setting”key and the Double-sheet red LED
flickers. Then the double metal sheets pass through the equipment under dynamic
conditions. Shortly press the “Confirm”key to save.
长按返回键 3秒，退出设置模式，进入工作模式：
Long press the “Return”key for 3s to exit the setting mode and enter the
working mode.
⑤Under the setting mode (Long press the “Confirm” key for 3s.), shortly press
the “Single-sheet Setting” key, and at the time the “Single-sheet” green indicating
lamp flickers. The feeding control system normally conveys a metal sheet to pass
though the equipment (under dynamic conditions to pass through the equipment).
Shortly press the “Confirm” key to save, and the single-sheet dynamic learning is
completed.
⑥Shortly press the “Double-sheet Setting” key and at the time the
“Double-sheet” red indicating lamp flickers. The feeding control system normally
convey two metal sheets that they are stuck together to pass through the equipment
(under dynamic conditions to pass through the equipment). Shortly press the
“Confirm” key to save and the double-sheet dynamic learning is completed.
⑦Completing the setting: Long press the “Return” key for 3s, and the backlight
of the LCD is power off, which means the setting mode has been exited and the
working mode enters. So far, the setting has been completed and the detecting work
can be done. Each time when the metal sheet has changed its specification or the
position of the feeding material appears big change, it is required to adjust the
equipment once more.

MDSC-1000B 使用指南
16
(iii) Manual setting (not a must)
If you feel single-sheet or double-sheet detecting is not sensitive enough or too
sensitive, then you can long press the “Confirm”key for 3s to enter the setting mode.
After that shortly press the “Confirm”key, then the numbers beside the
“Single-sheet”on the LCD will flicker. At this time, you can press “Up”or “Down”
key to adjust the sensitivity value of the single-sheet. The bigger the number, the
higher sensitivity. Then press the “Confirm”key to save the sensitivity setting of the
single-sheet and turn to the sensitivity setting for the double-sheet. At the moment,
the numbers beside the “Double-sheet”on the LCD flickers. The sensitivity
adjustment of the double-sheet can be done as that of the single-sheet. After finishing
adjustment, press the “Confirm”key to save. And during the sensitivity adjustment
for the single-sheet or double-sheet, you can press the “Return”key to exit
adjustment and resume the previous sensitivity setting.
Notes: During sensitivity adjustment for the single-sheet or double-sheet,
that is, when the numbers on the LCD are flickering, the seven steps ①~⑦
cannot be done. Non-professionals are not suggested to operate the manual
sensitivity setting.
VII. Warranty agreement
1. The warranty period for this product is 18 months and subject to the equipment’s
bar code. If the product breaks down or appears damage under normal operation as
described in the User Manual, our company shall take the responsibility of
free-charge repair and maintenance of the product.
2. Within the warranty period, if the damage to the product is caused by the following
statements, certain amount of repair and maintenance fees shall be charged.
●The damage to the product is due to wrong usage or at-will dismantlement, repair,
maintenance and remolding of the product;

MDSC-1000B 使用指南
17
● The damage to the product is caused by fire disaster, flooding, abnormal voltage,
other natural disasters and secondary disasters, etc.;
● The damage to the product’s hardware is due to man-made drop or transportation
after the product has been purchased;
●The damage to the product is caused by operating not in compliance with the User
Manual provided by our company;
● The breakdown or damage is caused by the troubles out of the product itself (such
as the peripheral equipment problems).
3. Should you find any problem in our service process, please timely contact our
company;
4. If the customer purchased this product, it means that the customer has agreed to
this Warranty Agreement, whose interpretation rights shall belong to Atonm
(Guangzhou) Intelligent Technology Co., Ltd.
Contact us
Should you encounter any problem or have any requirement in the course of
using the product, please don’t hesitate to contact the technicians of Atonm
(Guangzhou) Intelligent Technology Co., Ltd. by calling the hot line: 400 0088 976.
