Efitment E006 User manual

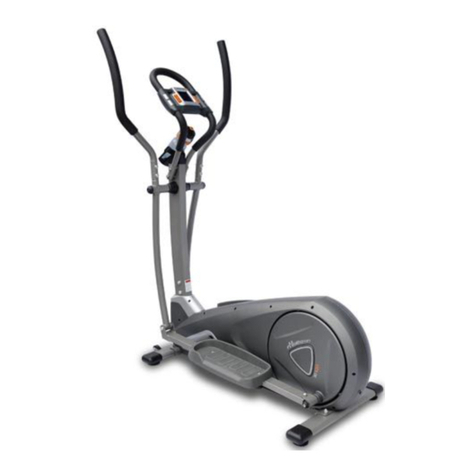

E006 MAGNETIC ELLIPTICAL BIKE
USER MANUAL
IMPORTANT! Read all instructions carefully before using this product. Save this user
manual for future reference. For customer service, contact: [e-mail]

IMPORTANT SAFETY NOTICE
Note the following precautions before assembling and using the machine.
1. Assemble the machine exactly as described in the instruction manual.
2. Check all the bolts, nuts and other connections before using the machine for the first time
to ensure the machine is in the safe condition.
3. Set up the machine in a dry level place and keep it away from moisture and water.
4. Place a suitable base (e.g. rubber mat, wooden board etc.) beneath the machine in the
assembly area to avoid dirt.
5. Before beginning exercise, remove all objects within a radius of 4 feet from the machine.
6. Only use the supplied tools or suitable tools of your own to assemble or repair the
machine.
7. Your health can be affected by incorrect or excessive exercise. Consult a doctor before
beginning your exercise program. This machine is not suitable for therapeutic purpose.
8. Only use the elliptical when it is working correctly. Use only original spare parts for any
necessary repairs.
9. This machine can be used by one person at a time.
10. Wear clothes and shoes that are suitable for fitness training with the machine. Do not
wear clothing that could get tangled in the machine.
11. If you have a feeling of dizziness, sickness or other abnormal symptoms, please stop
training and consult a doctor immediately.
12.This elliptical is intended for adult use only. Keep children away from the elliptical.
13.Do not put fingers or objects in the moving parts of the machine.
14.Remove drops of sweat from the machine immediately after finishing training.Do not use
aggressive cleaning articles to clean the machine.
15. Maximum user’s weight is 220 LBS.
CAUTION: Your bike was not designed for reverse pedaling. Reverse pedaling will damage
the bike.
WARNING: This product can expose you to one or more chemicals known to the
State of California to cause cancer and birth defects or reproductive harm. For
more information go to www.P65Warnings.ca.gov.
1

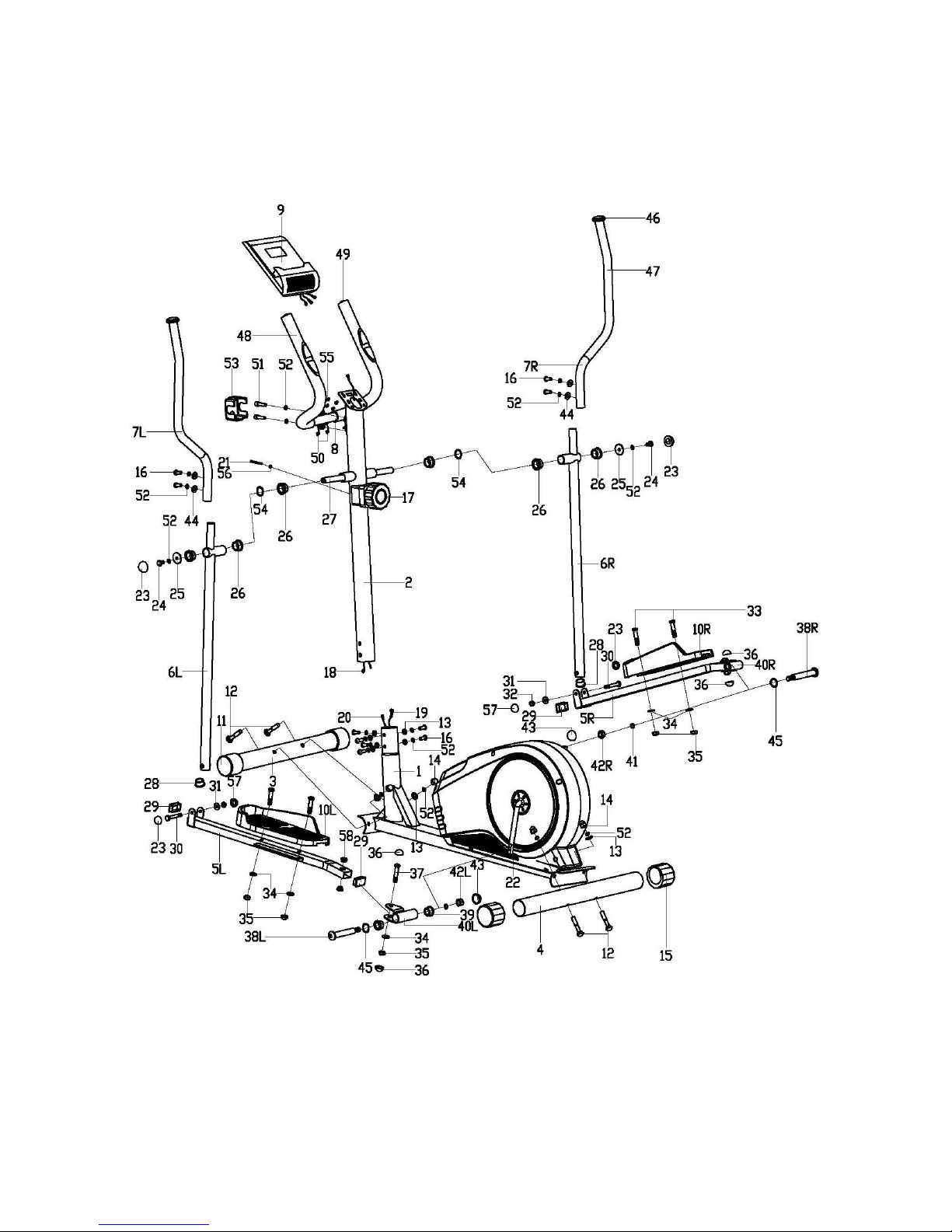

EXPLODED DIAGRAM
2

PARTS LIST
NO.
DESCRIPTION
Q’TY
NO.
DESCRIPTION
Q’TY
1
Main frame
1
30
Hex screw M8x55
2
2
Handlebar post
1
31
Flat washer D8x1.5
2
3
Front Stabilizer
1
32
Nylon nut M8
2
4
Rear Stabilizer
1
33
Hex bolt M10x45
4
5L/R
Pedal support
1pr.
34
Flat washer D10x1.5
6
6 L/R
Swing tube
1pr.
35
Nylon nut M10
6
7 L/R
Handlebar
1pr.
36
Cap S17
4
8
Handrail
1
37
Hex bolt M10x50
2
9
Computer
1
38L/
R
Pedal bolt
1pr.
10 L/R
Pedal
1pr.
39
Bushing Φ24x20xΦ16.1
4
11
Front end cap
2
40L/
R
Pedal tube joint
1pr.
12
Carriage boltM8x76
4
41
Spring washer Φ13XB2
2
13
Arc washer Φ20xΦ8.5xR30
10
42
L/R
Nylon nut
1pr.
14
Acorn nut M8
4
43
Cap S19
2
15
Rear end cap
2
44
Arc washer Φ20xd8.5XR12.5
4
16
Allen screw M8x16
10
45
Wave washer D17x0.3
2
17
Tension controller
1
46
Mushroom end cap
2
18
Extension sensor wire
1
47
Foam grip
2
19
Tension wire
1
48
Foam grip
2
20
Sensor wire
1
49
Round end capΦ25x1.5
2
21
Cross pan screw M5x55
1
50
Pulse wire
2
22
Crank
1
51
Allen screw M8x30
2
23
Cap S14
4
52
Spring washer D8
18
24
Hex screw M8x20
2
53
Chuck cover
1
25
Flat washer Φ8.2xΦ32x2
2
54
Wave washer Φ20xΦ28x0.3
2
26
Axle bushing Φ32x2.5
6
55
Cross pan screw M4x12
4
27
Long axle
1
56
Arc washer
1
28
Round end cap Φ32x1.5
2
57
Cap S13
2
29
Square end cap □40x25x1.5
4
58
Alloy bushing Φ14x10xΦ10.1
4
NOTE:
Most of the listed assembly hardware has been packaged separately, but some hardware items
have been preinstalled in the identified assembly parts. In these instances, simply remove and
reinstall the hardware as assembly is required.
Please reference the individual assembly steps and make note of all preinstalled hardware.
PREPARATION: Before assembling, make sure that you will have enough space
around the item; Use the present tooling for assembling; Before assembling please
check whether all needed parts are available.
3

It is strongly recommended this machine to be assembled by two or more people to
avoid possible injury.

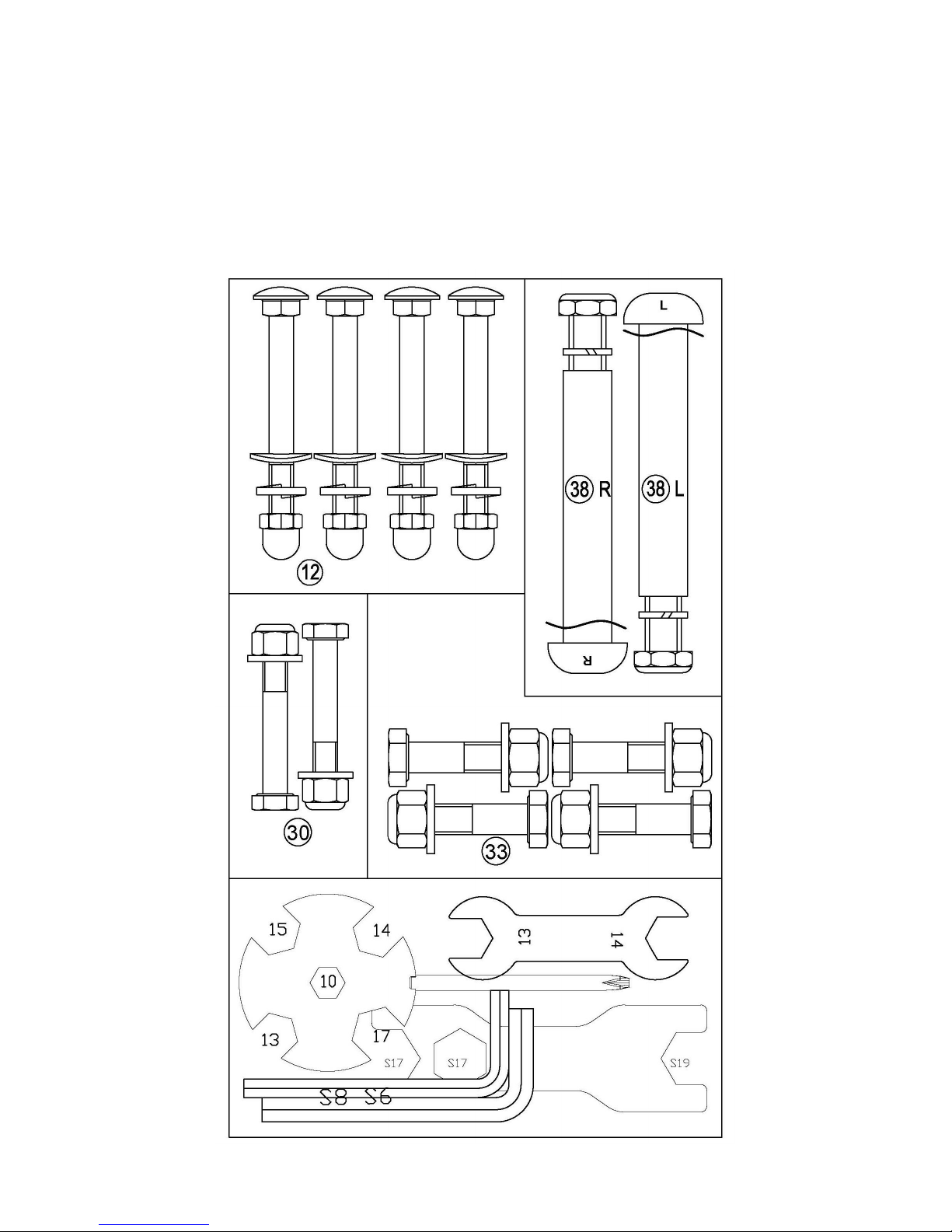

HARDWARE PACKAGE
4

ASSEMBLY INSTRUCTION
STEP 1
Attach the Front Stabilizer (3) and Rear Stabilizer (4) to the Main Frame (1)
with the Carriage Bolts (12), Spring Washers (52), Arc Washers (13) and
Acorn Nuts (14)as shown.
5

STEP 2
A: Connect the Extension Wire (18)with the Sensor Wire (20)together.
B: Check the Tension Controller (17) is at Level 8 to ensure the cable is the
longest. Put the cable of Tension Controller (17)into the spring hook of
Tension Wire (19) as picture A shows. Then pull the resistance cable of
Tension Controller (17) upward and force it into the gap of metal bracket of
the Tension Wire (19).
C: After making sure the wires are well connected, then fix the Handlebar
Post (2) to the post of Main Frame (1) with the Allen Screw (16), Spring
Washer (52) and Arc Washers (13) that were removed.
6

STEP 3

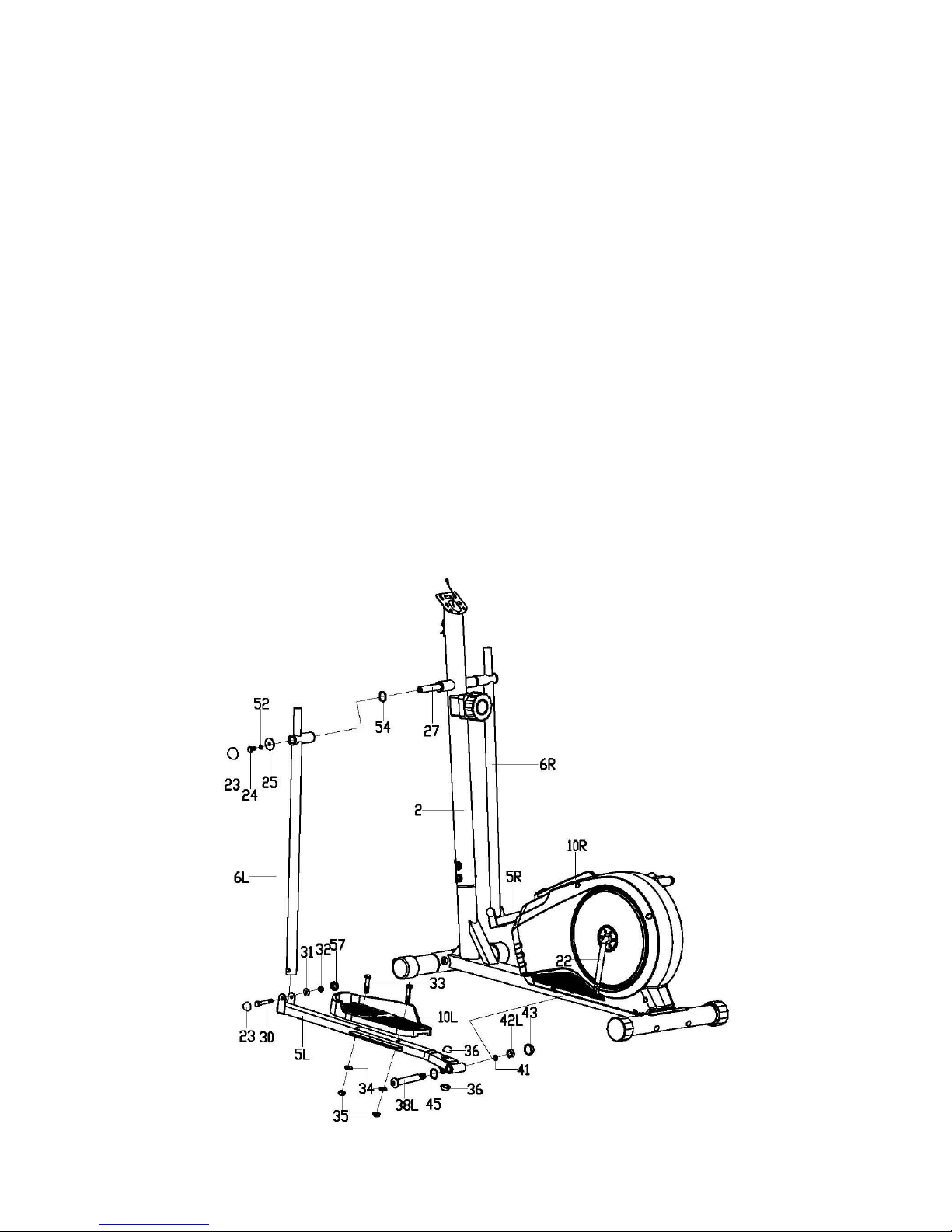

A: Attach the Left Swing Tube (6L) to the shaft on Handlebar Post (2) with
Hex Screw (24), Spring Washer (52), Flat Washer (25), Wave Washer (54)
and Long Axle (27). Don’t tighten them yet.
B: Attach the Left Pedal Support (5L) to the Crank (22) with Left Pedal Bolt
(38L), Wave Washer (45). Then fix Spring Washer (41) and the Left Nylon
Nut (42L). Don’t tighten them yet.
C: Connect the Left Swing Tube (6L) and Left Pedal Support (5L) with Hex
Screw (30), Flat Washer (31) and Nylon Nut (32). Now tighten Hex Screw
(24,30) and Left Nylon Nut (42L) and then cover with Caps (23), (57), (43)
and (36).
D: Fix Right Pedal Support (5R) and Right Swing Tube (6R) to the Crank (22)
and axle of Handlebar Post (2) in the same way.
E: Attach the Pedal (10L/R) to the Pedal Support (5L/R)with Hex Bolt (33),
Flat Washer (34) and Nylon Nut (35). Tighten all screws and nuts.
7

STEP 4
A: Feed the Pulse Wire (50)out of the Handlebar Post (2) through the top of
the computer bracket.
B: Attach the Handrail (8) to the Handlebar Post (2) with Allen Pan Bolt
(51)，Spring Washer (52). Then, cover with the Chuck Cover (53).
C: Attach the Handlebar (7L/R) to the Swing Tube (6L/R) with Allen Screw
(16), Spring Washer (52)and Arc Washer (44).
8

STEP 5
A: Remove Cross Pan Screws (55) from the back of the Computer (9).
Connect the Extension Sensor Wire (18) and Pulse Wire (50) with wires of
Computer (9) and then fix the Computer (9) to the bracket of Handlebar
Post (2) with Cross Pan Screw (55).
Assembly is now complete!
9

Moving the Bike
To move the elliptical, hold by the handles of the Handrail (8). Tilt the elliptical until the
wheels of the Front Stabilizer (3) touch the floor. Then you can wheel the elliptical to the
desired location.
10

EXERCISE COMPUTER INSTRUCTIONS
SPECIFICATIONS:
TIME……………………………………………………….00:00-99:59
SPEED(SPD)..………………………………………… 0.0-99.9ML/H
DISTANCE(DIST)………………………………………0.00-999.9ML
CALORIE(CAL)…………………………………………0.00-9999KCAL
ODOMETER(ODO)…………………………..………0.0-9999ML
PULSE (PUL) ……...................................................0，40~240BPM
KEY FUNCTIONS:
MODE: Press to select a function
SET: Press to preset value for “TIME”, “DISTANCE”, “CALORIES”, or “PULSE”.
CLEAR(RESET): Press to clear the value
OPERATION PROCEDURES:
1. AUTO ON/OFF
To turn on the meter, start pedaling or press any key.
After approximately 4 minutes of inactivity, the monitor will turn off.
2. RESET
The unit can be reset by either changing battery or pressing and holding the MODE key for 3 seconds.
FUNCTIONS:
1. TIME: The total working time will be shown when starting exercise.
2.SPEED: The current speed will be shown.
3.DISTANCE: The distance of each workout will be displayed.
4.CALORIE: The calorie burned will be displayed when starting exercise.
5.ODOMETER: The total accumulated distance will be shown.
6.PULSE: Press the MODE key until the pointer advance to PULSE . Place the palms of your hands on
both of the contact pads(or put ear-clip to ear),and wait for 30 seconds for the most accurate reading.
User’s current heart rate will be displayed in beats per minute.
SCAN: Continuously displays each function in sequence for 4 seconds at a time.
COUNTDOWN FUNCTION
You can preset values to countdown TIME, CALORIES or DISTANCE. Press MODE until the
function you want is displayed. Make sure meter is not in SCAN. Press SET to increase the
value. Start pedaling and the meter will countdown.
BATTERY: If there is a problem with the display, try changing the batteries first.
11
