Produc t S a f ety
G268 Elliptical User Manual
Basic precautions should always be followed, including the following safety instructions when using this
equipment: Read all instructions before using this equipment.
1. Read all the instructions in this manual and do warm up exercises before using this equipment.
2. Before exercise, in order to avoid injuring your muscles, warm-up exercise for every muscle group ishighly
recommended. Please refer to the Warm Up pages for pre and post workout.
3. Please make sure all components are not damaged and in working order before use. This equipment shouldbe
placed on a flat surface while in use. Using a mat or other material on the ground is recommended.
4. Please wear proper clothes and shoes when using this equipment; do not wear clothes that might catch inany
part of the equipment.
5. Do not attempt any maintenance or adjustments other than those described in this manual. Should anyproblems
arise, discontinue use and consult an Authorized Service Representative.
6. Be careful when stepping on or leaving the pedals. Always hold the handlebars first and make sure the pedal at
your side is at its lowest position. Step on the pedal, and stride over the Main Frame then step on the other
pedal. When using, please hold onto the handlebars. Toensure the pedals run smoothly push or pull onthe
handlebars first, then follow with leg motion. When stepping off the machine, make sure one pedal is at itslowest
position and step out of there before stepping out of the pedal at the highest position.
7. Do not use the equipment outdoors.
8. This equipment is for household use only.
9. Only one person should be on the equipment while in use.
10. Keep children and pets away from the product while in use. This machine is designed for adults only. If you feel
any chest pains, nausea, dizziness, or short of breath, you should stop exercising immediately and consult your
physician before continuing.
11. If you feel any chest pains, nausea, dizziness, or short of breath, you should stop exercising immediatelyand
consult your physician before continuing.
12. The maximum weight capacity for this product is 285 lbs / 130 kgs.
WARNING: Before beginning any exercise program consult your physician. This is especially important for the
persons who are over 35 years old or who have pre-existing health problems. Read allinstructions
before using any fitness equipment.
CAUTION: Read all instructions carefully before operating this product. Retain this Owner’s Manual for future
reference.

Box Contents
G268 Elliptical User Manual

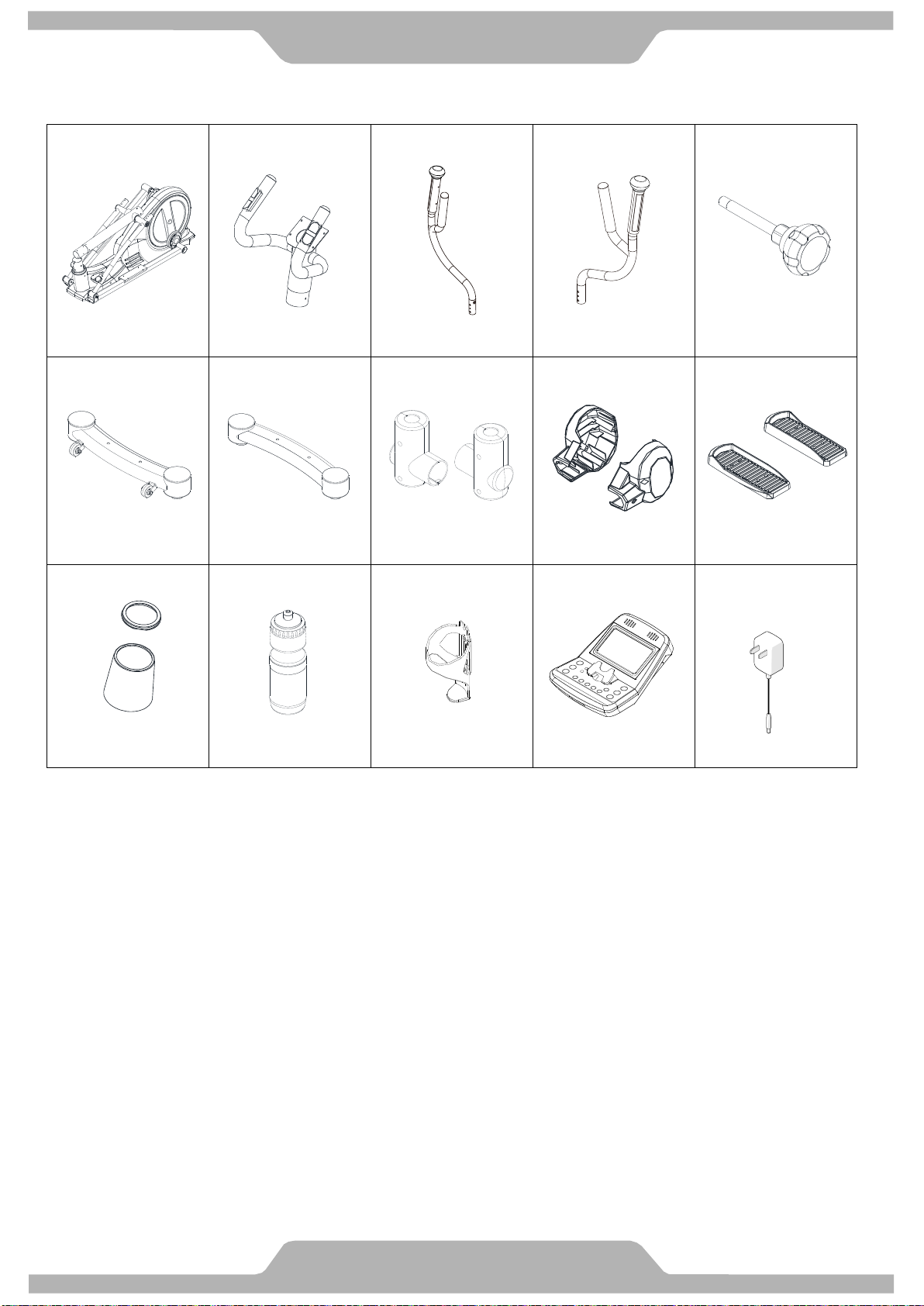

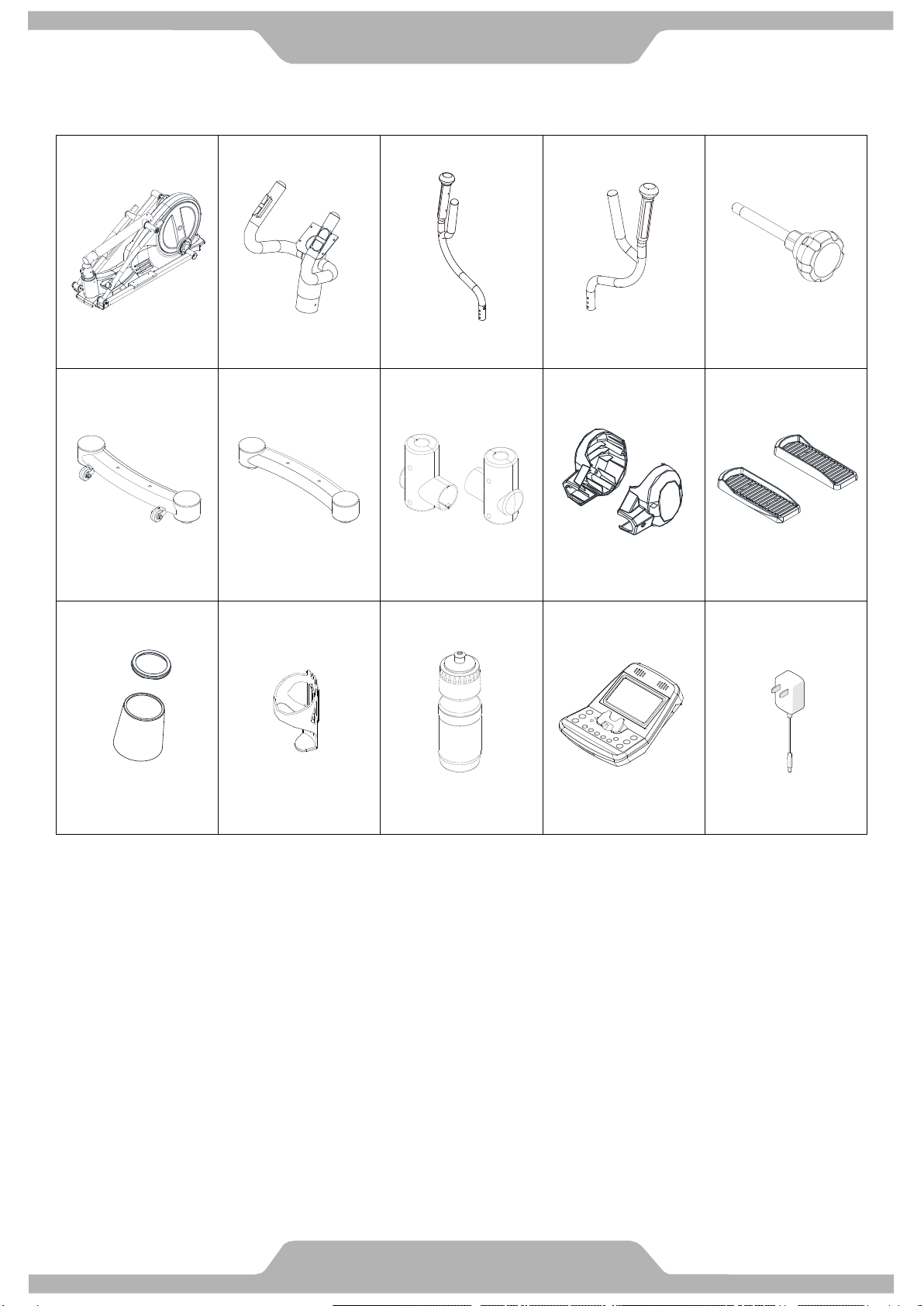

BOX CONTENTS
A01 1Set
A09 1Set
A12 1Set
A13 1Set
C31 2Sets
Main Frame
Stationary Handlebar
Dual Action Handlebar
/Left
Dual Action Handlebar
/Right
Knob
A07 1Set
A08 1Set
C18/C30 2Sets
C28/C29 2Sets
C03/C12 1Set
Front Stabilizer Tube
Rear Stabilizer Tube
Pivot Cover -A/B
Pivot Cap -A/B
Foot Pedal /L & R
C27/C06 1Set
C24 1PC
F01 1PC
D02 1PC
D08 1PC
Hat Cover
Rubber
Gasket
Water Bottle Holder
Water Bottle
Computer
Power Adapter

G268 Elliptical User Manual

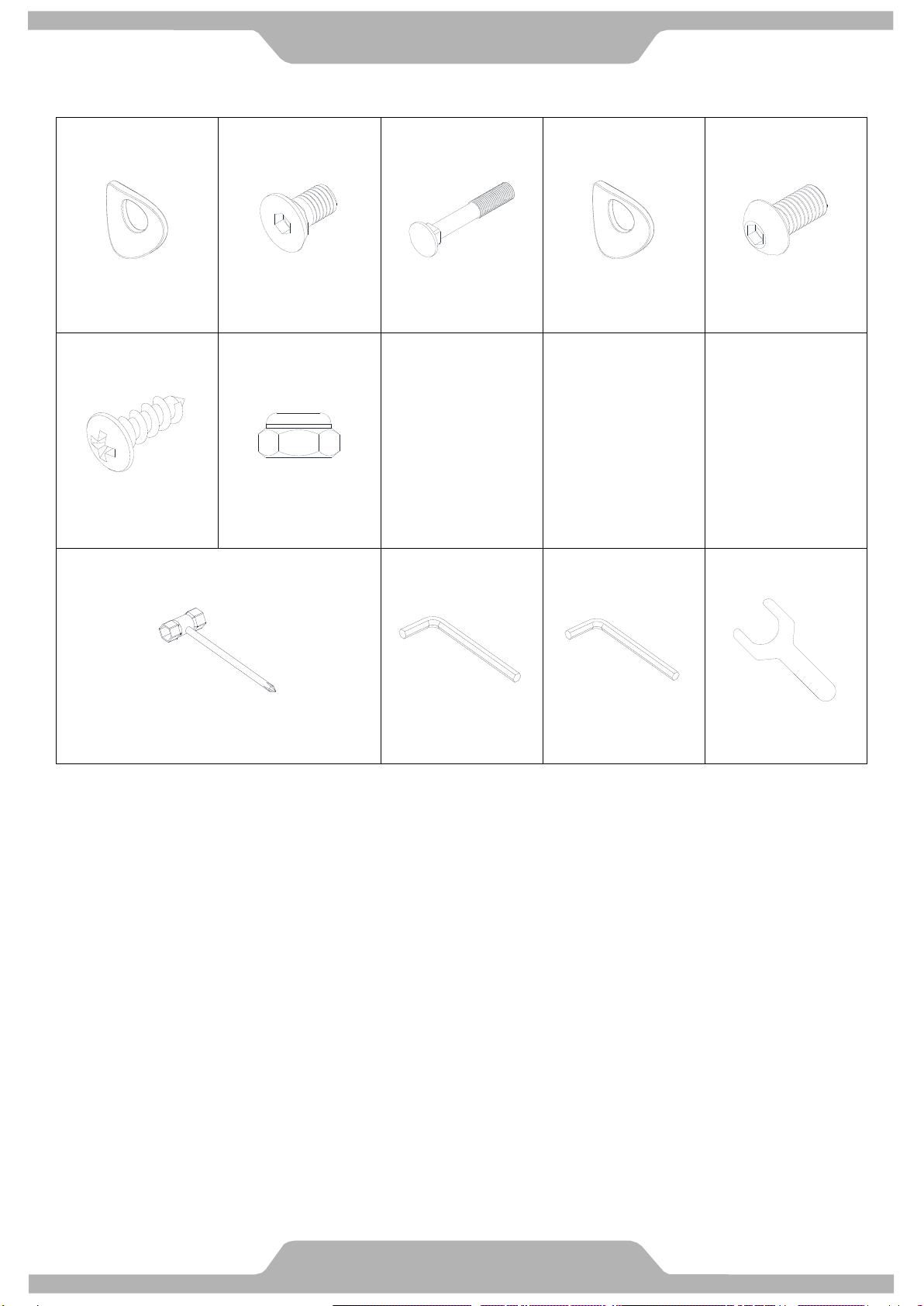

Ha rdware & T ools
B01 (1) 6PC
B05 (2) 8PC
B04 (3) 4PC
B30 (4) 4PC 6PC
B02 (5) 6PC 6PC
Curve Washer
M8x20x1.5T
Screw M6x12mm
Carriage Bolt
M8x50mm
Curve Washer
M8x20x1.5T
Screw M8x15mm
B22 (6) 18PC
B19 (7) 4PC
Screw M5x16mm
Nylon Nut M8
1PC
1PC
1PC
1PC
Hex Tool with Phillips Screwdriver (13mm/14mm)
Allen Key (M5)
Allen Key (M4)
Hex Tool 24mm

G268 Elliptical User Manual
Assemb l y
1. WORKING SPACE
1.1 Set a 2 x 2.5 square meter working space before unpacking your Tri-Fit.
2. PREPARATION
2.1 Use a sharp knife to remove all straps and cut all tape on the lowest edge of the box. After cutting
this lower tape, you will be able to gently lift the main box upwards away from the machine.
2.2 Remove all loose components.
2.3 Refer to the CHECK LIST and check that everything is present.

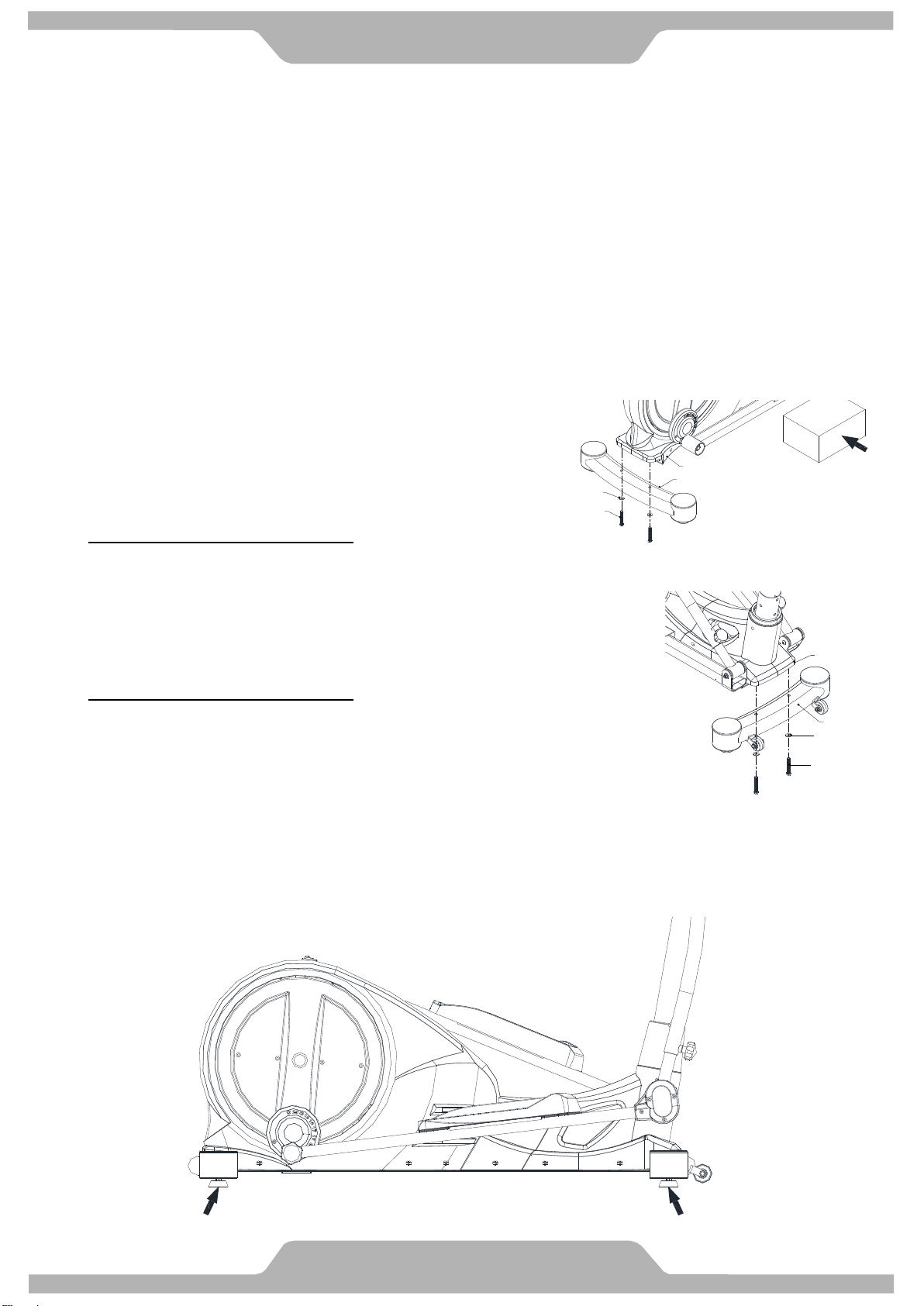

3. REAR STABILIZER TUBE INSTALLATION
3.1 Use a piece of foam to raise the Main Frame [A01] for easier
installation.
3.2 Assemble the Rear Stabilizer Tube [A08] to the rear curve plate of
Main Frame [A01] with 2 Screws 3/8” [B11] and 2 Washers 3/8”
[B10].
ENSURE THE SCREWS ARE TIGHT.
4. FRONT STABILIZER TUBE INSTALLATION
4.1 Assemble the Front Stabilizer Tube [A07] to front curve plate of Main Frame[A01]
with 2 Screws 3/8” [B11] and 2 Washers 3/8” [B10]..
ENSURE THE SCREWS ARE TIGHT.
5. ADJUST THE ADJUSTABLE FOOT PAD
5.1 Adjust the Adjustable Feet [C13] at the Rear Stabilizer Tube [A08] and Front Stabilizer [A07] as needed to level
the elliptical trainer.
5.2 The elliptical trainer has to be leveled to prevent it from wobble or shaking during use.
B11
B10 A08
A01 Styrofoam
A07
B10
B11
A01
Styrofoam

G268 Elliptical User Manual
Assemb l y

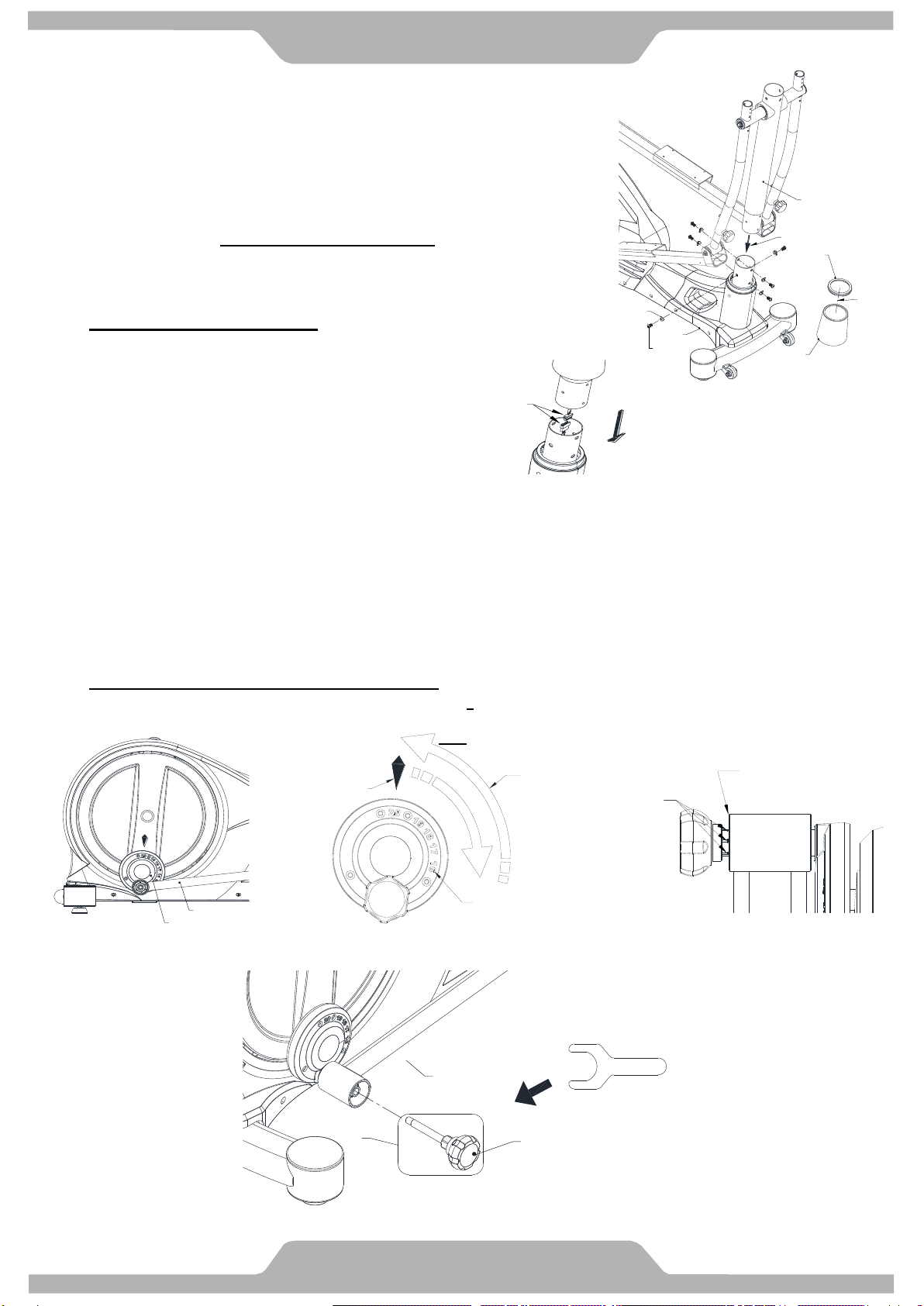

6. UPRIGHT POST INSTALLATION
6.1 This assembly step requires 2 people.
6.2 Firstly, slide the plastic casing assembly set (A) to the Upright Post[A02].
6.3 Connect all matching connectors from Upright Post [A02] and Main
Frame [A01], then slide extra length of cables into the opening of
Main Frame [A01]. DO NOT FOLD THE CABLES.
6.4 Assemble the Upright Post [A02] to Main Frame [A01] with 6 Screws M8
[B02] and 6 Curve Washers M8 [B01].
ENSURE SCREWS ARE TIGHT.
6.5 Finally, slide the assembly set (A) down and firmly tighten.
7. ADJUSTABLE KNOB INSTALLATION
7.1 Align the hole of the Adjustable Stride Disc [C19] with the pivot of the Foot Pedal Tube [A06]. Slide the Right
Adjustable Knob [C31] into the threads of the pivot. Use the spanner provided to lock the Adjustable Knob [C31]
to the thread. Turn the Right Adjustable Knob [C31] clockwise to ensure the knob is fully tightened. Make sure
that you turn the knob with the spanner and align the position mark as illustrated to the inner edge of Foot Pedal
Tube(A06). Repeat the same procedure to install the Left Adjustable Knob [13]. Turn the Left Adjustable Knob
[C13] counterclockwise to make sure the knob is fully tightened. Make sure that the stride number on both sides.
ENSURE STRIDE KNOB IS SECURED TIGHTLY.
A06
C19
Connector
A06
C31
(A)
Adjustable Range
Diamond Mark
Stride Number
Inner Edge of
Foot Pedal
Tube
Position
Mark
Position
Mark
Position
Mark
(B)
(A)
C06
C27
A01
B02
B01
A02

G268 Elliptical User Manual
Assemb l y
8. STATIONARY HANDLEAR INSTALLATION
8.1 Undo 3 Screws M8 [B31] and 3 Curve Washers M8 [B01] from Stationary Handlebar[A09].
8.2 Connect 2 matching connectors (A) from Stationary Handlebar [A09] and Upright
Post [A02].
8.3 Feed the other connectors through the Stationary Handlebar [A09].
8.4 Slide the extra length of cables into the opening of Upright Post [A02].
DO NOT FOLD THE CABLES
8.5 Assemble the Stationary Handlebar [A09] to Upright Post [A02] with 3 Screws M8
[B31] and 3 Curve Washers M8 [B01] which were removed from step8.1.
ENSURE SCREWS ARE TIGHT.

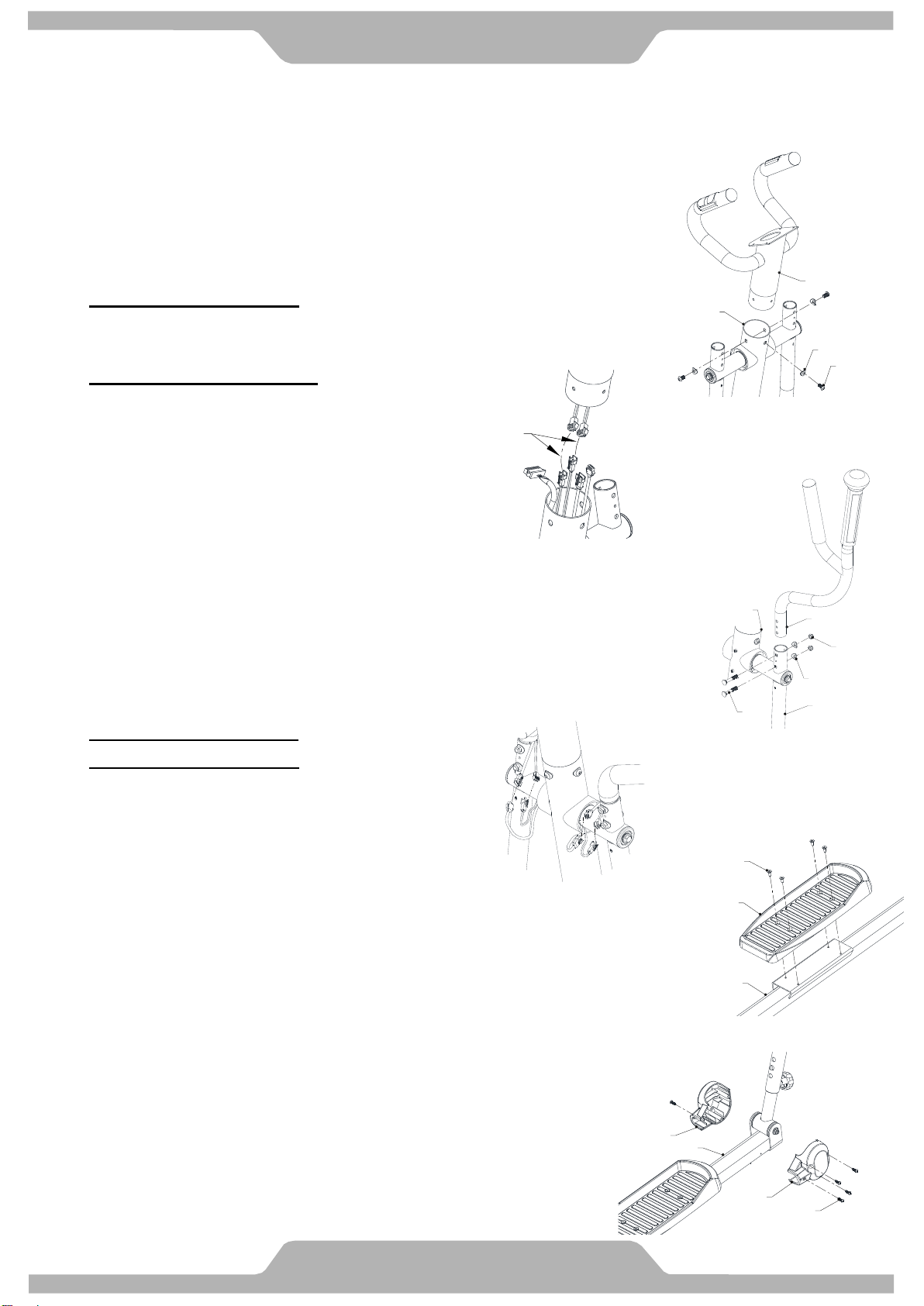

9. DUAL ACTION HANDLEBAR TUBE INSTALLATION
9.1 Assemble the Dual Action Handlebar Tube /R [A13] (notice ‘Right’sticker) to Dual
Action Arm /R [A04] with 2 Carriage Bolts M8 [B04]and 2 Curve Washers M8 [B30]
and 2 Nylon Nuts M8 [B19].
9.2 Connect all matching connectors from Dual Action Handlebar Tube /R [A13] and
Upright Post[A02].
9.3 Refer to the above step to install the left side parts.
ENSURE BOLTS ARE TIGHT
DO NOT FOLD THE CABLES
10. FOOT PEDAL INSTALLATION
10.1 Assemble the Foot Pedal /R [C03] to Foot Pedal Tube /R [A06] with 4 Screws
M6[B05].
10.2 Refer to the above step to install the left side parts.
11. PIVOT CAP INSTALLATION
11.1 Assemble the Pivot Caps -A/B [C28/C29] to Foot Pedal Tube /R[A06]
with 5 Screws M5 [B22].
11.2 Refer to the above step to install the left side parts.
(A)
B22
C28
C29A06
C03
B05
A06
A13
B19
B30
B04 A04
A02
B31
B01
A09
A02

G268 Elliptical User Manual
Assemb l y
12. PIVOT COVER INSTALLATION
12.1 Assemble Pivot Covers -A/B [C18/C30] to Dual Action Arm /R[A04]
with 4 Screws M5 [B22].
12.2 Refer to the above step to install the left side parts.
DO NOT FOLD THE CABLES.

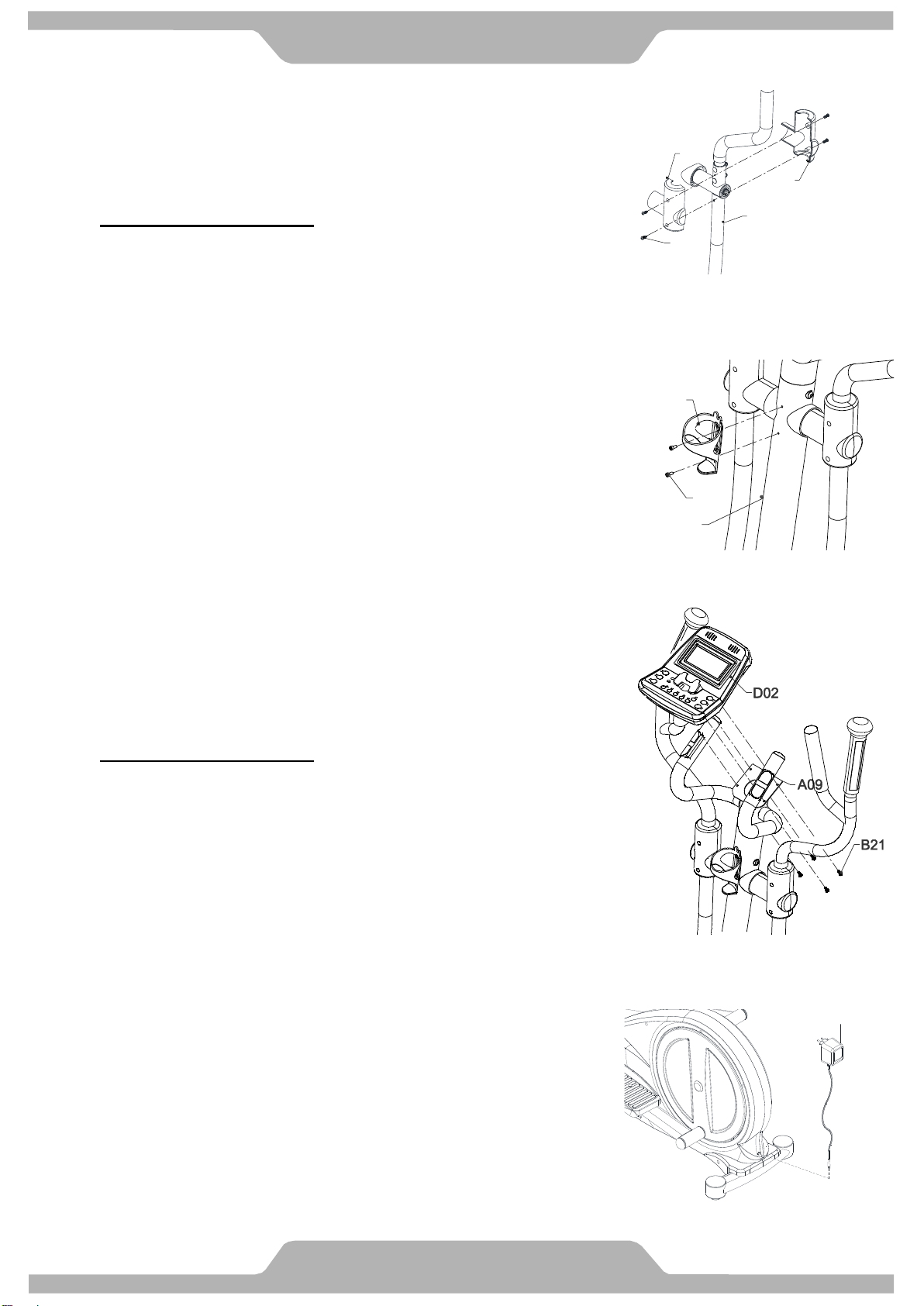

13. WATER BOTTLE HOLDER INSTALLATION
13.1 Undo 2 Screws M5 [B16] from Upright Post [A02].
13.2 Assemble Water Bottle Holder [C24] to Upright Post [A02] with 2 ScrewsM5
[B16] which were removed from step 13.1.
14. COMPUTER INSTALLATION
14.1 Undo the 4 Screws for Computer [B21] from bottom of Computer [D02].
14.2 Connect all matching connectors from Stationary Handlebar [A09]
and Computer [D02].
14.3 Slide extra length of cables to the opening of Stationary Handlebar [A09].
DO NOT FOLD THE CABLES.
14.4 Assemble Computer [D02] to Stationary Handlebar [A09] with 4 Screws for
Computer [B21] which were removed during step 14.1.
-----AC AdaptorInstallation-------------------------------------------------------------------------------------------------------------------
1. Connect the AC Adaptor [D08] to the AC Plug Cable [D09] on the front of
Main Frame [A01].
2. Make sure the specifications of power supply on the Adaptor iscorrect
before you plug into your wall outlet.
3. Plug the other end of the ACAdaptor [D08] into the electrical wall outlet.
B22
A04
C18
C30
D08
A02
B16
C24

Feet Adjustment
G268 Elliptical User Manual
FEET ADJUSTMENT
Adjust the Adjustable Foot Pads on the Rear Stabilizer Tube and Front Stabilizer Tube as needed to
level the elliptical trainer. The elliptical trainer has to be leveled to prevent it from wobble or shaking
during use.

Stride and Incline Adjustment
G268 Elliptical User Manual

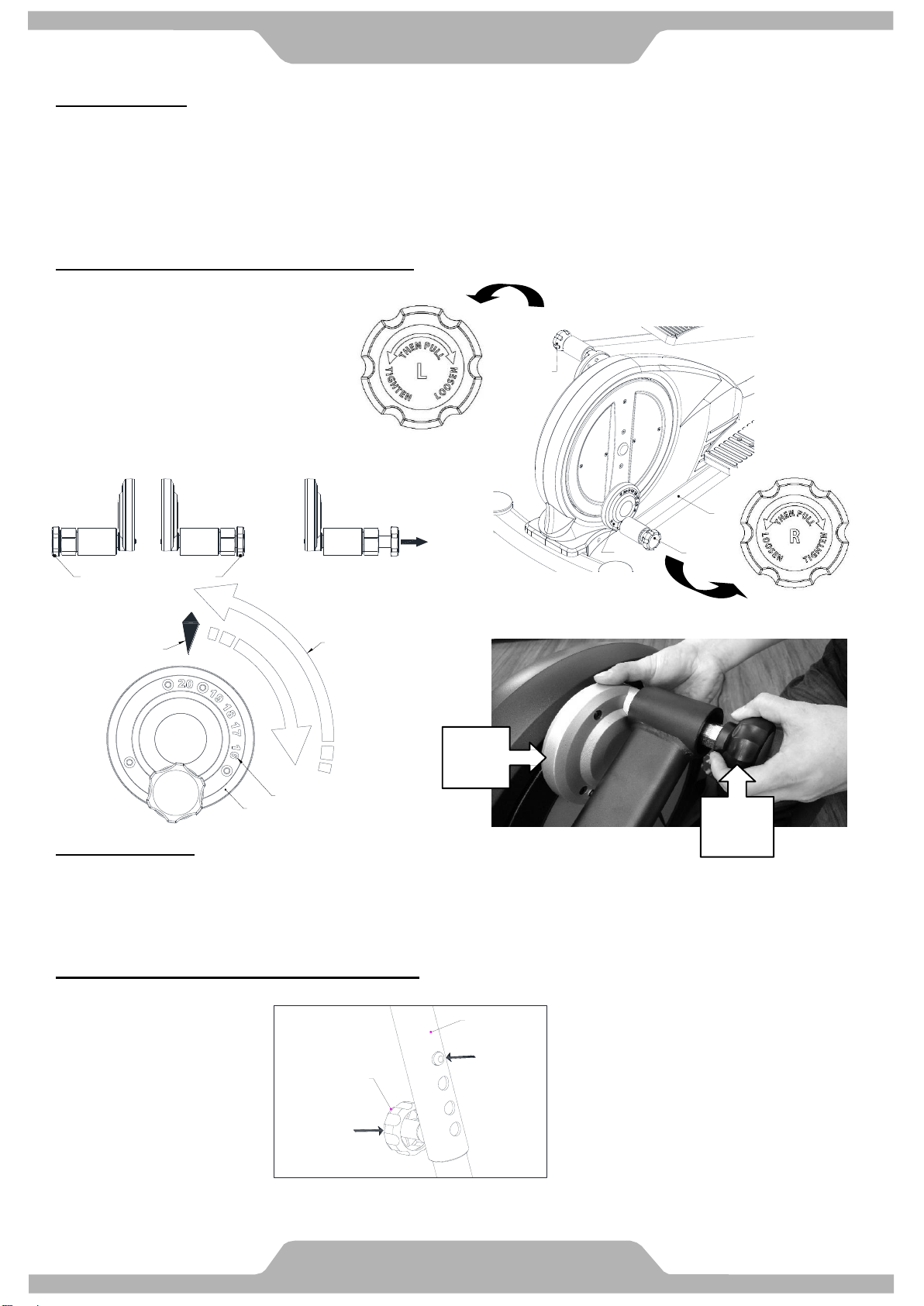

Stride adjustment
Please turn the Right Knob [C31] counterclockwise more than 10 times to loosen it.
Hold the Adjustable Stride Disc Cover [C19] and pull the Right Knob [C31] outwards. Rotate the Adjustable Stride Disc
Cover [C19] and find the preferred stride number aligning to the tip of thediamond mark.
The pin of the lock Knob [C31] will get engaged into the disc with a click. Now turn the knob clockwise and
secure it tightly. Repeat the same procedure to the Left Adjustable Stride Knob [C13].
ENSURE STRIDE KNOBS ARE SECURED TIGHT.
Incline Adjustment
Loosen the Knob [C17] on the height adjustment tube of the Dual Action Arm [A04]. Now press the spring pin and
adjust to the required position for required incline level. Tighten the Knob [C17] after adjustment is finished. Ensure
both sides are set at the same level.
ENSURE INCLINE KNOBS ARE SECURED TIGHT.
LOOSEN
PUSH
A04
C17
Adjustable Range
(Stride 16" ~ 20")
Diamond Mark
Stride Number
C19
PULL
C31C13
A06
C31
C13
C19
C31
C19

T rouble S hooting & Maintenance
G268 Elliptical User Manual
Trouble Shooting
Noise issue during use
The most likely cause is that some nuts or bolts are loose. Please check every nut and bolt using a socket set,
spanner or Allen key. Tighten each nut and bolt securely. Where possible, use a socket set to get maximum
torque.
If the noise is coming from the front of the machine, it could be that the issue is with the bolt on the pivot of the
swinging arm (A14) where it meets the foot pedal tube (A06). This is the only fixing which should NOT be over-
tightened. If you experience noise from this area, loosen the nut by half a turn and test again. You can continue
this process until the noise has stopped.
The elliptical trainer wobbles or shakes during use
Adjust the Adjustable Foot Pads on the stabilizer tubes to level the elliptical trainer.
Computer not working correctly
Check to make sure the computer cable is connectedsecurely.
LCD displays E-1: This indicates that the computer is not receiving your heart rate figure. Make sure to hold
both hands on the pulse sensors.
Screen is blank: Make sure you have disconnected your device from the Bluetooth receiver. When a
smartphone or tablet is connected to the computer, the screen will be blank.
Inconsistent or erratic heart rate reading
Always hold on to the handlebar grip sensors with both hands. Try to maintain moderate pressure while holding
onto the hand pulse sensors.
Polar chest strap: Make sure the chest strap sensors are lubricated well. N.B. Users with body hair may receive
inconsistent readings.
Maintenance
Nuts and bolts
Please check every nut and bolt regularly using a socket set, spanner or Allen key. Tighten each nut and bolt
securely. Where possible, use a socket set to get maximum torque.
Cleaning
The elliptical trainer can be cleaned with a soft cloth and mild detergent. Do not use abrasives or solvents on
plastic parts. Please wipe your perspiration off the elliptical trainer after each use. Be careful not to get excessive
moistureon the computer display panel as this might cause an electrical hazard or electronics to fail.
Storage
Store the elliptical trainer in a clean and dry environment away from children. Please keep the
elliptical trainer, specifically the computer console, out of direct sunlight to prevent screen damage

G268 Elliptical User Manual

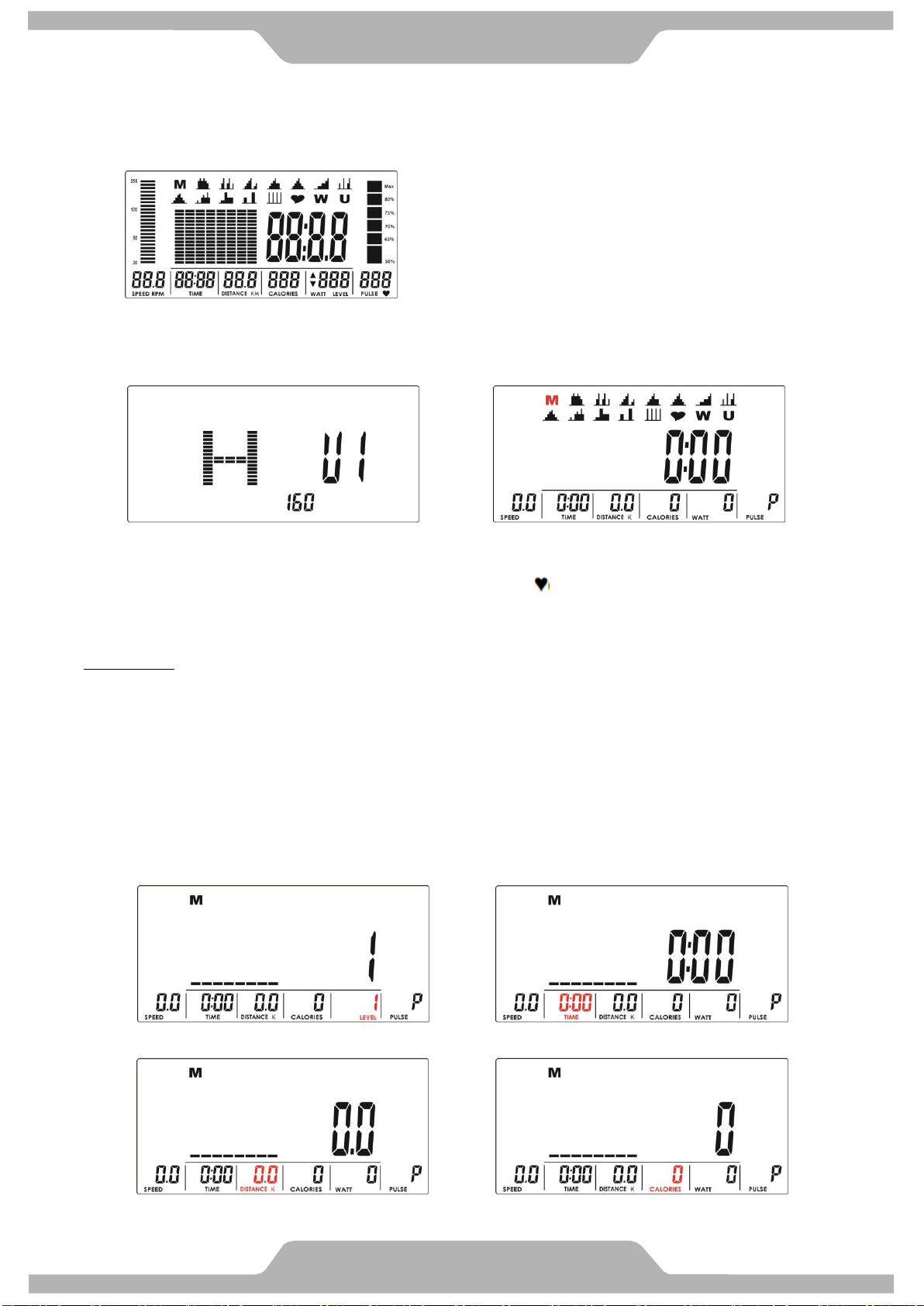

SM1525 SERIES INSTRUCTION MANUAL

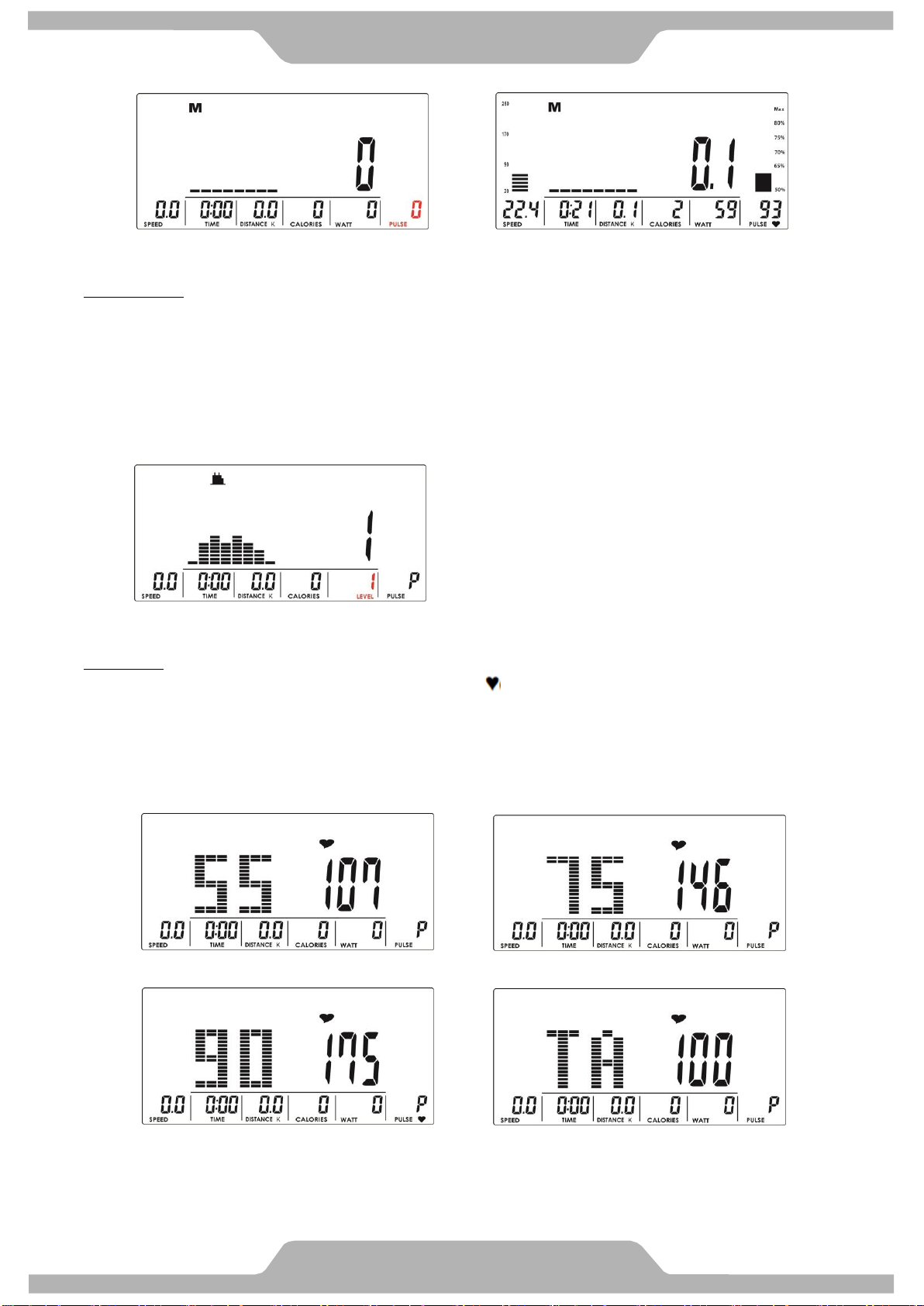

DISPLAY FUNCTIONS
ITEM
DESCRIPTION
TIME
Count up - No preset target, Time will count up from 00:00 to maximum 99:59 with each increment
is 1 minute.
Count down - If training with preset Time, Time will count down from preset to 00:00.
Each preset increment or decrement is 1 minute between 00:00 to 99:00.
SPEED
Displays current training speed. Maximum speed is 99.9 KM/H or ML/H.
RPM
Displays the Rotation Per Minute. Display range 0~15~999
DISTANCE
Accumulates total distance from 0.00 up to 99.99 KM or ML. The user may preset target distance
data by using UP/DOWN button.
Each preset increment or decrement is 0.1KM or ML between 0.00 to 99.90 .
CALORIES
Accumulates calories consumption during training from 0 to maximum 9999 calories.
(This data is a rough guide for comparison of different exercise sessions which can not be used in
medical treatment.)
PULSE
User may set up target pulse from 0 - 30 to 230; and computer buzzer will beep when actual heart
rate is over the target value during workout.
WATTS
Display current workout watts. Display range 0~999.
MANUAL
Manual mode workout.
PROGRAM
12 PROGRAM selection.
USER PROGRAM
User creates resistance level profile.
H.R.C.
Target HR training mode.
WATT PROGRAM
WATT constant training mode.
KEY FUNCTION
ITEM
DESCRIPTION
Up
Increase resistance level
Setting selection.
Down
Decrease resistance level
Setting selection.
Mode / Enter
Confirm setting or selection.
Reset
Press and hold for 2 seconds, computer will reboot and start from user setting.
Reverse to main menu during preset workout value or stop mode.
Start / Stop
Start or Stop workout.
Recovery
Test heart rate recovery status.
Computer

Computer
G268 Elliptical User Manual
OPERATION PROCEDURE
POWER ON
Plug in power supply, computer will power on and display all segments on LCD for 2 seconds (Drawing 1).
Drawing 1
Then enter into User data setting. Use UP or DOWN to select U1~U4, then set SEX, AGE, HEIGHT (Drawing 2), WEIGHT and
confirm by pressing MODE / ENTER key. When finishing user data profile, Console come to main menu (Drawing 3).
Drawing 2 Drawing 3
WORKOUT SELECTION
Use UP or DOWN to select workout : M(Manual) P(Program 1-12) (H.R.C) W(WATTS) U(User), press MODE /
ENTER to get into.
Manual Mode
Press START in main menu may start workout in manual mode directly.
1. Use UP or DOWN to select workout program, choose M and press MODE / ENTER to get into.
2. Use UP or DOWN to adjust load level (Drawing 4), preset value 1.
3. Use UP or DOWN to set TIME (Drawing 5), DISTANCE (Drawing 6), CALORIES (Drawing 7), PULSE (Drawing 8) and press
MODE / ENTER to confirm.
4. Press START/STOP key to start workout. During workout, user can also adjust load level by using UP or DOWN. Load
level display in WATT window, no adjusting for 3s, it will switch to display WATT (Drawing 9).
5. Press START/STOP key to pause workout. Press RESET to reverse to main menu.
Drawing 4 Drawing 5
Drawing 6 Drawing 7
Drawing 6 Drawing 7

Computer
G268 Elliptical User Manual
Drawing 8 Drawing 9
Program Mode
A. Use UP or DOWN to select workout Program, choose P01 ,P02,P03,...P12. and press MODE / ENTER to get
into.
B. Use UP or DOWN to adjust load level (Drawing 10), preset value 1.
C. Use UP or DOWN to set TIME.
D. Press START/STOP key to start workout. During workout, user can also adjust load level by using UP or DOWN.
E. Press START/STOP key to pause workout. Press RESET to reverse to main menu.
Drawing 10
H.R.C Mode
●Use UP or DOWN to select workout program, choose (H.R.C) and press MODE / ENTER to get into.
●Use UP or DOWN to select 55% (Drawing 11),75%(Drawing 12),90% (Drawing 13) or TAG (TARGET H.R., default:
100) (Drawing 14). When select TAG, use UP or DOWN to set value 30~230.
●Use UP or DOWN to set workout TIME.
●Press START/STOP key to start or stop workout. Press RESET to reverse to main menu.
Drawing 11 Drawing 12
Drawing 13 Drawing 14

Computer
G268 Elliptical User Manual
Watt Mode
1. Use UP or DOWN to select workout program, choose Wand press MODE / ENTER to get into.
2. Use UP or DOWN to set WATT target. (default: 120, Drawing 15)
3. Use UP or DOWN to set TIME.
4. Press START/STOP key to start workout. During workout, system will adjust load level automatically based on
user training status. User can use UP or DOWN to adjust Watt level.
5. Press START/STOP key to pause workout. Press RESET to reverse to main menu.
Drawing 15
User Program Mode
1. Use UP or DOWN to select workout program, choose U and press MODE / ENTER to get into.
2. Use UP or DOWN to create user profile (Drawing 16). There are total 8 column, user can adjust each column load
level. User can hold MODE / ENTER 2 seconds to quit during setting.
3. Use UP or DOWN to set TIME.
4. Press START/STOP key to start workout. During workout, user can also adjust load level by using UP or DOWN.
5. Press START/STOP key to pause workout. Press RESET to reverse to main menu.
Drawing 16
RECOVERY
After exercising for a period, keep holding on hand grips or wearing chest strap and press RECOVERY key. All function display
will stop except “TIME”starts counting down from 00:30 to 00:00 (Drawing 17). Screen will display your heart rate recovery
status with the F1, F2….to F6 (Drawing 18). F1 is the best, F6 is the worst. User may keep exercising to improve the heart
rate recovery status. (Press the RECOVERY key again to return the main display.)
Drawing 17 Drawing 18

Computer
G268 Elliptical User Manual
Noted:
1. After 4 minutes without pedaling or pulse input, console will enter into power saving mode. Press any key may wake the
console up.
2. When computer act abnormal, please plug out the adaptor and plug in again.

G268 Elliptical User Manual
Warm up and stretch
Quadriceps Stretch
Sit with your right leg extended. Rest the sole of your left foot against your right
inner thigh. Stretch toward your toe as far as possible. Hold for 15 counts. Relax
and then repeat with left leg extended.
Inner Thigh Stretch
Sit with the soles of your feet together with your knees pointing outward. Pull your feet
as close into your groinas possible. Gently push your knees towards the floor. Hold for
10 counts.
Toe Touches
Slowly bend forward from your waist, letting your back and shoulders relax as you
stretch towards your toes. Reach down as far as you can and hold for 15counts.
Hamstring Stretches
With one hand against a wall for balance, reach behind you and pull your right foot up.
Bring your heel as closeto your buttocks as possible. Hold for 15 counts and repeat with
your left foot.

產品安全
G268 橢圓機中文說明書
使用設備前請閱讀所有說明，並遵循以下基本的安全預防措施。
1. 使用設備前需先做熱身練習，並仔細閱讀本手冊中所有的注意事項和使用說明。
2. 運動前，為了避免傷及肌肉，強烈建議對全身做熱身運動。請參考手冊中使用前和訓練後熱身的
頁面。
3. 此設備正確使用時應被放置在一個平面上，建議地面上放置地墊或其它材料，使用前請檢查確保
所有部件沒有損壞，並遵守所有警示和操作說明。
4. 使用本設備時，請穿著合適的衣服和鞋子;不得穿著可能捲入橢圓機中的寬鬆衣服，使用時需穿運
動鞋，以保護足部。
5. 不要試圖改變本手冊中說明以外的任何調整或修改。如果出現任何問題，請停止使用，並諮詢授
權服務經銷商。
6. 踩著或離開踏板時要小心。使用前先握住扶手握把，並確保在你身邊踏板處於最低位置。踩腳踏
上腳踏板，並跨過主框架腳再踏上另一踏板。使用時，請抓住把手。為確保踏板平穩運行首先在
握把上推或拉，然後按照腿部運動。運動完走下機台之前，請確保一塊踏板處於最低位置和最高
位置再走出踏板離開。注意‚在旋轉中踏板離開，可能會造成傷害。
7. 請不要在室外使用此設備。
8. 本設備適合於家庭室內使用。
9. 本設備只能有一個人在設備上使用，不可其他人同時在使用。
10. 讓兒童和寵物遠離產品，本機是專為成人在使用。如果您感到有胸痛，噁心，頭暈，或者氣短，
應立即停止運動，並繼續前往諮詢醫師。
11. 本產品的最大承載重量為 285 磅/130 公斤。
警告：在開始任何鍛煉計畫之前請先諮詢你的醫生。這一點對於 35 歲以上或有健康
問題的人尤其重要。使用任何健身器材前，請閱讀所有說明。
為減少灼傷、火災、電擊或人身傷害的危險，使用橢圓機前，請仔細閱讀本手冊中
的所有重要注意事項和使用說明以及橢圓機上的所有警告。對於因不正確使用
本產品而帶來的人員傷害或財產損失，本公司不承擔任何責任。
注意：使用本產品前，請仔細閱讀所有說明。並保留本手冊以供將來使用參考。

G268 橢圓機中文說明書
零件圖及內容
包裝盒內容
A01 1 組
A09 1 組
A12 1 組
A13 1 組
C31 2 組
主架組
固定扶手組
左-搖擺扶手
右-搖擺扶手
梅花拉銷(右牙)
A07 1 組
A08 1 組
C18/C30 2 組
C28/C29 2 組
C03/C12 1 組
前底管組
後底管組
懸臂飾蓋組
懸臂轉軸飾蓋組
腳踏板組
C27/C06 1 組
F01 1 個
C24 1 個
D02 1 個
D08 1 個
塑膠墊圈/前蓋岱帽
水壺
水壺架
電子錶
變壓器

工具螺絲包
G268 橢圓機中文說明書
B01(1) 6個
B05(2) 8 支
B04(3) 4 支
B30(4) 4 個
B02(5) 6 支
弧型華司
M8x20x1.5T
螺絲 M6x12mm
螺絲 M8x50mm
弧型華司
M8x20x1.5T
螺絲 M8x15mm
B29 6 個
B18 2 個
螺絲 M5x16mm
尼龍螺母 M8
1支
1支
1支
1支
六角工具(13mm/14mm)
六角扳手 (M4)
六角扳手 (M5)
扳手 24mm
