EFLA KDL1 Series User manual

KDL1-series
Cauon!

            


EFLA Type Conductor Size
(mm2)AWG Cable Diameter (mm/inch)
Diameter at Wire
Insulaon
(mm/inch)
Diameter, Length
of Assembly
(mm/inch)
KDL1 6 8** 
    
  6
    

              

        




www.ea.net

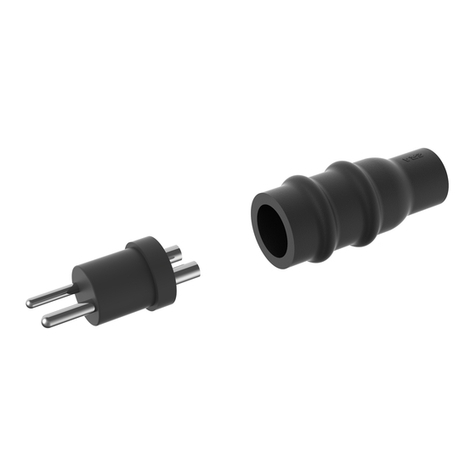

PRIMARY CONNECTOR KIT

 
 
 
 
 
 
 
 
  

GA
B
H
C
E
F
D
Contents


• 
• 
• 
            
          
www.ea.net

Preparing Cables
1. Strip cables according to the picture:
•       
     

• 
• 

• 
2. Tape screens with copper tape (H).


2




1
45
6
7
8
3
Crimping
3. Crimp the metal pins (C & D) to the
cable conductors.
• 
•      

• 
• 
90⁰
Crimp
Crimp
Assembling the receptacle connector
4. Press the guiding tool (E) into the receptacle socket
(C).
5. Place the measuring tool (F) into the receptacle
housing (A)
6. Push the cable with the socket (E) through the
receptacle housing (A). Use the measuring tool (F) to
avoid pushing too far.
7. Tighten the cable gland unl the connector is
properly sealed. Max. torque: 8 Nm / 5.9 lb  torque.
8. Remove the measuring (F) and guiding tools (E) and
clean connectors from silicon grease with paper towel.
0
16
46
62
Measuring Tool

EFLA is the world’s leading supplier of seamless power and communicaon products for aireld ground lighng circuits.
With more than 30 years experience in the eld, it develops, manufactures and sells globally-cered series isolaon
transformers, connector kits and prefabricated cable leads. The company’s components meet the highest qualicaons in
materials and electrical design to withstand challenging installaon in underground pits and cans and direct underground
installaon. Headquartered in Porvoo, Finland, EFLA supplies products to internaonal airports around the world.
EFLA OY • Kipinäe 3 •FI-06150 Porvoo, Finland • tel [phone] • www.ea.net
Assembling the Plug Connectors
9.Place the measuring tool (F) onto the plug housing
(B).
10.Push the cable with the pin (D) through the plug
housing (B). Use the measuring tool (F) to avoid
pushing too far.
11.Tighten the cable gland unl the connector
is properly sealed. Max. torque: 8 Nm / 5.9 lb 
torque.
12.Remove the measuring (F) and clean connector
from silicon grease with paper towel.
9
10
11
13
14
12
Remember the EFLA Lock
13. Snap on the EFLA Lock (G) when using the connector with other EFLA products.
With EFLA Lock connecon withstands over 5 mes higher pulling force
14. Connect the screen connuity wires to cable terminals.
Make sure that the joint will remain straight.
