Dear Customer
Congratulations with your new Egholm product
The Park Ranger 2150 is a Danish designed and manufactured utility machine, which allows you to
take a very exible approach to maintaining outdoor areas.
Optimal use of your Park Ranger 2150 Snow sweeper
To ensure the optimal performance of your Park Ranger 2150 snow sweeper, please read this
operator’s manual carefully before starting to use the machine. Failure to do so can result in
personal injury and damage to the machine.
Safety
The snow sweeper is equipped with various devices to ensure optimal operational safety both for
the user and the surroundings. We ask you to pay particular attention to section 1.1 Safety. The
machine must only be serviced by professionals.
The snow sweeper is intended for professional use only. On delivery, the user will receive thorough
training to become a competent operator.
Do not lend the machine to anyone who has not been thoroughly trained and who has not read this
manual carefully.
The operator’s manual should be considered a vital accessory to the machine and so must remain
with it if the machine is sold.
Warnings
Some items in this operator’s manual are marked with this warning symbol.
The warning indicates areas where extra care has to be taken to avoid personal
injury or damage to the machine and its accessories. The warning also explains
how you should pay special attention to the aspect in question.
Reservations
As it is the Egholm policy to make continuous improvements, we reserve the right to alter the
machine’s specications and equipment at any time without notice. Egholm accepts no liability for
errors or shortcomings in the operator’s manual.
Contact Egholm
Should you have any questions regarding your Egholm product, do not hesitate to contact Egholm.
Best regards
Egholm A/S · Transportvej 27 · DK-7620 Lemvig
T. [phone] · F. [phone]
E-mail: [e-mail] · www.egholm.eu
Introduction

3Operator’s Manual City Ranger 2150 Snow Sweeper Operator’s Manual City Ranger 2150 Snow Sweeper
1. General information
With the snow sweeper tted to the front of
the Park Ranger 2150 and the salt and sand
spreader tted on the back, the machine
sweeps snow while leaving a safe and passable
path behind.
The snow sweeper clears snow up to 15 cm
deep and follows the terrain perfectly over
inclines and other obstacles.
With the hydraulic steering the snow sweeper
can be set to match the prevailing wind
direction, and the adjustable sweeping direction
makes it possible to clear snow even from
places where the machine is unable to turn.
Useful tips
Wipe the snap couplings before tting, as this
protects the hydraulic system.
Daily cleaning and maintenance will extend
the lifetime of both the machine and the
attachment.
Contents
General information ..........................................................................5
1.1 Safety .................................................................................5
1.2 EC Declaration of Conformity ............................................................6
1.3 Technical data .........................................................................7
Operator’s manual ...........................................................................9
2.1 Assembly / Disassembly ................................................................9
2.2 Before start-up ........................................................................10
2.3 Start-up ..............................................................................11
Service and Maintenance ....................................................................14
3.1 Cleaning ..............................................................................14
3.2 Maintenance ..........................................................................14
Conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.1 Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.2 Complaints ...........................................................................17
4.3 Disposal ..............................................................................17
Wearing parts ...............................................................................19
5.1 Wearing parts – Park Ranger 2150 snow sweeper ........................................19
Notes .....................................................................................20

General information

5
1
2
3Max. 10º
A B C
Ophold i knækområdet
er forbudt
Aufenthalt im Knickbereich ist verboten
Activities around the articulation point is forbidden
Ne séjournez jamais dans la zone d’articulation
Operator’s Manual City Ranger 2150 Snow Sweeper
1.1 Safety
Make sure no-one is standing close
to the machine while it is in use
Make sure that no one is near the
machine while it is in use as there is
a danger of crushing.
NB
As it is articulated, the rear end
of the machine swings out when
turning. Make sure that no one is
standing near the machine while it is
in use. (Picture 1)
When lever B on the left-hand side of
the machine is operated, the snow
sweeper moves from side to side.
Make sure that no one is standing
near the machine while it is in use.
(Picture 2)
Avoid crushing ngers
Keep your hands and ngers away
from areas where there is a danger
of crushing.
Avoid roll-overs
Do not drive the machine in a place
where it can slide, tip or roll. Do not
drive on slopes with an incline of
more than 10°. (Picture 3)
Reduction of noise and energy
consumption
We recommend that you do not drive
with a higher engine speed than
necessary, to reduce the noise and
the energy consumption.
Prevent people from standing in the working
area
Lever B
Do not drive on slopes with an incline of more
than 10°
General information

6Operator’s Manual City Ranger 2150 Snow Sweeper Operator’s Manual City Ranger 2150 Snow Sweeper
1.2 EC Declaration of Conformity
Manufacturer: Egholm A/S
Address: Transportvej 27 · DK-7620 Lemvig
Tel. [phone]
hereby declares that
The machine: Snow sweeper
Type: 21SK1205
· has been manufactured in conformity with the provisions of the Machinery Directive, Directive
2006/42/EU
The Park Ranger 2150 tted with the FH 2100 cab (ROPS approved)
· has been tested at the Danish Institute of Agricultural Sciences at Bygholm in conformity with
directive 86/298/EEC concerning rear mounted, roll-over protection structures of narrow-track
wheeled agricultural and forestry tractors.
Place: Lemvig
Date:
Signature:
Knud Olsen, Senior Engineer
General information

7Operator’s Manual City Ranger 2150 Snow Sweeper Operator’s Manual City Ranger 2150 Snow Sweeper
1.3 Technical data
Dimensions
Length (L)
Width (W)
Height with cab
Height
Attached
3,020 mm
1,220 mm
1,935 mm
Storage dimensions
900 mm
1,220 mm
650 mm
Technical data
Type 21SK1205
Clearing width 1,140-1,220 mm
Ground clearance below brush 420 mm
Brush diameter 550 mm
Weight of snow sweeper 101 kg
Number of brush rings 33
Number of spacers 32
Sweeping capacity approx. 10–12,000 m2/hour
NB
Specications may be changed without prior notice.
General information

Operator´s manual

9
A B C
5
1
4
23
Operator’s Manual City Ranger 2150 Snow Sweeper
2.1 Assembly / Disassembly
1. We recommend that you run the hydraulic
hoses over the snow sweeper guard to keep them
clear and free from dirt when the snow sweeper
is tted. (Picture 1)
2. The locking handle on the A-frame of the base
machine must be in the open position. (Picture 2)
3. Drive the base machine right up to the A-frame
of the snow sweeper so the A-frames t into each
other.
4. Use lever A on the left-hand side of the base
machine to raise the A-frame until the snow
sweeper is freely suspended above the ground.
(Picture 3)
5. Use the locking handle on the A-frame to lock
the snow sweeper in place. (Picture 4)
6. Use lever A on the left-hand side of the base
machine to raise the snow sweeper completely.
(Picture 3)
7. Switch off the machine.
8. Hook the large spring on the snow sweeper into
the socket on the instrument panel. (Picture 5)
Hydraulic hoses
Locking handle-open Lever A
Locking handle on the A-frame – locked
L
o
c
k
e
d
Hook the spring into the socket on the console
Operator’s manual

10
12
3
4
5
A B C
Operator’s Manual City Ranger 2150 Snow Sweeper Operator’s Manual City Ranger 2150 Snow Sweeper
2.1 Assembly / Disassembly
9. Pull out the locating pin and swivel the
support strut in front of the wheel on the
machine until it falls into place. (Picture 1+2)
10. Attach the hydraulic hoses which are used
to turn the snow sweeper to the B-connector on
the left-hand side of the machine. (Picture 3)
11. Attach the hydraulic hoses which are used
to rotate the brush to the D-connectors on the
right-hand side of the machine. (Picture 4)
Removal
Reverse the procedure for tting. Put the
protective caps on the snap couplings to protect
them from dirt.
2.2 Before start-up
During transport, use the transport lock to
secure the snow sweeper in the raised position.
(Picture 5)
Locating pin Swivel support strut
B-connector
D-connectors
Transport lock
L
o
c
k
e
d
Operator’s manual

11
1
2
3
A B C
Operator’s Manual City Ranger 2150 Snow Sweeper Operator’s Manual City Ranger 2150 Snow Sweeper
2.3 Start-up
1. Start the machine.
2. Lower the snow sweeper by pushing lever A
on the left-hand side of the machine down to
position 2. (Picture 1)
3. We recommend that you hold the lever down
for about 2 seconds, as this will place the snow
sweeper in a oating position, which allows it to
follow ground contours.
4. Start the brush by pushing lever D on the
right-hand side of the machine up to position 1.
(Picture 2)
The direction of the brush can be turned so that
it is possible to clear snow in places where the
machine cannot turn. Do this by pushing lever D
down to position 2. (Picture 3)
5. Use lever B on the left-hand side of the base
machine to turn the snow sweeper until the
brush is in the position you require. (Picture 1)
Warning
Make sure no one is standing close
to the machine while it is in use.
When lever B on the right-hand side
of the machine is operated, the snow
sweeper moves from side to side.
Make sure that no one is standing
near the machine while it is in use.
Lever A Lever B
Lever D
Reverse sweeping direction – driving in
reverse
Operator’s manual

12 Operator’s Manual City Ranger 2150 Snow Sweeper
2.3 Start-up - Continued
NB
When turning, the rear of the
machine swings out so there is a risk
of crushing or collision.
We recommend that you do not drive
with a higher engine speed than
necessary, to reduce the noise and
the energy consumption.
Operator’s manual

Service and
maintenance

14
1
2
Operator’s Manual City Ranger 2150 Snow Sweeper
3.1 Cleaning
Daily cleaning and maintenance will extend
the lifetime of both the machine and the
attachment.
After use, clean the snow sweeper with water.
3.2 Maintenance

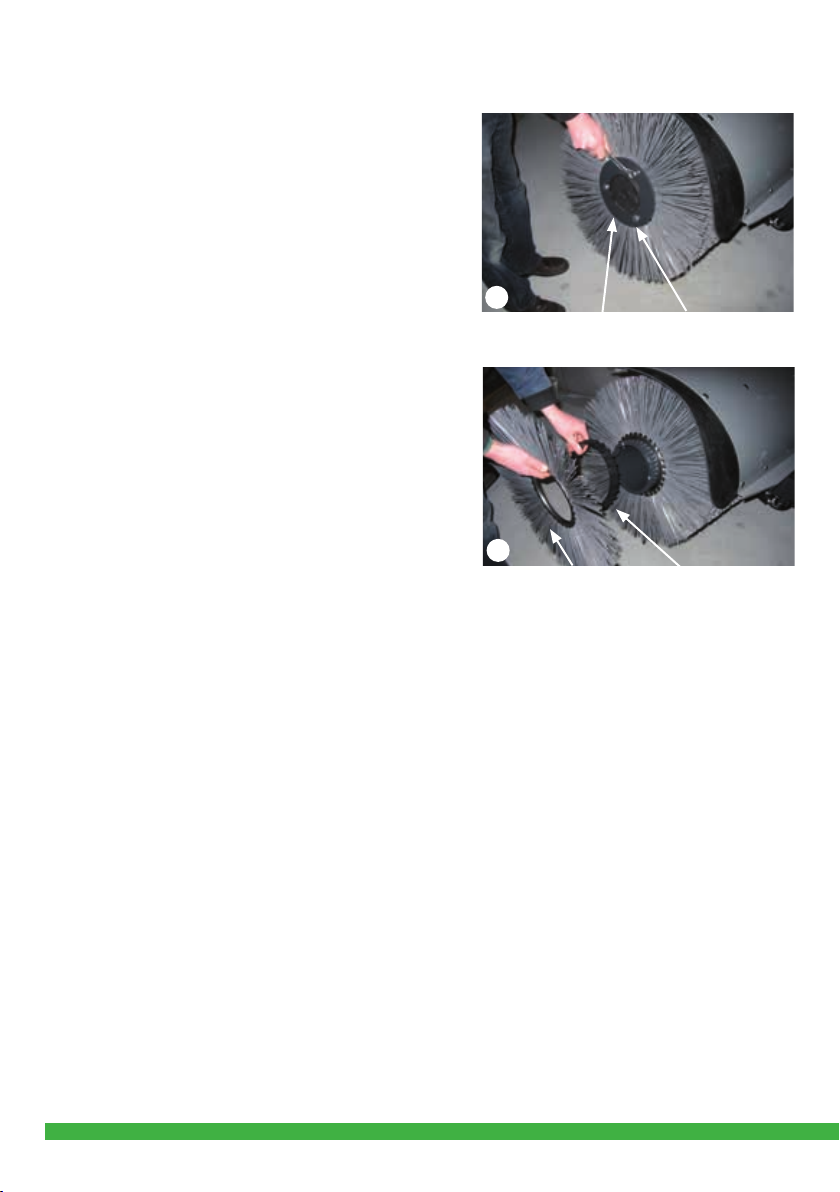

Replacing the brush rings
1. Remove the ange that holds the brush rings
by unscrewing the three bolts that hold the
ange. (Picture 1)
2. Take all the brush rings and spacers off the
brush axle. (Picture 2)
3. Fit a skewed brush ring on the brush axle with
an incline towards the end of the axle.
4. Then place a brush ring, followed by a spacer,
on the brush axle.
5. Fit a at brush ring to nish.
6. Replace the ange.
New brush rings can be ordered from an
authorised Egholm distributor.
Storage outside the season
When the snow sweeper is to be stored outside
the season, we recommend that you remove
any loose paint and to repaint any damaged
areas.
We recommend greasing the attachment or
spraying it with protective lubricant.
Remove the ange Bolt
Brush ring Spacer
Service and Maintenance

Conditions

16 Operator’s Manual City Ranger 2150 Snow Sweeper Operator’s Manual City Ranger 2150 Snow Sweeper
4.1 Warranty
The warranty period for the materials and manufacture of the snow sweeper is 12 months from the
date of purchase.
In case of faults or defects in the machine within the warranty period, Egholm will carry out the
necessary repairs without charge for materials and working hours in accordance with the terms and
conditions listed below.
The scope of warranty
1. The Egholm warranty is only valid on presentation of the original receipt, supplied with model
description, serial number and date of purchase.
2. Regular checks, adjustments, services and technical alterations are not covered by the warranty.
3. All inquiries concerning the warranty are to be addressed to the place where the machine was
purchased.
4. This warranty does not cover faults and defects which cannot be traced back to defects in
material or production errors.
5. This warranty is valid for persons who have legally acquired the machine within the warranty
period.
6. In the event of failure to perform and substantiate service in accordance with the applicable
instructions, Egholm reserves the right to reject any claim made within the warranty period.
7. Egholm reserves the right to make improvements and design-related alterations to the machine
without being obliged to modify previously delivered models in relation hereto.
The warranty does not therefore cover
· Wear and tear, accidents, damage to the equipment caused by operating errors, negligence,
changes to the construction of the machine or use of non-Egholm spare parts or attachments.
· Machines with illegible serial numbers.
· Damage caused by force majeure such as lightning, ood, re, war, civil disturbance, etc. as well
as damage resulting from incorrect or insucient maintenance, consequential damage or other
causes over which Egholm has no control.
Conditions

17Operator’s Manual City Ranger 2150 Snow Sweeper Operator’s Manual City Ranger 2150 Snow Sweeper
4.2 Complaints
All inquiries regarding the machine should be made at the distributor from whom the machine was
purchased. This applies to inquiries concerning normal use, service, maintenance and spare parts
as well as to any complaints.
We wish you many years of safe and satisfactory use of your machine.
Best regards
Egholm A/S
4.3 Disposal
When many years from now your snow sweeper comes to the end of its working life, it should be
disposed of in a responsible manner and conform with the relevant disposal regulations.
1. Used hydraulic oil is to be disposed of at an approved waste disposal facility or site.
2. Remove the plastic and rubber parts and dispose of them in accordance with the applicable
environmental legislation.
3. After the parts mentioned have been removed, the machine is ready to be handed over to an
authorised municipal scrap merchant.
Conditions

Wearing parts

19Operator’s Manual City Ranger 2150 Snow Sweeper
09701390 Wheel for support strut
09722670 Rubber cover
01109000 Spacer
5.1 Wearing parts – Park Ranger 2150 snow sweeper
90501911 Brush ring set
Wearing parts

20 Operator’s Manual City Ranger 2150 Snow Sweeper Operator’s Manual City Ranger 2150 Snow Sweeper
Notes
