EGO POWER+ PSX2500 User manual

OPERATOR'S MANUAL
POLE SAW
ATTACHMENT
MODEL NUMBER PSX2500/PSX2500-FC
25cm
10”
WARNING: To reduce the risk of injury, the user must read and understand the
Operator’s Manual before using this product. Save these instructions for future reference.
Español p. 79
Français p. 39
EXCLUSIVELY FOR USE WITH
EGO TELESCOPIC POWER POLE
PPX1000/PPX1000-FC

POLE SAW ATTACHMENT — PSX2500/PSX2500-FC2
TABLE OF CONTENTS
Safety Symbols ..........................................4
Safety Instructions.....................................5-10
Introduction ............................................11
Specications ..........................................11
Packing List ............................................12
Description .........................................13-14
Assembly ...........................................15-16
Operation ...........................................17-21
Maintenance ........................................22-33
Troubleshooting ......................................34-35
Warranty ...........................................36-37

POLE SAW ATTACHMENT — PSX2500/PSX2500-FC 3
READ ALL INSTRUCTIONS!
READ AND UNDERSTAND
OPERATOR'S MANUAL
WARNING: Some dust created by power sanding, sawing, grinding, drilling
and other construction activities contains chemicals known to the state of California
to cause cancer, birth defects or other reproductive harm. Some examples of these
chemicals are:
◾Lead from lead-based paints.
◾Crystalline silica from bricks and cement and other masonry products, and
◾Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of
work. To reduce your exposure to these chemicals: work in a well ventilated area, and
work with approved safety equipment, such as those dust masks that are specially
designed to filter out microscopic particles.

POLE SAW ATTACHMENT — PSX2500/PSX2500-FC4
SAFETY SYMBOLS
The purpose of safety symbols is to attract your attention to possible dangers. The
safety symbols and the explanations with them deserve your careful attention and
understanding. The symbol warnings do not, by themselves, eliminate any danger.
The instructions and warnings they give are no substitutes for proper accident
prevention measures.
WARNING: Be sure to read and understand all safety instructions in this
Operator’s Manual, including all safety alert symbols such as “DANGER,” “WARNING,”
and “CAUTION” before using this tool. Failure to following all instructions listed below
may result in electric shock, fire, and/or serious personal injury.
SYMBOL MEANING
SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, OR CAUTION.
May be used in conjunction with other symbols or pictographs.
WARNING! The operation of any power tools can result in foreign
objects being thrown into your eyes, which can result in severe eye
damage. Before beginning power tool operation, always wear safety
goggles or safety glasses with side shield and a full face shield when
needed. We recommend a Wide Vision Safety Mask for use over
eyeglasses or standard safety glasses with side shields. Always use eye protection
which is marked to comply with ANSI Z87.1.

POLE SAW ATTACHMENT — PSX2500/PSX2500-FC 5
SAFETY INSTRUCTIONS
This page depicts and describes safety symbols that may appear on this product. Read,
understand, and follow all instructions on the machine before attempting to assemble
and operate it.
Safety Alert Indicates a potential personal injury hazard.
Read And
Understand
Operator's Manual
To reduce the risk of injury, user must read and
understand the operator’s manual before using
this product.
Wear Eye
Protection
Always wear safety goggles or safety glasses
with side shields and a full face shield when
operating this product.
Wear Ear Protection
Pole saw generates noise that may damage
your hearing. Always wear sound barriers (ear
plugs or ear mufflers) to protect your hearing.
Wear Eye and Head
Protection
Always wear eye and head protection when
operating this product.
Wear Protective
Gloves
Protect your hands with gloves when handling
saw and saw chain. Heavy-duty, nonslip gloves
improve your grip and protect your hands.
Wear Safety
Footwear
Wear non-slip safety footwear when using
this equipment.

POLE SAW ATTACHMENT — PSX2500/PSX2500-FC6
Keep sufficient
distance away from
electrical power
lines
To prevent electrocution, do not operate within
50 ft. (15m) of overhead electrical lines.
Contact with or use near power lines may
cause serious injury or electric shock resulting
in death.
Li-ion RBRC seal Designates Li-ion battery recycling program
IPX5 Ingress Protection
Degree Protection from splashing water
V Volt Voltage
cm Centimeter Length or size
in. Inch Length or size
kg Kilogram Weight
lb. Pound Weight
°C Degrees Celsius Temperature
°F Degrees Fahrenheit Temperature
Direct Current (DC) Type or a characteristic of current
IMPORTANT SAFETY INSTRUCTIONS
WARNING! When using electric gardening appliances, basic safety precautions
should always be followed to reduce the risk of fire, electric shock, and personal injury,
including the following:
READ CAREFULLY BEFORE USE
KEEP FOR FUTURE REFERENCE
DANGER! Do not operate near electrical power lines. The unit has not been
designed to provide protection from electric shock in the event of contact with
overhead electric lines, consult local regulations for safe distances from overhead
electric power lines and ensure that the operating position is safe and secure before
operating the tool.

POLE SAW ATTACHMENT — PSX2500/PSX2500-FC 7
POLE SAW SAFETY WARNINGS
◾Keep all parts of the body away from the saw chain. Do not remove cut
material or hold material to be cut when blades are moving. Make sure the
switch is off when clearing jammed material. Saw chain continues to move after
the switch is turned off. A moment of inattention while operating the extended-
reach pruner may result in serious personal injury.
◾Avoid unintentional contact with the stationary saw chain or guide bar rails.
These can be very sharp. Always wear gloves and long pants or chaps when
handling the pole saw, saw chain, or guide bar.
◾Always hold the pole saw with your one hand on the rear handle and your
other hand on the front handle. Serious injury to the operator, helpers, and/or
bystanders can result from one-handed operation.
◾Hold the power tool by insulated gripping surfaces only, because the saw
chain may contact hidden wiring. Saw chains contacting a “live” wire may
make exposed metal parts of the power tool “live” and could give the operator an
electric shock.
◾Wear safety glasses and hearing protection. Further protective equipment
for head, hands, legs and feet is recommended. Adequate protective clothing
will reduce personal injury by flying debris or accidental contact with the saw
chain.

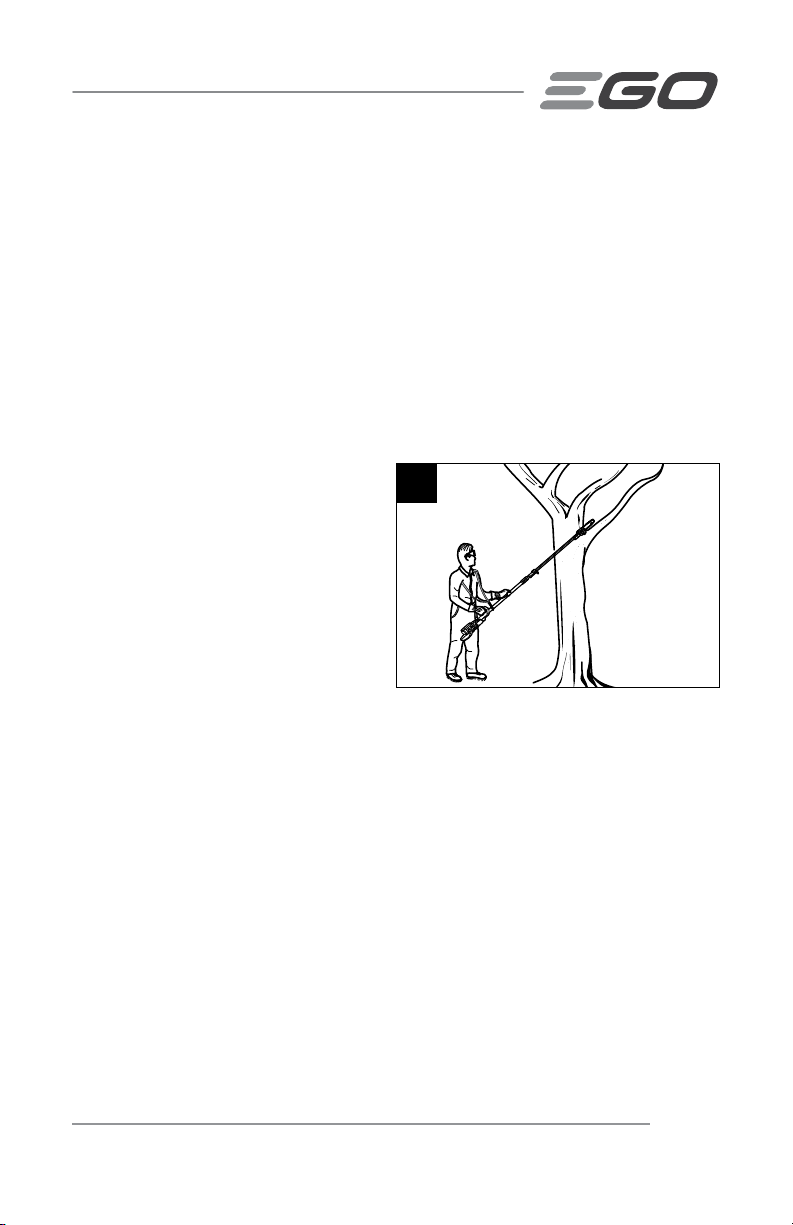

◾Do not operate a pole saw in a tree. Operation of a pole saw while up in a tree
may result in personal injury.
◾Always keep proper footing and operate the pole saw only when standing
on xed, secure and level surface. Slippery or unstable surfaces such as
ladders may cause a loss of balance or control of the pole saw.
◾Never operate a pole saw that is damaged or improperly adjusted or that
is not completely and securely assembled. Be sure that the saw chain stops
moving when the trigger switch is released.
◾Inspect the work piece for nails, wire, or other foreign objects prior to
cutting.
◾When cutting a limb that is under tension be alert for spring back. When
the tension in the wood fibers is released the spring loaded limb may strike the
operator and/or throw the pole saw out of control.
◾Use extreme caution when cutting brush and saplings. The slender material
may catch the saw chain and be whipped toward you or pull you off balance.

POLE SAW ATTACHMENT — PSX2500/PSX2500-FC8
◾Aggressive or abusive cutting or misuse of the pole saw can cause
premature bar, chain, and/or sprocket wear, as well as broken chain or bar,
leading to kickback, chain throw or the ejection of material.
◾Never use the guide bar as a lever. A bent guide bar can cause premature bar,
chain, and/or sprocket wear, as well as a broken chain or bar, leading to kickback,
chain throw or the ejection of material.
◾Carry the pole saw with two hands on the handles, with the pole saw
switched off. When transporting or storing the pole saw always t the guide
bar cover. Proper handling of the pole saw will reduce the likelihood of accidental
contact with the moving saw chain.
◾Do not remove cut material or hold material to be cut when blades are
moving. Make sure the switch is off when clearing jammed material. Saw
chain continues to move after the switch is turned off. A moment of inattention
while operating the pole saw may result in serious personal injury.
◾Follow instructions for lubricating, chain tensioning and changing
accessories. Improperly tensioned or lubricated chain may either break or
increase the chance for kickback. Keep cutting edge sharp and clean for best
performance and to reduce the risk of injury.
◾Keep handles dry, clean, and free from oil and grease. Greasy, oily handles are
slippery causing loss of control.
◾Cut wood only. Do not use pole saw for purposes not intended. For example:
do not use pole saw for cutting plastic, masonry or non-wood building materials.
Use of the pole saw for operations different than intended could result in a
hazardous situation.
◾Do not use the pole saw in bad weather conditions, especially when there is
a risk of lightning. This decreases the risk of being struck by lightning.
◾Stop the motor and remove the battery pack whenever you leave the tool.
◾Store idle appliances indoors. When not in use, appliances should be stored
indoors in a dry and high or locked-up place with the battery pack removed, out
of reach of children.
◾Check damaged parts. Before further use of the product, a guard or other part
that is damaged should be carefully checked to determine that it will operate
properly and perform its intended function. Check for alignment of moving parts,
binding of moving parts, breakage of parts, mounting, and any other condition
that may affect its operation. A guard or other part that is damaged should be
properly repaired or replaced by an authorized service center unless indicated
elsewhere in this manual.

POLE SAW ATTACHMENT — PSX2500/PSX2500-FC 9
◾Always use head protection when operating the extended–reach pruner
overhead. Falling debris can result in serious personal injury.
◾Dress Properly – Do not wear loose clothing or jewelry. They can be caught in
moving parts. Use of rubber gloves and substantial footwear is recommended
when working outdoors. Wear protective hair covering to contain long hair.
◾Use Right Appliance – Do not use appliance for any job except that for which it
is intended.
◾Advice of the risk for bystanders, especially for children, and the need to keep
them at a safe distance during operation of the saw chain pole pruner.
◾Avoid Dangerous Environment – Don't use appliances in damp or wet locations.
ADDITIONAL WARNINGS
◾Do not charge the battery pack in rain, or in wet locations.
◾The battery pack must be removed from the appliance before it is scrapped.
◾The battery shall be disposed of safely.
◾Do not dispose of the battery in a re. The cells may explode. Check with local
codes for possible special disposal instructions.
◾Do not open or mutilate the battery. Released electrolyte is corrosive and may
cause damage to the eyes or skin. It may be toxic if swallowed.
CAUTION! The electrolyte is a dilute sulfuric acid that is harmful to the skin and
eyes. It is electrically conductive and corrosive.
◾Exercise care in handling batteries in order not to short the battery with
conducting materials such as rings, bracelets, and keys. The battery or
conductor may overheat and cause burns.
◾Battery tools do not have to be plugged into an electrical outlet; therefore,
they are always in operating condition. Be aware of possible hazards even
when the tool is not operating. Take care when performing maintenance or
service.
◾Remove the battery pack before servicing, cleaning or removing material
from the tool.
◾Replacement parts - When servicing, use only identical EGO replacement parts.
Use of any other accessory or attachment may increase the risk of injury.

POLE SAW ATTACHMENT — PSX2500/PSX2500-FC10
◾Use only with the battery packs and chargers listed below:
BATTERY PACK CHARGER
BA1400, BA1400-FC, BA2800, BA2800-FC,
BA4200, BA4200-FC, BA1400T, BA1400T-FC,
BA2240T, BA2240T-FC, BA2800T, BA2800T-FC,
BA4200T, BA4200T-FC, BA5600T, BA5600T-FC,
BAX1501, BAX1501-FC
CH2100, CH2100-FC,
CH5500, CH5500-FC,
CH2800D, CH2800D-FC,
CH7000, CH7000-FC,
CHX5500, CHX5500-FC
WARNING: Do not use the shoulder strap when the tool equipped with the
battery pack BAX1501/BAX1501-FC. Failure to do this could result in serious
personal injury.
◾Use Only With the 56V Lithium-Ion Telescopic Power Pole PPX1000/PPX1000-FC.
◾Do not wash with a hose; avoid getting water in motor and electrical
connections.
◾If situations occur that are not covered in this manual, use care and good
judgment. Contact the EGO Customer Service Center for assistance.
◾Save these instructions. Refer to them frequently and use them to instruct
others who may use this tool. If you lend this tool to someone else, also lend
these instructions to them to prevent misuse of the product and possible injury.
SAVE THESE INSTRUCTIONS!
NOTE: SEE YOUR TELESCOPIC POWER POLE OPERATOR’S MANUAL
FOR ADDITIONAL SPECIFI SAFETY RULES.

POLE SAW ATTACHMENT — PSX2500/PSX2500-FC 11
INTRODUCTION
Congratulations on your selection of the EGO POLE SAW ATTACHMENT. It has been
designed, engineered and manufactured to give you the best possible dependability
and performance.
Should you experience any problem you cannot easily remedy, please contact EGO
customer service center 1-855-EGO-5656.
This manual contains important information on the safe assembly, operation and
maintenance of your product. Read it carefully before using the product. Keep this
manual handy so you can refer to it at any time.
SERIAL NUMBER _____________________ DATE OF PURCHASE _________________
YOU SHOULD RECORD BOTH SERIAL NUMBER AND DATE OF PURCHASE AND KEEP THEM IN A
SAFE PLACE FOR FUTURE REFERENCE
SPECIFICATIONS
Guide Bar Length 10" (250mm)
Chain Pitch 3/8" (9.5mm)
Chain Gauge 0.043" (1.1mm)
Chain Oil Tank Capacity 5.1 fl. oz (150ml)
Number of drive links 40
Recommended Operating Temperature 14 – 104 °F (-10 – 40 °C)
Recommended Storage Temperature -4 – 158°F(-20 – 70°C)
*For the appliance WITHOUT battery pack
Weight 4.41 lb. (2.0 kg)

POLE SAW ATTACHMENT — PSX2500/PSX2500-FC12
PACKING LIST
PART NAME QUANTITY
Pole Saw Attachment 1
Chain Sheath 1
Operator's Manual 1
Recommended Bar and Chain for this Pole Saw
PART NAME MODEL NUMBER
Guide Bar AG1000
Saw Chain AC1000

POLE SAW ATTACHMENT — PSX2500/PSX2500-FC 13
DESCRIPTION

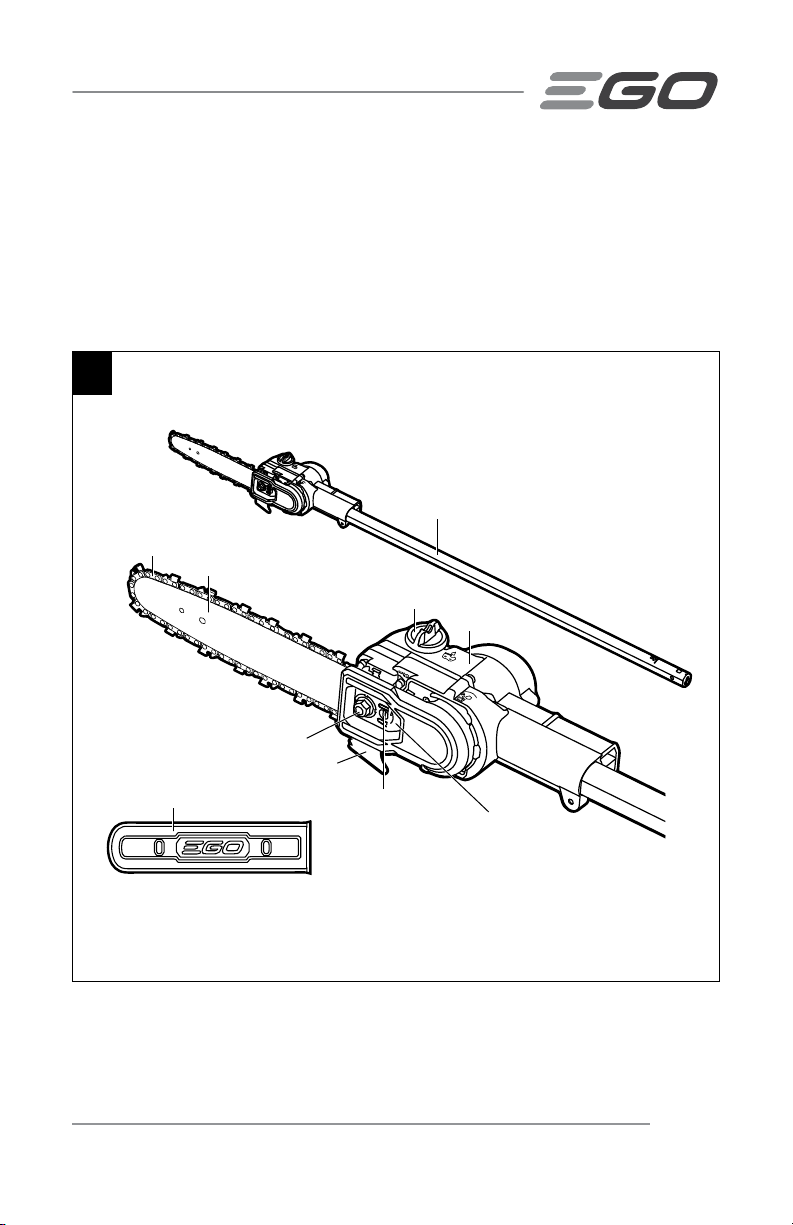

KNOW YOUR POLE SAW ATTACHMENT (Fig.1)
The safe use of this product requires an understanding of the information on the tool and
in this operator’s manual, as well as knowledge of the project you are attempting. Before
using this product, familiarize yourself with all operating features and safety rules.
1
Oil Tank
Oil-Tank Cap
Pole-saw Shaft
Guide Bar
Chain Sheath
Cover Nut
Bucking Spikes
Chain-tensioning Screw
Chain-sprocket Cover
Saw Chain

POLE SAW ATTACHMENT — PSX2500/PSX2500-FC14
GUIDE BAR
Supports and guides the saw chain.
SAW CHAIN
A loop of chain with cutting teeth and supported by the guide bar. The saw chain cuts
the wood when it is driven by the power pole.
CHAIN SHEATH
The chain sheath keeps the operator from coming in contact with the sharp chain
blades when the tool is not in use. It also helps keep the chain blades from being
nicked or damaged when the tool is being transported or stored.
CHAIN-SPROCKET COVER
Covers the chain-sprocket and secures the guide bar.
COVER NUT
Locks/unlocks the chain-sprocket cover.
OIL TANK
Stores the lubricant for the saw chain. The semi-transparent tank housing allows user
to see when to add lubricant.
OIL-TANK CAP
Seals the oil tank.
CHAIN-TENSIONING SCREW
Used to adjust the tension of the saw chain.
BUCKING SPIKES
The pointed tooth or teeth for use when felling or bucking to pivot the saw and maintain
position while sawing.

POLE SAW ATTACHMENT — PSX2500/PSX2500-FC 15
ASSEMBLY
WARNING: If any parts are damaged or missing, do not operate this
product until the parts are replaced. Use of this product with damaged or missing
parts could result in serious personal injury.
WARNING: Do not attempt to modify this product or create accessories
not recommended for use with this telescopic power pole. Any such alteration or
modification is misuse and could result in a hazardous condition leading to possible
serious personal injury.
UNPACKING
◾Inspect the tool carefully to make sure that no breakage or damage occurred
during shipping.
◾Do not discard the packing material until you have carefully inspected and
satisfactorily operated the tool.
◾If any parts are damaged or missing, please return the product to the place of
purchase.
CONNECTING THE POLE SAW ATTACHMENT TO THE TELESCOPIC
POWER POLE
This pole saw attachment is designed for use with EGO telescopic power pole
PPX1000//PPX1000-FC.
The pole saw attachment connects to the telescopic power pole by means of a coupler
device.
1. Switch off the tool and remove the battery pack.
2. Loosen the locking knob.
3. Align the arrow on the attachment shaft with the insert indication on the coupler
and push the pole saw attachment into the coupler until you hear a clear “click”
sound. The coupler should be positioned all the way to the LINE on the shaft that
indicates that the pole saw attachment is properly mounted into place (Fig. 2).
4. Pull the shaft of the attachment to verify that it is securely locked into the coupler.
If not, push the attachment shaft into the coupler until it snaps into place.
5. Tighten the locking knob securely.

POLE SAW ATTACHMENT — PSX2500/PSX2500-FC16
WARNING: To avoid serious personal injury, be certain that the locking knob is
fully tightened before operating the tool. Check it periodically for tightness during use.
2Shaft-Release Button Insert Indication for
Attachment Shaft
Locking knob
Arrow on the
Attachment Shaft
Line
DETACHING THE ATTACHMENT FROM THE TELESCOPIC POWER POLE
1. Switch off the tool and remove the battery pack.
2. Loosen the locking knob.
3. Press the shaft-release button and, with the button depressed, pull the pole saw
attachment out of the coupler to detach it from the telescopic power pole.

POLE SAW ATTACHMENT — PSX2500/PSX2500-FC 17
OPERATION
DANGER: Never cut near power lines, electric cords, or other electric sources.
If the blades jam on any electrical cord or line, DO NOT TOUCH THE BLADE OR THE
ALUMINUM POLE! THEY CAN BECOME ELECTRICALLY LIVE AND MAY BE VERY
DANGEROUS. Continue to hold the pole saw attachment by the insulated handle or lay
it down and away from you in a safe manner. Disconnect the electrical service to the
damaged line or cord before attempting to free the blade from the line or cord. Contact
with the blade, other conductive parts of the pole saw attachment, or live electric cords
or lines will result in death by electrocution or serious injury.
WARNING: Do not allow familiarity with this product to make you careless.
Remember that a careless fraction of a second is sufficient to inflict serious injury.
WARNING: Always wear safety goggles or safety glasses with side shield
marked to comply with ANSI Z87.1. Failure to do so could result in objects being
thrown into your eyes and other possible serious injuries.
WARNING: Do not use any attachments or accessories not recommended
by the manufacturer of this product. The use of attachments or accessories not
recommended can result in serious personal injury.
Before each use, inspect the entire product for damaged, missing, or loose parts such
as screws, nuts, bolts, caps, etc. Tighten securely all fasteners and caps and do not
operate this product until all missing or damaged parts are replaced.
APPLICATIONS
You may use this product for the purposes listed below:
◾Limbing
◾Pruning

POLE SAW ATTACHMENT — PSX2500/PSX2500-FC18

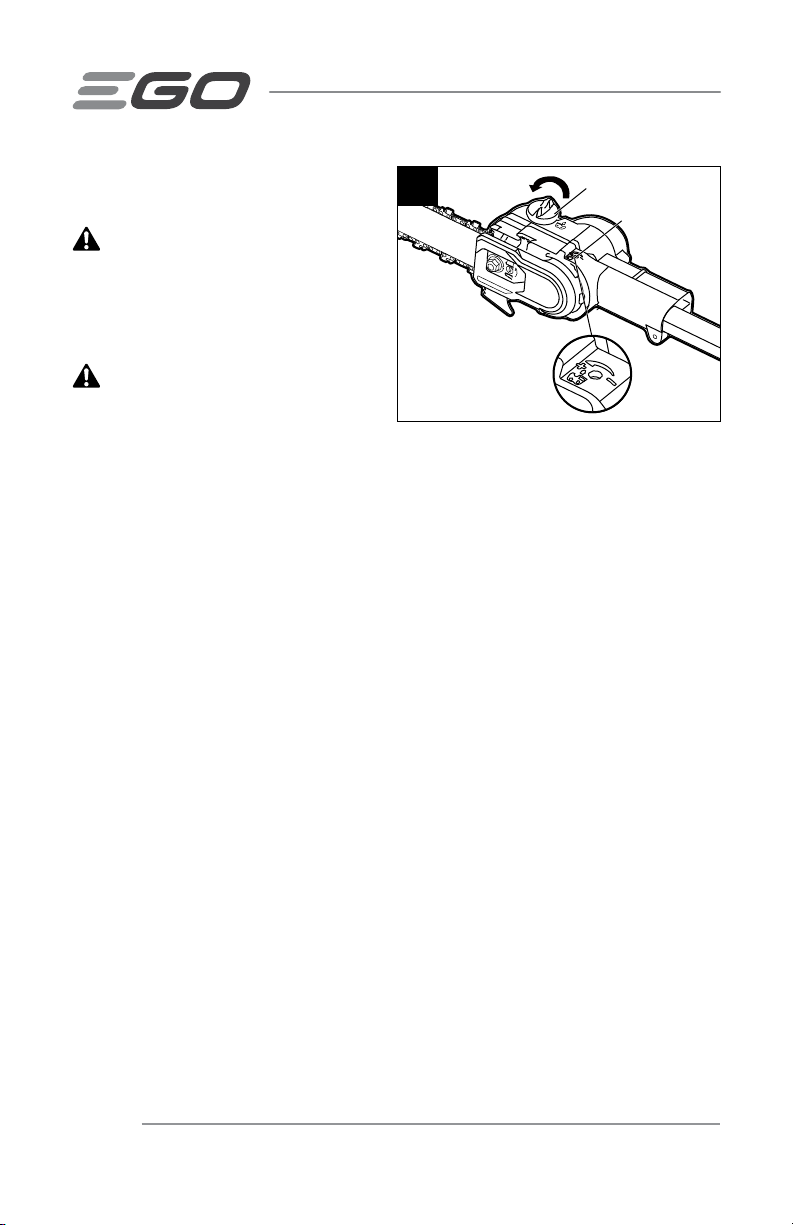

FILLING OIL TANK WITH BAR AND
CHAIN LUBRICANT (Fig. 3)
WARNING: To prevent accidental
starting that could cause serious
personal injury, always remove the
battery pack from the tool before lling
the tank with oil.
WARNING: Do not smoke or
bring any re or ame near the oil or
the pole saw.
NOTICE: The pole saw is not filled with oil at the time of purchase. It is essential to fill
the tank with chain oil before use. Operating the pole saw without chain oil or when the
oil level is below a certain amount will result in damage to the pole saw. Chain life and
cutting capacity depend on optimum lubrication. The chain is automatically lubricated
with chain oil during operation, if there is sufficient oil in the reservoir. Oil level should
also be checked after every 20 minutes of use and refilled as needed.
1. Remove the battery pack from the power pole.
2. Clean the oil-tank cap and the area around it to ensure that no dirt falls into the
oil tank.
3. Place the pole saw attachment upright to ensure that the tank cap is facing
upwards. Rotate the oil-tank cap counterclockwise to remove it.
4. Carefully pour the bar and chain oil into the tank until it fills to the tank neck. Be
careful not to let the oil spill from the opening. Wipe off any excess oil and close
the oil tank cap.
NOTE: The oil flow ratio could be adjusted by turning the adjusting screw–
counterclockwise to increase the oil output, clockwise to decrease the oil output.
NOTICE:
◾Never use oil or other lubricants not specifically designed for use on the bar and
chain. This can lead to a clogged oil system, which may cause premature wear of
the bar and chain.
◾Check the oil level frequently and refill as needed.
◾Do not use dirty, used or otherwise contaminated lubricants. Damage may occur
to the bar or chain.
3Oil-tank Cap
Adjusting Screw

POLE SAW ATTACHMENT — PSX2500/PSX2500-FC 19
◾It is normal for oil to seep from the saw when it is not in use. To prevent seepage,
empty the oil tank after each use, and then run the saw for one minute. When
storing the tool for a long period of time, be sure the chain is lightly lubricated –
this will prevent rust on the chain and bar sprocket.
◾To preserve natural resources, please recycle or dispose of oil properly. Consult
your local waste authority for information regarding available recycling and
disposal options.
TO START/STOP THE TOOL
See "STARTING/STOPPING THE TELESCOPIC POWER POLE" section in the telescopic
power pole PPX1000/PPX1000-FC operator's manual.
PREPARATION FOR CUTTING
(Fig. 4)
Refer to “Important Safety Instructions”
earlier in this manual for appropriate
safety equipment.
◾Make sure that the chain is properly
mounted and correctly tensioned.
◾Lift the tip of the guide bar to
check for any sagging in the
chain. The chain is correctly tensioned when there is no sag on the underside
of the guide bar and the chain is snug, but it can be turned by hand without
binding. If the tension requires adjustment, refer to the “REPLACING THE BAR
AND CHAIN”section in the Maintenance section of this manual for adjustment
instructions.
◾Tighten the cover nut if needed.
◾Check the oil level and fill the tank as needed. Adjust the oil flow ratio as needed.
◾Check the sharpness of the saw chain cutting teeth.
◾Wear non-slip gloves for maximum grip and protection.
◾Maintain a proper grip on the unit whenever the motor is running. Hold the unit
firmly with both hands.
◾Never stand directly under the limb you are cutting.
◾Make sure that you have a secure and balanced footing. Watch out for obstacles
such as tree stumps, roots and ditches, which could cause you to trip or stumble.
4

POLE SAW ATTACHMENT — PSX2500/PSX2500-FC20
BASIC CUTTING PROCEDURE
(Fig. 5 AND 6)
Follow the steps below to prevent
damage to tree or shrub bark. Do not use
a back-and-forth sawing motion.
1. Make a shallow first cut (1/4 of the
limb diameter) on the underside of
the limb, close to the main limb or
trunk.
2. Make the second cut from the top
side of the limb, outboard from the
first cut. Continue the cut through
the limb until the limb separates
from the tree. Be prepared to
balance the weight of the tool when
the limb falls.
3. Make a final cut close to trunk.
NOTICE: For second and final cuts (from
the top of the limb or branch), hold the bucking spikes against the limb being cut (Fig.
6). This will help to steady the limb and make it easier to cut. Allow the chain to cut for
you; exert only light downward pressure. If you force the cut, damage to the bar, chain,
or motor can result.
4. Release the trigger on the power pole as soon as the cut is completed.
NOTICE: Failure to follow proper cutting procedures will result in the bar and chain
binding and becoming pinched or trapped in the limb. If this happens:
1. Switch off the tool and remove the battery pack.
2. If the limb can be reached from the ground, lift the limb while holding the saw.
This should release the “pinch” and get away the saw.
LIMBING AND PRUNING
This pole saw attachment is designed for trimming small branches and limbs up to 8"
(20cm) in diameter. For best results, observe the following precautions:
1. Plan the cut carefully. Be aware of the direction in which the branch will fall.
25cm
10”
6
Bucking Spikes
5
Fainal Cut
First Cut 1/4 Diameter
Second Cut
LOAD
