Ei Electronics Ei 203EN Manual

BS EN 50291: 2001
Read and retain carefully for as long as the product is being used. It contains vital information
on the operation and installation. The leaflet should be regarded as part of the product.
If you are just installing the unit, the leaflet must be given to the householder. The leaflet is
to be given to any subsequent user.
BATTERY POWERED
CARBON MONOXIDE ALARM
INSTRUCTIONS
Model Ei 203EN
- Basic
Model Ei 204EN
- Standard with Alkaline Batteries
Model Ei 205EN
- with Memory & Alkaline Batteries
Model Ei 205ENA
- with Sealed in Batteries
Model Ei 205CEN

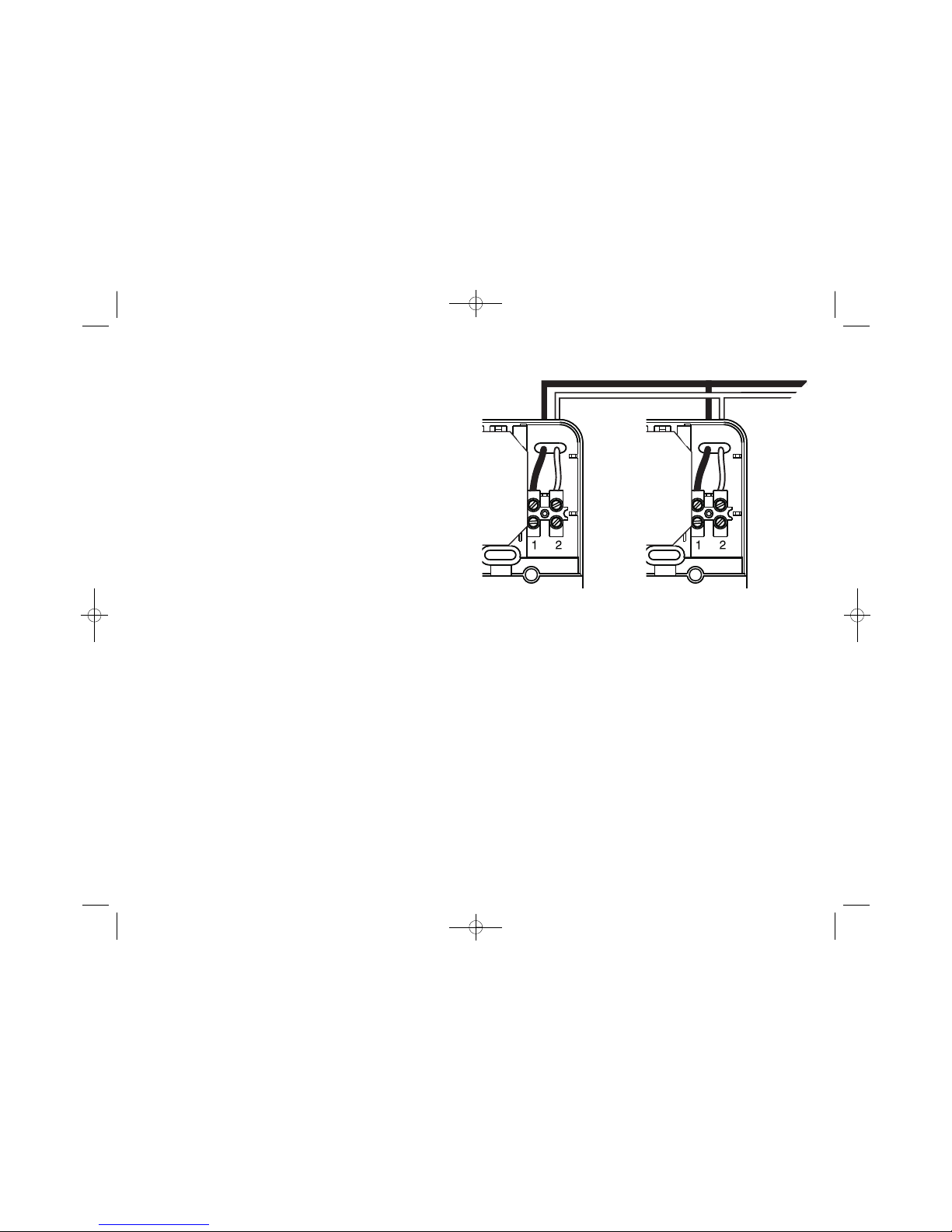

- with Memory, Interconnect & Alkaline Batteries
B15583-R3-203-204-205 U&C 8/5/04 7:45 AM Page 1

3
4
5
10
15
19
21
22
24
26
28
28
29
1
2
3
4
5
6
7
8
9
10
11
12
13
READ THIS FIRST
WHAT TO DO WHEN THE CO ALARM SOUNDS
CARBON MONOXIDE - THE SILENT KILLER!
WHERE TO PLACE CARBON MONOXIDE ALARMS
INSTALLATION
TESTING & MONITORING YOUR CO ALARM
MAINTENANCE
LIMITATIONS OF CARBON MONOXIDE ALARMS
HOW TO PROTECT YOUR FAMILY
TECHNICAL SPECIFICATIONS
GETTING YOUR CARBON MONOXIDE ALARMS SERVICED
GUARANTEES
TROUBLESHOOTING
Page
CONTENTS
2
B15583-R3-203-204-205 U&C 8/5/04 7:45 AM Page 2

1. READ THIS FIRST
Power up the unit by smoothly withdrawing the red “pull” tab at the top left hand
corner of the unit. If the batteries are supplied separately install the three AA

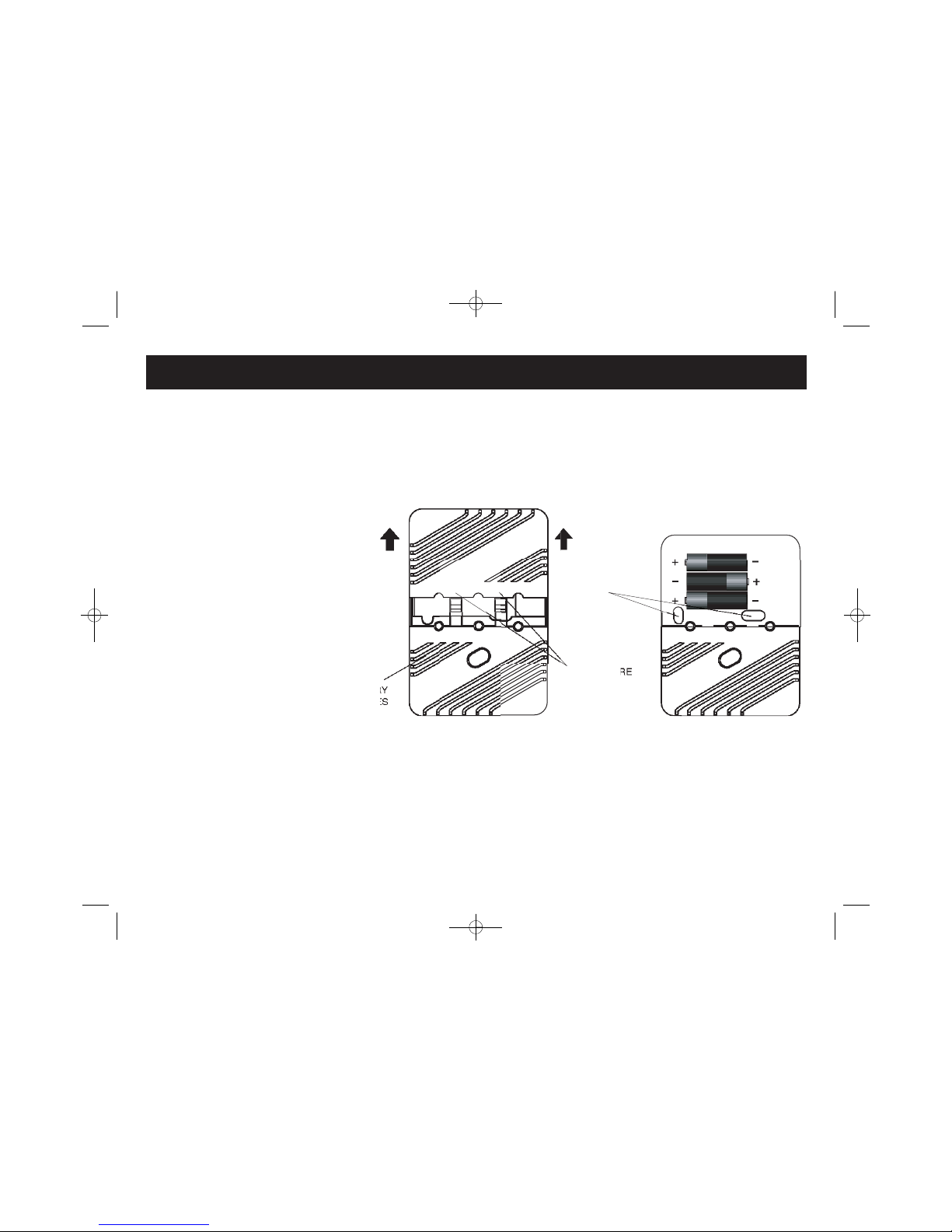

batteries by sliding the upper cover off as shown in figure 5a page 15. The green,
red & amber lights will immediately flash in sequence to show they are working - this
is normal.Then wait 15 seconds after connecting the power before button testing.
Install the Carbon Monoxide Alarm (CO Alarm) in every room that contains a
fuel burning appliance, particularly rooms where people spend a lot of time e.g.
bedrooms, kitchens and sitting rooms.

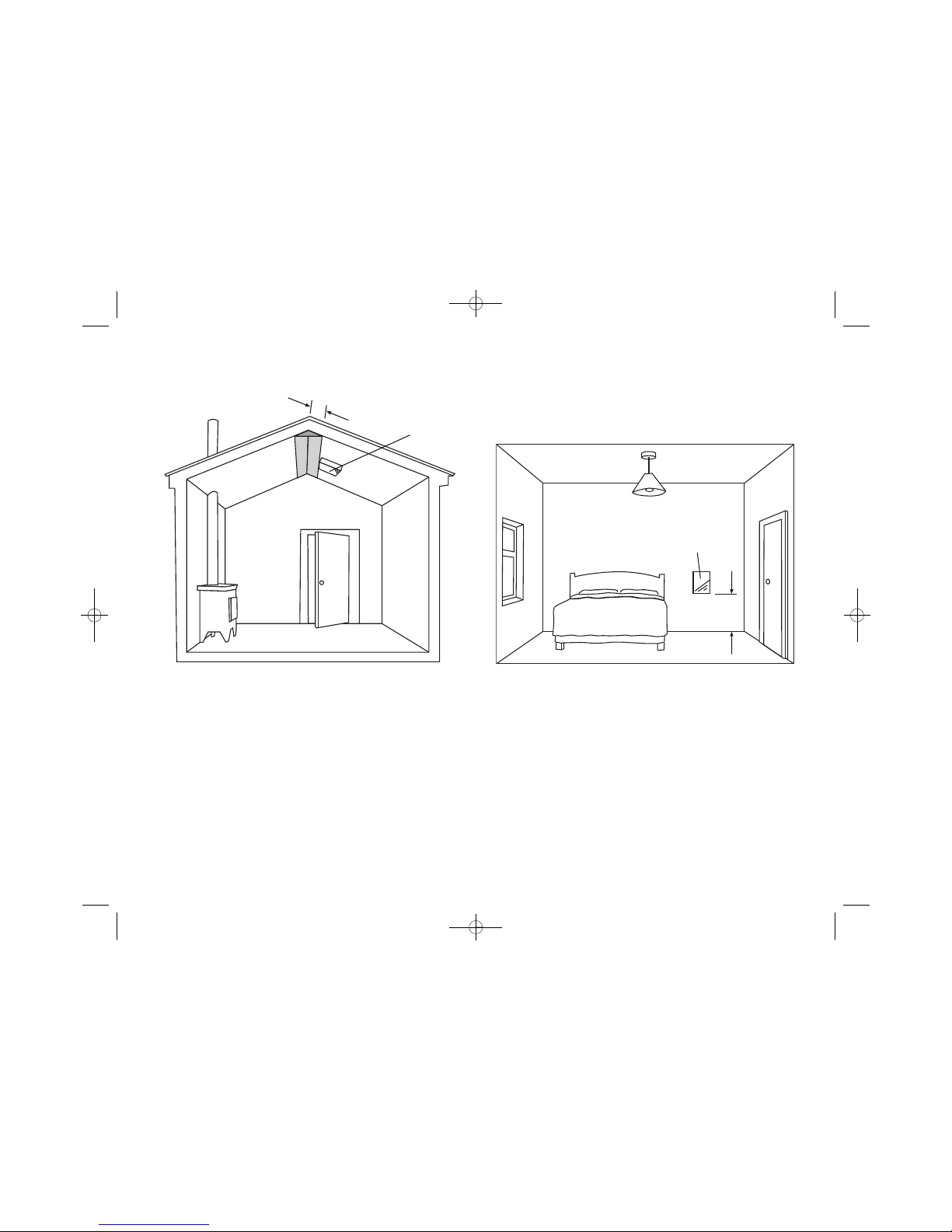

In rooms with an appliance, install (preferably) on the ceiling, (300mm from
walls) and between 1m to 3m horizontally from appliance. In rooms remote from
the appliance install at breath level, where the light indicators can be seen.
Regularly check that the green power light flashes every 45 seconds. If the unit
beeps for at least 1 hour when the green light flashes it has reached it’s end of life
and must be replaced. (If the ‘Replace by date’ on the side of the unit has not been
exceeded replace the batteries if accessible).
Test the unit weekly by pressing the test/hush button-the horn will sound.
Replace unit after 5 years operation (see ‘Replace by’ date on side wall label).
3
B15583-R3-203-204-205 U&C 8/5/04 7:45 AM Page 3

When the CO Alarm detects abnormal levels of CO (above 50ppm CO) the red
light starts to flash immediately and the horn will sound within 90 minutes. At
higher levels of CO the alarm will turn on sooner (see table B - page 8).
The CO Alarm will automatically reset once the CO has cleared. Pressing the
test/hush button resets the CO Alarm immediately (below 300ppm CO). If CO is
still present the red light and horn will turn on again after about 4 minutes.
The CO Alarm is no substitute for keeping chimneys and flues clear and in good
condition, and all of your appliances serviced regularly according to the
manufacturer’s instructions.
Do not fit alarm until all building work is completed to avoid contamination.
2. WHAT TO DO WHEN THE ALARM SOUNDS
(1) Open the doors and windows to ventilate the area.
(2) Turn off all fuel appliances where possible and stop using them. (The alarm
can be silenced immediately by pushing the test/hush button).
(3) Evacuate the property leaving the doors and windows open.
(4) Get medical help immediately for anyone suffering the effects of Carbon
Monoxide poisoning (headache, nausea), and advise that Carbon Monoxide
poisoning is suspected.
4
?
?
?
B15583-R3-203-204-205 U&C 8/5/04 7:45 AM Page 4

(5) Ring your gas or other fuel supplier on their emergency number. Keep the
number in a prominent place.
(6) Do not re-enter the property until the alarm has stopped. (If the alarm has been
silenced by pressing the test/hush button, wait at least 5 minutes so the alarm can
check that the CO has cleared).
(7) Do not use the fuel appliances again until they have been checked by an
expert. In the case of gas appliances this must be a CORGI registered installer.
3. CARBON MONOXIDE - THE SILENT KILLER!
3.1 What is Carbon Monoxide ?
Congratulations on becoming the owner of an Ei Carbon Monoxide Alarm. This will
help protect you and your household from the dangerous effects of Carbon Monoxide
- the silent killer. (CO is the chemical symbol, indicating the molecule has one carbon
atom and one oxygen atom).
Many are killed each year, and many more suffer ill health from Carbon Monoxide (CO)
poisoning. CO is an invisible, odourless, tasteless and extremely toxic gas. It is
produced by appliances and vehicles burning fuels, such as coal, oil, natural/bottled
gas, paraffin, wood, petrol, diesel, charcoal etc. CO is absorbed by red blood cells in
the lungs in preference to oxygen - this results in rapid damage to the heart and brain
from oxygen starvation.
5
B15583-R3-203-204-205 U&C 8/5/04 7:45 AM Page 5

High levels of CO in a house can be caused by:
•Incorrectly or poorly installed fuel-burning appliances.
•Blocked or cracked chimneys/flues.
•Blocked vents or draught-proofing which makes areas with fuel burning appliances
or fireplaces airtight.
•Engines of cars, lawnmowers etc. left running in confined spaces.
•Portable paraffin or gas heaters in badly ventilated rooms.
3.2 Symptoms of Carbon Monoxide Poisoning
Most people know that high levels of CO are harmful, however the period of exposure
is also important.
The following symptoms are related to Carbon Monoxide poisoning and should be
discussed with all members of the household.
Mild Exposure: Slight headache, nausea, vomiting, fatigue (often described as
“flu-like” symptoms).
Medium Exposure: Severe throbbing headache, drowsiness, confusion, fast heart rate.
Extreme Exposure: Unconsciousness, convulsions, cardiorespiratory failure, death.
A high level of CO for a short period (e.g. 350 ppm CO for 30 minutes) will cause the same
symptoms, a slight headache, as a lower level for a longer time (e.g. 150 ppm for 90 minutes).
Table A shows how exposure to different concentrations of CO generally affects people.
6
B15583-R3-203-204-205 U&C 8/5/04 7:45 AM Page 6

Many cases of reported Carbon Monoxide poisoning indicate that while victims are
aware they are not well, they become so disorientated that they are unable to save
themselves by either leaving the building or calling for assistance. Young children and
household pets may be the first affected.
Table A: Effects of Carbon Monoxide Poisoning
35 The maximum allowable concentration for continuous exposure in any 8 hour period
according to OSHA *.
150 Slight headache after 1.5 hours.
200 Slight headache, fatigue, dizziness, nausea after 2-3 hours.
400 Frontal headaches within 1-2 hours, life threatening after 3 hours, also maximum parts per
million in flue gas (on an air free basis) according to US Environmental Protection Agency.
800 Dizziness, nausea and convulsions within 45 minutes. Unconsciousness within 2 hours.
Death within 2-3 hours.
1,600 Headache, dizziness and nausea within 20 minutes. Death within 1 hour.
3,200 Headache, dizziness and nausea within 5-10 minutes. Death within 25-30 minutes.
6,400 Headache, dizziness and nausea within 1-2 minutes. Death within 10-15 minutes.
12,800 Death within 1-3 minutes.
ppm
Concentration
of CO in Air Inhalation Time (approx) and Symptoms Developed
ppm = parts per million
*OSHA Occupational Safety & Health Association
7
B15583-R3-203-204-205 U&C 8/5/04 7:45 AM Page 7

3.3 What happens when your CO Alarm detects Carbon Monoxide ?
When the Alarm detects potentally dangerous levels of CO, it flashes the red alarm
light immediately and then sounds a loud alarm if the CO persists.Table B below shows
how the CO Alarm reacts to different levels of CO gas and exposure time. At higher
levels of CO the alarm turns on sooner. The rate of flashing of the red light indicates the
level of CO.
Table B: CO Alarm Response
* unless it has been in alarm (see CO Alarm Memory below)
If your CO Alarm sounds follow the instructions on page 4.
When ventilation is provided by leaving the window and doors open, the CO build up
may have dissipated by the time help arrives and the alarm may have stopped
sounding. Although your problem may appear temporarily solved it is crucial that the
source of the CO is determined and appropriate repairs made.
CO Level
ppm
Horn On
within
Red
Alarm Light
0 ppm
50ppm
100 ppm
300 ppm
Off
60 to 90 minutes
10 to 40 minutes
3 minutes
Off *
1 Flash / 2 Seconds
4 Flashes / 2 Seconds
8 Flashes / 2 Seconds
8
B15583-R3-203-204-205 U&C 8/5/04 7:45 AM Page 8

NEVER IGNORE THE ALARM.
Pre-Alarm: When the alarm detects over 50ppm CO the red light flashes every 2
seconds. This helps locate CO leaks as the unit gives an indication straight away.
(Without this feature the CO level would need to be at 50ppm CO for 90 minutes for
an indication to be given). Note the Pre-Alarm signal may be triggered by CO coming
for example, from cooking with gas, from car engines or from nearby barbecues. This
is usually not a concern, unless the Pre-Alarm signal persists until the alarm sounds
and the CO source is unknown.
NOTE: The CO Alarm may sound if cigarette smoke is blown into it, or aerosols are
released nearby.
CO ALARM MEMORY (Ei205EN, Ei205ENA & Ei205CEN only)
- Red light is Off – No CO detected since reset or power up.
- Red light flashes 2 times (in 2 seconds) every 40 seconds, 50 ppm CO detected
for at least about 90 minutes.
- Red light flashes 4 times (in 2 seconds) every 40 seconds, 100 ppm CO detected
for at least about 40 minutes.
- Red light flashes 8 times (in 2 seconds) every 40 seconds, 300 ppm CO detected
for at least about 3 minutes.
When the test button is pressed the horn will sound, and the red light will only flash if
the unit has previously detected CO and been in alarm. The flash rate indicates the
level of CO as in Table B.
9
B15583-R3-203-204-205 U&C 8/5/04 7:45 AM Page 9

Reset Memory by holding down the test button for over 20 seconds until the red light
stops flashing. Cover the horn with a cloth to muffle the alarm during this time.
Please note that the memory will also be reset when the unit is unpowered.
4. WHERE TO PLACE CO ALARMS
4.1 Ideally a Carbon Monoxide Alarm should be installed in:
- Every room containing a fuel burning appliance, and
- Remote rooms where occupants spend a considerable amount of time
- Every bedroom.
However if the number of Carbon Monoxide Alarms is limited, the following points
should be considered when deciding where best to fit the alarm(s)
- If there is an appliance in a room where people sleep, place a CO Alarm in this room
and
- Locate a CO alarm in a room containing a flueless or open-flued appliance, and
- Locate an alarm in a room where the occupant(s) spend most of their time (e.g.
sitting room) and
- In a bedsit, the CO alarm should be placed as far away from the cooking appliance
as possible, but near to where the person sleeps and
- If the appliance is in a room not normally used, such as a boiler room, the CO alarm
should be placed just outside the room so that the alarm will be heard more easily.
10
B15583-R3-203-204-205 U&C 8/5/04 7:45 AM Page 10

4.2 Unsuitable Locations
Do not place the CO Alarm in any of the following areas.
(1) In the immediate vicinity of a cooking appliance (keep it at least 1 metre
horizontally from it).
(2) Outside the building.
(3) In an enclosed space (e.g. in or below a cupboard).
(4) In a damp or humid area.
(5) Directly above a sink or cooker.
(6) Next to a door, window, air vent or anywhere that it would be affected by
draughts.
(7) Next to an extractor fan.
(8) Where it would be obstructed, e.g. by curtains or furniture.
(9) In an area where the temperature could drop below –10°C or rise above 40°C.
(10) Where dirt or dust could block the sensor.
(11) Where it could be easily knocked or damaged, or where it could be accidentally
turned off or removed.
(12) In a bathroom or other areas where the CO alarm may be exposed to water
splashes, dripping or condensation (e.g. above an electric kettle).
(13) Near paint, thinners, solvent fumes or air fresheners.
11
B15583-R3-203-204-205 U&C 8/5/04 7:45 AM Page 11

4.31 If locating the CO alarm in a room with a fuel burning appliance (see figure 2)
• If it is mounted on a wall, it should be located at a height greater than the height of
any door or window but still be at least 150mm from the ceiling.
• If it is mounted on the ceiling it should be at least 300mm from any wall or light fitting.
• The CO alarm should be a horizontal distance of between 1m and 3m from the
potential CO source.
• If there is a partition in the room, the CO alarm should be located on the same side
of the partition as the potential source.
• In rooms with sloped ceilings, the CO alarm should be located at the high side of the
room (see fig 3).
4.32 If locating the CO alarm in a bedroom or in rooms remote from a fuel
burning appliance (see figure 4)
• Mount the CO alarm relatively close to the breathing zone of the occupants.
Whatever position is chosen make sure it is possible to view the three light indicators,
when in the vicinity of the alarm.
12
B15583-R3-203-204-205 U&C 8/5/04 7:45 AM Page 12

13
300mm
150mm
1 to 3 m
1 to 3 m
DEAD AIR
DON'T LOCATE
HERE
CO Alarm
Figure 2.
Location in room with a fuel burning appliance
B15583-R3-203-204-205 U&C 8/5/04 7:45 AM Page 13

14
CO Alarm
about
1 to 2m
Figure 4. Location in bedrooms &
other rooms remote from the
appliance
(i.e. at breathing level)
300mm
CO Alarm
Figure 3. Location in rooms with
sloped ceilings, the CO alarm should
be located at the high side of the room
B15583-R3-203-204-205 U&C 8/5/04 7:45 AM Page 14

5. INSTALLATION
WARNING: Do not use the CO Alarm on an intermittent basis, or as a portable detector
for the spillage of combustion products from fuel burning appliances or chimneys.
5.1 INSTALLATION PROCEDURE
Once you have selected
a suitable location, power
up the unit by smoothly
withdrawing the red
“PULL” tab at the top left
hand corner of the alarm,
(see Figure 5b). The
green, red & amber lights
will immediately flash in
sequence to show they
are working - this is
normal.
Once you have selected a suitable location, open the battery compartment by sliding
up the cover as shown in figure 5a.
(If the batteries are supplied loose then install the batteries ensuring they are
orientated correctly as shown in the battery box. The green, red & amber lights will
immediately flash in sequence to show they are working - this is normal).
15
M
O
UNTIN
G
H
O
LE
S
PRE
SS
HE
R
FIR
S
T AN
D
S
LIDE U
P
GAS
ENTR
H
O
L
E
Figure 5a
B15583-R3-203-204-205 U&C 8/5/04 7:45 AM Page 15

Mark the position of the two mounting holes by using
the unit as a template. Drill two holes using a 6mm
drill for the plastic plugs supplied, (ensure you don’t
drill into the house wiring). Screw the unit to the wall.
Check that the CO Alarm can be heard in all the
bedrooms. If not another CO Alarm should be located
nearer the bedrooms.
5.2 HOW TO TAMPERPROOF THE ALARM
(model Ei205ENA only)
The battery compartment can be made tamperproof by using the white locking rivet
supplied with the screw pack as follows:
(i) Remove the battery cover as shown in figure 5a.
(ii) Remove the post shown in figure 6. Place it on the corner of a table and push
downwards (note: cover unit with a cloth to prevent the post flying upwards). This
should leave a neat circular hole.
(iii) Put the battery cover back on the unit. Insert the white locking rivet into the hole
and push fully home. See figure 7.
The battery compartment cannot now be opened unless the rivet is removed first. This can
be removed by inserting a thin screwdriver or blade under the edge and levering it up.
16
CUT THIS
WIRE AT
THE END OF
LIFE TO STOP
BEEPS
(Ei205ENA only)
Figure 5b
Model: Ei205ENA
B15583-R3-203-204-205 U&C 8/5/04 7:45 AM Page 16

(Note: The Ei205ENA model is supplied with 2 locking rivets. Insert the other locking
rivet similarly after removing the other post).
5.3 INTERCONNECTING (Model Ei205CEN only)
Up to 12 Ei 205CEN Carbon Monoxide Alarms can be interconnected so that when
one senses CO, all alarm. This helps to ensure that the alarm will be heard
throughout the dwelling. Only the unit sensing the toxic gas flashes its red light.
Low polarised cable is suitable, as the alarms are battery powered. Up to 250 metre
(820 ft) of wire can be used provided the maximum resistance between any alarm is
50 ohms.
Warning: Do not connect these Ei 205CEN Alarms to any other type of Ei Alarm or to
any other model produced by another manufacturer apart from those specified
explicitly by Ei Electronics. Doing this may damage the alarms and could result in a
shock or fire hazard.
17
POST
PUSH
OUTWARDS
Figure 6 Figure 7
B15583-R3-203-204-205 U&C 8/5/04 7:45 AM Page 17

1. Slide off the battery cover as shown in
Figure 5a.
2. On the first unit connect twin core
cable to the terminals marked 1 and 2 as
shown in Figure 8 and bring the cable out
through the hole above the terminal
block.
3. If they are being surface wired, break
one of the three knockouts on the rear
side wall. (We do not recommend
bringing the wires out the top as cable
conduit can prevent the battery box
opening).
4. Screw the unit to the wall using the mounting holes.
5. Wire all the rest of the alarms similarly ensuring the terminals marked 1 are all
connected together and that the terminals marked 2 are all connected together.
6. After installation press each test button (for at least 15 seconds) in turn and ensure
each interconnected unit sounds within 10 seconds. The light (either green or red) will
only flash rapidly on the unit with the test button pressed.
These Carbon Monoxide Alarms should only be interconnected within the confines of a
single family living unit. If they are connected between different units there may be
excessive nuisance alarms - everybody may not be aware when they are being tested.
18
1
2
1
2
Figure 8
B15583-R3-203-204-205 U&C 8/5/04 7:45 AM Page 18

6. TESTING & MONITORING YOUR CO ALARM
Button Test
It is recommended that you test your CO Alarm after installation (wait 15 seconds after
connecting the power) and then once a week to make sure the unit is working. It will
also help you and your family to become familiar with the sound of the alarm.
Press and hold the test button until the alarm sounds (it may take up to 5 seconds)
and the green or red light flashes. The alarm will stop sounding shortly after the
button is released. If there is a problem follow the checklist below.
Power On Indicator
Regularly check that the green power light flashes every 45 seconds - the unit cannot
work without a good battery, properly connected.
Low Battery Indicator
If the unit beeps and the green light flashes simultaneously every 45 seconds, then the
three batteries are depleted. Check the ‘Replace by’ label on the side wall - if it has been
exceeded replace the entire unit. If it has not be exceeded and the batteries are
accessible (after the battery door is removed - see figure 5a page 15) replace the
batteries. Use only the following Alkaline AA size batteries: Duracell MN1500,
Panasonic LR6, GP 15A, Ever Ready LR6 or Energizer E91. (With the Ei203EN alarms
Zinc Chloride batteries GP 15G or GP R6P may be used instead of Alkaliine batteries).
(See section 5.2 - page 16, if the locking rivet(s) has been inserted). Insert the new
batteries with the orientation shown on the base. Button test the alarm to check the
batteries are installed correctly and that they are not depleted. Slide back on the cover.
19
B15583-R3-203-204-205 U&C 8/5/04 7:45 AM Page 19

(The batteries in the Ei204EN, 205EN, 205ENA & 205CEN will usually last over 4
years in standby under normal conditions and an undepleted battery can power a unit
in alarm for over 100 hours. The batteries in the Ei203EN will usually last over 1 year
in standby under normal conditions and an undepleted battery can power a unit in
alarm for over 20 hours.
The life will be reduced if the unit regularly goes into alarm or if it is exposed to
excessive temperatures for long periods).
Amber Fault Indicator
If the unit beeps and the amber light flashes simultaneously every 45 seconds the
self-checking circuitry may have detected a fault. Follow the checklist to see if the unit
is actually defective.
Checklist in the event of problems
Check the ‘pull’ tag has been removed to connect the batteries.
Check there are three batteries installed with the correct orientation in the battery
compartment. (If the batteries are accessible remove one battery for 1 minute to reset the
microcontroller in the unit).
If the problem persists replace the batteries if they are accessible.
If none of the above solve the problem the unit is probably defective and must be
replaced. See “Getting the CO Alarm Serviced Page 28)”.
Testing with Carbon Monoxide
The unit can be tested with CO by using one of the kits that comes with CO either in
a glass phial or aerosol can. Follow the instructions on the kit. It is best if possible to
inject the CO gas into the gas entry holes, see Figure 5a. When it senses the CO, it
flashes the red light (as per Table B) to confirm that is detecting CO gas.
20
B15583-R3-203-204-205 U&C 8/5/04 7:45 AM Page 20
