EI Ei105R3 Manual

INSTRUCTION LEAFLET
Contains vital information on unit operation and installation.
Read and retain carefully. If you are just installing this unit this
leaflet MUST be given to the householder.
*The Ei105R4 operating range 8 to 16V
Basic informat
READ THIS FIRST
IDEALLY INSTALL IN THE CENTRE OF CEILING AT
LEAST 300mm (12”) FROM LIGHT FITTINGS. KEEP
ION-ISATION ALARMS AWAY FROM KITCHENS TO
PREVENT NUISANCE ALARMS. INTERCONNECT
ALL ALARMS.
ENSURE THE 12V PANEL IS CORRECTLY
CONNECTED TO THE ALARMS.
DO NOT FIT ACTUAL ALARM UNTIL ALL BUILDING
WORK IS COMPLETED TO AVOID CONTAMINATION.
AFTER CHECKING OPERATION, COVER SMOKE
ALARM WITH DUST COVER UNTIL REQUIRED FOR
USE.
LOCATE IONISATION ALARMS (Ei100R3) AWAY
FROM KITCHENS TO PREVENT NUISANCE
ALARMS.
IF A NUISANCE ALARM OCCURS, FAN THE ALARM
VIGOROUSLY WITH A NEWSPAPER TO HELP
CLEAR THE SENSOR.
TEST WEEKLY - PRESS THE BUTTON FOR 10
SECONDS AND A RED LIGHT BEHIND THE BUTTON
OR ON THE COVER SHOULD FLASH.
INTERCONNECTED ALARMS WILL ALSO SOUND.
1
12 VOLT RELAY
SMOKE & HEAT ALARMS
© Ei Electronics 2009
IONISATION
MODEL Ei100R3
OPTICAL
MODELS Ei105R3
Ei105R4*
HEAT
MODEL Ei103R
P/N B13425 Rev 1
13425-R1-12V COMMON-UC 29/9/09 7:56 AM Page 1
All manuals and user guides at all-guides.com
all-guides.com

2

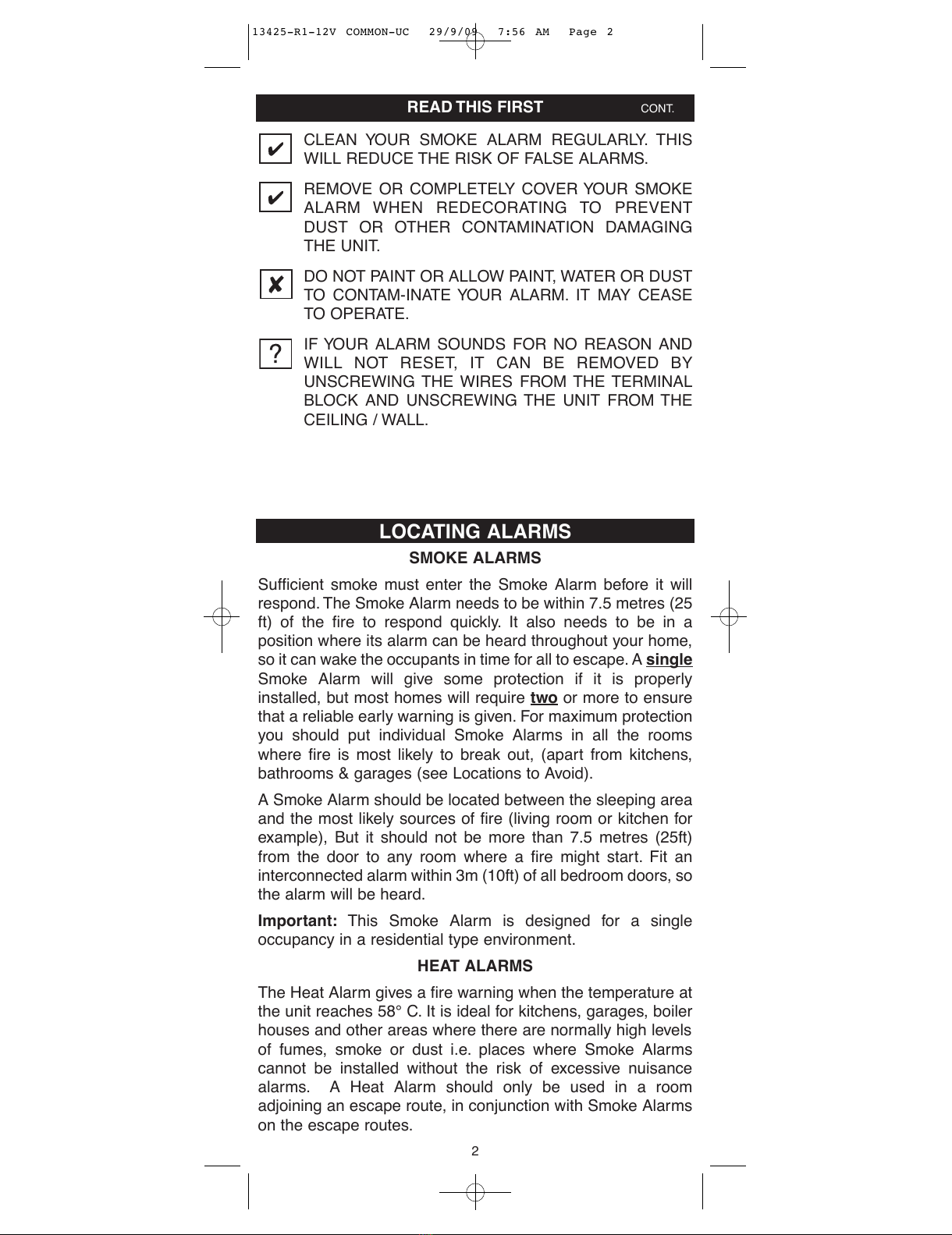

READ THIS FIRST
CLEAN YOUR SMOKE ALARM REGULARLY. THIS
WILL REDUCE THE RISK OF FALSE ALARMS.
REMOVE OR COMPLETELY COVER YOUR SMOKE
ALARM WHEN REDECORATING TO PREVENT
DUST OR OTHER CONTAMINATION DAMAGING
THE UNIT.
DO NOT PAINT OR ALLOW PAINT, WATER OR DUST
TO CONTAM-INATE YOUR ALARM. IT MAY CEASE
TO OPERATE.
IF YOUR ALARM SOUNDS FOR NO REASON AND
WILL NOT RESET, IT CAN BE REMOVED BY
UNSCREWING THE WIRES FROM THE TERMINAL
BLOCK AND UNSCREWING THE UNIT FROM THE
CEILING / WALL.
LOCATING ALARMS
SMOKE ALARMS
Sufficient smoke must enter the Smoke Alarm before it will
respond. The Smoke Alarm needs to be within 7.5 metres (25
ft) of the fire to respond quickly. It also needs to be in a
position where its alarm can be heard throughout your home,
so it can wake the occupants in time for all to escape. A single
Smoke Alarm will give some protection if it is properly
installed, but most homes will require twoor more to ensure
that a reliable early warning is given. For maximum protection
you should put individual Smoke Alarms in all the rooms
where fire is most likely to break out, (apart from kitchens,
bathrooms & garages (see Locations to Avoid).
A Smoke Alarm should be located between the sleeping area
and the most likely sources of fire (living room or kitchen for
example), But it should not be more than 7.5 metres (25ft)
from the door to any room where a fire might start. Fit an
interconnected alarm within 3m (10ft) of all bedroom doors, so
the alarm will be heard.
Important: This Smoke Alarm is designed for a single
occupancy in a residential type environment.
HEAT ALARMS
The Heat Alarm gives a fire warning when the temperature at
the unit reaches 58° C. It is ideal for kitchens, garages, boiler
houses and other areas where there are normally high levels
of fumes, smoke or dust i.e. places where Smoke Alarms
cannot be installed without the risk of excessive nuisance
alarms. A Heat Alarm should only be used in a room
adjoining an escape route, in conjunction with Smoke Alarms
on the escape routes.
CONT.
13425-R1-12V COMMON-UC 29/9/09 7:56 AM Page 2
All manuals and user guides at all-guides.com

All the Heat Alarms and Smoke Alarms should be
interconnected to ensure the early warning will be heard,
particularly by somebody sleeping. A properly designed early
warning fire system ensures the alarm is given before the
escape routes become blocked with smoke. Therefore there
must be Smoke Alarms along the escape routes as Heat
Alarms would not give sufficient warning. However, a fire in a
closed room (e.g. kitchen) adjoining the escape route, can
eventually cause the corridor to become smoke-logged due to
smoke leaking out from around the door before adequate
warning can be given by detectors in the corridor. (Smoke
leaking out from a room is often cool and slow moving so it
can take a long time to rise to the ceiling, and travel to a
detector which could be some distance away). A Heat Alarm
in the closed room will give early warning of fire in that
roomand help overcome this problem.
Figure 1 illustrates where Heat Alarms and Smoke Alarms
should be located in a typical two storey house. Note the
spacings in “Protection Levels” which ensure the early
detection of fire and that the warning will be heard.
Locate Heat Alarms in rooms adjoining or on escape routes -
kitchens, garages, boiler houses etc. where Smoke Alarms
are unsuitable. Install within 5.3m (17 feet) of potential
sources of fire.
3

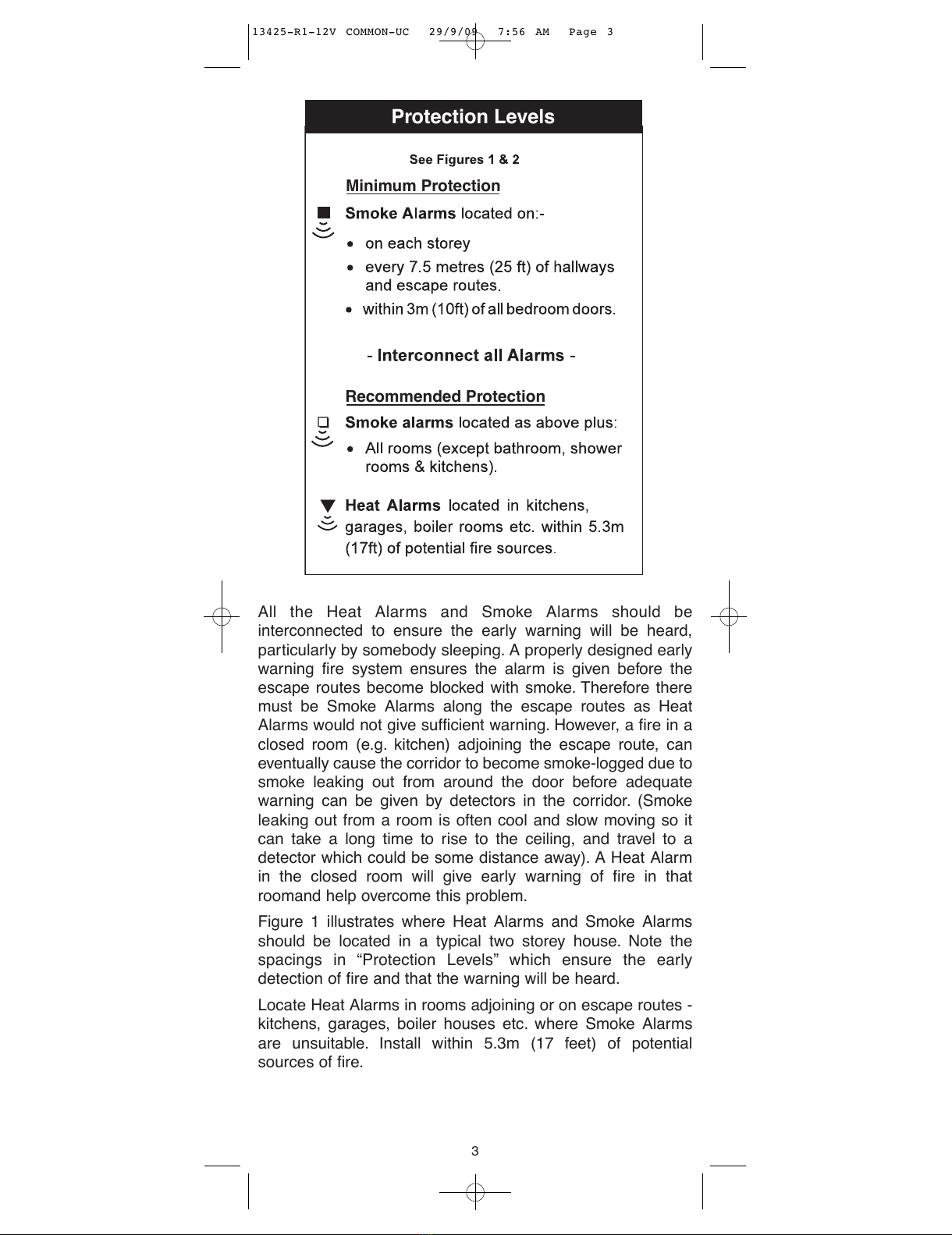

Protection Levels
Recommended Protection
Minimum Protection
13425-R1-12V COMMON-UC 29/9/09 7:56 AM Page 3
All manuals and user guides at all-guides.com

Single Storey Dwelling
If the Home is on one level (a bungalow or mobile home for
example) you should put the first Smoke Alarm in a corridor or
hallway between the sleeping and living areas. Place it as
near to the living area as possible, but make sure you can
hear it loudly enough to wake a person in the bedrooms. (for
example, see figure 2).
If the bungalow is very large and the corridor or hallway is
more than 15 metres (50 ft) long, one Smoke Alarm will not be
sufficient. This is because no matter where it is located it will
be more than 7.5 metres from potential fires.
In houses with more than one sleeping area, Smoke Alarms
should be placed between each sleeping area and the living
area.
Multi Storey Dwellings
If the home is on more than one level the best place for the
first Smoke Alarm is in the downstairs hallway near the stairs.
This is because smoke is likely to be detectable in the hallway
before it reaches the upstairs landing and bedrooms. The
second Smoke Alarm should be upstairs, because the
4
13425-R1-12V COMMON-UC 29/9/09 7:56 AM Page 4
All manuals and user guides at all-guides.com

downstairs Smoke Alarm is unlikely to detect the smoke from
a fire in a bedroom upstairs (see figure 1).
Recommended Protection
For recommended protection you should put individual Smoke
Alarms in all the rooms where fire is most likely to break out
(apart from the locations to avoid, mentioned below). Ensure
that they are all interconnected. The living room is the most
likely place for a fire to start at night, followed by the kitchen
and then the dining room. You should also consider putting
Smoke Alarms in any bedrooms where fires might occur, for
instance, where there is an electrical appliance such as an
electric blanket or heater, or where the occupant is a smoker.
You could also consider putting Smoke Alarms in any rooms
where the occupant is unable to respond very well to a fire
starting in the room, such as an elderly or sick person or a
very young child.

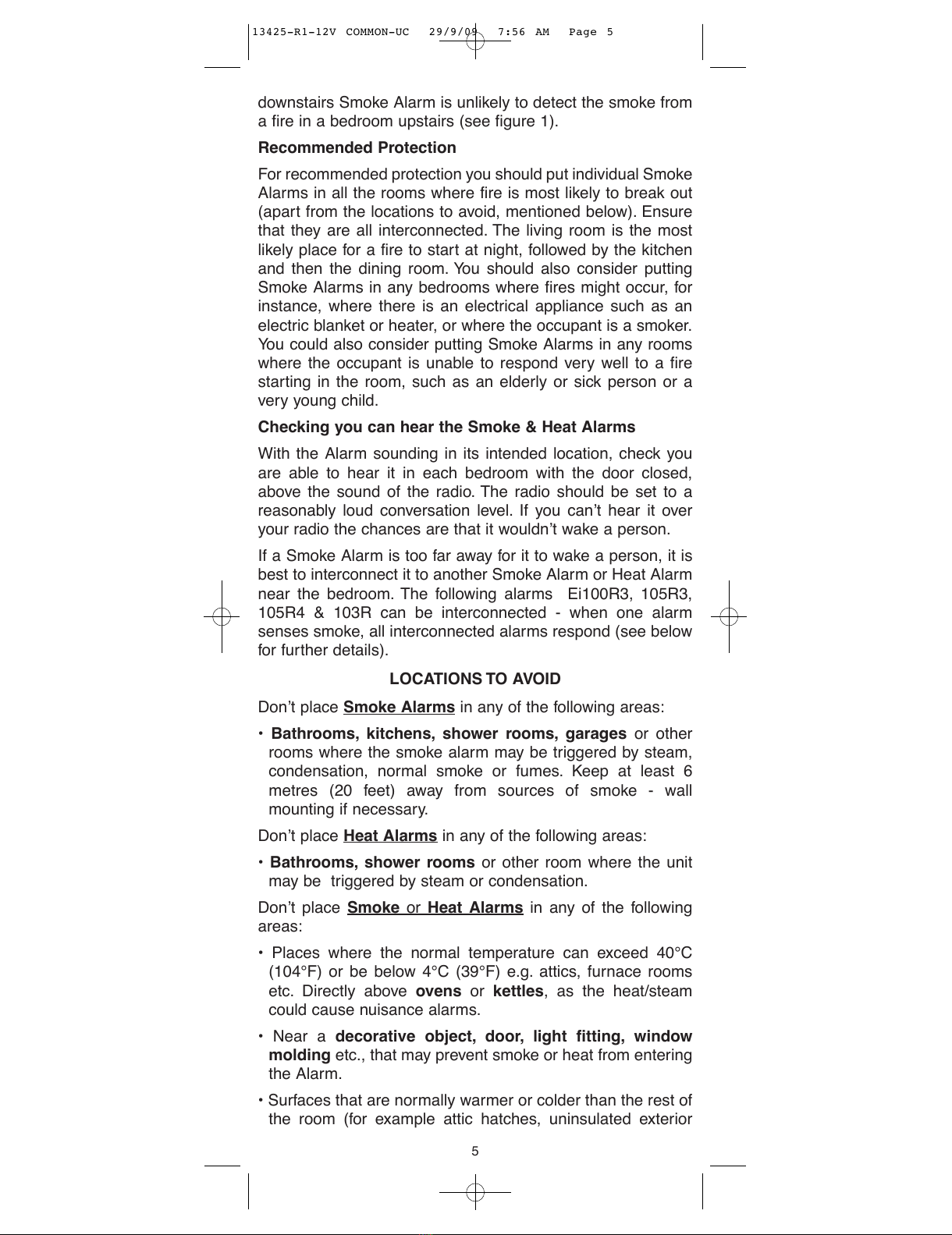

Checking you can hear the Smoke & Heat Alarms
With the Alarm sounding in its intended location, check you
are able to hear it in each bedroom with the door closed,
above the sound of the radio. The radio should be set to a
reasonably loud conversation level. If you can’t hear it over
your radio the chances are that it wouldn’t wake a person.
If a Smoke Alarm is too far away for it to wake a person, it is
best to interconnect it to another Smoke Alarm or Heat Alarm
near the bedroom. The following alarms Ei100R3, 105R3,
105R4 & 103R can be interconnected - when one alarm
senses smoke, all interconnected alarms respond (see below
for further details).
LOCATIONS TO AVOID
Don’t place Smoke Alarms in any of the following areas:
• Bathrooms, kitchens, shower rooms, garages or other
rooms where the smoke alarm may be triggered by steam,
condensation, normal smoke or fumes. Keep at least 6
metres (20 feet) away from sources of smoke - wall
mounting if necessary.
Don’t place Heat Alarms in any of the following areas:
• Bathrooms, shower rooms or other room where the unit
may be triggered by steam or condensation.
Don’t place Smoke or Heat Alarms in any of the following
areas:
• Places where the normal temperature can exceed 40°C
(104°F) or be below 4°C (39°F) e.g. attics, furnace rooms
etc. Directly above ovens or kettles, as the heat/steam
could cause nuisance alarms.
• Near a decorative object, door, light fitting, window
molding etc., that may prevent smoke or heat from entering
the Alarm.
• Surfaces that are normally warmer or colder than the rest of
the room (for example attic hatches, uninsulated exterior
5
13425-R1-12V COMMON-UC 29/9/09 7:56 AM Page 5
All manuals and user guides at all-guides.com

walls etc). Temperature differences might stop smoke or
heat from reaching the unit.
• Next to or directly above heaters or air conditioning vents,
windows, wall vents etc. that can change the direction of
airflow.
• In very high or awkward areas (eg. over stair shafts) where
it may be difficult to reach the alarm (for testing or hushing).
• Locate away from very dusty or dirty areas as dust build-up
in the chamber can impair performance. It can also block the
insect screen mesh and prevent smoke from entering the
smoke detector chamber.
• Locate the unit at least 1 metre (3 feet) from dimmer
controlled lights and wiring - some dimmers can cause
interference.
• Locate unit at least 1.5m (5 feet) and route wiring at least 1m
(3 feet) away for fluorescent light fittings as electrical
“noise” and/or flickering may effect the unit.
• Do not locate in insect infested areas. Small insects getting
into the smoke detector chamber can cause intermittent
alarms. Insects and contamination on the Heat Alarm sensor
can increase its response time.

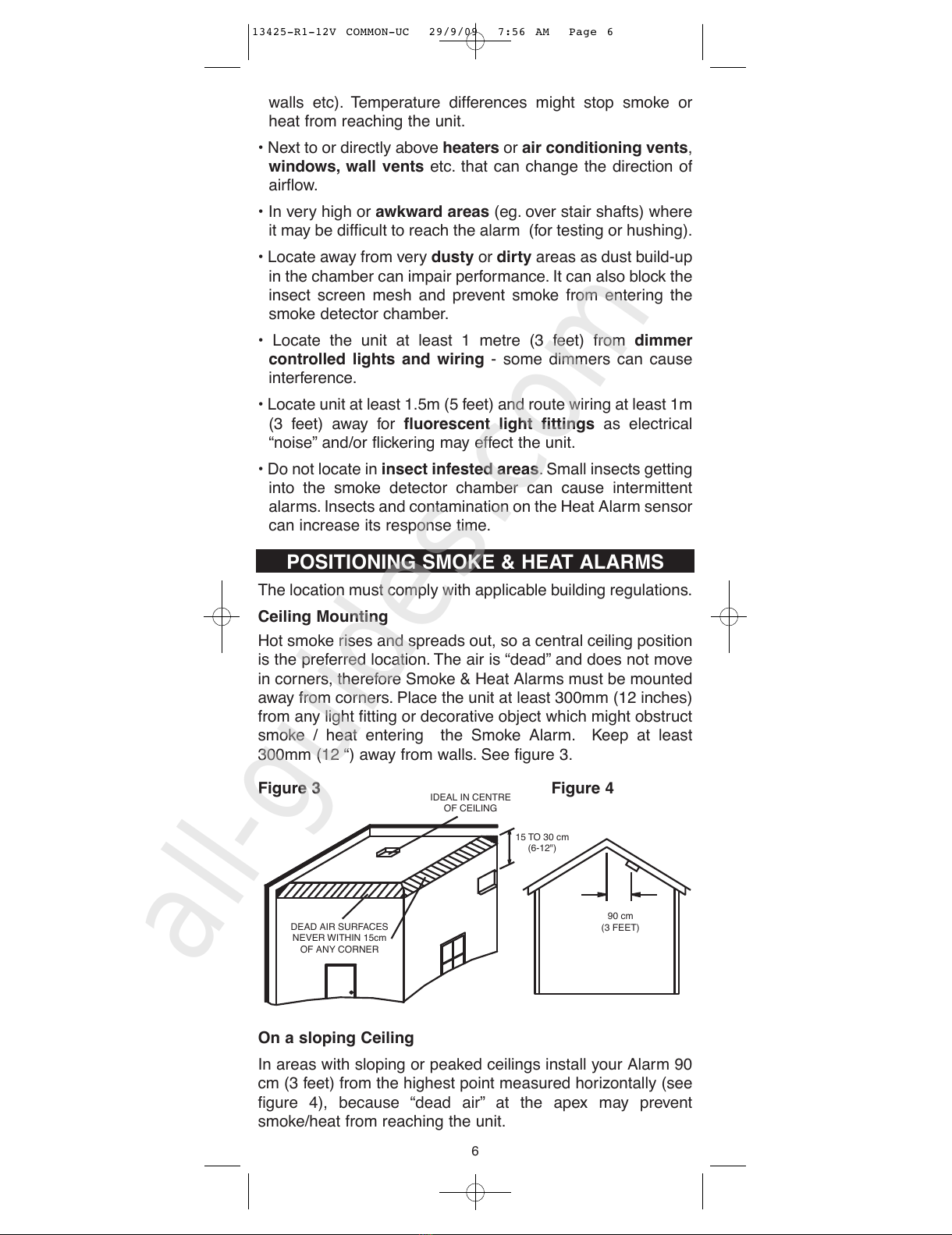

POSITIONING SMOKE & HEAT ALARMS
The location must comply with applicable building regulations.
Ceiling Mounting
Hot smoke rises and spreads out, so a central ceiling position
is the preferred location. The air is “dead” and does not move
in corners, therefore Smoke & Heat Alarms must be mounted
away from corners. Place the unit at least 300mm (12 inches)
from any light fitting or decorative object which might obstruct
smoke / heat entering the Smoke Alarm. Keep at least
300mm (12 “) away from walls. See figure 3.
On a sloping Ceiling
In areas with sloping or peaked ceilings install your Alarm 90
cm (3 feet) from the highest point measured horizontally (see
figure 4), because “dead air” at the apex may prevent
smoke/heat from reaching the unit.
6
DEAD AIR SURFACES
NEVER WITHIN 15cm
OF ANY CORNER
IDEAL IN CENTRE
OF CEILING
15 TO 30 cm
(6-12")
90 cm
(3 FEET)
Figure 3 Figure 4
13425-R1-12V COMMON-UC 29/9/09 7:56 AM Page 6
All manuals and user guides at all-guides.com
all-guides.com

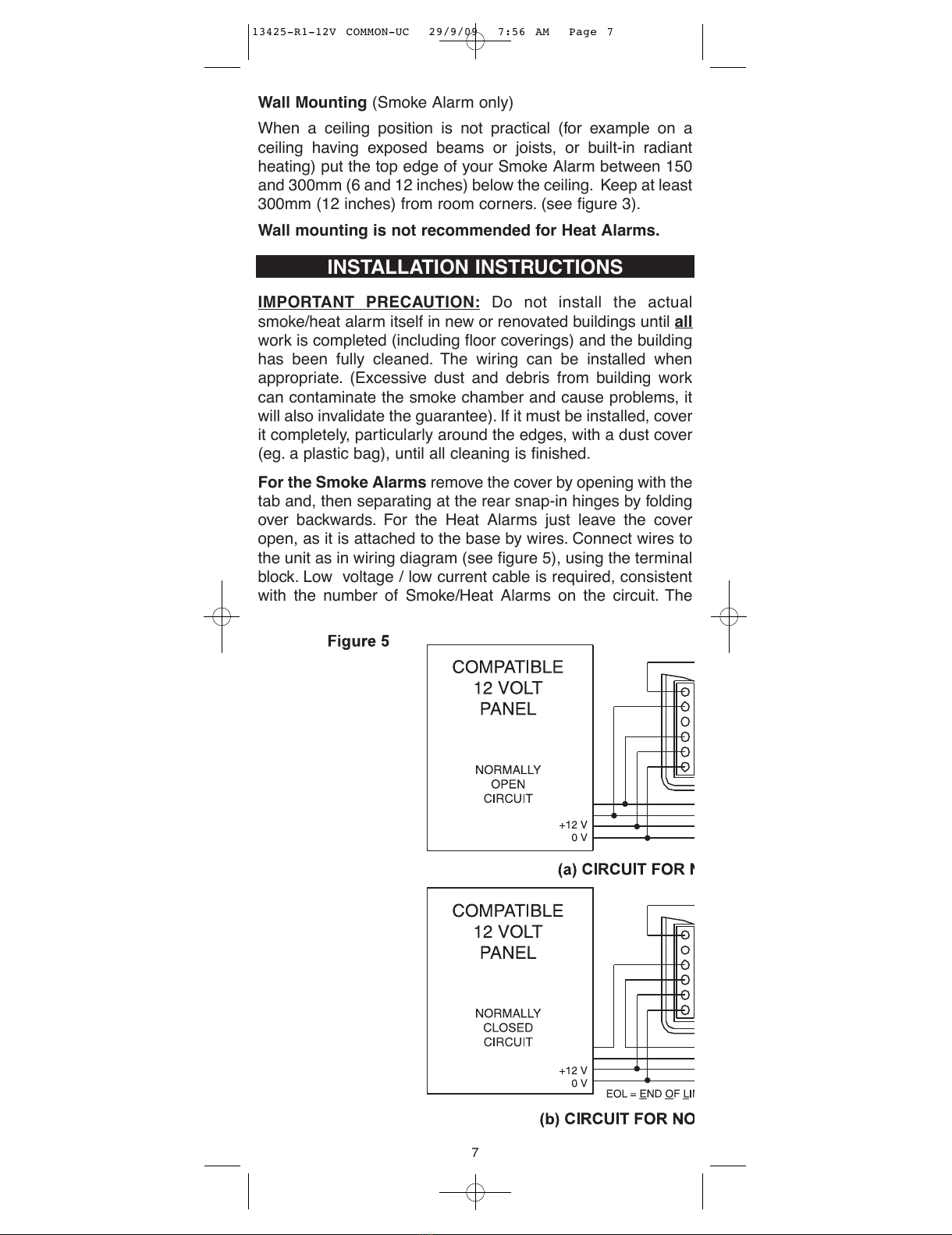

Wall Mounting (Smoke Alarm only)
When a ceiling position is not practical (for example on a
ceiling having exposed beams or joists, or built-in radiant
heating) put the top edge of your Smoke Alarm between 150
and 300mm (6 and 12 inches) below the ceiling. Keep at least
300mm (12 inches) from room corners. (see figure 3).
Wall mounting is not recommended for Heat Alarms.
INSTALLATION INSTRUCTIONS
IMPORTANT PRECAUTION: Do not install the actual
smoke/heat alarm itself in new or renovated buildings until all
work is completed (including floor coverings) and the building
has been fully cleaned. The wiring can be installed when
appropriate. (Excessive dust and debris from building work
can contaminate the smoke chamber and cause problems, it
will also invalidate the guarantee). If it must be installed, cover
it completely, particularly around the edges, with a dust cover
(eg. a plastic bag), until all cleaning is finished.
For the Smoke Alarms remove the cover by opening with the
tab and, then separating at the rear snap-in hinges by folding
over backwards. For the Heat Alarms just leave the cover
open, as it is attached to the base by wires. Connect wires to
the unit as in wiring diagram (see figure 5), using the terminal
block. Low voltage / low current cable is required, consistent
with the number of Smoke/Heat Alarms on the circuit. The
7
13425-R1-12V COMMON-UC 29/9/09 7:56 AM Page 7
All manuals and user guides at all-guides.com

maximum recommended cable resistance is 20 ohms. All
wiring must comply with local codes. Screw unit to ceiling
using screws provided. Put cover back on the Smoke Alarm
by matching up hinges and gently snapping it on to the base.
Caution:
(a) The Smoke/Heat Alarm must be wired to a 12V supply
that is permanently on.
(b) Positive air pressure at wiring openings, conduit or
mounting boxes/holes can cause draughts through and away
from the Smoke/Heat Alarm which may prevent correct
operation. Any such openings must be sealed (with silicone
rubber or similar) to prevent unwanted air movement.

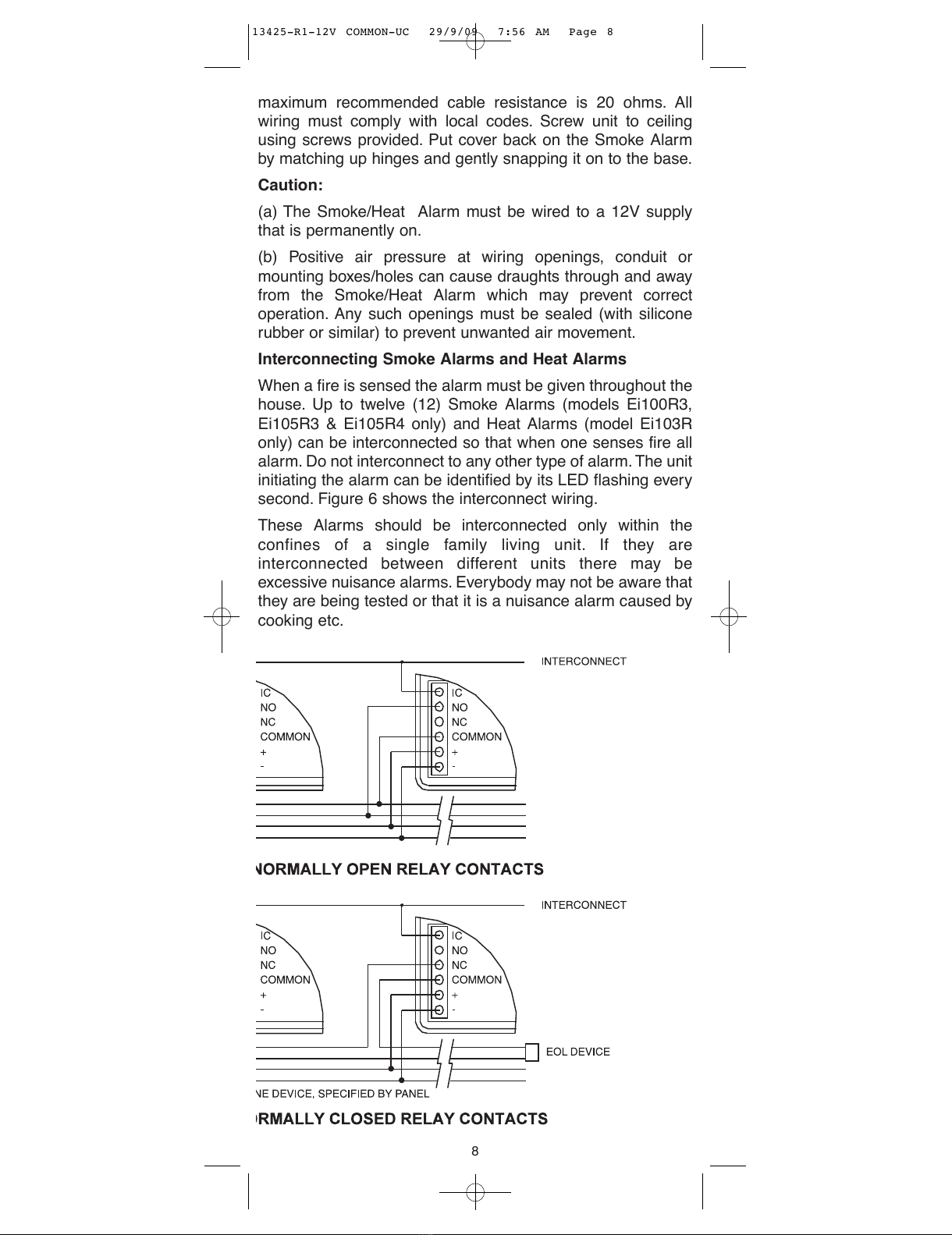

Interconnecting Smoke Alarms and Heat Alarms
When a fire is sensed the alarm must be given throughout the
house. Up to twelve (12) Smoke Alarms (models Ei100R3,
Ei105R3 & Ei105R4 only) and Heat Alarms (model Ei103R
only) can be interconnected so that when one senses fire all
alarm. Do not interconnect to any other type of alarm. The unit
initiating the alarm can be identified by its LED flashing every
second. Figure 6 shows the interconnect wiring.
These Alarms should be interconnected only within the
confines of a single family living unit. If they are
interconnected between different units there may be
excessive nuisance alarms. Everybody may not be aware that
they are being tested or that it is a nuisance alarm caused by
cooking etc.
8
13425-R1-12V COMMON-UC 29/9/09 7:56 AM Page 8
All manuals and user guides at all-guides.com

After Installation
Test all units by pressing the test buttons in sequence. The
Smoke/Heat Alarm horn should sound within 10 seconds and
the relay contacts should change over about 4 seconds after
the horn sounds. All interconnected alarms should sound within
10 seconds. When the button is released the Alarm will stop
and the relay contacts will change back about 4 seconds later.
Check that the chosen control panel is correctly recording the
alarm condition. If the unit fails to operate correctly check the
connections and the panel carefully. Check the unit is receiving
power and that the voltage is within specification.
CHECKING & MAINTAINING YOUR ALARMS
INSPECTION & TESTING PROCEDURE
It is recommended that you test your Smoke/Heat Alarms at
least once a week to be sure the unit is working. It will also
help you and your family to become familiar with the sound of
the Alarm.
Press the test button (see
figure 6) for up to 10 seconds to
ensure the sensor, electronics
and sounder are working. A red
light behind the test button or
on the cover will flash every
second while horn is sounding.
The alarm will stop when the
button is released. Pressing the
test button simulates the effect
of smoke/heat during a real fire
and is the best way to ensure
the Alarm is operating correctly.
WARNING: DO NOT TEST WITH FLAME
This can set fire to your Alarm and damage your house.
We do not recommend testing with smoke or heat as the
results can be misleading unless special apparatus is used.
CLEANING YOUR ALARM
Clean your Alarms regularly,particularly in dusty areas. Use
the narrow nozzle attachment of your vacuum cleaner to
remove dust, insects and cobwebs from the sides and cover
slots where the smoke or heat enters. To clean the cover, wipe
with a damp cloth. Dry cover thoroughly with a lint free
cloth.With Smoke Alarms if the contamination around the
outer case indicates that the area is particularly dirty, remove
the Alarm from the ceiling. Check that the openings in the
black smoke sensing chamber are not clogged by visually
inspecting them after opening the cover of the Smoke Alarms.
If they are clogged - an extermely rare occurance - the Smoke
Alarm must be replaced.
WARNING: Do not paint your Alarm.
9
Figure 6
13425-R1-12V COMMON-UC 29/9/09 7:56 AM Page 9
All manuals and user guides at all-guides.com

Other than the cleaning described above, no other customer
servicing of this product is required. Repairs, when needed,
must be performed by the manufacturer.
All Smoke Alarms are prone to dust and insect ingress which
can cause false alarms or failure to alarm.
The latest design, materials and manufacturing techniques
have been used in the construction of our Alarms to minimize
the effects of contamination. However it is impossible to
completely eliminate the effect of dust and insect
contamination, and therefore, to prolong the life of the Alarm
you must ensure that it is kept clean so that excess dust does
not build up. Any insects or cobwebs in the vicinity of the
Alarm should be promptly removed.
In certain circumstances even with regular cleaning,
contamination can build up in the smoke sensing chamber
causing the alarm to sound or fail. If this happens the alarm
must be returned to the manufacturer for servicing or
replacement. Contamination is beyond our control, it is totally
unpredictable and is considered normal wear and tear. For
this reason, contamination is not covered by the guarantee
and a charge is made for servicing such units.
If you experience persistant nuisance alarms with the Ei100R3
Ionisation alarm due to cooking fumes you could consider
replacing it with an Optical Alarm (Ei105R3 or Ei105R4) as
they are significantly less susceptible to cooking fumes.
If you experience persistent false alarms, in particular
locations, due to contamination of the optical smoke chamber
(models Ei105R3 & Ei105R4) you could consider replacing
Optical Smoke Alarms (Ei105R3) with Ionisation Smoke
Alarms (Ei100R3). Ionisation type alarms are less susceptible
to dust than Optical type alarms. Heat Alarms are the most
immune to contamination(Ei103R).
NUISANCE ALARMS
Alarms caused by cooking fumes etc. can be readily silenced
by fanning the unit with a newspaper or similiar.
If, when the alarm goes off, there is no sign of smoke, heat or
noise to indicate that there is a fire, you should get your family
into a safe place, before you start investigating.
Check the house carefully in case there is a small fire smould-
ering somewhere.
Check whether there is some source of smoke or fumes, for
example cooking fumes being drawn past the Smoke Alarm
by an extractor.
If there are frequent nuisance/false alarms it may be
necessary to re-locate the device away from the source of the
fumes.
If for some reason an alarm continues to sound without smoke
or heat being present (due to insect infestation or
10
13425-R1-12V COMMON-UC 29/9/09 7:56 AM Page 10
All manuals and user guides at all-guides.com

contamination build-up for example) the alarm can be
silenced by disconnecting the 12 Volt supply. Disconnect the
alarm with the red light flashing - as the rest are probably
satisfactory.

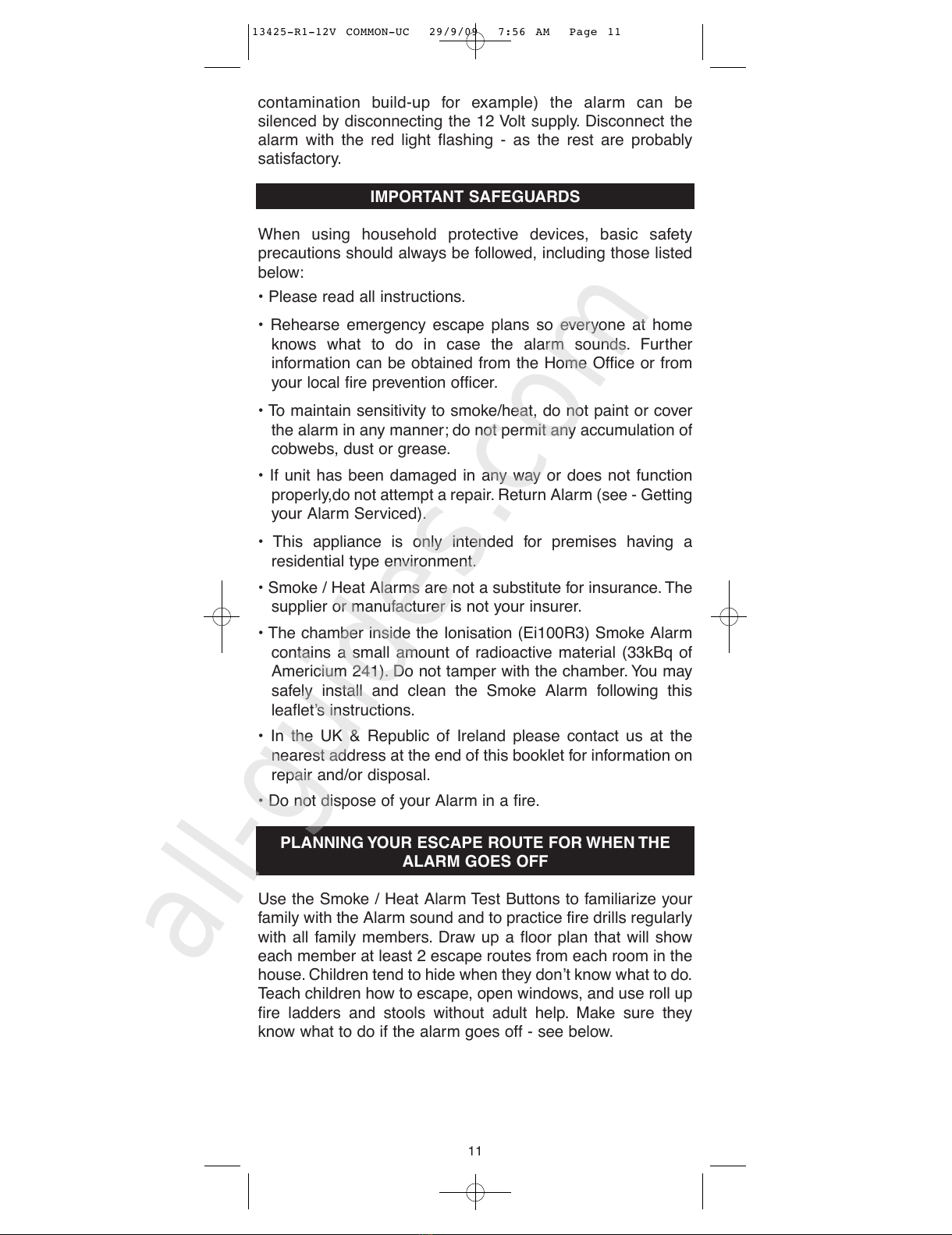

IMPORTANT SAFEGUARDS
When using household protective devices, basic safety
precautions should always be followed, including those listed
below:
• Please read all instructions.
• Rehearse emergency escape plans so everyone at home
knows what to do in case the alarm sounds. Further
information can be obtained from the Home Office or from
your local fire prevention officer.
• To maintain sensitivity to smoke/heat, do not paint or cover
the alarm in any manner; do not permit any accumulation of
cobwebs, dust or grease.
• If unit has been damaged in any way or does not function
properly,do not attempt a repair. Return Alarm (see - Getting
your Alarm Serviced).
• This appliance is only intended for premises having a
residential type environment.
• Smoke / Heat Alarms are not a substitute for insurance. The
supplier or manufacturer is not your insurer.
• The chamber inside the Ionisation (Ei100R3) Smoke Alarm
contains a small amount of radioactive material (33kBq of
Americium 241). Do not tamper with the chamber. You may
safely install and clean the Smoke Alarm following this
leaflet’s instructions.
• In the UK & Republic of Ireland please contact us at the
nearest address at the end of this booklet for information on
repair and/or disposal.
• Do not dispose of your Alarm in a fire.
PLANNING YOUR ESCAPE ROUTE FOR WHEN THE
ALARM GOES OFF
Use the Smoke / Heat Alarm Test Buttons to familiarize your
family with the Alarm sound and to practice fire drills regularly
with all family members. Draw up a floor plan that will show
each member at least 2 escape routes from each room in the
house. Children tend to hide when they don’t know what to do.
Teach children how to escape, open windows, and use roll up
fire ladders and stools without adult help. Make sure they
know what to do if the alarm goes off - see below.
11
13425-R1-12V COMMON-UC 29/9/09 7:56 AM Page 11
All manuals and user guides at all-guides.com
all-guides.com

1. Check room doors for heat or
smoke. Do not open a hot door. Use
an alternate escape route. Close
doors behind you as you leave.
2. If smoke is heavy, crawl out,
staying close to floor. Take short
breaths, if possible, through a wet
cloth or hold your breath. More
people die from smoke inhalation
than from flames.
3. Get out as fast as you can. Do not
stop for packing. Have a
prearranged meeting place outside
for all family members. Check
everybody is there.
4. Call the Fire Brigade from a
neighbour’s house. Remember to
give your name and address.
5. NEVER re-enter a burning house.

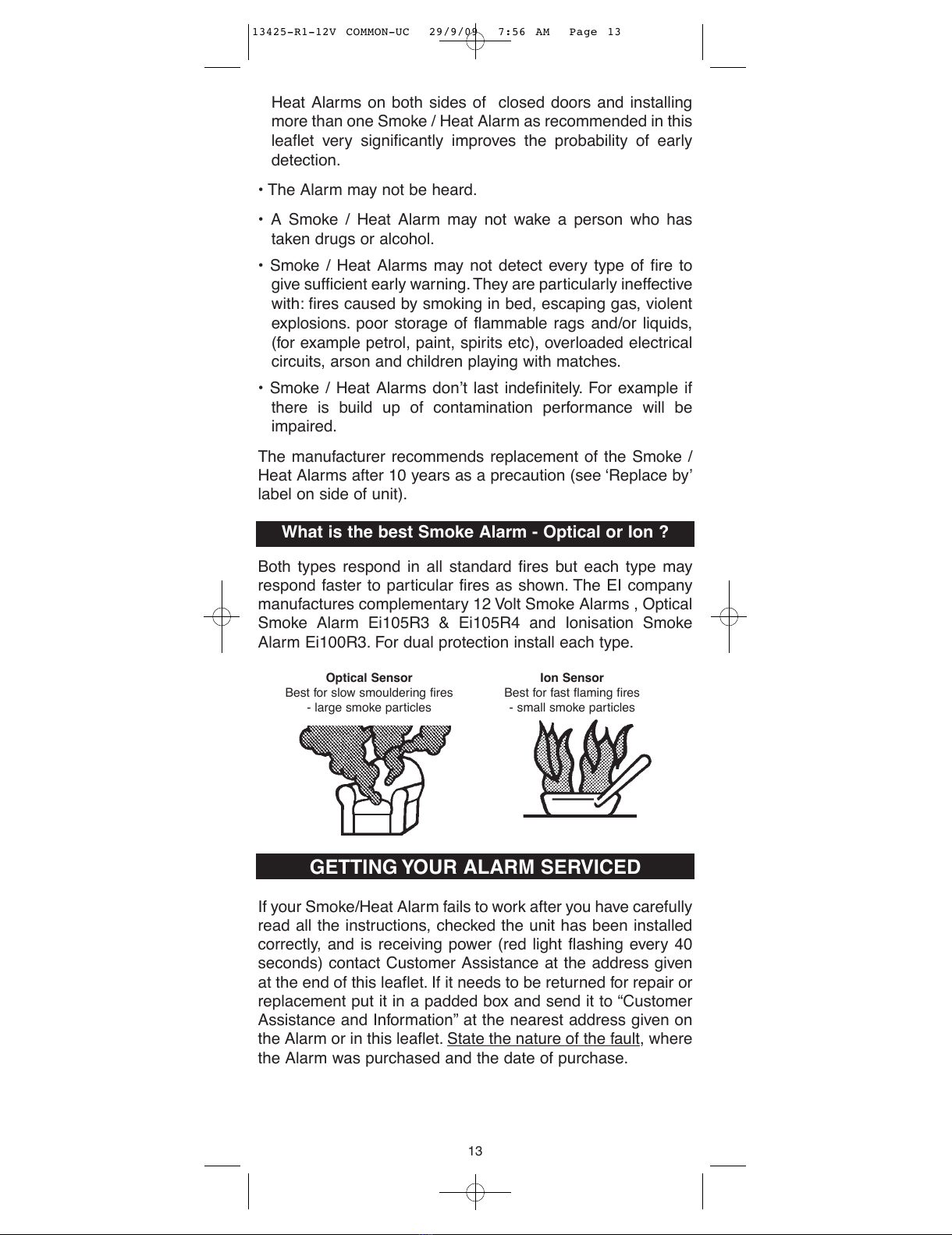

Limitations of Smoke / Heat Alarms
Smoke/Heat Alarms have significantly helped to reduce the
number of fire fatalities in countries where they are widely
installed.
However independent authorities have stated that they may
be ineffective in some circumstances. There are a number of
reasons for this:
• The Alarms will not work if 12 Volt power supply is off or if
they are not connected properly.
• Smoke / Heat Alarms will not detect fire if sufficient smoke /
heat does not reach the alarm. Smoke / heat may be
prevented from reaching the Alarm if the fire is too far away,
for example, if the fire is on another floor, behind a closed
door, in a chimney, in a wall cavity, or if the prevailing air
draughts carry the smoke/heat away. Installing Smoke /
12
13425-R1-12V COMMON-UC 29/9/09 7:56 AM Page 12
All manuals and user guides at all-guides.com

Heat Alarms on both sides of closed doors and installing
more than one Smoke / Heat Alarm as recommended in this
leaflet very significantly improves the probability of early
detection.
• The Alarm may not be heard.
• A Smoke / Heat Alarm may not wake a person who has
taken drugs or alcohol.
• Smoke / Heat Alarms may not detect every type of fire to
give sufficient early warning. They are particularly ineffective
with: fires caused by smoking in bed, escaping gas, violent
explosions. poor storage of flammable rags and/or liquids,
(for example petrol, paint, spirits etc), overloaded electrical
circuits, arson and children playing with matches.
• Smoke / Heat Alarms don’t last indefinitely. For example if
there is build up of contamination performance will be
impaired.
The manufacturer recommends replacement of the Smoke /
Heat Alarms after 10 years as a precaution (see ‘Replace by’
label on side of unit).
What is the best Smoke Alarm - Optical or Ion ?
Both types respond in all standard fires but each type may
respond faster to particular fires as shown. The EI company
manufactures complementary 12 Volt Smoke Alarms , Optical
Smoke Alarm Ei105R3 & Ei105R4 and Ionisation Smoke
Alarm Ei100R3. For dual protection install each type.
GETTING YOUR ALARM SERVICED
If your Smoke/Heat Alarm fails to work after you have carefully
read all the instructions, checked the unit has been installed
correctly, and is receiving power (red light flashing every 40
seconds) contact Customer Assistance at the address given
at the end of this leaflet. If it needs to be returned for repair or
replacement put it in a padded box and send it to “Customer
Assistance and Information” at the nearest address given on
the Alarm or in this leaflet. State the nature of the fault, where
the Alarm was purchased and the date of purchase.
13
Ion Sensor
Best for fast flaming fires
- small smoke particles
Optical Sensor
Best for slow smouldering fires
- large smoke particles
13425-R1-12V COMMON-UC 29/9/09 7:56 AM Page 13
All manuals and user guides at all-guides.com

FIVE YEAR PRODUCT GUARANTEE
Ei Electronics guarantees this product (excluding battery)
against any defects that are due to faulty material or
workmanship for a five year period after the original date of
consumer purchase or receipt as a gift. This guarantee does
not include damage to the product resulting from accident or
misuse. It also excludes incidental and consequential
damages. If the product should become defective within the
warranty period, we will replace it free of charge. (see “Getting
Your Smoke Alarm Serviced”)
Do not interfere with the product or attempt to tamper with it.
This will invalidate the guarantee.
This guarantee is in addition to your statutory rights as a
consumer.
SPECIFICATIONS
(Ei100R3)
Sensor: Dual Ionisation Chamber
Sensitivity: Complies with BS EN 14604: 2005
Source: 33kBq of Am241
Airspeed: No false alarms up to 22mph (10M/s)
Button Test: Simulates the effect of smoke and checks
chamber, electronics and horn.
(Ei105R3 & Ei105R4)
Sensor: Optical, uses light scatter from smoke
Sensitivity: Complies with BS EN 14604: 2005
Source: Contains no radioactive material
Airspeed: Essentially immune to the effect of
airspeed.
Button Test: Simulates the effect of smoke and checks
chamber, electronics and horn.
Ambient Light: Chamber housing design and electronic
compensation overcomes problems with
stray light.
Automatic
Self-Test: Smoke Chamber is tested every 40 Sec.
and unit beeps (without LED flash) if it is
degraded.
Insect Screen: Prevents insects or debris entering
chamber
(Ei103R)
Sensor: Fast responce Thermistor
Sensitivity: 54°C +/- 4°C (fixed temp.)
Complies with BS 5446: 2003
MODELS (Ei100R3. Ei105R3 & Ei103R)
Supply Voltage: 10.2 to 14.0 Volts
Standby Current: 150 Microamps (max)
Alarm Current: 30 to 60 mA
14
13425-R1-12V COMMON-UC 29/9/09 7:56 AM Page 14
All manuals and user guides at all-guides.com

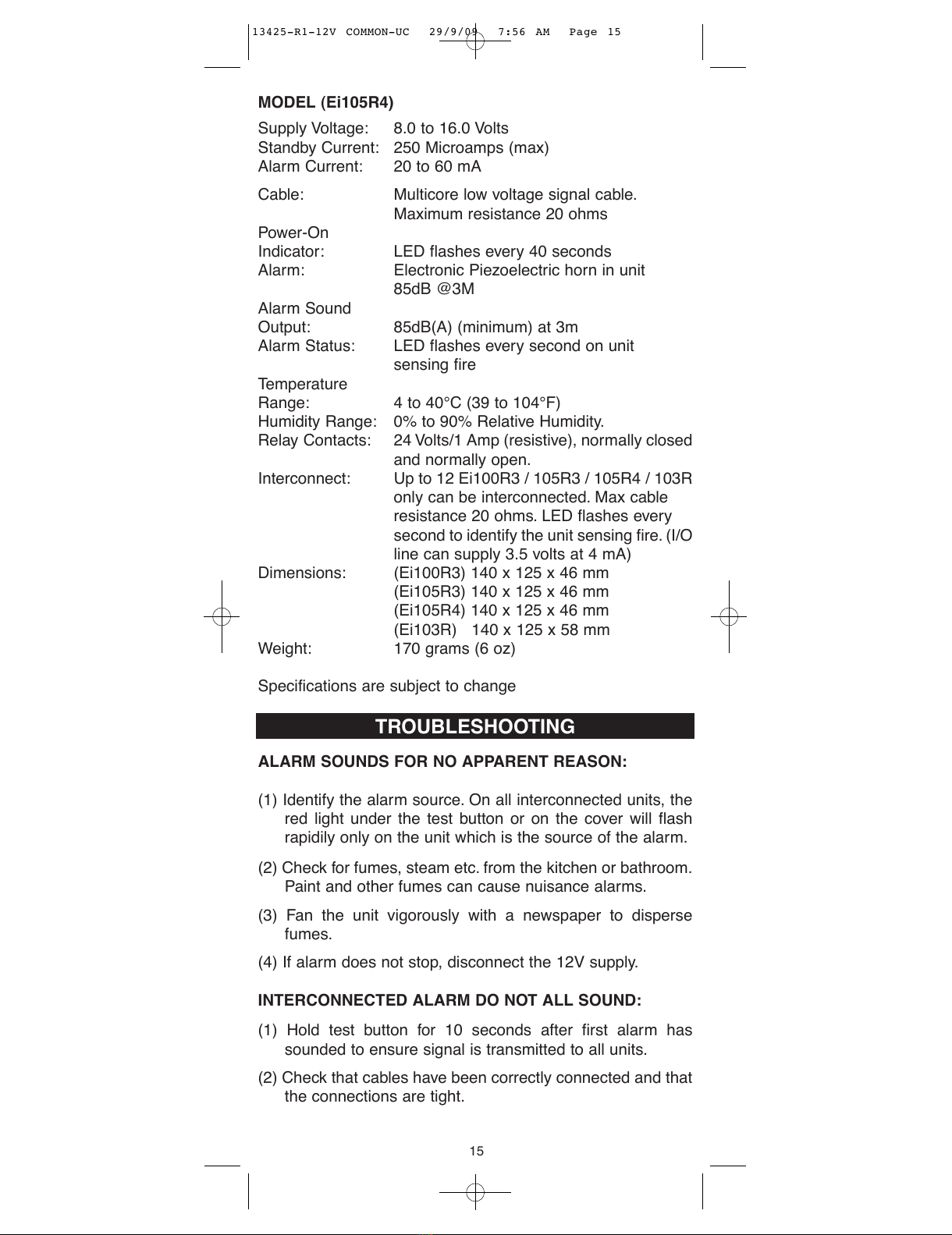

MODEL (Ei105R4)
Supply Voltage: 8.0 to 16.0 Volts
Standby Current: 250 Microamps (max)
Alarm Current: 20 to 60 mA
Cable: Multicore low voltage signal cable.
Maximum resistance 20 ohms
Power-On
Indicator: LED flashes every 40 seconds
Alarm: Electronic Piezoelectric horn in unit
85dB @3M
Alarm Sound
Output: 85dB(A) (minimum) at 3m
Alarm Status: LED flashes every second on unit
sensing fire
Temperature
Range: 4 to 40°C (39 to 104°F)
Humidity Range: 0% to 90% Relative Humidity.
Relay Contacts: 24 Volts/1 Amp (resistive), normally closed
and normally open.
Interconnect: Up to 12 Ei100R3 / 105R3 / 105R4 / 103R
only can be interconnected. Max cable
resistance 20 ohms. LED flashes every
second to identify the unit sensing fire. (I/O
line can supply 3.5 volts at 4 mA)
Dimensions: (Ei100R3) 140 x 125 x 46 mm
(Ei105R3) 140 x 125 x 46 mm
(Ei105R4) 140 x 125 x 46 mm
(Ei103R) 140 x 125 x 58 mm
Weight: 170 grams (6 oz)
Specifications are subject to change
TROUBLESHOOTING
ALARM SOUNDS FOR NO APPARENT REASON:
(1) Identify the alarm source. On all interconnected units, the
red light under the test button or on the cover will flash
rapidily only on the unit which is the source of the alarm.
(2) Check for fumes, steam etc. from the kitchen or bathroom.
Paint and other fumes can cause nuisance alarms.
(3) Fan the unit vigorously with a newspaper to disperse
fumes.
(4) If alarm does not stop, disconnect the 12V supply.
INTERCONNECTED ALARM DO NOT ALL SOUND:
(1) Hold test button for 10 seconds after first alarm has
sounded to ensure signal is transmitted to all units.
(2) Check that cables have been correctly connected and that
the connections are tight.
15
13425-R1-12V COMMON-UC 29/9/09 7:56 AM Page 15
All manuals and user guides at all-guides.com

FREQUENT NUISANCE ALARMS OCCUR:
(1) Close kitchen / bathroom door when in use.
(2) Ensure that the alarm is sited at least 6m away from
sources of fumes.
(3) Contamination from insects, paint or paint fumes may have
occured. (see “Clean your Alarm”).
(4) If the problem persists, resiting of the unit should be
considered. Alternatively, replace the unit with an Optical
unit, assuming that the problem is with an Ionisation type
alarm.
Ei Electronics. Shannon, Co. Clare, Ireland.
e-mail. [email protected]
Ei Electronics. 9 Grundy St., Liverpool L5-9SG.
Phone: [phone]. Fax: [phone].
e-mail: sales[email protected]
Construction Product Type: Smoke Alarm Devices
Certificate of Conformity: 0086-CPD-537430
European Standard: EN14604:2005
0086
08
MODEL TYPE
Ei100R3 Ionisation 12V Smoke Alarm
Ei105R3 Optical 12V Smoke Alarm
Ei105R4 Optical 8-16V Smoke Alarm
16
The crossed out wheelie bin symbol that is on your
product indicates that this product should not be disposed
of via the normal household waste stream. Proper
disposal will prevent possible harm to the environment or
to human health. When disposing of this product please
separate it from other waste streams to ensure that it can
be recycled in an environmentally sound manner. For
more details on collection and proper disposal, please
contact your local government office or the retailer where
you purchased this product.
13425-R1-12V COMMON-UC 29/9/09 7:56 AM Page 16
All manuals and user guides at all-guides.com
all-guides.com
