MR CARTOOL T105 User manual
Copyright Information
All rights reserved by SHENZHEN SHANGJIA TECH. CO., LTD. No part of this
publication may be reproduced, stored in a retrieval system, or transmitted in any
form or by any means, electronic, mechanical, photocopying, recording or
otherwise, without the prior written permission of MRCARTOOL. The information
contained herein is designed only for the use of this unit. MRCARTOOL is not
responsible for any use of this information as applied to other units.
Neither MRCARTOOL nor its affiliates shall be liable to the purchaser of this unit or
third parties for damages, losses, costs, or expenses incurred by purchaser or third
parties as a result of: accident, misuse, or abuse of this unit, or unauthorized
modifications, repairs, or alterations to this unit, or failure to strictly comply with
MRCARTOOL operating and maintenance instructions.
MRCARTOOL shall not be liable for any damages or problems arising from the
use of any options or any consumable products other than those designated as
Original MRCARTOOL Products or MRCARTOOL Approved Products by
MRCARTOOL.
Other product names used herein are for identification purposes only and may be
trademarks of their respective owners. MRCARTOOL disclaims any and all rights
in those marks.
This unit is made for the purpose of persons who have special techniques and
certifications.
Manual are either trademarks, registered trademarks, service marks, domain
names, logos, company names of or are otherwise the property of MRCARTOOL
or its affiliates. In countries where any of the MRCARTOOL trademarks, service
marks, domain names, logos and company names are not registered,
MRCARTOOL claims other rights associated with unregistered trademarks,
service marks, domain names, logos, and company names. Other products or
company names referred to in this manual may be trademarks of their respective
owners. You may not use any trademark, service mark, domain name, logo, or
company name of MRCARTOOL or any third party without permission from the
owner of the applicable trademark, service mark, domain name, logo, or company
name. You may contact MRCARTOOL by visiting MRCARTOOL at
permission to use Materials on this manual for purposes or for all other questions
relating to this manual.
Safety Instructions:
1.Please read this manual carefully before using the equipment!
2.Be careful when touching equipment or hot parts of the engine.
3.If the power cable is broken, do not turn on the equipment. If the equipment is
dropped or damaged, please do not use it again until an inspection by
professionals.
4.Do not connect the power plug when the machine is not in use. The power plug
should be unplugged by hand, not by pulling to remove it.
5.Before storing the equipment, the equipment should be completely cooled and
the cables should be wound up.
6.To prevent electric shock, do not operate the equipment in a wet area or in the
rain.
7.Please follow the instructions in the manual to operate the equipment. Use
accessories recommended by the manufacturer.
8.When removing the fuel cap, cover the connector with a towel to avoid injury.
9.The use time of the equipment should not be too long, 3~5 minutes, so as to
avoid excessive internal temperature and damage to the components.
10.The test oil volume of the equipment should not exceed 20ml, so as not to
cause the equipment to not output smoke.
11.The test oils are liquid paraffin and baby oil, not other mineral oils.
12.Change the test oil regularly. Before adding new oil, pour out the used oil
remaining in the detector.
13.Non-technical personnel should not alter, disassemble or repair the product to
avoid unnecessary damage.
Precautions
1. Product Introduction
1.1 Product Description
MR CARTOOL automotive smoke leak detector is a specialty tool used with vehicle
diagnostic devices to check the tightness of the vehicle pipeline system and find
leaks, helping the auto repair technician to quickly and accurately determine
whether the fault is caused by the pipeline leaks.
1.2 Functions and Features
Main Function
Tightness Test : It can test the tightness and leakage of the tested pipeline under
system pressure.
Intake System Test: it can test the air tightness and damage degree of the pipes in
the intake system.
Exhaust System Test: it can test the air tightness and damage degree of the pipes
in the exhaust system.
EVAP System Test: it can test the leakage of fuel evaporation in the EVAP system.
Main Features
1. More directly, accurate and faster than traditional leak detection methods such
as soap bubbles and throttle cleaners.
2. Adopting smoke generator technology facilitate smoke stability and large amount
output.
3. Built-in air pump, ready for testing and maintenance.
4. Compact, lightweight design allows for any placement of machine for work.
5. Test oil is non-toxic and non-corrosive.
1.3 Product parameter
Output pressure：12~14Psi
Output flow：4L/Min
Power supply: 12V
Air source: built-in
Test oil capacity：10 ML
Dimensions of the Main Unit：160x280x190 mm
Package weight：3.8KG
Package Size：295x295x210 mm
T105
2. Structure Diagram
2.1 Diagram of Equipment
Figure 2.1 Diagram of T105
1-Oil Filler; 2-Air mode; 3-Pressure gauge; 4-Smoke mode；5-Alarm indicatorAir
mode; 6-Power indicator; 7-Oil outlet valve; 8-Smoke output; 9-Power output.
3. Operation Description
3.1 Intake System Testing
1. Open the air filter cover and take it out.
2. Take out the tapered adapter from the accessory box and insert it into the air
inlet pipe
3. Take out the smoke duct from the accessory box and connect it to the smoke
outlet.
4. Take out the power cable from the accessory box and connect it to the power
supply.
5. Unscrew the filling cap, pour 10ml of test oil, and tighten the filling cap.
6. Connect the car battery, and the then built-in air pump starts to work. Plug the
smoke duct nozzle with your hand to check whether there is smoke flow, (Need to
be controlled separately by air switch and smoke switch, while observing the
change of pressure gauge).
7. Turn on the smoke switch, wait for 1~3 seconds, when the smoke is output,
connect with the taper adapter at once; (Can also be connected with the universal
airbag for testing).
8. Wait 3 minutes to find out if smoke is leaking from the intake system leaks.
5
4
9
6
8
7
1
2
3
T105
3.2 Exhaust System Testing
1. Take the tapered adapter from the accessory box and insert it into the end of the
exhaust pipe. In the case of dual exhaust pipes, a rubber plug can be used to block
the other end.
2. The exhaust system testing is the same as the intake system testing and can be
performed in the same way.
3.3 EVAP System Testing
1. Locate the carbon canister on the car and disconnect the fuel inlet/outlet pipe.
2. Take out the EVAP adapter from the accessory box and connect it to the tested
oil pipe.
3. The EVAP system testing is the same as the intake system testing and can be
performed in the same way.
3.4 Engine Tightness Testing
1. Take out the special oil cap adapter from the accessory box and connect it to the
oil port .
2. The Engine tightness testing is the same as the intake system testing and can
be performed in the same way.
4. Care & Maintenance
1. After the testing is completed, clean the disassembled parts and put them back
in the packing box.
2. Drain the left over test oil to the recycle bottle.
3. Wipe the equipment clean and check for malfunctions, loose joints, and
damages.
4. After cleaning the main unit and accessories, put it in a cool, dry and dust-free
place.
5. Smoke and oil will oxidize and deteriorate under long-term high temperature. It
will shorten the service life of the smoke generator part, so please change the test
oil regularly.

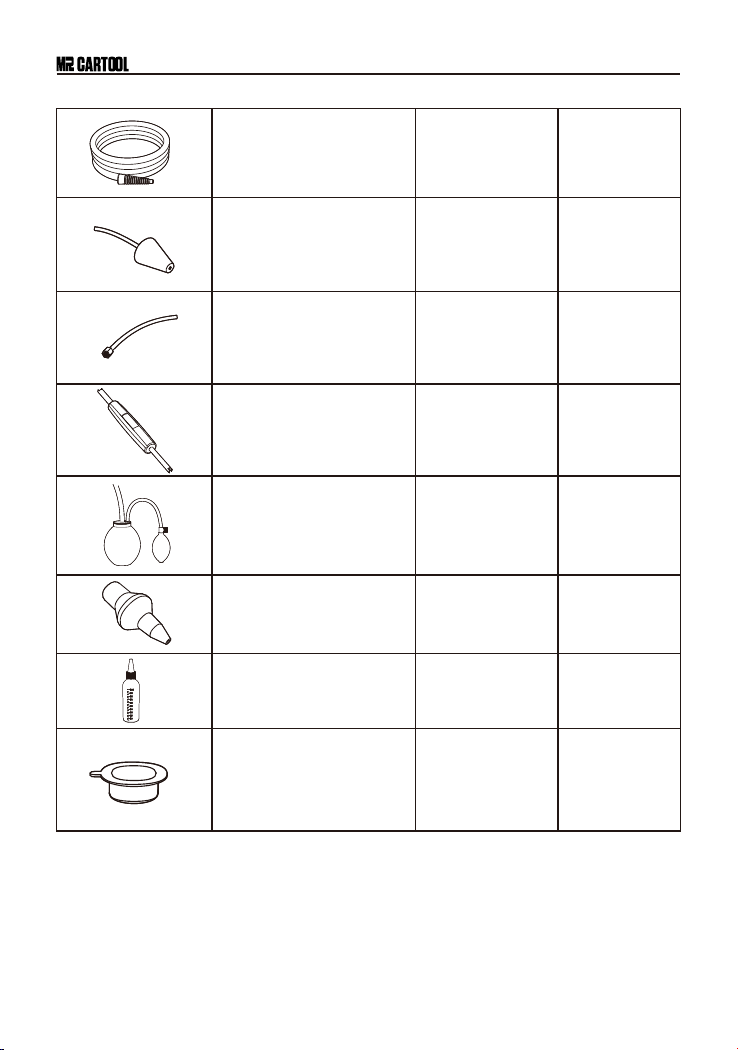

5. Parts list
Specification QuantityNamePicture
Power Cord Clamp 1.5 m 1
T105
Smoke Hose 1.5 m 1
Special Connectors for
EVAP Service Interface
Valve Core Wrench
Universal Airbag Adapter
Rubber Connector Parts
Soft Rubber Hose Plug
Test Oil Refill Bottle
4mm / 6mm
16 / 10mm
100ml
12.7mm
25mm
8
Standard Cone Adapter 30-85mm 1
1
1
1
1
1
9mm,12mm
16mm,17mm
20mm, 25mm
31.5mm,50mm
T105
