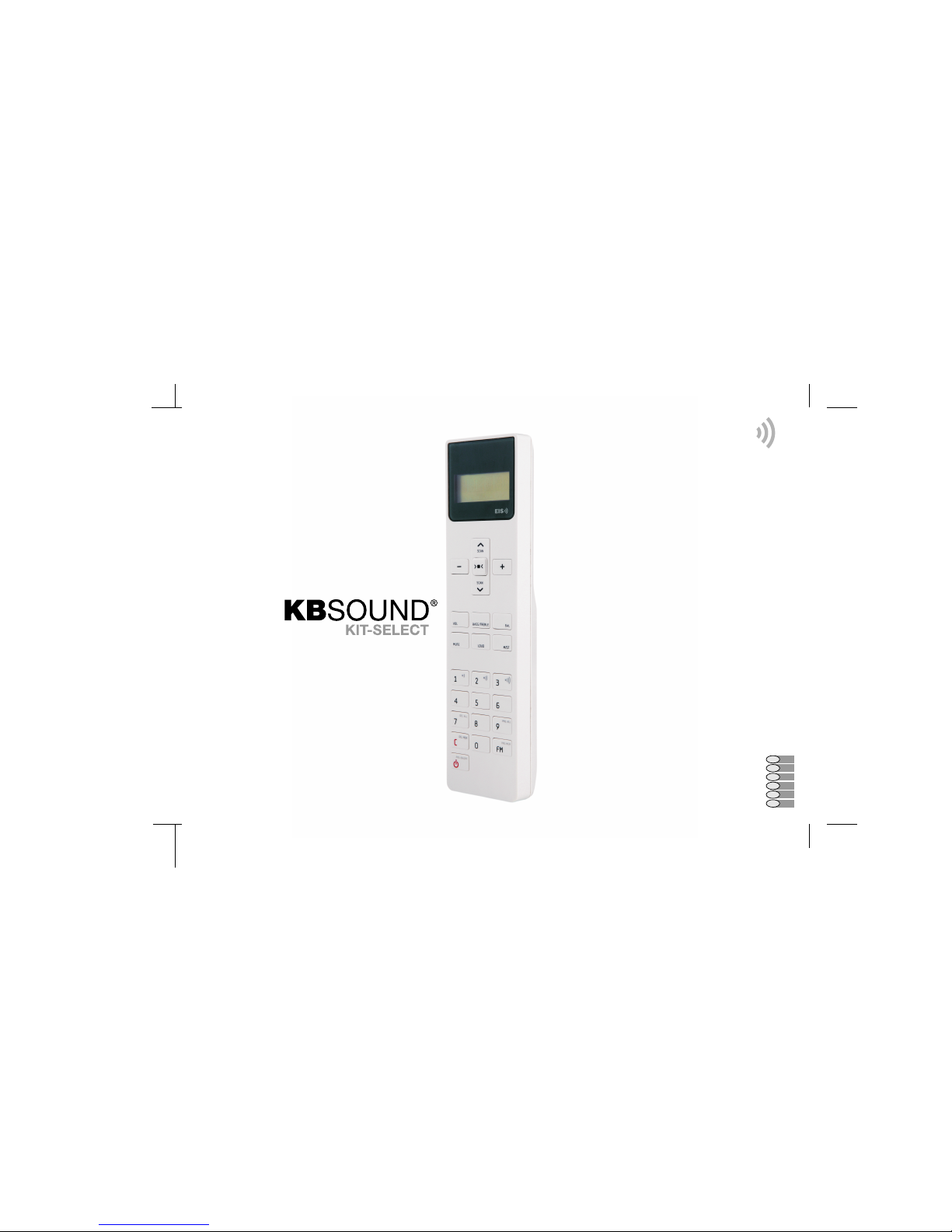

EIS KBSOUND User manual

Electrónica Integral de Sonido
EIS
USER’S MANUAL
BENUTZERHANDBUCH
MANUEL DE L’USUAIRE
GEBRUIKERSHANDLEIDING
MAMANUALE DELL'UTENTE
BRUKERHÅNDBOK
2
12
32
22
42
52
ENG
D
F
I
N
NL

2
Important Safety Instructions
Before installing the unit, please read and follow the instructions provided in the Installation Manual included
in this kit.
Before operating the unit, please read and follow the instuctions provided in this User´s Manual thoroughly
and save it for future experience.
WARNING - To reduce the risk of fire or electric shock:
install in accordance with the manufacturer’s instructions
do not expose this apparatus to dripping and splashing
do not use this product near water
do not attempt to dissamble this unit
do not block any ventilation openings
do not install near any heat sources such as radiators, stoves or other equipments that produce
heat.
You are cautioned that any changes or modifications not expressly mentioned in this manual could void your
authority to operate this equipment.
This product has been designed and tested to provide reasonable protection against harmful interference in
residential installation. However there is no guarantee that interference will not affect in a particular
installation. In these cases, reorient the receiving antenna, try to increase the separation between the
equipment and the source of interference and/or connect the equipment into an outlet on a circuit different
from that to which the source of interference is connected.
The entire risk of the installation, use, results and performance are borne by you.
When used as a mechanism to disconnect from the current network, a socket plug, or a device connector;
the disconnecting mechanism must be easily accessible at all times. Protect the power cord from being
walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the
apparatus.
Only use attachments/accessories specified by the manufacturer.
as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to dripping and splashing, does not operate normally, or has
been dropped.
Attention should be drawn to the environmental aspects of battery disposal.
Use a certified technician for installation, repair and/or maintenance of this equipment and comply with all
the regulations in force in each country. Servicing is required when the apparatus has been damaged in any
way, such
3
11
4
5
6
7
10
11
1. Introduction
2. General Operating Notes
3. Operating Audio Functions
5. Selecting Turn-On Mode
4. Operating the FM Tuner
6. “Ideal” mode
Quick Reference Guide
7. Technical Specifications
4.1 Station Search
4.2 Directly Keying Station Frequency
4.3 Tuning to FM Memory Pre-Sets
4.4 Storing and Clearing Station Frequencies Manually
4.5 Storing and Clearing Station Frequencies Automatically
4.6 Adjusting StationSearch Sensitivity
Table of Contents
CAUTION
DO NOT OPEN
RISK OF ELECTRIC SHOCK
!
ENG

3
ENG
Quick Reference Guide
Numeric Keypad
FM memory pre-sets
Automatic FM station search
Delete FM tuning pre-set
Delete all FM tuning pre-sets
Store all FM stations detected
Store FM station pre-set
Automatic FM station
search sensitivity
Store “IDEAL” setting
Store turn-on mode (on/off)
5”
5”
2”
5”
2”
5”
5”
Mute
”IDEAL” mode
Clear
Loudness
Audio level control
volume/bass/treble/balance
Select +/- keys function
volume/bass/treble/balance
Forced mono
On/Off
1”
Directly keying
FM station frequency (i.e. 95.8 MHz)





IR receiver/transmitter
Loudspeakers the size of
a halogen light (2”)
1.5W+1.5W power
Sound device with built-in
FM tuner (does not
require an external power
supply)
Remote control:
Display screen that visualizes the functions
Volume, bass, treble and balance control
'Forced Mono' function
Ability to directly key in desired station
frequency
Ability to automatically store into memory
stations received with the best quality
30 memory pre-sets
“Intelligent” loudness: automatic adjustment
to the signal volume
4
4
4
4
4
4
4
Introducing , a sound device especially designed for easy and quick installation,
without building work, cabling or pre-installations involved. Its three components (remote control,
loudspeakers and electronic device) provide an FM tuner that perfectly blends into the kitchen or
bathroom décor installed in the furnishings.
kbsound select®
Its operation is simple and easy by using a remote control unit with a display screen. The screen displays
constant information about the state of the sound device installed in the ceiling, such as station frequency
tuned, volume, bass, treble, etc.
4
1. Introduction
Blending perfectly into the décor of the kitchen or bathroom, the kit provides the
following features:
kbsound select®
ENG
The components supplied in this kit are for installation and use in the manner and for
the purpose described in the installation manual and the user manual. The installation
must also comply with each country's current regulations.
This manual assumes that the unit has been correctly installed and is fully
operational. If the device has not been installed yet, follow the instructions provided in the Installation
Sheet included in this kit.
kbsound select®

1.- None of the functions (except ON/OFF) work unless the remote control is in “on” mode.
2.- Functions pertaining to operating the audio signal only work when “mute” is cancelled.
Once the ® is connected to the mains, it will remain powered even it is in OFF state.
That means that the OFF state (as indicated in this manual) really means a “standby” state
3.- kbsound select
4.-
5.- The remote control unit exchanges information (transmits and
receives data) by means of the transmission-reception capsule. If
at any time there is a failure in the synchronicity of communication,
the screen will display the symbol. In the event of this
occurring, point the remote control to the transmission-reception
capsule at a straight-line distance of no greater than 5 meters.
6.- The remote control display will
automatically turn off when there has been
no keying activity for more than a few
seconds, ensuring more efficient battery
usage. To view the display information at
any time, point the remote control to the
transmission-reception capsule and press
the key.
A short BEEP sound signal indicates that the data was received
7.- To illustrate that an
operation requires holding down
a key on the remote control for a
specific amount of time, the
symbol will appear in the manual
next to the key. The screen will
display the symbol
BIP
5
5m
The ®
will turn on with the audio
and station frequency
settings saved as “ideal”
mode settings (see chapters
5 and 6) when the unit is
connected to a power
supply.
When switched off and on
while connected to the
power supply, the audio and
station frequency settings
will be as when the unit was
switched off with the remote
control ON/OFF key
kbsound select
ENG
2. General Operating Notes
F
F

Key Sequence Display
Increase/decrease in the signal volume: The LED will
flash to indicate the desired change in volume.
Increase/decrease in bass/treble levels: The LED will flash
to indicate the desired change in the bass/treble levels.
Mute: the unit becomes silent (mute activated)
Loudness: It reinforces the bass level in terms of the signal volume, assuming a
greater backing at a lower volume and a lesser backing at a higher volume.
Mono/stereo reception: When activated, this feature allows the FM stations to be received in
stereo. When cleared, this feature only allows for mono reception.
Note: If the control unit's configuration is mono (see Installation Sheet supplied with this kit), the
signal will always be received in mono even if the signal received by the antenna is in stereo.
If the control unit is off, a brief press on the will gradually turn on the unit
(between 1 and 2 seconds).
When the control unit is off, the LED will be OFF.
ON/OFF key
The LED will display the word “ON”
6
ENG
3. Operating Audio Functions
on
vol 58
BAS+06
MUTE
LD on
STEREO

Key Sequence Display
To directly key in an FM station frequency, sequentially press the numeric keys of the
station frequency then press the FM key. For example, to select 94.7, press 9 4 7 FM.
Note: A station frequency can be keyed in as either 94.7 (9 4 7 FM)
or as 94.70 (9 4 7 0 FM)
If the frequency keyed in is not correct or if more digits than necessary are keyed in, the
screen will display the word “ERROR”
To clear a digit keyed in and start keying in
a different frequency, press the C key
and then begin keying in the desired
frequency

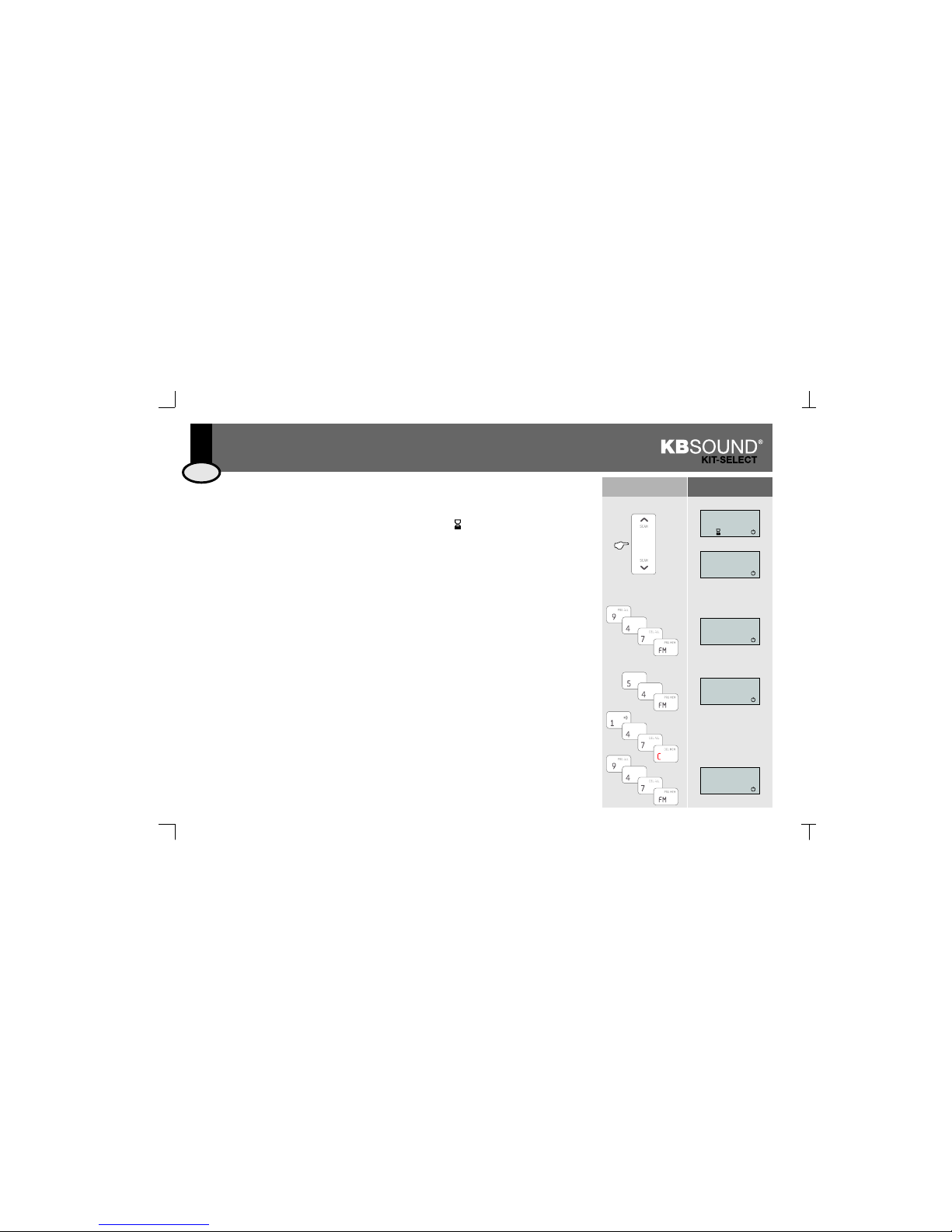

4.2 Directly Keying Station Frequency
While the search is taking place, the word “SCAN” will appear on the display screen.
The screen will duly display the station frequency of the next station located.
4.1 Station Search
7
ENG
4. Operating the FM Tuner
1”
94.70
94.70
ERROR
FM
FM
SCAN
102.50
FM

Key Sequence Display
4.4 Storing and Clearing Station Frequencies Manually
To , tune to the station (see Chapters 4.1. Station Search and 4.2.
Directly Keying Station Frequency).
Hold down the FM key for 2”.
The station tuned at that time will be stored in the memory.
If all the memory slots have been assigned, the current station will not be able to be stored and
the screen will display the word "NO MEM"
store a station in memory
To , select the station and hold down the C key for 2”. The station
tuned at that time will be cleared from memory if it was previously stored.
If the station is not stored in memory, the screen will display the word "NO MEM"
delete a station from memory
The SCAN keys allow you to scroll through the stations stored in memory (see Chapters 2.6 and
2.7, Storing and Clearing Stations in Memory).
When stations are stored in memory they are sorted in ascending order; that is, beginning with
87.5 and ending with 108.0.
The screen will display the frequency of the station saved to that memory pre-set.
If there are no stations stored in memory, the screen will display the word "NO MEM"
4.3 Tuning to FM Memory Pre-Sets
8
ENG
4. Operating the FM Tuner
MEM 07
DEL OK
MEM 19
102.50
FM
2’’
2’’
94.70
FM
94.70
FM

Key Sequence Display
To activate the process for all the
memory slots, hold down 7 key for 5”.
clearing station frequencies automatically
To activate the process, hold down key 9 for 5”.
When the automatic programming begins the screen will display the word “AUTO” .
The control unit will store into memory the stations that are received with the highest quality,
ordered from lowest frequency (87.5 MHz) to highest frequency (108.0 MHz).
The system will use all the memory slots available, reaching the maximum of 30.
The process can take a few moments. Once the scan has been completed or once the
maximum number of memory slots has been used, the process ends and a BEEP signal
sounds.
storing station frequencies automatically
4.5 Storing and Clearing Station Frequencies Automatically
9
To adjust the automatic station search sensitivity (see 4.1. Station Search),
hold down the 1 and 3 keys (1=minimum, 3= maximum) for 5”
4.6 Adjusting Station Search Sensitivity
ENG
4. Operating the FM Tuner
DEL MEM
SENS 2
BIP
5’’
5’’
5’’
5’’
5’’
AUTO

If the Turn-On mode is set to
“on” in this state, when
power is fed to the unit, it will
turn on in “ideal” mode (see
Chapter 6. “Ideal Mode”).
If the Turn-On mode is set to “off”,
when power is fed to the unit, it will
turn on in “off” mode.
10
This function is designed for use in the event that the ®
power supply is fed by a specifically designated switch. In this case, the
automatic activation mode must be programmed in order to automatically
turn on the ® unit when the switch is activated.
These steps must be followed:
kb
kb
sound select
sound select
1. Supply power to the ® unit by flicking the
switch. The ® unit will flicker a couple of times
and turn off.
2. Turn on the ® unit using the remote control
(ON/OFF key).
3. With the ® unit turned on, keep the ON/OFF
key pressed down for 5”.
kb
kb
kb
kb
sound select
sound select
sound select
sound select
Key Sequence Display
ENG
5. Selecting Turn-On Mode
AUTO x
5’’
5’’

Key Sequence Display
11
The "IDEAL" mode of operation can be instantly accessed by pressing the IDEAL key on the
remote control. In this mode, a specific station is played at particular levels of volume, bass,
treble and loudness.
To program your "IDEAL" mode of operation, select the desired levels of volume, bass, treble
and loudness, as well as the station frequency. Then hold down the IDEAL key for 2”
ENG
6. “Ideal” mode
7. Technical Specifications
42696,42697MINNORMALMAXCOMMENTS
Measurements181x50x52mm
Voltage230Vacmod.42696,50Hz,terminalsF,N
120Vacmod.42697,60Hz,terminalsF,N
Consumptiondemand10WterminalsF,N
Outputsignal(16ohms)1,5WterminalsD,I
Passband2015.000Hz
Distortion0,10,4%
Frequencyrange87,5108MHz
Antennaimpedance75ohmsterminalsA,M
Antennasensitivity3,55uV
Tunerdistortion2%
Numberofstationpre-sets30
CONNECTING TERMINALS
Left loudspeaker output (red terminal/+)
Right loudspeaker output (red terminal/+)
Common loudspeaker ouput (black terminals/-)
Receiver can remote control connector
Power supply
Power supply
FM tuner antenna signal
FM tuner antenna mass
I
D
C
N
F
IRD
A
M
IDEAL
IDEAL
2’’

CC-1102-02
6446 0032
Electrónica Integral de Sonido S.A.
Electrónica Integral de Sonido S.A.
se réserve le droit d´introduire des changements sans
avertissement préalable. ne se responsabilise pas des
erreurs ou des omissions de ce manuel.
Electrónica Integral de Sonido S.A. behält sich das Recht auf Änderungen ohne
Ankündigung vor. Electrónica Integral de sonido, S.A. übernimmt keine Verantwortung für
Fehler oder Auslassungen in diesem Handbuch.
Electrónica Integral de Sonido S.A. behoudt zich het recht voor zonder voorafgaande
kennisgeving wijzigingen aan te brengen. Electrónica Integral de Sonido S.A. wijst alle
aansprakelijkheid voor evt. fouten of veronachtzamingen in deze handleiding van de
hand.
Electrónica Integral de Sonido, S.A. reserves the right to make changes without prior
notice. Electrónica Integral de Sonido, S.A. is not responsible for any errors or omissions
that may appear in this manual.
installed:
installé:
installati:
installert av:
installiert:
installiert:
Electrónica Integral de Sonido, S.A. si riserva il diritto di apportare delle modifiche senza
previo avviso. Electrónica Integral de Sonido, S.A. non è responsabile degli errori od
omissioni di questo manuale.
Electrónica Integral de Sonido, S.A. forbeholder seg retten til å foreta endringer uten
forvarsel. Electrónica Integral de Sonido, S.A. er ikke ansvarlig for eventuelle feil eller
utelatelser som kan forekomme i denne håndboken.
AENOR
Registrada
Empresa
ER-0634/1998
Electrónica Integral de Sonido
EIS
CENTRAL
MADRID
[email protected]
Polígono Malpica Calle F Oeste
Grupo de Naves Gregorio Quejido, 87-88
50016 Zaragoza
Tel.: [phone]
Fax: [phone]
(España)
Paseo de Europa 13, 2ºB
28700 San Sebastián de los Reyes
Madrid (España)
Tel.: [phone]
Fax: [phone]
[email protected]
www.eissa.com
