EisSound KBSound 534 96 User manual
1.- Installation
2.- Configuration
3.- Object Table
4.- Comments
Electrónica Integral de Sonido S.A. is not responsible for any error or omissions that may appear in this manual, and reserves the right to
make changes without prior notice.
2
KBSound KNX interface
1 Installation
With the KBSound KNX Interface Module (Ref. 534 96) the main features of the KBSound can
be controlled by different devices integrated in a KNX installation.

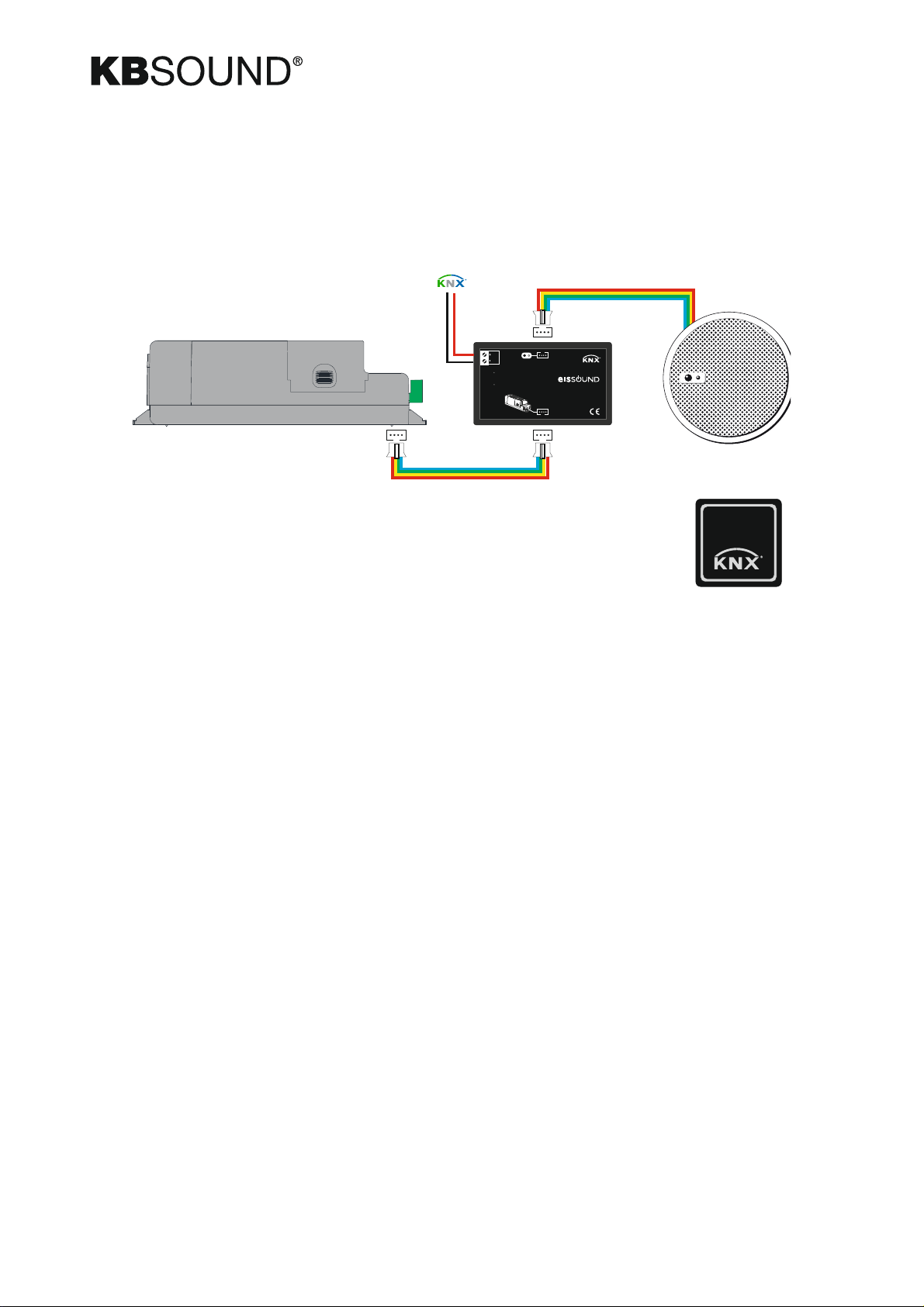

Connect the Interface Module Ref. 534 96 to the Electronic Module using the specific cables
provided.
IR
IR out
PROG
KNX
LED
IR in
KBSoundKNXinterface
Model 53496
534 96
IMPORTANT: be sure that the Electronic Module and Dock have both the
indication "Firmware ready for KNX"
FIRMWARE
READY FOR
2 Configuration
The configuration of Interface is performed by ETS software
1º From ETS import the project EISSOUND KBSound KNX Interface.vd4
2º Assign the address to the KBSound KNX Interface Module. To do this it is necessary to
modify its ETS address and press the PROG button in the Interface Ref. 534 96 to enter it in
program mode. The yellow led must be ON during the programming process.
3º Once the address has been configured we can link the objects provided by the Interface (36
in total) with the devices of the KNX installations. Each object has its functionality description
mentioned in the field "Description" in the ETS main window.
IMPORTANT: The configuration of the objects of the KBSound KNX Interface should never be
modified. Any modification could give rise to a loss of functionalities.
3
3 Object Table
The table annexed in the following pages relates the objects provided by KBSound KNX
interface.
Object
Type
Description
Data
0 DPT 1 Standby On/Off 1.003 enable
(1=music ON, 0=music OFF)
120 DPT 1 Standby 1.003 enable
(1=music ON, 0=music OFF)
10 DPT 5 Channel Set 5.010 unsigned value
11 DPT1 Channel Up/Down 1.007 step backward/forward
114 DPT 5 Channel 5.010 unsigned value
1 DPT 5 Volume Set 5.1 scaling
2 DPT 1 Volume Up/Down 1.007 step decrease/increase
119 DPT 5 Volume 5.1 scaling
3 DPT 5 Balance Set 5.1 scaling
4 DPT 1 Balance Up/Down 1.007 step decrease/increase
118 DPT 5 Balance 5.1 scaling
5 DPT 5 Bass Set 5.1 scaling
6 DPT 1 Bass Up/Down 1.007 step decrease/increase
117 DPT 5 Bass 5.1 scaling
7 DPT 5 Treble Set 5.1 scaling
8 DPT 1 Treble Up/Down 1.007 step decrease/increase
116 DPT 5 Treble 5.1 scaling
9 DPT 1 Loudness On/Off 1.003 enable
115 DPT 1 Loudness 1.003 enable
15 DPT 1 FM Autoscan 1.003 enable
14 DPT 14 FM Station Set 14.033 frequency
13 DPT 1 FM Memory Up/Down 1.007 step backward/forward
12 DPT 1 FM Scan Up/Down 1.007 step backward/forward
121 DPT 14 FM Station 14.033 frequency
124 DPT 16 FM RDS 16.000 character string (ASCII)
18 DPT 1 DAB Update 1.003 enable
17 DPT 1 DAB Memory Up/Down 1.007 step backward/forward
16 DPT 1 DAB Scan Up/Down 1.007 step backward/forward
19 DPT 5 DAB Memory Set 5.010 unsigned value
122 DPT 5 DAB Memory 5.010 unsigned value
123 DPT 16 DAB Info 16.000 character string (ASCII)
20 DPT 1 iPod/Bluetooth Play/Pause 1.010 start/stop
21 DPT 1 iPod/Bluetooth Up/Down 1.007 step decrease/increase
127 DPT 16 iPod/Bluetooth Song 16.000 character string (ASCII)
126 DPT 16 iPod/Bluetooth Artist 16.000 character string (ASCII)
125 DPT 16 iPod/Bluetooth Album 16.000 character string (ASCII)
Note: it has been required by KNX that every object that can be programmed as
backward/forward or decrease/increase, must be programmed through ETS software as:
0 = backward / decrease (in case of FM stations, implies lower frequencies)
1 = forward / increase (in case of FM stations, implies higher frequencies)
4
KBSound KNX interface
4 Comments
4.1.- Audio channels
The objects "channel" has the following values:
1 = FM tuner
3 = iPod (from Dock) / Bluetooth
4 = external AUDIO IN (from Dock)
5 = DAB tuner
The availability of some audio channels depends on the KBSOUND® model and the existence
of the KBSOUND® Dock or the KBSOUND® Bluetooth® Accessory.
4.2.- DAB Objects
Objects related to DAB memories require previously do a "Program All" operation from IR
remote control unit.
Objects related to DAB scanning require previously do an "Update" operation from IR remote
control unit or from KNX (DAB Update object).
4.3.- Song title, artist and album information
When Dock is available, each change in the song playing is automatically updated in the KNX
objects related.
When Bluetooth accessory is available, if the Bluetooth device does not inform about the
change in the song, the update in the song information only takes place if the operation run from
KNX (Play/Pause or Up/Down objects) or reading the song, artist and album objects
4.4.- Standby
Standby object values for the first version (1.1.0) of KBSOUND® KNX Interface Module (Ref.
534 96) were:
1 = music OFF
0 = music ON
From 1.2.0 version (July-2013):
0 = music OFF
1 = music ON
