Eizo ColorEdge CG247 User manual

Important
Please read PRECAUTIONS, this User’s Manual, and the Setup Guide
(separate volume) carefully to familiarize yourself with safe and
effective usage.
• Please refer to the Setup Guide for basic information ranging from
connection of the monitor to a PC to using the monitor.
• The latest User’s Manual is available for download from our web site:
http://www.eizo.com
Cover

2
Location of Caution Statement
This product has been adjusted specically for use in the region to which it was originally shipped. If operated
outside this region, the product may not perform as stated in the specications.
No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means,
electronic, mechanical, or otherwise, without the prior written permission of EIZO Corporation.
EIZO Corporation is under no obligation to hold any submitted material or information condential unless prior
arrangements are made pursuant to EIZO Corporation’s receipt of said information. Although every effort has been
made to ensure that this manual provides up-to-date information, please note that EIZO monitor specications are
subject to change without notice.

3
Notice for this monitor
Notice for this monitor
Aside from general purposes like creating documents, viewing multimedia content, this product is also suited to
applications such as graphics creation and digital photo processing, where accurate color reproduction is a priority.
This product has been adjusted specically for use in the region to which it was originally shipped. If the product is
used outside the region, it may not operate as specied in the specications.
This product may not be covered by warranty for uses other than those described in this manual.
The specications noted in this manual are only applicable when the following are used:
· Power cords provided with the product
· Signal cables specied by us
Only use optional products manufactured or specied by us with this product.
It takes about 7 minutes (under our measurement conditions) for the performance of electrical parts to stabilize. Please
wait 7 minutes or more after the monitor power has been turned on, and then adjust the monitor.
Monitors should be set to a lower brightness to reduce changes in luminosity caused by long-term use and maintain a
stable display.
When the screen image is changed after displaying the same image for extended periods of time, an afterimage may
appear. Use the screen saver or power save function to avoid displaying the same image for extended periods of time.
Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime (refer to
“Cleaning” (page 4)).
The LCD panel is manufactured using high-precision technology. Although, missing pixels or lit pixels may appear on
the LCD panel, this is not a malfunction. Percentage of effective dots: 99.9994% or higher.
The backlight of the LCD panel has a xed lifetime. When the screen becomes dark or begins to icker, please contact
your local EIZO representative.
Do not press on the panel or edge of the frame strongly, as this may result in display malfunctions, such as interference
patterns, etc. If pressure is continually applied to the panel, it may deteriorate or damage your panel. (If the pressure
marks remain on the panel, leave the monitor with a black or white screen. The symptom may disappear.)
Do not scratch or press on the panel with any sharp objects, as this may result in damage to the panel. Do not attempt
to brush with tissues as this may scratch the panel.
When the monitor is cold and brought into a room or the room temperature goes up quickly, dew condensation may
occur on the interior and exterior surfaces of the monitor. In that case, do not turn the monitor on. Instead wait until
the dew condensation disappears, otherwise it may cause some damage to the monitor.

4Notice for this monitor
Cleaning
Attention
• Chemicals such as alcohol and antiseptic solution may cause gloss variation, tarnishing, and fading of the cabinet or panel,
and also quality deterioration of the image.
• Never use any thinner, benzene, wax, and abrasive cleaner, which may damage the cabinet or panel.
• Do not allow liquid to enter the clearance between the panel and the panel frame.
The stains on the cabinet and panel surface can be removed by using the provided ScreenCleaner.
To use the monitor comfortably
• An excessively dark or bright screen may affect your eyes. Adjust the brightness of the monitor according to
the environmental conditions.
• Staring at the monitor for a long time tires your eyes. Take a 10-minute rest every hour.

5
CONTENTS
CONTENTS
Cover ...................................................................... 1
Notice for this monitor ......................................... 3
Cleaning .................................................................... 4
To use the monitor comfortably............................. 4
CONTENTS............................................................. 5
Chapter 1 Introduction....................................... 7
1-1. Features ......................................................... 7
1-2. Controls and Functions ............................... 9
●Front ................................................................ 9
●Rear................................................................10
1-3. EIZO LCD Utility Disk...................................11
●Disk contents and software overview ............11
●To use ColorNavigator ...................................11

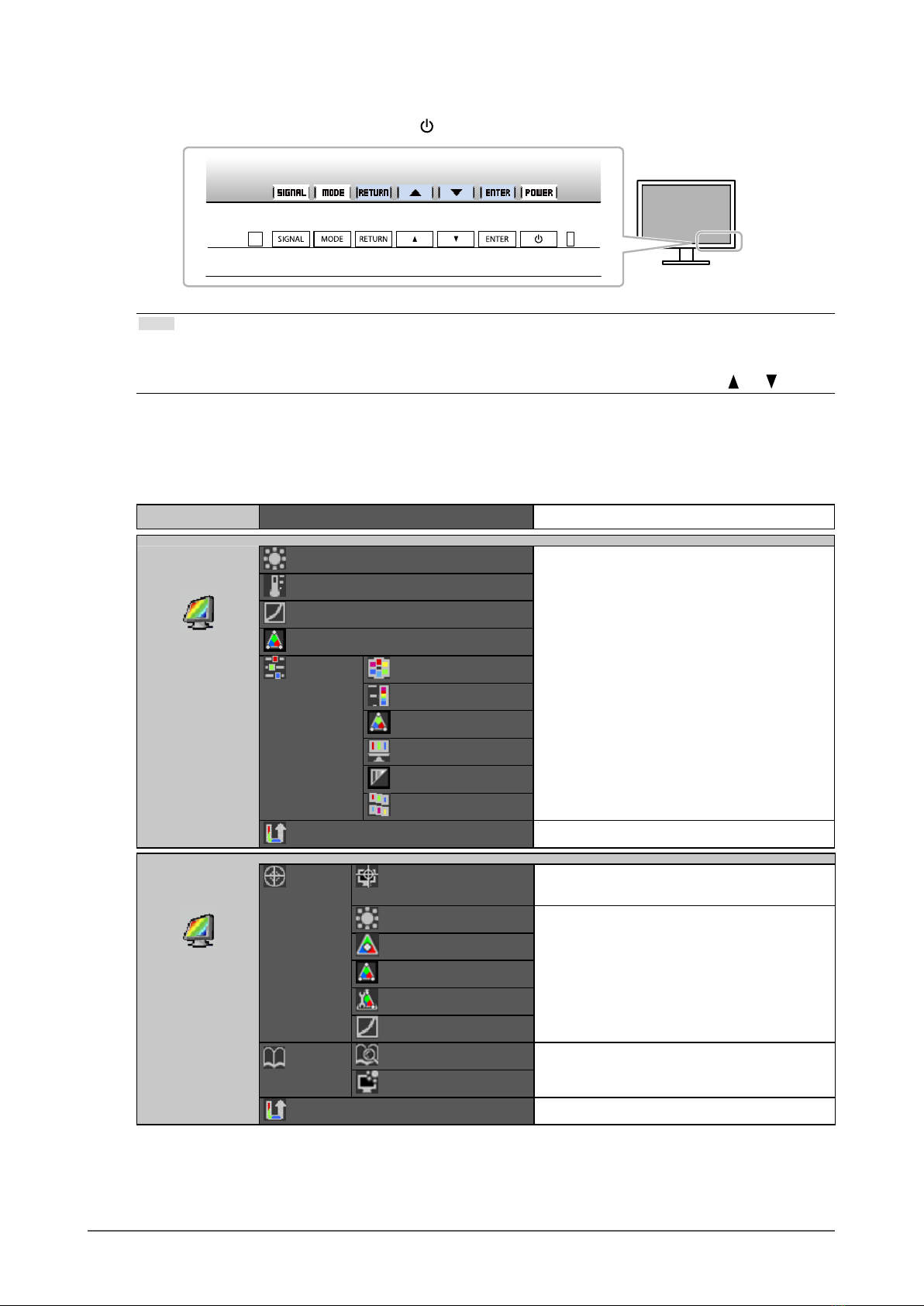

1-4. Basic Operations and Functions ...............12

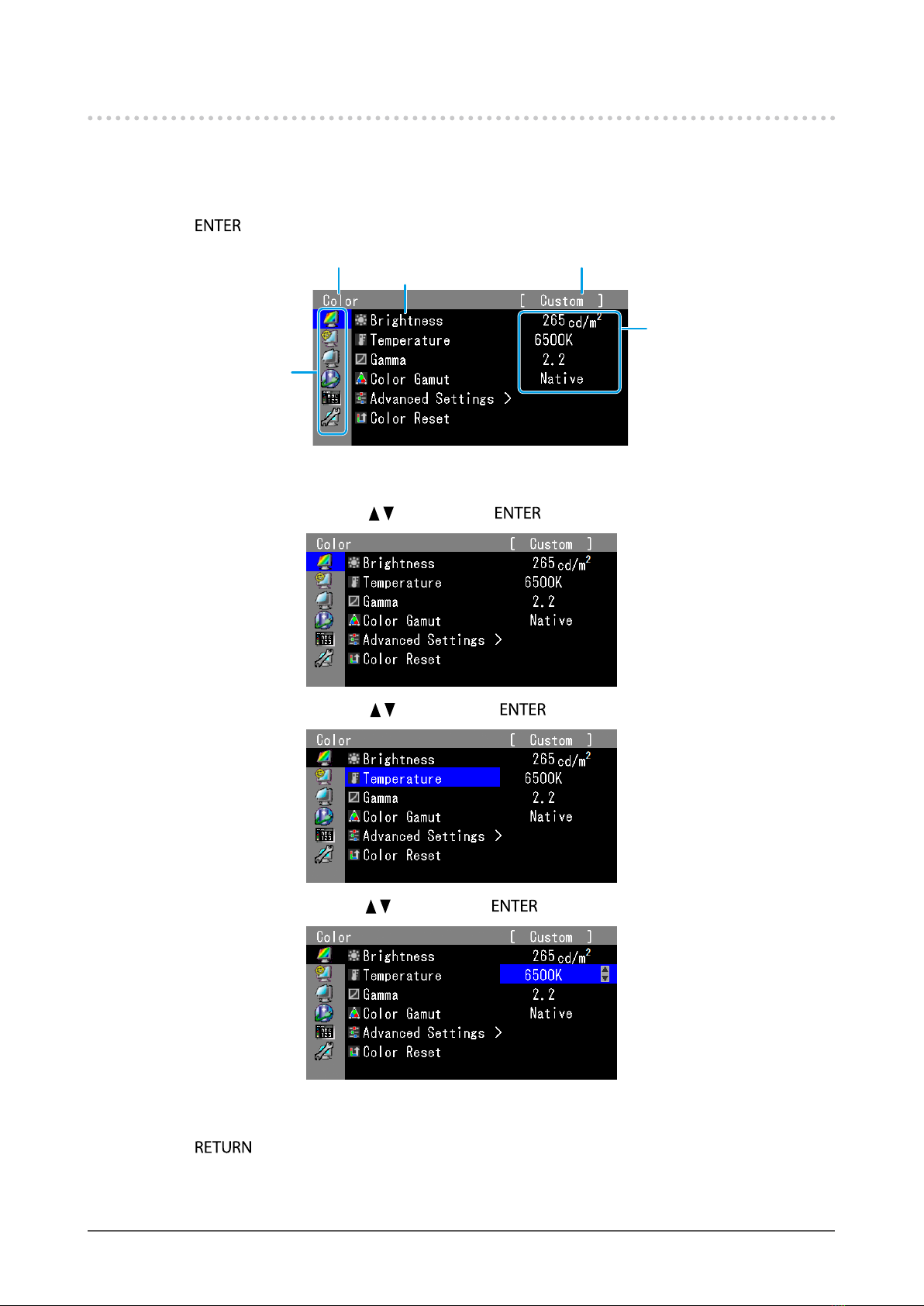

●Basic Adjustment menu operations ...............12
●Showing Button Guide ...................................13
●Functions........................................................13
Chapter 2 Adjusting Screens .......................... 15
2-1. Setting Resolution.......................................15
●Compatible Resolutions/Formats...................15
●To switch signal formats (Only for HDMI
signal input) ....................................................16
●To set the display resolution for the OS .........16
●To select screen size......................................17
2-2. Selecting the display mode (color mode) .19
2-3. Adjusting Color ........................................... 20
●To adjust brightness ...................................... 20
●To adjust the temperature ..............................21
●To adjust gamma............................................21
●To set color gamut......................................... 22
●To perform advanced adjustments ............... 22
2-4. ConguringMovingImagePerformance. 26
2-5. Specifying Color Space ............................. 27
2-6. Expanding Signal Output Range .............. 28
●To extend the output range ........................... 28
●To select the range of signals to extend ....... 28
2-7. Setting HDMI................................................ 29
●To reduce noise............................................. 29
●To select how to display interlace signal....... 29
●To setting safe area....................................... 29
Chapter 3 Setting Monitor ............................... 31
3-1. Setting Adjustment Menu ...........................31
●Selecting the Language .................................31
●Setting Orientation .........................................31
●To change adjustment menu display position31
3-2. Skipping Unused Display Modes.............. 32
3-3. Showing and Hiding the EIZO Logo ......... 32
3-4. Locking Operation Buttons ....................... 32
3-5. Changing DUE (Digital Uniformity
Equalizer) Setting ....................................... 33
3-6. Setting Signal Bandwidth .......................... 33
3-7. Reset to default ........................................... 34
●To reset the color adjustments...................... 34
●To reset all adjustments to the default
settings.......................................................... 34
Chapter 4 SelfCalibration ................................ 35
4-1. Setting the Color Mode for Executing
SelfCalibration ............................................ 35
●CAL mode ..................................................... 35
●Standard Mode.............................................. 35
4-2. Setting Monitor Date and Time.................. 36
4-3. Setting Calibration Schedule .................... 36
4-4. Setting the calibration targets .................. 38
4-5. Executing SelfCalibration.......................... 39
4-6. Checking Adjustment Results................... 40
●To check adjustment results with CAL mode 40
●To check adjustment results with
Standard Mode.............................................. 40
Chapter 5 Connecting Multiple External
Devices ............................................ 41
5-1. To switch among input signals ................. 42
5-2. To set input signal selection...................... 42
5-3. Skipping Unused Input Signals................. 42
5-4. Switching USB Port Automatically........... 43
Chapter 6 Power Saving Functions ................ 44
6-1. Setting Power Save..................................... 44
6-2. Adjusting Brightness of Front Button...... 44
6-3. Setting DisplayPort Power Save ............... 45
Chapter 7 Troubleshooting.............................. 46
7-1. No picture .................................................... 46
7-2. Imaging problems........................................47
7-3. Other problems ........................................... 48
7-4. Built-in calibration sensor and
SelfCalibration problems........................... 49
Chapter 8 Reference ........................................ 50
8-1. Attaching the Optional Arm....................... 50
8-2. Making Use of USB (Universal Serial
Bus)................................................................51
●System Requirement......................................51
●Procedure.......................................................51
8-3. Showing Monitor Information.................... 52

6CONTENTS
●Displaying signal information .........................52
●Displaying Monitor Information ......................52
8-4. Specications ............................................. 53
Chapter 9 Glossary .......................................... 56
Appendix.............................................................. 59
Trademark ............................................................... 59
License / Copyright................................................ 59
FCC Declaration of Conformity ............................ 60
Hinweise zur Auswahl des richtigen
Schwenkarms für Ihren Monitor............................61
Hinweis zur Ergonomie : ........................................61
LIMITED WARRANTY............................................. 62
Recycling Information ............................................71
China Measures for RoHS Compliance in
ChinaRoHS...............................................................75

7
Chapter 1 Introduction
Chapter 1 Introduction
1-1. Features
• 24.0″ wide format LCD
• Wide color gamut (Adobe® RGB coverage: 99%)
• Supports a resolution of 1920 × 1200.
• IPS panel with 178˚ horizontal and vertical viewing angles
• Frame synchronization mode supported (23.75 - 30.5Hz, 47.5 - 61.0Hz)
• 3 signal input terminals (DVI-D × 1, HDMI × 1, DisplayPort × 1)
- DisplayPort (applicable to 8 bit and 10 bit)*1
- HDMI (applicable to 8 bit, 10 bit, and 12 bit)*1, *2
Can handle PC signals in HDMI input
*1 Not applicable to audio signals.
*2 The maximum screen display is 10 bits.
• Color mode function
Reproduces a color temperature, gamma, and gamut compliant with the following standard.
- Broadcasting standards “EBU/REC709/SMPTE-C”
- Digital cinema standard “DCI”
-Adobe® RGB / sRGB
See “2-2. Selecting the display mode (color mode)” (page 19)
• Attaching the “Adjustment Certicate”, which describes the factory measurement results of the grayscale and
uniformity characteristics for each monitor
• Portrait/Landscape display available (rotate 90˚ clockwise)
• This product is equipped with a built-in calibration sensor, and supports SelfCalibration in which the monitor
executes calibration independently.
See “Chapter 4 SelfCalibration” (page 35)
• The provided Color Management Software “ColorNavigator” enables you to calibrate monitor characteristics
and generate color proles
See “1-3. EIZO LCD Utility Disk” (page 11)
• Power saving function
Suppressing the power consumption reduces the carbon dioxide emissions. This product is equipped with power saving
function.
- 0 W power consumption when the main power is off
Equipped with main power switch.
When the monitor is not required, the power supply can be shut off using the main power switch.
• Displays HDCP (High-bandwidth Digital Protection) protected contents.

8Chapter 1 Introduction
Attention
Be careful of the following points when using the built-in calibration sensor.
Do not touch the built-in calibration sensor.
It may reduce the measurement accuracy of the built-in calibration sensor, or result in injury
or equipment damage.
Attention
• A high temperature or high humidity environment may affect the measurement accuracy of the built-in calibration
sensor. We suggest storing and using the monitor under the following conditions.
- Temperature 30ºC or less
- Humidity 70% or less
Avoid storing or using the sensor where it may be exposed to direct sunlight.
• Since adjustment accuracy of the monitor by the build-in sensor may be a ected, leave the level of ambient light that
enters the sensor part of the built-in sensor unchanged largely while measuring.
- The use of the monitor hood is recommended.
- While measuring, do not bring the face or the object close to the monitor, do not look into the sensor.
- Set the monitor in the environment so that the light outside does not enter the sensor part directly.
Note
• This monitor supports both portrait and landscape format. You can change the orientation of the Setting menu when
using the monitor screen in vertical display position. (See “Setting Orientation” (page 31))
• When using the monitor screen in a portrait position, the graphics board supporting portrait display is required. When
placing the monitor in a portrait position, the settings of your graphics board need to be changed. Refer to the User’s
Manual of the graphics board for details.

9
Chapter 1 Introduction
1-2. Controls and Functions
●Front
7 8 92 4 53
6
1
Adjustment menu*1
1. Built-in calibration sensor Executes calibration for an independent monitor. SelfCalibration function (page 35)
2. Ambient Light Sensor Measures ambient light.
3. button Switches input signals for display (page 42).
4. button Changes Color Mode (page 19).
5. button Cancels the setting/adjustment and exits the Adjustment menu.
6. buttons • Provides the menu selection as well as the adjustment and setting of a function.
• Displays the Brightness menu (page 20).
7. button Displays the Adjustment menu, determines an item on the menu screen, and saves
values adjusted (page 12).
8. button Turns the power on or off.
9. Power Indicator
Indicates the monitor’s operation status.
Blue: Operating
Flashing blue (2 times for each): Indicates that recalibration is required if the
SelfCalibration schedule (page 36) is set.
Orange: Power saving mode
OFF: Main power/Power off
*1 See “1-4. Basic Operations and Functions” (page 12) for how to use.

10 Chapter 1 Introduction
●Rear
16
17
15
10 11 12 13 14
10. Main power switch Turns the main power on or off.
11. Power connector Connects the power cord.
12. Input signal connectors Left: DVI-D connector / Center: HDMI connector / Right: DisplayPort connector
13. USB upstream port Connects the USB cable to use the software that needs USB connection, or to use
USB hub function (page 51).
14. USB downstream port Connects a peripheral USB device.
15. Stand*2 Used to adjust the height and angle of the monitor screen.
16. Security lock slot Complies with Kensington’s MicroSaver security system.
17. Cable holder Covers the monitor cables.
*2 An optional arm (or an optional stand) can be attached by removing the stand section (see “8-1. Attaching the Optional Arm”
(page 50)).

11
Chapter 1 Introduction
1-3. EIZO LCD Utility Disk
An “EIZO LCD Utility Disk” (CD-ROM) is supplied with this product. The following table shows the disk contents
and the overview of the software programs.
●Disk contents and software overview
The disk includes application software programs for adjustment, and User’s Manual. Refer to “Readme.txt” or
the “read me” le on the disk for software startup procedures or le access procedures.
Contents Overview Windows Macintosh
A “Readme.txt” or “read me” le √ √
ColorNavigator An application software for calibrating monitor characteristics
and generating ICC proles (for Windows) and Apple
ColorSync proles (for Macintosh).
(A PC must be connected to the monitor with the supplied USB
cable.)
√ √
Screen
adjustment
pattern les*1
Used when adjusting the image of the analog signal input
manually. √-
User’s Manual of this monitor (PDF le) √ √
*1 This monitor does not support analog signal input, so these les are not used.
●To use ColorNavigator
Refer to the corresponding User’s Manual on the CD-ROM disk in order to install and use the software.
When using this software, you will need to connect a PC to the monitor with the supplied USB cable. For
details of the USB cable connection, see “8-2. Making Use of USB (Universal Serial Bus)” (page 51).

12 Chapter 1 Introduction
1-4. Basic Operations and Functions
●Basic Adjustment menu operations
1. Displaying Adjustment Menu
1. Press . The Adjustment menu appears.
Current mode
Menu title
Setting
Menu
Item
2.
Adjusting/Setting
1. Choose a menu to adjust/set with , and then press .
2. Choose an item to adjust/set with , and then press .
3. Adjust/set the selected item with , and then press .
3.
Exiting
1. Press a few times. The Adjustment menu nishes.

13
Chapter 1 Introduction
●Showing Button Guide
When you press the front buttons (except the button), the button guide appears next to the button.
Note
• The button guide will continue to appear while the Adjustment menu or Mode menu is showing.
• The contents of the button guide will differ depending on the selected menu or status.
• In CAL mode, the brightness cannot be adjusted even though the button guide is displayed above the and buttons.
●Functions
The following table shows the menus for adjustment and setting items of each menu.
Main Menu Item Reference
Color
(Standard Mode)*1 Brightness “2-3. Adjusting Color” (page 20)
Temperature
Gamma
Color Gamut
Advanced
Settings
Hue
Saturation
Cliping
Gain
Black Level
6 Colors
Color Reset “3-6. Setting Signal Bandwidth” (page 33)
Color
(CAL Mode)*2 Target SelfCalibration “4-1. Setting the Color Mode for Executing
SelfCalibration” (page 35)
Brightness “4-4. Setting the calibration targets” (page 38)
White Point
Color Gamut
Gamut Settings
Gamma
Result Calibration Result “4-6. Checking Adjustment Results” (page 40)
Ambient Light
Color Reset “3-6. Setting Signal Bandwidth” (page 33)

14 Chapter 1 Introduction
SelfCalibration Execute “4-5. Executing SelfCalibration” (page 39)
Standard Mode SelfCalibration “4-1. Setting the Color Mode for Executing
SelfCalibration” (page 35)
Result “4-6. Checking Adjustment Results” (page 40)
Settings Schedule “4-3. Setting Calibration Schedule” (page 36)
Clock
Adjustment
“4-2. Setting Monitor Date and Time” (page 36)
Screen Screen Size “To select screen size” (page 17)
Overdrive “2-4. Conguring Moving Image Performance”
(page 26)
Color Space “2-5. Specifying Color Space” (page 27)
Range
Extension
Range Extension “2-6. Expanding Signal Output Range” (page 28)
Super White
HDMI
Settings*3
Noise Reduction “2-7. Setting HDMI” (page 29)
Film detection
Safe Area Marker
Safe Area Size
Boder Color
Power
Manager
Power Save “6-1. Setting Power Save” (page 44)
Indicator “6-2. Adjusting Brightness of Front Button”
(page 44)
Menu Settings Language “Selecting the Language” (page 31)
Orientation “Setting Orientation” (page 31)
Menu Position “To change adjustment menu display position”
(page 31)
Tools Input Selection “5-2. To set input signal selection” (page 42)
Input Skip “5-3. Skipping Unused Input Signals” (page 42)
Mode Skip “3-2. Skipping Unused Display Modes” (page 32)
USB Selection “5-4. Switching USB Port Automatically” (page
43)
Signal Info “8-3. Showing Monitor Information” (page 52)
Monitor info
All Reset “3-6. Setting Signal Bandwidth” (page 33)
*1 Functions available for adjustment and setting in Standard Mode (page 19) are displayed.
*2 Functions available for adjustment and setting in CAL Mode are displayed.
*3 This function is available with HDMI signal input.

15
Chapter 2 Adjusting Screens
Chapter 2 Adjusting Screens
2-1. Setting Resolution
●Compatible Resolutions/Formats
The monitor supports the following resolutions.
When using PC signal input (DVI-D, DisplayPort, HDMI: PC*1)
Resolution Vertical scan
frequency
640 x 480 60 Hz
720 x 400 70 Hz
800 x 600 60 Hz
1024 x 768 60 Hz
1280 x 960 60 Hz
1280 x 1024 60 Hz
1600 × 1200 60 Hz
1680 × 1050 60 Hz
1920 × 1080 60 Hz
1920 × 1200*2 60 Hz
*1 When displaying PC signals by HDMI signal input, change the monitor’s setting in advance (see (“To switch signal
formats (Only for HDMI signal input)” (page 16)).
*2 Recommended resolution
When using Video signal input
Formats Vertical scan
frequency Resolution Scan Type DVI DisplayPort HDMI
Video*1 PC*2
480p 59.94 Hz / 60 Hz 640×480 Progressive √*3 √*3 √ √*3
480i 59.94 Hz / 60 Hz 720×480 Interlace - - √-
480p 59.94 Hz / 60 Hz 720×480 Progressive -√*3 √-
576i 50 Hz 720×576 Interlace - - √-
576p 50 Hz 720×576 Progressive - - √-
720p 50 Hz 1280×720 Progressive √*3 √*3 √ √*3
720p 59.94 Hz / 60 Hz 1280×720 Progressive √*3 √*3 √ √*3
1080p 23.976 Hz / 24 Hz 1920×1080 Progressive √*3 √*3 √ √*3
1080p 25 Hz 1920×1080 Progressive √*3 √*3 √ √*3
1080p 29.97 Hz / 30 Hz 1920×1080 Progressive √*3 √*3 √ √*3
1080i 50 Hz 1920×1080 Interlace √*3 √*3 √ √*3
1080p 50 Hz 1920×1080 Progressive √*3 √*3 √ √*3
1080i 59.94 Hz / 60 Hz 1920×1080 Interlace √*3 √*3 √ √*3
1080p 59.94 Hz / 60 Hz 1920×1080 Progressive √*3 √*3 √ √*3
*1 The color difference signal is supported.
*2 Change the monitor’s setting in advance.
*3 The output device must be dened. Refer to the User’s Manual of the output device for further details.

16 Chapter 2 Adjusting Screens
●To switch signal formats (Only for HDMI signal input)
The monitor’s displayable resolution can be changed. Use this when displaying PC signals by HDMI signal
input.
Adjustable Range
Video / PC
Procedure
1. Press to turn off the monitor.
2. Holding down, press for at least two seconds to turn on the monitor.
The “Optional Settings” menu appears.
3. Choose “Signal Selection” from “Optional Settings”, and press .
4. Choose the input signal to set with or , and press .
5. Select “Signal Format” with the selected input signal and press .
6. Switch the signal format with or .
7. Select “Finish” with or .
8. Press .
●To set the display resolution for the OS
When you connect the monitor to the PC and nd that the resolution is improper, or when you want to change
the resolution, follow the procedure below.
Windows 8 / Windows 7
1. For Windows 8, click the “Desktop” tile on the Start Screen to display the desktop.
2. Right-click the mouse anywhere on the desktop except for icons.
3. From the displayed menu, click “Screen resolution”.
4. On the “Screen Resolution” dialog box, select the monitor.
5. Click “Resolution” to select the desired resolution.
6. Click the “OK” button.
7. When a conrmation dialog box is displayed, click “Keep changes”.
Windows Vista
1. Right-click the mouse anywhere on the desktop except for icons.
2. From the displayed menu, click “Personalize”.
3. On the “Personalization” window, click “Display Settings”.
4. On the “Display Settings” dialog box, select the “Monitor” tab and select desired resolution in the
“Resolution” eld.
5. Click the “OK” button.
6. When a conrmation dialog box is displayed, click “Yes”.
Windows XP
1. Right-click the mouse anywhere on the desktop except for icons.
2. From the displayed menu, click “Properties”.
3. When the “Display Properties” dialog box is displayed, click the “Settings” tab and select desired resolution
for “Screen resolution” under “Display”.
4. Click the “OK” button to close the dialog box.

17
Chapter 2 Adjusting Screens
Mac OS X
1. Select “System Preferences” from the Apple menu.
2. When the “System Preferences” dialog box is displayed, click “Displays” for “Hardware”.
3. On the displayed dialog box, select the “Display” tab and select desired resolution in the “Resolutions” eld.
4. Your selection will be reected immediately. When you are satised with the selected resolution, close the
window.
●To select screen size
The image with the resolution other than the recommended resolution is displayed in full screen automatically.
You can change the screen size by using the “Screen Size” function from “Screen”.
When using PC signal input
Settings Function
Full Displays an image in full screen. Images are distorted in some cases because the vertical
rate is not equal to the horizontal rate.
Enlarged Displays an image in full screen. In some cases, a blank horizontal or vertical border
appears to equalize the vertical rate and the horizontal rate.
Normal Displays images with the specied resolution.
Example: Image size 1280 × 1024
Full Enlarged Normal
1920 × 1220 1500 × 1200 1280 × 1024
Procedure
1. Choose “Screen” from the Adjustment menu, and press .
2. Choose “Screen Size” from “Screen”, and press .
3. Select “Full”, “Enlarged”, or “Normal” with or .
4. Press to exit.

18 Chapter 2 Adjusting Screens
When using video signal input
●When displaying HD signals (720p, 1080i, 1080p)
Settings Function
Enlarged Images are enlarged to full screen without changing the aspect ratio. Blank borders may
appear at the top and bottom of the screen to maintain the aspect ratio.
Dot by Dot Displays images with the specied resolution.
Example: 720p
Enlarged Dot by Dot
Procedure
1. Choose “Screen” from the Adjustment menu, and press .
2. Choose “Screen Size” from “Screen”, and press .
3. Select “Enlarged”, or “Dot by Dot” with or .
4. Press to exit.
●When displaying SD signals (640x480, 480i, 480p, 576i, 576p)
Settings Function
Auto The monitor automatically changes the screen size according to the aspect ratio sent from
the auto input signal.
4:3 Displays images in a 4:3 format screen. Black bars appear on both sides of the screen.
16:9 images are horizontally compressed.
Letter Box Displays 16:9 letterboxed images in full screen.
Images other than the letterboxed ones are partly cut on top and bottom.
16:9 Displays the entire 16:9 image in full screen. Black bars appear on the top and bottom of
the screen. 4:3 images are horizontally expanded.
Example: 480i/480p (16:9)
Auto 4:3 Letter Box 16:9
Procedure
1. Choose “Screen” from the Adjustment menu, and press .
2. Choose “Screen Size” from “Screen”, and press .
3. Select “Auto”, “4:3”, “Letter Box”, or “16:9” with or .
4. Press to exit.

19
Chapter 2 Adjusting Screens
2-2. Selecting the display mode (color mode)
This function allows easy selection of a desired mode according to monitor application.
●Display Modes
Mode Purpose
Standard Mode Adjust color using the monitor’s Adjustment menu.
1-Custom Available for the color settings according to your preference.
2-Adobe®RGB Suitable for color matching with Adobe®RGB compatible peripherals.
3-sRGB Suitable for color matching with sRGB compatible peripherals.
4-EBU Suitable for reproducing the color gamut and gamma as set forth by EBU (European
Broadcasting Union) standards.
5-REC709 Suitable for reproducing the color gamut and gamma as set forth by the ITU-R Rec. 709
standard.
6-SMPTE-C Suitable for reproducing the color gamut and gamma as set forth by SMPTE-C standards.
7-DCI Suitable for reproducing the color gamut and gamma as set forth by DCI standards.
CAL Mode Adjust the monitor’s color using software.
8-CAL1
9-CAL2
10-CAL3
Displays the screen adjusted by the Color Management Software “ColorNavigator” and
SelfCalibration.
Attention
• Avoid operating any funciton of the monitor while using ColorNavigator.
Example:
The mode menu
appears.
1-Custom←→2-Adobe®RGB←→3-sRGB←→4-EBU←→5-REC709
10-CAL3←→9-CAL2←→8-CAL1←→7-DCI←→6-SMPTE-C
Procedure
1. Press .
The mode menu appears at the bottom left of the screen.
2. The mode among the list is highlighted in turn each time is pressed.
You can switch the mode with or while the mode menu is displayed.
Note
• The Adjustment menu and the Mode menu cannot be displayed at the same time.
• You can disable a specic mode to be selected. For more information, see “3-2. Skipping Unused Display Modes” (page 32).

20 Chapter 2 Adjusting Screens
2-3. Adjusting Color
When displaying in Standard Mode, the “Color” menu of the Adjustment menu allows you to set and save
independent color adjustments for each mode.
Attention
• It takes about 7 minutes (under our measurement conditions) for the performance of electrical parts to stabilize. Please wait
7 minutes or more after the monitor power has been turned on, and then adjust the monitor.
• The same image may be seen in different colors on multiple monitors due to their monitor-specic characteristics. Make ne
color adjustment visually when matching colors on multiple monitors.
Note
• The values shown in “cd/m2”, “K” or “%” are available only as reference.
●To adjust brightness
The screen brightness is adjusted by changing the brightness of the backlight (light source from the LCD back
panel).
Setting Range
50cd/m2 to 350 cd/m2
Procedure
1. Press or .
The Brightness menu appears.
2. Use or for adjustment.
3. Press to exit.
Attention
• If the entered value cannot be set, the value will appear in magenta. In such a case, change the value.
Note
• Alternatively, you can use “Brightness” under “Color” in the Adjustment menu to adjust it.
