EKT TSP01 User manual

The slim multi-sensor TSP01 has PIR, temperature and illumination, 3
sensors function in one, based on Z-WaveTM technology. Z-WaveTM is a
wireless communication protocol designed for home automation,
specifically to remotely control applications in residential and light
commercial environments. The technology uses a low-power RF radio
embedded or retrofitted into home electronics devices and systems,
such as lighting, home access control, entertainment systems and
household appliances.
This device is one component of the Z-WaveTM sensor system and is
designed to work with all other Z-WaveTM enabled devices in a home
control network. The device adopt the Z-WaveTM 400 series chip, when
your Z-WaveTM network system is all made by Z-WaveTM 400 series
devices. The network system will have the advantages as below.
•Concurrent multi-channel support reduces external interference.
•Better RF range, improve about 10 meters in indoor.
•Support 100 Kbps transmit speed, speed up communication.
Adding to Z-WaveTM Network
There are two tamper keys in the device, one is in the back side,
another is in the front side. They have the same function. Both of them
can inclusion, exclusion, reset or association from Z-WaveTM network.
In the first time, add the device into the Z-WaveTM network. First, make
sure the primary controller is in the inclusion mode. And then power on
the device, just take out the insulation Mylar in the back side of the
device. The device will auto start the NWI (Network Wide Inclusion)
mode. And it should be included in 5 seconds. You will see the LED
light ON one second.
Function Description
Inclusion
1. Have Z-WaveTM Controller entered inclusion mode.
2. Pressing tamper key three times within 1.5 seconds
will enter inclusion mode.
3. After inclusion successful, the device will wake to
receive the setting command from Z-WaveTM
Controller about 20 seconds.
Exclusion
1. Have Z-WaveTM Controller entered exclusion mode.
2. Pressing tamper key three times within 1.5 seconds
will enter exclusion mode.
Node ID has been excluded.
Reset
1. Pressing tamper key four times within 1.5 seconds
and do not release the tamper key in the 4th
pressed, and the LED will turn ON.
2. After 3 seconds the LED will turn OFF, after that
within 2 seconds, release the tamper key. If
successful, the LED will light ON one second.
Otherwise, the LED will flash once.
3. IDs are excluded and all settings will reset to
factory default.
www.ekt2.com
Electronics Katrangi Trading
Z-WAVE TSP01
User Manual

Association
1. Have Z-WaveTM Controller entered association
mode.
2. Pressing tamper key three times within 1.5 seconds
will enter association mode.
Note: The device support 2 groups. The group 1 is for
receiving the report message, like triggered event,
temperature, illumination etc. The group 2 is for light
control, the device will send the “Basic Set” command
to this group.
•Including a node ID allocated by Z-WaveTM Controller means
inclusion. Excluding a node ID allocated by Z-WaveTM
Controller means exclusion.
•Failed or success in including/excluding the node ID can be
viewed from Z-WaveTM Controller.
Notice 1: Always RESET a Z-WaveTM device before trying to add it to a
Z-WaveTM network.
Notice 2: When the device into NWI mode, any tamper key and
sensor functionality will useless. The NWI will timeout after 30 seconds.
Z-WaveTM Notification
After the device adding to the network, it will wake-up once per day in
default. When it wake-up it will broadcast the “Wake Up Notification”
message to the network, and wake-up 10 seconds for receive the
setting commands.
The wake-up interval minimum setting is 30 minutes, and maximum
setting is 120 hours. And the interval step is 30 minutes.
If the user want to wake-up the device immediately, please remove the
front cover, and press the tamper key once. The device will wake-up 10
seconds.
Z-WaveTM Message Report
* Motion Report:
When the PIR motion detected, the device will unsolicited to send the
“Sensor Binary Report” to the nodes in the group 1.
Sensor Type: Motion (0x0C)
Sensor Value: 0xFF
* Tamper Report:
When the 2 tamper keys in the device are pressed over 5 seconds. The
device will into the alarm state. In that state, if any one of the tamper
keys be released, the device will unsolicited to send the “Sensor Binary
Report” to the nodes in the group 1.
Sensor Type: Tamper (0x08)
Sensor Value: 0xFF
* Temperature Report:
When the PIR motion detected, the device will unsolicited to send the
“Sensor Multilevel Report” to the nodes in the group 1.
Sensor Type: Temperature (0x01)
Note: To disable this functionality by setting the configuration setting
N0.5, the bit5 of the value to 1.
*** Temperature differential report ***
This function default is disabled, to enable by setting the configuration
setting NO.6 bit6 to 1.
When the temperature plus or minus three degree Fahrenheit (1.67
degree Celsius), the device will report temperature information to the
nodes in the group 1.
The device will measure the temperature in every 64 seconds. And if
the temperature is over 140 degree Fahrenheit (60 degree Celsius), the
device also report in each measurement.
* Illumination Report:
When the PIR motion detected, the device will unsolicited to send the
www.ekt2.com
Electronics Katrangi Trading

“Sensor Multilevel Report” to the nodes in the group 1.
Sensor Type: Luminance (0x03)
Note: To disable this functionality by setting the configuration setting
N0.5, the bit4 of the value to 1.
* Timing Report:
Beside the event triggered could report message, the device also
support the timing unsolicited report of the status.
•Battery level report: Every 6 hours report once in default.
It could be changed by configuration setting NO. 10.
•Low battery report: When the battery level is too low, every 30
minutes will report once.
•Illumination level report: Every 6 hours report once in default.
It could be changed by configuration setting NO. 12.
•Temperature report: Every 6 hours report once in default.
It could be changed by configuration setting NO. 13.
Power Up Procedure
* Battery Power Check
When the power up, the device will detect the power level of the
battery immediately. If the power level is too low, the LED will continue
flash about 5 seconds. Please change another new battery.
* PIR Warm Up
When the power on, the PIR need to warm up before operation. The
warm up time about 1 minute, the LED will flash in every 2 seconds.
After finish the procedure the LED will light ON three times.
* NWI
When the power on, the device will check is it already adding to the
network? If doesn't, it will auto start the NWI mode. The LED will flash
in every second and continue 30 seconds. Until timeout or the device
successful to inclusion by controller.
* Wake
When the power on, the device will wake about 20 seconds. In this
duration, the controller can communicate with the device. Normally the
device is always sleeping to save the battery energy.
Function DIP Switch
There is one function DIP switch in front of the device.
Remove the front cover in the right top of the PCB, and also has mark
“M1” and “M2” for two switch.
M1 M2 Description
ON ON Test Mode.
ON OFF Security Mode.
OFF ON Home Automation Mode.
OFF OFF Program Mode. According to the configuration setting
NO. 5 to set the operation mode.
Operation Mode
There are three operation modes of the device. The user can choosing
the suitable mode for application.
There are three modes “Test”, “Home Automation” and “Security”.
“Test Mode” is for the user test the sensor function when installation.
“Home Automation Mode” focus in automatic to control the lighting
equipment. For convenience and save energy.
“Security Mode” focus in surveillance, warning.
When the event triggered, normally the LED won't indicated, unless the
battery is in the low level, the LED will flash once. And in the “Test
Mode” the LED also will light ON one second.
www.ekt2.com
Electronics Katrangi Trading

When the event triggered, the device will report the messages to the
nodes in the group 1. The messages also include the temperature and
the illumination level. The user can switch the report by configuration
setting NO. 5. Caution: In the “Home Automation Mode” if the
environment luminance higher than the setting, the device won't report
the message.
When the event triggered, if the environment luminance is less than
the setting of the configuration setting NO. 4, the device will emit the
signal to turn ON the lighting equipment, those nodes in the group 2.
And delay a while to turn OFF the lighting equipment. The delay time is
setting by the configuration setting NO. 9.
The PIR motion re-detected interval, in the “Test Mode” fixed to 6
seconds. In the “Home Automation Mode”, will start detect before turn
OFF the lighting equipment. In the “Security Mode”, according to the
setting of configuration setting NO. 8.
Notice: When the tamper key of the back side is in the released state,
the device always in the “Test Mode”, no matter the DIP switch setting.
www.ekt2.com
Electronics Katrangi Trading

Battery Installation
When the device report the low battery message. The user should
replace the battery to new one.

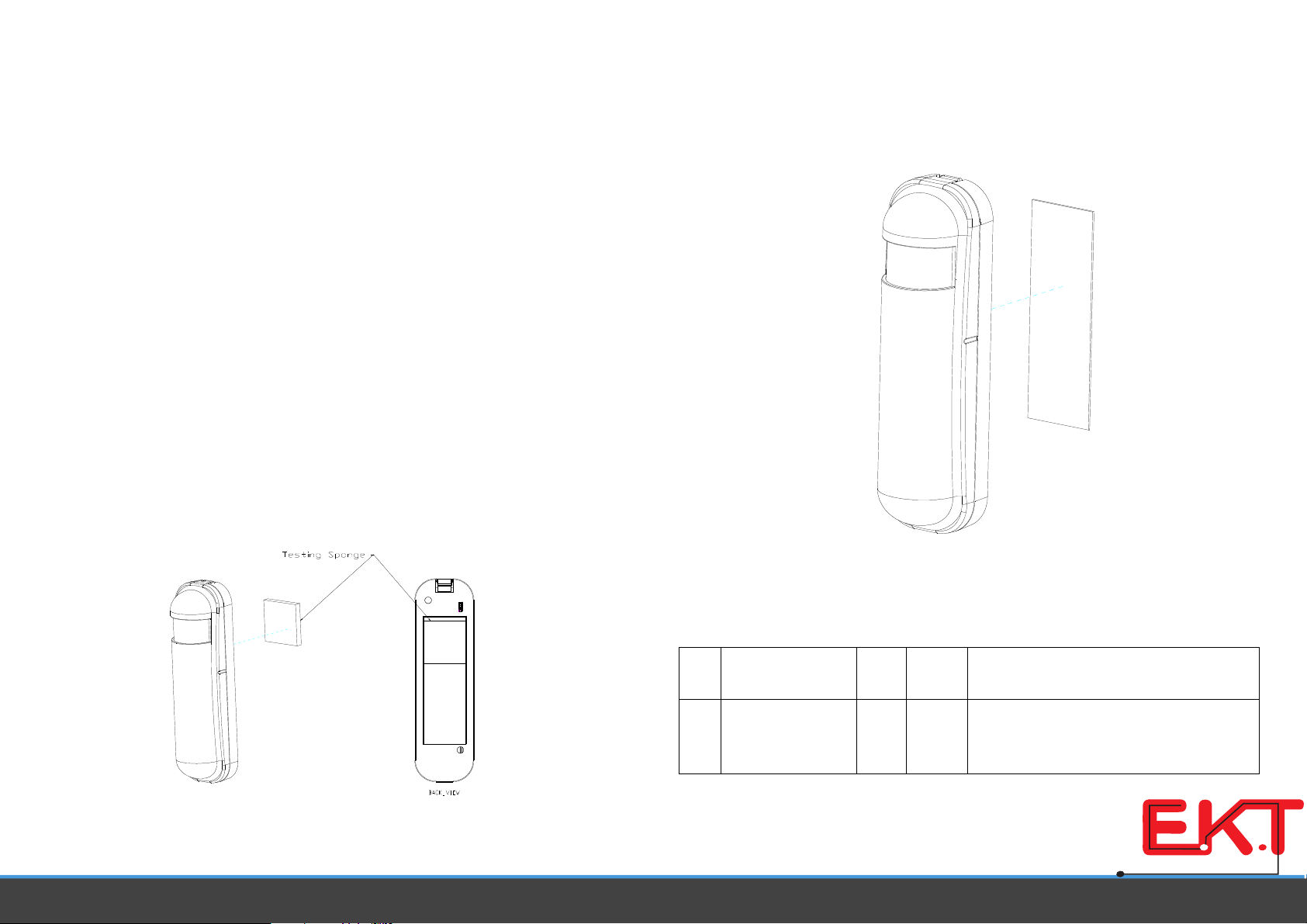

The way to open the front cover please follow below steps.
1. Using a tool like (1) to press 1-1 till hear a click sound
2. Hold the front cover and pull back
3. Hold the front cover and pull up
Replace the new battery and install the cover back.
1. Put the front cover bottom to 1-1, and press down.
2. Push the front cover top to 2-1.
Choosing a Suitable Location
1. The recommended mounting height is 160cm
2. Don't let the device facing the window or the sunlight.
3. Don't let the device facing the source of heat. Like heater.
