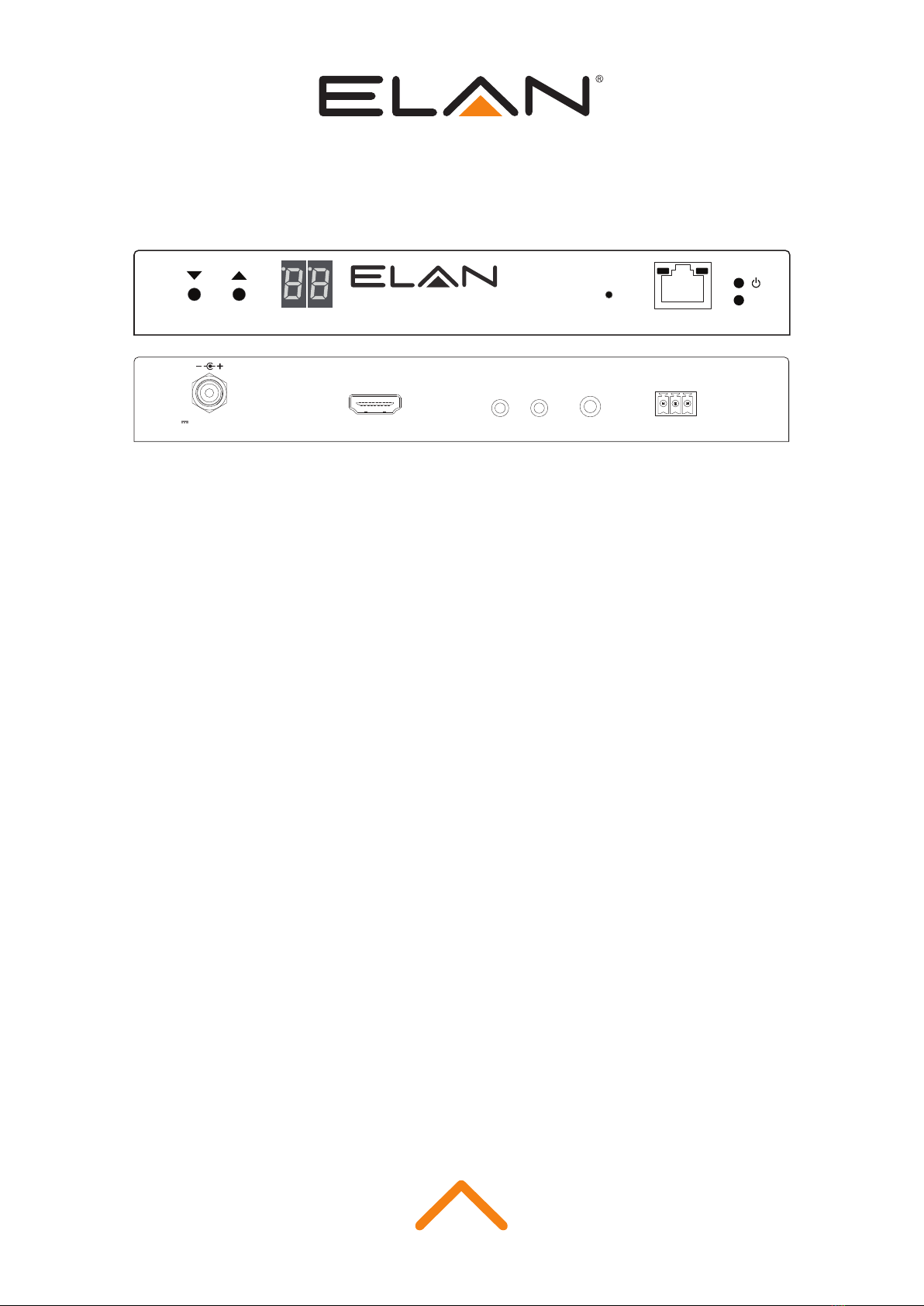

Elan Video Over IP User manual

VIDEO OVER IP
User Manual
Link
PoE PWR
CH
CH Select
Lan
EL-4KPM-VIP-TXVIDEO OVER IP
TX
RX TX
LINE IN
HDMI IN IRIR
RX TX RS-232
24 56V-
GND
0.5A

EL-4KPM-VIP-CTRL/TX/RX USER MANUAL
02 www.elanhomesystems.com
Contents
Surge protection device
recommended
This product contains sensitive electrical compo-
nents that may be damaged by electrical spikes,
surges, electric shock, lightning strikes, etc. We
recommend using a Furman or Panamax surge
protection component to protect and extend the
life of your equipment.
Safety And
Performance Notice
The transmission distances of HDMI over UTP
cables are measured using TE CONNECTIVITY
1427071-6
EIA/TIA-568-B termination (T568B) of cables is
recommended for optimal performance.
To minimize interference of the unshielded
twisted pairs in the CAT5e/6 cable do not run
the HDBaseT/Cat5e/6/6a cabling with or in close
parallel proximity to mains power cables.
Do not substitute or use any other power supply
other than the enclosed unit, or an ELAN approved
replacement.
Do not disassemble either the Transmitter or
Receiver units for any reason. Doing so will void
the manufacturer’s warranty.
Thank you for purchasing
this product.
For optimum performance and safety, please
read these instructions carefully before con-
necting, operating or adjusting this product.
Please keep this manual for future reference.
Introduction 04
Features 04
Panel Description - EL-4KPM-VIP-TX Transmitter 05
Panel Description - EL-4KPM-VIP-RX Receiver 06
Panel Description - EL-4KPM-VIP-CTRL Control Module 07
HDMI Over IP Network Configuration 08
Understanding Product Status Lights 09
Audio Connections 09
Infrared Control 10
Remote Control 10
Infrared Distribution 11
Infrared Pass-Through (Source Control) 12
RS-232 (Serial) Bi-Directional Pass-Through 13
Type-1 Redirection Mode - 1-to-1 Routed RS-232 14-15
Type 2 Guest Mode - Telnet/IP Conversion To RS-232 16
Manual Configuration (without PC) 17
EDID Settings 18
Scaler Output Settings 19
Video Over IP PC Program 20
Firmware Update 21
Firmware Update via PC Program 22
PC Program Main Menu Overview 23
New Project Configuration 24-29

03
contact [email protected]
EL-4KPM-VIP-CTRL/TX/RX USER MANUAL
Contents continued
Transmitter Summary 30-31
Receiver Summary 32-33
Matrix Control 34
Video Preview 35
Video Wall 36
Advanced Settings 37
System Search 38
EL-4KPM-VIP-CTRL Enabling TFTP & Telnet 39
EL-4KPM-VIP-CTRL Firmware Update 40
Accessing The Video Over IP Web-GUI Interface 41
Video Over IP Web-GUI - EL-4KPM-VIP-TX 42-45
Video Over IP Web-GUI - EL-4KPM-VIP-RX - Receiver 46-47
Changing Your Computer IP address 48-50
Application Diagrams - Matrix Configuration 51
Application Diagrams - Video Wall Configuration 52
Application Diagrams - 1 To 1 Configuration 53
Application Diagrams - 1 To Many Configuration 54
Terminating the interconnecting Network CAT cable 55
Specifications 56
Package Contents 56
Maintenance 56
RS-232 and Telnet Commands 57-58
Video Over IP Infrared Commands 59-72

EL-4KPM-VIP-CTRL/TX/RX USER MANUAL
04 www.elanhomesystems.com
Our UHD Video Over IP distribution platform allows virtually latency free (1 frame) distribution of HDMI video over a 1GB Network
switch. The EL-4KPM-VIP-TX/RX offer industry leading 4K HDCP 2.2 HDMI distribution using a visually lossless compression
technology, delivering HDMI, IR and RS-232 over standard network architecture. The EL-4KPM-VIP-CTRL Control Module allows simple
third party control of the Video over IP system using TCP/IP, RS-232 or IR. The ELAN Video Over IP products can be powered via PoE
from a Network switch or locally should the switch not support PoE.
With multiple configuration options available, the Video Over IP solution is ideal for both commercial and residential installations.
Furthermore the system wizard PC configuration program and pre-built ELAN product drivers simplify Video Over IP product installation
and negate the need for an understanding of complex network infrastructures.
Introduction
Please Note:
The ELAN Video Over IP system distributes HDMI video over layer 3 managed network hardware. It is advised that ELAN Video Over IP
products are connected on an independent network switch to prevent interference or drop in signal performance due to other network
products.
Please take care to make sure that you have read and understood the instructions in this manual and that you have set up
your network switch correctly prior to connecting any ELAN Video Over IP products. Failure to do so will result in problems with
configuration of the system and video performance.
• Advanced UHD video over 1GB Network
• Enables virtually unlimited system size
• Extends HDMI over network architecture
• Compatible with many brands of layer 3 managed network switches
• Supports up to 4K HDR UHD video sources (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Supports up to 4K 30Hz video output on EL-4KPM-VIP-RX
• Supports all known HDMI audio formats including Dolby TrueHD®, Dolby Digital Plus® and DTS-HD Master Audio®transmission
• Features 4 operational modes:
- Matrix distribution (Requires 1GB network switch)
- Video wall (Feature possible both with or without 1GB network switch)
- One-to-one HDMI extender (No network switch required)
- One-to-many HDMI extender (No network switch required)
• HDCP 2.2 Compliant
• Advanced EDID management
• Video up-scaling and down-scaling
• Analogue L/R audio embedding on EL-4KPM-VIP-TX Transmitter
• Analogue L/R audio breakout on EL-4KPM-VIP-RX Receiver
• Bi-directional RS-232 and IR pass through
• PoE (Power over Ethernet) to power ELAN products from PoE switch
• Local 24-56V power supply (should Network switch not support PoE). Sold separately
• RS-232, IR and Telnet/IP integration for control of Video Over IP system using ELAN EL-4KPM-VIP-CTRL
• 3rd Party drivers available for all major home control brands
Features

05
contact [email protected]
EL-4KPM-VIP-CTRL/TX/RX USER MANUAL
EL-4KPM-VIP-TX Front Panel
TX
RX TX
LINE IN
HDMI IN IRIR
RX TX RS-232
24 56V-
GND
0.5A
121110987
Link
PoE PWR
CH
CH Select
Lan
EL-4KPM-VIP-TXVIDEO OVER IP
2
13 4 5
6
1Channel select Up/Down - Used to set up EL-4KPM-VIP-TX manually and apply ‘Programming mode’
2Channel status window - Displays product information
3Reset button - Press and hold for 5 seconds to factory reset the product
4LAN Connection (PoE) - Connect to Layer 3 Managed switch for HDMI video distribution
5Power LED indicator
6Link LED indicator - Solid status light indicates a stable connection to the network switch
7Power port – Use 24-56V 1A DC adaptor (sold separately) if not using a PoE network switch
8HDMI input – Connect to a HDMI source
9IR RX (IR input) – 3.5mm stereo jack. Transmits IR to any EL-4KPM-VIP-RX receiver currently viewing the EL-4KPM-VIP-TX. Please
use supplied ELAN IRR 5V IR Receiver. When using the ELAN IRCAB cable (optional) ensure cable direction is correct
qIR TX - (IR output) - 3.5mm mono jack – Routed IR from any EL-4KPM-VIP-RX (zone output) allowing source control. Use supplied
ELAN 5V IR emitters
wL/R Analogue audio line input - Used to embed Analogue audio onto HDMI signal
eAssignable bi-directional RS-232 ports – Connect to third party control device to extend RS-232 commands to any/multiple EL-
4KPM-VIP Video Over IP product RS-232 port
EL-4KPM-VIP-TX Rear Panel
Panel Description - EL-4KPM-VIP-TX Transmitter

EL-4KPM-VIP-CTRL/TX/RX USER MANUAL
06 www.elanhomesystems.com
EL-4KPM-VIP-RX Front Panel
TX
RX
Link
RXTX CH Select
IR IR
RX TX GND
RS-232 CH
EL-4KPM-VIP-RX
VIDEO OVER IP
L /R 24 56V-
HDMI Out 0.5A
Link
PoE PWR
CH
CH Select
Lan
EL-4KPM-VIP-TXVIDEO OVER IP
RX TX
LINE IN
HDMI IN IRIR
RX TX RS-232
24 56V-
GND
0.5A
131211109
1IR TX - (IR output) - 3.5mm mono jack – Routed IR to current selected EL-4KPM-VIP-TX (Source Transmitter).
Use supplied ELAN 5V IR emitters.
2IR RX (IR input) – 3.5mm stereo jack. Transmits IR to currently selected EL-4KPM-VIP-TX transmitter allowing routed IR control of
sources. Please use supplied ELAN IRR 5V IR Receiver.
When using the ELAN IRCAB cable (optional) ensure cable direction is correct.
3Assignable bi-directional RS-232 port – Connect to third party control device to extend RS-232 commands to any/multiple
EL-4KPM-VIP Video Over IP product RS-232 port.
4Channel select UP/Down - Used to scroll through sources (EL-4KPM-VIP-TX),
set up EL-4KPM-VIP-RX manually and apply ‘Programming mode’
5Channel status window - Displays product information
6Reset button - Press and hold for 5 seconds to factory reset the product
7Power LED indicator
8Link LED indicator - Solid status light indicates a stable connection to the network switch
9RJ-45 PoE Enabled LAN Connection – Connect to Layer 3 Managed Ethernet switch for receiving HDMI signals
qRJ-45 LAN Video Extension Connection – Use when sending one HDMI source to multiple EL-4KPM-VIP-RX units (one-to-many).
wHDMI output – Connect to a HDMI display
L/R Analogue audio line output - Used to breakout Analog audio from HDMI signal
NOTE: Source input must be PCM 2ch audio for analog audio outputs to work.
The Video Over IP products do not down-mix 5.1ch audio signals
Audio outputs are fixed line level output
Power port – Use 24-56V 1A DC adaptor (sold separately) if not using a PoE network switch
EL-4KPM-VIP-RX Rear Panel
Panel Description - EL-4KPM-VIP-RX Receiver
TX
RX
Link
RXTX CH Select
IR IR
RX TX GND
RS-232 CH
EL-4KPM-VIP-RX
VIDEO OVER IP
L /R 24 56V-
HDMI Out 0.5A
Link
PoE PWR
CH
CH Select
Lan
EL-4KPM-VIP-TXVIDEO OVER IP
RX TX
LINE IN
HDMI IN IRIR
RX TX RS-232
24 56V-
GND
0.5A
346 7
8
21 5
12
13

07
contact [email protected]
EL-4KPM-VIP-CTRL/TX/RX USER MANUAL
EL-4KPM-VIP-CTRL Front Panel
5V RX
IR
RS-232
RX TX GND
Mode
1A
LAN LAN PoE PWR
VIDEO LAN
CONTROL LAN
EL-4KPM-VIP-CTRL
7654
1Control LAN port - Connect to existing network that your third party control system resides on. The Control LAN port is used for
Telnet/IP control of the Video Over IP system
2Video Over IP Video LAN port - Connect to the layer 3 network switch that the ELAN Video Over IP components are connected to
3Power LED indicator
4Power port – Use 5V 1A DC adaptor (sold separately) if not using a PoE network switch
5IR RX (IR input) – 3.5mm stereo jack. Connect to third party control system if you are using IR as your method of controlling the
Video Over IP system. Please use supplied ELAN IRR 5V IR Receiver. When using the ELAN IRCAB cable (optional) ensure cable
direction is correct.
Note: Only basic switching commands are available when using IR as a method of control. Advanced Video Over IP features are
only available using Telnet/IP and RS-232
6RS-232 control port – Connect to a third party control device for control of the Video Over IP system using RS-232
7Mode dip-switches - Used for adjusting the RS-232 control port baudrate settings as per the chart below.
Note - If changing the Baudrate settings of the EL-4KPM-VIP-CTRL you must power cycle the unit for these to update
EL-4KPM-VIP-CTRL Rear Panel
Panel Description - EL-4KPM-VIP-CTRL Control Module
5V RX
IR
RS-232
RX TX GND
Mode
1A
LAN LAN PoE PWR
VIDEO LAN
CONTROL LAN
EL-4KPM-VIP-CTRL
21 3
Data Bit: 8-bit
Parity: None
Stop Bit: 1-bit
Flow Control: None
Baudrate Mode Dip-
Switch 1
Mode Dip-
Switch 2
9600 Down Down
19200 Down Up
57600 Up Down
115200 Up Up

EL-4KPM-VIP-CTRL/TX/RX USER MANUAL
08 www.elanhomesystems.com
The ELAN Video Over IP system distributes HDMI video over layer 3 managed network hardware. It is advised that ELAN Video Over IP
products are connected on an independent network switch to prevent interference or drop in signal performance due to other network
products.
ELAN’s Video Over IP products are compatible with various brands of networking hardware. ELAN only supports 3rd party networking
equipment that has been tested and verified to work. Please see the ELAN Video Over IP Integration Notes for information on
supported 3rd party networking equipment.
Supported 3rd party Ethernet hardware supports the following features:
Video Over IP
Video Over IP (one-to-many or many-to-many distribution) is group communication where information is addressed to a group of
network devices simultaneously (ELAN EL-4KPM-VIP-RX Receivers).
Instant Leave/Fast Leave/Immediate Leave
This feature is a feature associated with Video Over IP and means that as soon as an active connection is no longer required (the link
between Transmitter and Receiver) the Video Over IP group and flow of track is stopped instantly. This prevents unnecessary flow of
network traffic on the network switch.
IGMP Snooping
IGMP snooping is the process of listening to Internet Group Management Protocol (IGMP) network traffic. The feature allows a network
switch to listen in on the IGMP conversation between hosts and routers (Transmitters and Receivers). By listening to this flow of traffic
the switch maintains a map of which links need which IP Video Over IP streams. Video Over IPs may be filtered from the links which do
not need them and thus controls which ports receive specific Video Over IP traffic.
Jumbo Frames/Jumbo Packets/MTU (Maximum Transmission Unit)
Jumbo frames are Ethernet frames with more than 1500 bytes of payload. Conventionally, jumbo frames can carry up to 9000 bytes of
payload, but variations exist and some care must be taken using the term. Many Gigabit Ethernet switches can support jumbo frames.
Please Note:
ELAN have worked with many network switch providers to create setup guides and saved configuration files to help configure the
products to work with the Video Over IP hardware. These configuration files can be downloaded from the ELAN website.
HDMI Over IP Network Configuration

09
contact [email protected]
EL-4KPM-VIP-CTRL/TX/RX USER MANUAL
Understanding Product Status Lights
Transmitter Audio Embedding
TX
RX TX
LINE IN
HDMI IN IRIR
RX TX RS-232
24 56V-
GND
0.5A
1
Receiver Audio Breakout
TX
RX
Link
RXTX CH Select
IR IR
RX TX GND
RS-232 CH
EL-4KPM-VIP-RX
VIDEO OVER IP
L /R 24 56V-
HDMI Out 0.5A
Link
PoE PWR
CH
CH Select
Lan
EL-4KPM-VIP-TXVIDEO OVER IP
RX TX
LINE IN
HDMI IN IRIR
RX TX RS-232
24 56V-
GND
0.5A
2
The Video Over IP products have several LED lights to indicate connectivity status and help diagnose connection problems.
Link
PoE PWR
CH
CH Select
Lan
EL-4KPM-VIP-TXVIDEO OVER IP
1 32
4
Video Over IP Status Lights
1LAN PoE status light - Solid Orange indicates PoE from the network switch powering the Video Over IP product
2LAN status light - Solid Green indicates active network connection
3Power status light - Off = No power, Flashing = Product booting, On = Power on
4Link status light - Off = No connection to network, Flashing = not connected to any device (another Video Over IP product or
network switch), On = Connected to Video Over IP device or network switch
Audio Connections
1Analog L/R Line Level audio input
The Analog line level input can be used to replace the original HDMI audio of the source connected to the Video Over IP
Transmitter with Analog L/R 2ch line level audio. The embedded Analog audio is then distributed with the adjacent HDMI video
signal throughout the Video Over IP system.
Switching between original HDMI audio and embedded line level analog 2ch audio is achieved using ELAN serial/Telnet/IP
commands.
Note: It is only possible to select EITHER HDMI audio or local Analog line input. It is not possible to distribute both audio sources at
the same time.
2Analogue L/R Line Level audio output
The EL-4KPM-VIP-RX Video Over IP Receiver includes audio breakout from the selected HDMI source to associated Analogue L/R
audio outputs. Extracted audio will be concurrent with the corresponding HDMI video output.
Note: The source input must be PCM 2ch audio for Analogue audio outputs to work. The ELAN Video Over IP products do not
down-mix Dolby Digital, DTS or 5.1ch audio signals.

EL-4KPM-VIP-CTRL/TX/RX USER MANUAL
10 www.elanhomesystems.com
The ELAN Video Over IP system can be controlled using local IR hardware connected directly to the EL-4KPM-VIP-RX Receiver. This
prevents the need for a third party control solution. Only the source selection feature is available using local IR control through the
Receiver. For advanced features such as video wall mode, audio embedding etc you will need to use RS-232 or TCP/IP control.
ELAN has created 80 IR commands allowing source selection of up to 80 EL-4KPM-VIP-TX Transmitters. For systems larger than 80
source devices (EL-4KPM-VIP-TX) we recommend the EL-4KPM-VIP-CTRL control module.
The full list of ELAN IR codes can be found at the rear of this manual on page 60 ‘Video Over IP Infrared Commands’
Infrared Control
Input (Transmitter) Selection
The ELAN remote control can be used with any ELAN EL-4KPM-VIP-RX Receiver product and
can select up to 80 source inputs (transmitters).
Using the remote:
Sources 1-40 are selected using the input selection buttons 1-40
Sources 41-80 are selected by first activating the ‘secondary control mode’ which is
achieved by pressing and holding source button 1 for 5 seconds. Once this mode is active
the buttons 1-40 are now selecting sources 41-80.
To return control back to source inputs 1-40 simply press and hold source button 1 for 5
seconds to revert to ‘main control mode’.
1 2 3 4
41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80
5 6 7 8 9 10 11 12
13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
Link
RXTX CH Select
IR IR
RX TX GND
RS-232 CH
EL-4KPM-VIP-RX
VIDEO OVER IP
1 2 3 4
41 42 43 44
45 46 47 48
49 50 51 52
53 54 55 56
57 58 59 60
61 62 63 64
65 66 67 68
69 70 71 72
73 74 75 76
77 78 79 80
5 6 7 8
9 10 11 12
13 14 15 16
17 18 19 20
21 22 23 24
25 26 27 28
29 30 31 32
33 34 35 36
37 38 39 40
MULTICAST
Remote Control
Link
RXTX CH Select
IR IR
Rx Tx Gnd
RS-232 CH
IP100UHD-RXMULTICAST UHD
MENU
Third Party Control System
Infrared Control with Remote and EL-4KPM-VIP-RX
Infrared Control with Third Party Control System and EL-4KPM-VIP-CTRL
5V RX
IR
RS-232
RX TX GND
Mode
1A
LAN LAN PoE PWR
VIDEO LAN
CONTROL LAN
EL-4KPM-VIP-CTRL
Remote requires a type CR2025 battery.

11
contact [email protected]
EL-4KPM-VIP-CTRL/TX/RX USER MANUAL
The ELAN range of Video Over IP products include multiple options for control and routing of IR.
Each ELAN Video Over IP Transmitter and Receiver is supplied with both an IR Receiver and Emitter, details below:
IR Control Cable - EL-4KACC-IR-CAB
ELAN IR Control cable 3.5mm Mono to 3.5mm Stereo for
linking third party control solutions to ELAN products.
Compatible with 12v IR third party products.
Note: Cable is directional as indicated
Infrared 3.5mm Pin-Out
IR Emitter - Mono 3.5mm
IR Receiver - Stereo 3.5mm
Infrared Distribution
Signal
5V
Ground
Signal
Ground

EL-4KPM-VIP-CTRL/TX/RX USER MANUAL
12 www.elanhomesystems.com
Note: The IR pass-through features are available in all modes of Video Over IP use (matrix mode, video-wall, one-to-one and one-to-
many).
Connections:
The IR receiver is connected to the IR RX socket on the EL-4KPM-VIP-RX.
Infrared Pass-Through (Source Control)
The Video Over IP products feature Infrared pass-through, allowing users to use original source remote controls in the field and control
those sources located in another area.
The IR signal is routed to only the current source that is selected, meaning that individual source control can be achieved with
installations consisting of multiple source equipment of the same type, such as multiple satellite boxes of the same make and model.
MENU
Link
RXTX CH Select
IR IR
RX TX GND
RS-232 CH
EL-4KPM-VIP-RX
VIDEO OVER IP
TX
RX TX
LINE IN
HDMI IN IRIR
RX TX RS-232
24 56V-
GND
0.5A
SOURCE 01
ZONE 01
The IR emitter is connected to the IR TX socket on the EL-4KPM-VIP-TX and located on the IR receiver window of your source device.
Link
PoE PWR
CH
CH Select
Lan
EL-4KPM-VIP-TXVIDEO OVER IP
TX
RX TX
LINE IN
HDMI IN IRIR
RX TX RS-232
24 56V-
GND
0.5A
TX
RX
Link
RXTX CH Select
IR IR
RX TX GND
RS-232 CH
EL-4KPM-VIP-RX
VIDEO OVER IP
L /R 24 56V-
HDMI Out 0.5A
Link
PoE PWR
CH
CH Select
Lan
EL-4KPM-VIP-TXVIDEO OVER IP
RX TX
LINE IN
HDMI IN IRIR
RX TX RS-232
24 56V-
GND
0.5A
TX
RX
Link
RXTX CH Select
IR IR
RX TX GND
RS-232 CH
EL-4KPM-VIP-RX
VIDEO OVER IP
L /R 24 56V-
HDMI Out 0.5A
Link
PoE PWR
CH
CH Select
Lan
EL-4KPM-VIP-TXVIDEO OVER IP
RX TX
LINE IN
HDMI IN IRIR
RX TX RS-232
24 56V-
GND
0.5A

13
contact [email protected]
EL-4KPM-VIP-CTRL/TX/RX USER MANUAL
RS-232 (Serial) Bi-Directional Pass-Through
The Video Over IP products feature bi-directional RS-232 pass-through for control of products using serial commands.
There are multiple methods for distribution of RS-232 using the ELAN Video Over IP solution which include:-
Note: Only one method of RS-232 pass-through can be used at the same time. It is not possible to mix different methods of RS-232
control.
1) Type-1 Redirection Mode:- 1-to-1 routed RS-232
A link is programmed that creates an open connection between ANY Video Over IP product in the system (Transmitters or Receivers).
Once established the RS-232 commands can be sent in either direction between products.
Multiple links can be created between Video Over IP products for additional independent product control.
2) Type 2 Dumb Redirection Mode:- 1-to-many routed RS-232
A link is opened when a receiver(s) is connected to a transmitter in the system. Once established the RS-232 commands can be sent
in either direction between products, allowing a single command to be sent to 1 or many receivers at the same time I.E - All displays
powered on. If the source is changed
3) Type 2 Guest Mode:- Telnet/IP conversion to RS-232
This method of control converts a Telnet/IP control command into an RS-232 command. A link is programmed that creates an open
connection between an EL-4KPM-VIP-CTRL control module and any EL-4KPM-VIP-TX or RX (Transmitters or Receivers) product in the
system. Telnet/IP commands are sent into the EL-4KPM-VIP-CTRL from a third party control solution. This is then converted into an
RS-232/serial command for control of third party products.
TX
RX
Link
RXTX CH Select
IR IR
RX TX GND
RS-232 CH
EL-4KPM-VIP-RX
VIDEO OVER IP
L /R 24 56V-
HDMI Out 0.5A
Link
PoE PWR
CH
CH Select
Lan
EL-4KPM-VIP-TXVIDEO OVER IP
RX TX
LINE IN
HDMI IN IRIR
RX TX RS-232
24 56V-
GND
0.5A
TX
RX
Link
RXTX CH Select
IR IR
RX TX GND
RS-232 CH
EL-4KPM-VIP-RX
VIDEO OVER IP
L /R 24 56V-
HDMI Out 0.5A
Link
PoE PWR
CH
CH Select
Lan
EL-4KPM-VIP-TXVIDEO OVER IP
RX TX
LINE IN
HDMI IN IRIR
RX TX RS-232
24 56V-
GND
0.5A
ELAN control system
Serial controlled display
RS-232
RS-232
TX
RX
Link
RXTX CH Select
IR IR
RX TX GND
RS-232 CH
EL-4KPM-VIP-RX
VIDEO OVER IP
L /R 24 56V-
HDMI Out 0.5A
Link
PoE PWR
CH
CH Select
Lan
EL-4KPM-VIP-TXVIDEO OVER IP
RX TX
LINE IN
HDMI IN IRIR
RX TX RS-232
24 56V-
GND
0.5A
TX
RX
Link
RXTX CH Select
IR IR
RX TX GND
RS-232 CH
EL-4KPM-VIP-RX
VIDEO OVER IP
L /R 24 56V-
HDMI Out 0.5A
Link
PoE PWR
CH
CH Select
Lan
EL-4KPM-VIP-TXVIDEO OVER IP
RX TX
LINE IN
HDMI IN IRIR
RX TX RS-232
24 56V-
GND
0.5A
TX
RX
Link
RXTX CH Select
IR IR
RX TX GND
RS-232 CH
EL-4KPM-VIP-RX
VIDEO OVER IP
L /R 24 56V-
HDMI Out 0.5A
Link
PoE PWR
CH
CH Select
Lan
EL-4KPM-VIP-TXVIDEO OVER IP
RX TX
LINE IN
HDMI IN IRIR
RX TX RS-232
24 56V-
GND
0.5A
ELAN control system
Serial controlled display
RS-232
RS-232
Serial controlled display
RS-232
TX
RX
Lin
k
RXTX CH Select
IR IR
RX TX GND
RS-232 CH
EL-4KPM-VIP-RX
VIDEO OVER IP
L /R 24 56V-
HDMI Out 0.5A
Link
PoE PWR
CH
CH Select
Lan
EL-4KPM-VIP-TXVIDEO OVER IP
RX TX
LINE IN
HDMI IN IRIR
RX TX RS-232
24 56V-
GND
0.5A
Serial controlled display
RS-232
or
TCP/IP
RS-232
5V RX
IR
RS-232
RX TX GND
Mode
1A
LAN LAN PoE PWR
VIDEO LAN
CONTROL LAN
EL-4KPM-VIP-CTRL
ELAN control system

EL-4KPM-VIP-CTRL/TX/RX USER MANUAL
14 www.elanhomesystems.com
Type-1 Redirection Mode - 1-to-1 Routed RS-232
The Video Over IP products feature bi-directional RS-232 pass-through for control of products using serial commands from a fixed
RX/TX to another. This is also known as Type 1, 1 to 1 routed RS-232 mode. To utilise this you must first enable Type 1 RS-232 mode
as follows.
Type 1 RS-232 Mode Set Up
1) Connect to the Web GUI of the EL-4KPM-VIP-TX or RX that you wish to enable Type 1 mode for by entering its IP Address in
your web browser and navigate to the Functions' tab.
For example: 169.254.6.1 is the default IP address for RX ID 1.
2) Check the checkbox for 'Enable Serial over IP'
3) Select the checkbox for 'Type 1'
4) Select the System tab and navigate to the Utilities section.
Select the Reboot button and restart the Video Over IP unit.

15
contact [email protected]
EL-4KPM-VIP-CTRL/TX/RX USER MANUAL
Type-1 Redirection Mode - 1-to-1 Routed RS-232
5) You will need to connect to the Web GUI of Video Over IP product you wish to connect and navigation to the
Statistics section under the System menu and record it's MAC Address.
You will need to use this MAC Address to create the route RS-232 connection.
6) Next you must send the following messages from the Video Over IP unit you wish to open a connection from. You must enter
this command into the 'Console API Command' window (shown on the previous page):
0x0E (0E in hex format)
This will put the unit into command mode and you should see a command prompt ">".
7) Then you must send the connect command as follows:
ast_c <MAC ADDRESS> <BAUD>8N1
Where <MAC ADDRESS> is the MAC Address of the target device that we collected earlier
and <BAUD> is the baudrate of the device you are communicating with.
For example: ast_c 0019FA0059A3 115200-8N1
8) You will see a start message showing the connection has been established.
You can now send commands to/from the device.
9) To disconnect you must send the control message 0x0E (0E in hex format).

EL-4KPM-VIP-CTRL/TX/RX USER MANUAL
16 www.elanhomesystems.com
Guest Mode - Telnet/IP Conversion To RS-232
The Video Over IP products feature bi-directional RS-232 pass-through for control of products using serial commands from the EL-
4KPM-VIP-CTRL. This is also known as RS-232 Guest Mode. To use this you must first enable Guest Mode as follows.
RS-232 Guest Mode Set Up
1) Guest Mode must be enabled in each EL-4KPM-VIP-TX and RX unit in order to use this functionality.
Connect to the Web GUI of the EL-4KPM-VIP-TX or RX that you wish to enable guest mode for by entering its IP
Address in your web browser and navigate to the Functions' tab.
For example: 169.254.6.1 is the default IP address for RX ID 1.
2) Check the checkbox for 'Enable Serial over IP'
3) Select the checkbox for 'Type 2 guest mode'
Ensure all Baudrate settings are correct for the product that you wish to control.
Note this is only for setting the baudrate of the TX or RX unit. To adjust the CM100 baudrate you will need
to do this via the dipswitches on page 7 of this manual.
RS-232 Guest Mode Communication
1) To open a Guest Mode connection between the EL-4KPM-VIP-CTRL and an EL-4KPM-VIP-TX or RX unit you must send the
following command via IP or RS-232 into the EL-4KPM-VIP-CTRL:
INxxxGUEST Connect to TX xxx in Guest mode from the EL-4KPM-VIP-CTRL
OUTxxxGUEST Connect to RX xxx in Guest mode from the EL-4KPM-VIP-CTRL
Example: Transmitter one is ID 001, meaning 'IN001GUEST' will allow bi-directional Serial or TCP/IP
commands between EL-4KPM-VIP-CTRL and Transmitter 001.
2) Once a connection is established, any characters that you send from the EL-4KPM-VIP-CTRL will be transmitetd to the
EL-4KPM-VIP-TX or RX that you have connected with, and vice versa.
3) To close the connection you must send the escape command 0x02 (02 in Hex).
If using telnet you can also close the connection by pressing CTRL + B.

17
contact [email protected]
EL-4KPM-VIP-CTRL/TX/RX USER MANUAL
The ELAN Video Over IP system can be configured without the need of a computer, allowing basic setup options such as addressing of
products (IP configuration), EDID setup and scaler output setup.
Manual configuration does not require the product to be connected to a network switch in order to be set up, they only require the
units to be powered either by local power supply (24-54V 1A) or by a PoE switch/power injector. This means total configuration can
easily be achieved offsite without any network hardware.
Note: Advanced features such as video walls cannot be set up via manual configuration, and requires the PC software.
Configuring the EL-4KPM-VIP-TX
1) Power the Video Over IP product - To configure the Video Over IP Transmitter first connect the product to a power supply (local or
PoE network) and wait for the product to boot up. The front panel LED display will rotate whilst booting and display a 2 digit number
when complete.
2) Put the Video Over IP product into 'Local Configuration' mode - Once the product is powered press both the 'UP' and 'DOWN'
channel buttons on the front panel at the same time for 6 seconds to enter 'Local configuration' mode. You will know that the EL-
4KPM-VIP-TX is in this mode as the LCD front display of the product will show 'LC'.
3) Assign the Transmitter ID (IP address) - Once the product is local configuration mode the display will begin to flash with a lower-
case 't' to indicate that you are about to assign the transmitter identity. The identity will also be the IP address that is automatically
assigned so it is of upmost importance that you do not assign any 2 Video Over IP Transmitter products with the same ID/IP address.
The first ID you should assign is ID1 = 169.254.3.1 (IP address 1)
The second ID you should assign is ID2 = 169.254.3.2 (IP address 2)
And so on....
Once you have selected the ID number press both Channel 'UP' and 'DOWN' buttons at the same time to move on to setting the EDID.
4) Set the EDID - Once the product is in EDID configuration mode the display will begin to flash with a lowercase 'e' to indicate that
you are about to assign an EDID value. Use the 'UP' and 'DOWN' arrows to select the EDID setting required. A full list of EDID settings
can be found on page 18 'EDID Control'.
For example: If the display shows '00' the EDID will be 1080P 2CH.
Once you have selected the EDID required press both Channel 'UP' and 'DOWN' buttons at the same time to finalize the setup. The
Video Over IP product will reboot with the new configuration settings applied.
5) Configuring the EL-4KPM-VIP-RX
Configuring the identity of the EL-4KPM-VIP-RX Receiver is the same steps (steps 1 to 3) as shown above for the configuration of the
EL-4KPM-VIP-TX. When ID has been assigned the Receivers have the following IP addresses:
The first Receiver ID assigned is ID1 = 169.254.6.1 (IP address 1)
The second Receiver ID is ID2 = 169.254.6.2 (IP address 2)
And so on....
6) Set the Video Scaler of the Receiver - Once the product ID has been configured the display will begin to flash with a lowercase 's'
to indicate that you are about to set the scaler output. Use the 'UP' and 'DOWN' arrows to select the scaler setting required. A full list
of scaler settings can be found on page 19 'Scaler Output Control'.
For example: If the display shows '10' the Scaler output will be 4K 30Hz.
Once you have selected the Scaler output required press both Channel 'UP' and 'DOWN' buttons at the same time to finalize the
setup. The Video Over IP product will reboot with the new configuration settings applied.
Manual Configuration of Video Over IP Products
Link
PoE PWR
CH
CH Select
Lan
EL-4KPM-VIP-TXVIDEO OVER IP

EL-4KPM-VIP-CTRL/TX/RX USER MANUAL
18 www.elanhomesystems.com
EDID Control
EDID (Extended Display Identification Data) is a data structure that is used between a display and a source. This data is used by the
source to find out what audio and video resolutions are supported by the display device. From this information the source will discover
what the best audio and video resolutions need to be outputted.
In a normal Matrix based system issues do arise when multiple displays or video matrix switching is introduced because of the
increased number of variables.
In the ELAN Video Over IP system each source device only communicates with a single ELAN EL-4KPM-VIP-TX Transmitter, meaning
there is only a single EDID handshake. As each ELAN Video Over IP EL-4KPM-VIP-RX Receiver has its own in-built video scaler, it is
advised that the source EDID is set to output the best video signal possible as this can be down-scaled if required at each EL-4KPM-
VIP-RX Receiver.
Configuration of Video Over IP EDID settings can be achieved in several ways:-
1) During the manual configuration of the EL-4KPM-VIP-TX Transmitter
2) Using the ELAN Video Over IP PC configuration software
3) Using the Video Over IP Web GUI interface
4) Using RS-232 commands via ELAN EL-4KPM-VIP-CTRL
When configuring the EDID during manual setup or using RS-232 commands the following table indicates EDID values:
EDID VIDEO OVER IP TRANSMITTER EDID SETTINGS
00 HDMI 1080p@60Hz, Audio 2CH PCM
01 HDMI 1080p@60Hz, Audio 5.1CH PCM/DTS/DOLBY
02 HDMI 1080p@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD
03 HDMI 1080i@60Hz, Audio 2CH PCM
04 HDMI 1080i@60Hz, Audio 5.1CH PCM/DTS/DOLBY
05 HDMI 1080i@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD
06 HDMI 1080p@60Hz/3D, Audio 2CH PCM
07 HDMI 1080p@60Hz/3D, Audio 5.1CH PCM/DTS/DOLBY
08 HDMI 1080p@60Hz/3D, Audio 7.1CH PCM/DTS/DOLBY/HD
09 HDMI 4K2K 4:4:4, Audio 2CH PCM
10 HDMI 4K2K 4:4:4, Audio 5.1CH PCM/DTS/DOLBY
11 HDMI 4K2K 4:4:4, Audio 7.1CH PCM/DTS/DOLBY/HD
12 DVI 1280x1024@60Hz, Audio None
13 DVI 1920x1080@60Hz, Audio None
14 DVI 1920x1200@60Hz, Audio None
15 Default EDID (Pass-through)
16 4K2K 4:2:0 @ 60Hz, Audio 2CH PCM
17 4K2K 4:2:0 @ 60Hz, Audio 5.1CH PCM/DTS/DOLBY
18 4K2K 4:2:0 @ 60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD
Note: The ELAN Video Over IP products do not down-mix Dolby Digital, DTS or 5.1ch audio signals. Should your end-points
(displays) only support 2CH PCM you must set the EDID value to match audio formats supported throughout the system.

19
contact [email protected]
EL-4KPM-VIP-CTRL/TX/RX USER MANUAL
The ELAN Video Over IP Receiver has an in-built video scaler which can both up-scale and downscale video signals allowing the best
picture quality possible at each display.
Configuration of Video Over IP Scaler settings can be achieved in several ways:-
1During the manual configuration of the Video Over IP Receiver
2Using the ELAN Video Over IP PC configuration software
3Using the Video Over IP Web GUI interface
4Using RS-232 commands via the ELAN EL-4KPM-VIP-CTRL
When configuring the Scaling during manual setup or using RS-232 commands the following table indicates Scaler settings.
Scaler Output Control
SCALER VIDEO OVER IP RECEIVER SCALER SETTINGS
00 Passthrough
01 HDMI 1080p@50Hz
02 HDMI 1080p@60Hz
03 HDMI 720P@60Hz
04 HDMI 720P@50Hz
05 HDMI 1280 x 1024@60Hz
06 HDMI 1024 x 768@60Hz
07 HDMI 1360 x 768@60Hz
08 HDMI 1440 x 900@60Hz
09 HDMI 1680 x 1050@60Hz
10 HDMI 4K2K@30Hz
11 HDMI 4K2K@24Hz

EL-4KPM-VIP-CTRL/TX/RX USER MANUAL
20 www.elanhomesystems.com
The following pages will review the ELAN Video Over IP PC program and Web GUI interface, giving the installer the knowledge to
completely configure a full ELAN HDMI over IP system.
Prior to running the ELAN Video Over IP PC configuration software it is important that you have the following hardware available:
• PC with active LAN Network connection
• CAT network cables - straight connection
• Layer 3 managed network switch (POE) OR 24-56V DC power supply to power the units locally
Video Over IP PC Program
