ABOUT THE M SERIES
MOUNTING CLAMP DESIGN
All models in the ELAN M Series speaker
line feature rigid, heavy-duty mounting
clamps that ensure a quick, secure,
vibration-free installation in walls from
1/2" to 1-1/2" in thickness.
The ceiling models and 5.25" In-Walls
have four mounting clamps each. The 6.5"
and 8" In-Wall models have six mounting
clamps.
DAMPING THE WALL CAVITY
Damping the wall/ceiling cavity behind the
speakers by loosely filling it with fire-rated
fiberglass insulation can enhance the per-
formance of your M Series speakers and
reduce unwanted transmission of sound
into adjacent rooms.
PAINTING THE SPEAKERS
All ELAN M SERIES speakers can be
finished to match any room décor. Their
white, textured frames and no-rust
aluminum grilles readily accept most
water-based interior latex and spray enamels.
We recommend the grille and frame be
painted separately. To aid in frame
painting, we’ve included a plastic paint
shield that will protect the speaker baffle.
Painting Tips:
1. If not using spray paint, we recommend
that the paint be thinned to prevent
clogging the speaker grille perforations.
2. When painting, several light coats will
yield the best results.
As the installation of flush-mount speakers
requires cutting into walls where high-
voltage wiring, pipes and duct work may
be present, installation should be
performed by experienced and trained
professionals only.
NOTES:
•Check for Obstructions––Before cutting
holes in any existing wall or ceiling
surface, the cavity behind each speaker’s
installation location MUST be probed
for obstructions. Make sure to probe
both speaker locations in the room to
ensure that symmetrical placement is
feasible.
•Always maintain proper polarity when
wiring speakers. Failure to do so will
result in poor stereo imaging and a
decrease in base response.
CUTTING SPEAKER OPENINGS
IN FINISHED WALLS
1. Use a stud finder to locate the studs
around the intended speaker place-
ment. NOTE: A stud-finding device
MAY NOT detect pipes, wiring, or
other obstructions located behind the
drywall.
2. Use the inside portion of the speaker
cutout template to confirm the speaker
placements.
3. Remove templates and drill or carefully
poke a pilot hole in both locations.
A bent piece of wire or a coat hanger
may be use to probe the stud bay for
obstructions. If you experience resist-
ance of any kind––STOP! If any
© ELAN Home Systems 2003• All rights reserved. 06/2003
ELAN HOME SYSTEMS
INSTALLATION MANUAL
3
INSTALLATION
PROCEDURES
INSTALLATION
OVERVIEW
M Series_Manual6.11.2003.qxd 6/11/03 9:20 AM Page 11

ELAN HOME SYSTEMS INSTALLATION MANUAL
© ELAN Home Systems 2003• All rights reserved. 06/2003
4
obstructions are detected, patch the
pilot holes and try again in another
location.
4. Once you have determined the cavity is
free from obstructions, re-position the
cutout template and use a pencil to
lightly trace the perimeter of the tem-
plate. If installing an In-Wall speaker,
use a level to accurately position the
cutout before you trace its outline.
5. Use a keyhole saw, drywall router, or
razor knife to cut the openings.
IMPORTANT NOTE: The slim
design of M SERIES speaker
frame flanges require that
careful attention be paid to
not oversize the cut-out hole.
IN-CEILING SPEAKER
INSTALLATION:
Complete Assemblies
(with or without New
Construction Brackets)
1. Remove speaker grille
2. Locate the speaker wire
and pull through the wall
opening.
3. Connect the speaker wire.
BE SURE TO OBSERVE
CORRECT POLARITY!
4. Insert the speaker into the
opening In the ceiling and
CAREFULLY tighten each
of the four clamping
screws, alternating
diagonally between each screw
position to ensure proper fit and finish.

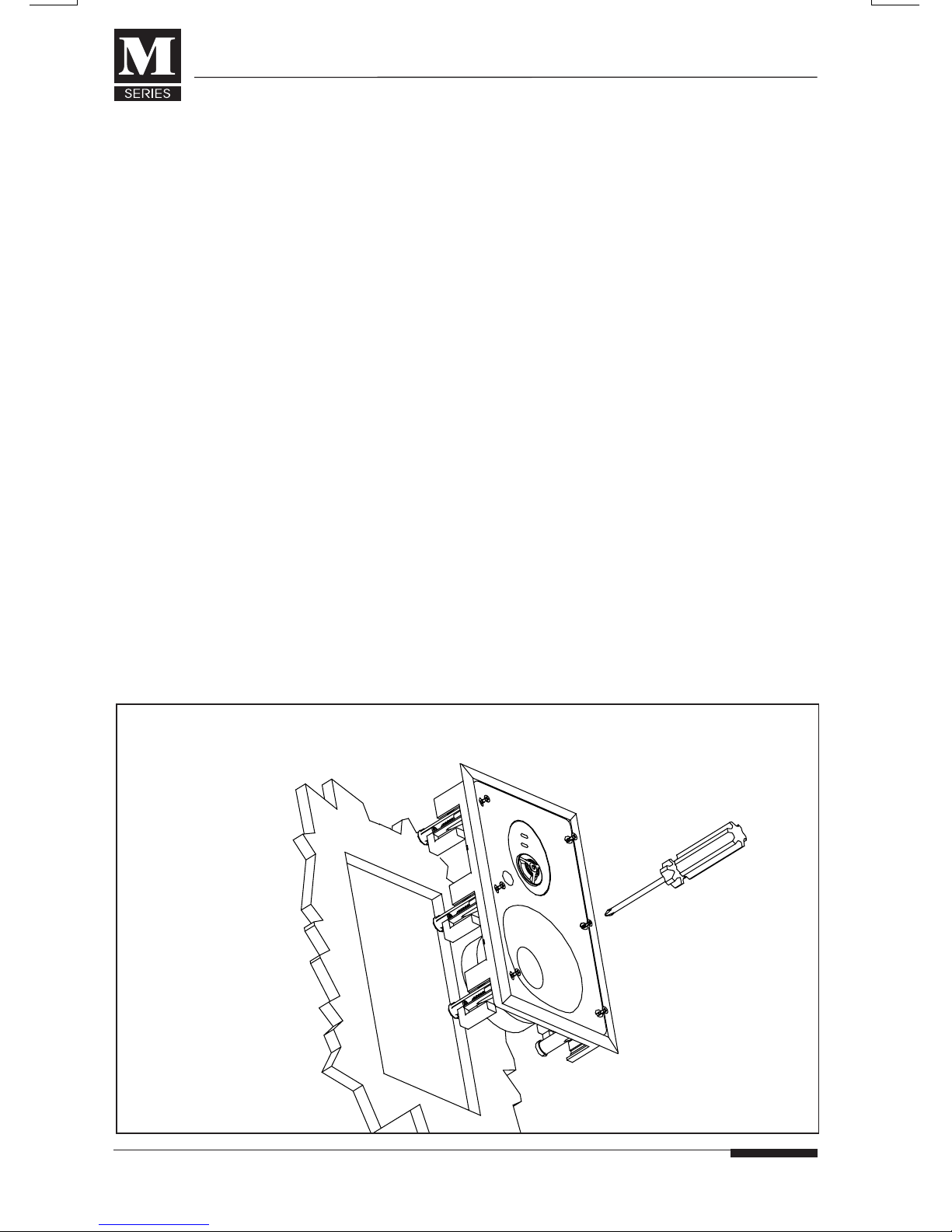

FIGURE 1
5. Replace the speaker grille.
IN-WALL SPEAKER INSTALLATION:
Complete Assemblies (with or
without New Construction Brackets)
1. Remove speaker grille.
2. Locate the speaker wire (and IR wire,
if applicable) and pull through the
wall opening.
FIGURE 1
CAUTION: DO NOT OVER-TIGHTEN
THE SCREWS!
If using a drill to tighten the clamping
screws, be sure to set the torque
setting very low. Setting the drill’s
torque too high may break the
mounting clamps, the wall surface,
and/or the speaker frame assembly.
!
M Series_Manual6.11.2003.qxd 6/11/03 9:20 AM Page 12

© ELAN Home Systems 2003• All rights reserved. 06/2003
ELAN HOME SYSTEMS
INSTALLATION MANUAL
5
3. Install ELAN IR Tube if applicable (see
Installing the ELAN IR Tube, Page 6)
4. Connect the speaker wire. BE SURE
TO OBSERVE CORRECT POLARITY!
5. Insert the speaker into the opening In
the wall and CAREFULLY tighten each
of the clamping screws (four on all 5
1/4" models, six on all 6 1/2" and 8"
models), alternating diagonally
between each screw position to ensure
proper fit and finish. FIGURE 2
6. Replace the speaker grille.
INSTALLING THE ELAN
IR TUBE IN M SERIES
IN-WALL SPEAKERS
1. Locate IR knockout on face of speaker
baffle.
2. Place the speaker FACE-DOWN on its
carton
3. Using a 7/16” bit, drill the knockout
free. FIGURE 3, Page 6
4. Trim away flash and rough edges.
5. Connect 12V, GND, and SIGNAL as
per IR Tube instructions.
6. Press the tube firmly in place, and
screw down until nearly flush with
front of baffle. FIGURE 4, Page 6
FIGURE 2
CAUTION: DO NOT OVER-TIGHTEN
THE SCREWS!
If using a drill to tighten the clamping
screws, be sure to set the torque
setting very low. Setting the drill’s
torque too high may break the
mounting clamps, the wall surface,
and/or the speaker frame assembly.
!
M Series_Manual6.11.2003.qxd 6/11/03 9:20 AM Page 13

ELAN HOME SYSTEMS INSTALLATION MANUAL
© ELAN Home Systems 2003• All rights reserved. 06/2003
6

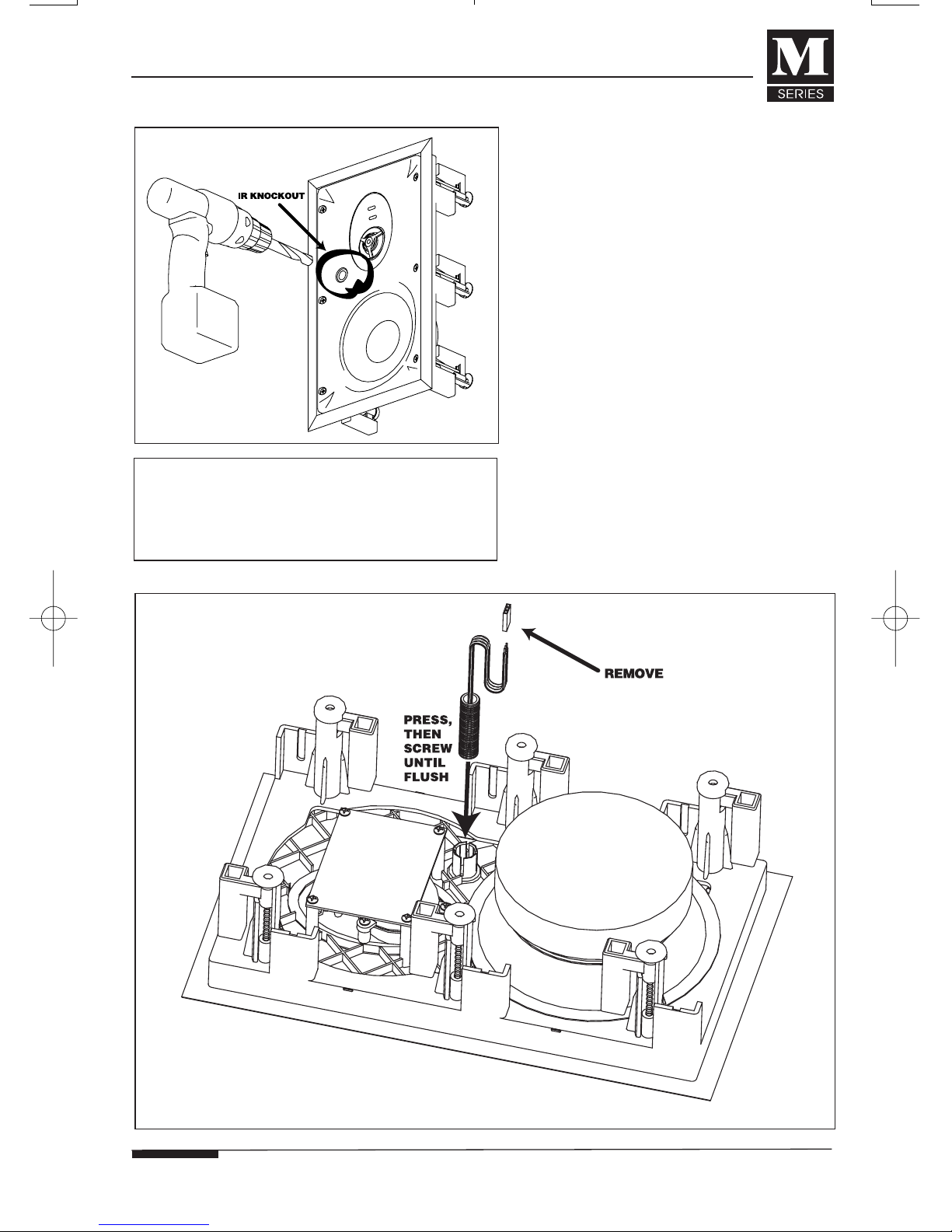

FIGURE 3
FIGURE 4
NOTE: Due to the grill, IR receiving
range will be reduced from 27 feet to
approximately 15 feet.
M Series_Manual6.11.2003.qxd 6/11/03 9:20 AM Page 10

© ELAN Home Systems 2003• All rights reserved. 06/2003
ELAN HOME SYSTEMS
INSTALLATION MANUAL
7
M SERIES SPECIFICATIONS AND DRIVER COMPONENTS
The ELAN M Series In-Wall/In-Ceiling Loudspeaker line is constructed using the finest
materials available to provide a lifetime of listening enjoyment.
Specs MC (Level 1) ME (Level 2) MM (Level 3) MP (Level 4)
Tweeter PEI Silk Silk Aluminum and
Material Magnesium
Composite
Woofer Cone Polypropylene Mineral Filled Injection Molded Woven Glass
Polypropylene Mica Fiber
Woofer Inverted Butyl Inverted Butyl Inverted Butyl Inverted Butyl
Surround
Woofer Stamped Stamped Stamped Glass Fiber
Basket Composite
Crossover 6dB/octave 6dB/octave 12dB/octave Linkwitz/Riley
Response
Crossover None None Treble Treble/Bass
Switches
Interconnect 20AWG 20AWG 18AWG 16AWG
Wire
Input Spring Spring Gold-Plated Gold-Plated
Connectors Terminals Terminals Push Terminals Push Terminals
Hardware Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Nominal 8 Ohms 8 Ohms 8 Ohms 8 Ohms
Impedance
Sensitivity 87dB 87-90dB 88-91dB 89-93dB
Range (1W/1Meter) (1W/1Meter) (1W/1Meter) (1W/1Meter)
Power 5.25"= 5 - 40W 5.25"= 5 - 50W 5.25"= 5 - 60W
Handling 6.50"= 5-50W 6.50"= 5 - 65W 6.50"= 5 - 75W 6.50"= 5 - 85W
8"= 5 - 80W 8"= 5 - 90W 8"= 5 - 100W
M Series_Manual6.11.2003.qxd 6/11/03 9:20 AM Page 9

ELAN HOME SYSTEMS INSTALLATION MANUAL
© ELAN Home Systems 2003• All rights reserved. 06/2003
8
M SERIES INSTALLATION GUIDELINES
5.25" Model Cutout Dimensions Dimensions w/ Frame Total Depth
Depth ME525D 6-13/16" (173mm) diameter 8" (203mm) diameter 4-1/8" (104mm)
ME525C 6-13/16" (173mm) diameter 8" (203mm) diameter 4-1/8" (104mm)
ME525W 6-1/8" x 10-1/4" (156x260mm) 7-3/8" x 11-9/16" (187x294mm) 3-3/4" (94mm)
MM525C 6-13/15" (173mm) diameter 8" (203mm) diameter 4-1/4" (107mm)
MM525W 6-1/8" x 10-1/4" (156x260mm) 7-3/8" x 11-9/16" (187x294mm) 3-3/4" (94mm)
MP525W 6-1/8" x 10-1/4" (156x260mm) 7-3/8" x 11-9/16" (187x294mm) 3-3/4" (94mm)
6.50" Model Cutout Dimensions Dimensions w/ Frame Total Depth
MC650C 8-1/16" (205mm) diameter 9-1/4" (235mm) diameter 3-5/8" (92mm)
MC650W 7-1/8" x 12-1/4" (181 x 311mm) 8-1/4" x 13-1/2" (210 x 343mm) 3-5/16" (83mm)
ME650C 8-1/16" (205mm) diameter 9-1/4" (235mm) diameter 4-1/4" (107mm)
ME650W 7-1/8" x 12-1/4" (181 x 311mm) 8-1/4" x 13-1/2" (210 x 343mm) 3-3/4" (94mm)
MM650C 8-1/16" (205mm) diameter 9-1/4" (235mm) diameter 4-1/2 (111.5mm)
MM650W 7-1/8" x 12-1/4" (181 x 311mm) 8-1/4" x 13-1/2" (210 x 343mm) 3-3/4" (94mm)
MM650D 8-1/16" (205mm) diameter 9-1/4" (235mm) diameter 4-1/2" (111.5mm)
MP650 C 8-1/16" (205mm) diameter 9-1/4" (235mm) diameter 4-13/16" (122mm)
MP650 W 7-1/8" x 12-1/4" (181 x 311mm) 8-1/4" x 13-1/2" (210 x 343mm) 3-13/16" (96mm)
8" Model Cutout Dimensions Dimensions w/ Frame Total Depth
ME800C 9-3/4" (248mm) diameter 11" (278mm) diameter 4-13/16" (122mm)
MM800C 9-3/4" (248mm) diameter 11" (278mm) diameter 4-13/16" (122mm)
MM800W 8-5/8" x 15-3/16" (219 x 386mm) 9-7/8" x 16-1/2" (251 x 419mm) 4" (102mm)
MP800C 9-3/4" (248mm) diameter 11" (278mm) diameter 5" (127mm)
MP800W 8-5/8" x 15-3/16" (219 x 386mm) 9-7/8" x 16-1/2" (251 x 419mm) 4" (101mm)
MP800S 8-5/8" x 15-3/16" (219 x 386mm) 9-7/8" x 16-1/2" (251 x 419mm) 4" (101mm)
MP800D 9-3/4" (248mm) diameter 11" (278mm) diameter 5-1/12" (139mm)
M Series_Manual6.11.2003.qxd 6/11/03 9:20 AM Page 6

www.elanhomesystems.com
2428 Palumbo Drive • Lexington, KY 40509
1.877.289.3526
Limited Lifetime Warranty
ELAN HOME SYSTEMS, L.L.C. ("ELAN") warrants to the original retail purchaser only that
all M Series speakers and speaker brackets will be free from defects in materials and
workmanship, provided that the product was purchased from an authorized ELAN Home
Systems Dealer.
If the above purchaser discovers such item was not as warranted above and promptly
notifies ELAN writing, ELAN shall repair or replace the items at the company’s option.
This warranty shall not apply (a) to equipment not manufactured by ELAN, (b) to equipment
which shall have been installed by other than an authorized ELAN installer, (c) to installed
equipment which is not installed to ELAN’s specifications, (d) to equipment which shall
have been repaired or altered by others than ELAN, (e) to equipment which shall have
been subjected to negligence, accident, or damage by circumstances beyond ELAN’s
control, including, but not limited to, lightning, flood, electrical surge, tornado, earthquake,
or any other catastrophic events beyond ELAN’s control, or to improper operation,
maintenance or storage, or to other than normal use of service. With respect to equipment
sold by, but not manufactured by ELAN, the warranty obligations of ELAN shall in all
respects conform and be limited to the warranty actually extended to ELAN by its supplier.
The foregoing warranties do not cover reimbursement for labor, transportation, removal,
installation, or other expenses which may be incurred in connection with repair or
replacement.
Except as may be expressly provided and authorized in writing by ELAN, ELAN shall not
be subject to any other obligations or liabilities whatsoever with respect to equipment
manufactured by ELAN or services rendered by ELAN.
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER
EXPRESSED AND IMPLIED WARRANTIES EXCEPT WARRANTIES OF TITLE,
INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE.
M Series_Manual6.11.2003.qxd 6/11/03 9:20 AM Page 2
