Elan DT22-240 User manual

ELAN HOME SYSTEMS
© ELAN Home Systems 2009 • All rights reserved. Page 1
DT22-240 INSTALLATION MANUAL
RISK OF ELECTRIC SHOCK
DO NOT OPEN!
WARNING
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING: TO REDUCE THE RISK OF FIRE OR SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to
alert the user to the presence of uninsulated "dangerous voltage" within the product's
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence
of important operating and maintenance (servicing) instruction in the literature accompanying
the appliance.
CAUTION
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN
INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO
THE INSTRUCTIONS.
Read Information—All the safety and operating information should be read before the appliance is operated.
Follow Information—All operating and use information should be followed.
Retain Information—The safety and operating information should be retained for future reference.
Heed Warnings—All warnings on the appliance and in the operating instructions should be heeded.
Wall Mounting—Mounting of this appliance should be done only by an authorized installer.
Ventilation—The appliances should be situated so that their location or position does not interfere with their proper
ventilation. These appliances should never be placed near or over a radiator or heat register.
-These appliances should not be placed in a built-in installation such as a bookcase or cabinet that may impede the flow of air
through the ventilation openings.
Non-Use Periods—Appliances that are left unattended and unused for long periods of time should be de-energized.
Grounding or Polarization—Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one blade wider than the other blade. A grounding type plug has two blades and a third
grounding prong. The polarized wide blade and the third prong are provided for your safety. If the provided plug does
not fit your outlet, consult an electrician for replacement of the obsolete outlet.
Power Cord Protection—Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles and the point where they exit from the apparatus.
Water—Do not use the apparatus near water.
IMPORTANT SAFETY INFORMATION

ELAN HOME SYSTEMS
Page 2 © ELAN Home Systems 2009 • All rights reserved.
DT22-240 INSTALLATION MANUAL
Cleaning—Unplug the apparatus from the power outlet before cleaning. Use only a dry cloth to clean the apparatus.
Power Lines—An outdoor antenna should be located away from power lines. When installing an outside antenna.
system, extreme care should be taken to avoid touching power lines or circuits, as contact with them may be fatal.
Object and Liquid Entry—Never insert objects of any kind through the openings of these appliances, as they may
touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Care should be taken so
that objects do not fall and liquids are not spilled into the appliance through openings in the enclosure.
Servicing—Do not attempt to service these appliances yourself, as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
Damage Requiring Service—These appliances should be serviced by qualified service personnel when:
• A power supply connection or a plug has been damaged or
• If liquid has been spilled into the appliance or objects have fallen into the appliance or
• The appliance has been exposed to water or moisture or
• The appliance does not appear to operate normally or exhibits a marked change in performance or
• The appliance has been dropped or the enclosure damaged.
Replacement Parts—When replacement parts are required, be sure the service technician has used replacement
parts specified by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock, or other hazards. The Master Control Unit battery should be replaced only after
turning the power off and only by an authorized installer.
Safety Check—Upon completion of any service or repairs to this audio product, ask the service technician to perform
safety checks to determine that the audio product is in proper operating condition.
Lightning Storms—Unplug this apparatus during lightning storms or when unused for long periods of time.
Attachments and Accessories—Use only attachments/accessories specified by the manufacturer.
Cart, Stand, Tripod, Bracket or Table—Use only with a cart, stand, tripod, bracket or table specified
by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip over.
Disconnect Device—Where the mains plug or an appliance coupler is used as the disconnect
device, the disconnect device shall remain operable.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in-stalled
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Changes or modifications not expressly approved by Elan Home Systems could void the user’s authority
to operate the equipment.

ELAN HOME SYSTEMS
© ELAN Home Systems 2009 • All rights reserved. Page 3
DT22-240 INSTALLATION MANUAL
Table of Contents
Highlights.....................................................................................................................................7
Items in package .........................................................................................................................7
Front Panel (Hard Buttons)..........................................................................................................8
Front Panel LCD ..........................................................................................................................9
Rear Panel ................................................................................................................................. 10
Connections ..................................................................................................................................................................12

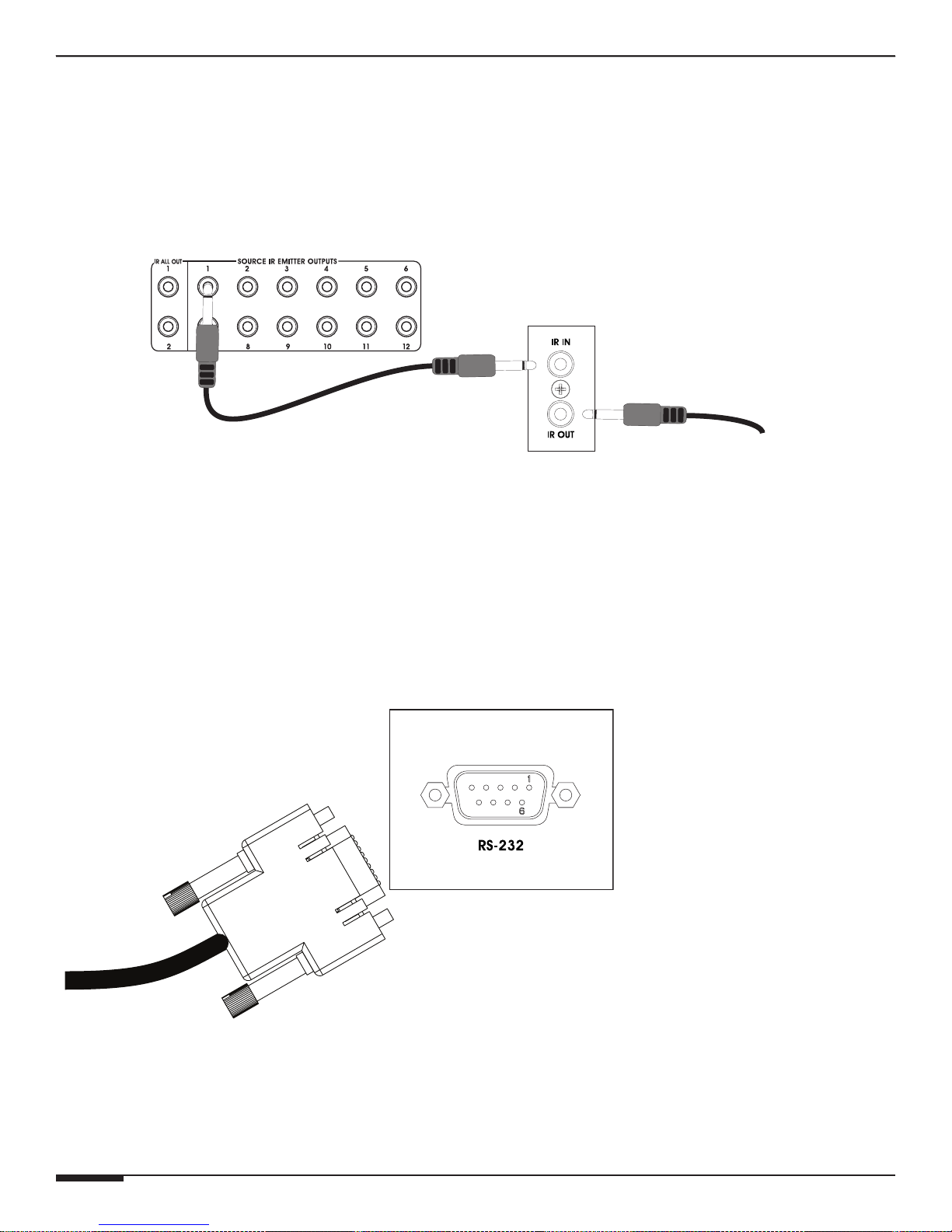

IR ............................................................................................................................................... 12
RS-232....................................................................................................................................... 12

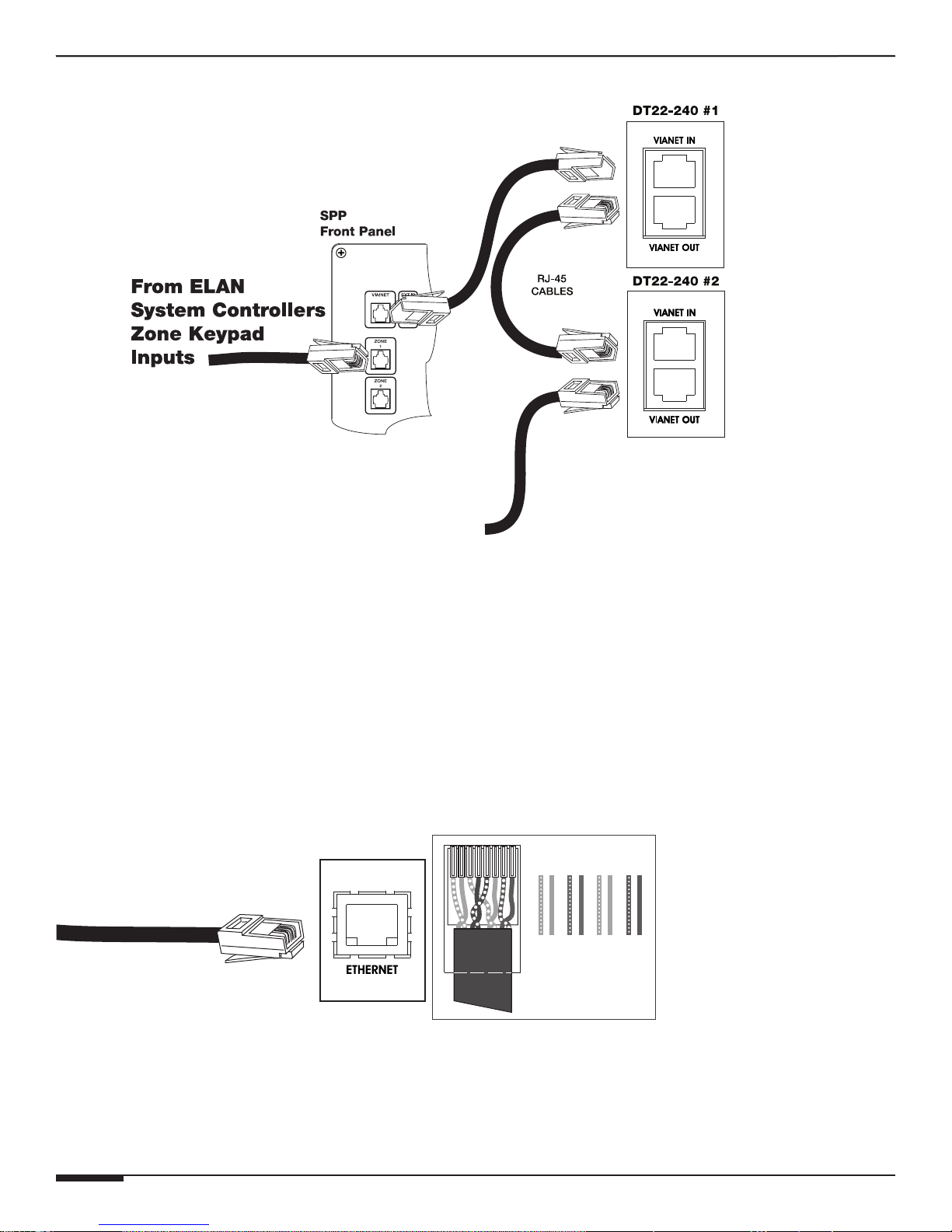

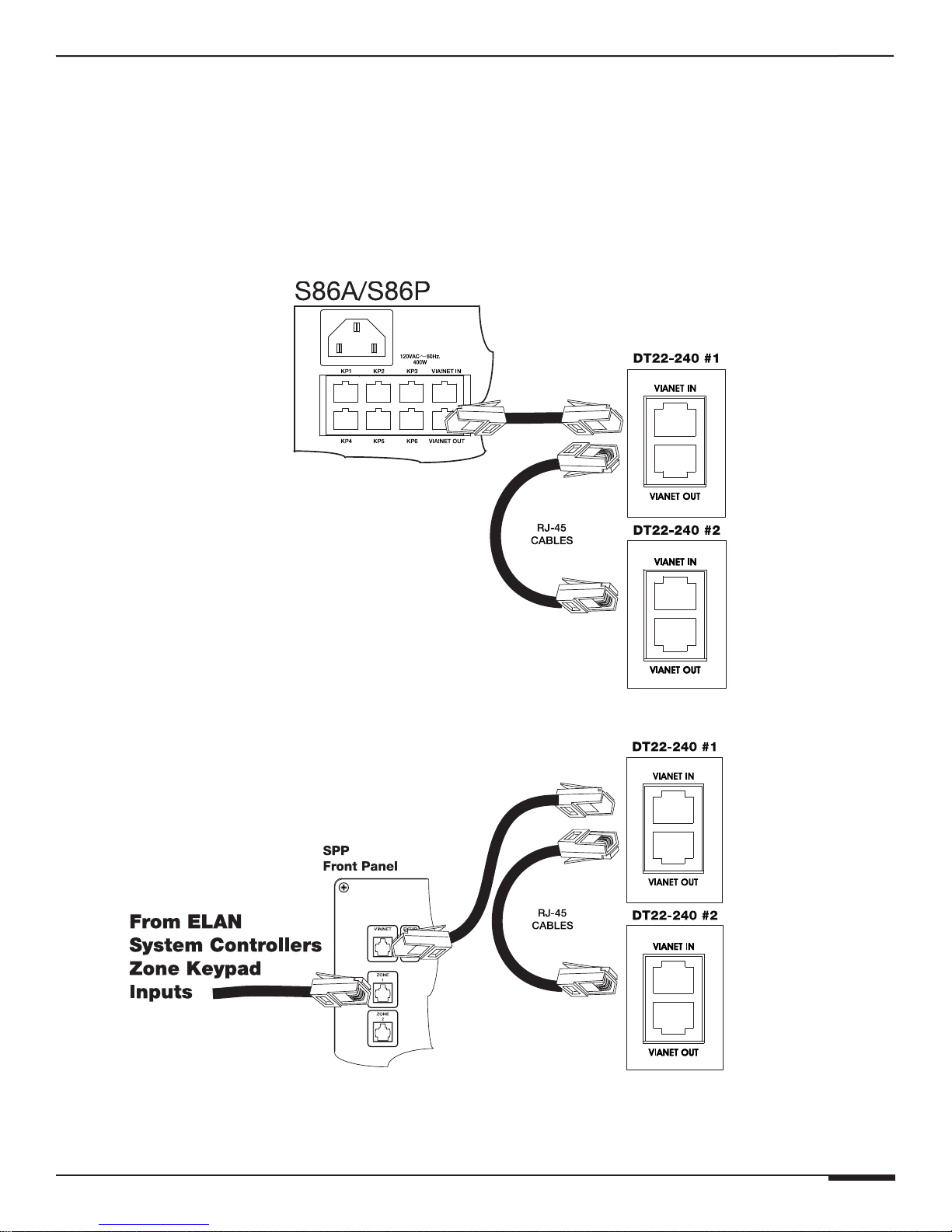

VIA!NET ..................................................................................................................................... 13
Ethernet ..................................................................................................................................... 14

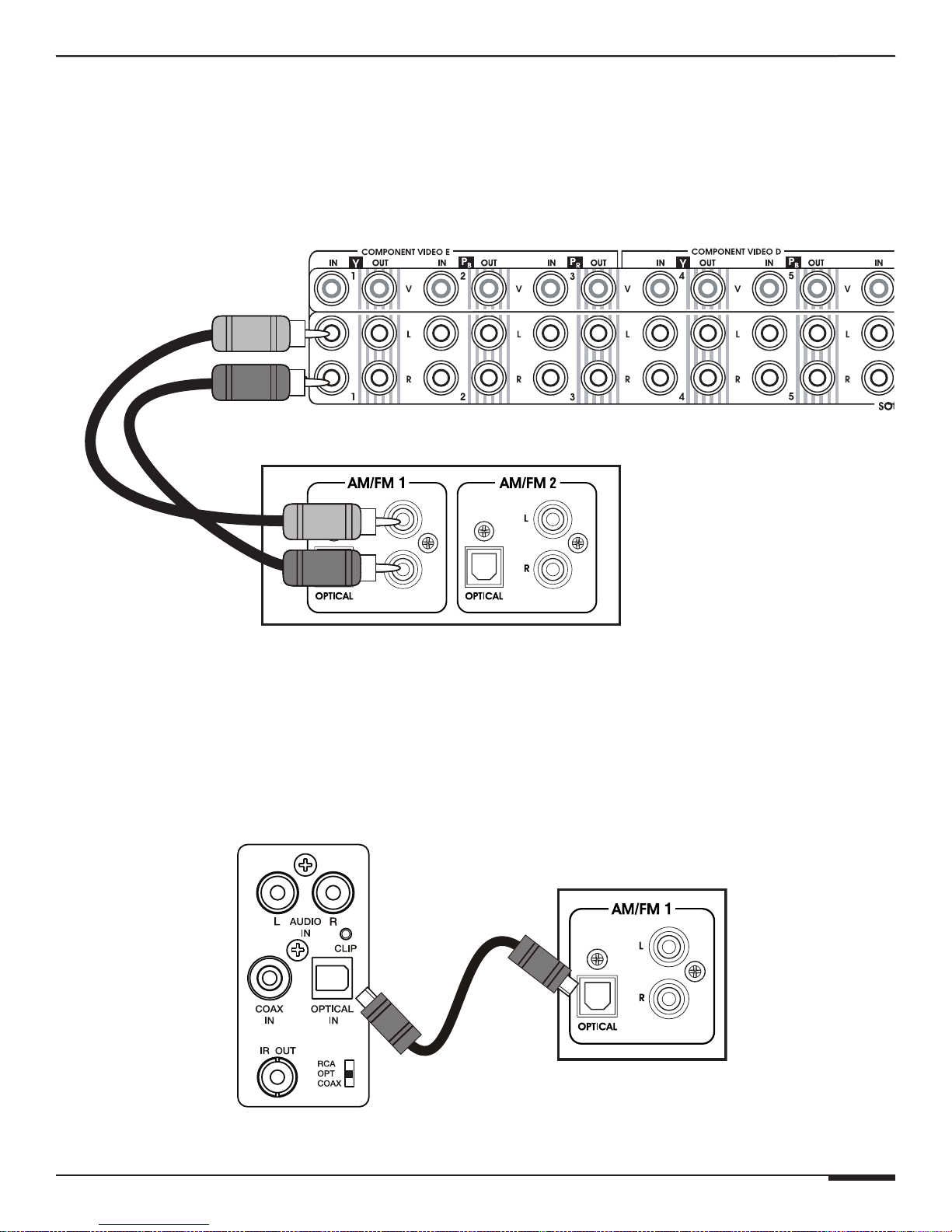

RCA Audio ................................................................................................................................. 15
OPTICAL Audio ......................................................................................................................... 15
AM Loop Antenna ..................................................................................................................... 16
FM Antenna ............................................................................................................................... 17
Rear Panel Power Switch.......................................................................................................... 18
Operation ........................................................................................................................................................................18
Front Panel ................................................................................................................................ 19
A TUNER......................................................................................................................... 19
B MODE.......................................................................................................................... 19
C MEMORY .................................................................................................................... 19
D ARROW Up/Down....................................................................................................... 19
E ARROW Left/Right Buttons......................................................................................... 19
F ENTER Button ............................................................................................................. 20
Mode Menu ............................................................................................................................... 20
AM/FM ............................................................................................................................ 20
Preset/Direct ................................................................................................................... 20
Stereo/Mono ................................................................................................................... 22
Saving Presets ..................................................................................................... 22
Deleting Presets................................................................................................... 23
Override .......................................................................................................................... 23
Change Custom Text ........................................................................................... 23
Remove Custom Text .......................................................................................... 25

ELAN HOME SYSTEMS
Page 4 © ELAN Home Systems 2009 • All rights reserved.
DT22-240 INSTALLATION MANUAL
Changing Genre................................................................................................... 26
Removing Genre Override ................................................................................... 27
Details ............................................................................................................................. 29
System Configuration................................................................................................................ 29
Unit ID............................................................................................................................. 30
LCD Settings................................................................................................................... 31
LCD Timeout........................................................................................................ 31
LCD Contrast ....................................................................................................... 32
LCD Brightness.................................................................................................... 33
Front Panel IR................................................................................................................. 34
RS232 ............................................................................................................................. 35
Baud Rate ............................................................................................................ 35
Unsolicited Feedback .......................................................................................... 36
Ethernet .......................................................................................................................... 37
Configuration Type............................................................................................... 37
Static Parameters ................................................................................................ 38
Show Current....................................................................................................... 41
ZNet Bridge .................................................................................................................... 42
Region............................................................................................................................. 43
Version Info ..................................................................................................................... 44
Restore Defaults ............................................................................................................. 44
Remote Control Operation .................................................................................................................................... 46
Troubleshooting ........................................................................................................................................................... 49
Appendix A Specifications ..................................................................................................................................... 53
Appendix B: Serial Protocol .................................................................................................................................. 54
Port Configuration ..................................................................................................................... 54
Messages .................................................................................................................................. 54
Unsolicited Feedback notifications ........................................................................................... 54
Query/Response Command Structure...................................................................................... 54
Dump Command Structure ...................................................................................................... 55
Status Command Structure ..................................................................................................... 55
Command Structure .................................................................................................................. 55
<COMMAND>................................................................................................................. 55

ELAN HOME SYSTEMS
© ELAN Home Systems 2009 • All rights reserved. Page 5
DT22-240 INSTALLATION MANUAL
Power On/Off/Toggle ........................................................................................... 55
Select ................................................................................................................... 56
Display On............................................................................................................ 57
Reboot ................................................................................................................. 57
Config................................................................................................................... 57
Config RS232 Unsolicited Feedback On/Off....................................................... 59
UFB On/Off (Unsolicited Feedback) .................................................................... 60
Boot Version......................................................................................................... 61
Code Version........................................................................................................ 61
Mode: Direct/Preset............................................................................................. 61
Digit...................................................................................................................... 62
Enter..................................................................................................................... 62
Cancel .................................................................................................................. 62
Group ................................................................................................................... 63
Preset................................................................................................................... 63
MDF (Metadata Feedback) ..................................................................... 65
Signal ................................................................................................................... 67
Scan ..................................................................................................................... 67
AM/FM Band........................................................................................................ 67
Tune ..................................................................................................................... 68
Seek ..................................................................................................................... 69
Stereo................................................................................................................... 69

ELAN HOME SYSTEMS
Page 6 © ELAN Home Systems 2009 • All rights reserved.
DT22-240 INSTALLATION MANUAL
Introduction
Thank you for choosing the ELAN DT22-240 Dual AM/FM Tuner. The ELAN DT22-240 Dual Tuner
is two AM/FM digital tuners in one standard-sized audio component. Each tuner has its own
audio output so that each may be listened to independently. The DT22-240 features a total of
396 station presets per chassis. When used in conjunction with ELAN Touch Panels, the com-
bination of Direct Access tuning and a plethora of Presets makes control of the DT22-240 easy
and intuitive – from anywhere in your home.
The DT22-240 includes a front panel IR receiver, full function handheld remote, and rear panel
control ports for IR, VIA!NET and serial control. Two-way feedback, including station call let-
ters, frequency, genre, song name and artist, can be displayed on any ELAN Touch Panel or
Olé Interactive Touchpad without the use of an SS1, SC1 or SC4. The DT22-240 displays data
(where available) in the EU from RDS.

ELAN HOME SYSTEMS
© ELAN Home Systems 2009 • All rights reserved. Page 7
DT22-240 INSTALLATION MANUAL
Highlights
• Two AM/FM Digital Tuners
• Two Sets of independent Outputs for Multi-Room Listening
• Link Two DT22-240s to Provide Up to 4 AM/FM Tuners
• Preset or Direct Numeric Access
• 4 Preset Groups labeled A, B, C, and D for easy preset organization.
• 99 flexible presets in each group. Each preset can hold either an AM or FM station.
• 396 Presets per chassis shared across 2 Tuners.
• Easy Setup and Diagnostics With Front Panel Buttons and Graphical LCD
• Selectable EU/US Tuning Region
• View Radio Station & "Now Playing" RDS information on ELAN User interfaces
• VIA!NET, Ethernet, Serial and IR Controllable.
• Use With Any ELAN Wireless Touch Panel, Olé Touch Pad, or LCD Touch Panel.
• New ELAN SmartSource (Does not require a System SS1, SC1 or SC4 for Two-Way Feedback)
• Displays RDS (Radio Data System)
• cTUVus Certified, CE®, CB Scheme, FCC part 15, and C-tick
Items in package
• DT22-240 Tuner
• Rack Mount Brackets
• DT22-240 Remote Control
• AM Loop Antenna
• FM Antenna
• Installation Manual
• EURO line cord
• UK line cord
• Australia line cord

ELAN HOME SYSTEMS
Page 8 © ELAN Home Systems 2009 • All rights reserved.
DT22-240 INSTALLATION MANUAL
Front Panel (Hard Buttons)
12
3
4
5
6
DT22-240 Front Panel Controls & Indicators
Item Name Item Name
1
Tuner Select Button
4
Power LED
2
Mode Button
5
Memory Button
3
Navigation Arrows and Enter Button
6
Access Door (Shown Open)
DT22-240 Front Panel Controls & Indicators

ELAN HOME SYSTEMS
© ELAN Home Systems 2009 • All rights reserved. Page 9
DT22-240 INSTALLATION MANUAL
Front Panel LCD
ST
Y
100.1
FM1
Z
MH PRESET
PRESET
B01
XXXX ROCK
Cathexis Dark of
Night 100.1 WKRQ
1 2 3 4 5
6
9
8
10
7
Graphical LCD
Item# Function Item# Function
1
Signal Indicator
6
Station Frequency
2
Stereo Indicator
7
Custom Text
3
Signal Strength Indicator Bar
8
RDS Radio Text
4
Tuner Mode Indicator
9
Station Genre/Category
5
Current Tuned Preset
10
Preset/Direct Mode
Graphical LCD

ELAN HOME SYSTEMS
Page 10 © ELAN Home Systems 2009 • All rights reserved.
DT22-240 INSTALLATION MANUAL
Rear Panel
145 62 3
15 14 13 12 11 10 9 8
7
DT22-240 Rear Panel
Item# Function Item# Function
1
Power Switch
9
AM/FM 2 Analog RCA Output
2
IR IN
10
AM/FM 1 Analog RCA Output
3
VIA!NET Input
11
Ethernet Port
4
B1 Button
12
RS-232 Port
5
AM/FM 1 Digital Audio Output
13
VIA!NET Out
6
AM/FM 2 Digital Audio Output
14
IR OUT
7
AM Antenna Connector
15
Power Inlet/Fuse Holder
8
FM Antenna Connector
Rear Panel Connections

ELAN HOME SYSTEMS
© ELAN Home Systems 2009 • All rights reserved. Page 11
DT22-240 INSTALLATION MANUAL

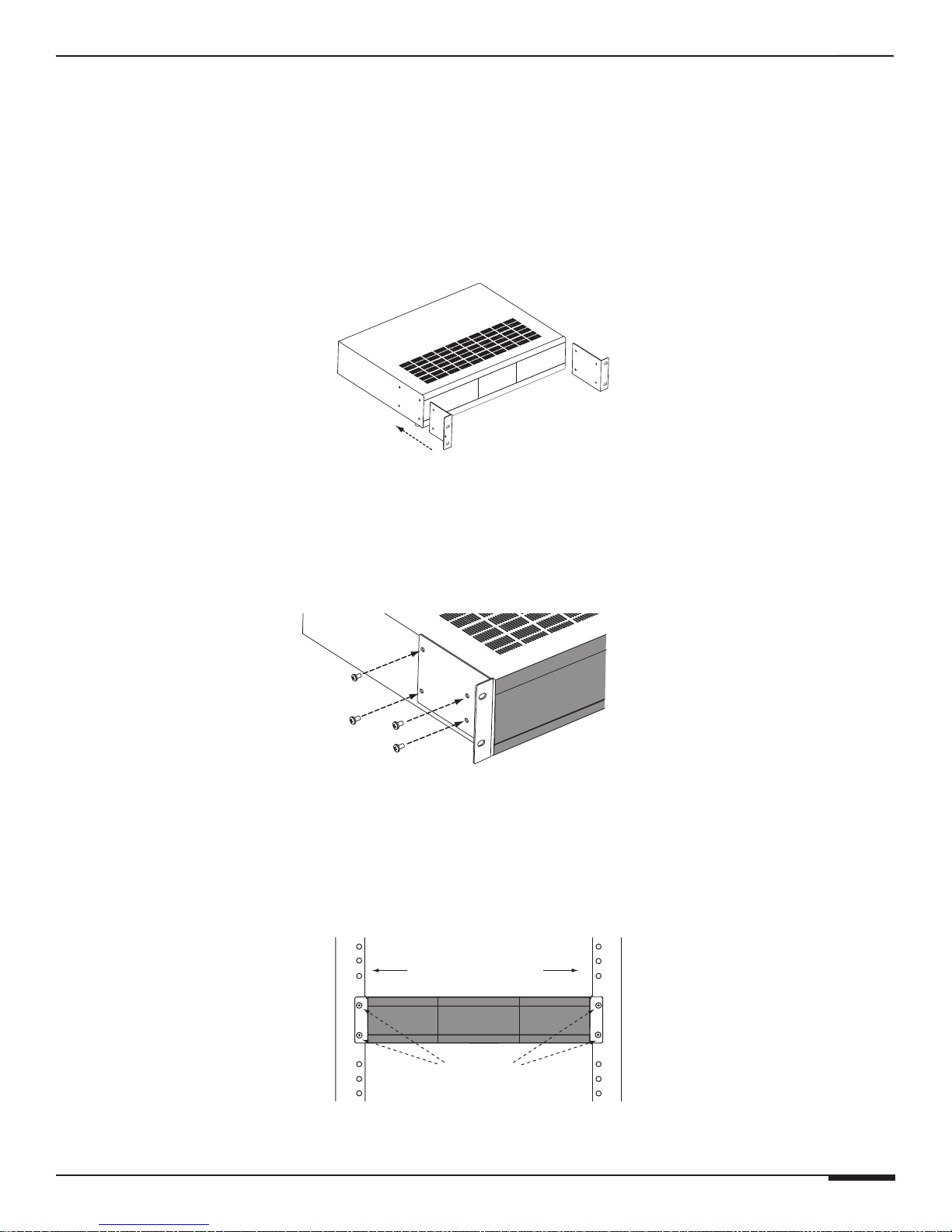

Rack Mounting
When mounting the DT22-240 Tuner in an equipment rack, use the included Rack Mount
Brackets for secure mounting and proper ventilation. The DT22-240 requires two rack spaces.
To install the DT22-240 into a standard 19” equipment rack:
1. Slide the rack mount bracket onto the DT22-240 chassis from the front as shown in Figure
C-1.
Figure C-1
2. Ensure that the brackets are flush with the front of the unit. Install each of the eight screws
(included) through the side mounting flanges into the holes in the sides of the unit as shown in
Figure C-2. Hand tighten screws! Over-tightening could cause damage to the DT22-240 Tuner.
Figure C-2
3. Once the brackets are securely mounted, install the entire assembly into a standard 19”
equipment rack from the front using four rack screws (not included). Two rack spaces will be
used. See Figure C-3.
19" Equipment Rack
Rack Screws
Figure C-3

ELAN HOME SYSTEMS
Page 12 © ELAN Home Systems 2009 • All rights reserved.
DT22-240 INSTALLATION MANUAL
Connections
IR
The DT22-240 can be controlled using the 3.5mm (‘mini’) IR jack on the back panel. There is
also an 3.5mm IR Loop Output jack included to connect to additional DT22-240s.
S128P
DT22-240 #1
TO Second
DT22-240
IR IN
S128P Source IR Out to DT22-240 IR Loop Connections
RS-232
The RS232 port on the back of the unit is used to connect the DT22-240 to a computer to
facilitate firmware updates and download tuner configuration parameters for troubleshooting.
It can also be used to control Direct and Preset features.
DB9 CABLE
FROM COMPUTER
DT22-240
RS-232 Connection

ELAN HOME SYSTEMS
© ELAN Home Systems 2009 • All rights reserved. Page 13
DT22-240 INSTALLATION MANUAL
VIA!NET
Use the VIA!NET ports when controlling the DT22-240 with ELAN Touch Panels, SC-1 Serial
Controller, SS1 System Station and/or other VIA!NET devices. The VIA!NET ports on the DT22-
240 can be daisy-chained between chassis and other VIA!NET devices.
Use an RJ-45 to RJ-45 interconnect cable to make all VIA!NET connections.
Use the following diagram when connecting a S86A/S86P and not using a SPP.
If there is not a System SS1 or System SC1 in the system, make the following connections.

ELAN HOME SYSTEMS
Page 14 © ELAN Home Systems 2009 • All rights reserved.
DT22-240 INSTALLATION MANUAL
If a System SS1 or System SC1 is in the system, use the following connections.
To
SS1/SC1
VIA!NET
Connector
VIA!NET Loop Connection
Ethernet
The ETHERNET port can be used to connect the DT22-240 to an LAN (Local Area Network) con-
nection for Firmware Updates. It may also be used by supported software applications to com-
municate with the DT22-240. An Ethernet cable wired to T568A should be used in conjunction
with this connection.
1 2 3 4 5 6 7 8
1 2 3 4 5 6 78
GREEN/WHITE
GREEN
ORANGE/WHITE
BLUE
BLUE/WHITE
ORANGE
BROWN/WHITE
BROWN
T568A WIRING STANDARD
ETHERNET
CABLE
DT22-240
T568A Ethernet Connection

ELAN HOME SYSTEMS
© ELAN Home Systems 2009 • All rights reserved. Page 15
DT22-240 INSTALLATION MANUAL
RCA Audio
Using RCA-type interconnect cables, connect TUNER 1 and TUNER 2 audio outputs to any two
pairs of inputs on an ELAN preamp controller (e.g.S66A, S86A/P, S128P or to a stereo receiver).
Make sure to connect Left channel outputs to Left channel inputs and Right channel outputs to
Right channel inputs.
S128P
R L
RCA PATCH
CABLES DT22-240
RCA Audio Connections
OPTICAL Audio
Using an Optical interconnect cable, connect TUNER 1 and/or TUNER 2 Optical output(s) to any
Optical input(s) on a Stereo Receiver, Digital Audio Wallplate, or Home Theater Receiver.
Digital Optical
Input
Digital
Optical
Cable
DT22-240
OPTICAL Audio Connections

ELAN HOME SYSTEMS
Page 16 © ELAN Home Systems 2009 • All rights reserved.
DT22-240 INSTALLATION MANUAL
AM Loop Antenna
DT22-240
AM Loop Antenna
The AM antenna is connected to the terminals marked AM/GND. These connections are not
polarity sensitive, so it does not matter which wire is connected to the GND or AM terminals.
To prevent unwanted noise, place the antenna as far away as possible from other electronics,
speaker cords, power cords and amplifiers.

ELAN HOME SYSTEMS
© ELAN Home Systems 2009 • All rights reserved. Page 17
DT22-240 INSTALLATION MANUAL
FM Antenna
Connect the included FM antenna to the FM F (coaxial) jack. Generally, a T-type twin lead
antenna will be sufficient; if you live in an area where the FM signals are particularly weak, it may
be necessary to install an outside or rooftop antenna.
If standard FM broadcast frequencies are available via your cable service, you may connect your
75 ohm FM antenna jack to your cable system. Please contact your cable service to discuss
this option.
DT22-240
REAR PANEL
F-JACK
F-CONNECTOR
Indoor FM Antenna

ELAN HOME SYSTEMS
Page 18 © ELAN Home Systems 2009 • All rights reserved.
DT22-240 INSTALLATION MANUAL
Rear Panel Power Switch
The DT22-240 master power switch is located on the rear panel. The switch must be in the ON
position to allow the tuner to operate. To reduce power consumption when away for extended
periods of time, set the master switch to the OFF position. To return tuner to normal operation,
set the switch to the ON position.
Rear Panel Power Switch
Operation
DT22-240 provides intuitive control of its various functions via its front panel buttons as shown
on the next page, control with Touch Panels and Olé Touchpads, and the remote control with its
hard wired IR (for local and remote operation). DT22-240 is essentially two completely indepen-
dent AM-FM radio tuners (add another DT22-240 for a total of four)—each of which can be tuned
independently so that different audio channels play in different rooms.
From the interface within each zone you can:
• Change channels (either by preset or direct tuning)
• View RDS information (on supported panels)
Default Display
The default display, as shown below, provides information about the channel each tuner is cur-
rently tuned to, including category name, channel number, channel name, artist name, and song
title.
ST
Y
100.1
FM1
Z
MH PRESET
PRESET
B01
ROCK
Cathexis Dark of
Night 100.1 WKRQ
LCD Display

ELAN HOME SYSTEMS
© ELAN Home Systems 2009 • All rights reserved. Page 19
DT22-240 INSTALLATION MANUAL
Front Panel
AD
E
E
CD
B
F
Front Panel Controls
A TUNER
• Switches from Tuner 1 to Tuner 2.
• Press and Hold to turn the DT22 On or Off.
B MODE
• Displays the Mode Menu on the LCD that allows settings - AM/FM, Preset/Direct, Stereo/Mono - to be
changed using Arrow Up/Down buttons without the use of a remote.
C MEMORY
• Displays the Memory Menu on the LCD that allows Presets to be either saved or deleted using Arrow
Up/Down buttons without the use of a remote; each Group (A,B,C,D) has 99 presets.
D ARROW Up/Down
• Use these buttons to Seek after the Tuner button is pressed, navigate the Mode On-Screen-Display
after the Mode button is pressed or navigate the Memory On-Screen-Display after the Memory button
is pressed.
E ARROW Left/Right Buttons
• Use these buttons to Increment/Decrement or Step the frequency after the Tuner button is pressed,
do nothing after the Mode button is pressed.
