Elan DTNR User manual

DTNR
DIGITAL DUAL TUNER
INSTALLATION MANUAL AND USERS GUIDE
THE
LOGICAL
CHOICE
FOR
MULTIROOM
SYSTEMS
DTNR-manual-FINAL-dupe 11/10/03 9:45 AM Page 1

IMPORTANT SAFETY INSTRUCTIONS
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended
to alert the user to the presence of uninsulated "dangerous voltage" within the
product’s enclosure that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
For U.S.A.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the equipment and/or the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION
Changes or modifications to this equipment not expressly approved by the manufacturer for
compliance will void the manufacturer's warranty.
CAUTION
•DO NOT REMOVE THE PROTECTIVE HOUSING USING SCREWDRIVER.
•IF THIS PRODUCT DEVELOPS TROUBLE, CALL YOUR AUTHORIZED ELAN DEALER, AND
DO NOT USE THE PRODUCT IN A TROUBLED STATE.
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
ELAN HOME SYSTEMS
Page i © ELAN Home Systems 2003 • All rights reserved. 11/03
DTNR USER’S GUIDE AND INSTALLATION MANUAL
DTNR-manual-FINAL-dupe 11/10/03 9:45 AM Page 1

ELAN HOME SYSTEMS
© ELAN Home Systems 2003 • All rights reserved. 11/03 Page ii
USER’S GUIDE AND INSTALLATION MANUAL DTNR
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
Do not expose this apparatus to drips or splashes.
Do not place any objects filled with liquids, such as vases, on the apparatus.
Do not install this apparatus in a confined space such as a book case or similar unit.
The apparatus draws nominal non-operating power from the AC outlet with its POWER switch in
the off position.
For CANADA
AC POWER CORD CONNECTION
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE
SLOT, FULLY INSERT.
Pour le CANADA
CORDE DE CONNEXION CA
ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA
PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET
POUSSER JUSQU’AU FOND.
BEFORE USE
Read this before installation or operation
• Choose the installation location of your unit carefully. Avoid placing it in direct sunlight or
close to a source of heat. Also avoid locations subject to vibrations and excessive dust,
heat, cold or moisture.
• Do not open the cabinet as this might result in damage to the circuitry or electrical shock. If
a foreign object should get into the set, contact your dealer.
• When removing the power plug from the wall outlet, always pull directly on the plug, never
yank the cord.
• Do not attempt to clean the unit with chemical solvents as this might damage the finish. Use
a clean, dry cloth.
• Keep this manual in a safe place for future reference.
Maintenance
If the surface of the unit gets dirty, wipe with a soft cloth or use diluted mild soap liquid. Be sure to
remove any excess completely. Do not use thinner, benzene or alcohol as they may damage the
surface of the unit.
CAUTION
The product shall not be exposed to dripping or splashing and that no object filled with liquids,
such as vases, shall be placed on the product.
Do not install this equipment in a confined space such as a book case or similar unit.
DTNR-manual-FINAL-dupe 11/10/03 9:45 AM Page 2

ELAN HOME SYSTEMS
Page 1 © ELAN Home Systems 2003 • All rights reserved. 11/03
DTNR USER’S GUIDE AND INSTALLATION MANUAL
TABLE OF CONTENTS
USERS GUIDE
Important Safety Instructions ............................................................................................i
Before Use........................................................................................................................ii
Congratulations and Thank You ......................................................................................2
Introduction ......................................................................................................................2
Controlling the DTNR Using VIA! Touch Panels ..........................................................3-5
IR Control ..................................................................................................3
RS232 Control............................................................................................4

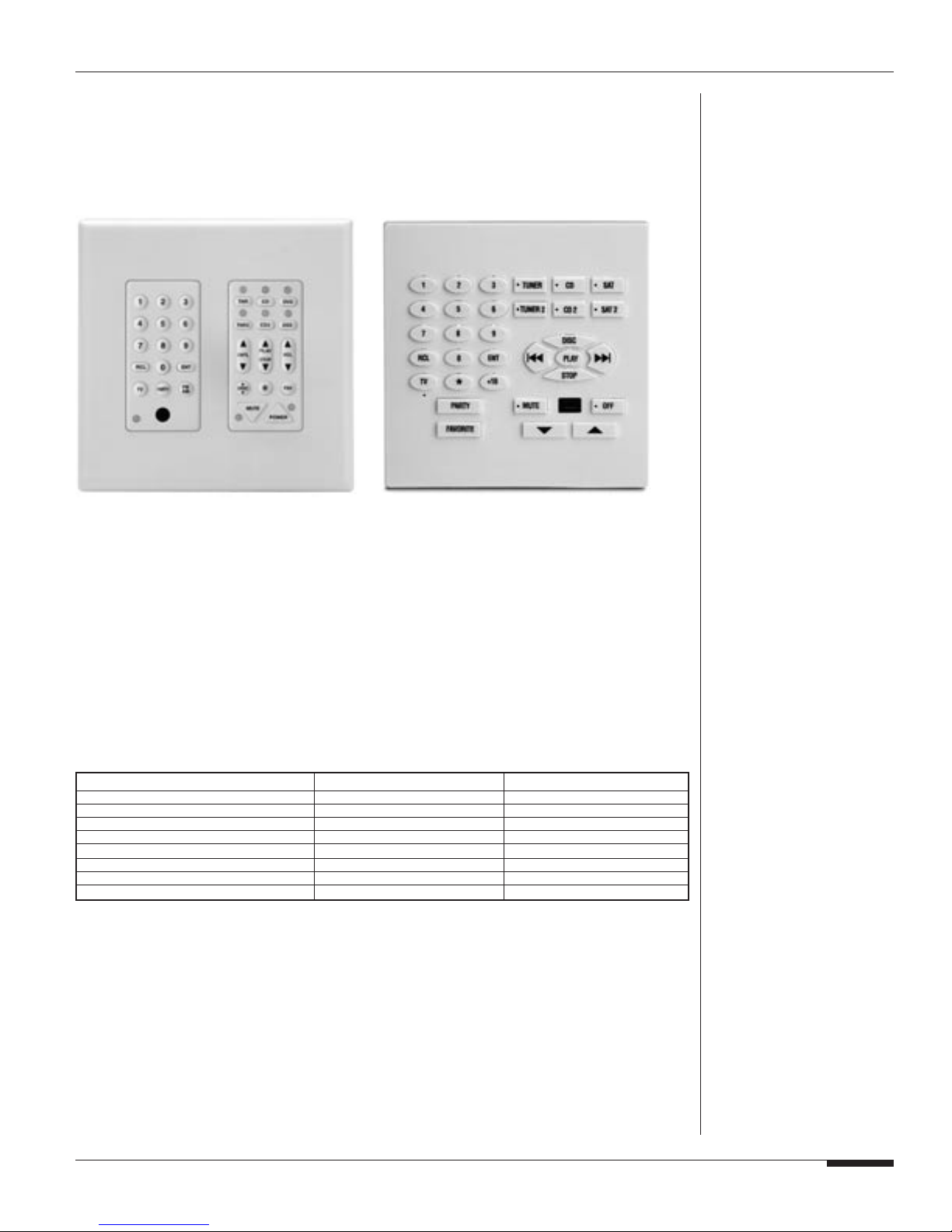

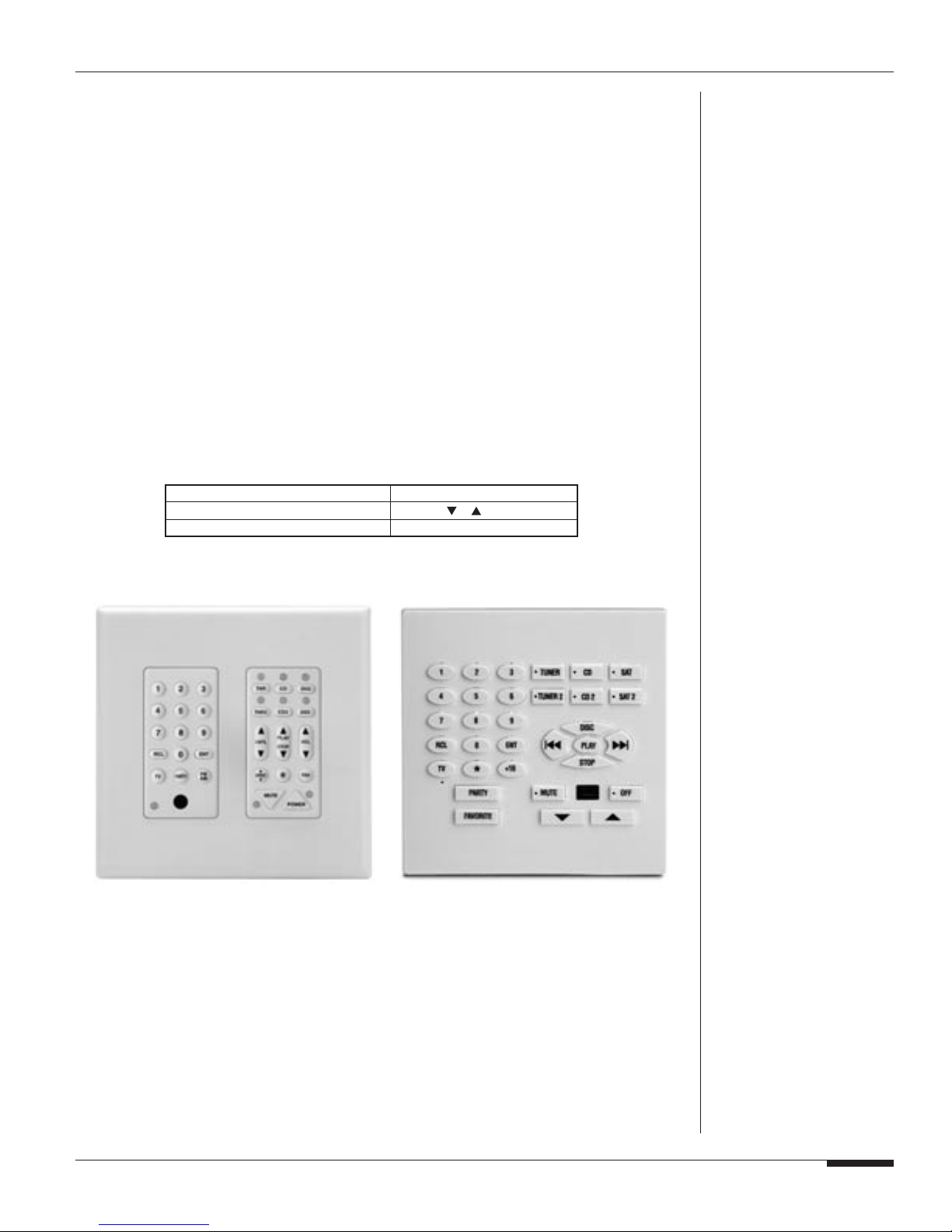

Controlling the DTNR Using ELAN Keypads ..................................................................6
Front Panel & Remote Control Operation........................................................................7
INSTALLATION MANUAL
Connections ................................................................................................................9-13

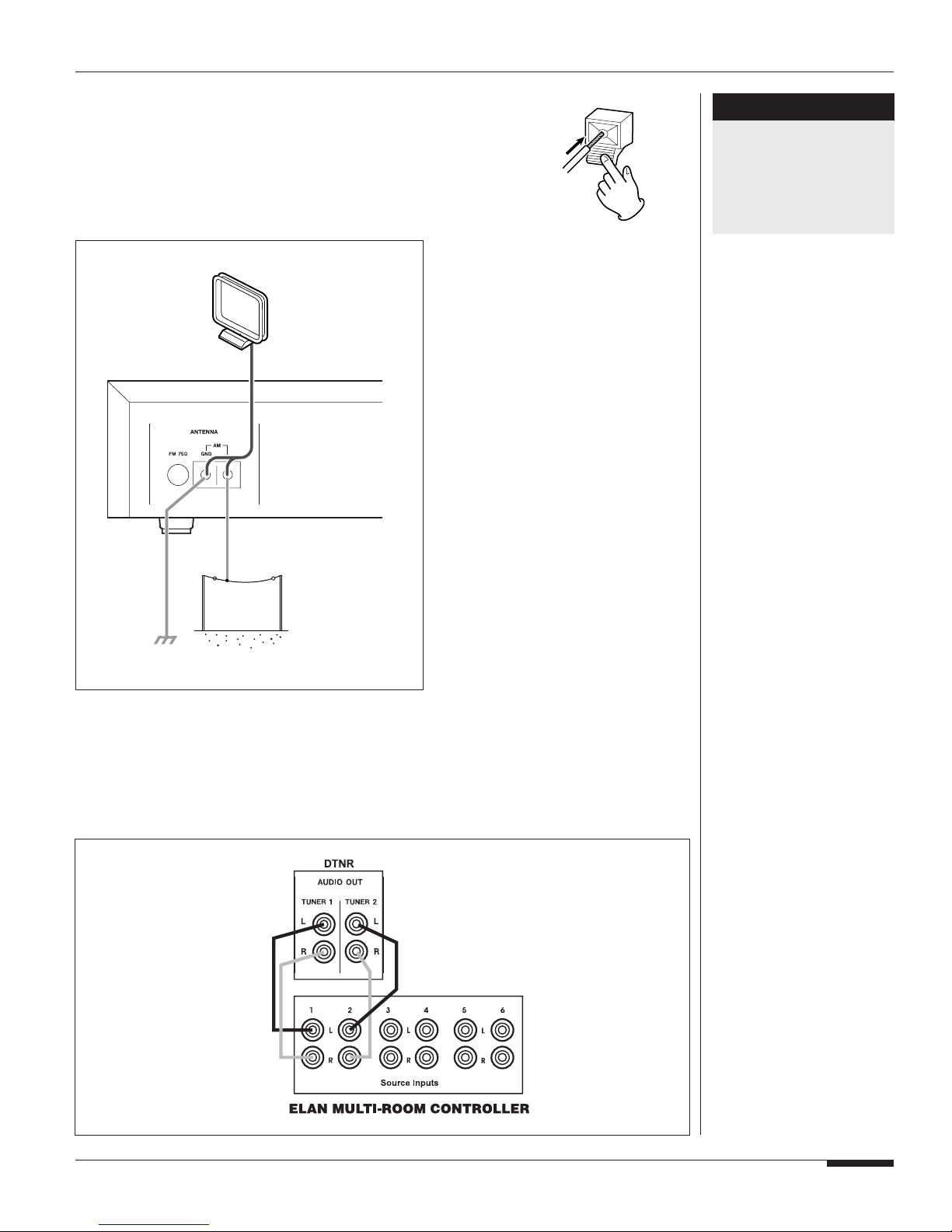

FM Antenna................................................................................................9
AM Antenna ..............................................................................................9
Audio Out ................................................................................................10
IR ....................................................................................................11-12
RS232 ......................................................................................................13
Power Cord..............................................................................................13
System Control ................................................................................................14
Programming ELAN Keypads ................................................................14
VIA! Touch Panel Control the the DTNR ..........................................14-17
IR ....................................................................................14-15
RS232 ............................................................................16-17
RS232 Protocol ..........................................................................................18-19
Specifications ..................................................................................................19
Limited Warranty ..............................................................................................20
DTNR-manual-FINAL-dupe 11/10/03 9:45 AM Page 1

ELAN HOME SYSTEMS
© ELAN Home Systems 2003 • All rights reserved. 11/03 Page 2
USER’S GUIDE AND INSTALLATION MANUAL DTNR
CONGRATULATIONS AND THANK YOU
You have purchased the highest quality IR/RS232-controllable Digital Dual Tuner on the market
today – the ELAN DTNR. Please read this manual carefully. It will help you to fully understand
the operation of your dual tuner.
ELAN Home Systems designs and manufactures the industry’s most complete line of multi-room
audio/video systems and components. For free product information, visit our web site,
www.elanhomesystems.com, or write or e-mail us at:
ELAN Home Systems Product Information
2428 Palumbo Dr.
Lexington, KY 40509
e-mail: [email protected]
Look for these other award-winning ELAN products:
•VIA!dj™ Digital Music Server
•VIA!®Touch Panel
•System6™ Integrated Multi-Zone Controller
•D1200 12-Channel Digital Power Amplifier
•M Series™ In-Wall and In-Ceiling Speakers
INTRODUCTION
The ELAN DTNR Digital Dual Tuner is two FM/AM digital tuners in one standard-sized audio
component. Each tuner has its own audio output so that each may be listened to independently.
The DTNR features Direct Access tuning, enabling you to go directly to a radio station by entering
its frequency number (for example, to go to 102.7, simply enter 1027 and you’re there). The
DTNR also features a total of 120 station presets – 30 FM and 30 AM presets per tuner. When
used in conjunction with ELAN VIA! Touch Panels, the combination of Direct Access tuning and a
plethora of Presets makes control of the DTNR easy and intuitive – from anywhere in your home.
This user’s manual is broken up into sections, each describing different means of controlling your
DTNR. Since the DTNR can be controlled in a variety of ways, it is important that you speak with
your ELAN installer and have them explain to you how they have the unit connected to your
ELAN system.
If your DTNR is not connected to an ELAN system, you can go directly to the last section
describing Front Panel and Remote Control use.
DTNR-manual-FINAL-dupe 11/10/03 9:45 AM Page 2

ELAN HOME SYSTEMS
Page 3 © ELAN Home Systems 2003 • All rights reserved. 11/03
DTNR USER’S GUIDE AND INSTALLATION MANUAL
CONTROLLING THE DTNR USING
VIA! TOUCH PANELS
First, you will need to know if your
DTNR is being controlled via IR
signals or RS232 serial
communications. This can easily be
determined by seeing if there is a
2-way ‘Message Center’ displayed on
your VIA! Touch Panels.
If there is, your DTNR is being
controlled with RS232 serial
communications and you can proceed
to the section entitled RS232
Control (Page 4).
If you do not see the Message Center
your DTNR is being controlled with IR
signals and you should refer to the
following section entitled IR Control.
NOTE:
VIA! Touch Panels can be configured in many ways. The layouts shown herein are the
factory-default control screens. Your ELAN installer/programmer may have added, deleted or
moved any number of buttons depending on your needs and/or input. Also note that the
‘motif’ that is shown (Silky Blue) is just one of many styles available and your VIA! Touch
Panels may look quite different than the ones depicted here.
IR CONTROL

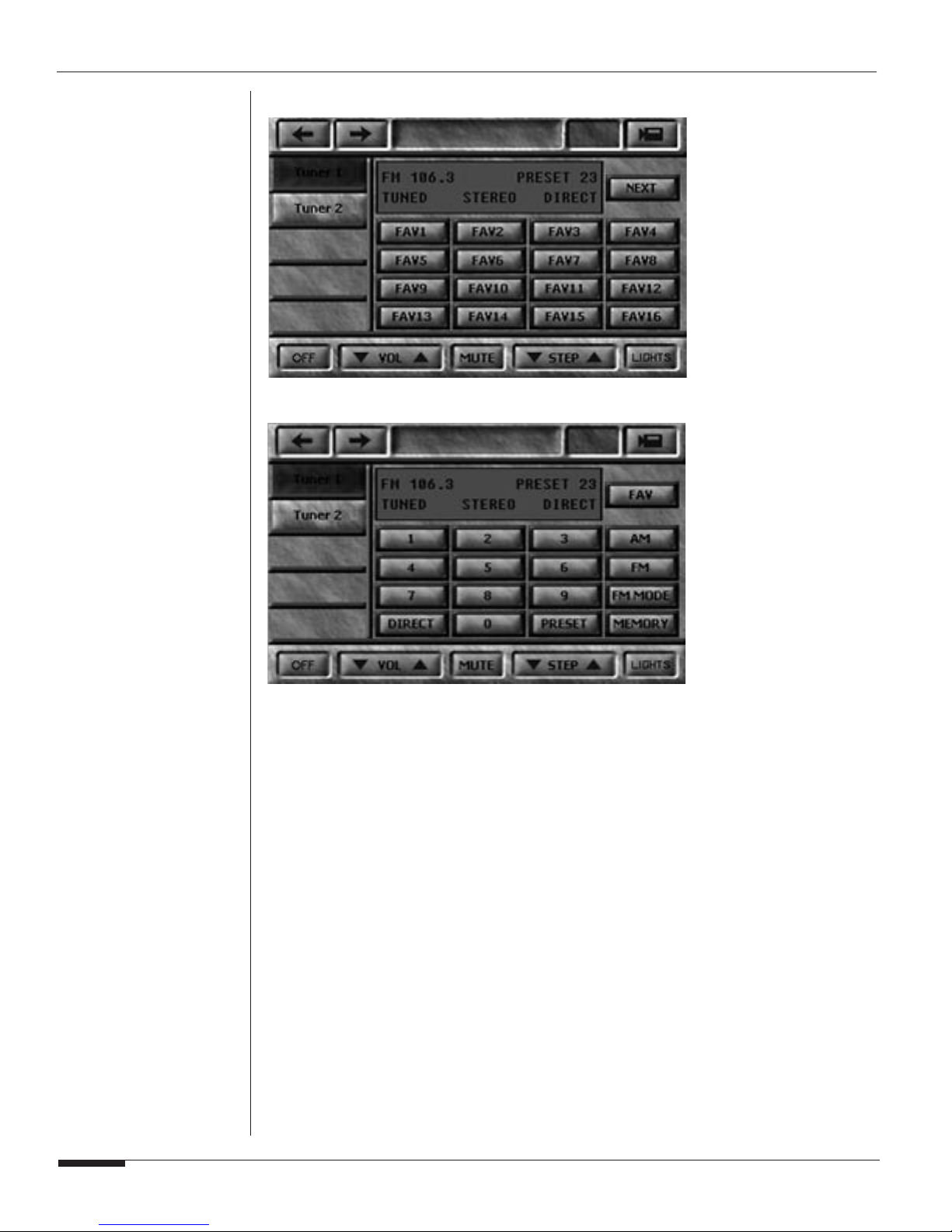

The FAVORITES Screen
1. FAV1 thru FAV15
Takes you directly
to the Preset
stations you have
programmed in
memory. Buttons
can be renamed to
reflect a station’s
frequency (i.e.
102.7) or call
letters (i.e.
WNEW).
2. NEXT
Takes you to the
DIRECT screen
(see Page 4)
3. STEP /
In PRESET mode:
The STEP button is used to step through the
preset stations you have programmed in memory.
In DIRECT mode:
Use to search Up or Down through the band (AM or FM) selected. Hold down the STEP button
for 0.5 to 2 seconds to begin search. When a station is tuned in, the tuning process will stop
automatically.
Two-Way Message Center
1
2
3
DTNR-manual-FINAL-dupe 11/10/03 9:45 AM Page 3

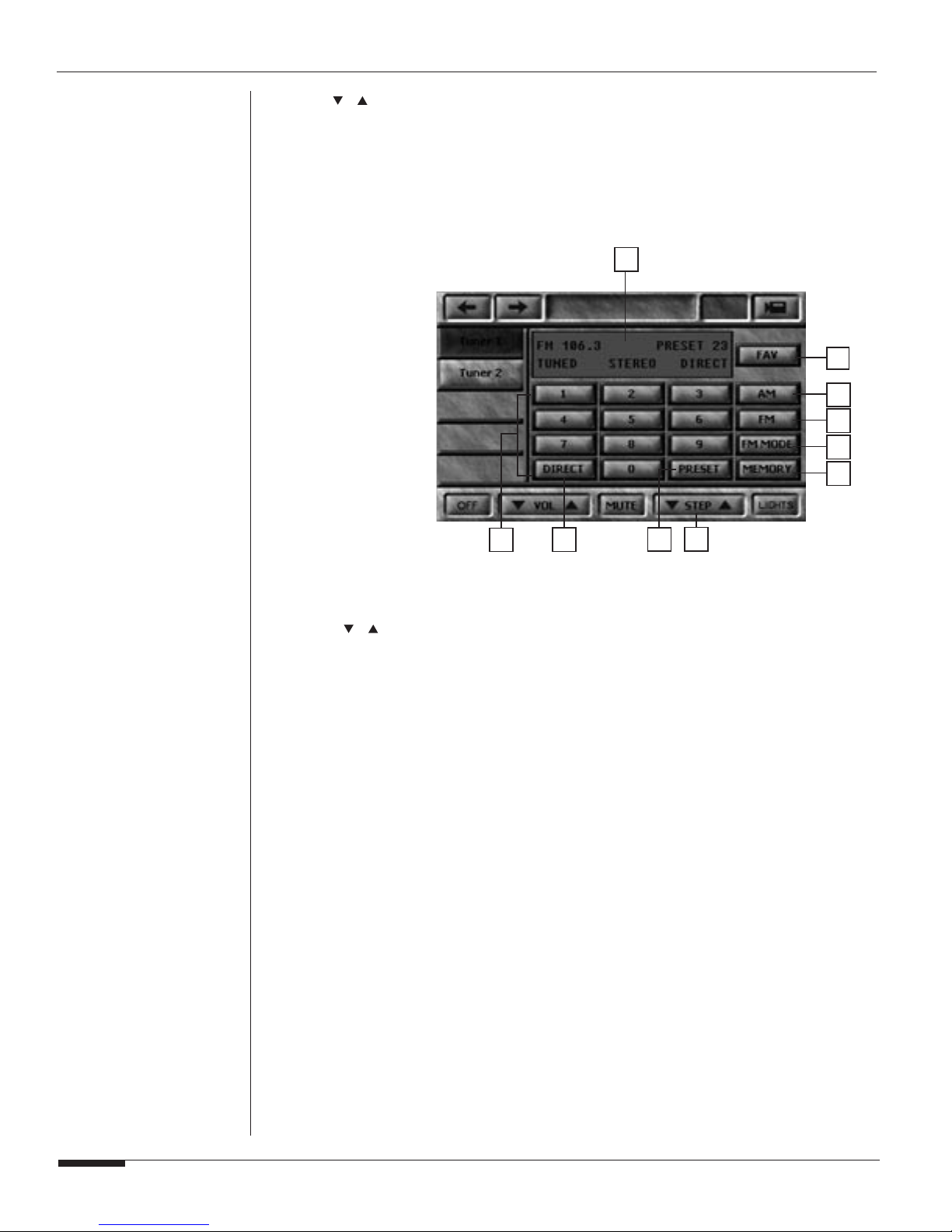

The DIRECT Screen
4. 0-9
In PRESET mode:
Selects a station that has been
stored in memory, i.e.
01 = PRESET 1,
30 = PRESET 30, etc.
In DIRECT mode:
Use 0-9 to enter a station’s
frequency, i.e. 899 = 89.9,
1027 = 102.7
5. AM
Selects the AM band.
6. FM
Selects the FM band.
7. FM MODE
Switches the FM signal between
stereo and mono. Switching to
mono mode can make weak
FM signals sound clearer.
8. FAV
Takes you to the FAVORITES screen (see Page 3)
9. PRESET
Places the DTNR into PRESET mode.
10. STEP /
In PRESET mode: The STEP button is used to step through the preset stations you have
programmed in memory.
In DIRECT mode: The STEP button is used to search Up or Down through the band (AM or
FM) selected. Hold down the STEP button for 0.5 to 2 seconds to begin search. When a
station is tuned in, the tuning process will stop automatically.
11. DIRECT
Places the DTNR into DIRECT mode.
RS232 CONTROL
As explained at the beginning of
this section, VIA! Touch Panels
can be configured in many ways.
These example screens show the
factory-default layouts with the
Silky Blue ‘motif’.
The FAVORITES Screen
1. MESSAGE CENTER
Displays important user
feedback such as station
selected, Band (AM/FM),
Stereo/Mono, Direct/Preset
modes.
2. NEXT
Takes you to the DIRECT screen
(see Page 5)
3. FAV1-FAV16
Selects preset stations 1-16. Buttons can be renamed to reflect a station’s frequency (i.e.
102.7) or call letters (i.e. WNEW). Additional Presets can be accessed from the DIRECT
screen (see Page 5).
USER’S GUIDE AND INSTALLATION MANUAL DTNR
1
4
ELAN HOME SYSTEMS
© ELAN Home Systems 2003 • All rights reserved. 11/03 Page 4
4
10
2
3
8
5
6
7
11 9
DTNR-manual-FINAL-dupe 11/10/03 9:45 AM Page 4

ELAN HOME SYSTEMS
Page 5 © ELAN Home Systems 2003 • All rights reserved. 11/03
DTNR USER’S GUIDE AND INSTALLATION MANUAL
4. STEP /
In PRESET mode: The STEP button is used to step through the preset stations you have
programmed in memory. Press and hold to scan through the presets.
In DIRECT mode: The STEP button is used to search Up or Down through the band (AM or
FM) selected. Press the STEP button to begin search. When a station is tuned in, the tuning
process will stop automatically.
5. MESSAGE CENTER
6. FAV
Takes you to the
FAVORITES screen.
7. AM
Selects the AM band.
8. FM
Selects the FM band.
9. FM MODE
Switches the FM
signal between
stereo and mono.
Switching to mono
mode can make weak FM signals sound clearer.
10. MEMORY
Press to store a station into the DTNR’s memory (see Storing Presets, below)
11. STEP /
In PRESET mode the STEP button is used to step through the preset stations you have
programmed in memory.
In DIRECT mode the DIRECT button is used to search Up or Down through the band (AM
or FM) selected. Press the STEP button to begin search. When a station is tuned in, the
tuning process will stop automatically.
12. PRESET
Places the DTNR into PRESET mode.
13. DIRECT
Places the DTNR into DIRECT mode.
14. 0-9
In PRESET mode, the numeric buttons will allow you to access Preset stations 1-30 by
entering the appropriate two-digit number, i.e. Preset 1 = 01, Preset 30 = 30. There are 60
Presets available per tuner – 30 FM presets and 30 AM presets.
In DIRECT mode, the numeric buttons will allow you to directly access a station by entering
its frequency, i.e. 1063 = 106.3.
STORING PRESETS FROM A VIA! TOUCH PANEL (RS232 only)
• Up to 30 FM and 30 AM presets can be stored in the DTNR’s memory for each tuner. That’s
a total of 120 presets – 60 for TUNER1 and 60 for TUNER2.
• Up to 16 presets per tuner can be accessed from the favorites screen on the VIA! Touch Panel.
• All 120 presets can be accessed from the DIRECT screen by entering the two-digit preset
number.
9
6
7
8
10
5
13 11
12
The DIRECT Screen
14
DTNR-manual-FINAL-dupe 11/10/03 9:45 AM Page 5

ELAN HOME SYSTEMS
© ELAN Home Systems 2003 • All rights reserved. 11/03 Page 6
USER’S GUIDE AND INSTALLATION MANUAL DTNR
CONTROLLING THE DTNR USING ELAN KEYPADS
Your DTNR can also be controlled from ELAN keypads. It is up to your ELAN
installer/programmer to assign DTNR commands to each keypad button, and it is important that
you consult with them so that you know which button performs which command. As a rule of
thumb, it is best to keep the commands as user-friendly as possible since, unlike VIA! Touch
Panels, there are no messages displayed on a keypad to inform you of the DTNR’s status.
Generally, the following commands might be assigned to these buttons:
Make sure to consult you ELAN installer/programmer for detailed button/function information.
COMMAND
Tune/Preset Up/Down
Direct/Preset Select
KEYPAD BUTTON
Control / or <<I >>I
0-9
To enter a PRESET into the DTNR’s memory:
1. Select the AM or the FM band by pressing the corresponding button.
2. Press the DIRECT button to select the manual tuning mode.
3. Select the station you want to listen to by pressing the STEP button or the numeric
buttons.
4. Press the MEMORY button. You will see Memory displayed in the VIA!’s Message Center.
5. Enter the two-digit preset number you wish to store the station under. You will see the
number displayed in the VIA!’s Message Center.
6. To store more stations, repeat steps 3 thru 5.
ELAN Z100/Z150 Keypads ELAN Z250 Keypad
DTNR-manual-FINAL-dupe 11/10/03 9:45 AM Page 6

ELAN HOME SYSTEMS
Page 7 © ELAN Home Systems 2003 • All rights reserved. 11/03
DTNR USER’S GUIDE AND INSTALLATION MANUAL
FRONT PANEL & REMOTE CONTROL OPERATION
Function Names
A. REMOTE SENSOR
Receives IR information from infrared emitters and the remote control.
B. STANDBY indicator
This LED is lit when the unit is in the standby mode. When the unit is
turned on, the LED goes off.
C. POWER switch
Press this to switch the unit between ON and STANDBY. The equipment
draws nominal non-operating power from the AC outlet when it is in
STANDBY mode.
D. FM button, AM button
Use these buttons to select either FM or AM.
E. FM MODE button
Use this button to select either FM stereo or FM monaural reception.
F. PRESET button
Use this button to select the Preset Tuning Mode. In Preset Mode, the
numeric buttons on the remote control or front panel can be used to
directly access preset stations that have been stored in the DTNR’s
memory.
G. DIRECT button
Use this button to select the Manual Tuning Mode. In Manual Tuning
Mode, the numeric buttons on the remote control or front panel can be
used to directly input the frequency numbers of radio stations.
H. MEMORY button
Use this button to store preset stations into memory.
I. TUNING/PRESET buttons
Use these buttons to tune in a station.
J. Numeric buttons
These buttons are used either to input frequency numbers or to select
preset stations.
K. LCD Display
DTNR-manual-FINAL-dupe 11/10/03 9:45 AM Page 7
