Owner’s Manual
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number
of the set.
See the label attached on the set and
quote this information to your dealer
when you require service.
DISHWASHER
MODEL: EDW-M1368D(BS)

CONTENTS
1. SAFETY PRECAUTIONS…………....………………………………………………………………………………………….1-3
2. INSTALLATION………………………………………………………………………………………………………………………4-5
3. PRODUCT OVERVIEW……………………………………………………………………………………………………………….6
4. BEFORE USING THE APPLIANCE…………………………………………………………………………………………7-10
5. LOADING YOUR DISWASHER………………………………………………………………………………………….11-13
5.1 ALTERNATIVE BASKET LOADS……………………………………………………………………………………………14-15

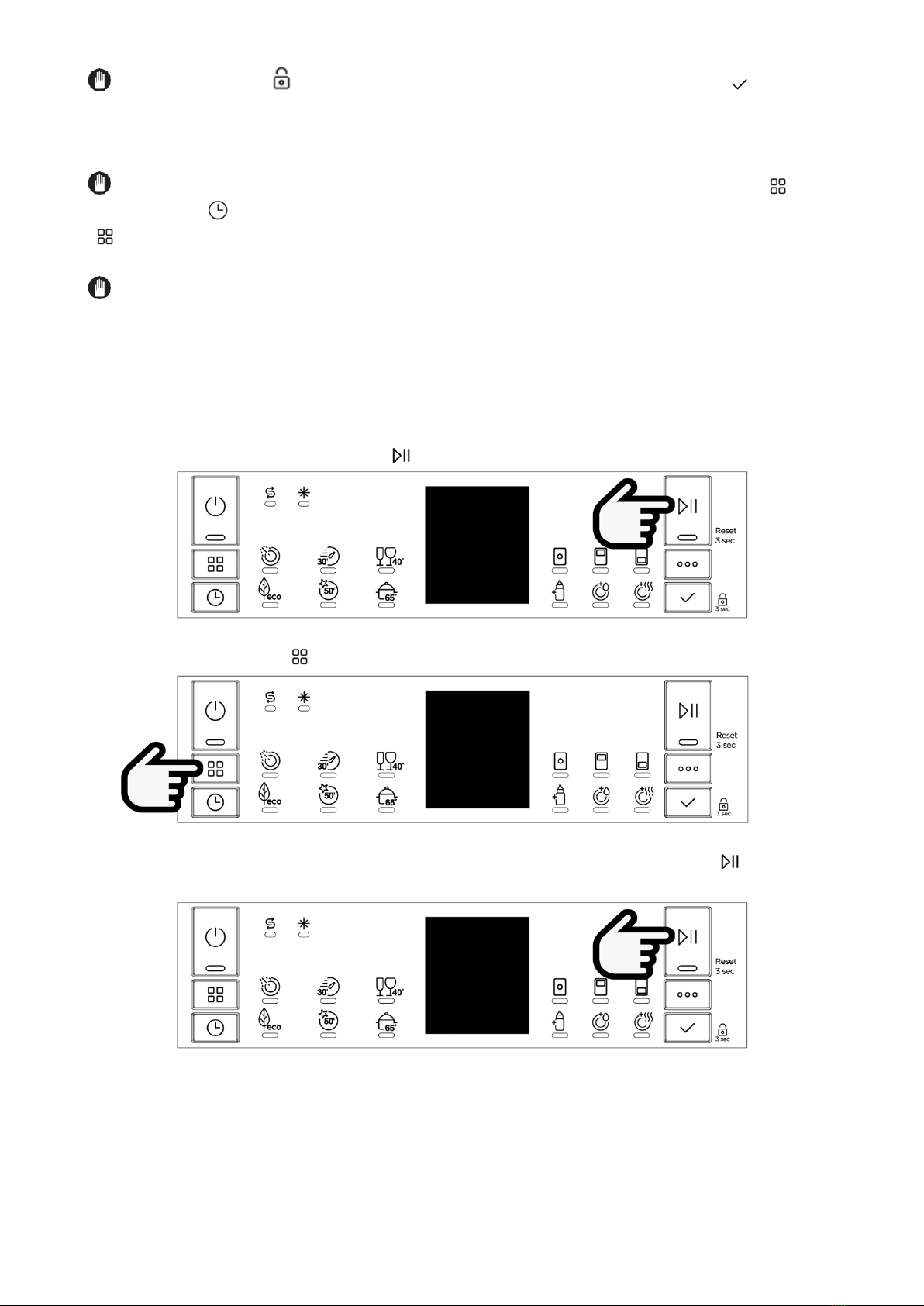

6. CONTROL PANEL DESCRIPTIONS…………………………………………………………………………………….15-18
6.1 CHANGING A PROGRAM………………………………………………………………………………………………..…... 18
6.2 CANCELLING A PROGRAM……………………………………………………………………………………………………..19
6.3 SWITCHING THE MACHINE OFF……………………………………………………………………………………………..19
6.4 BUZZER SOUND………………………………………………………………………………………………………………….. 20
6.5 SAVE POWER MODE…………………………………………………………………………………………………………….. 20
7. PROGRAM TABLE…………………………………………………………………………………………………………………….21
8. CLEANING AND MAINTENANCE…………………………………………………………………………………….22-23
9. TROUBLESHOOTING…….……………………………………………………………………………………………………….24
10.ERROR CODE…….……………………………………………………………………………………………………………………. 25
11.TECHNICAL SPECIFICATION…….…………………………………………………………………………………………….26

1
REMOVE ALL PACKING MATERIALS FROM THIS PRODUCT BEFORE USING IT. THIS
APPLIANCE MUST BE INSTALLED IN LEVEL. PLEASE ENSURE THE ELECTRICITY
SUPPLY TO THIS APPLIANCE IS DISCONNECTED BEFORE INSTALLING.
Please read this instruction carefully. It is advisable to keep this instruction manual in a
safe place for future reference.
1. SAFETY PRECAUTIONS
1. Keep this appliance out of reach from children. Do not let them to operate the
appliance without supervision.
2. Check the current rating on the rating plate and make sure the current supplied is
matched with the appliance before using.
3. This product is for household and indoor use only.
4. This product is not intended for use by person (including children) with reduced
physical, sensory or mental capabilities unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
5. If the power cord or plug is damaged, it must be replaced by the service centre or a
qualified service technician to avoid hazard.
6. Any electrical work required to install this appliance should be carried out by a
qualified technician or competent personnel.
WARNING - to reduce the risk of fire or injury to persons or property, please
read and follow below instructions carefully:
•Do not operate this appliance if it has malfunctioned, damaged or appears damaged in
any way. Make enquiry to our service centre and return the complete set to the place of
purchase for inspection, repair or replacement.
•This appliance must be grounded and the ground wire should not be connected to any
heating pipe and gas pipe.
•The plug must be plugged into an appropriate outlet that is installed and grounded in
accordance with all local codes and ordinances.
•Do not abuse, sit or stand on the door or dish rack of the unit.
•Do not operate the appliance unless all enclosure panels are properly in place. Open
the door carefully if the appliance is operating, there will be risk of water squirting out.
•Do not place heavy objects or stand on the appliance door when it is open.

2
INSTALLATION WARNINGS
•Choose a suitable and safe place to install your machine.
•Only original spare parts should be used with the machine.
Unplug the machine before installation.
Your machine must only be installed by an authorised service agent. Installation by
anyone other than an authorised agent may cause your warranty to be void.
Check that the indoor electrical fuse system is connected in line with safety
regulations.
All electrical connections must match the values on the plate.
Ensure the machine does not stand on the electrical supply cable.
Never use an extension cord or a multiple socket connection.
The plug should be accessible after the machine is installed.
•After installation, run your machine unloaded for the first time.
The machine must not be plugged in during positioning.
Always use the coated plug supplied with your machine.
If the electrical cable is damaged, it should only be replaced by a qualified
electrician.
•Connect the hose directly to the water inlet tap. The pressure supplied by the tap
should be a minimum of 0.03 MPa and a maximum of 1 MPa. If the pressure exceeds 1
MPa, a pressure relief valve must be fitted between the connection.
DURING USAGE
•This machine is for domestic use only; do not use it for other purposes. Commercial
use will void the guarantee.
Do not stand, sit or place loads on the open door of the dishwasher.
Only use detergents and rinse aids produced specifically for dishwashers. Our
company is not responsible for any damage that may occur due to misuse.
Do not drink water from the machine.
Due to the danger of explosion, do not place any chemical dissolving agents into the
machine’s washing section.
•Check the heat-resistance of plastic items before washing them in the machine.
Only put items in the machine which are suitable for dishwashing, and take care not to
overfill the baskets.
Do not open the door while the machine is in operation, hot water may spill out. Safety
devices ensure the machine stops if the door is opened.
The machine door should not be left open. It may cause accidents.
Place knives and other sharp objects in the cutlery basket in a blade-down position.

3
For models with the automatic door-opening system, when the Energy Save option
is active, the door will open at the end of a program. To prevent damage to your
dishwasher, do not attempt to close the door for one minute after it has opened. For
effective drying, keep the door open for 30 minutes after a programme has ended. Do not
stand in front of the door after the auto-open signal sounds.
In the case of a malfunction, repair should only be performed by an authorised service
company, otherwise the warranty will be void.
Before repair work, the machine should be disconnected from the mains. Do not
pull the cable to unplug the machine. Switch off the water tap.
Operation at a low voltage will cause a decline in performance levels.
For safety, disconnect the plug once a program has finished.
To avoid an electric shock, do not unplug the machine with wet hands.
Pull the plug to disconnect the machine from the mains, never pull on the cord.
RECYCLING
•Some machine components and packaging consist of recyclable materials.
•Plastics are marked with the international abbreviations:(>PE<, >PP<, etc. )
•The cardboard parts consist of recycled paper. They can be put into waste paper
containers for recycling.
•Material unsuitable for domestic waste must be disposed of at recycling centres.
•Contact a relevant recycling centre to obtain information about disposal of different
materials.
PACKAGING AND THE ENVIRONMENT
•Packaging materials protect your machine from damage that may occur during
transportation. The packaging materials are environmentally friendly as they are
recyclable. The use of recycled material reduces raw material consumption and
therefore decreases waste production.
DISPOSAL OF YOUR OLD MACHINE
The symbol on the product or on its packaging indicates that this product may
not be treated as household waste. Instead, it shall be handed over to the
applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human health, which
could otherwise be caused by inappropriate waste handling of this product. For more
detailed information about recycling of this product, please contact your local city office,
your household waste disposal service or the shop where the product was purchased.

4
2. INSTALLATION
MACHINE POSITIONING
•When positioning the machine, place it in an area where dishes can be easily loaded
and unloaded. Do not put the machine in an area where the ambient temperature falls
below 0°C.
•Read all warnings located on the packaging before removing the packaging and
positioning the machine.
•Place the machine close to a water tap and drain. Take into consideration that the
connections will not be altered once the machine is in position.
•Do not hold the machine by its door or panel.
•Leave an adequate distance around the machine to allow ease of movement when
cleaning.
Ensure the water inlet and outlet hoses are not squeezed or trapped and that the
machine does not stand on the electrical cable while positioning.
•Adjust the feet so the machine is level and balanced. The machine should be placed on
flat ground otherwise it will be unstable and the door of the machine will not close
properly.
WATER CONNECTION
We recommend fitting a filter to your water inlet supply in order to prevent damage to your
machine due to contamination (sand, rust, etc.) from indoor plumbing. This will also help
prevent yellowing and deposit formation after washing.
NOTE: Cold water preferred; hot water max. temperature 60 °C.
WATER INLET HOSE
WARNING: Use the new water inlet hose supplied with your machine, do not use an
old machine’s hose.
WARNING: Run water through the new hose before connecting.
WARNING: Connect the hose directly to the water inlet tap. The pressure supplied by
the tap should be a minimum of 0.03 MPa and a maximum of 1 MPa. If the pressure
exceeds 1 MPa, a pressure relief valve must be fitted between the connection.
WARNING: After the connections are made, turn the tap on fully and check for water
leaks. Always turn off the water inlet tap after a wash program has finished.

5
DRAIN HOSE
Connect the water drain hose directly to water drain hole or to the sink outlet spigot. This
connection should be minimum 50 cm and maximum 110 cm from floor.
IMPORTANT: Items will not wash properly if a drain hose longer than 4m is used.
ELECTRICAL CONNECTIONE
WARNING: Your machine is set to operate at 220-240 V~.
Connect the product to a grounded outlet protected by a fuse complying with the
values in the "Technical Specifications" table (PAGE 24).
The earthed plug of the machine must be connected to an earthed outlet supplied
by suitable voltage and current.
In the absence of earthing installation, an authorised electrician should carry out an
earthing installation. In the case of use without earthing installed, we will not be
responsible for any loss of use that may occur.
The plug on this appliance is incorporate 13A fuse.

6
3. PRODUCT OVERVIEW
1. Top panel
2. Upper basket
3. Upper spray arm
4. Lower basket
5. Lower spray arm
6. Metal Filters
7. Rating plate
8. Control panel

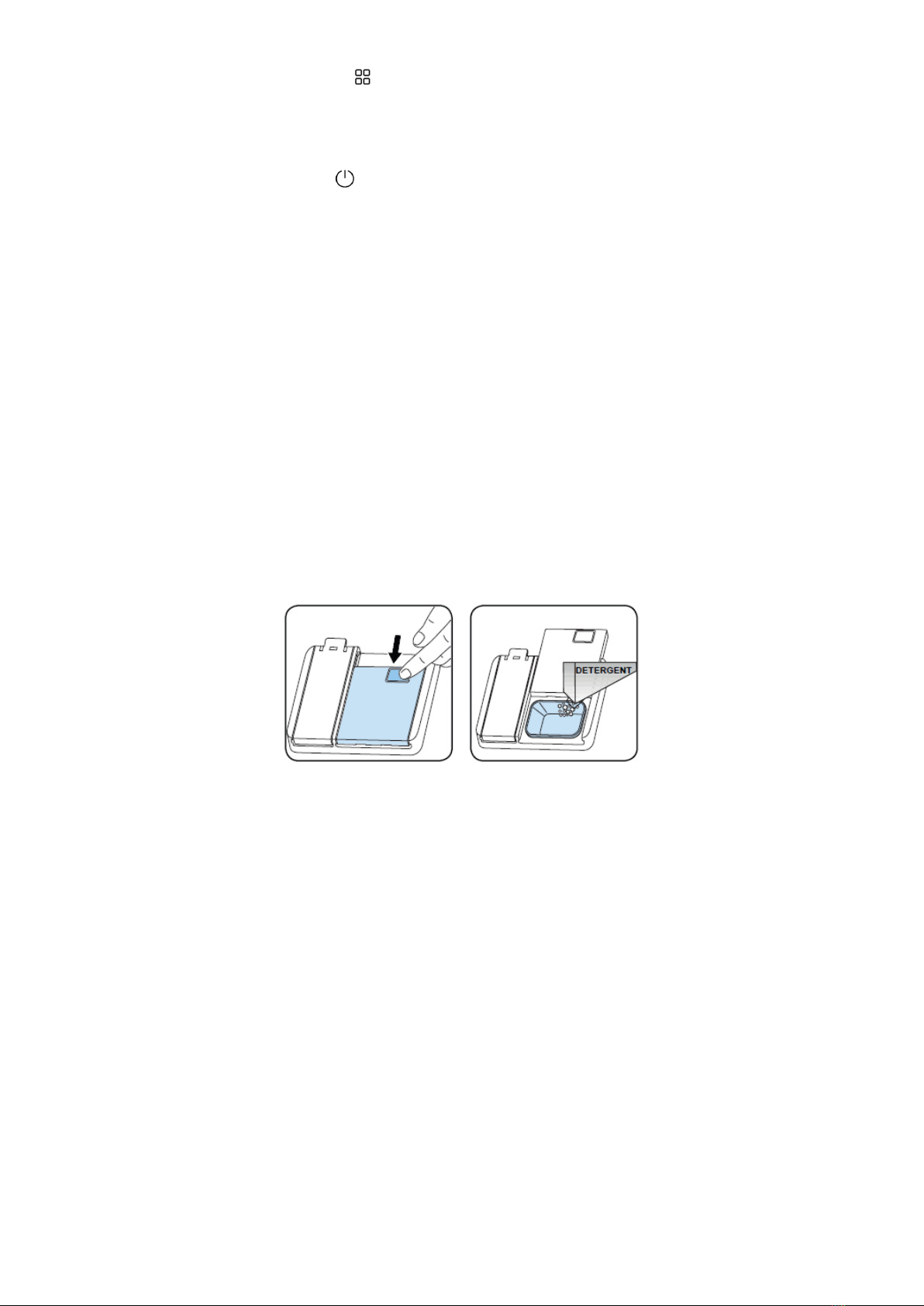

9. Detergent and rinse-aid dispenser
10.Salt dispenser

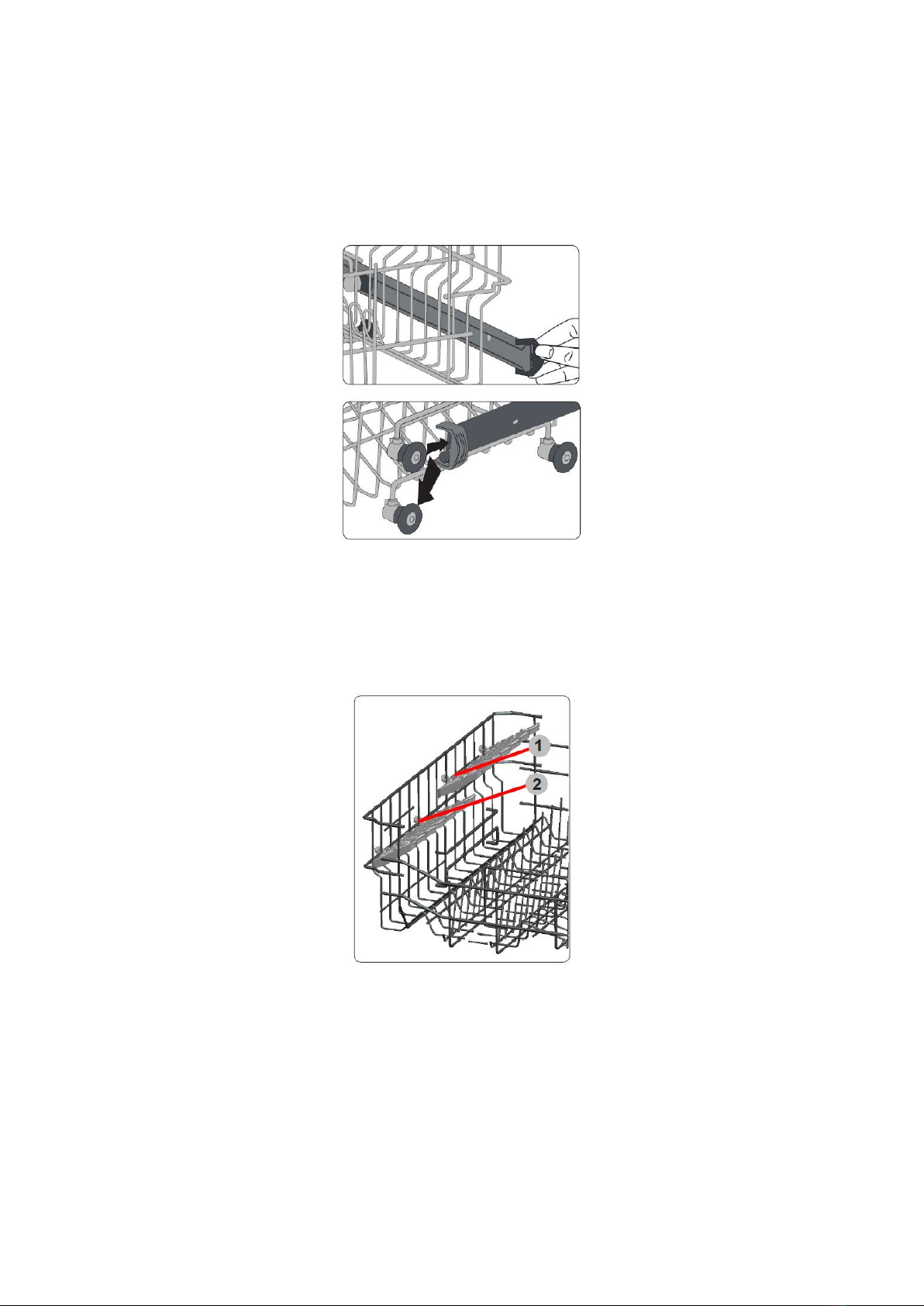

11.Upper Basket Track Latch
12.Upper Cutlery Basket (Third Rack)
13.Active Drying Unit: This system provides better drying performance.

7
4. BEFORE USING THE APPLIANCE
Preparing your dishwasher for first use
•Make sure the electricity and supply water specifications match the values indicated in
the installation instructions for the machine.
•Remove all packaging material inside the machine.
•Set the water softener level.

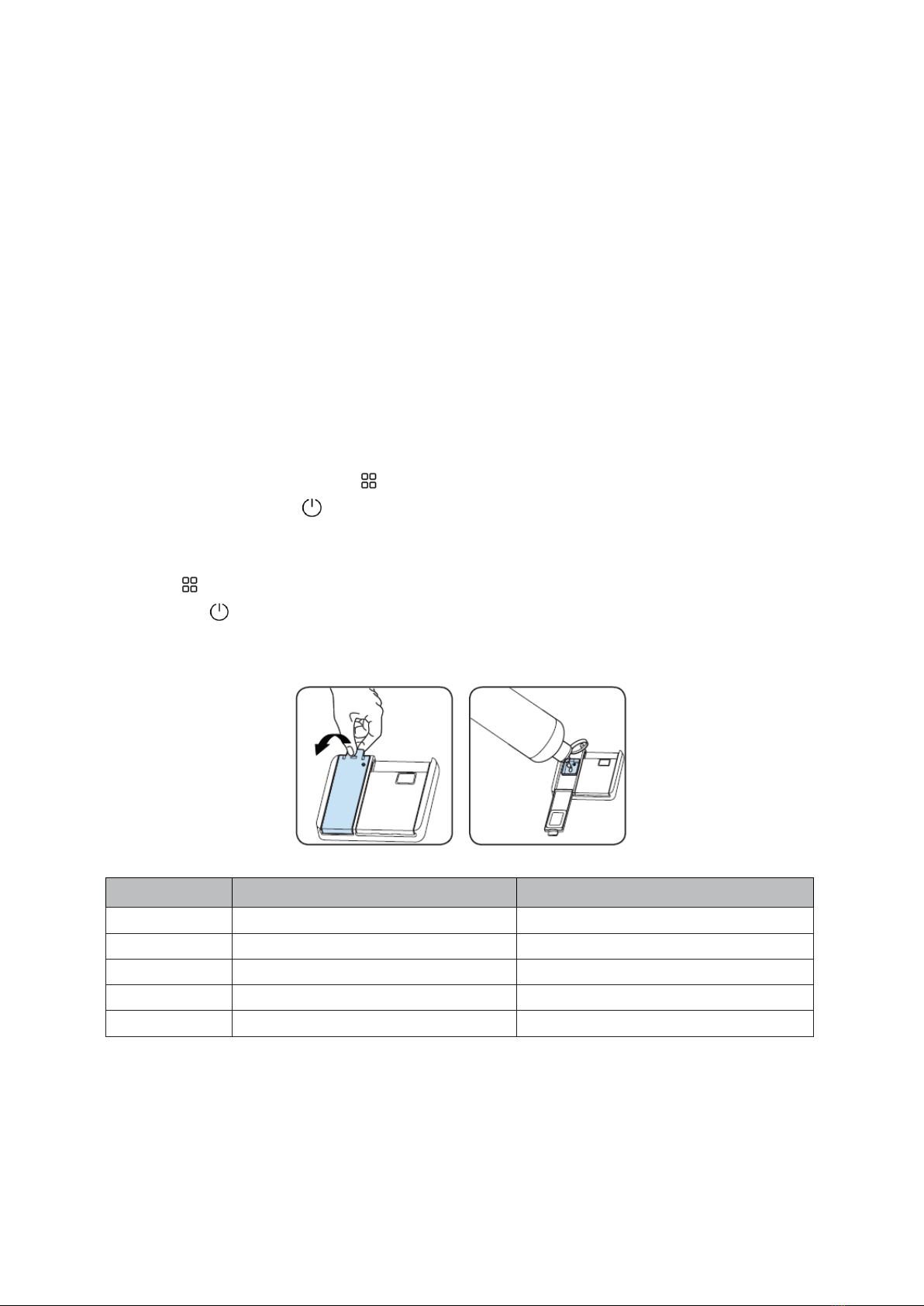

•Fill the rinse aid compartment.
Salt usage (If Available)
For a good washing function, the dishwasher needs soft, i.e. less calcareous water.
Otherwise, White lime residues will remain on the dishes and the interior equipment. This
will negatively affect your machine’s washing, drying and shining performance. When
water flows through the softener system, the ions forming the hardness are removed from
the water and the water reaches the softness required to obtain the best washing result.
Depending on the level of hardness of the inflowing water, these ions that harden the
water accumulate rapidly inside the softener system. Therefore, the softener system has to
be refreshed so that it operates with the same performance also during the next wash. For
this purpose, dishwasher salt is used.
Machine can only be used by special dishwasher salt to soften the water. Do not use any
small grained or powdered type of salts which can easily soluble. Using any other type of
salt can damage your machine.
Fill the salt (If Available)
•Step 1 & 2: To add softener salt, open the salt compartment cap by turning it counter
clockwise.
•Step 3: At first use, fill the compartment with 1 kg salt and water until it is almost
overflowing.
If available, using a funnel will make filling easier. Replace the cap and close it. After
every 20-30 Cycles add salt into your machine until it fills up (approx. 1 kg).

8
Only add water to the salt compartment on first use.
•Use softener salt specifically produced for use in dishwashers.
•When you start your dishwasher, the salt compartment is filled with water, therefore put
the softener salt in prior to starting your machine.
•If the softener salt has overflowed and you do not start the machine immediately, run a
short washing program to protect your machine against corrosion.
Test Strip
Unbox the
test strip
Run water
through the
tap
Keep the
strip in the
water
Shake the
Strip
Wait
Set the hardness level of
your machine
NOTE: The level is set to 3 as default. If the water is well water or has a hardness level
above 90 dF, we recommend that you use filter and refinement devices.
Water Hardness Table
Level
German
dH
French
dF
British
dE
Indicator
1
0-5
0-9
0-6
L1 is seen on the display.
2
6-11
10-20
7-14
L2 is seen on the display.
3
12-17
21-30
15-21
L3 is seen on the display.
4
18-22
31-40
22-28
L4 is seen on the display.
5
23-31
41-55
29-39
L5 is seen on the display.
6
32-50
56-90
40-63
L6 is seen on the display.
Water Softener System
The dishwasher is equipped with a water softener which reduces the hardness in the
mains water supply. To find out the hardness level of your tap water, please use the test
strip (if available).
Setting
•Turn on the machine by pressing the On/Off button “ ”.
•Press the Program button “ ” for at least 3 seconds immediately after the machine is
turned on.
•Release the Program button “ ” when “SL” is shown. Next, the last setting level is
displayed.
1
min
1
sec
1
min

9
•Press the program button “ ” to set the desired level. Each press of the program
button increases the level. Once level 6 has been reached, the next press returns the
level to 1.
•The last selected water hardness level is stored in the memory by turning the machine
off with the On/Off button “ ”.
Detergent usage
Only use detergents specifically designed for domestic dishwashers. Keep your detergents
in cool, dry places out of reach of children.
•Add the proper detergent for the selected program to ensure the best performance.
The amount of detergent needed depends on the cycle, load size, and soil level of
dishes.
•Do not fill detergent into the detergent compartment more than required; otherwise you
can see whitish streaks or bluish layers on glass and dishes and may cause glass
corrosion. Continued use of too much detergent may cause machine damage.
•Using little detergent can result in poor cleaning and you can see whitish streak sin
hard water.
NOTE: See the detergent manufacturer’s instructions for a further information.
Filling the detergent
•Push the latch to open the dispenser and pour in the detergent.
•Close the lid and press it until it locks in place. The dispenser should be refilled just
before the start of each programme. If the dishes are heavily soiled, place additional
detergent in the pre-wash detergent chamber.
Using combined detergents
•These products should be used according to the manufacturer’s instructions.
•Never put combined detergents into the interior section or the cutlery basket.
Combined detergents contain not only the detergent but also rinse-aid, salt
replacement substances and additional components depending on the combination.
•We recommend you do not use combined detergents in short programmes. Please use
powder detergents instead. If you encounter problems when using combined
detergents, please contact the detergent manufacturer.
•When you stop using combined detergents, make sure that water hardness and rinse
aid settings are set to the correct level.

10
Rinse-aid usage
•The rinse aid helps to dry the dishes without streaks and stains. Rinse-aid is required
for stain-free utensils and clear glasses. The rinse aid is automatically released during
the hot rinse phase.
•If rinse aid dosage setting set too low, whitish stains remains on dishes and dishes do
not dry and washed clean.
•If rinse aid dosage setting set too height, you can see bluish layers on glass and
dishes.
Filling the rinse-aid and setting
To fill the rinse aid compartment, open the rinse-aid compartment cap. Fill the
compartment with rinse aid to the MAX level and then close the cap. Be careful not to
overfill the rinse aid compartment and wipe up any spills.
In order to change the rinse aid level, follow the below steps before turning on the
machine:
•Push the programme button “ ” and hold it down.
•Turn the machine on “ ”. Hold down the programme button until “rA” disappears from
the display. Rinse aid setting follows water hardness setting.
•The machine will display the last setting. Set the level by pushing the programme
button “ ”.
•Switch off “ ” the machine to save the setting.
•The factory setting is “4”. If the dishes are not drying properly or are spotted, increase
the level. If blue stains form on your dishes, decrease the level.
Level
Brightener Dose
Indicator
1
Rinse-aid notdispensed
r1 is shown on thedisplay.
2
1 dose is dispensed
r2 is shown on thedisplay.
3
2 doses aredispensed
r3 is shown on thedisplay.
4
3 doses aredispensed
r4 is shown on thedisplay.
5
4 doses are dispensed
r5 is shown on the display.

11
5. LOADING YOUR DISHWASHER
For best results, follow these loading guidelines.
Loading the household dishwasher up to the capacity indicated by the manufacturer will
contribute to energy and water savings.
Manual pre-rinsing of tableware items leads to increased water and energy consumption
and is not recommended You can place cups, glasses, stemware, small plates, bowls, etc.
in upper basket. Do not lean long glasses against one another or they cannot remain
steady and may receive damage.
When placing long stem glasses and goblets, lean them against the basket edge or rack
and not against other items.
Place all containers such as cups, glasses and pots into the dishwasher with the opening
facing downwards otherwise water can collect on items. If there is cutlery basket in
machine, you are recommended to use the cutlery grid in order to obtain the best result.
Place all large (pots, pans, lids, plates, bowls etc.) and very dirty items in the lower rack.
Dishes and cutlery should not be placed above each other.
WARNING: Take care not to obstruct the rotation of spray arms.
WARNING: Make sure after loading the dishes do not prevent opening the detergent
dispenser.
Recommendations
Remove any coarse residue on dishes before placing the dishes in the machine. Start the
machine with full load.
Do not overload the drawers or place dishes in the wrong basket.
WARNING: To avoid any possible injuries, place long-handle and sharp-pointed
knives with their sharp points facing down or horizontally on the baskets.

12
Upper Basket
1. Height adjustment
Turn the Rail Stop Clips, at the ends of the rails, to the sides to open them (as shown in
the image below), then pull out and remove the basket. Change the position of the wheels,
then reinstall the basket to the rail, making sure to close the Rail Stop Clips. When the
upper basket is in the higher position, large items such as pans can be placed on the lower
basket.
2. Height Adjustable Rack (Mug Shelf)
The height adjustable racks enable glasses and cups to be placed on or under the racks.
The racks can be adjusted to 2 different heights. Cutlery and utensils can also be placed
on the racks horizontally.

13
3. Height Adjustable Rack
The foldable racks in the upper basket enable the placement of large items such as pots
and pans. Each section can be folded separately. The foldable racks can be either raised
up or folded down.
4. Lower Basket Two Folding Racks
The folding racks on the lower basket allow for the placement of larger items, such as pots
and pans. Each section can be folded separately. They can either be folded down or
raised up, as shown in the images below.
5. Upper Cutlery Basket (Third Rack)
The upper cutlery basket is designed for the placement of large and small cutlery and
utensils.
WARNING: Knives and other sharp objects must be placed horizontally in the cutlery
basket.
1
2

14
5.1 ALTERNATIVE BASKET LOADS:
LOWER BASKET
UPPER BASKET
INCORRECT LOADS
Incorrect loading can cause poor washing and drying performance. Please follow the
recommendations for a good performance result.

15
Unsuitable items for dishwashing
•Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron-alloy
materials.
•Forks, spoons and knives with wooden, bone, ivory or nacre coated handles; glued
items, items soiled with abrasive, acidic or base chemicals. Temperature-sensitive
plastics, copper or tin coated containers.
•Aluminium and silver objects.
•Some delicate glasses, ornamental printed porcelains; some crystal items, adhered
cutlery, lead crystal glasses, cutting boards, synthetic fibres items.
•Absorbent items such as sponges or kitchen rugs.
IMPORTANT: Purchase dishwasher-proof kitchenware.
6. CONTROL PANEL DESCRIPTIONS
1. On/Off button
2. Program Selection Button
3. Delay Start Button
4. Remaining Time Indicator
5. Start/Pause Button
6. Auxiliary Function Button
7. Select Button
8. Rinse Aid Indicator
9. Salt Indicator
10.Tablet Indicator
11.Half Load Quick Wash Indicators
12.i-CLEAN TECH Indicator
13.Extra Rinse Indicator
14.Extra Dry Indicator
15.Washing Indicators
a. Washing Indicator
b. Rinse Indicator
c. Drying Indicator
d. End Indicator
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

16
On/Off Button
Switch the machine on by pressing the On/Off button “ ”. The On/Off “ ” indicator lights
as long as the machine is on. If any button is not pressed, the machine turns off
automatically after 15 minutes.
Program Selection Button
Select a suitable program by pressing Program Selection button “ ”.
Delay Start Button
You can delay the start time of the program for 1-2...24 hours by pressing the Delay button
“ ” before the program starts. To activate the delay time, press Start/Pause button “ ”. If
you want to change the delay time, first press the Start/Pause button “ ” and then the
delay button to select a new delay time. To activate the new delay time, press the
Start/Pause button “ ” again. To cancel the delay, you need to switch to 0 hour by
pressing the Delay button “ ”.
If you switch off the machine after selecting and activating the delay time, the delayed time
is cancelled.
Remaining Time Indicator
Program flow can be monitored via the Wash , Rinse , Dry , End indicator and
remaining time indicator. While the Dry indicator is on, the machine remains silent for
about 15-50 minutes with respect to the flow of the program you have selected.
Start/Pause Button
Press the Start/Pause button “ ” to start the selected program. The wash indicator turns
on and the remaining time indicator shows the program duration. It also indicates the
remaining time during the program flow. If you open the door of your machine when the
program is running the duration of the program pauses, and the Start/Pause “ ” indicator
blinks.
Auxiliary Function Button
Auxiliary function can be selected by pressing the Auxiliary Function button “ ”
repeatedly. The chosen function will be indicated by a blinking indicator.
Select Button
Select the option by pressing the Select button “ ”. The indicator for the chosen option
will then remain lit.
Rinse Aid Indicator
When the rinse aid level is low, the rinse aid lack warning indicator “ ” turns on and you
should fill the rinse aid chamber.

17
Salt Indicator
When there is insufficient softening salt, the salt lack warning indicator “ ” turns on and
you should fill up the salt chamber.
Tablet
Select the Auxiliary Function button “ ” when using combined detergent that contains
salt and rinse aid and extra functions. Press the Select button “ ”, the indicator for the
tablet indicator “ ” will on.
Half Load Quick Wash
Select the Auxiliary Function button “ ” by selecting the half load quick wash, three
sorts of washing can be executed: both baskets, upper basket “ ” and lower basket “ ”.
These options are ideal for smaller loads, allowing the dishwasher to perform smaller
washes with reduced consumption. Press the Select button “ ”, the indicator for the Half
Load Quick Wash will on.
i-CLEAN TECH
Select the Auxiliary Function button “ ”, you may select i-CLEAN TECH “ ” in order to
obtain a more hygienic and a cleaner washing process by altering the water temperature
and washing time of the program you have selected. Press the Select button “ ”, the
indicator for i-CLEAN TECH will on.
Extra Rinse
Select the Auxiliary Function button “ ” and if the Extra Rinse “ ” is selected, washing-
rinsing steps will be added into the selected program, so you can ensure that your dishes
will be extra clean and shiny. Press the Select button “ ”, the indicator for Extra Rinse
“ ” will on.
Extra Dry
If you select Extra Dry “ ”, extra heating and drying steps will be added into the selected
program, so your dishes will be dried more thoroughly. Press the Select button “ ”, the
indicator for Extra Rinse “ ” will on.
Washing Indicators
You can monitor the program flow with the Washing Indicators on the control panel.
•Wash
•Rinse
•Dry
•End

18
NOTE: Child lock “ ” is activated/deactivated by pressing Select button “ ” for about
3 seconds. When it is activated, all indicator blink and “CL” is shown on remaining time
indicator once. When it is deactivated, all indicator and “CL” blink twice.
NOTE: To save any program as favourite program, press Program button “ ” and
Delay button “ ” together. To select favourite program, press and hold Program button
“ ” for 3 seconds.
NOTE: If you switch the machine to off position after selecting the delay time and the
programme has started, the delayed time is cancelled.
6.1 Changing a Program
If you would like to change the program when the machine is already running.
1. Press the Start/Pause button “ ”.
2. After the program stops, select your desired program by pressing Program
Selection button “ ”.
3. Start newly selected program by pressing the Start/Pause button “ ”. The new
program will resume the course of the old program.
