Elba EBDW 3203 MW User manual

EBDW 3203 MW

Toreviewthe sectiononTroubleshootingTips
will help youto solve some common problems
by yourself .
Dear Customer,
Please carefully reading it before using the dishwasher
will help you to use and maintain the dishwasher properly.
Pass it on to any subsequent owner of the appliance.
This manual contains sections of Safety Instructions,
OperatingInstructions,Installation Instructions and
Troubleshooting Tips, etc.
The manufacturer, following a policy of constant
development andupdating of the product, may
make modifications without giving prior notice.
Dishwasher Features.................................... ...3
Attention before or after loading the Dishwasher
Baskets..........................................................8
FilteringSystem.............................................12
Caring for the Dishwasher..................... .........13.
A Loading the Salt into the Softener.................5、
B Fill theRinseAid Dispenser.........................5、
C Function ofDetergent .................................6 、

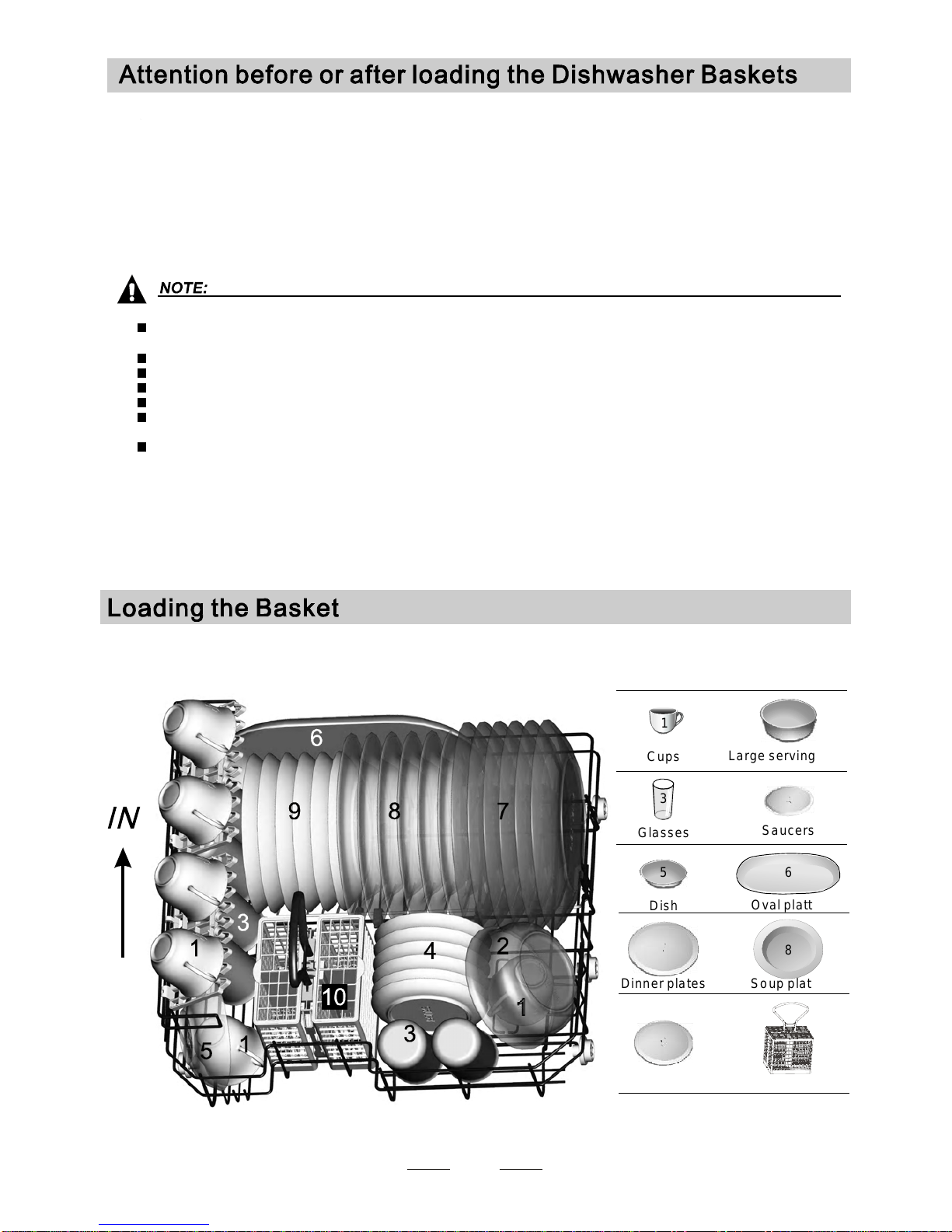

Loading the Basket...........................................8
Cutlery Basket................................................9
Wash CycleTable...........................................10
Turning on theAppliance................................10
Change the Programme.............. ................11....
At the End of the Wash Cycle...........................11

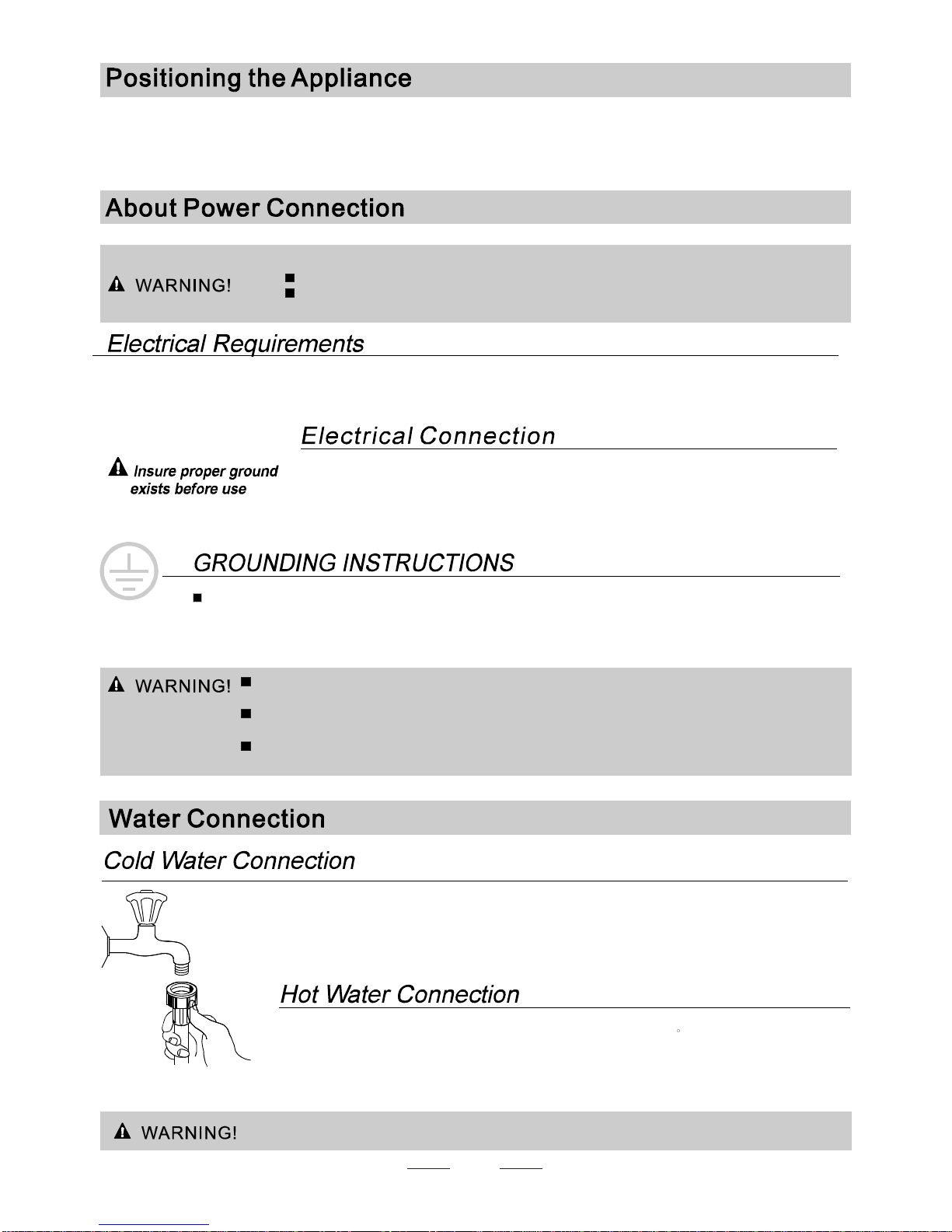

PositioningtheAppliance................... ..........15..
Water Connection.................................. .......15.
About Power Connection........................ .......15.
Connection of Drain Hoses..................... .......16.
Start of dishwasher............................. .. ......17.. ..
Beforecallingfor service........................... .....18.
Errorcodes.................................... ..............19.
Technical information.............................. .....20..
ControlPanel...................................................3
Keep it to refer to at a later date.
If you can not resolve the troubles by yourself ,
please ask for the help of professional technicians.

1
This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of electric shock by providing a path of
least resistance of electric current. This appliance
is equipped with a cord having an equipment-
grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with
all local codes and ordinances.
Keep children away from detergent and rinse aid, keep
child away from the open door of the dishwasher,
there could still be some detergent left inside.
ren
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not touch the heating element during or
immediately after use.
(This instruction is only applicable to machines
with a visual heating element.)
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic items
not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives
designed for an automatic dishwasher.
Never use soap, laundry detergent, or hand
washing detergent in your dishwasher. Keep
these products out of the reach of children.
During installation,the powersupply mustnot
be excessively ordangerouslybentorflattened.
Thedoorshouldnotbe left intheopenposition
sincethis could present atrippinghazards.
Do not tamper with controls.
Do not place any heavy objects of stand on the
door when it is open. The appliance could tip
forward.
When loading items to be washed:
1) Locatesharp itemsso that theyarenot likely
todamagethedoor seal;
2 Warning: Knives and other utensils with
sharp points must be loaded in the basket
with their pointsdown or placedin a
horizontalposition.
)
When using your dishwasher, you should
prevent plastic items from comingintocontact
withheatingelement.(Thisinstruction isonly
applicable to machines with a visual heating
element.)
If the supply cord is damaged, it must be replaced
by themanufacturer or itsservice agent or a
similarly qualified person in order to avoid a
hazard.
Please dispose of packing materials properly.
Use the dishwasher only for its intended function.
Remove the door to the washing compartment when
removing an old dishwasher from service or discarding
it.
Dishwasher detergents are strongly alkaline, they
can be extremelydangerous if swallowed.Avoid
contact with skin and eyesandkeep children away
from the dishwasherwhen the door is open.
Check that the detergent receptible is empty
after completion of the wash cycle.
The applianceis to be connected to the water
mains using new hosesets and that oldhose-sets
should not be reused.
The maximumnumber of placesettingsto be
washed is6.
The maximumpermissible inlet water pressureis
1Mpa.
The minimum permissibleinlet water pressureis
0.04Mpa.
Children should be supervised to ensure that they do
not play with the appliance.
This appliance is not intended for use by persons
(including children with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
)
When using your dishwasher, follow the precautions listed below:
Do not operate your dishwasher unless all
enclosure panels are properly in place. Open
the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
Improper connection of the equipment-grounding
conductor can result in a risk of electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug provided with the appliance; If it is not fit for
the outlet. Have a proper outlet installed by a
qualified electrician.

2
Dispose of the dishwasher packaging material correctly.
All packaging materials can be recycled.
Plastic parts are marked with the standard international abbreviations:
PE for polyethylene, e.g. sheet wrapping material
PS for polystyrene,e.g.padding material
POM polyoxymethylene, e.g. plastic clips
PP polypropylene, e.g. Salt filler
ABS Acrylonitrile Butadiene Styrene, e.g. Control Panel .
Packaging materialcouldbe dangerous for children!
Fordisposing ofpackage and theappliance please goto arecycling centre. Therefore cut
off the powersupplycable and make the door closing device unusable.
Cardboard packaging ismanufactured from recycledpaperand shouldbe disposedin the
waste paper collection for recycling.
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused
by inappropriatewaste handling of this product.
For moredetailed information about recycling of this product, please contact your local
city office and your household waste disposal service.
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such
waste separately for special treatment is necessary.






3
beforeusingit forthe first time.
To get the best performance fromyourdishwasher, read all operating instructions
Front view Back View
Filter assemblyDetergent Dispenser
Cup Shelf
Cutlery Basket RinseAid Dispenser
Inlet pipe connector
Drainpipeconnector
SprayArms Basket
1
Salt Container
5
67 89 10
3
2 4
3
26
4
7 8
910
5
1
PROG.
5
2
3
4
6
7
1
2
Power Button: Toturn on/off the power supply.
Power Light :To be on when the ON/OFF Button is
Pressed down.
WashingProgram Selector: To press the buttonto
select wash cycles.
Start/Reset Button: Press thisbutton to start or
pausethedishwasher.
3in1function Button:To press thebutton When
youneednosaltandrinseaidbut3in1tablet.
(Only forprogram: Intensive/Normal/Eco.)
DelayButton To press the button to delay time
(0~24hours) ：
Child lockfunction:To press3in1 function
button and delay button at the same time.
4
7
8
8
Display: To show delay time, salt warming,
rinse-aid warming, countdown of washing
cycle's time, program what you selected, child
lock function, 3in1 function and so on.
3
5
6

normal for a small amount of water to come out of the salt container.Itis
1. The salt container must only be refilled when the salt warning light in the control panel comes on.
Depending on how fully the salt dissolves, the salt warning light may still be on even though the
salt container is filled.
If there is no salt warning light in the control panel (For some Models),you can judge when to load
the salt into the softener by the cycles that the dishwasher had run.
2. If there are spills of the salt, a soak or a rapid program should be run to remove the excess salt.
Always use salt intended for use withdishwasher.
The salt container is located beneath the basket and should be filled as follows:
Attention!
Only use salt specifically designed for use in dishwashers!All other types of
salt not specifically designed for use in a dishwasher, especially table salt, will
damage the water softener. In case of damages caused by the use of unsuitable
salt the manufacturer does not give any warranty nor is liable forany caused
damages.
Only fill withsalt just before starting one of thecomplete washingprogrammes.
This will prevent any grains of salt or salty water, which may have been split,
remaining of the bottom of the machine for any period of time, whichmay cause
corrosion.
4
The rinse aid isreleased during the final rinse to prevent water from forming droplets onyour dishes.That can leave
spots and streaks. It also improvesdryingby allowing water to sheet off the dishes.Your dishwasher isdesigned to
useliquid rinseaids.The rinse aiddispenser islocated inside thedoor next to the detergent dispenser. To fill the
dispenser, open the cap and pour the rinse aidintothe dispenseruntil thelevel indicatorturnscompletely black.
The volume of the rinse aid container is about 110ml.
RinseAid Dispenser
Function of RinseAid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spotand streak free drying.
ARemove the basket and then unscrew and remove the cap from the salt container.
BBefore first wash, add 1lt. of water in the salt container of your machine.
CPlace the end of the funnel (supplied) into the hole and introduce about 1kg of salt.
DAfter filling the container , screw the cap tightly back clockwise.
EUsually, the salt warning light will be cease to be illuminated within2-6 days afterthe salt container has been filledwith
salt.
FImmediately after filling the salt into the salt container, a washing programme should be started
Otherwisefiltersystem, pumpor other important parts ofthemachinemay be damaged bysalty
water. Itisoutofwarranty.
If your model have water softener, youmay skip this section.no

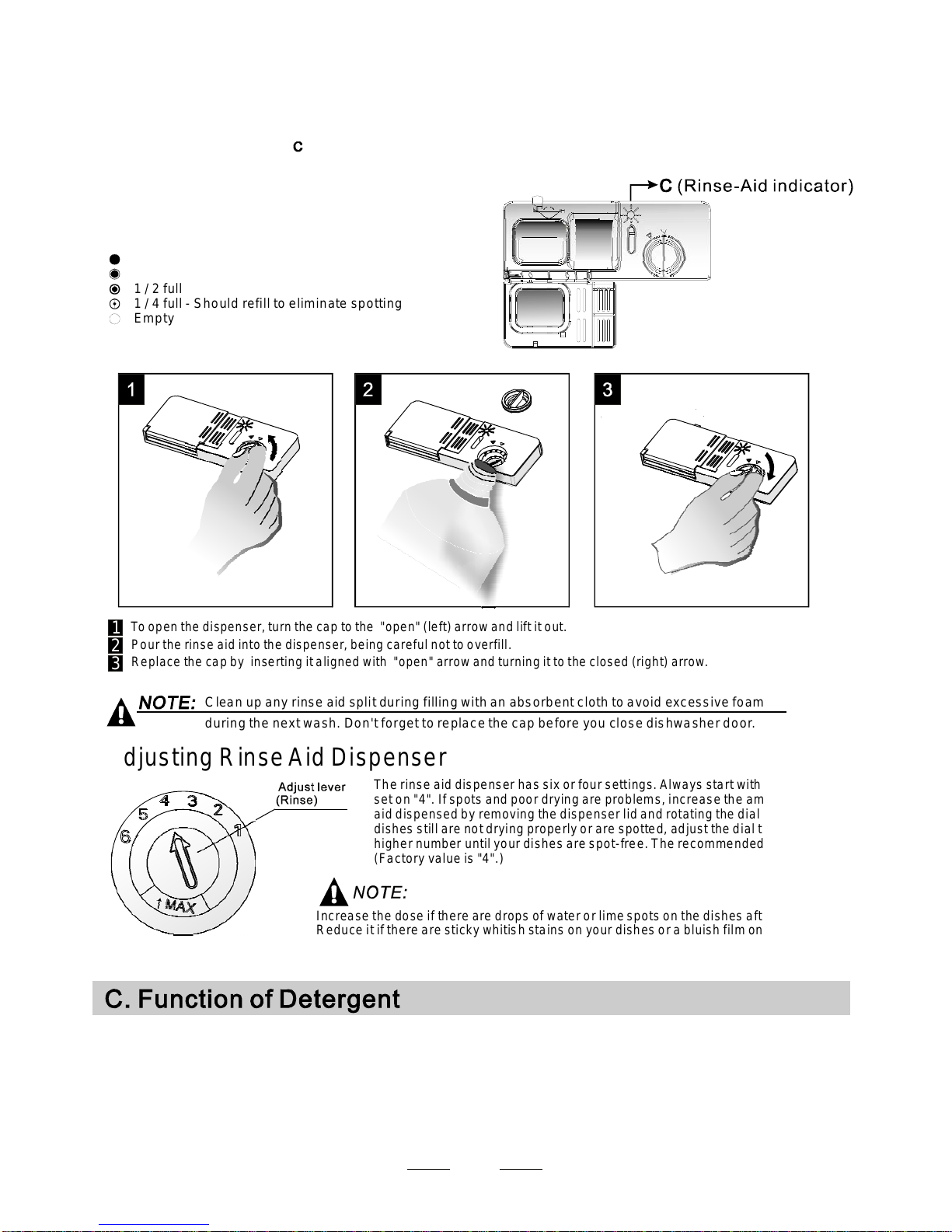

To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser, being careful not to overfill.
Replace the cap by inserting it aligned with "open" arrow and turning it tothe closed (right) arrow.
Adjusting RinseAid Dispenser
The rinse aid dispenser has six or four settings. Always start with the dispenser
set on "4". If spots and poor drying are problems, increase the amount of rinse
aid dispensed by removing the dispenser lid and rotating the dial to "5". If the
dishes still are not drying properly or are spotted, adjust the dial to the next
higher number until your dishes are spot-free.The recommended setting is "4".
(Factory value is "4".)
Increase the dose if thereare drops of waterorlimespots onthe dishes after washing.
Reduce it ifthere are sticky whitish stains on your dishes or abluish film on glasswareor
knife blades.
1
2
3
As the rinse aid diminishes, the size of the black dot
ontherinse aid level indicator changes, as illustrated below.
Full
3/4full
1/2full
1/4 full- Should refillto eliminate spotting
Empty
5
When to Refill the RinseAid Dispenser
If thereis no rinse-aid warning light in the controlpanel, you can judgethe amount of rinse-aid by the color
oftheoptical levelindicator located next to the cap. Whentherinse-aidcontainer isfull, the whole
indicator will be dark .As the rinse-aid diminishes, the size of the dark dot decreases. You should never let
therinseaidgetbelow1/4full.
during the nextwash. Don't forget to replacethe cap before you close dishwasher door.
Clean up any rinse aid split during filling with an absorbent cloth to avoid excessive foaming
Detergents with its chemical ingredients are necessary to remove dirt,crushdirt and transport it out of the dishwasher.
Most of commercial quality detergents are suitable for this purpose.
""
Attention!
Only usebranded rinse aid for dishwasher. Never fill therinse aid dispenser withanyothersubstances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
Detergents
There are 3 sorts of detergents
1.Withphosphate andwithchlorine
2.With phosphate and without chlorine
3.Without phosphate and without chloride

Amountof Detergent toUse
Based ontheir chemicalcomposition, dishwasher can be split intwobasictypes:
The use of normal washing programmes inconjunction with concentrated detergents
reduces pollution and is good for your dishes; these wash programmes are specially matched
to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason
normal wash programmes inwhich concentrated detergentsare usedcanachievethe same
resultsthat can otherwise onlybe achieved using intensive programmes.
“”
“”
“”
Detergent tabletsof different brandsdissolve atdifferent speeds. Forthis reasonsome
detergenttablets cannot dissolve and develop theirfull cleaning power during short
programmes.Therefore pleaseuselong programmes whenusing detergenttablets,to
ensure the complete removal of detergent residuals.
The dispenser must be refilled before the start of each wash cycle following the instructions
provided in the Wash Cycle Table .Your dishwasher uses less detergentandrinse aidthen
conventionaldishwasher. Generally, only one tablespoon of detergent isneededfor
a normal wash load.Also,more heavilysoiled items need more detergent.Alwaysadd the
detergent just before starting the dishwasher, otherwise it couldget damp and will not
dissolve properly.
Concentrated Detergent
DetergentTablets
DetergentDispenser
Always add the detergent just before starting each wash cycle.
Only use branded detergent aidfordishwasher.
If the lid is closed: press release button.The lid springs open.
conventional, alkaline detergents with caustic components
low alkaline concentrated detergents with natural enzymes
Normally new pulverised detergent is without phosphate. Thewater softener functionof
phosphate is not given. In this case we recommend to fill salt in the salt container even when
the hardnessof wateris only 6 dH. If detergents without phosphate wereused in caseof hardwater
often white spots appear at dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not
removed completely. In this case please choose a programme with higher Temperature.
°
6
Detergent tablet
Detergent powder
Detergenttablets are only for the modelswith 3in 1 functionor 3in 1 program.

7
Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustrated on right:
Theplace of main wash cycle detergent placed.
Theplace of pre-wash cycle detergent placed.
Please observe the manufacturers dosing and storage
Recommendationsas stated onthedetergent packaging.
Close the lid and press until it locks in place.
If the dishes are heavily soiled, place an additional
detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.
A
B
Fill in detergent
You find information about the amount of detergent for thesingle programme on the last page.
Pleaseaware, that accordingtothe levelsoiling and the specific hardness of waterdifferencesarepossible.
Pleaseobserve themanufacturer's recommendations onthe detergent packaging.
Cutlery with wooden, horn china or
mother-of-pearl handles
Plastic items that are not
Older cutlery with glued parts that isnot
temperature resistant
Bonded cutlery items or dishes
Pewteror cooper items
crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibres
heat resistant
Some types of glasses can become
dull aftera largenumber of washes
Silverand aluminium partshavea
tendency to discolour during washing
Glazed patterns may fade if machine
washed frequently
Are not suitable Are of limited suitability
Don't put powder detergentintothedispenser untilyou're readyto wash dishes.
Use only detergent specifically made for use in dishwashers. Keep your detergent fresh and dry.
Proper Use of Detergent
Dishwasher detergent is corrosive! Take care to keep it out of reach of children.
Usea mild detergent that isdescribed as'kind ofdishes'.If necessary, seek further
information from detergent manufacturers.
For particular items, select aprogramme with as low a temperature.
Toprevent damage, donot take glass and cutlery outof the dishwasher immediately
after the programmehasended.
Consider buying utensils which are identified as dishwasher-proof.

8
Dishesand itemsof cutlery mustnotlie inside oneanother, or cover each other.
To avoid damage to glasses, they must not touch.
Loadlargeitemswhicharemostdifficulttocleanintothebasket.
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp itemsof cutlery such as carving knives must be positioned
horizontallyin the basket.
Please do not overload your dishwasher. This is important forgood results and for
reasonable energy consume.
Load hollow items suchas cups, glasses, pans etc. With the opening downwards sothat
water cannot collect in the container or a deepbase.
(For best performance of the dishwasher, follow these loading guidelines.
Features and appearance of baskets and cutlery baskets may vary from your model.)
Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans
It is not necessary to rinse the dishes under running water.
Place objects in the dishwasher in following way:
1.Items such as cups, glasses, pots/pans, etc. are face down.
2.Curved items, or those with recesses, should be loaded at a slant so that water can run off.
3.All utensils are stacked securely and can not tipover.
4.All utensils are placed in the way that the spray arms can rotated freely during washing.
Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
Position the dishes and cookware so that they will notgetmoved by the spray of water.
Saucers
4
Large serving bowl
3
Glasses
1
Cups
6
Oval platter
7
Dinner plates
8
Soup plates
Dessert dishes
9
Dish
5
Cutlery basket
10
2

9
Cutlery should be placed inthe cutlery basket with handles atthebottom. If the rack has sidebaskets, the spoon
shouldbe loaded individually into the appropriateslots, especially long utensils should beplaced inthehorizontal
position at the frontof the upperbasket as shown.
Do not let any item extend through bottom.
Always load sharp utensils with the sharp point down!
512
2
2
2
2
2
1
1
5
51
1
1
5
6
5
5
4
4
8
4
4
4
4
3
3
3
3
3
7
3
Plate racks of Basket
The basket is fitted with plate racks which
can be stowed horizontal if required.
Teaspoons
4
Soup spoons
2
Forks
1
Serving forks
8
Serving spoons
6
Knives
5
3
Dessert spoons
7
Gravy ladles

10
Means:need tofill rinseintotheRinse-Aid Dispenser.
()
*En50242: This program is the test cycle, the rinse-aid dispenser
setting is recommended to Position 6.
Starting a washcycle...
Draw out the basket(seethe sectionentitled Loading the Dishwasher ).
Pour in the detergent (see the section entitled Salt,
Detergent and RinseAid ).
Insertthe plug into the socket. The powersupply is 220-240
VAC 50 HZ, the specification of the socket is 10 A250 VAC.
Make sure that the watersupply is turnedon to full pressure.
“”
“
”
Press the program button, the wash program will be changed as follows direction
If aprogram is selected, the program icon willdisplay in the LED display.
Then press the Start/Reset button, the dishwasher begins to start.
Intensive->Normal->Eco->Glass->Rapid->Soak;
When you press the Start/Reset button to pause during washing,
the program light will stop blinking and the dishwasher will mooing
every minute unless youpressthe Start/Reset button to start.
For normally soiled loads,
such as pots, plates,glasses
and lightly soiledpans.
standard daily cycle.
For lightly soiled loads,such
as plates,glasses,bowls and
lightlysoiled pans.
For the heaviestsoiled loads,
such as pots,pans,casserole
dishesand dishes thathave
been sitting with dried food
on them for a while.
Ashorter wash for lightly
soiled loads that do not
needdrying.
For lightly soiled loads,
suchas glasses, crystaland
fine china.
15g.
125
170
145
30
75
0.70
0.63
0.94
0.30
0.48
8.4
8.4
11.0
6.0
6.8
Pre-wash
Wash (60 )
Rinse
Rinse (70 )
Drying
℃
℃
Pre-wash
Wash (55 )
Rinse
Rinse (70 )
Drying
℃
℃
Wash(45 )
Rinse
Rinse(60 )
℃
℃
Drying
/
14 2.1
0.01
Pre-wash
Wash (40 )
Rinse
℃
Rinse
Intensive
Pre-wash 50
Wash (70 )
Rinse
Rinse
Rinse (70 )
Drying
℃
℃
℃
()
Glass
Rapid
15g.
To rinse dishes that you
plan to wash later that day.
Normal
(*EN 50242)
Eco
Soak
(or )3in1
3/15g
(or )3in1
3/15g
(or )3in1
3/15g

It is dangerous to open the door when washing, because the hot water may scald you.
Whenthe working cycle has finished, the buzzer of dishwasher will sound 8 seconds, then stop.Turn off
the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher.
Wait afew minutes before unloadingthe dishwasher to avoid handling the dishes and utensilswhile they
are still hot and more susceptible to breakage. They will also dry better.
Switch Off the Dishwasher
In the digital display appears 0 (remaining programme time), only in this case the programme has ended.
1.Switch off the dishwasher by pressing the ON/OFF button.
2.Turnoffthewater tap!
Open the door carefully.
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes
before removingfrom the appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they
will be cooler and the drying will be improved.
Unloading thedishwasher
It is normal that the dishwasher is wet inside.
will keep on working after 10 seconds.
Ifyou open the door when washing, the machine will pause. When you close the door , the machine
11
Aforgotten dish can be added any time before the detergent cup opens.
Add forgotten dishes.
Close the door
After the spray arms stop working, you can open the
door completely.
2
3
Open the door a little to stop the washing.
14
5
6
Premise: Otherwise, the detergent may havealready been
released, and the appliance may havealready drained the wash water. Ifthis
isthe case, the detergent dispensermust be refilled (seethe section entitled
" Loading the Detergent " ).
Press Start/Reset Button more than three seconds the machine will be in stand
bystate ,then you can change the program to the desired cycle setting(see
thesection entitled " Starting a wash cycle. . ." ).
NOTE: If you open the door during washing, the machine will pause. When you
closethe door and press the start/reset Button, the machine will keep on
working after10 seconds.
The LED display shows the state of the dishwasher:
display
display display
a)The LED off----------------------------------------Onstand by
b)The LED on--------------------------------------Being paused
c)Colon icon in the LED blinking----------------------Running
You can modify the washingprogram, When the dishwasher just
runs for a short time.
Press the start/reset button
Press the start/reset button, the dishwasher will run
after 10 seconds.

The filter prevent larger remnants of food or other objects from getting inside the pump.
The filter system consists of a coarse filter, a flat (Main filter)
and a micro filter (fine filter).
Food andsoil particles trapped by this filter are pulverized by a
special jet onthe spray arm and washed down to drain.
Main filter
1
Largeritems,such aspieces ofbone or glass, thatcould block
the drain are trapped in the coarse filter. Toremovetheitems
caught bythe filter,gently squeeze thetap on the top of this
filterand lift out.
Coarse filter
3
This filterholds soil and food residue in the sumparea and
prevents it from being redeposit on the dishes during wash cycle.
Fine filter
2
2
3
1
Filterassembly
Thefilter efficiently
For best performance and results, the filter assembly must be regularly. this reason, it is a good idea to
remove thelarger food particlestrapping inthe filter after each wash cycle by rinsing the filter and cupunder
running water. To remove the filter assembly, pull on the cup handle in the upward direction.
removes food particles from the wash water,allowing it to be re-cyclated during the cycle.
For
Never run the dishwasher without the filters in place.
The dishwasher must never be used without the filters.
Improper replacementof the filter may reduce the performance level of the appliance
and damage dishesand utensils.
the filter system will be installed.
If do it from step1 to step 3, the filter system will be removed; while if do it from Step 3 to Step 1,
12
Step１：contrarotate the Fine ,
liftitup;Step2:
filter
Step3：lift the Main filter up
2
1
3

The control panelcan be cleaned by using a lightly dampened cloth and dry thoroughly.
The exterior use a good appliance polish wax.
Never use sharp objects, scouring pads or harsh cleaners onany part of the dishwasher.
ProtectAgainst Freezing
1.Cut off electrical power to the dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain water from the inlet pipe and water valve. (Use a pan to catch the water)
4.Reconnect the water inlet pipe to the water valve.
5.Removethe filter at the bottomofthe tub and use a spongeto use upwaterin sump.
please take frost protection measures ondishwasher in winter. E fter washing cycles,
please operate as follows ach time a
：
- Inspect the filters for blockingevery time the dishwasher has been used.
- By unscrewing the coarsefilter.you can remove thefilter system.Remove any food remnantsand
cleanthefilters underrunningwater.
Remarks:
CleaningThe Filter
Cleaning The Door
To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble thefilter parts as shown in the figures
inthelastpageandreinsert the entire assemblyin the dishwasher, positioning in its seat and pressing downward.
The entirefilter assembly should be cleanedonce a week.
Whencleaning the filters, don't knock on them. Otherwise, thefilters could be
contorted andtheperformance ofdishwasher couldbedebased.
To cleantheedgearoundthedoor, you shoulduseonlya soft warm,
damp cloth. To avoid penetration of water into the door lock and
electrical components, do not usea spray cleaner of any kind.
Never usea spray cleaner to clean the door panel as it may damage the door lock
and electricalcomponents.
Abrasive agent or some paper towel should not be used because of the risk of
scratching or leaving spots on the stainless steel surface.
13
If your dishwasher cannot work because of the ice, please contact professional service persons.

Itis recommendthatyourun awashcycle withthe
dishwasher empty andthen remove the plug from the
socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door
sealsto ast longerandpreventodours from forming
withintheappliance.
If the appliance must be moved, try to keep it in the
verticalposition.If absolutelynecessary, itcanbe
positioned on its back.
One of thefactors that cause odorsto form in the
dishwasher is food that remains trapped in the seals.
Periodic cleaning with adamp sponge will preventthis
from occurring.
After every wash, turn off the water supply to the
appliance and leave the doorslightly open so that
moisture and odors are not trapped inside.
Before cleaning or performing maintenance, always
remove the plug from the socket.
Tocleantheexteriorandrubberparts ofthedishwasher,
donot use solventsor abrasivecleaningproducts.
Only use acloth with warm soapy water.
To remove spots or stains from the surface of the
interior, use a cloth dampened withwater with a little
vinegar, ora cleaning product madespecificallyfor
dishwashers.
After EveryWash
Remove the Plug
No SolventsorAbrasive Cleaning Moving theAppliance
Seals
When it is notin needfor a long time
14
The installation of the pipes
and electrical equipments
should be done by professionals.
Electrical Shock Hazard
Disconnect electrical power before
installingdishwasher.
Failureto do so can result in death
or electrical shock.
The installation position of dishwasher shouldbe near the existing inletand drain
hosesand powercord.
One side of the cabinet sink shouldbe chosen to facilitatethe connection of drain
hosesof the dishwasher.
Cleaning the SprayArms
Thespray arms can be easily removed for periodiccleaning
of the nozzles, to prevent possible clogging. Wash them
under running water and carefully replace them in their seats,
checking that their rotary movementis inno way impeded.
Graspthe middle of thespray arm, pull it upwardsto remove
it.Wash thearms undera jetof running waterandreturn them
carefully to their seat. After reassembly, check that the spray
arms turn freely. Otherwise,check that they havebeen
installed correctly.

Ensure the voltage and frequency of the power being corresponds to
those on the rating plate. Only insert the plug into an electricalsocket which isearthed
properly. If the electrical socket to which the appliance must be connected is not
appropriate fortheplug, replace the socket, ratherthan usinga adaptors or thelike as
they couldcause overheatingandburns.
Please look at the rating label to know the ratingvoltage and connectthe dishwasher to the appropriate powersupply.
Use the required fuse 10 amp, time delay fuse orcircuit breakerrecommended and provide separate circuit serving
only this appliance.
This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of
electric shock by providing a path of least resistance for the electric current. This appliance is equipped with
a cord having an equipment-earthing conductor and an earthing plug. The plug must be plugged into an
appropriate outlet that is installed and earthed in accordance with all local standards and requirements.
For personal safety:
DO NOT USEAN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDERANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING
CONNECTION FROM THE POWER CORD.
15
for personal safety:
DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE
FROM THE POWER CORD. EARTHING CONNECTION
Improper connection of the equipment earthing conductor can result in the risk of an
electric shock.
Check with a qualified electrician or service representative if you are in doubt whether the
appliance is properly earthed.
Do not modify the plug provided with the appliance. If the plug does not fit properly to the
outlet, please have a qualified electrician to install a proper outlet.
and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply
Position the appliance in the desired location. The back should rest against the wall behind it,
and drain hoses thatcanbepositioned to the right ortheleftto facilitate proper installation.
Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure
that it is fastened tightly in place. If the water pipes arenew or have not been used for
an extended period of time, let the water run to make sure that the water is clear and
free ofimpurities. Ifthisprecaution isnottaken, there is a risk that the waterinletcan
get blocked and damagethe appliance.
The water supply to the appliance can also be connected to the house hot water line
(centralizedsystem,heatingsystem),aslongas itdoes not exceed atemperature of
60 C. In this case, the wash cycle time will be shortened by about 15 minutes and the
wash efficiency slightly reduced. The connection must be made to the hot water line
following the same procedures as those for the connection to the cold water line.
In order to avoidthat there ismore waterstaying in the inlet hose, please close
the hydrant after using.(Not applicable to appliances without aqua-stop.)

Insert the drain hose into a drain pipe with a minimum diameterof 4cm, orlet it
runintothesink,makingsuretoavoidbendingorcrimpingit.Usethespe ial
plastic support that comes with the appliance.The free end of the hosemust be
at a height between 400 and1000mm and must not beimmersed in water to
avoid theback flow of it.
c
16
The special plastic hose support must be solidlyfastened tothe wall to
prevent thedrainhose from movingand allowing waterto spill outside
the drain.

17
If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly
into the sink. It will benecessary to drain excess waterfromhoses into a bowl or suitable
container that is held outside and lower than the sink.
Connectthewaterdrain hose.Thedrain hose must becorrectlyfitted toavoid waterleaks.
Ensure that the waterinlet hose is notkinked orsquashed.
If you need a drain hose extension, observe to use a similar drain hose.
Itmust benolonger than4 metres; otherwise the cleaning effect ofthe dishwasher couldbereduced.
Water Outlet
Extension Hose
How to Drain Excess Water From Hoses
The followingthings should be checked before starting the dishwasher.
1
The dishwasher is level and fixed properly
2 The inlet valve is open
3 There is a leakage at the connections of the conducts
4 The wires are tightly connected
5 The power isswitched on
6 The inlet and drain hoses are knotted
7 Allpackingmaterials and printings shouldbe taken out from the dishwasher
The content of this manual is very helpfulto the users.
After installation, please make sure tokeep this manual.

Fuse blown, or the
circuit breaker tripped. Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher
Spilled rinse-aid Always wipe up rinse-aid spills immediately.
Hard water minerals
The affected items are
not corrosion resistant.
The lid of softer
is loose.
The sp ay arm is
knocking against
an item in a basket.
r
Item of crockery
are insecure
in the wash cabinet.
This may be caused
by on-site installation
or the cross-section of
the piping.
A programme was not
run after dishwasher
salt was added.
Traces of salt have
got into the wash cy le.c
To clean the interior, use a damp sponge with
dishwasher detergent and wear rubber gloves.
Never use any other cleaner than dishwasher
detergent for the risk of foaming or suds.
Always run the Quick wash programme .
without any crockery in the dishwasher and
without selecting the Turbo function (if present),
after adding dishwasher salt.
Check thelip .Ensure the fixis fine.
Interrupt the programme, and rearrange the items
which are obstructing the sp ay arm.r
Interrupt the programme,
and rearrange the items of crockery.
This has no influence on dishwasher function.
if in doubt, contact a suitably qualified plumber.
Detergent with
colourant was used. Make sure that the detergent is the one without colourant.
Improper detergent
Make sure the dishwasher is turned on and the door is
closed securely.
Closed dishwasher making sure that door latches.
Make sure the power cord is properly plugged into the
wall socket.
Power supply is not
turned on.
Door of dishwasher
not properly closed.
Kink in drain hose
Filter clogged.
Kitchen sink clogged.
Check drain hose.
Check coarse the filter.
(see section titled )"CleaningTheFilter"
Check kitchen sink to make sure it is draining well.
If problem is kitchen sink not draining ,you may need
a plumber rather than a serviceman for dishwasher.
Use only the special dishwasher detergent to avoid
suds. If this occurs, open the dishwasher and let suds
evaporate.Add 1 gallon of cold water to the tub. Close
and latch the dishwasher, then Start the "soak" wash
cycle to drain out the water . Repeat if necessary.
18
Technical
problems
General
problems
Noise
