Elba EDW-B1461 User manual

For The Warranty Terms & Conditions, Please Refer To Warranty Certificate
Owner’s Manual
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number
of the set.
See the label attached on the set and
quote this information to your dealer
when you require service.
DISHWASHER
MODEL: EDW-B1461(WH)

REMOVE ALL PACKING MATERIALS FROM THIS PRODUCT BEFORE USING IT. THIS
APPLIANCE MUST BE INSTALLED IN LEVEL. PLEASE ENSURE THE ELECTRICITY
SUPPLY TO THIS APPLIANCE IS DISCONNECTED BEFORE INSTALLING.
Please read this instruction carefully. It is advisable to keep this instruction manual in a
safe place for future reference.
SAFETY PRECAUTIONS
1. Keep this appliance out of reach from children. Do not let them to operate the
appliance without supervision.
2. Check the current rating on the rating plate and make sure the current supplied is
matched with the appliance before using.
3. This product is for household and indoor use only.
4. This product is not intended for use by person (including children) with reduced
physical, sensory or mental capabilities unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
5. If the power cord or plug is damaged, it must be replaced by the service centre or a
qualified service technician to avoid hazard.
6. Any electrical work required to install this appliance should be carried out by a qualified
technician or competent personnel.
WARNING - to reduce the risk of fire or injury to persons or property, please
read and follow below instructions carefully:
•Do not operate this appliance if it has malfunctioned, damaged or appears damaged in
any way. Make enquiry to our service centre and return the complete set to the place of
purchase for inspection, repair or replacement.
•This appliance must be grounded and the ground wire should not be connected to any
heating pipe and gas pipe.
•The plug must be plugged into an appropriate outlet that is installed and grounded in
accordance with all local codes and ordinances.
•Do not abuse, sit or stand on the door or dish rack of the unit.
•Do not operate the appliance unless all enclosure panels are properly in place. Open
the door carefully if the appliance is operating, there will be risk of water squirting out.
•Do not place heavy objects or stand on the appliance door when it is open.

Witheachwashcycle.
Compartment
For programmes with pre-wash only.
(Follow the user instructions!)
Electric indicator on control panel (if provided).
Check the rinse aid level
(On models with water softener system only.)
Electric indicator on control panel (if provided).
If there is no salt warning light in the control panel
(for some models), you can estimate when to fill the salt into
the softener by the number of cycles the dishwasher has run.
Check the regeneration
salt level

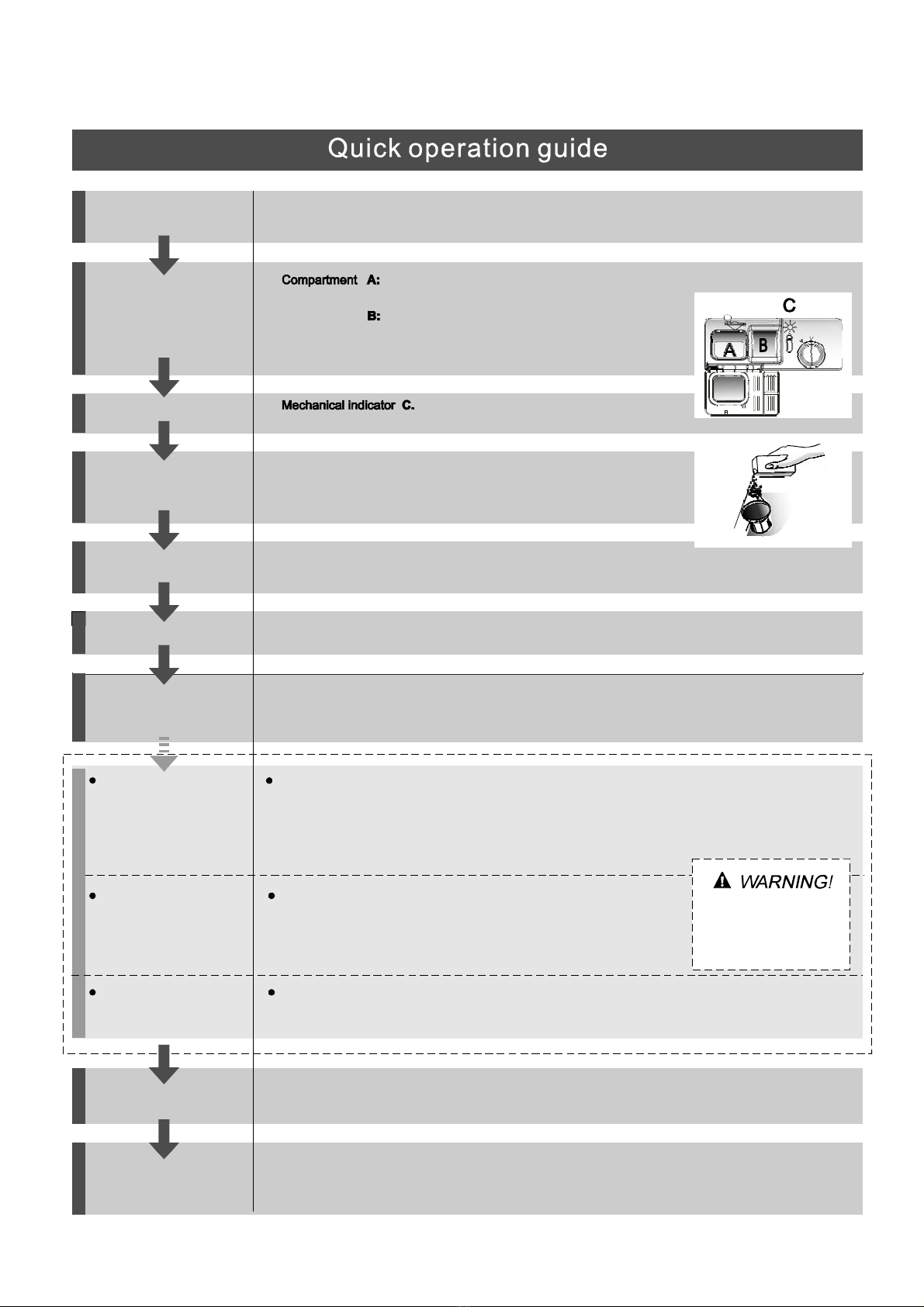

Load the baskets
Select a programme
Close the door, turn on the water tap and press the . The machine will start working
after about 10 seconds.
Start/Pause Button
Running the dishwasher
Switch off the appliance
Turn off the water tap,
unload the baskets
Fill the detergent dispenser
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling
the dishes and utensils while they are still hot and more susceptible to break.
They will alsodry better.Unload the appliance, startingfrom the lower basket.
Changing the programme
Add forgotten dishes in the
dishwasher.
Scrape off any large amount of leftover food. Soften remnantsof burnt food in pans,
then load the baskets. Refer to the dishwasher loading instructions.
Press the Programme Button until the selected programme lights up.
( See the section entitled Operationg instruction )“”
When the working cycle has finished, the buzzer of the
dishwasher will sound 8 times, then stop.
Turn off the appliance using the On/Off Button.
If the appliance is switched
off during a wash cycle.
Open the door carefully.
Hotsteam may escape
when thedoorisopened!
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state ).
Switch on the appliance Press the On/Off button to switch on the appliance, Open the door.
For detailed operating method read the corresponding content onthe instruction manual.
1.A running cycle can only be modified ifit has been running for a short time. Otherwise the detergent
may have already been released and the water already drained. If this is the case, the detergent
dispenser must be refilled.
2. Press the Start/Pause button then press the program button for more than 3 seconds to cancel the
running programme.
3. Select a new programme.
4. Restart the dishwasher.
1.Press the Start/Pause button to stop the machine.
2.Open the door.
3.Add the forgotten dishes.
4.Close the door, then press the Start/Pause button, the dishwasher will
start running again after 10 seconds.

To reviewthe sectionon troubleshootingTips
will help youto solve somecommon problems
by yourself.
NOTE:
Dear Customer,
Please carefully read this manualbefore using the
dishwasher, itwill help youto useand maintain the
dishwasher properly.
Pass iton toany subsequent ownerof theappliance.
This manual containssections on safetyInstructions,
Operating Instructions,Installation Instructionsand
Troubleshooting Tips, etc.
The manufacturer,following a policyof constant
development and updatingof the product,may
make modifications withoutgiving prior notice.
Dishwasher Features.................................... ...3
4) Prior usingfor the firsttime...............................44) Prior usingfor the firsttime...............................4
A Water Softener...........................................4
5) Loading theDishwasher Basket........................95) Loading theDishwasher Basket........................9
Attention before orafter loading theDishwasher
Baskets..........................................................9
7) Maintenance andcleaning..............................157) Maintenance andcleaning..............................15
Filtering System.............................................15

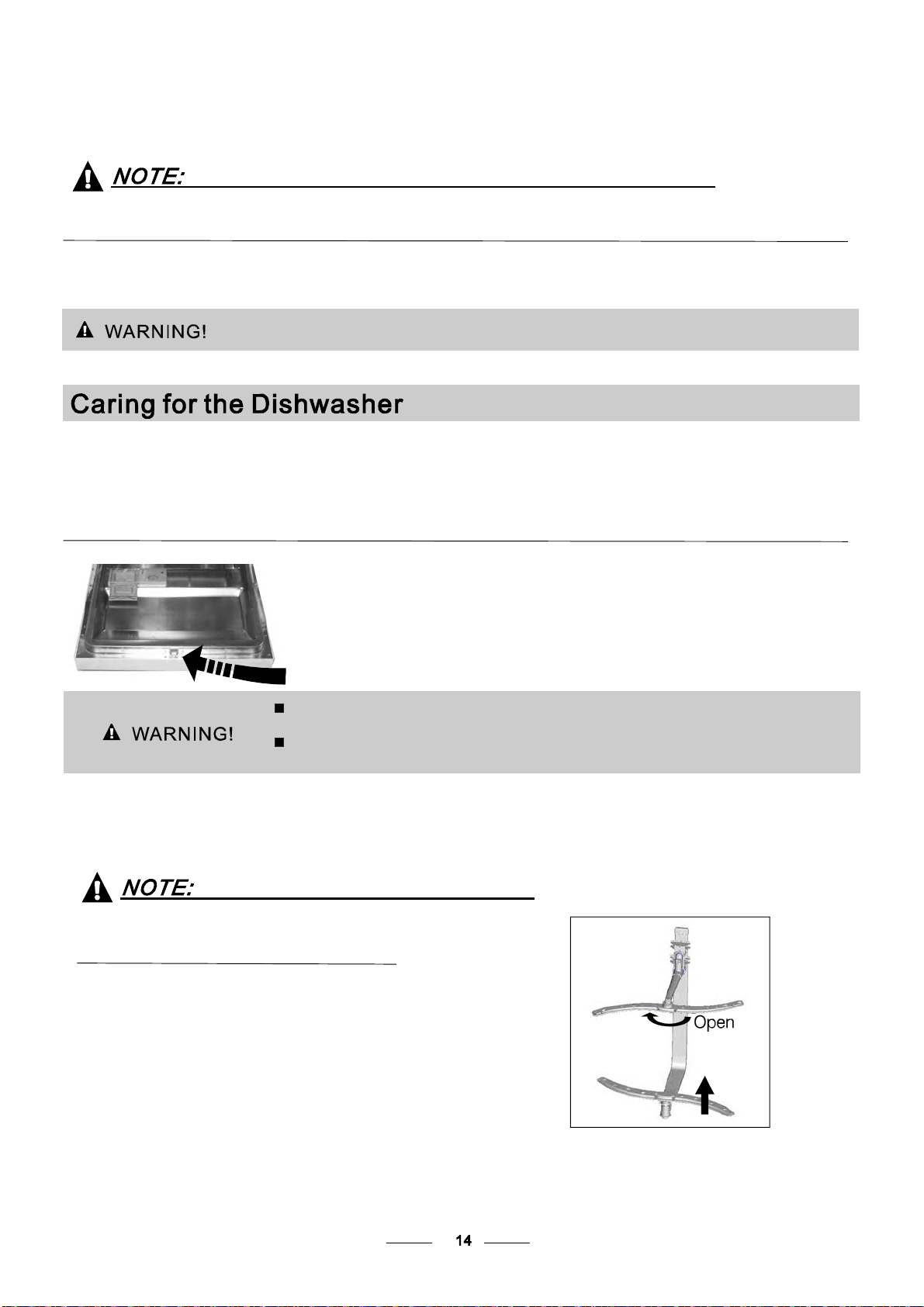

Caring forthe Dishwasher...............................16

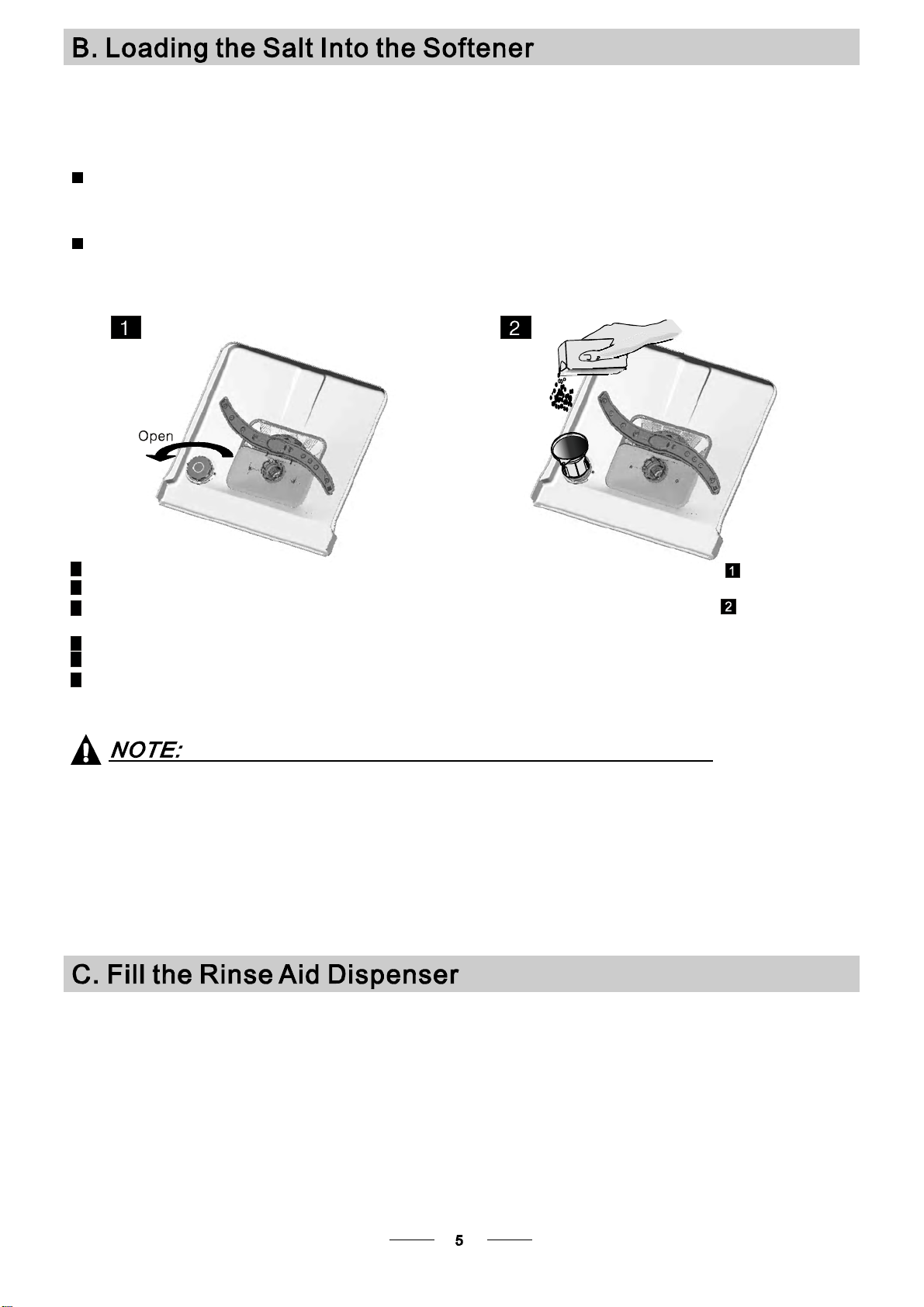

B Loading theSalt intothe Softener.................5
C Fill the RinseAid Dispenser.........................5

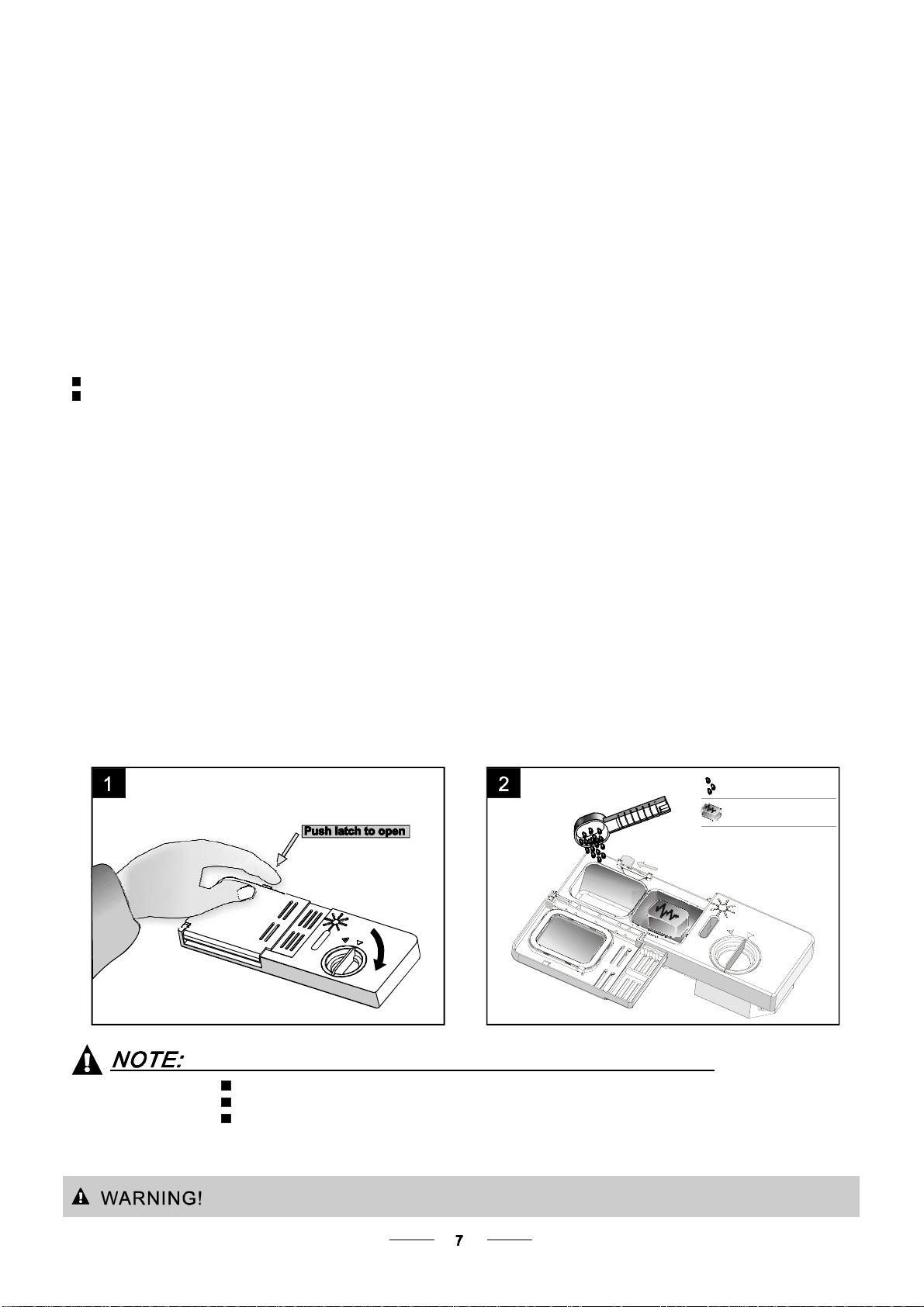

D Function ofDetergent .................................6
Loading the upperBasket...............................10
Loading theLower Basket...............................10
Cutlery Basket........................................... ...11
The recommended methodloading big
dishware.................................................... ...12
6) Starting awashing programme........................136) Starting awashing programme........................13
Wash CycleTable...........................................13
Turning onthe Appliance................................14
Change theProgramme..................................14
At theEne ofthe WashCycle...........................14
8) Installation instruction....................................178) Installation instruction...................... ............17..
Positioning theAppliance...............................17
Water Connection..........................................18
About Power Connection................................17
Start of dishwasher........................................19
9) TroubleshootingTips......................................209) TroubleshootingTips................................ ....20..
Before callingfor service.................................20
Error codes...................................................21
Technicalinformation.....................................22
1) Safety Information..........................................11) Safety Information..........................................1
2) Disposal.........................................................22) Disposal.........................................................2
3) Operating Instructions.....................................33) Operating Instructions.....................................3
Control Panel...................................................3
Read this Manual
Before Calling for Service
Keep it asa reference inthe later days.
If youcan notsolve theproblems byyourself ,
please contactour after-salesservice centre.
Loading the basketsaccording to En50242Loading the basketsaccording to En50242

This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of anelectric shock by providing a path of
least resistance of electric current. This appliance
is equipped with a cord having an equipment-
grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with
all local codes and ordinances.
Keep children away from detergent and rinse aid, keep
child away from the open door of the dishwasher,
there could still be some detergent left inside.
ren
Donotabuse,siton,orstandonthedoorordish
rack of the dishwasher.
Do not touch the heating element during or
immediately after use.
(This instruction is only applicable to machines
with a visual heating element.)
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic items
not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives
designed for an automatic dishwasher.
Never use soap, laundry detergent, or hand
washing detergent in your dishwasher. Keep
these products out of the reach of children.
During installation, the power supply must not
be excessively or dangerously bent or flattened.
Do not tamper with controls.
Do not place any heavy objects the
door when it is open. The appliance could tip
forward.
on or stand on
When loading items to be washed:
1) Locate sharp items so that they are not likely
to damage the door seal;
2 Warning: Knives and other utensils with
sharp points must be loadedinthe basket
with their pointsdown or placed in a
horizontal position.
)
When usingyour dishwasher, youshould
prevent plastic items from coming into contact
with the heating element.(This instruction is only
applicable to machines witha visual heating
element.)
Ifthesupply cordis damaged, it mustbereplaced
bythemanufactureroritsserviceagentora
similarly qualified person in order to avoid a
hazard.
Please dispose of packing materials properly.
Use the dishwasher only for its intended function.
Dishwasher detergents are strongly alkaline, they
can be extremely dangerous if swallowed.Avoid
contact with skin and eyes and keep children away
from the dishwasher when the door is open.
Check that the detergent comparment isempty
after completion of the wash cycle. The applianceis to be connected to the water
mains using new hose sets and that old hose-sets
should not be reused.
The maximum number of place settings to be
washed is14.
The maximum permissible inlet water pressure is
1Mpa.
The minimum permissible inlet water pressure is
0.04Mpa.
Children should be supervised to ensure that they do
not play with the appliance.
This appliance is not intended for use by persons
(including children with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
)
When using your dishwasher, follow the precautions listed below:
The door should not be left open,
since this could increasethe riskof tripping.
Improper connection of the equipment-grounding
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug provided with the appliance; If it does not fit
the outlet. Have a proper outlet installed by a
qualified electrician.
Do not operate your dishwasher unless all
enclosure panels are properly in place. Open
the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.

Dispose ofthedishwasherpackaging materialcorrectly.
All packaging materials can berecycled.
Plasticparts are marked with the standardinternationalabbreviations:
PE for polyethylene, e.g. sheet wrapping material
PS for polystyrene,e.g.padding material
POM polyoxymethylene, e.g. plastic clips
PP polypropylene,e.g.Saltfiller
ABS Acrylonitrile ButadieneStyrene, e.g. Control Panel .
Packaging material couldbe dangerousfor children!
For disposing of package and the appliance please go to a recycling centre.Therefore cut
off the power supply cable and make the door closing deviceunusable.
Cardboard packaging is manufactured from recycled paperand should be disposed in the
wastepaper collection for recycling.
By ensuring this product isdisposed of correctly, you will helpprevent potential negative
consequences forthe environment and human health, whichcould otherwisebe caused
by inappropriate wastehandling of this product.
For more detailed information about recycling of this product, please contact your local
city office and your household wastedisposal service.
DISPOSAL: Donotdisposethisproductas unsortedmunicipal waste.Collectionof such
waste separately for special treatment is necessary.






11 12

The water softener must be set manually using thewater hardness dial.
The water softener is designed to remove minerals and salts from thewater, which wouldhave adetrimental
or adverse effecton the operation of theappliance.
The higherthe content of these minerals and salts, theharder your water is.
The softener should be adjusted accordingto the hardness of the waterin your area. Your local WaterAuthority
can advise youon thehardnessofthewaterinyourarea.
Adjusting Salt Consumption
The dishwasher is designed toallow for adjustment in the amount of salt consumed based on the hardness of
the water used. This is intended tooptimise and customise thelevel of salt consumption.
WATER SOFTENER
Thehardness ofthe watervariesfrom place to place.If hardwater isused inthe dishwasher, deposits will
form on the dishesand utensils.
Theapplianceis equipped with a special softener that uses a salt container specifically designed to eliminate
lime and minerals from the water.
Contact your local water board for information on the hardness of your water supply.
dH mmol/l
0~90~5 0~0.94 H1-Soak light bright 0 /
10-20
6-11 1.0-2.0 20 60
21-30
12-17 2.1-3.0 30 50
H4-ECO Light bright
40
40
fH
0~6
7-14
15-21
Clarke
WATER HARDNESS
Selector Position Salt consumption
(gram/cycle) Autonomy
(cycles/1kgs)
Please follow the steps below for adjustment in saltconsumption.
18-22 31-40 22-28 3.1-4.0
If your model does not have anywater softener, you may skip this section.
Clark:Britishdegree
fH: French degree
DH: German degree
dH=1.25Clarke=1.78fH=0.178mmol/l
1
41-60
23-34 4.1-6.0 50 30
60 20
29-42
The manufactory setting: H4 (EN 50242)
1. Switch on theappliance;
2. Press the Start/Pause button for more than 5 seconds to start thewater
softener set model within 60seconds after the appliance has switched on;
3. Press the button to select the proper set according to
your local environment, the sets will change in the following
sequence: H1->H2->H3->H4->H5->H6;
4. Press the On/Off button or no operation for 5 secondsto end the set up mode.
Start/Pause
35-55 61-98 43-69 6.1-9.8
H3-1 Hour Soaklight bright、
H5-ECO Soak Light bright、
H6-ECO 1 Hour light bright、
H2-1Hourlight bright
Before using your dishwasher for the first time,set the water softener by:
.
B. Filltherinseaiddispenser
C. Fill in detergent
A. Adding1.5Kgdishwashersaltandthenfullfill the saltcontainerwithwater

1. The salt container must only be refilled whenthe salt warning light in the control panel comes on.
Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container
is filled.
If there is no salt warning light in the control panel(for some Models),you can estimate whento fill thesalt
into the softener by the cycles that the dishwasher has run.
2. If there are spills of the salt, a soak or arapid program should be run to remove the excessive salt.
Always use the salt intended for use withdishwasher.
The salt container is located beneath the lower basket and shouldbe filled as explained in the
following:
Attention!
Only use salt specifically designed forthe use indishwashers! Every other type of salt not
specifically designed forthe use in a dishwasher, especially table salt, will damage the water
softener. In caseof damages caused by the useof unsuitable salt the manufacturer
does not give any warranty nor is liablefor any damages caused.
Only fill withsalt justbefore starting one of thecomplete washingprograms.
This will prevent any grains of salt or salty water, which may have been spilled,remaining on the
bottom of the machine for any period of time, which may cause corrosion.
Therinse aid isreleasedduringthe final rinse to prevent water from forming droplets onyour dishes,which can leave spots
and streaks. It also improves drying by allowing water to rolloff the dishes. Your dishwasher is designedto use
liquid rinseaids.The rinseaid dispenseris located insidethe door next tothe detergent dispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely
black. Thevolume ofthe rinseaidcontaineris about 110ml.
RinseAid Dispenser
Function of RinseAid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spotandstreakfree drying.
Attention!
Only use branded rinseaidfor dishwasher. Neverfill the rinseaid dispenser withanyothersubstances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
3.If the machine needs to be dumped for thereasons of transit, repair and so on, please usethe bibulous cloth or
analog toblotup thewaterin the salt container,and screw thecaptightly,afterward, transitor repairthemachine.
Aftertransiting or repairing themachineandconfirming it in order, load the salt into the softener according tothe
processof B. Loading the salt into the Softener .Otherwise, it could bemake the big damage to the machine,for
example, rustiness, conk and so on. Such problemsareoutof thewarranty range.
“”
Full fill the salt container with water,It is normal for a small amount of water to come out of the
salt container.
AAfter the lower basket has been removed, unscrew and remove the cap from the salt container.
BPlace theend of the funnel (supplied)intothe hole and introduce about 1.5kg ofdishwasher salt.
C
DAfter filling the container , screw the cap tightly back clockwise.
EThe saltwarning light will stopbeing after thesalt container has beenfilled withsalt.
FImmediately after filling the salt into the salt container, a washing program should be started
program Otherwise thefilter system, pumpor other important parts of the machinemaybe damaged by salty water.
this is out of warranty.
(Wesuggest to use a short
).

To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid intothe dispenser, being careful not to overfill.
Replace the cap by inserting italigned with "open" arrow and turning it tothe closed (right) arrow.
Adjusting RinseAid Dispenser
Therinse aid dispenserhas six settings.Always start withthedispenser
set on "4". If spots and poor drying are a problem, increase the amount of rinse
aid dispensed by removing the dispenser lid and rotating the dial to "5". If the
dishes still arenot drying properly or are showspotsappeared,adjustthedial
to the next higher lever until your dishes are spot-free.The recommended setting
is "4".(Factory default value is "4".)
Increase the dose if thereare drops of waterorlimespotsonthe dishes after washing.
Reduce it ifthere aresticky whitishstains on your dishes or abluish film on glassware or
knife blades.
1
2
3
As the rinse aid diminishes, the sizeof the black dot
ontherinse aidlevel indicator changes, as illustratedbelow.
Full
3/4full
1/2full
1/ 4full- Should refilltoeliminate spotting
Empty
When to Refill the RinseAid Dispenser
Ifthereis no rinse-aid warning light in thecontrolpanel, you can estimate the amount from the colour
of the optical level indicator C located next to the cap. When therinse-aid container isfull, the whole
indicator will be dark .As the rinse-aid diminishes, thesize of the dark dot decreases. You should never let
the rinse aid level fall 1 / 4 full.
during the next wash. Don'tforget to replacethe cap before you close dishwasher door.
Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming
Detergents with its chemical ingredients are necessary to remove dirt,crush dirt andtransport it outof the dishwasher.
Mostof the commercialqualitydetergentsare suitable for thispurpose.
""
Proper Use of Detergent
Useonly detergent specifically made for the use in dishwashers. Keep yourdetergent fresh and dry.
Don't putpowdered detergentinto the dispenseruntilyou're ready to wash dishes.
Attention!

Amount ofDetergentto Use
Dishwasher detergent is corrosive! Takecare to keepit out of reach of children.
Based ontheir chemical composition, detergentscan besplitin two basic types:
Detergenttabletsofdifferent brandsdissolve at different speeds. For this reasonsome
detergent tablets cannot dissolve and develop theirfullcleaning power during short
programs. Therefore please use long programs when usingdetergent tablets, to
ensure the complete removal of detergent residuals.
The dispenser must berefilled before the start ofeach washcycle following the instructions
provided in the wash cycle table . Your dishwasher usesless detergent and rinse aid than
Conventional dishwasher.Generally, onlyone tablespoon of detergent is neededfor
anormal washload. Moreheavily soileditems needmore detergent.Alwaysaddthe
detergentjust before starting the dishwasher, otherwise it couldget damp and will not
dissolve properly.
Concentrated Detergent
DetergentTablets
DetergentDispenser
conventional, alkaline detergents with causticcomponents
low alkaline concentrated detergents with natural enzymes
Normally new pulverised detergent is without phosphate. Thus the water softener function of
phosphate is not given. In this case we recommend to fill salt in the salt container even when
the hardness of water is only 6 dH. If detergents without phosphate are used in the case of hard water
often white spots appear on dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not
be removed completely. Inthiscase pleasechoosea program with a higher temperature.
°
Detergents
Thereare 3 sorts of detergents
1.With phosphate andwithchlorine
2.With phosphate andwithout chlorine
3.Without phosphate and without chlorine
Always add the detergent just before starting each wash cycle.
Only use branded detergent aidfor dishwasher.

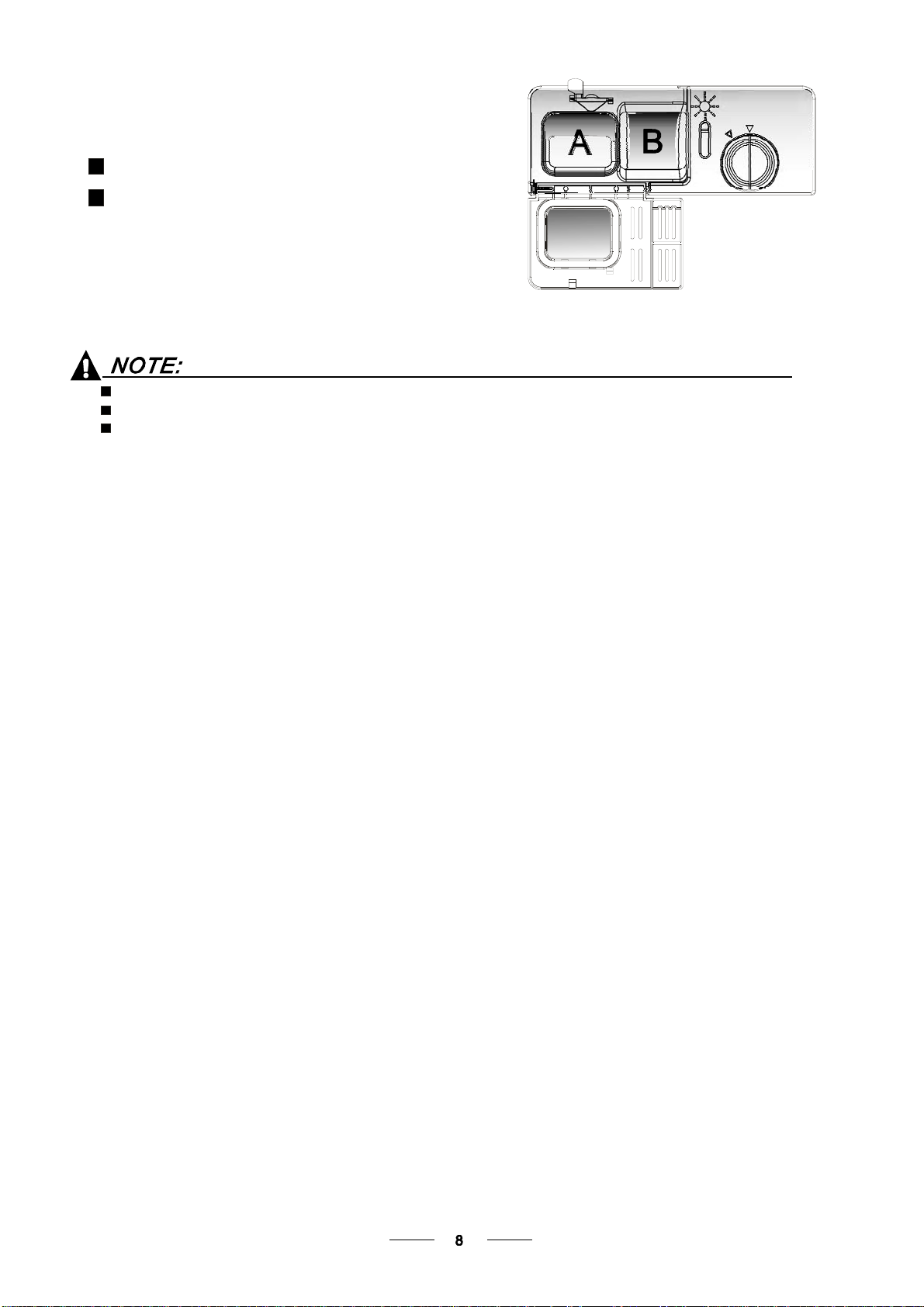

If the lid is closed: press release button.The lid will spring open.
Detergent tablet
Detergent powder

Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustrated on the right:
Theplaceof main wash cycledetergent placed.
Theplaceof pre-wash cycle detergent placed.
Please observe the manufacturers dosing and storage
Recommendationsas statedonthedetergent packaging.
Closethelid and press untilit locks in place.
If the dishes are heavily soiled, place anadditional
detergent dosein the pre-wash detergent chamber. This detergent will take effectduring the pre-washphase.
A
B
Fill in Detergent
You findinformation about the amount of detergent for thesingle programme onthe last page.
Pleaseaware, that according tothe levelsoiling and the specific hardness of waterdifferencesarepossible.
Pleaseobservethemanufacturer's recommendations onthe detergent packaging.

Cutlery withwooden,horn china or
mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued partsthat arenot
temperatureresistant
Bonded cutlery items or dishes
Pewter or cooper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items made fromsynthetic fibres
Some types of glassescan become
dull aftera large number of washes
Silver and aluminum parts have a
tendencyto discolourduring washing
Glazed patterns may fade if machine
washed frequently
Are not suitable Are oflimited suitability
Dishes and items of cutlerymustnot lie inside oneanother, or cover each other.
To avoiddamage to glasses, theymust not touch.
Load large items which are most difficult to cleanintothe lower basket.
The upper basket is designed to holdmore delicate and lighterdishware such as glasses, coffee and teacups
Long bladed knives stored in an uprightpositionare apotential hazard!
Long and/or sharp itemsof cutlery such as carving knives must be positioned horizontally in theupper basket.
Please do not overload your dishwasher. This is important for good results and for reasonable consumption
of energy.
Load hollowitems such as cups, glasses, pans etc. With the opening facing downwardsso that water cannot
collectin the container ora deep base.
Consider buyingutensils which are identifiedas dishwasher-proof.
Usea mild detergentthatis describedas 'kind todishes'. Ifnecessary, seek further information fromthe
detergent manufacturers.
For particular items, select aprogramwithas lowa temperature aspossible.
To prevent damage, do not take glass andcutlery out of the dishwasher immediately after the programme
has ended.
(For best performance of the dishwasher, follow these loading guidelines.
Features and appearance of baskets and cutlerybasketsmay vary from your model.)
Scrape off any largeamounts ofleftover food. Soften remnants of burnt food inpans.
It is not necessary to rinse thedishes under running water.
Place objects inthe dishwasher in following way:
1.Items such as cups, glasses, pots/pans, etc. are faced downwards.
2.Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3.All utensils are stacked securely and can not tipover.
4.All utensils are placed in the way that the spray armscan rotatefreely duringwashing.
Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
To prevent water dripping from the upperbasket into the lower basket,we recommend thatyou empty the lower
basket first and thenthe upper basket.

Theupper basket is designed to hold more delicate
and lighter dishware such as glasses, coffee and
teacups and saucers, aswell asplates, small bowls
andshallowpans (as long astheyarenot toodirty).
Position the dishes andcookwareso thatthey will
notgetmovedbythespray ofwater.
We suggest that you place large items and the most
difficulttocleanitems placedintothelowerbasket:
suchas pots, pans,lids, serving dishes and bowls,
as shownin the figurebelow. It ispreferable toplace
serving dishes and lids on thesideof theracksin order
to avoidblockingthe rotation of the top spray arm.
Pots,servingbowls,etc,mustalwaysbeplacedtopdown.
Deep pots should be slanted to allow water to flow out.
Please be reminded that:
The BottomBasket features folding spikes so that larger or more pots and pans can be loaded.
Folding Spikes of Lower Basket
Forbetter stacking of pots and pans,
the spikescan beshown in the picture below
Adjusting the Upper Basket
The heightof the upperbasket can be adjusted in order to
create morespace for largeutensilsbothfor the upper
/lowerbasket. The height of theupper basket canbe
adjusted byplacingthewheels on differentheightofthe
rails. Long items, serving cutlery, salad servers and knives
shouldbe placedontheshelfsothatthey do notobstruct
therotationofthesprayarms.
Folding back the cup shelves
For better stacking of pots and pans,
the cup shelves can shown in the picture below
Cutlery should be placed in the cutlery rack separately
from each other in the appropriate positions, and do
make sure the utensils donot nest together, this may
affect washing performance.

Startinga wash cycle
Draw out the lower and upper basket, load the dishes and push them back.
Itiscommended toload thelower basket first, then the upperone (see the sectionentitled
Loading the Dishwasher ).
Pour in thedetergent (seethe sectionentitled Salt, Detergent and RinseAid ).
Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specificationof the socketis
10A 250VAC. Make sure that the watersupply isturned on tofullpressure.
Close the door, press the On/OffButton,and the light will turn on.
Turn the program Selectorclockwise , the wash program will be changed as follows direction:
If a program is selected, the response lightwill light.Then press the Start/Pause button, the
dishwasher begins to start.
“”
“”
On/Off
Normal-> Eco-> ->SoakIntensive->Glass-> 60 min ;
1
2
3
4
5
Means: need to fill rinse into the Rinse-Aid Dispenser.
()
Eco.
Intensive
Normal
(or )3in1
5/30g
Soak
Pre-wash(50 )
Pre-wash
Wash (65 )
Rinse
Rinse(55 )
Drying
℃
℃
℃
Pre-wash(45 )
Wash (50 )
Rinse
Rinse(60 )
Drying
℃
℃
℃
Wash (50 )
Rinse
Drying
Pre-wash
Rinse(60 )
℃
℃
Rinse
180
175
165
8
1.25
1.04
1.5
0.1
20
16
12.5
4
60 min
Wash(60 )
Rinse (60 )
Drying
Pre-wash(50 )℃
℃
℃
60 11.5
1.15
5/30g
Glass
20g
Rinse
Drying
Pre-wash
Wash(40 )
Rinse(60 )
℃
℃
115 1.07 16.5
5/30g
(or3in1)
5/30g
(or3in1)
For heavily soiledcrockery,
and normally soiled pots
pans dishesetc withdried
onsoiling.
、
、
For normally soiled loads,
such as , plates,glasses
andlightly soiled pans.
pots
For lightly soiled crockery
and glass
Standard daily cycle for
normally soiled loads, such
aspotsplatesglasses.、、
For lightlysoiled loadsthat
donot need excellent drying
efficiency.
To rinse dishes that you plan
to wash later that day

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop.Turn off
the appliance using the ON/OFF button,shut off the water supply and open the door of the dishwasher.
Wait for a few minutes before unloading thedishwashertoavoidhandlingthedishes and utensils while they
are still hot and more susceptible to breakage. Theywill also dry better.
Switch Off the Dishwasher
The program light is on but is not blinking, only in this case the programme has ended.
On/Off1.Switch offthe dishwasher by pressing the Button.
2.Turnoffthewatertap!
Open the door carefully.
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes
before removing from the appliance.
Open thedishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they
will be cooler andthe drying will be improved.
Unloadingthe dishwasher
It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upperone. Thiswill avoid water dripping from the upper Basket onto
the dishes in the lowerone.
If you open the door , the machine will pause. The program lightwill
stop blinking and the buzzerwill mooing every minuteunless you close the door .After
youclosethedoor,themachinewillcontinuetooperateafter10seconds.
during a washcycle
Premise:
Acycle that is underway can only be modified if it has only been running for a short time. Otherwise, the
detergent may have alreadybeen released, and the appliancemay have already drained the wash water.
If this is the case, the detergent dispenser must be refilled (see the section entitled " Loading the
Detergent " ).
Press the On/Off button to stop washing , pressthisbutton to reset ,Then you can changethe programto
the desired cycle setting (see the section entitled "Startinga wash cycle. . ." ).
Then
1
2
Aforgotten dish can be added any time before the detergent cup opens.
Add forgotten dishes.
Close the door
After the spray arms stop working, you can open the door
completely.
2
3
Open the door a little .
14
5
6
Press the Start/Pause Button to stop the washing.
Press the , the dishwasher will run
after 10 seconds.
Start/Pause Button
When you press the Start/Pause button to pause during washing, the will
stop blinkingand the dishwasher willmooingeveryminuteunless youpressthe Start/Pause button
to start.
runningindicator
Wash the arms in soapy and warm water and use a soft brush to
cleanthejets. Replace them afterrinsing them thoroughly.
When following this procedure from step1 to step 3, the filter system will be removed;
when following it from Step 3 to Step 1, the filter system will be installed.
It is dangerous to open the door when washing, because the hot water may scald you.
If yourmodel has broken remember function, the machine will go on to finish the selected
program .
after the powercut

The filter preventslarger remnantsof food or other objects from getting inside the pump.
Theresidues may blockthe filter, inthis casethey mustbe removed.
The filter systemconsists of a coarse filter,a flat (Main filter)
Anda microfilter(Fine filter).
Food and soil particles trapped inthisfilter arepulverizedby a
special jet on the lower spray armand washeddown todrain.
Larger items, such as piecesof bonesor glass, that couldblock
the drainaretrappedin the coarse filter.To remove theitems
caught by the filter, gently ratate the tap on the topof this
filterandliftout.
Thisfilter holds soil and food residues in the pump area and
preventsitfrom being redeposit on the dishes during washcycle.
Main filter
1
Coarse filter
2
Fine filter
3
2
3
1
Filterassembly
Thefilter efficiently
For best performance and results, the filter must be cleaned regularly. thisreason, it isrecommended to
remove thelarger food particlestrappedin the filter aftereach washcycle by rinsing the semicircular filterand
cup under running water. To remove the filter device,pull the cup handle in the upwarddirection.
removes food particles from the wash water, allowing it to be recycled during the cycle.
For
The dishwasher must never be used without the filters.
Improper replacement of the filter may reduce the performance level ofthe appliance
and damage dishesand utensils.
1
2
Step 1 Turn the filter in anti-clockwise direction,：
Step 2 lift the filter assy up：
When following this procedure from step1 to step 2, the filter system will be removed;
when following it from Step 2 to Step 1, the filter system will be installed.

The control panelcan be cleaned by using a lightly dampened cloth.
After cleaning, make sure to dry it thoroughly.
For the exterior, use a good appliance polish wax.
Neveruse sharp objects, scouring pads orharsh cleaners on any part of the dishwasher.
Cleaning the Filter
CleaningThe Door
To clean the coarse filter and the fine filter, use a cleaning brush.Reassemble thefilter parts as shown in the figures
on thelast page and reinsert the entire assembly in the dishwasher, positioning it in itsseat and pressing downwards.
When cleaning the filters, don't knock on them. Otherwise, the filters could be
contorted andtheperformance ofthe dishwashercouldbe decreased.
To clean theedge around thedoor, you should use only a soft warm, dampcloth.
To avoid penetrationof waterinto the door lock and electrical components,do not
use a spray cleaner of any kind.
Never use a spray cleaner toclean the door panel as it may damage the door lock
and electrical components.
Abrasive agents or some paper towels should not be used because of therisk of
scratching or leaving spots on the stainless steel surface.
Cleaning the SprayArms
If your dishwashercannot work becauseof the ice,
pleasecontact professional service persons.
It is necessary to clean the spray arms regularly as hard
water chemicals will clog the spray arm jets and bearings.
- Inspect the filtersfor blockingafter every time the dishwasher has been used.
- By unscrewing the coarsefilter, you can remove the filter system. Removeanyfoodremnants and
cleanthefilters underrunningwater.
Remarks:
The entire filter assembly shouldbe cleanedonce a week.
Toremovethelower spray arm,pulloutthe spray arm upward.
To remove theupper sprayarm, hold the nut, rotate thearm
clockwise to remove it.
Wash thearms insoapy and warmwater and use a soft brush to
clean thejets.Reassemble after rinsing itthoroughly.

Itis recommend thatyourun a washcycle with the
dishwasher empty andthen remove the plug from the
socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door
gasket to last longer and prevent odours from forming
withintheappliance.
If the appliance must be moved, tryto keep it in the
verticalposition. Ifabsolutely necessary,itcanbe
positioned on its back.
Oneofthefactorsthatcauseodourstoforminthe
dishwasher is food that remains trappedin the door
gasket. periodic cleaning with a damp sponge will
prevent this from occurring.
Ensure the voltage and frequency of the power being correspondsto
those on the ratingplate. Only insert the plug into an electricalsocket which isearthed
properly. If the electrical socket to which the appliance must be connected is not
appropriate fortheplug, replacethe socket, ratherthan usingaadaptors orthelike as
they couldcause overheating andburns.
Pleaselook at therating label to know the rating voltage and connect the dishwasher to the appropriate powersupply.
Use the required fuse 10 amp,timedelayfuse or circuitbreakerrecommended and provide separate circuit serving
only this appliance.
Position the appliancein the desired location. The back should rest against the wall behind it, and the sides,
along the adjacent cabinetsor walls.The dishwasher is equippedwith water supply and drain hoses that can
be positioned either to the rightor the left sidesto facilitate proper installation.
Once the applianceis positionedfor levelling, the height of the dishwasher
may be alteredvia adjustment of the screwing level ofthe feet. In any case,
theappliance should not be inclined more than 2 .
For personal safety:
DO NOT USEAN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDERANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING
CONNECTION FROM THE POWER CORD.
Before cleaning or performing maintenance, always
remove the plug from the socket.
Tocleantheexteriorandrubberparts ofthedishwasher,
donot use solventsor abrasivecleaningproducts.
Only use acloth with warm soapy water.
To remove spots or stains from the surface of the
interior, use a cloth dampened with water and a little
vinegar, ora cleaning product madespecificallyfor
dishwashers.
Remove the Plug
No Solvents orAbrasive Cleaning Moving theAppliance
Door Gasket
After every wash, turn off the water supply to the
appliance and leave the doorslightlyopen sothat
moisture and odours are not trapped inside.
After EveryWash
When not inUse for aLongTime
This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of
electric shock by providing a path of least resistance for the electric current. This appliance is equipped with a
cord having an equipment-earthing conductor and an earthing plug. The plug must be plugged into an
appropriate outlet that is installed and earthed in accordance with all local standards and requirements.

Connect thecold water supply hose toa threaded 3/4(inch) connector andmake sure
that it is fastened tightly in place.
If the water pipes are new or have not been used for an extended period of time, let the
water run to make sure that thewater is clear. Thisprecaution is needed to avoid the
riskof the waterinlet to be blocked anddamage the appliance.
In order to avoidthat there ismore waterstaying inthe inlet hose, please close
the hydrantafter using.(Not applicable to appliances without aqua-stop.)
Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into thesink, making sure to
avoid bending orcrimpingit. The top of the hosemust be less than 1000mm.
for personal safety:
DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE
FROM THE POWER CORD. EARTHING CONNECTION
Improper connection of the equipment earthing conductor can result in the risk of an
electric shock.
Check with a qualified electrician or service representative if you are in doubt whether the
appliance is properly earthed.
Do not modify the plug provided with the appliance. If the plug does not fit properly to the
outlet, please have a qualified electrician to install a proper outlet.
φ40mm
A
Counter
Front
Drain pipe
NOTE
The top of the hose
must be less than
1000mm.
B
