Elba ESVC 2990 GY User manual

2 In 1 Stick Vacuum Cleaner
Model No. : ESVC 2990 GY
Instruction Manual
Read this manual thoroughly before using and save it for future reference

1. IMPORTANT SAFE GUARDS
Before using the electrical appliance, the following basic precautions should always
be followed:
1.1 This is a dry vacuum cleaner, do not use it to suck liquid to avoid being damaged.
1.2 Do not immerse the charger or vacuum cleaner into the water for cleaning to
avoid any risk.
1.3 Do not use appliance on or near a hot gas or on a heated oven.
1.4 Make certain that the ventilation slits of the appliance are not covered in case
affect radiating heat.
1.5 Do not use the appliance to suck flammable or combustible liquids, such as
gasoline, or use in areas where they may be present.
1.6 Make sure that your outlet voltage corresponds to the voltage stated on the rating
label of the charger.
1.7 Do not use the appliance with damaged charger, cord or plug.
1.8 The appliance can only be powered by the charger provided. Do not use the
charger to charge any other appliance.
1.9 Before cleaning, cut off the power source of charger to avoid electric shock.
1.10 Do not operate the appliance if the cord of charger is damaged or after
malfunction or has been damaged in any manner. Return appliance to an authorized
service facility for examination, repair or adjustment. Do not detach the battery for
other than its intended use.
1.11 The battery must be disposed properly if it can no longer be used. Never scrap
it into fire as explosion may occur.
1.12 This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use
of the appliances by a person responsible for their safety.
1.13 The use of accessories not recommended by the manufacturer may
cause
injuries to persons.
1.14 Do not operate the appliance for other than its intended use.
1.15 Do not use outdoors
HOUSEHOLD USE ONLY

2. PARTS LIST
1 Handheld Unit 6 Wire Holder
2 Cloth Filter 7 Flat Suction Spout
3 Sand Net Filter 8 Small Hair Brush
4 Dust Cup 9 Body
5 Floor Brush 10 Adaptor
11 Hair Cutter
Fig. 2-1
1
2
3
4
5
7
8
9
10
6

3. INSTALLATION INSTRUCTION
The body, floor brush, wall mount base, adaptor, small hair brush and flat suction
spout shall be packed separately for convenient transportation and storage as this
vacuum cleaner is of large size. The users shall install the appliance by following the
operation as below when use at the first time.

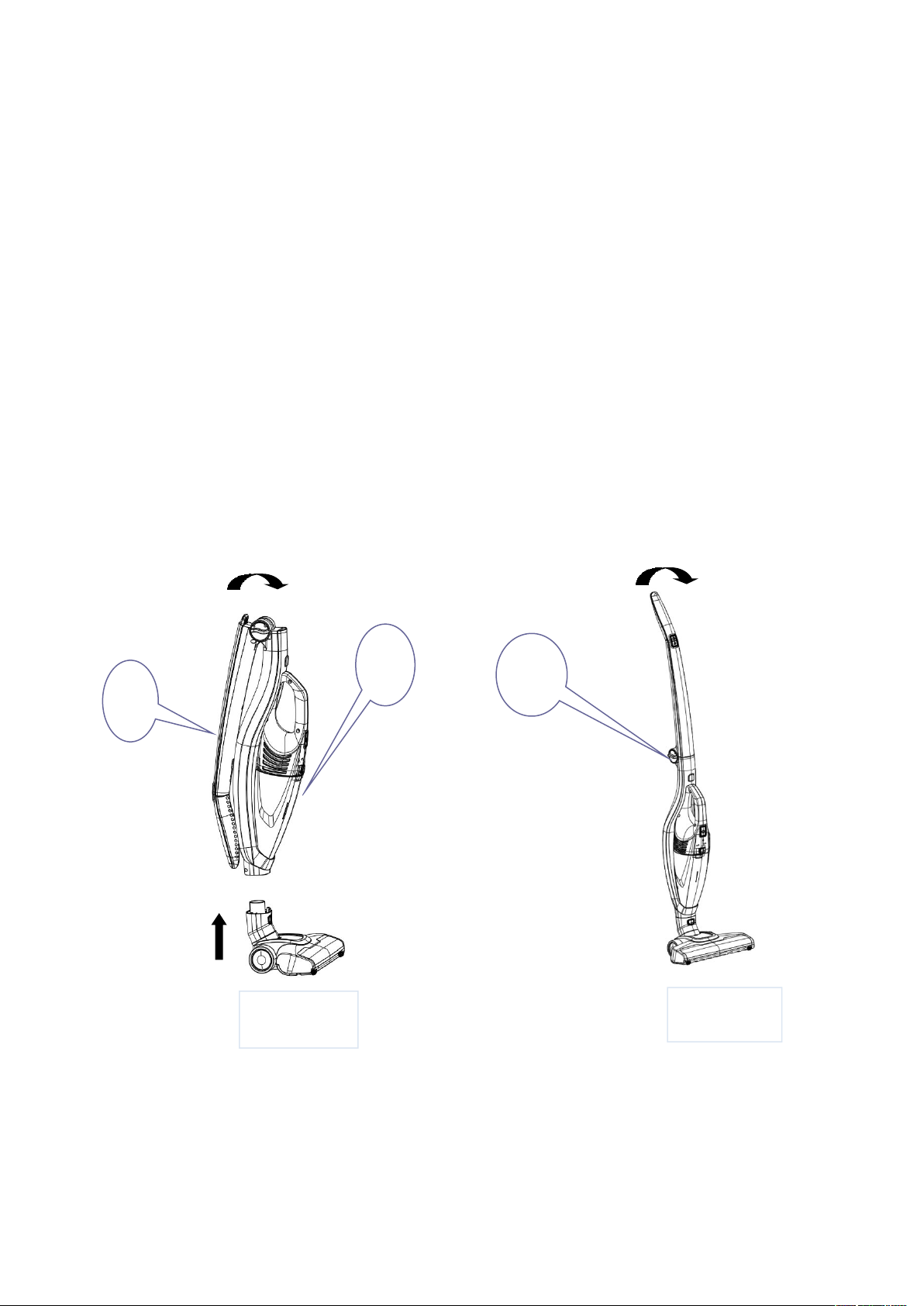

Install the body and floor brush
Insert the floor brush into the body by following the arrow shown in 3a, when the
release button (2) locks the body, rotate the handle (1) and make it be inserted into the
body. If need to fold the handle, rotate the handle release button (3). (See Fig.3b)
Fig. 3b
3
Fig. 3a
1
2

4. OPERATION INSTRUCTION
4.1 Operate the whole unit

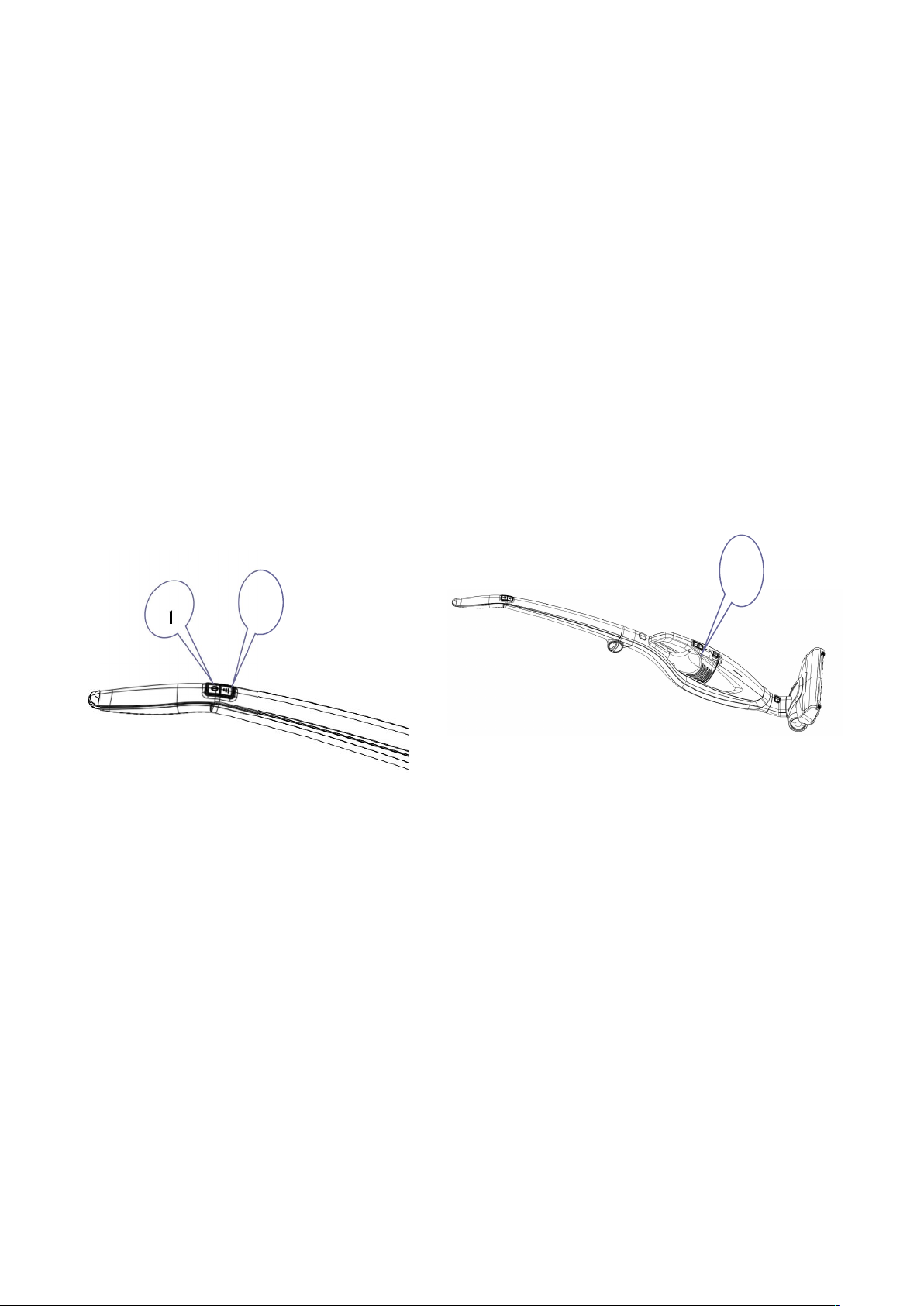

There are two buttons on the handle - power switch (1) and power regulation button (2)
(see Fig.4-1). Press the power switch (1), the motor starts to run, and the appliance
enters into high speed working mode. Press the power regulation button (2), the
appliance changes to the low speed working mode. Press the power regulation button
(2) again so that the appliance resumes working in high speed mode. Press the power
switch (1) if you want to turn off the appliance. During operation, please pay attention
to battery power level indicator (3), the indicator will extinguish gradually as the
battery power level reduces and the appliance will stop working automatically when
power level indicator extinguish.
Fig.４-１

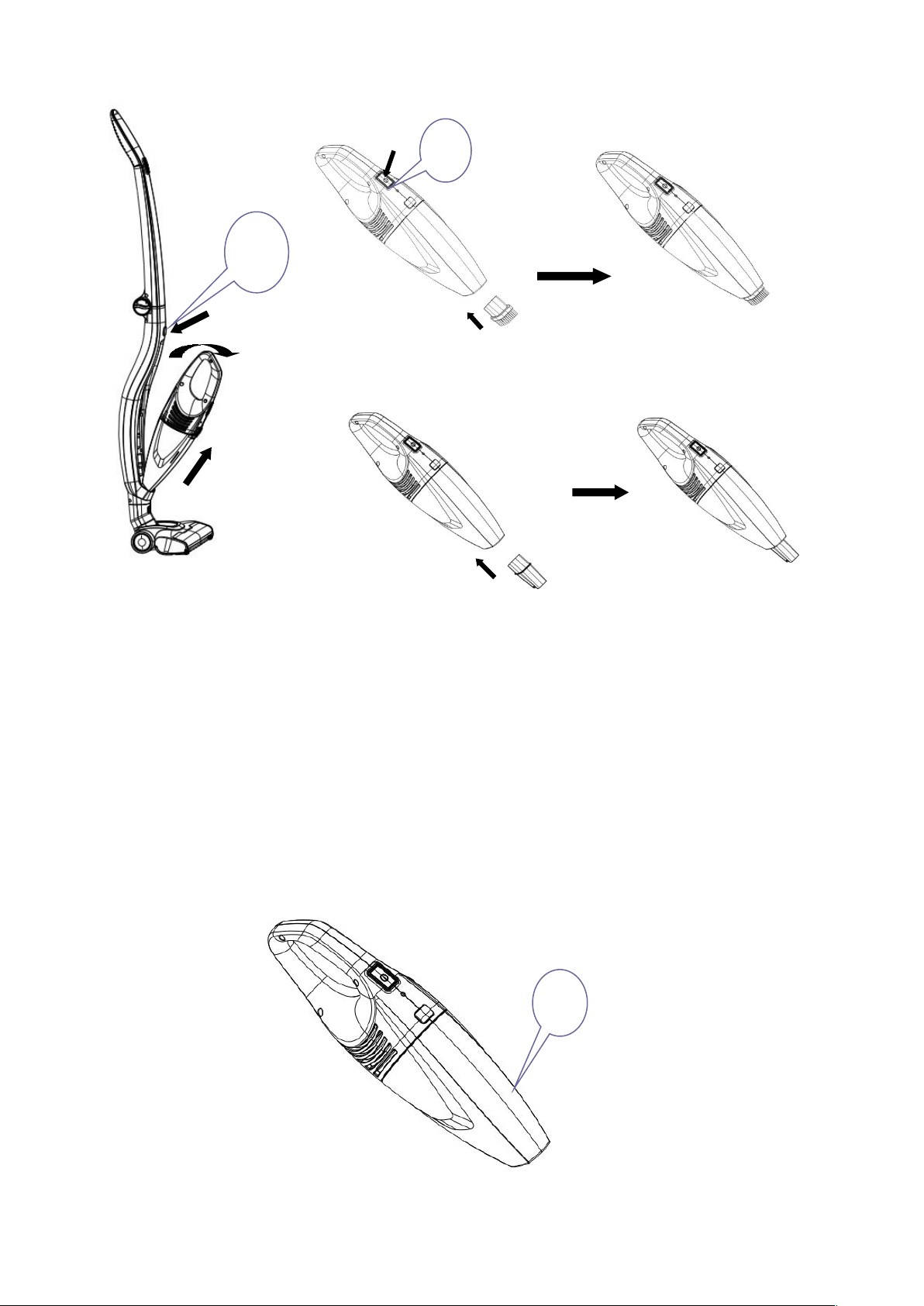

4.2 Operate the sub-unit (handheld unit)
Press the sub-unit release button (4) (see Fig.4.2), grasp the handle of sub-unit to
remove it by following the arrow shown, and then press the sub-unit switch (5) (see
Fig.4-3a), the sub-unit enters into working condition. Press the switch (5) again to turn
off the power.
If need to use small hair brush, please insert it into the suction nozzle of sub-unit by
following Fig. 4-3a/b. If need to use flat suction spout, insert it into the suction nozzle
of sub-unit by following Fig. 4-4a/b, and then activate it again.
２
3

Fig.４-3a Fig.４-3b
Fig.４-2 Fig.４-4a Fig.４-4b
5. CLEANING AND MAINTENANCE
Detach the accessory on the sub-unit, and then press the release button (2) of dust
cup (1) to remove it from the sub-unit.
Fig.5-1
5
4
1

Grasp the filter handle (3) and remove the filter assembly (4) from the dust cup,
and then empty the dust cup and rinse it with water. Wipe the residual water on the
dust cup and let it dry completely after cleaning.
Fig. 5-2a Fig. 5-2b
Grasp the filter handle (3) and rotate it anticlockwise to remove sand net filter (5),
and then empty the cloth filter (6) and rinse it with water. Wipe the residual water
on the filter cover and let it dry completely after cleaning.
Fig. 5-3a Fig. 5-3b
Clean sand net filter (5) and cloth filter (6) with water when the appliance works
inefficiently, dry it completely after cleaning.
After cleaning the dust cup assembly, please install the cloth filter (6) into the sand
net filter (5) first before putting them back into the dust cup. After it, install the
dust cup into the sub-unit, refer to Fig. 5-4
4
3
6

Fig. 5-4
If hair found on the floor brush, press the roll brush release tab (7) as shown below
(Fig. 5-5a) to open the roll brush cover, and then remove the roll brush (8) (Fig.
5-5b).
Fig. 5-5a Fig. 5-5b
Scratch along the locating slot of roll brush with blade to cut and clean the hair.
After cleaning, install the floor brush back again and close the roll brush cover.
Fig. 5-6
NOTE: It is recommended to clean the dust cup after every use. If the sand net filter
8
7

and cloth filter is blocked caused by the accumulation of dust, please clean or replace
it in time. The electric roll brush may be wrapped with some hair or other floccule
after prolong usage, please clean it in time to make the appliance work efficiently.
6. TECHNICAL SPECIFICATION
Product model
ESVC 2990 GY
Working voltage
DC 14.4V
Rated power
85W
Adaptor model
JOD-S-180050GSN
Adaptor input
100-240V ~ 50-60Hz
Adaptor output
18V 500mA
Electric floor brush rated power
10.8W
7. Wall Mount Using Instruction
The cleaner models should be charged after mounted to wall. the charging in the
position where the adaptor L-bushing is held by the wire holder. Fix the adaptor wire
to the wall. Connect the DC plug to the DC JACK at the back side of the cleaner main
body. And then connect the AC plug to the local power supply outlet. The charging
circuit will begin to charge the cleaner (see Fig.7).

Fig. 7
ENVIRONMENT-FRIENDLY DIPOSAL
You can help protect the environment!
Please remember to respect the local regulations:
Hand in the non-working electrical equipments to
an appropriate waste disposal centre.

Please note:
Casa (S) Pte Ltd reserves all rights to the final interpretation of the content of this
manual. Customer will not be notified in the event of any amendments to the content.
