ELBRO SMS-Butler-Mobile User manual

SMS-Butler-Mobile
SMSB-M1-V3
User Manual
Manual version 1.0
Free SMS-Butler-Mobile APP

SMS-Butler-Mobile POWER SOCKET USER MANUAL
www.elbro.com inf[email protected]
2
SMS-Butler-Mobile GSM Power Socket
Thank you for purchasing the SMS-Butler-Mobile.
SMS-Butler-Mobile GSM power socket is a remote-controlled socket consisting of a GSM
module. The power supply output can be turned on or off remotely by the SMS command or
local controlled by pressing button.
All services and functions need to be supported by the GSM network and a SIM card.
This brochure suits for SMS-Butler-Mobile model.
Details of the functioning and advanced operation of this socket are described in this
instruction manual.

SMS-Butler-Mobile POWER SOCKET USER MANUAL
www.elbro.com inf[email protected]
3
For your safety.........................................................................................................................7
Exception clause......................................................................................................................9
1.1 Package contents ............................................................................................................10
1.2 Sockets instructions.........................................................................................................11
1.3 Light indicator ..................................................................................................................14
2.1 User authorization level...................................................................................................15
2.2 About the SMS Command...............................................................................................16
3.1 Start to use ......................................................................................................................16
3.2.1 Register Master-number...............................................................................................18
3.2.2 Change Master number................................................................................................18

SMS-Butler-Mobile POWER SOCKET USER MANUAL
www.elbro.com inf[email protected]
4
3.3.1 Register Family-number ...............................................................................................19
3.3.2 Check Family number...................................................................................................19
3.3.3 Delete Family................................................................................................................19
3.4 Control socket power.......................................................................................................20
3.5 Delay control the socket output .......................................................................................20
3.6 Calendar control ..............................................................................................................22
3.6.1 Activate calendar control ..............................................................................................22
3.6.2 Set calendar..................................................................................................................23
3.6.3 Deactivate calendar control..........................................................................................25
3.7 Thermostat control...........................................................................................................26
3.7.1 Activate thermostat function .........................................................................................26
3.7.2 Set thermostat control parameters ...............................................................................27
3.7.3 Deactivate thermostat control function .........................................................................28

SMS-Butler-Mobile POWER SOCKET USER MANUAL
www.elbro.com inf[email protected]
5
3.8 Temperature alarm...........................................................................................................28
3.9 SMS when on/off button pressed.....................................................................................29
3.10 SMS when power lost or restore....................................................................................30
3.11 SMS notification to User ................................................................................................30
3.12 Check status..................................................................................................................31
3.13 Weak GSM signal notification........................................................................................31
3.14 Change password..........................................................................................................32
3.15 Resetting the socket ......................................................................................................33
4 Main Technical Parameters ................................................................................................34
Appendix: SMS commands list..............................................................................................35

SMS-Butler-Mobile POWER SOCKET USER MANUAL
www.elbro.com inf[email protected]
6
1. Purchase a GSM SIM card (mobile phone card) from GSM network
service provider and install it in the socket. This SIM card number
is referred as SMS-Butler-Mobile number on this brochure.
2. The user needs to activate the Caller ID Presentation function of
SIM card, and deactivate PIN code of the SIM. Contact with GSM
network service provider for support.
3. Change the original password at the beginning use. Be sure to
keep the password and SIM card number secret. Do not disclose
this information to anyone other than the authorized users in
order to ensure your safety.

SMS-Butler-Mobile POWER SOCKET USER MANUAL
www.elbro.com [e-mail]
7
For your safety
•This socket was designed for home or office use. Do not use it on the electrical appliance
which is for industry or business operation, for example, iatrical appliances, large heaters
and refrigerates.
•Before using this socket, make sure that the mobile phones can be used well in the area,
otherwise, do not put this socket into operation.
•The power consumption of the appliances connected with the socket cannot exceed 2300W
and the current cannot exceed 10A.
•The electrical appliance which power consumption is higher than 1500W must be grounded.
•Do not make two plugs of socket short circuit.
•Do not touch the socket jack by any metal objects or hand.
•This socket was designed for indoor use. Don’t use it in wet, chemically aggressive or dusty
environment.
•Do not keep shaking or fall down this socket, otherwise it can be damaged.
•This socket is a wireless signal transmission socket. Keep it away from electronic

SMS-Butler-Mobile POWER SOCKET USER MANUAL
www.elbro.com [e-mail]
8
equipment likely to interfere with the wireless signals, in order to avoid signals interference.
•Switch off this socket and mobile phone when entering areas marked "Explosive", "Might
explode", "Closed wireless transceiver sockets" etc.
•Do not cast this socket in a fire, as this may cause explosion.
•This socket should only be operated from power approved by the socket manufacturer. The
use of any other types of power may damage the socket.
•Keep the socket and its accessories out of the children reach.

SMS-Butler-Mobile POWER SOCKET USER MANUAL
www.elbro.com [e-mail]
9
Exception clause
1. We operate on a policy of continuous development. We reserve the right to make changes and
improvements to any of the sockets described in this document without prior notice.
2. For the latest socket information, please visit: http://www.elbro.com. We don’t guarantee for the
document veracity, reliability or any content except regulate in proper laws. Including no
guarantee for socket suitable market or suitable area promise.
3. We hold no responsibility for the illegal use of this socket.
4. We hold no responsibility for any loss of income or any special, incidental, consequential or
indirect damages howsoever caused.
5. The contents of this document are provided “as is”. Except as required by applicable law, no
warranties of any kind, either expressed or implied, including, but not limited to the accuracy,
reliability or contents of this document. We reserve the right to revise this document or cancel
some functions at any time without prior notice.

SMS-Butler-Mobile POWER SOCKET USER MANUAL
www.elbro.com [e-mail]
10

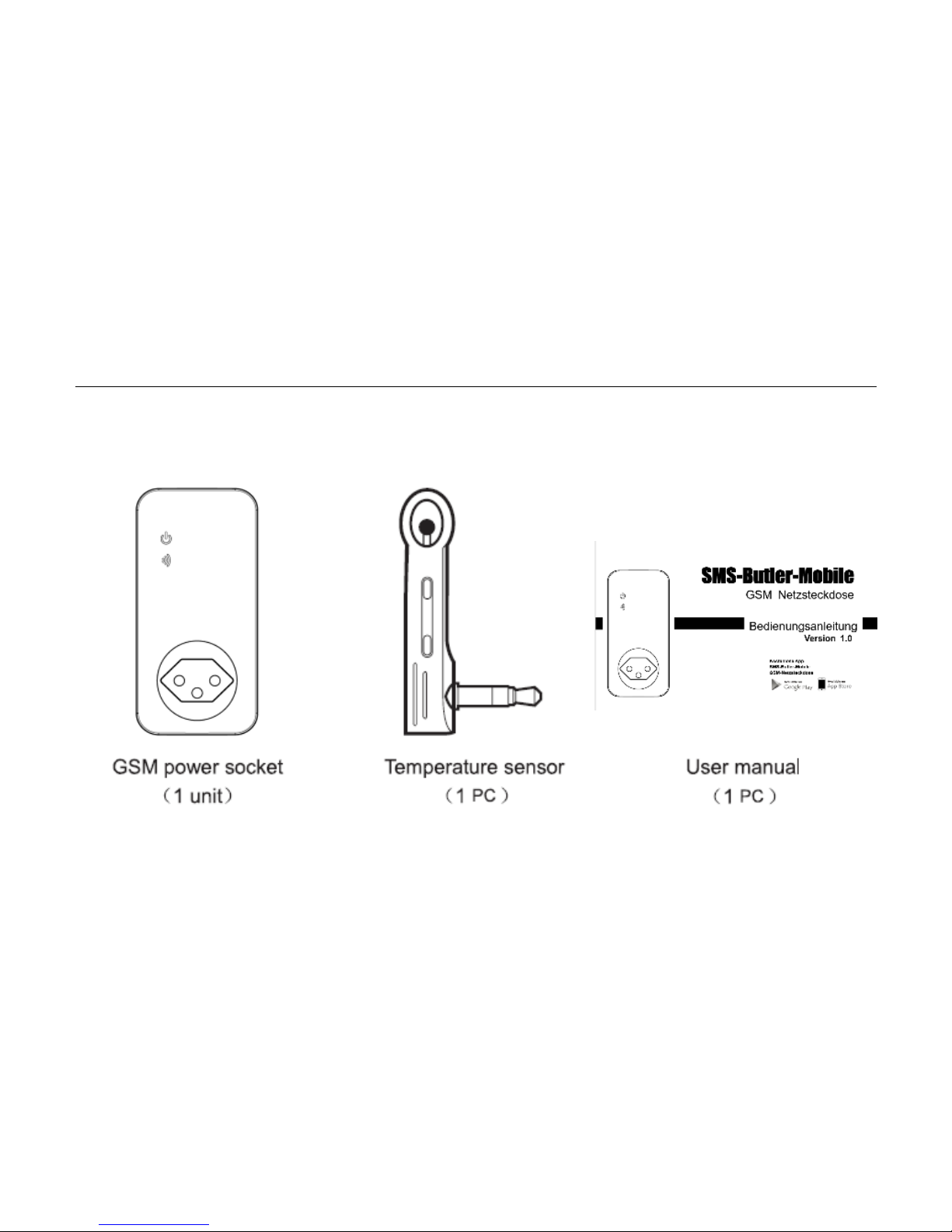

1.1 Package contents

SMS-Butler-Mobile POWER SOCKET USER MANUAL
www.elbro.com [e-mail]
11
1.2 Sockets instructions

SMS-Butler-Mobile POWER SOCKET USER MANUAL
www.elbro.com [e-mail]
12
Cooling hole
SIM-Card Slot
Power
outlet
Power
indicator
GSM-
indicator
M-button
Temp.
sensor
connector
Product label
Power plug
Figure 1: SMS-Butler-Mobile
Bedienelemente und Funktionen

SMS-Butler-Mobile POWER SOCKET USER MANUAL
www.elbro.com [e-mail]
13

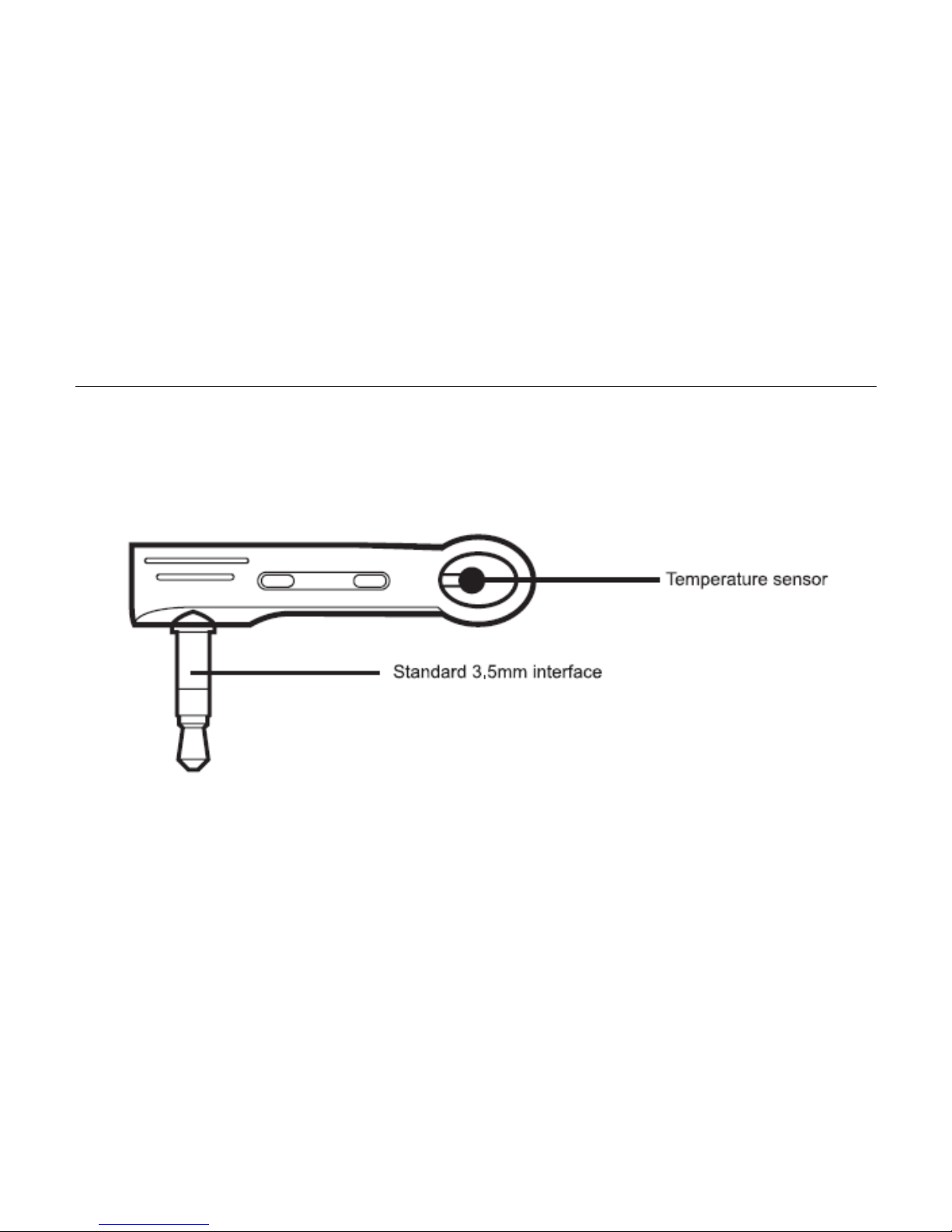

Figure 2: Temperature sensor Instruction

SMS-Butler-Mobile POWER SOCKET USER MANUAL
www.elbro.com [e-mail]
14
1.3 Light indicator
Model
Indicator
Action
Status
SMS-Butler-Mobile
Power icon indicator
Turning off
Socket power output OFF
Constant light
Socket power output ON
Wireless icon
indicator
Flash slowly
Searching GSM network
Slowly breath
Working in standby
mode.
Continues light
in 3 seconds
Rest to factory setting
Flash fast
Process SMS command

SMS-Butler-Mobile POWER SOCKET USER MANUAL
www.elbro.com [e-mail]
15
2.1 User authorization level
Socket settings can be set or adjusted via a SMS command.
There are two mobile phone user controlling levels:
Master-user (“Master”):
Only one Master has authorization to use all features of SMS-Butler-Mobile.
In order to enable all the functions on the socket, the Master must store his/ her mobile
number in the socket’s memory. Only one Master’s mobile number is allowed for a socket.
Family users (“Family”):
There are four families have authorization to use commands of switch on or cut off the socket
output, check socket temperature value or receive power status change alert.
The other mobile phone users have no authorization to control the socket.

SMS-Butler-Mobile POWER SOCKET USER MANUAL
www.elbro.com [e-mail]
16
2.2 About the SMS Command
•SMS command format: #code#content#.
•The maximum digits that are allows for the phone number is sixteen.
•SMS-Butler-Mobile will reply to the user after it receives the SMS command.
Note
•The “#” symbol must not be ignored when typing an SMS command.
•No allow any space within the commands.
3.1 Start to use
•Installed SIM card to SMS-Butler-Mobile GSM power socket: you will see a SIM card slot at
the side, make the SIM card metal contact upside and hardly push the SIM card until SIM card
fixed.
•Insert the temperature sensor into the I/O port until it is seized.
Power on:

SMS-Butler-Mobile POWER SOCKET USER MANUAL
www.elbro.com [e-mail]
17
1. Plug the SMS-Butler-Mobile in 230V wall socket.
The GSM LED will be flashing slowly for about 15 seconds, and turn to slowly breathe status,
breathe LED means the socket already register GSM network, its ready to work.
The socket default power output is OFF.
2. Insert the plug of electronic appliance in the SMS-Butler-Mobile electrical outlet.
3. M button (See 5 on Figure1) can be pressed for about one second to switch on or off the
socket output.
After adding user numbers to the socket, users can send SMS command to control the power
supply output.
Note:
•If the GSM indicator light is flash slowly all the time, which imply the SIM card working
abnormally, all functions of this socket are invalid.
Check GSM network signal of the using place:
•GSM network’s signal strength may affect the socket feature. Therefore, before using, the

SMS-Butler-Mobile POWER SOCKET USER MANUAL
www.elbro.com [e-mail]
18
user should ensure that socket is used in an area with a strong GSM network signal.
•For the first-time use, the user should perform a test-run by sending SMS to the socket. This
allows the user to check the GSM network connection of the socket.
3.2.1 Register Master-number.
Sending following SMS to socket SIM card number from your mobile phone (the phone number
will be the Master number):
Register Master-number on the socket:#00# (1)
3.2.2 Change Master number
Master sends following SMS message in order to:
Change master-number: #14#NewMasterNumber (2)
•NewMasterNumber should be the new Master mobile phone number.

SMS-Butler-Mobile POWER SOCKET USER MANUAL
www.elbro.com [e-mail]
19
3.3.1 Register Family-number
Up to 4 Family-number can be stored on GSM socket.
Family-number has the authority to send SMS command to switch on or cut off the socket
power output.
Method
Master sends following SMS message in order to:
Register a Family: #06#Family-Number#(3)
•Family-Number should be the User’s mobile phone number.
3.3.2 Check Family number
Master sending SMS to check Family number: #06# (4)
3.3.3 Delete Family
Method
Master sends following SMS message in order to:

SMS-Butler-Mobile POWER SOCKET USER MANUAL
www.elbro.com [e-mail]
20
Delete a Family: #15#Family-Number#(5)
Delete all Familes: #15# (6)
3.4 Control socket power
Method
Method 1：To press M button one second (See 5 on Figure1).
Method 2：
Master sends following SMS message to socket in order to:
Turn ON socket power output: #01#0# (7)
Turn OFF socket output: #02#0# (8)
3.5 Delay control the socket output
Description
•The socket output can be set to delay switch ON/OFF for a period time.
•Delay control function will auto deactivate once manual change socket status by sending SMS
