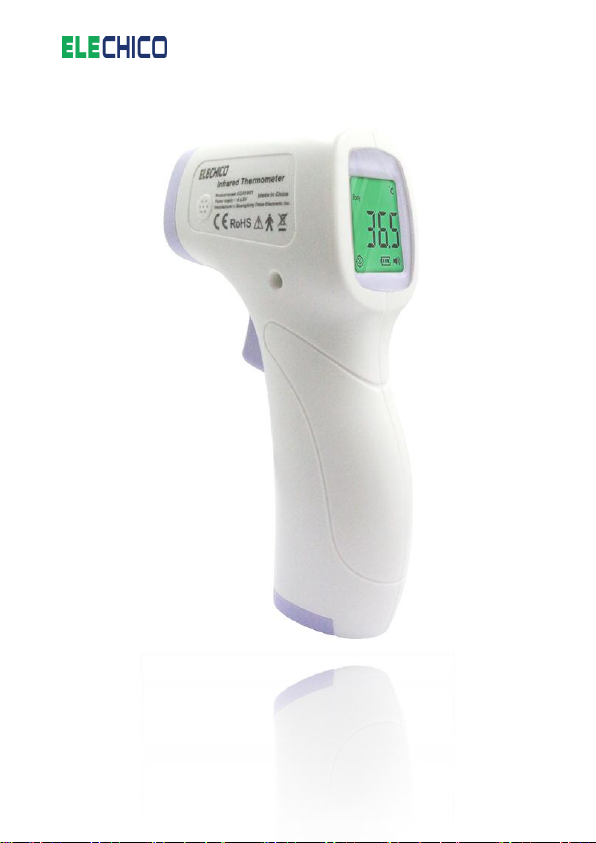

ELECHICO CCIR1001 User manual

Infrared Thermometer
CCIR1001
Instructions
Users must read the instructions carefully before using this product.
Version V1.0

Introduction
Thank you for purchasing CCIR1001 non-contact infrared thermometer. The
non-contact infrared thermometer is a kind of non-contact thermometer
specially used for measuring the body temperature and the object
temperature. It can measure milk, bathroom, room and other object
temperature in the object temperature mode.
Please read these instructions carefully before using this product and
keep the instructions and the thermometer in a safe place.
The product name
Infrared thermometer
Model
CCIR1001
Application
Body temperature
Object temperature
Package Contents
No.
Name
Quantity
1
Infrared thermometer
1
2
Battery (AAA, optional)
2
3
User Manual
1
Registrant/Manufacturer: Guangdong Chico Electronic Inc.
Registered/Production address:
Floor 2, Building 7, Hantian science and technology park, Guicheng, District
of Nanhai, Foshan, Guangdong, China.
Tel: [phone]
Fax: [phone]
Web: www.gdchico.cn
Executive standard: EN60601-1, EN60601-1-2, IEC62321

Contents
1. Product Structure ....................................................................................... 1
2. Display description ..................................................................................... 1
3. Operating principle..................................................................................... 1
4. Specifications.............................................................................................. 2
5. Features...................................................................................................... 2
6. Replace the battery .................................................................................... 2
7. Installation, Operation, or Illustration......................................................... 3
8. Setting description...................................................................................... 4
9. How to use thermometer ........................................................................... 5
10. Warning and Precautions.......................................................................... 5
11. Important note ......................................................................................... 6
12. Advice before first use .............................................................................. 6
13. Care and Cleaning..................................................................................... 7
14. Error and Troubleshooting........................................................................ 7
15. Storage requirements: .............................................................................. 8
16. Symbols .................................................................................................... 8
17. Safety classification description................................................................ 8
18. Warranty and After-sale Service ............................................................... 9

- 1 -
www.elechico.com

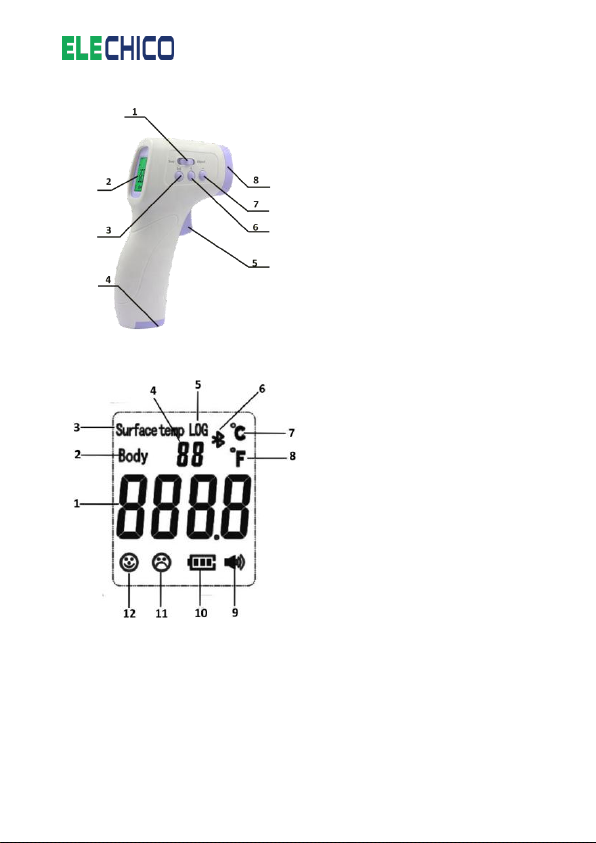

1) Body & object switch
2) LCD display screen
3) SET button
4) Battery compartment
5) Power/measurement button
6) Up button
7) Down button
8) Measuring probe
1. Product Structure
2. Display description
3. Operating principle
The infrared temperature sensor collects infrared energy emitted by the
body or object to convert into voltage signal. After being amplified by
operational amplifier, the energy is filtered and put into the
analog-to-digital converter. The digital signal is converted into a
temperature reading by the central processing unit (CPU) to show on the
LCD display.
1) Temperature valve
2) Body mode
3) Object mode
4) Memory/Mode No.
5) Memory recall
6) Bluetooth(reserved)
7) Celsius degrees
8) Fahrenheit degrees
9) Mute/Un-mute icon
10) Battery level
11) Crying face icon
12) Smiley face icon

- 2 -
www.elechico.com
4. Specifications
Product name
Infrared thermometer
Model
CCIR1001
Display resolution
0.1 ℃/℉
Operational temperature
5℃-40℃
Storage temperature
-20℃-55℃
Operational humidity
≤85%RH
Power supply
DC3.0 V, 2*AAA battery
Dimension
149x95x45mm/5.9x3.7x1.8in
Weight
140 g
Measurement range
Body temperature mode:32.1℃-42.9℃
Object temperature mode:0.0℃-100℃
Accuracy
35.0℃-42.0℃,±0.2℃
others,±0.3℃
Measurement distance
3 cm-5 cm
Body mode backlight
32.1℃-37.4℃, green
37.5℃-37.9℃, yellow
38.0℃-42.9℃, red
Body temperature mode
smiley face/crying face
32.1℃-37.4℃,display smiley face
37.5℃-42.9℃,display crying face
32.1℃-42.9℃,display crying face
Automatic shutdown
60s±2s
5. Features
*Non-contact, accurate and reliable.
* 99 sets of memories, easy to recall.
* Auto shut-down and power-saving.
* Switching between ℃and ℉.
* Mode selection：body mode and object mode
* Backlight with three different color: green, yellow and red.
6. Replace the battery
When the battery icon is flashing which means that the battery level is too
low, please replace the batteries in time to prevent reducing the
measurement accuracy.
For replacement please follow the instructions in the “Install the battery”
section.

- 3 -
www.elechico.com
7. Installation, Operation, or Illustration
1. Install the battery (see figure 1)
Figure 1
2. When using the thermometer for the first time or after putting the
battery in, please wait for 10 minutes before taking measurements.
3. Select the body temperature mode and keep the thermometer probe
about 3-5cm away from the forehead, hold the measurement button, slide
to temple and release the button, the beep is heard, you can now read the
value. And make sure your forehead is not covered with hair, sweat,
cosmetic or hat (see figure 2).
4. Please measure the temperature behind the earlobe if the measured
forehead temperature is affected by ambient temperature variation or
sweat. And make sure your earlobe is not covered with hair, sweat,
cosmetic or hat.
Figure 2
5. Please select object temperature mode to measure milk, room or other
object temperature.

- 4 -
www.elechico.com
8. Setting description
No.
Mode code
Mode Name
Operation
1
A
Check
ambient
temperature
Turn it on, press “+” & “—” button for 3
seconds after the backlight off till the
display shows “A” and value, to check
current ambient temperature.
2
b
Check
blackbody
temperature
Press “+” button once again in “A” mode till
display shows “b” and value, to check
blackbody temperature
3
U
Check battery
voltage
(not
available)
Press “+” button once again in “b” mode till
display shows “U” and value, to check
battery voltage. (not available)
4
F0
ambient
temperature
compensation
Press “+” button once again in “b” mode till
display shows “F0” and value, to check
ambient temp compensation. In this state,
press MODE button into ambient temp
compensation setting, then press “+” or
“—” to set compensation value; when it is
complete, press SET button to confirm it.
5
F1
Body
temperature
compensation
Press “+” button once again in “F0” mode
till display shows “F1” and value, to check
body temp compensation. In this state,
press SET button into body temp
compensation setting, then press “+” or
“—” to set compensation value; when it is
complete, press SET button to confirm it.
6
F2
Blackbody
temperature
compensation
Press “+” button once again in “F1” mode
till display shows “F2” and value, to check
blackbody temp compensation. In this
state, press SET button into blackbody temp
compensation setting, then press “+” or
“—” to set compensation value; when it is
complete, press SET button to confirm it.

- 5 -
www.elechico.com
9. How to use thermometer
How to check the memory data
The thermometer will save current measurement data automatically. Press
“+” or “—” button to check the memories one by one.
How to switch between mute and un-mute
When the thermometer is turned on, press the SET button to switch from
un-mute to mute.
How to switch from ℃to ℉
When the thermometer is turned on, keep pressing the SET button for 3
seconds to switch from ℃to ℉.
How to switch modes
Toggle between "Body" and "Object" with MODE button.
10. Warning and Precautions
1) Please read these instructions carefully before using this thermometer.
2) Do not use the thermometer in high humidity environments. (＞
85%RH)
3) Please use the thermometer within 5℃-40℃.
4) Please make sure the measurement distance is within 3-5cm.
5) the accuracy of the measurements can be affected by the hair, sweat,
hat or scarf.
6) Please put the thermometer in indoors for at least 30 minutes prior to
the measurement when the room temperature changes greatly.
7) Keep the thermometer away from direct exposure to the sun and keep
it in a dust-free, dry area, well-ventilated place at a temperature
between -20℃- 55℃.
8) Keep the thermometer away from electrified objects to avoid electric
shock.
9) Keep the thermometer away from electromagnetic range (such as
radio, mobile phone, etc.)
10) Protect the thermometer from severe Impact and shock. Do not use
the thermometer if there are signs of damage on the measuring sensor
or on the instrument itself.
11) Please measure the temperature behind the earlobe if the measured
forehead temperature is affected by sweat or other reasons.
12) Please use clean soft cloth moistened with water or swab moistened
with medical alcohol to clean the thermometer casing. Ensure that no
liquid enters the interior of the thermometer while cleaning.

- 6 -
www.elechico.com
13) The measuring probe is the high-quality precision part and must be
carefully protected. Do not touch or press the probe with fingers or
other objects. Use an alcohol swab or cotton swab moistened with 95%
to clean the measuring probe.
14) lease do not charge non-rechargeable batteries and put them into the
fire.
15) Please remove the batteries if the thermometer will not be used for a
long time.
16) Waste electrical materials should be sent to a dedicated collection
point for recycling and disposal follow the local laws and regulations as
direct disposal in the garbage can is harmful to the environment.
17) Do not throw the thermometer directly into the dustbin. Instead,
dispose of it follow the local laws and regulations or contact the
manufacturer for recycling.
11. Important note
1) Remove the hair and sweat from your forehead area before taking the
measurement.
2) Please select the appropriate temperature when taking a temperature.
3) Use of this thermometer is not intended as a substitute for
consultation with your physician or pediatrician.
4) If damaged, do not attempt to repair the instrument! Please contact
dealer.
5) Medical electronic products require special precautions according to
the EMC regulations.
6) The thermometer is suitable for all ages.
12. Advice before first use
In order to obtain accurate, stable and reliable measurement data, please
check according to the following steps before using the thermometer.
First step: Use a traditional thermometer to measure someone. Suppose
the measured temperature is 36.5℃.
The second step: Use our thermometer to measure the temperature of the
same person. Keep the thermometer probe about 3-5cm away from the
forehead when taking a measurement (Please remove any obstacles that
may affect the measurement, such as hair, sweat, etc.). If the reading is also
36.5 ℃, it indicates that the thermometer can be used in normal Settings.
If you get a lower reading, such as 35.5℃, you need to do temperature
calibration. Press “+” & “—” button for 3 seconds after the backlight off till

- 7 -
www.elechico.com
the display shows “A” and value, Press “—” button once again till display
shows “F2” and value. In this state, press SET button into blackbody temp
compensation setting.
The third step: Press the SET button to exit the setting mode, and then
compare the temperature
The normal range of body temperature at different site
Measuring part
Measurements(℃)
Measurements(℉)
Rectal temperature
36.6-38
97.8-100.4
Oral temperature
35.5-37.5
95.9-99.5
Axillary temperature
34.7-37.3
94.4-99.1
Ear temperature
35.8-38
96.4-100.4
The body temperature may vary with the time and is also affected by other
external conditions such as age, sex, skin color, and so on.
The range of normal body temperature at different age
Age
Measurements(℃)
Measurements(℉)
0-2 years old
36.4-38
97.5-100.4
3-10 years old
36.1-37.8
97.0-100
11-65 years old
35.9-37.6
96.6-99.7
＞65 years old
35.8-37.5
96.4-99.5
13. Care and Cleaning
* The measuring probe is the high-quality precision part and must be
carefully protected. Do not touch or press the probe with fingers or other
objects. Use an alcohol swab or cotton swab moistened with 95% to clean
the measuring probe.
* Do not use corrosive cleaning agent. Please use clean soft cloth
moistened with water or alcohol swab moistened with medical alcohol to
clean the thermometer casing. Ensure that no liquid enters the interior of
the thermometer while cleaning.
* Never immerse the thermometer into water or other liquids (not
waterproof).
* Keep the thermometer away from direct exposure to the sun and keep it
in a dust-free, dry area, well-ventilated place.
14. Error and Troubleshooting
If you encounter the following problems in use, please refer to the following
guide to solve the problem. If the problem still cannot be solved, please call

- 8 -
www.elechico.com
our after-sales service. Do not attempt to repair the instrument!
Symptom
Possible Cause
Description & Solution
Failed to
power on.
The battery level is too
low
Replace with a new battery
Polarities of the
batteries are reversed.
Ensure the batteries are in the
right position
Display “Lo”
or “Hi”
Out of measurement
range
Body temperature
mode：
<32.1℃displays Lo
>42.9℃displays Hi
1.Make sure there are no
sweat or other objects on
the measured parts.
2.Make sure the air is stable
when taking a measurement.
3.Make sure the
measurement distance is
within 3-5cm.
Display “Err”
The ambient
temperature is too
high or too low.
Please keep the thermometer
in the new measurement
environment for at least 30
minutes.
The battery
icon flashing
The battery level is too
low
Replace two new AAA
batteries.
15. Storage requirements:
keep the thermometer in a non-corrosive gas, dry area, well-ventilated
place at a relative humidity less than 85%.
Production date: Refer to the production batch label.
Shelf life: three years.
16. Symbols
3V DC power supply
Type B applied part
Waste batteries should be sent to a dedicated collection point
for recycling follow the local laws and regulations.
Attention! Refer to the attached document.
This manual is paper and can be recycled

- 9 -
www.elechico.com
17. Safety classification description
a) Shock proof type: Internal power equipment
b) Degree of shock protection: type B.
c) No into liquid protection.
d) Do not use in the presence of burning flammable anesthetic gas mixed
with air or nitrous oxide.
e) Operating mode：continuous running equipment
f) Hand-held device
g) Rated voltage and frequency: d.c.3V
h) No protection against defibrillation discharge effect.
i) No input signals and output signals.
j) Input power of equipment: inapplicable.
k) Non-permanent equipment.
l) EMC GB4824: Group 1 of Class B
18. Warranty and After-sale Service
The device is under warranty for 1 year from the date of purchase.
The batteries, the packaging, and any damage caused by improper use are
not covered by the warranty.
Excluding the following user-caused failures:
1.Failure resulting from unauthorized disassembly and modification.
2.Failure resulting from an unexpected dropping during application or
transportation.
3.Failure resulting from not following the instructions in the operating
manual.
Insulation figure 3

- 10 -
www.elechico.com
Guangdong Chico Electronic Inc.
Warranty Card
Product Name: Product Model:
Purchase Date: Customer Name:
Customer Com: Customer Tel:
Customer Add: Post Codes:
Signature & Seal:

- 11 -
www.elechico.com
Guangdong Chico Electronic Inc.
CERTIFICATION
Product Name:
Product Model:
Checker:
Test Date:

Company Profile
Guangdong Chico Electronic Inc., established in 2003, is a professional
manufacturer engaged in the research, development, production, sale and
service of smart controller, temperature data logger, medical instrument,
and so on. We are located in Foshan with convenient transportation access.
Dedicated to strict quality control and thoughtful customer service, our
experienced staff members are always available to discuss your
requirements and ensure full customer satisfaction.
In recent years, our company has introduced a series of advanced
equipment including automated AOI machine, SMT machine, automated
assembly machine, FCT machine and so on. In addition, we have obtained
ISO 9001certificates.Selling well in all cities and provinces around China, our
products are also exported to clients in such countries and regions as
United Kingdom, France, America, Middle East and so on. Our factory
covers an area of about 7000 square meters and possesses a team of
hight-tech talents those who have exquisite technique and rich experience
on the zone of energy efficient appliances and high efficient switching
power supply. We also welcome OEM and ODM orders. Whether selecting a
current product from our catalog or seeking engineering assistance for your
application, you can talk to our customer service center about your
sourcing requirements.
