ElectrIQ EQODHFTSS User manual

USER MANUAL
GAS PATIO HEATER
WARNING: FOR OUTDOOR USE ONLY OR IN WELL VENTILATED AREAS
PLEASE KEEP THE MANUAL FOR FUTURE REFERENCE
EQODHFTSS
STAINLESS STEEL
EQODHFTBL
BLACK

2
CONTENTS
SAFETY
3
PARTS LIST
5
ASSEMBLY
7
OPERATION
11
LEAK TESTING
12
GAS INFORMATION
12
MAINTENANCE
13
STORAGE
13
TROUBLESHOOTING
14
TECHNICAL SPECIFICATIONS
15
SUPPORT
15

3
IMPORTANT SAFETY INFORMATION
Please read this user manual before using this heater and keep it safe for future
reference.
⚫Read the following instructions carefully and be sure your patio heater is properly
installed, assembled and cared for. Retain the instructions for future reference.
⚫Failure to follow these instructions may result in serious bodily injury and/or
property damage.
⚫WARNING - Risk of Suffocation! Gas heaters must be used outdoors and must
not be used in enclosed areas such as sheds or marquees!
⚫Read the instruction manual before using the appliance.
⚫WARNING: Accessible parts may be very hot. Keep young children away.
⚫This appliance must be kept away from flammable materials during use.
⚫Do not move the appliance during use.
⚫The appliance should be secured to the ground when in use.
⚫Turn off the gas supply at the gas cylinder after use.
⚫Do not modify this appliance.
⚫If you have any questions concerning assembly or operation, consult the retailer
or Bottled Gas Company.
⚫Always place the appliance and cylinder on flat level ground.
⚫Turn off the gas cylinder if gas leak is suspected.
⚫Parts sealed by the manufacturer must not be altered by the user. No
modifications should be made to any part of this heater and repairs and
maintenance should only be carried out by a registered Gas Safe service
engineer.
⚫Use only regulator and hose approved for LP Gas at the correct pressures and
gas type.
⚫The regulator should comply with the standard EN16129 and current regulations
in the country where it is installed, which may be found at your nearest retailer of
gas items.
⚫Refer to the technical data. It is strictly prohibited to use adjustable pressure.
⚫The life expectancy of the regulator is estimated as 10 years. It is recommended
that the regulator is changed within 10 years of the date of manufacture or the
national conditions require it.
⚫The type of replaceable hose should be compliant with EN16436-1.
⚫The hose used must conform to the relevant standard for the country of use. The
length of the hose must be 0.7 meters (minimum) and 1.5 meters (maximum). A
worn or damaged hose must be replaced. Ensure that the hose is not obstructed
or kinked. It is recommended that the hose is changed within 1 year of the date
of manufacture or as the national conditions require.

4
For use outdoors or in well ventilated areas.
•A well ventilated area must have a minimum of 25% of the
surface area open.
•The surface area is the sum of the walls surface.
•The use of this appliance in enclosed areas can be
dangerous and is PROHIBITED.
•Children and adults should be aware of the high operating
temperatures of areas above the post when operating this
heater. Children should be carefully supervised when in the
vicinity of the heater.
NEVER hang anything, including clothes or any other
flammable items, on this heater.
DO NOT operate this heater unless it is fully assembled.
Respect the minimum clearances from combustible materials.
GENERAL INFORMATION FOR
SUCCESSFUL ASSEMBLY
Please read the assembly instructions carefully and follow the safety precautions. Allow sufficient
time for assembly. Before starting assembly, clear an area measuring approximately two to three
square meters. Remove the item from the packaging and lay out all of the parts and any necessary
tools so that they are within easy reach.
Only tighten all of the screw connections firmly when you have finished assembly or are instructed
to within the manual. Otherwise this can result in unwanted tension and instability.
1m
1m

5
PRODUCT OVERVIEW AND PART LIST

6
PART
PART NAME
QTY
1
REFLECTOR
1
2
FLAME SCREEN
1
3
SUPPORT BAR - UPPER
4
4
MESH GUARD
4
5
GLASS TUBE
1
6
RUBBER RING
1
7
CHAIN (ASSEMBLED
WITH DOOR)
MODEL H1507 DOESN’T INCLUDE THIS PART
1
8
PLATE COVER
1
9
BURNER ASSEMBLY
10
REAR PAENL OF TANK
HOUSING
1
11
SUPPORT BAR – LOWER
4
12
SIDE PANEL OF TANK
HOUSING
2
13
DOOR OF TANK HOUSING
1
14
BOTTOM PLATE
1

7
PART
PART NAME
QTY
DESCRIPTION
AA
M5 CAP NUT
4
TO CONNECT REFLECTOR AND
FLAME SCREEN
BB
M5 CREWS &
WASHER
44
M5 X 8 SCREW & M5 WASHER
CC
M5 F TAPPING
SCREWS & WASHER
18
ST4.2X9.5 SELF TAPPING
SCREWS & M5 WASHER
Note: Some of the fittings may be provided pre-attached to the unit.
PATIO HEATER ASSEMBLY
Required Tools: Philip Screwdriver / Adjustable Spanners / Wrenches
Leak Detection Solution: One-part detergent and three parts water
Before assembly, ensure all packing material and any transit protection is removed. Remove the door from the main
body, and remove all the parts packed within it.
STEP 1(Optional): Connect the BRACKET (N) and
WHEELS (M) to the base of the Main Body using the M6
SCREWS, WASHERS and NUTS (CC and DD)
STEP 2: Keep the burner with the ignition side up. Fix
the BURNER ASSEMBLY (J) to MAIN BODY (K) using
4 M5 SCREWS and WASHERS (BB).

8
STEP1: Connect and fix the 4 Support Bar – Lower (1) to Bottom Plate (14) and Plate Cover (8) by 32PCS M5
screws and washers(BB)
STEP 2: Lay down tank housing, fix the Burner
Assembly (9) to Pate Cover (8) by 4pcs M5
Screws and Washers (BB).
STEP 3: Obliquely insert and attach 2pcs Side Panels (12) and 1pc Rear Panel (10) into tank housing using
18pcs M5 self-tapping screws and washers (CC). Best affix two opposite sides first, fastening the screws
diagonally.
Note: Do not close the door where is near to the control knob!

9
STEP 5: Attach Flame Screen (2) to the top of Support Bar-Upper (3) and fix the connection with 2pcs M5 screws
and washers (BB), (See FigureⅠ, Ⅱ).
Repeat this step and connect Flame Screen (2) to other 3 sets Support Bars-Upper (3). (See Figure Ⅲ, Ⅳ)
STEP 6: Place Reflector (1) on the Flame Screen (2)
and fix the connection with 4pcs M5 CAP NUT (AA).
STEP 7: Place the whole upper parts to top of tank housing assembly. Make
sure match the top ends of tank housing assembly with the bottom slot of
Support Bar – Upper (3). Match the threaded holes and fix each connection with
2pcs M5 Screws and Washers (BB)

10

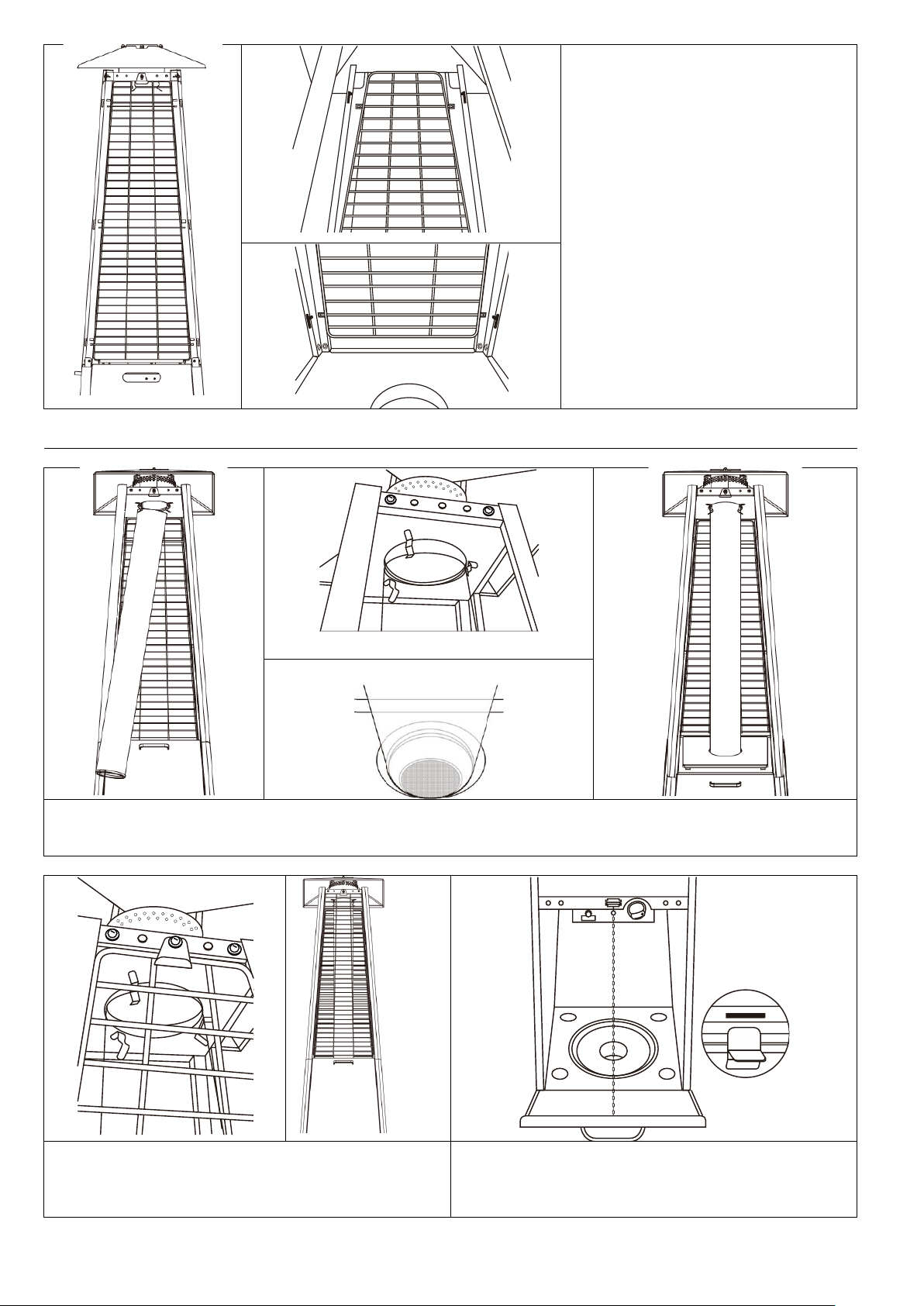

STEP 8: Insert 6 projecting ends of
each Mesh Guard (4) into the seat slots
of Support Bar–Upper (3) as shown in
picture. Fix all Mesh Guards (4) except
the front side.
STEP 9: Fix Rubber Ring (6) into the bottom of Glass Tube (5). Insert the top end of glass tube into the bottom
hole of Flame Screen (2) as much as possible. Keep glass tube vertically and sit it in the hole of Plate Cover (8).
NOTE: GLASS TUBE IS FRAGILE PART, PLEASE HANDLE GLASS TUBE CAREFULLY AND SLOWLY!
STEP 10: Assemble Mesh Guard (4) in the front.
Loose 4pcs screws to keep 4pcs Guard Fastening
Plates down and firmly in place.
STEP 11: Insert the feet of door into the bottom slots.
Attach the Chain (7) to the hook of Burner Assembly
(9) and close the door.
Note: Model H1507 doesn’t take this Chain.

11
OPERATING INSTRUCTIONS
BEFORE FIRST USE AND AFTER EVERY GAS CYLINDER CHANGE, GAS DELIVERY SYSTEM MUST BE
PURGED OF AIR BEFORE IGNITING! TO DO THIS, TURN THE CONTROL DIAL ANTI-CLOCKWISE TO THE
PILOT SETTING. PRESS THE DIAL IN AND HOLD FOR 1 MINUTE BEFORE ATTEMPTING IGNITION.
BATTERY REPLACMENT
Remove the ignition cap from the BURNER ASSEMBLY (J) by turning cap counterclockwise. Install 1 AAA battery. The
negative end of battery goes in first, then replace the ignition cap by turning the cap clockwise.
TO LIGHT THE PILOT
•Check all connections prior to each use.
•Turn on the gas supply at source.
•Press and turn the control dial anti-clockwise to the
PILOT marking.
•Hold the dial down and press the IGNITION button
repeatedly until the pilot flame is lit, then continue to
hold the dial down for 10 seconds until the pilot
remains lit after releasing the dial.
•If the pilot fails to ignite, press and turn the dial
clockwise to OFF before repeating the lighting steps.
TO LIGHT THE PATIO HEATER
•The pilot should be lit and the dial set to PILOT.
•Hold the dial down and turn anti-clockwise to the LOW position.
•When the mesh glows, turn dial clockwise to select the desired heat output.
Note: The burner may be noisy when initially turned on. To eliminate excessive noise from the burner, turn
the control dial to the pilot position. Then turn the dial to the level of heat desired.
RE-LIGHTING
•Turn the Dial to the OFF position.
•Wait at least 5 minutes, to let gas dissipate, before attempting to re-light pilot.
•Repeat the “Lighting” steps.
TO EXTINGUISH
•Hold the dial down and turn clockwise to the OFF position
•Turn off the valve on the gas cylinder or the regulator after use.
•Disconnect the gas bottle and allow this appliance to cool before moving the appliance.
Note: After use, some discoloration of the emitter screen is normal. Turn off the regulator after use and allow
the appliance to cool before moving.

12
LEAK TESTING
NEVER USE A NAKED FLAME TO CHECK FOR LEAKS.
NEVER LEAK TEST WHILE SMOKING.
The gas connections on this appliance are leak tested at the factory prior to
shipment.
This appliance needs to be periodically checked for leaks and an immediate
check is required if the smell of gas is detected.
•Make a soap solution using 1 part of liquid dish-washing soap to 3 parts
water. The soap solution can be applied with a soap bottle, brush, or rag
to the leak tested points shown in the figure above.
•The valve of the gas cylinder should be in the OFF position. Once the
soapy solution is applied to the gas connections, the valve of the gas
cylinder needs to be turned to the ON position.
•Soap bubbles will begin to form in the soapy solution if a leak is present.
•In case of a leak, turn off the gas supply. Tighten any leaking fittings, then
turn the gas supply on and recheck.
GAS REQUIREMENTS
•The regulator and hose assembly used must conform to local safety requirements.
•Never use a gas cylinder with a damaged body, valve, collar, or foot ring. A dented or rusty gas tank may be
hazardous and should be checked by a gas supplier.
•Never connect this appliance to an unregulated gas source.
•When the appliance is not in use, turn the gas cylinder OFF, before disconnecting it.
•Always perform a leak test on gas connections whenever a cylinder is connected. If bubbles form in the leak test
solution, do not use. Never use a flame to test for leaks.
CONNECTING TO A GAS CYLINDER
•Use a 9 kg gas cylinder. Please refer to your gas supplier for suitable gas cylinder.
•Refer to your gas supplier for instructions on the use of your gas cylinder.
•Only change gas cylinders outdoors or in a well-ventilated area away from naked flames and any other source of
ignition.
•The gas cylinder must always be used in an upright position.
•Close the heater control dial by turning fully clockwise.
•Close the gas cylinder tap and then attach the regulator onto the gas cylinder.
•Tighten all connections firmly and with a spanner where appropriate. The cylinder should be located on the cylinder
base.
•Check for leaks at all joints using soapy water. If a leak is found, tighten the joint and then re-test.

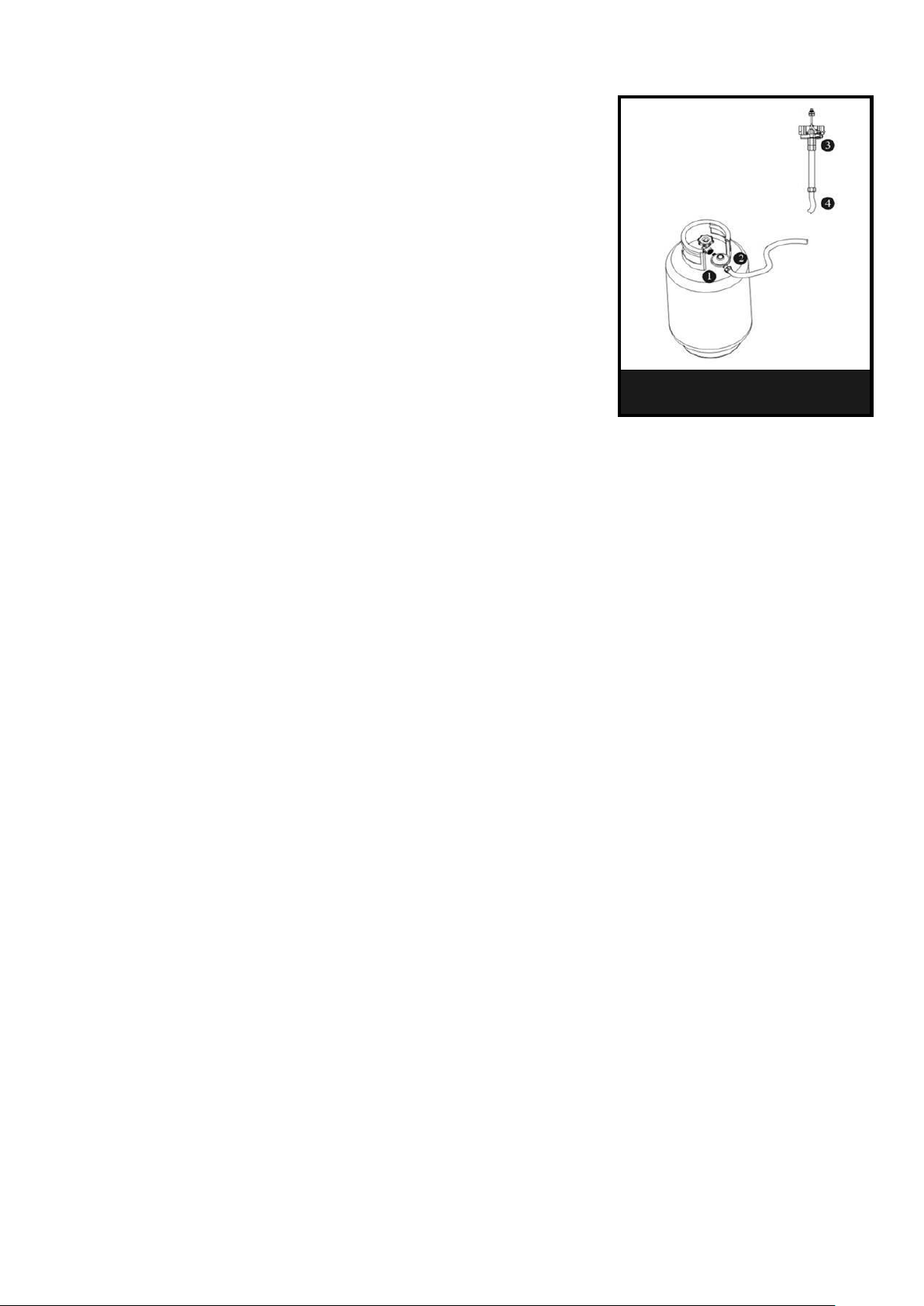

Leak Test Point ①②③④

13
MAINTENANCE
To enjoy years of outstanding performance from your heater, make sure you perform the following maintenance
activities on a regular basis:
•Keep exterior surfaces clean.
•Use warm soapy water for cleaning. Never use flammable or corrosive cleaning agents.
•While washing your unit, be sure to keep the area around the burner and pilot assembly dry at all times. If
the gas control is exposed to water in any way, DO NOT try to use it. It must be replaced.
•Airflow must be unobstructed. Keep controls, burner and circulation air passageways clean. Signs of
possible blockage include:
•Gas odour with extreme yellow tipping of flame.
•Heater does NOT reach the desired temperature.
•Heater glow is excessively uneven.
•Heater makes popping noises.
•Spiders and insects can nest in burner or orifices. This dangerous condition can damage the heater and
render it unsafe for use. Clean burner holes by using a heavy-duty pipe cleaner. Compressed air may help
clear away smaller particles.
•Carbon deposits may create a fire hazard. If any carbon deposits develop, clean the dome and burner with
warm soapy water.
Note: In environments with a high salt content (such as near the sea), corrosion occurs more quickly
than normal. Frequently check the corroded areas and repair them.
SERVICING
•Please consult your supplier for servicing this appliance and replacement of its parts. The servicing of the
appliance shall be carried out only by authorised personnel.
•Do not use unauthorised parts or components for this appliance, only use original equipment replacement
parts and components. The use of unauthorised parts or components will void the warranty and can create
unsafe condition.
STORAGE
There is no limitation on the storage of the appliance indoors provided that the cylinder is disconnected
and removed from the appliance.
Between uses or before storage:
•Turn the control dial OFF
•Turn the gas cylinder OFF
•Disconnect the gas bottle.
Store the heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail,
snow, dust and debris). If desired, cover to protect exterior surfaces and to prevent build up in air passages.
Note: Wait until heater is cool before covering.

14
TROUBLESHOOTING
PROBLEM
CONDITION
FIX
Pilot won’t light
Cylinder valve is closed
Open valve
Blockage in orifice or pilot tube
Clean or replace orifice or pilot tube
Air in the gas line
Open gas line and bleed it (pressing
control dial in) for not more than 1-
2 minutes or until you smell gas
Low gas pressure
Gas cylinder low or empty
Ignition fails
Change the Battery
Pilot won’t stay lit
Dirt build up around the pilot
Clean dirt from around the pilot
Connection between the
gas valve and pilot assembly is loose
Tighten the connection and perform a
leak test
Bad thermocouple
Replace the thermocouple
Burner won’t light
Gas pressure is low
Replace the gas cylinder
Blockage in the orifice
Clear the blockage
Control dial is not in the
"HIGH" position
Turn control dial to the "HIGH" position
Burner flame is low
Note: Do not operate
heater below 5 ℃ (40°F)
Gas pressure is low
Replace the gas cylinder
Tank is almost empty.
Replace the gas cylinder
Supply hose is bent or kinked
Straighten hose and perform leak test on
the hose
Control dial is fully " ON"
Turn control dial to "OFF", let it cool to
room temperature and check burner and
orifices for blockage
Emitter glows uneven
Note: Bottom 2.5cm of
emitter does not
normally glow
Gas pressure is low
Replace the gas cylinder
Base is not on a level surface
Place heater on a level surface
Heater not level
Level the heater
Carbon build-up
Dirt or film on
the reflector and/or emitter
Clean the reflector and emitter
Thick black smoke
Blockage in burner
Turn the control dial to the OFF position, let
it cool to room temperature and remove
blockage and clean burner inside and
outside.

15
TECHNICAL SPECIFICATIONS
electriQ UK SUPPORT
www.electriQ.co.uk/support
Call: 0330 390 3061 or complete the online form
Office hours: 9AM - 5PM Monday to Friday
www.electriQ.co.uk
Unit J6, Lowfields Business Park
Lowfields Way, Elland
West Yorkshire, HX5 9DA
Model: EQODHFTSS, EQODHFTBL
Heat input ∑Qn(Hs)=11.2kW
Consumption: 815g/h
PIN: 0063CO7365
Country Code
CH-ES-FR-
GB-
GR- IE-IT-
PT
BE-CY-CZ-
DK-EE-FI-
GR-IT-LT-
LV-MT-NL-
NO-SE-SI-
SK-BG-RO-
TR
AT-CH-DE
PL
CZ-FR-GB-
GR-IE-PT
AT-CH-
DE-NL
Gas Category
I3+(28-30/37)
I3B/P(30)
I3B/P(50)
I3B/P(37)
I3P(37)
I3P(50)
Type of Gas
Butane /
Propane
Propane
Butane/
Propane /
Mixture
Butane/
Propane /
Mixture
Butane/
Propane /
Mixture
Propane
Gas pressure
28-30mbar
37mbar
30mbar
50mbar
37mbar
37mbar
Injector Marking
1.6
1.6
1.4
1.5
1.6
1.5
Warning
Read the instructions before using this appliance.
The appliance must be installed in accordance with instructions and local regulations.
The use of this appliance in enclosed areas can be dangerous and is PROHIBITED.
For use outdoors or in amply ventilated areas.
An amply ventilated area must have a minimum of 25% of the surface area open.
The surface area is the sum of the walls surface.
0063
