Electro-Voice | RE3-RX RE3 Diversity Receiver

RE3-RX RE3 Diversity

Receiver

▪Diversity reception minimizes dropouts

▪Up to 36 MHz tuning bandwidth (band specific) for

trouble-free operation

▪Easy-to-read LCD display

▪Frequency scanning for selecting open frequencies

▪Sync function links transmitter to receiver for easy

setup

The RE3-RX is a professional rack-mountable, ½ space

diversity receiver. Designed to function as the control

center for an RE3 wireless set, it features frequency

scanning and synchronizing, as well as full transmitter

control settings which synchronize to a mated

transmitter.

The diversity reception technology minimizes the

chances of signal dropouts by providing two separate

antenna locations which are electronically chosen

moment-by-moment based on signal strength and

stability. The wide tuning bandwidth provides access

to a wide range of frequencies, selectable in 25kHz

steps for trouble-free operation of single and multi-

channel systems. The easy-to-read LCD display

provides vivid viewing of all menus and operating

parameters. The easy-to-use frequency scanning

function simplifies locating and tuning to a clear

operating frequency. The sync function wirelessly

synchronizes all operating parameters to the mated

transmitter.

Technical specifications

Frequency oscillation mode: Phase-locked loop (PLL)

Carrier frequency range: 470 - 865 MHz

(tuning bandwidth is band

dependent)

Band names, tuning

bandwidths, and carrier

frequency ranges:

5L: 36 MHz (488-524 MHz)

5H: 36 MHz (560-596 MHz)

6M: 10 MHz (653-663 MHz)

8M: (823-865 MHz)*

T: 3 MHz (803-806 MHz)

*8M is split into two segments:

823-832MHz: 9MHz

863-865MHz: 2MHz

Sync frequency: Ultrasonic 40 kHz

Diversity: Antenna diversity

Bandwidth: 36MHz

Signal/Noise ratio: >100dB(A)

Total harmonic distortion

(Thd):

<0.6%@1kHz

Receiving sensitivity: -81dBm for -12dB SINAD

Frequency response: 63Hz~16kHz±2dB (BPT)

51Hz~16kHz±2dB (HHT)

Antenna type: Detachable ½ wave with BNC

connector

Antenna booster power: DC12 - 15V/100mA

Function display by: LCD

Contents of display: Group, channel, frequency, antenna

A/B, transmitter battery level,

transmitter status (mute, live, or no

sync), output level attenuation, AF

indication, RF indication, key lock

indicator.

Control functions: Power, scan, frequency, group,

channel, squelch, TX sensitivity, TX

attenuation, TX RF power, TX auto off,

TX key lock, TX display info, TX sync

configuration, RX output volume, RX

output level, RX antenna booster

power, RX key lock, RX display

contrast, RX display brightness, RX

system reset.

Sync data options: Frequency, group, channel,

sensitivity level, attenuation status,

RF power, auto off status, key lock

status, transmitter display (freq or

Gp/Ch)

Audio frequency output level: Ref：±22.5kHz Dev@1kHz Tone

¼” (6.3mm) Phone Jack：-10dBV

XLR

Jack：-4dBV(Line)、-24dBV(MIC)

Audio frequency output

impedance:

240Ω (unbalanced)

1400Ω (balanced)

Squelch and noise muting: Noise muting and tone code locking

Output ports: 1 x balanced XLRM jack

1 x unbalanced ¼” TS (6.3mm) jack

Power supply: DC12~15V/500mA

Finish: Black polyurethane paint

Dimensions: Width: 8.27 in. (210mm)

Height: (with feet attached) 1.85 in.

(47mm)

Height: (without feet attached) 1.73

in. (44mm)

Depth: (including antenna jack) 6.89

in. (175mm)

Depth: (not including antenna jack)

6.1 in. (155mm)

Net weight: 2.71 lb (1.23 kg)

Gross weight: 3.28 lb (1.49 kg)

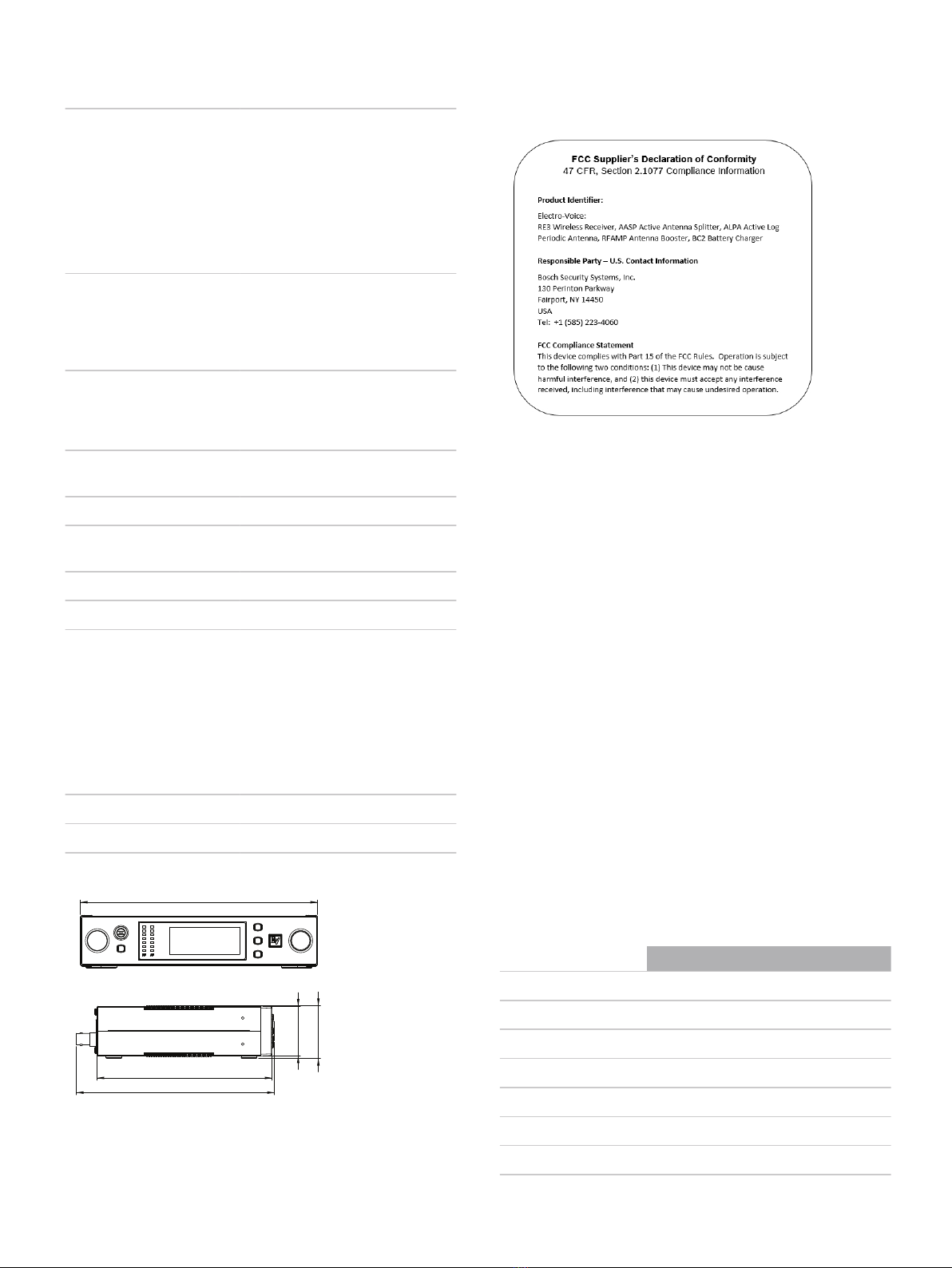

Dimensions:

210 mm

44 mm

47 mm

155 mm

175 mm

For full operational information, download the RE3

installation manual at www.electrovoice.com.

Licensing and certification declarations:

IC: This Class B digital apparatus complies with

Canadian ICES-003. Cet appareil numérique de la

classe B est conforme à la norme NMB-003 du Canada.

This device complies with Industry Canada license-

exempt RSS standard(s). Operation is subject to the

following two conditions:

(1) This device may not cause interference, and

(2) This device must accept any interference, including

interference that may cause undesired operation of

the device.

Le présent appareil est conforme aux CNR d'Industrie

Canada applicables aux appareils radio exempts de

licence. L'exploitation est autorisée aux deux

conditions suivantes :

(1) l'appareil ne doit pas produire de brouillage, et

(2) l'utilisateur de l'appareil doit accepter tout

brouillage radioélectrique subi, même si le brouillage

est susceptible d'en compromettre le fonctionnement.

CE and EU: The CE Declaration of Conformity can be

obtained and downloaded from:

www.electrovoice.com

This Equipment is in compliance with CE requirements

and the following directives:

•2011/65/EU RoHS Directive

• 2012/19/EU WEEE Directive

• 2014/53/EU RED Directive

AU and NZ: This device is in compliance with Cispr32.

Replacement parts

Order number Description

ESP-EF01U362330 RE3 rubber feet, skid pads and screws

ESP-EF01U362333 RE3 antenna, 5L band, 480-524MHz

ESP-EF01U362334 RE3 antenna, 5H band, 560-596MHz

ESP-EF01U362335 RE3 antenna, 6M band, 653-663MHz

ESP-EF01U362336 RE3 antenna, 8M band, 823-865MHz

ESP-EF01U362337 RE3 antenna, T band, 803-806MHz

ESP-EF01U362338 RE3 receiver power supply with AC clips

2| RE3-RX RE3 Diversity Receiver

Compatible products

Order number Description

RE3-HHT76-5L Handheld transmitter with ND76 head,

488-524MHz

RE3-HHT86-5L Handheld transmitter with ND86 head,

488-524MHz

RE3-HHT96-5L Handheld transmitter with ND96 head,

488-524MHz

RE3-HHT420-5L Handheld transmitter with RE420 head,

488-524MHz

RE3-HHT520-5L Handheld transmitter with RE520 head,

488-524MHz

RE3-BPT-5L Bodypack transmitter 488-524MHz

RE3-BPT-5H Bodypack transmitter 560-596MHz

RE3-BPT-6M Bodypack transmitter 653-663MHz

RE3-BPT-8M Bodypack transmitter 823-865MHz

RE3-BPT-T Bodypack transmitter 803-806MHz

RE3-ACC-RMK1 Rack mount kit for single RE3 receiver

RE3-ACC-RMK2 Rack mount kit for two RE3 receivers

Ordering information

RE3-RX-5L RE3 half rack space receiver 488-524MHz

RE3 wireless diversity receiver, 5L band, 488-524MHz,

black

Order number RE3-RX-5L

RE3-RX-5H RE3 half rack space receiver 560-596MHz

RE3 wireless diversity receiver, 5H band, 560-596MHz,

black

Order number RE3-RX-5H

RE3-RX-6M RE3 half rack space receiver 653-663MHz

RE3 wireless diversity receiver, 6M band, 653-663MHz,

black

Order number RE3-RX-6M

RE3-RX-8M RE3 half rack space receiver 823-865MHz

RE3 wireless diversity receiver, 8M band, 823-865MHz,

black

Order number RE3-RX-8M

RE3-RX-T RE3 half rack space receiver 803-806MHz

RE3 wireless diversity receiver, T band, 803-806MHz,

black

Order number RE3-RX-T

Accessories

RE3-ACC-BC2 Two slot battery charger

Two slot battery charger for RE3-BPT and RE3-HHT

transmitters, black

Order number RE3-ACC-BC2

3| RE3-RX RE3 Diversity Receiver

4| RE3-RX RE3 Diversity Receiver

Represented by:

Bosch Security Systems, Inc.

12000 Portland Avenue South

Burnsville MN 55337

USA

Germany:

Bosch Sicherheitssysteme GmbH

Robert-Bosch-Ring 5

85630 Grasbrunn

Germany

www.electrovoice.com

Document Number F.01U.344.433 | Vs1 | 16. Jan 2019

Electro-Voice | RE3-HHT RE3 Handheld Transmitter

RE3-HHT RE3 Handheld

Transmitter

▪Robust metal body

▪Up to 36 MHz tuning bandwidth (band specific)

▪Selectable low and high output power (band

specific)

▪Common threaded coupling allows microphone

head interchangeable

▪Sync function for easy frequency setup

The RE3-HHT is a lightweight, yet robust UHF handheld

transmitter body. It is ideally-suited for professional

performance and presentation applications. Due to its

commonly-used 1.25” diameter, 28 UN-2A thread pitch

microphone head coupling, it accepts mic heads using

this common coupling convention. Although primarily

intended to accept the ND and RE Series heads

developed for RE3 listed in the compatible products

section of this data sheet, the RE3-HHT will adapt

other microphone heads using the 1.25” diameter, 28

UN-2A thread pitch coupling scheme.

The all-metal body is robust and durable, and operates

on 2 AA alkaline or rechargeable NiMH cells. The

tuning bandwidth affords generous frequency tuning

options helping to avoid various sources of possible

interference. The selectable output power (band

specific) assists in overcoming the challenges of both

long, or short, transmission ranges. The threaded

coupling makes attaching and interchanging a variety

of heads simple and convenient. The ultrasonic sync

function makes for a simple system setup by syncing

the transmitter to the receiver frequency tuning and

other functional data. Recharging contacts provide for

functional use with the optional BC2 charging station

allowing the NiMH rechargeable cells within two

bodypack transmitters to be charged without removal.

Technical specifications

Frequency oscillation mode: Phase-locked loop (PLL)

Available band names, tuning

bandwidths, and carrier

frequency ranges:

5L: 36 MHz (488-524 MHz)

5H: 36 MHz (560-596 MHz)

6M: 10 MHz (653-663 MHz)

8M: (823-865 MHz)*

T: 3 MHz (803-806 MHz)

* 8M is split into two segments:

823-832MHz: 9MHz

863-865MHz: 2MHz

Sync frequency: Ultrasonic

RF power output: Frequency bands

5L (488-524MHz): Low 10mW / High

50mW

5H (560-596MHz): Low 10mW / High

50mW

6M (653-663MHz): Low 10mW /

High 20mW

8M (823-865MHz) 10mW

T (803-806MHz): Low 10mW / High

50mW

Display by: LCD + LED

Function controls: Power, mute, group, channel,

frequency, sensitivity adjustment, RF

power, auto off, key lock.

RF stability: <±10kHz@Fc

Modulation frequency shift: Wideband FM ±48kHz deviation

Harmonic radiation: <-50dBc

Battery: 2 x AA alkaline battery or NiMH

rechargeable battery

Charging contacts: Yes

Microphone coupling: 1.25” diameter, 28 UN-2A thread

pitch

Microphone electrical

contact:

3-ring/3-pin

Finish: Black polyurethane paint

Dimensions (without head): Height: 7.52 in. (191mm)

Width at threaded end: 1.46 in.

(37mm)

Width at control cover: 0.856 in.

(22mm)

Net weight (without head): 12.2 oz. (346 g)

Gross weight (without head): 16.9 oz. (480 g)

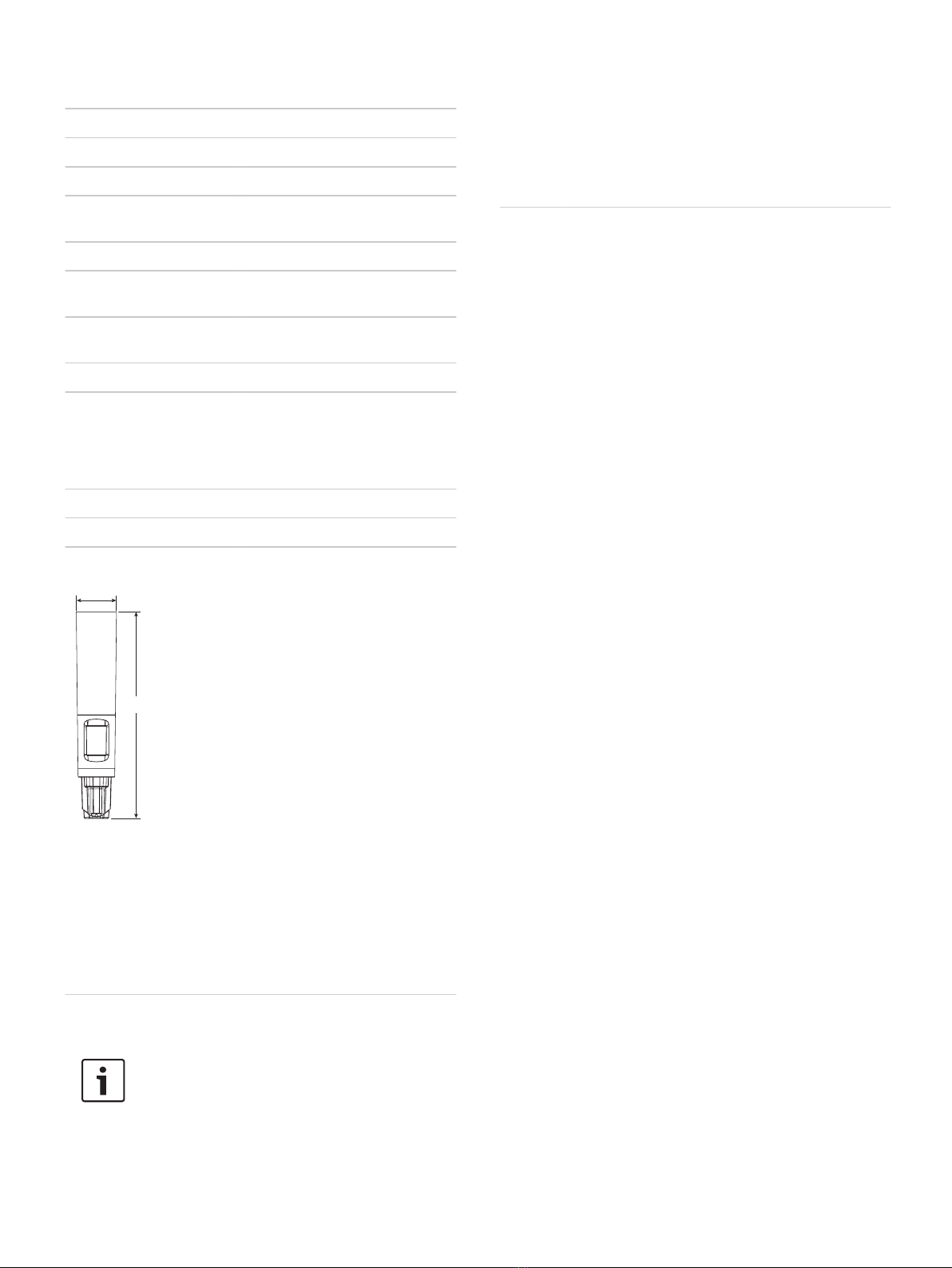

Dimensions:

191 mm

37 mm

For full operational information, download the RE3

installation manual at www.electrovoice.com.

Licensing and certification declarations:

FCC information:

Certified under FCC Part 74.

FCC IDs: B5DH2285L, and B5DH2285H

Certified under FCC Part 15 and FCC Part 74.

FCC IDs: B5DH2286M

Notice!

Use of frequencies beginning at 653.000 MHz

up to 657.000 MHz is covered under FCC

Part 74 ID number B5DH2286M and requires

an LPAS user license, however use of fre-

quencies between 657.025 up to 663.000

MHz is covered under FCC Part 15, and do

not require an additional user license. For

more information, see https://www.fcc.gov/

consumers/guides/operation-wireless-micro-

phones.

Responsible Party - U.S. Contact Information

Bosch Security Systems, Inc.

130 Perinton Parkway

Fairport, NY 14450

USA

Tel: +1 (585) 223-4060

2| RE3-HHT RE3 Handheld Transmitter

Notice!

Changes or modifications made by the user

could void the user's authority to operate the

equipment.

This device complies with part 15 of the FCC

Rules. Operation is subject to the following

two conditions: (1) This device may not

cause harmful interference, and (2) this de-

vice must accept any interference received,

including interference that many cause unde-

sired operation.

This equipment has been tested and found

to comply with the limits for a Class B digi-

tal device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide

reasonable protection against harmful in-

terference in a residential installation. This

equipment generates, uses, and can radi-

ate radio frequency energy and, if not in-

stalled and used in accordance with the in-

structions, may cause harmful interference

to radio communications.

However, there is no guarantee that interfer-

ence will not occur in a particular installation.

If this equipment does cause harmful interfer-

ence to radio or television reception, which

can be determined by turning the equipment

off and on, the user is encouraged to try to

correct the interference by one or more of

the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equip-

ment and receiver.

—Connect the equipment to an outlet on a cir-

cuit different from that to which the receiver

is connected.

Consult the dealer or an experienced

radio/TV technician for help.

IC (Industry Canada)

Certified in Canada by IC under RSS-102, RSS-210,

and RSS-Gen

IC: 1321A-RE3HHT488, 1321A-RE3HHT560, and 1321A-

RE3HHT653

This Class B digital apparatus complies with Canadian

ICES-003. Cet appareil numérique de la classe B est

conforme à la norme NMB-003 du Canada.

This device complies with Industry Canada license-

exempt RSS standard(s). Operation is subject to the

following two conditions:

(1) This device may not cause interference, and

(2) This device must accept any interference, including

interference that may cause undesired operation of

the device.

Le présent appareil est conforme aux CNR d'Industrie

Canada applicables aux appareils radio exempts de

licence. L'exploitation est autorisée aux deux

conditions suivantes:

(1) l'appareil ne doit pas produire de brouillage, et

(2) l'utilisateur de l'appareil doit accepter tout

brouillage radioélectrique subi, même si le brouillage

est susceptible d'en compromettre le fonctionnement.

Notice!

Regarding RE3-HHT-6M (653-663 MHz); the

use of frequencies between 653.025 up to

663.000 MHz, please check Canada’s ISED

(Innovation, Science and Economic Develop-

ment) website for the current information of

the license status of this band.

EU (European Union)

The CE Declaration of Conformity can be obtained and

downloaded from: www.electrovoice.com

This Equipment is in compliance with CE requirements

and the following directives:

• 2011/65/EU RoHS Directive

•2012/19/EU WEEE Directive

• 2014/53/EU RED Directive

Regarding (applies to) handheld transmitter RE3-

HHT-5L (480-524 MHz), RE3-HHT-5H (560-596 MHz),

RE3-HHT-6M (653-663 MHz), RE3-HHT-8M (823-865

MHz), and bodypack transmitter RE3-BPT-5L (480-524

MHz), RE3-BPT-5H (560-596 MHz), RE3-BPT-6M

(653-663 MHz), and RE3-BPT-8M (823-865 MHz):

This equipment is intended for use in wireless

microphone applications.

Some countries in the EEA (European Economic Area)

have restrictions placed on this equipment. If an EEA

country is not listed it did not have any restrictions of

the product at the time this document was published.

The country codes used in regard to these restrictions

are the following:

Austria (AT), Belgium (BE), Cyprus (CY), Denmark

(DK), Germany (DE), Greece (EL), Spain (ES), Ireland

(IE), Iceland (IS), Latvia (LV), Lithuania (LT), Malta

(MT), Norway (NO), Slovakia (SK), Sweden (SE) and

United Kingdom (UK).

Listed below are these restrictions:

• Transmitters in the ranges, 488 - 524 MHz, 560 - 596

MHz, and 653 - 663 MHz require a license in the

following countries: AT, BE, CY, DE, IE, LV, LT, SK, SE,

UK.

3| RE3-HHT RE3 Handheld Transmitter

• Transmitters in the ranges, 488 - 524 MHz, 560 - 596

MHz, and 653 - 663 MHz require the transmitter be

used in TV white spaces in the following countries:

AT, DK, IS, MT, NO, ES.

•Transmitters in the ranges, 488 - 524 MHz, 560 - 596

MHz, and 653 - 663 MHz if used outdoor will have

geographical restrictions of operation in the United

Kingdom (UK).

•Transmitters in the range, 823 - 865, require a license

for use in the 823 - 832 MHz range in the following

countries: AT, BE, CY, EL, IE, LV, LT, UK.

• Transmitters in the range, 488 - 524 MHz may only

use the range 510 - 524 MHz in Norway (NO).

Notice!

TV white spaces are gaps between operating

TV broadcast stations where there are no ac-

tive TV broadcasts.

Always consult your national authority before placing

equipment into operation as requirements and

spectrum usage can change.

AU and NZ

This device operates under an ACMA class license and

must comply with all the terms of that license

including operating frequencies.

Licensing information

Licensing: A ministerial license to operate this

equipment may be required in certain areas. Consult

your national authority for possible requirements.

Changes or modifications not expressly approved by

Electro-Voice could void your authority to operate the

equipment. Licensing of Electro-Voice wireless

microphone equipment is the user’s responsibility, and

licensability depends on the user’s classification and

application, and upon the selected frequencies on

which it will operate. Electro-Voice advises the user to

contact the appropriate telecommunications authority

concerning proper licensing, and before selecting and

ordering frequency bands.

Notices

Battery precautions

•Keep batteries out of the reach of children.

•Observe and install batteries according to the correct

polarity as marked on the battery and the transmitter

battery compartment.

• Do not expose the battery to excessive heat such as

sunshine, fire, or other sources of high heat.

• Always consider the environment issues and follow

local regulations when disposing of batteries.

• Remove depleted battery immediately.

• Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type.

• Use only disposable LR6 (AA) alkaline or NiMH

batteries.

• Do not mix new batteries with old ones in the

transmitter at the same time.

• Do not use different battery types or models.

•Do not use a leaking battery. If battery leakage

occurs, avoid contact with skin. If contact occurs,

immediately wash thoroughly with soap and water.

•If battery leakage comes into contact with your eyes,

immediately flush with water and seek medical

attention.

• Remove and safely store batteries away from the

transmitter when the transmitter will not be used for

60 or more days.

Replacement parts

Order number Description

ESP-EF01U362339 RE3-HHT bottom section with slide door

ESP-EF01U362340 RE3-HHT display window

RE3-ACC-HHTSA1 Stand adapter for RE3-HHT transmitter

Compatible products

Order number Description

ND76-RC3 Wireless head with ND76 capsule

ND86-RC3 Wireless head with ND86 capsule

ND96-RC3 Wireless head with ND96 capsule

RE420-RC3 Wireless head with RE420 capsule

RE520-RC3 Wireless head with RE520 capsule

Ordering information

RE3-HHTNID-5L Handheld TX with no head, 488-524MHz
