EVID-S Surface Mount Loudspeakers
en | Installation manual

Table of contents
1Safety 4
1.1 Suspension 4
1.2 Notices 4
2Short information 5
3Introduction 6
3.1 System features 6
3.2 Packing list 7
3.3 Product information 9
4Installation and wiring 10
4.1 Installing the speaker 10
4.2 Wiring 14
4.2.1 Wall bracket wiring 14
4.2.2 Alternative Euroblock connection 15
4.3 Transformer taps 16
4.3.1 EVID-S4.2T speaker 4” cabinet 70/100V 16
4.3.2 EVID-S5.2T speaker 5” cabinet 70/100V 17
4.3.3 EVID-S8.2T speaker 8” cabinet 70/100V 18
4.4 Replacing the logo 19
5Troubleshooting 20
6Technical data 21
6.1 EVID-S4.2/EVID-S4.2T speakers 21
6.1.1 Dimensions 22
6.1.2 Frequency response and impedance 22
6.2 EVID-S5.2/EVID-S5.2T speakers 23
6.2.1 Dimensions 24
6.2.2 Frequency response and impedance 24
6.3 EVID-S8.2/EVID-S8.2T speakers 25
6.3.1 Dimensions 26
6.3.2 Frequency response and impedance 26
7Wall bracket dimensions 27
7.1 EVID-S4.2/EVID-S4.2T wall bracket dimensions 27
7.2 EVID-S5.2/EVID-S5.2T/EVID-S8.2/EVID-S8.2T wall bracket dimensions 28
en 3
Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.360

Safety
Suspension
!
Warning!
Suspending any object is potentially dangerous and should only be attempted by individuals
who have a thorough knowledge of the techniques and regulations of suspending objects
overhead. Electro-Voice strongly recommends all loudspeakers be suspended taking into
account all current national, federal, state, and local laws and regulations. It is the
responsibility of the installer to ensure all loudspeakers are safely installed in accordance
with all such requirements. When loudspeakers are suspended, Electro-Voice strongly
recommends the system be inspected at least once per year or as laws and regulations
require. If any sign of weakness or damage is detected, remedial action should be taken
immediately. The user is responsible for making sure the wall, ceiling, or structure is capable
of supporting all objects suspended overhead. Any hardware used to suspend a loudspeaker
not associated with Electro-Voice is the responsibility of others.
Redundant safety point
As an added safety measure, it is suggested the user install an extra suspension point back to
the building structural supports. This redundant safety point should have as little slack as
possible (less than 1-inch is preferable).
Figure 1.1: Redundant safety point - 4" (left), 5" (center), 8" (right)
Notices
Old electrical and electronic appliances
Electrical or electronic devices that are no longer serviceable must be collected separately and
sent for environmentally compatible recycling (in accordance with the European Waste
Electrical and Electronic Equipment Directive).
To dispose of old electrical or electronic devices, you should use the return and collection
systems put in place in the country concerned.
Copyright and disclaimer
All rights reserved. No part of this document may be reproduced or transmitted in any form by
any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior
written permission of the publisher. For information on getting permission for reprints and
excerpts, contact Electro-Voice.
The content and illustrations are subject to change without prior notice.
1
1.1
1.2
EVID-S Surface Mount Loudspeakers
2017.08 | 01 | F.01U.345.360 Installation manual Electro-Voice

Short information
The following table lists products in a family, with CTN (Commercial Type Number) and
identifying product name DESCRIPTION.
CTN Description
EVID-S4.2B Speaker 4” cabinet 8 Ohm black pair
EVID-S4.2W Speaker 4” cabinet 8 Ohm white pair
EVID-S4.2TB Speaker 4” cabinet 70/100V black pair
EVID-S4.2TW Speaker 4” cabinet 70/100V white pair
EVID-S5.2B Speaker 5” cabinet 8 Ohm black pair
EVID-S5.2W Speaker 5” cabinet 8 Ohm white pair
EVID-S5.2TB Speaker 5” cabinet 70/100V black pair
EVID-S5.2TW Speaker 5” cabinet 70/100V white pair
EVID-S8.2B Speaker 8” cabinet 8 Ohm black pair
EVID-S8.2W Speaker 8” cabinet 8 Ohm white pair
EVID-S8.2TB Speaker 8” cabinet 70/100V black pair
EVID-S8.2TW Speaker 8” cabinet 70/100V white pair
2
en 5
Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.360

Introduction
The EVID-S series from Electro-Voice is a line of compact, high-performance, two-way, full-
range surface mount loudspeakers with excellent wide and uniform coverage, and outstanding
performance. Their design makes these practically invisible for use in background and
foreground music, paging, and sound reinforcement applications, making EVID-S ideal for
indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs,
hospitality, theme parks, leisure venues, and others. With unparalleled ease-of-installation,
sturdy weather resistance, modern and delicate look, and flexible mounting options, the EVID-
S series is the perfect solution for a wide variety of surface mount applications.
All EVID-S series full-range loudspeakers (except for the EVID-S5.2X) include a unique and
innovative mount system from Electro-Voice, prepared to make any job easier. This mount
system allows for 90 degrees of rotation horizontally and 45 degrees of rotation vertically. It
comes already assembled and is easily installed on walls and ceilings. Its unique and
innovative mount system makes every installation quick, simple, and reliable.
Read through this manual to familiarize yourself with the safety information, features, and
applications before you use these products.
System features
EVID-S4.2/EVID-S4.2T
▪Innovative mount system is included for quick, simple, and reliable installations
▪Carefully engineered for outdoor environments (IP54), without compromising
performance
▪Long throw 4" (102 mm) woofer housed in a fire rated ABS plastic enclosure for extended
LF performance down to 75 Hz
▪40 W power handling provides for 103 dB maximum SPL (109 dB peak)
▪70/100 V transformer version (EVID 4.2T) available for constant voltage systems
EVID-S5.2/EVID-S5.2T
▪Innovative mount system is included for quick, simple, and reliable installations
▪Carefully engineered for outdoor environments (IP54), without compromising
performance
▪Long throw 5.25" (133 mm) woofer housed in a fire rated ABS plastic enclosure for
extended LF performance down to 60 Hz
▪75 W power handling provides for 109 dB maximum SPL (115 dB peak)
▪70/100 V transformer version (EVID 5.2T) available for constant voltage systems
EVID-S8.2/EVID-S8.2T
▪Innovative mount system is included for quick, simple, and reliable installations
▪Carefully engineered for outdoor environments (IP54), without compromising
performance
▪Long throw 8" (203 mm) woofer housed in a fire rated ABS plastic enclosure for extended
LF performance down to 50 Hz
▪90 W power handling provides for 110 dB maximum SPL (116 dB peak)
▪70/100 V transformer version (EVID 8.2T) available for constant voltage systems
3
3.1
EVID-S Surface Mount Loudspeakers
2017.08 | 01 | F.01U.345.360 Installation manual Electro-Voice

Packing list
Item Quantity Component
A 2 Speakers with speaker brackets attached
B 2 Wall mount brackets
C 2 Dust covers
D 1 Allen wrench
E 2 Grille logos (spare)
F 2 Safety screws for the mounting brackets
G 2 Safety screw caps for the mounting brackets
H 2 Covers for the locking bolt
I 1 Installation manual
Table 3.1: Components list for speakers without transformer
A (x2) B (x2) D
C (x2) E (x2)
F (x2) G (x2) H (x2) I
Figure 3.1: Components list for speakers without transformer
3.2
en 7
Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.360

Item Quantity Component
A 2 Speakers with speaker brackets attached
B 2 Wall mount brackets
C 2 Dust covers
D 1 Allen wrench
E 2 Grille logos (spare)
F 2 Safety screws for the mounting brackets
G 2 Safety screw caps for the mounting brackets
H 2 Covers for the locking bolt
I 1 Installation manual
J 2 Flush input covers
K 8 Screws for flush input covers
Table 3.2: Components list for speakers with transformer
A (x2) B (x2) D
C (x2) E (x2)
F (x2) G (x2) H (x2) IJ (x2) K (x8)
Figure 3.2: Components list for speakers with transformer
EVID-S Surface Mount Loudspeakers
2017.08 | 01 | F.01U.345.360 Installation manual Electro-Voice

Product information
Item Description
A Grille
B Bubble level
C Wall bracket
D Safety cable loop
E Flush input cover
F Audio wire hole
G Locking bolt
H Audio connector
I Safety screw hole for bracket
J Speaker bracket
Table 3.3: Product information for all models
A
BC
JIHG
F
E
D
3.3
en 9
Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.360

Installation and wiring
Installing the speaker
For safety, ensure the mounting surface supports more than the weight of the speaker. Use
only industry-accepted fasteners and mounting methods when mounting the wall bracket.
Consult an expert if you are unsure.
!
Caution!
It is the installer's responsibility to determine and use the proper mounting hardware for
the wall construction type.
Disregarding this caution could result in damage to the product and personal injuries may
occur.
Installing the wall bracket vertically
To install the wall bracket vertically, do the following:
1. Drill a hole into the wall for the wire.
The size of the hole is dependent on the size of the wire used.
2. Push the wire thru the hole.
3. Adjust the wall bracket until the bubble is level.
4. Install four mounting screws to secure the wall bracket to the wall.
5. Connect the wires to wall bracket audio connectors, as shown in the wiring section.
4
4.1
EVID-S Surface Mount Loudspeakers
2017.08 | 01 | F.01U.345.360 Installation manual Electro-Voice

Notice!
If the speaker installation will be delayed cover it with the paint shield/dust shield.
Installing the wall bracket horizontally
To install the bracket horizontally, do the following:
1. Draw a level line.
2. Align screw holes on the level line.
3. Mark the position of the wire hole.
4. Drill a hole into the wall for the wire.
The size of the hole is dependent on the size of the wire used.
5. Push the wire thru the hole.
6. Install four mounting screws to secure the wall bracket to the wall.
7. Connect the wires to wall bracket audio connectors, as shown in the wiring section.
Notice!
If the speaker installation will be delayed cover it with the paint shield/dust shield.
Installing the speaker
1. Loosen the locking bolt with the Allen wrench (supplied).
2. Adjust the horizontal and vertical position of the bracket.
en 11
Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.360

3. Tighten the locking bolt with the Allen wrench (supplied).
4. Push the speaker bracket onto the wall bracket.
5. Slide the speaker bracket down to secure bracket to the wall bracket.
This secures the bracket and makes electrical connection.
EVID-S Surface Mount Loudspeakers
2017.08 | 01 | F.01U.345.360 Installation manual Electro-Voice

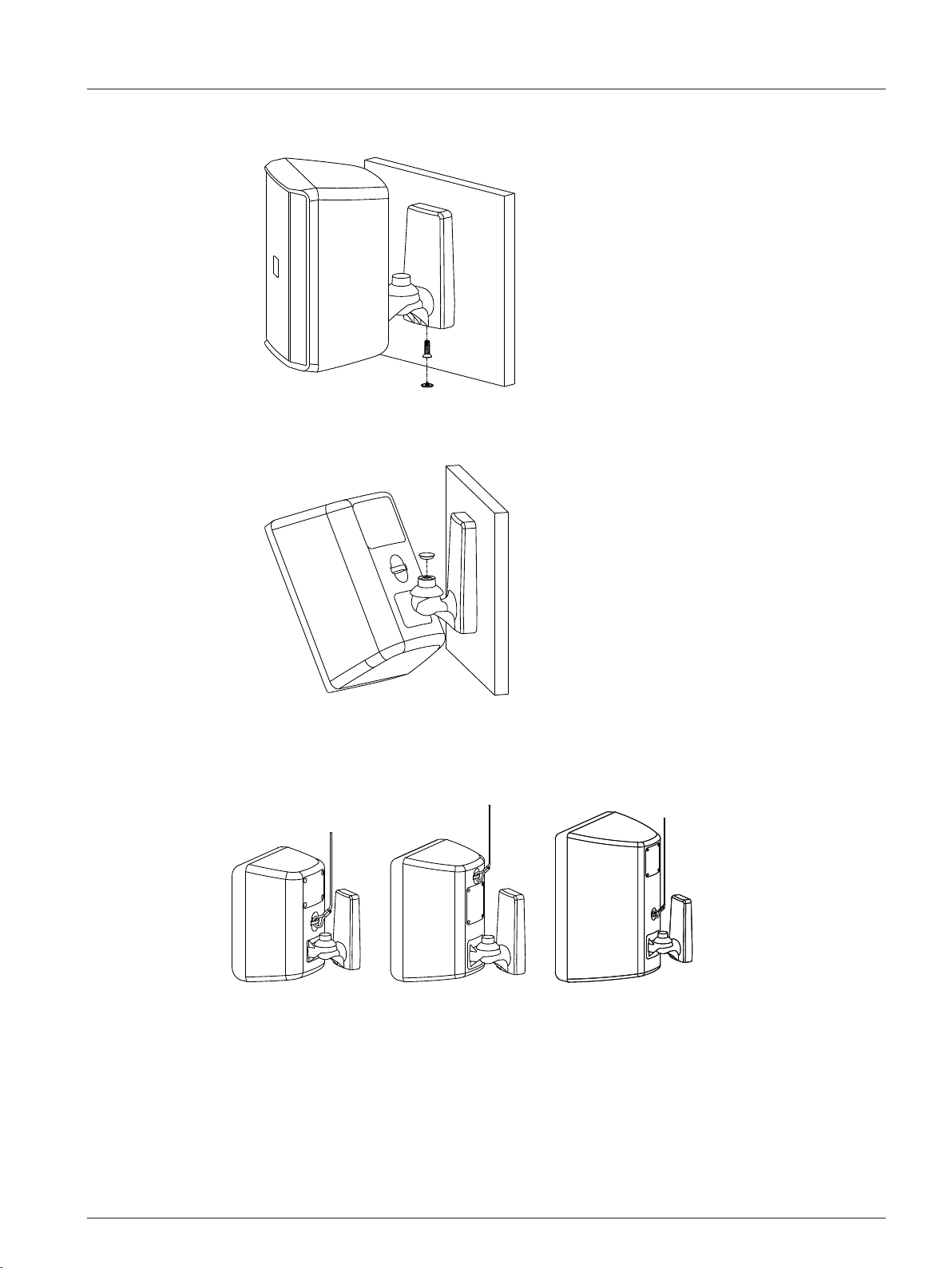

6. Install the safety screw and screw cap.
7. Readjust the horizontal and vertical speaker position, if needed.
8. Install the locking bolt cap.
Redundant safety point
As an added safety measure, it is suggested the user install an extra suspension point back to
the building structural supports. This redundant safety point should have as little slack as
possible (less than 1-inch is preferable).
Figure 4.1: Redundant safety point - 4" (left), 5" (center), 8" (right)
en 13
Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.360

Wiring
Wall bracket wiring
The wall bracket and speaker can be wired using either 2-wires, for input only, or 4-wires, for
input and parallel output.
Figure 4.2: Wall bracket wiring – 2-wires, for input only
Figure 4.3: Wall bracket wiring – 4-wires, for input and parallel output
Reference the polarity markers on the wall bracket. Ensure the wiring screws are tightened
securely to the connectors on the wall bracket.
Figure 4.4: Wall bracket wiring - front view
4.2
4.2.1
EVID-S Surface Mount Loudspeakers
2017.08 | 01 | F.01U.345.360 Installation manual Electro-Voice

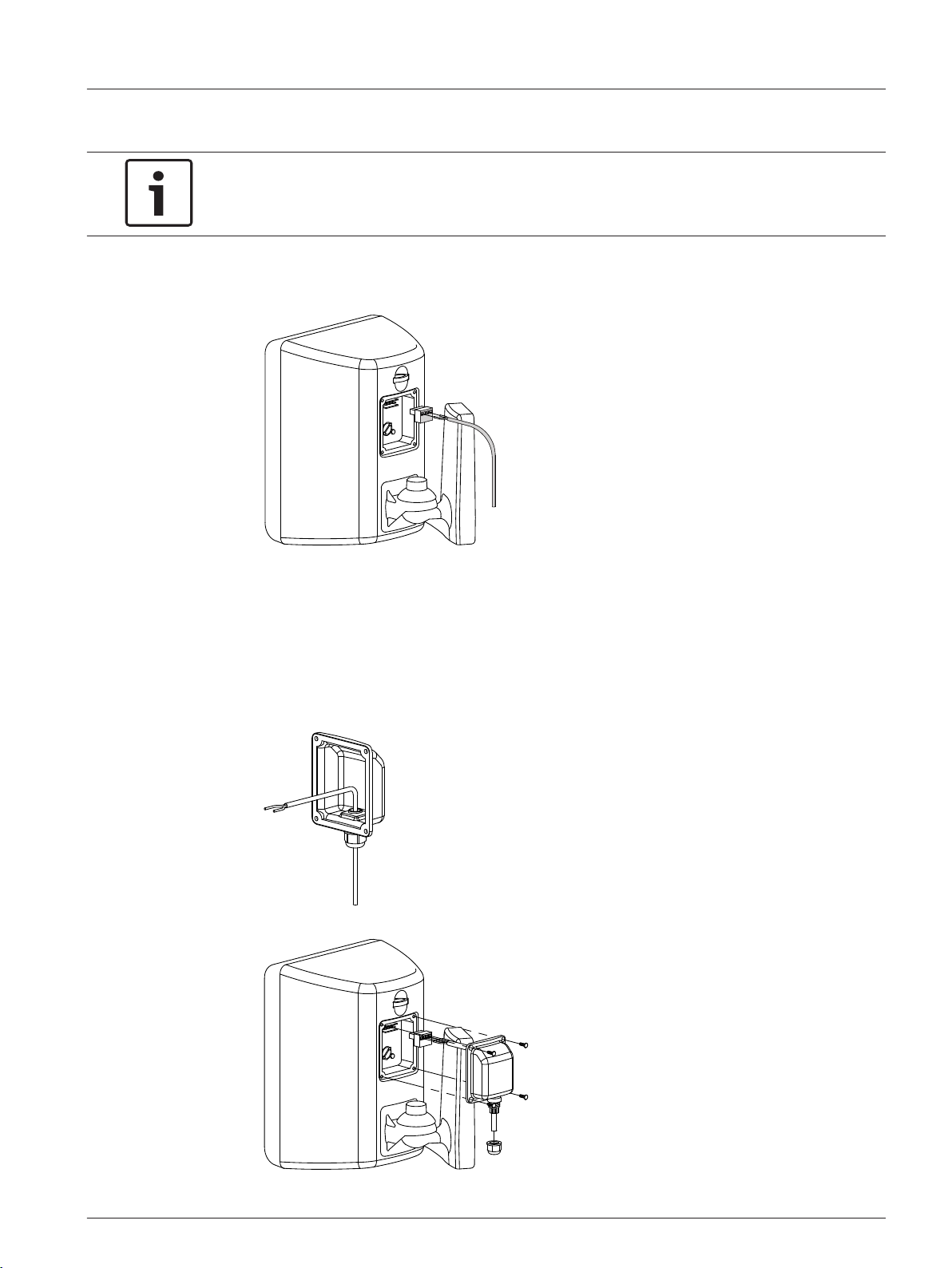

Alternative Euroblock connection
Notice!
These instructions apply to the speakers with and without transformers, transformer version
shown. Available for all models except EVID-S4.2T.
Wiring the speaker using the Euroblock connector
To wire the speaker using Euroblock connector, do the following:
1. Wire the Euroblock connector.
2. Adjust the tap settings, if needed.
3. Mount the speaker.
4. Plug the Euroblock connector into the speaker.
5. Readjust the horizontal or vertical speaker position.
Wiring the speaker using the Euroblock connector and weather cover – optional accessory
To wire the speaker using Euroblock connector and weather cover, do the following:
1. Push the wire through the gland nut.
2. Wire the Euroblock connector (A).
A
B
C
4.2.2
en 15
Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.360

3. Adjust the tap settings, if needed.
4. Mount the speaker.
5. Plug the Euroblock connector into the speaker.
6. Insert the screws into the weather cover (B).
Loosely tighten the four screws to keep the weather cover in place.
7. Tighten all four screws to secure the weather cover.
Ensure the weather cover is secure.
8. Adjust the wire length.
9. Tighten the gland nut (C).
10. Readjust the horizontal or vertical speaker position.
See also
•Installing the speaker, page 10
Transformer taps
You can select the mode of operation for all models that have a transformer. For the EVID-
S4.2T you can select the power tap for 70V/100V operation by using the jumper connector in
the Euroblock on the input panel. For the EVID-S5.2T and the EVID-S8.2T you can select the
mode of operation (70V/100V/8 ohm) and power taps using the rotary switch on the input
panel.
EVID-S4.2T speaker 4” cabinet 70/100V
Configuring the transformer settings
To configure the transformer settings, do the following:
1. Remove the Euroblock connector from the input panel.
4.3
4.3.1
EVID-S Surface Mount Loudspeakers
2017.08 | 01 | F.01U.345.360 Installation manual Electro-Voice

2. Wire the jumper connector in the Euroblock, according to the desired transformer
settings.
3. Plug the Euroblock connector into the input panel.
4. Attach the flush input cover (A).
A
EVID-S5.2T speaker 5” cabinet 70/100V
Configuring the transformer settings
To configure the transformer settings, do the following:
1. Select the desired power tap by using the rotary switch on the input panel.
+
A
4.3.2
en 17
Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.360

2. If 8 ohm mode is desired, remove the safety screw.
Safety screw (A) is shown in the previous step.
3. Attach the flush input cover (B).
B
EVID-S8.2T speaker 8” cabinet 70/100V
Configuring the transformer settings
To configure the transformer settings, do the following:
1. Select the desired power tap by using the rotary switch on the input panel.
+
A
2. If 8 ohm mode is desired, remove the safety screw.
Safety screw (A) is shown in the previous step.
4.3.3
EVID-S Surface Mount Loudspeakers
2017.08 | 01 | F.01U.345.360 Installation manual Electro-Voice

3. Attach the flush input cover (B).
B
Replacing the logo
An additional logo is included, horizontal installation is shown.
To replace the logo, do the following:
1. Remove the existing logo.
2. Clean the surface with alcohol.
3. Align the logo with the logo recess on the grille.
4. Remove the paper backing.
5. Insert the logo.
Press firmly to ensure the logo is applied.
4.4
en 19
Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.360

Troubleshooting
Problem Possible Causes Action
No Sound Amplifier Connect a known working test speaker to the amplifier outputs. If
there is no sound, check all electronics are on, the signal routing is
correct, the source is active; the volume is turned up, and so on.
Correct/Repair/Replace as necessary. If there is sound, the problem is
in the wiring.
Wiring Verify you have connected the correct wire pairs to the amplifier. Play
something at low level through the amplifier (for example, from a CD
player or tuner). Connect the test speaker in parallel with the
malfunctioning line. If the sound has gone or is very weak, the line has
a short in it (possibly a severe scrape, pinch, or staple puncture). If
the sound level is normal the wire is open (possibly a cut wire or
missed connection). Using the test speaker, move down the line and
test each connection/junction until you find the problem and correct
it. Observe proper polarity.
Verify you have the inputs and outputs connected to the correct wires.
If the subwoofer input panel is not correctly wired, there will be little
or no sound. Observe proper polarity.
Poor Low-
Frequency
Response
Speakers Wired Out-
of-Polarity
When two speakers are connected out of polarity (out of phase), the
low frequencies will cancel each other acoustically. Carefully observe
the wire markings or tracers on your speaker wires. Verify the
amplifier (+) terminal is connected to the red speaker terminals and
the amplifier (-) terminal is connected to the black speaker terminals.
Improperly Wired
Subwoofer Panel
Using a test speaker as described above, verify all amplifier and
speaker wires are connected to their proper terminals with the correct
polarity. Reversing just one set of amplifier wires can cut out all bass
output from the subwoofer.
Intermittent
Output such as,
Crackling or
Distortion
Faulty Connection Check all connections at amplifier and speakers to ensure they are
clean and tight. If the problem persists, it may be in the amplifier or
wiring. See other actions above.
Constant Noise
such as Buzzing,
Hissing, Humming
Defective Amplifier
or other Electronic
Device
If the noise is present but no program material is playing, the likely
cause is the signal chain in the electronics. Evaluate each component
as necessary to isolate the problem.
Poor System
Grounding or
Ground Loop
Check and correct the system grounding, as required.
If these suggestions do not solve your problem, contact your nearest Electro-Voice dealer or
Electro-Voice distributor.
5
EVID-S Surface Mount Loudspeakers
2017.08 | 01 | F.01U.345.360 Installation manual Electro-Voice
