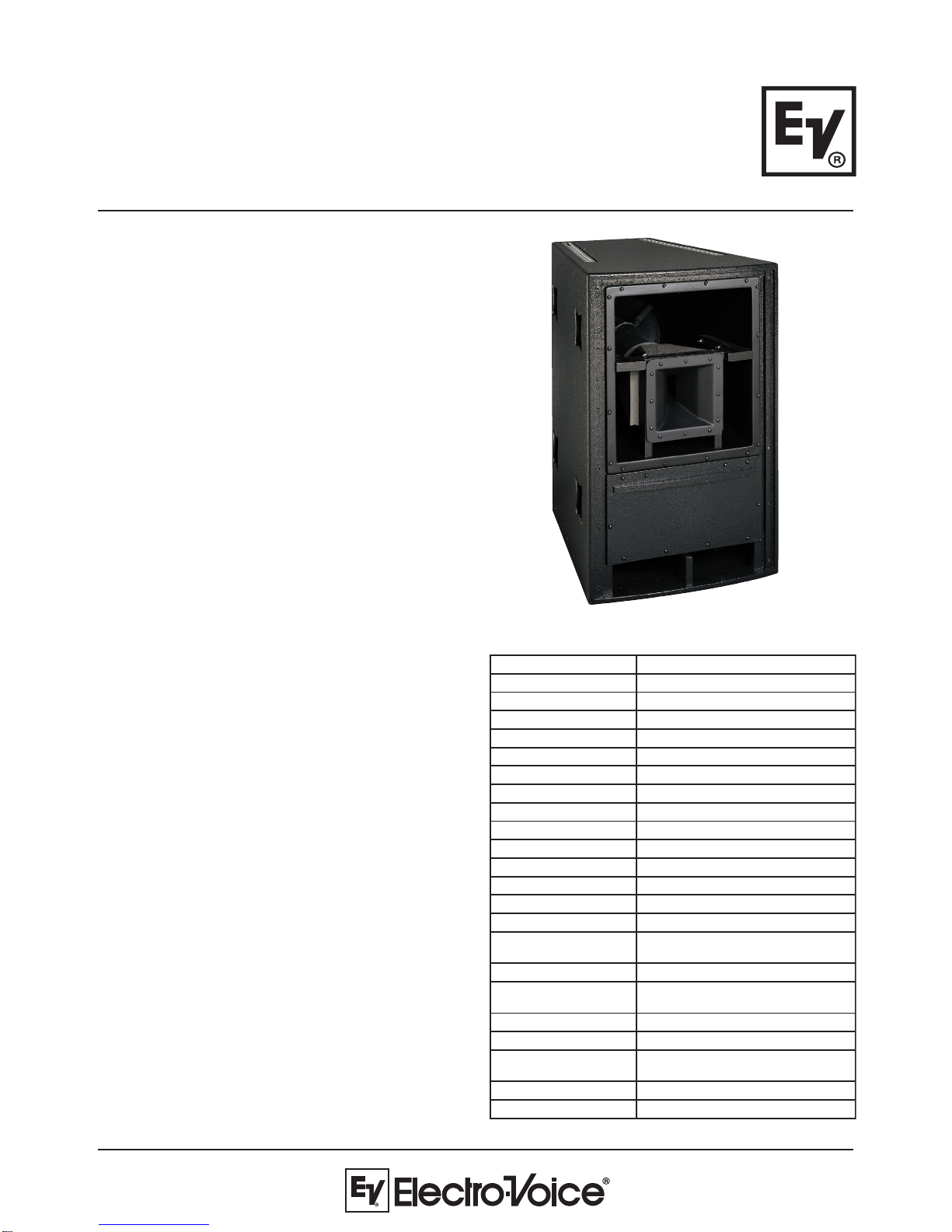

Electro-Voice Xi Series Xi-1153A/64F User manual

Preliminary
Technical Specifications:
The Electro-Voice®Xi-1153A/64F is a full-bandwidth, three-
way, triamp system is designed for medium- to long-throw
applications. The orientation of LF section and the mid-
bass horn create a two-element line array that extends
vertical pattern control to below 350 Hz. Using VBS (Vertical
Beam Shaping) technology this benefit can be increased
by another 20° to 40° of pattern control above 300 Hz. VBS
uses filters to overlap the LF section bandpass with mid-
bass bandpass. By carefully phase matching the acoustic
response in the overlap region the vertical pattern control is
dramatically improved. Frequency response on-axis is
unaffected, while gain before feedback is increased by 10
to 15 dB for microphones located under the loudspeaker.
Its high-frequency horn/driver section is rotatable to provide
proper coverage for vertical or horizontal system
installations. The low-frequency section is powered by a
15-inch driver (EVX-155) in a slot-loaded, closed box
configuration suitable for moderately high sound pressure
levels. When very high levels are desired we suggest
augmenting with the Xi-1191A. For maximum low-frequency
performance, combine in a four-way configuration. The
DL12ST 12-inch, application-specific mid-bass driver
features RMD™ and a 60° x 40° horn. The ND6-16 high-
frequency driver/horn combination is fully “shrouded” to
preserve midbass wave-front detail.
esnopseR.qerF
1
:)Bd3-(zHk71-zH84
egnaR.qerF
1
:)Bd01-(zHk91-zH04
LPSdetaluclaCxaM
2
:Bd431
:egarevoC)elbatatoR(°04x°06
:gnildnaHrewoPFLkaePW0042,suounitnoCW006
:gnildnaHrewoPBMkaePW0021,suounitnoCW003
:gnildnaHrewoPFHkaePW003,suounitnoCW57
:ytivitisneSFLm1/W1,Bd19
:ytivitisneSBMm1/W1,Bd701
:ytivitisneSFHm1/W1,Bd211
:ecnadepmIFL)lanimoN(smho8
:ecnadepmIBM)lanimoN(smho8
:ecnadepmIFH)lanimoN(smho61
:recudsnarTFLsmho8,revirD)mm183("51551XVE
:recudsnarTBMsmho8,revirD)mm503("21TS21LD
:recudsnarTFH.pmoCmgarhpaiD)mm67("361-6DN smho61,revirD
ycneuqerFrevossorC
3
:sretemaraPdednemmoceResU
:srotcennoCnokaepSkirtueNowT
®
RPM8LN
delellaraP
:lairetaMerusolcnEdoowylphcriBylp-31
:ellirGleetsAG61
:)DxWxH(miDmm957x685x419 )"9.92x"1.32x"0.63(
:thgieWteN)sbl591(gk8.88
:thgieWgnippihS)sbl402(gk6.29
General Description:
Xi-1153A/64F
15-InchThree-Way,
Full-Range 60° x 40°
Sound Reinforcement System
Key Features:
• High-Level,Three-Way Design
• VBS Capable
• EVX-155 15” Slot-Loaded Low-Frequency
Driver
• DL12ST 12” Mid-Bass Driver
(60° x 40° Coverage)
• Coaxially-Mounted ND6-16 3” Diaphragm HF
Compression Driver
• Fully Rotatable HF Section forVertical or
Horizontal Suspension
• Ring-Mode Decoupling / RMDTM
• Built-In L-Track Rigging
• Available in Black orWhite
• Dimensions Identical to Xi-1191 and Xi-2181
Subwoofers, Footprint Identical to Xi-2153
1 Full Space measurement with a Dx38 Controller
2 Max Calculated SPL of MB Section
3 Download at www.electrovoice.com

U.S.A. and Canada only. For customer orders, contact Customer Service at:
800/392-3497 Fax: [phone]
Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:
+ 49 9421-706 0 Fax: + 49 9421-706 265
Other International locations. For customer orders, contact Customer Service at:
+ 1 952 884-4051 Fax: + 1 952 736-4212
For warranty repair or service information, contact the Service Repair department at:
800/685-2606
For technical assistance, contact Technical Support at: 866/78AUDIO
Specifications subject to change without notice.
12000 Portland Avenue South, Burnsville, MN 55337
Phone:[phone], Fax: [phone]
www.electrovoice.com
© Telex Communications, Inc. 5/2004
Part Number 38110-365 Rev.1
Architectural & Engineering Specs:
Dimension Drawings:
Xi-1153A/64FPartNumbers
• 1058-3444 - Black
• 1058-3447 - White
The loudspeaker system shall be a three-way tri-amp system. The system shall have a 15-inch, low-frequency loudspeaker with a
nominal impedance of 8 ohms and a 4 inch aluminum voice coil. The low-frequency loudspeaker shall have a power handling capacity
of 600 watts with a shaped pinknoise signal with a 6-dB crest factor for 8 hours (as perANSI/EIARS-426A&AES 2-1984) The mid-bass
loudspeaker shall be a fully horn loaded, 12-inch driver with a 2.5-inch voice coil and a nominal impedance of 8 ohms. The mid-bass
driver shall have a power-handling capacity of 300 watts for 8 hours (as per ANSI/EIA RS-426 A). The high-frequency section shall be
coaxially mounted in the mid-bass horn and shall employ a compression driver capable of handling 75 watts, 1,760- to 20,000-Hz
when pink noise of a 6-dB crest factor is applied for 2 hours (as per AES 2-1984 and ANSI S4.26-1984 standards). The loudspeaker
shall be constructed of 18-mm, 13-ply birch and shall be trapezoidal in shape. The wedge angle shall be 18-degrees. The grille shall
be constructed from 16 GA powder-coated steel backed by acoustically transparent fabric. The system shall be capable of very-high
level operation with a band width of 46 to 19,000 Hz. The system dimensions shall be 586 mm (23.7 inches) wide by 914 mm (36.00
inches) high by 759 mm (29.88 inches) deep. The system shall employ flying hardware of a “track” style and two tracks on the enclosure
top and two tracks on the enclosure bottom. Net weight shall be 88.8 kg (195 lbs).
The loudspeaker shall be the Electro-Voice®Xi-1153A/64.
This Xi Loudspeaker should be suspended overhead only in accordance with the procedures and limitations specified in the
X-Array Xi Install Flying Manual and possible manual update notices. This system should be suspended with certified rigging
hardware by an authorized rigging professional and in compliance with local, state, and federal overhead suspension ordinances.
CAUTION
PerformanceMatch
• P3000 (RL) • CPS2.8 • Dx38
• P1200 (RL) • CPS2.11
Wiring/Connection Chart:
pmairT :FLnI1sniP tuO2sniP
:BMnI3sniP tuO3sniP
:FHnI4sniP tuO4sniP otdetcennoCnI2sniP tuO1sniP
