Electroconcept QUAD 188 User manual

QUAD 188
Q188 RGBWA+UV 6 en 1
RGBW LED SPOTLIGHT
Instruction Manual
Ver1.0

Thank you for purchasing this product.
Please carefully read this manual before using this
spotlight
Responsibility :
On no account the Electroconcept company shall be held responsible for any damages of any nature
whatsoever, notably the operating loss, destruction of consumables (tape, disc, CD) or any other
financial loss resulting from the use or the impossibility to use your equipment. n addition
Electroconcept shall not be held responsible for damages due to an improper use of this product.
Warranty :
Electroconcept products have a 2 years manufacturer warranty. The equipment shall be returned
prepaid (at the customer's own expense). Any freight collect will be refused. The equipment shall be
returned in its original packaging. The equipment's restitution will be at our own expense.
Are excluded from warranty: damages due to fault, negligence, lack of maintenance by the user
(broken, burnt, heated, wet, sandy...etc devices), already installed devices of which the failure would
originate from an improper installation or use by the customer.
This product must be used following the technical specifications mentioned below :
TECHNICAL SPECIFICATIONS :
Voltage：AC230V ±10％
Frequency：50Hz～60Hz±10％
Power：190 W
Weight : 5,5 Kgs
Dimensions 245x245x360 mm
Leds number: 18X10 W LEDS 6-colors RGBWA+UV
DMX channels：3/4/6/7/8 OR 13 CHANNELS
Control signal：DMX-512
Control mode：DMX-512s 、auto、music、master/slave
Environment: indoor use only
Operating mode selection :

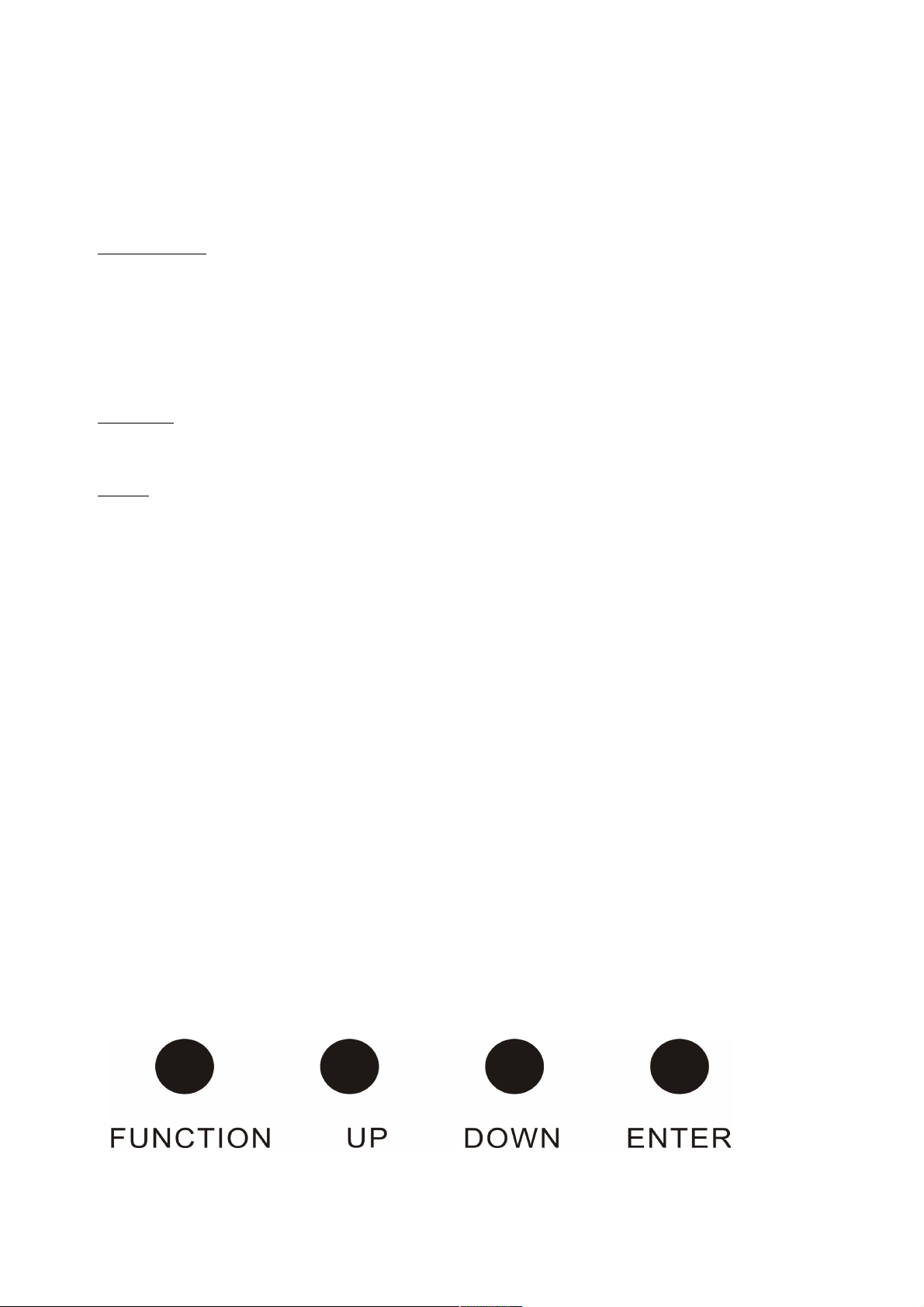

To browse thro gh different f nctions se the Men key then p and down.
To enter into the s b-men s press Enter then se the p and down keys to modify val es.
2

Press Enter to confirm and change s b-men s :
STAT : Static mode + Stroboscope
R.XXX : red intensity selection from 0 to 255
G.XXX : green intensity selection from 0 to 255
B.XXX : blue intensity selection from 0 to 255
Y.XXX : amber intensity selection from 0 to 255
W.XXX : white intensity selection from 0 to 255
U.XXX : UV intensity selection from 0 to 255
ST.XX : stroboscope selection from 0 (fixed color) to 20 (fast stroboscope)
AUTO: Automatic Mode
AT.XX : Auto mode selection from 1 to 10 fading / strobe / flash ….
PR.XX : Auto mode selection from 1 to 10 fading / strobe / flash....
SOUd: Sound Mode
Mod.X : Sound mode selection MOD1 change of color MOD2 flash change of
colors
RUN : DMX or Slave Mode
dMX : DMX mode
SLAV. : Slave Mode
DMX : DMX address selection
d.XXX : DMX addressing of the projector
PERS : DMX control mode selection (number of channels and functions)
STAG : STAGE Mode See table below 13 CHANNELS
ARC1 : ARC1 Mode See table below 3 CHANNELS
AR1d : AR1d Mode See table below 4 CHANNELS
ARC2 : ARC2 Mode See table below 6 CHANNELS
AR2d : AR2d Mode See table below 7 CHANNELS
AR25 : AR25 Mode See table below 8 CHANNELS
HSV : HSV Mode See table below
ID : dentification number from D01 to D66
TEMP : Temperatures menu
CURR : Temperature display
TOP : Start constant selection of the fan
EDIT : Programs editing Works for PR01 to PR10 30 8 steps stages
PR.01 to PR.10 program selection
SC.01 to SC.30 stage selection
R.000 red selection 0~255
G.000 green selection 0~255
3

B.000 blue selection 0~255
Y.000 amber selection 0~255
W.000 white selection 0-255
U.000 UV selection 0~255
ST.00 strobe speed selection 0~20
T.000 automatic time selection
F.000 automatic fading selection
SET : Basic settings
POW : energy saving
DIM :dimmer : linear, halogen bulb,...OFF/DIM1/DIM2/DIM3/DIM4
UPL programs datas sending to next l'ID
REST reset Fixture
I ON/OFF ID
CAL 1 hite balance
CAL 2 Maximum colors balance RGB A+UV
NB : Check this setting if one of the colors seems weaker than the
others
DMX-512 f nctions:
DMX channels details in DMX 512 mode
STAGE 13 channels:
CHANNEL DMX-512 VALUE CONTROL
CH1 Dimmer 0～255 Brightness adjustment
CH2 Red 0～255 Red adjustment
CH3 Green 0～255 Green adjustment
CH4 Blue 0～255 Blue adjustment
CH5 Amber 0～255 Amber adjustment
CH6 White 0～255 White adjustment
CH7 UV 0～255 UV adjustment
CH8 programs
0～30
31～189
189～205
206～255
Channels 1 to 5 actives
Color mode every 20 values
white r+g+b+w
warm white to cool white
CH9 Strobe/ sound 0～255 STROBOSCOPE slow to fast
CH10 programs
0～20
21～30
31～120
nternal programs
No function
program AT01
program AT02~AT10
4

121～130
131～220
221～240
241～255
program PR01 1
program PR02-PR10
Color sound mode
Flash sound mode
CH11 Programs speed 0～255 nternal programs speed
CH12 Dimmer Type
0～9
10～29
30～69
70～129
130～189
190～255
Dimmer speed
no function
dimmer 1 fast
dimmer 2
dimmer 3
dimmer 4 slow
CH13 D
0-9
10-211
211-255
No function
D from 1 to 19 by steps of 10
D from 20 to 66
ARC1 3 channels:
CHANNEL DMX-512 VALUE CONTROL
CH1 Red 0～255 Red adjustment
CH2 Green 0～255 Green adjustment
CH3 Blue 0～255 Blue adjustment
AR1.d 4 channels:
CHANNEL DMX-512 VALUE CONTROL
CH1 Dimmer 0～255 Brightness adjustment
CH2 Red 0～255 Red adjustment
CH3 Green 0～255 Green adjustment
CH4 Blue 0～255 Blue adjustment
ARC2 6 channels:
CHANNEL DMX-512 VALUE CONTROL
CH1 Red 0～255 Red adjustment
CH2 Green 0～255 Green adjustment
CH3 Blue 0～255 Blue adjustment
CH4 Amber 0～255 Amber adjustment
CH5 White 0～255 White adjustment
CH6 UV 0～255 UV adjustment
AR2.d 7 channels:
5

CHANNEL DMX-512 VALUE CONTROL
CH1 Dimmer 0～255 Brightness adjustment
CH2 Red 0～255 Red adjustment
CH3 Green 0～255 Green adjustment
CH4 Blue 0～255 Blue adjustment
CH5 Amber 0～255 Amber adjustment
CH6 White 0～255 White adjustment
CH7 UV 0～255 UV adjustment
AR2.5 8 channels:
CHANNEL DMX-512 VALUE CONTROL
CH1 Dimmer 0～255 Brightness adjustment
CH2 Red 0～255 Red adjustment
CH3 Green 0～255 Green adjustment
CH4 Blue 0～255 Blue adjustment
CH5 Amber 0～255 Amber adjustment
CH6 White 0～255 White adjustment
CH7 UV 0～255 UV adjustment
CH8 Strobe/ sound 0～255 STROBOSCOPE slow to fast
HSV 3 channels:
CHANNEL DMX-512 VALUE CONTROL
CH1 Hue 0～255 Hue adjustment
CH2 Saturation 0～255 Saturation adjustment
CH3 Value 0～255 Shine adjustment
DMX-512 connection :
This product uses 3-pin XRL connectors for the DMX512 connection:
Pin 1 : Ground , Pin 2 : Data (-), Pin 3 : Data (+).
Connection between fixt res:
6

WARNING !
This product is not meant for a domestic use.
After unpacking the product, packaging materials (plastic bags, polystyrene, foam,…) must
not be left within children’s reach, this may be dangerous.
This product must be only used by an adult. Do not let a child use it or play with it.
Do not put this product under these conditions :
- n a damp location
- n a location subject to shock and vibrations
- n a location subject to extreme temperatures ( 45°C/113°F or 2°C/35.6°F )
Do not let any water, flammable liquids or metal objects enter the product.
n the event of liquids entering the product, unplug the power cable immediately.
Stop immediately using the device in the event of a serious functioning problem, and contact
your reseller for verification, or contact us directly.
Do not open the prod ct. Any operation inside the console m st be done
by a q alified technician.
