Kino Flo Celeb 250 LED DMX User manual

Quick Start Guide
Celeb 250/450/450Q LED DMX
Part No. 3100099 Rev A 04-10-2017

2
Celeb LED DMX Systems
Included w/ all Celeb Models
CEL-250C-120U Celeb 250 LED DMX Center, 120U
CEL-250C-230U Celeb 250 LED DMX Center, 230U
CEL-450C-120U Celeb 450 LED DMX Center, 120U
CEL-450C-230U Celeb 450 LED DMX Center, 230U
CEL-250Y-120U Celeb 250 LED DMX Yoke, 120U
CEL-250Y-230U Celeb 250 LED DMX Yoke, 230U
CEL-450Y-120U Celeb 450 LED DMX Yoke, 120U
CEL-450Y-230U Celeb 450 LED DMX Yoke, 230U
CEL-450Q-120U Celeb 450Q LED DMX Yoke, 120U
CEL-450Q-230U Celeb 450Q LED DMX Yoke, 230U
CEL-250P-120U Celeb 250 LED DMX Pole-Op, 120U
CEL-250P-230U Celeb 250 LED DMX Pole-Op, 230U
CEL-450P-120U Celeb 450 LED DMX Pole-Op, 120U
CEL-450P-230U Celeb 450 LED DMX Pole-Op, 230U
CEL-450QP-120U Celeb 450Q LED DMX Pole-Op 120U
CEL-450QP-230U Celeb 450Q LED DMX Pole-Op, 230U
LVR-CE290-P Celeb 250 Louver/HP, 90°
LVR-CE490-P Celeb 450 Louver/HP, 90°
LVR-CE490-QP Celeb 450Q Louver/HP, 90°
Center Mount
Yoke Mount
Pole-Op

Celeb 250 LED DMX Kits
KIT-C250-120U
Celeb 250 LED DMX Center Mount Kit, Univ 120U
KIT-C250-230U
Celeb 250 LED DMX Center Mount Kit, Univ 230U
Kit Contents:
1 Celeb 250 LED DMX Center Mount
1 Flight Case
Weight: 31 lb (14kg)
Dimensions: 29 x 10.5 x 17” (74 x 27 x 43cm)
KIT-C250Y-120U
Celeb 250 LED DMX Yoke Mount Kit, Univ 120U
KIT-C250Y-230U
Celeb 250 LED DMX Yoke Mount Kit, Univ 230U
Kit Contents:
1 Celeb 250 LED DMX Yoke Mount
1 Jr. Pin
1 Ship Case
Weight: 37.5 lb (17kg)
Dimensions: 33 x 8.5 x 22.5” (84 x 22 x 57cm)
3

Celeb 450 LED DMX Kits
Celeb 450Q LED DMX Kit
KIT-C450-120U
Celeb 450 LED DMX Center Mount Kit, Univ 120U
KIT-C450-230U
Celeb 450 LED DMX Center Mount Kit, Univ 230U
Kit Contents:
1 Celeb 450 LED DMX Center Mount
1 Flight Case
Weight: 52.5 lb (24kg)
Dimensions: 53.5 x 11 x 16.5” (136 x 28 x 42cm)
KIT-C450Q-120U
Celeb 450Q LED DMX Yoke Mount Kit, Univ 120U
KIT-C450Q-230U
Celeb 450Q LED DMX Yoke Mount Kit, Univ 230U
Kit Contents:
1 Celeb 450Q LED DMX Yoke Mount
1 Jr. Pin
1 Ship Case
Weight: 52 lb (24kg)
Dimensions: 34.5 x 8.5 x 33” (88 x 22 x 84cm)
KIT-C450Y-120U
Celeb 450 LED DMX Yoke Mount Kit, Univ 120U
KIT-C450Y-230U
Celeb 450 LED DMX Yoke Mount Kit, Univ 230U
Kit Contents:
1 Celeb 450 LED DMX Yoke Mount
1 Jr. Pin
1 Ship Case
Weight: 57 lb (26kg)
Dimensions: 54.5 x 9.5 x 25” (138.5 x 24 x 63.5cm)
4

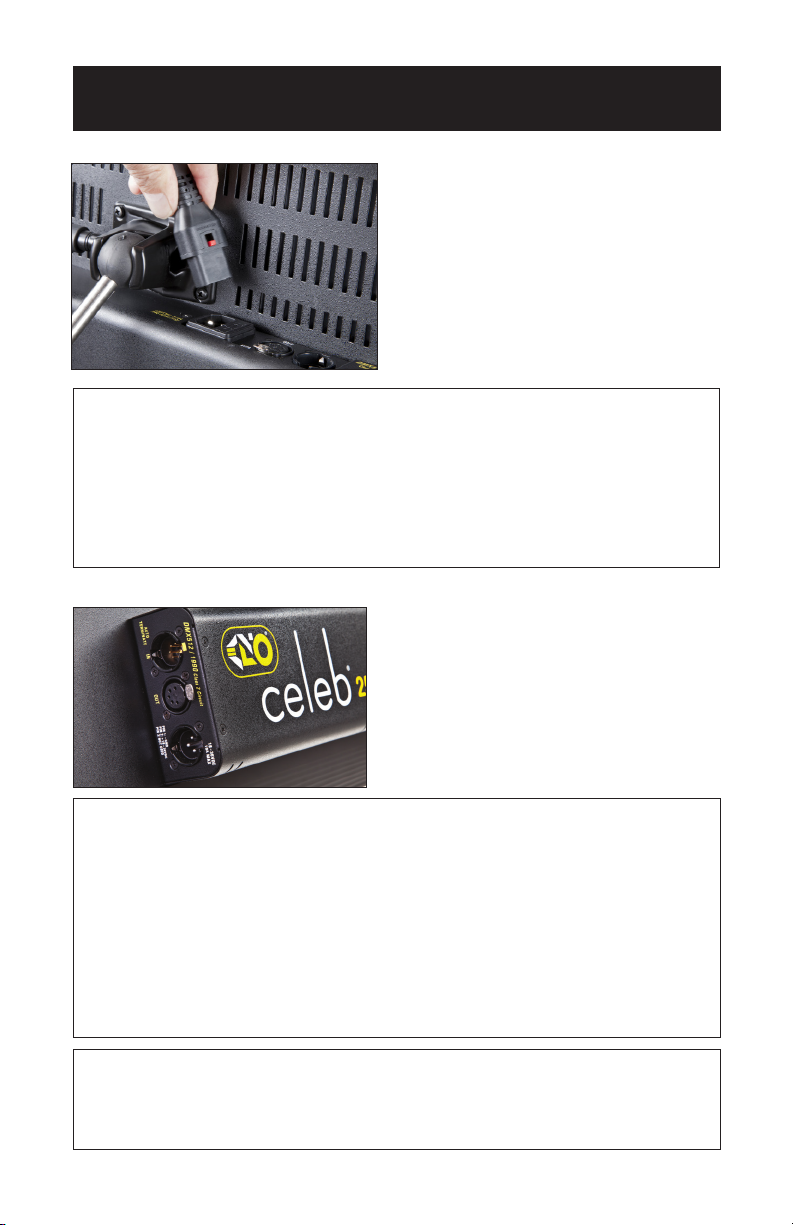

Fixture Power
DC Input
The Celeb 250 can also be operated on 24VDC (input range 18-36VDC) through a
3-Pin XLR. A low voltage warning will display “LPWR” when the battery is running low.
The pin polarity is:
Pin #1 – Ground
Pin #2 + 18-36VDC
Pin #3 not used
Note: DC input not available on Celeb 450 or 450Q.
AC Input
The Celeb is powered AC and includes an IEC connection. A locking power cord is
included with the xture. To remove the plug, move the red tab to release. The xture
has a built-in power supply with universal input from 100-240VAC.
Note: The Celeb 250 is shown for example purposes only. The IEC power cords for
the Celeb 450 and 450Q are in a different location.
Ambient Operating Temperature
The Celeb is designed to operate at temperatures from 14°F to 104°F
(-10°C to 40°C).
5

Control Panel - White Mode
ABCD E F G H
A) On /Off: On = Green light displayed. Off = Red light displayed. The display and
all menu settings can be operated while the power button is in the Off position,
as long as power is applied to the controller. The On /Off button only controls the
light source.
B) Menu: Provides access to menu options such as General settings, Reset, DMX and
DMX Wireless settings. Tip: While on control screen, press and hold for 3 seconds to
switch through menus (White, Gels & Hue, RGB).
C) Kelvin & G/M (Green/Magenta) Preset Buttons: Factory defaults left to right are:
2700K, 3200K, 5000K and 6500K. G/M default value is 000. User can also use
these preset buttons to store custom Kelvin and G/M settings.
D) Display: Provides access to Dim, Kelvin, G/M, and DMX channel.
Factory reset will show: Dim = 10%, Kelvin = 2700K, G/M = 000, DMX = 001.
E) Lock: Press the Lock button to disable all buttons and control knob.
Press for 3 seconds to restore presets to default factory settings.
F) Mode: Press to navigate from Dim to Kelvin and G/M settings. When in sub-menus,
pressing Mode always returns you to main display. When DMX is applied, use Mode
to access DMX channel on main display. Tip: Long press will bring you back one step.
G) Data Port: Mini B USB for software updates.
H) Dimmer Knob: Manually adjusts Dim, Kelvin, G/M levels and DMX address.
Press the knob to toggle between ne and coarse adjustments or when selecting
options within menus.
DMX Note: Each Celeb LED has an “AUTO TERMINATE” feature. The last xture that
does not have an XLR cable attached to the DMX “Out” port will automatically
terminate.
6

7
Control Panel - Color & RGB Mode
AA BB CC DD
A) Menu: Provides access to menu options such as General settings (Color Mode),
Reset, DMX and DMX Wireless settings. Tip: While on control screen, press and
hold for 3 seconds to switch through menus (White, Gels & Hue, RGB).
B) Kelvin, G/M (Green/Magenta) Gel, Hue & Saturation Preset Buttons:
Factory defaults left to right are: 2700K, 3200K, 5000K and 6500K. G/M default
value is 000. User can also use these preset buttons to store custom Kelvin
between 2500K and 9900K and custom G/M, Gel, Hue and Saturation settings.
C) Display: Provides access to Dim, Kelvin, G/M, Gel, Hue/Saturation and DMX
channel. Factory reset will show: Dim = 10%, Kelvin = 2700K, G/M = 000,
DMX = 001.
D) Mode: Press to navigate from Dim to Kelvin, G/M, Gel, Hue and Saturation
settings. When in sub-menus, pressing Mode always returns you to main display.
When DMX is applied, use Mode to access DMX channel on main display.
Tip: Long press will bring you back one step.
A) Menu: Provides access to menu options such as General settings (RGB Mode),
Reset, DMX and DMX Wireless settings. Tip: While on control screen, press and
hold for 3 seconds to switch through menus (White, Gels & Hue, RGB).
B) Kelvin, G/M (Green/Magenta) RGB (Red, Green, Blue) Preset Buttons: Factory
defaults left to right are: 2700K, 3200K, 5000K and 6500K. G/M default value is 000.
User can also use these preset buttons to store custom Kelvin between 2500K and
9900K and custom G/M, and RGB settings.
C) Display: Provides access to Dim, Kelvin, G/M, RGB and DMX channel. Factory reset
will show: Dim = 10%, Kelvin = 2700K, G/M = 000, DMX = 001.
.
D) Mode: Press to navigate from Dim to Kelvin, G/M, RGB settings. When in
sub-menus, pressing Mode always returns you to main display. When DMX is
applied, use Mode to access DMX channel on main display.
Tip: Long press will bring you back one step.
For full operation manual, see www.kinoo.com
Color Mode
RGB Mode

8

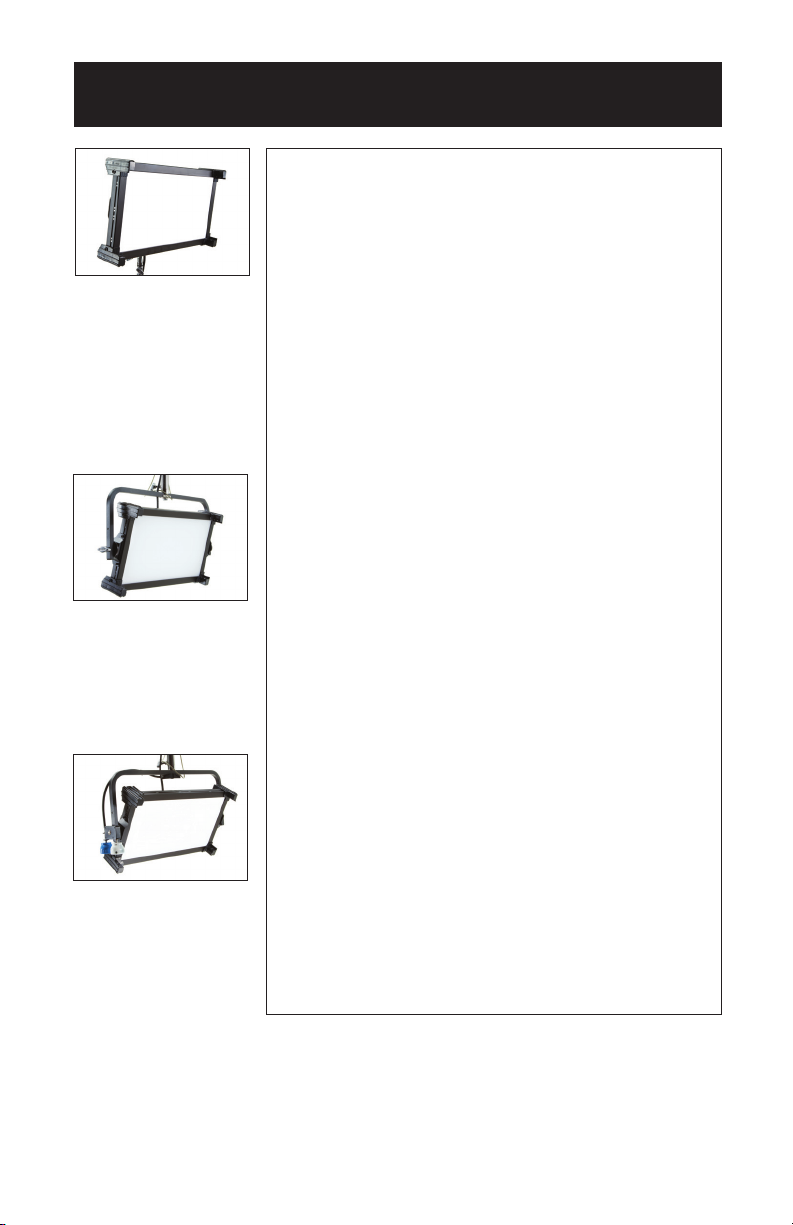

CEL-250C Celeb 250 LED DMX Center Mount
AC Input Voltage: 100~240VAC 50/60Hz, 145W
Amperage VAC: 1.2A at 120VAC, 0.7A at 230VAC
DC Input Voltage: 18~36VDC, 150W
Amperage VDC: 6.25A at 24VDC
Kelvin Range: 2700K~6500K (White Mode)
2500K~9900K (Color Mode)
Dimming Range: 100%~1%
Weight: 15 lb (6.8kg)
Dimensions: 24 x 5 x 14”
(61 x 12.7 x 35.5cm)
CEL-250Y Celeb 250 LED DMX Yoke Mount
AC Input Voltage: 100~240VAC 50/60Hz, 145W
Amperage VAC: 1.2A at 120VAC, 0.7A at 230VAC
DC Input Voltage: 18~36VDC, 150W
Amperage VDC: 6.25A at 24VDC
Kelvin Range: 2700K~6500K (White Mode)
2500K~9900K (Color Mode)
Dimming Range: 100%~1%
Weight: 16 lb (7.3kg)
Dimensions: 28.5 x 5 x 16.5”
(72.3 x 12.7 x 42cm)
Fixture Specications
CEL-250P Celeb 250 LED DMX Pole-Op
AC Input Voltage: 100~240VAC 50/60Hz, 145W
Amperage VAC: 1.2A at 120VAC, 0.7A at 230VAC
DC Input Voltage: 18~36VDC, 150W
Amperage VDC: 6.25A at 24VDC
Kelvin Range: 2700K~6500K (White Mode)
2500K~9900K (Color Mode)
Dimming Range: 100%~1%
Weight: 17 lb (7.7kg)
Dimensions: 29 x 6 x 16.5”
(74 x 15.2 x 42cm)

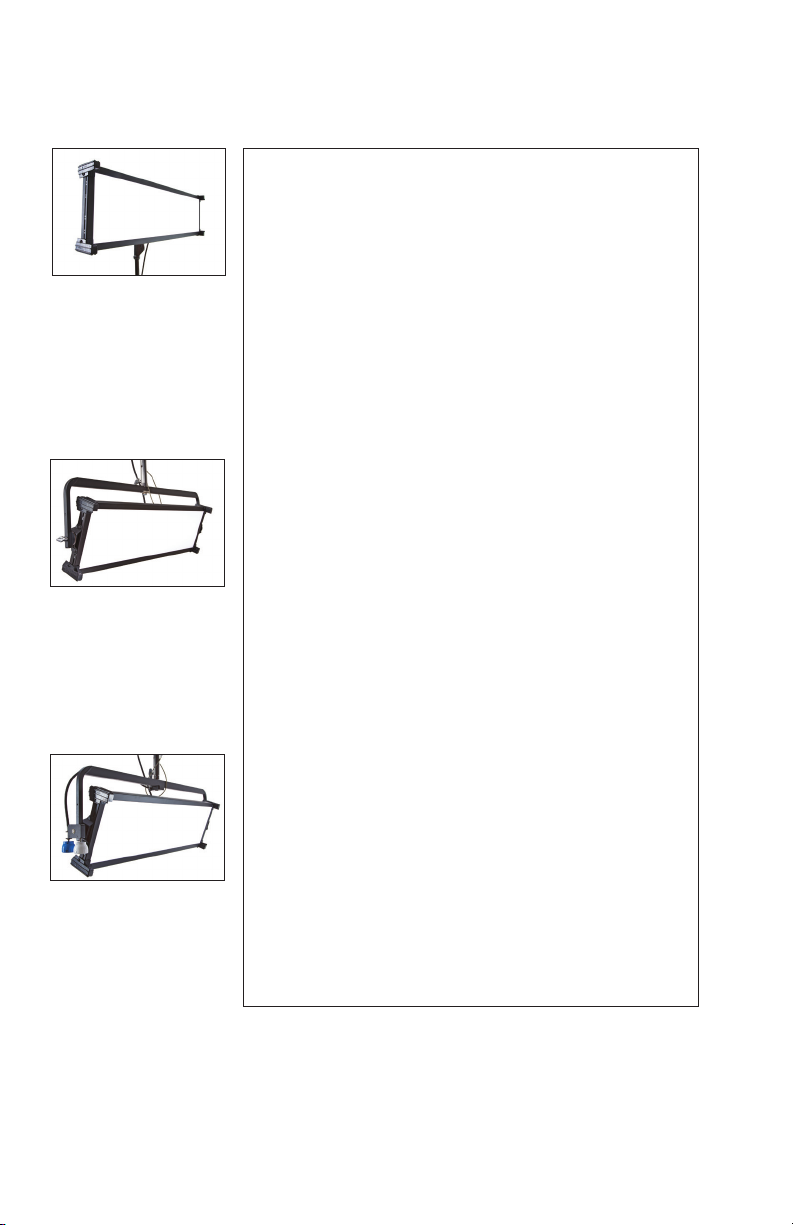

CEL-450C Celeb 450 LED DMX Center Mount
AC Input Voltage: 100~240VAC 50/60Hz, 255W
Amperage VAC: 2.5A at 120VAC, 1.1A at 230VAC
Kelvin Range: 2700K~6500K (White Mode)
2500K~9900K (Color Mode)
Dimming Range: 100%~1%
Weight: 26 lb (12kg)
Dimensions: 45 x 5 x 14”
(114.5 x 13 x 36cm)
CEL-450Y Celeb 450 LED DMX Yoke Mount
AC Input Voltage: 100~240VAC 50/60Hz, 255W
Amperage VAC: 2.5A at 120VAC, 1.1A at 230VAC
Kelvin Range: 2700K~6500K (White Mode)
2500K~9900K (Color Mode)
Dimming Range: 100%~1%
Weight: 26 lb (12kg)
Dimensions: 50 x 5 x 16.5”
(127 x 13 x 42cm)
CEL-450P Celeb 450 LED DMX Pole-Op
AC Input Voltage: 100~240VAC 50/60Hz, 255W
Amperage VAC: 2.5A at 120VAC, 1.1A at 230VAC
Kelvin Range: 2700K~6500K (White Mode)
2500K~9900K (Color Mode)
Dimming Range: 100%~1%
Weight: 26 lb (12kg)
Dimensions: 29 x 6 x 16.5”
(128.5 x 13 x 42cm)
9

CEL-450Q Celeb 450Q LED DMX Yoke Mount
AC Input Voltage: 100~240VAC 50/60Hz, 270W
Amperage VAC: 2.7A at 120VAC, 1.1A at 230VAC
Kelvin Range: 2700K~6500K (White Mode)
2500K~9900K (Color Mode)
Dimming Range: 100%~1%
Weight: 24 lb (11kg)
Dimensions: 30 x 5 x 26”
(72 x 13 x 66cm)
CEL-450QP Celeb 450Q LED DMX Pole-Op
AC Input Voltage: 100~240VAC 50/60Hz, 270W
Amperage VAC: 2.7A at 120VAC, 1.1A at 230VAC
Kelvin Range: 2700K~6500K (White Mode)
2500K~9900K (Color Mode)
Dimming Range: 100%~1%
Weight: 26 lb (12kg)
Dimensions: 30 x 5 x 30.5”
(76 x 13 x 77.5cm)
10

11

For latest Warranty information and Certications,
see Kino Flo website at www.kinoo.com.
Environmental: Disposal of Old Electrical & Electronic Equipment.
This symbol on the product or on its packaging indicates that this
product shall not be treated as household waste. This product is made
of recyclable materials and should be disposed of in accordance with
governmental regulations.
Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA
Tel: [phone] website: www.kinoo.com
FCC Part 15 Verication:
This device complies with Part 15 of the FCC Rules. Operation is subject to the condition
that this device does not cause harmful interference.
FCC Part 15 Declaration of Conformity:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
KINO FLO, INC
Celeb 250 LED, Celeb 450 LED, Celeb 450Q LED
ID: XRSCRMXTIMO101
IC: 8879A-CRMXT101
