Electrolux ESL5340LO User manual

ESL5340LO
EN Dishwasher User Manual

CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................4
3. PRODUCT DESCRIPTION................................................................................ 6
4. CONTROL PANEL............................................................................................. 6
5. PROGRAMMES................................................................................................. 7
6. SETTINGS..........................................................................................................8
7. OPTIONS..........................................................................................................10
8. BEFORE FIRST USE....................................................................................... 11
9. DAILY USE....................................................................................................... 12
10. HINTS AND TIPS........................................................................................... 14
11. CARE AND CLEANING..................................................................................15
12. TROUBLESHOOTING....................................................................................17
13. TECHNICAL INFORMATION......................................................................... 20
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2

1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the
result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Do not let children play with the appliance.
•Keep detergents away from children.
•Keep children and pets away from the appliance door
when it is open.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•This appliance is intended to be used in household
and similar applications such as:
–farm houses; staff kitchen areas in shops, offices
and other working environments;
–by clients in hotels, motels, bed & breakfast and
other residential type environments.
•Do not change the specification of this appliance.
•The operating water pressure (minimum and
maximum) must be between 0.5 (0.05) / 8 (0.8) bar
(MPa)
•Obey the maximum number of 13 place settings.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
ENGLISH 3

•Put the cutlery in the cutlery basket with the sharp
ends pointing down or put them in the cutlery drawer
in a horizontal position with the sharp edges down.
•Do not leave the appliance with the open door
unattended to avoid stepping accidentally onto it.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
•Do not use high pressure water sprays and/or steam
to clean the appliance.
•If the appliance has ventilation openings in the base,
they must not be covered e.g. by a carpet.
•The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not install or use the appliance
where the temperature is less than 0
°C.
• Follow the installation instruction
supplied with the appliance.
• Make sure that the appliance is
installed below and adjacent to safe
structures.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• This appliance complies with the
E.E.C. Directives.
• Only for UK and Ireland. The
appliance has a 13 amp mains plug. If
it is necessary to change the fuse in
the mains plug, use fuse: 13 amp
ASTA (BS 1362).
2.3 Water connection
• Do not cause damage to the water
hoses.
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let
www.electrolux.com4

the water flow until it is clean and
clear.
• Ensure that there are no visible water
leaks during and after the first use of
the appliance.

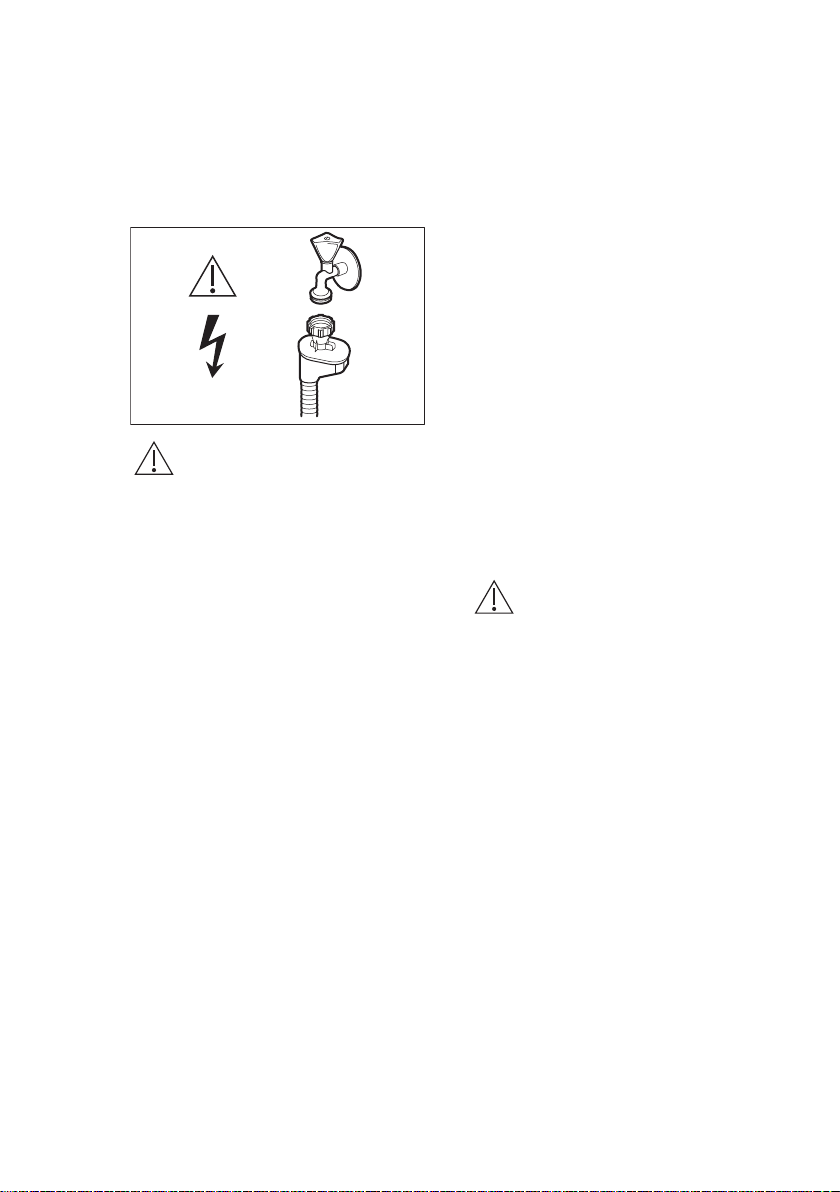

• The water inlet hose has a safety
valve and a sheath with an inner
mains cable.
WARNING!
Dangerous voltage.
• If the water inlet hose is damaged,
immediately close the water tap and
disconnect the mains plug from the
mains socket. Contact the Authorised
Service Centre to replace the water
inlet hose.
2.4 Use
• Do not sit or stand on the open door.
• Dishwasher detergents are
dangerous. Obey the safety
instructions on the detergent
packaging.
• Do not drink and play with the water in
the appliance.
• Do not remove the dishes from the
appliance until the programme is
complete. Some detergent may
remain on the dishes.
• The appliance can release hot steam
if you open the door while a
programme operates.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
2.5 Service
• Contact the Authorised Service
Centre to repair the appliance. We
recommend only the use of original
spare parts.
• When you contact the Authorised
Service Centre, ensure that you have
the following information that is
available on the rating plate.
Model :
PNC :
Serial Number :
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
ENGLISH 5

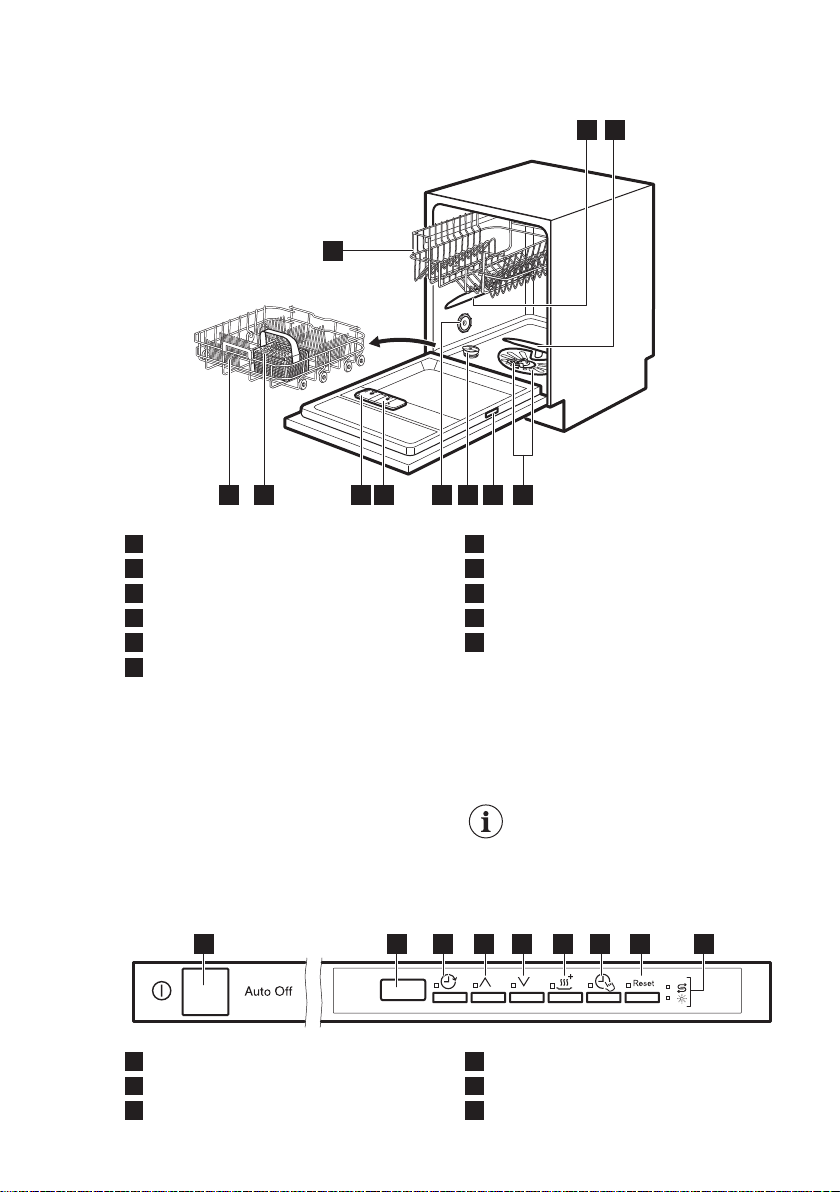

3. PRODUCT DESCRIPTION
43
7
9 8
10 56
11
12
1Upper spray arm
2Lower spray arm
3Filters
4Rating plate
5Salt container
6Air vent
7Rinse aid dispenser
8Detergent dispenser
9Cutlery basket
10 Lower basket
11 Upper basket
3.1 Beam-on-Floor
The Beam-on-Floor is a light that is
displayed on the floor below the
appliance door.
• When the programme starts, a red
light comes on and stays on for the
duration of the programme.
• When the programme is completed, a
green light comes on.
• When the appliance has a
malfunction, the red light flashes.
The Beam-on-Floor goes off
when the appliance is
deactivated.
4. CONTROL PANEL
1 2 93 4 5 6 7 8
1On/off button
2Display
3Delay button
4Programme button (up)
5Programme button (down)
6XtraDry button
www.electrolux.com6

7TimeManager button
8Reset button
9Indicators
4.1 Indicators
Indicator Description
Rinse aid indicator. It is always off while the programme operates.
Salt indicator. It is always off while the programme operates.
5. PROGRAMMES
Programme Degree of soil
Type of load
Programme phases Options
P1
1)
• Normal soil
• Crockery and
cutlery
• Prewash
• Wash 50 °C
• Rinses
• Dry
• TimeManager
• XtraDry
P2
2)
• All
• Crockery, cut‐
lery, pots and
pans
• Prewash
• Wash from 45 °C to
70 °C
• Rinses
• Dry
• XtraDry
P3
3)
• Heavy soil
• Crockery, cut‐
lery, pots and
pans
• Prewash
• Wash 70 °C
• Rinses
• Dry
• TimeManager
• XtraDry
P4
4)
• Fresh soil
• Crockery and
cutlery
• Wash 60 °C or 65 °C
• Rinses
• XtraDry
P5
5)
• All • Prewash
1) With this programme you have the most efficient use of water and energy consumption
for crockery and cutlery with normal soil. (This is the standard programme for test institutes).
2) The appliance senses the degree of soil and the quantity of items in the baskets . It auto‐
matically adjusts the temperature and the quantity of water, the energy consumption and the
programme duration.
3) This programme has a high temperature rinsing phase for better hygiene results. During
the rinsing phase, the temperature stays at 70 °C for at least 10 minutes.
4) With this programme you can wash a load with fresh soil. It gives good washing results in
a short time.
5) With this programme you can quickly rinse dishes to prevent remains of food to bond on
dishes and odours to form in the appliance. Do not use detergent with this programme.
ENGLISH 7

5.1 Consumption values
Programme 1) Water
(l)
Energy
(kWh)
Duration
(min)
P1 9.9 0.932 195
P2 7 - 12 0.6 - 1.4 40 - 150
P3 13 - 15 1.3 - 1.5 140 - 160
P4 9 0.9 30
P5 4 0.1 14
1) The pressure and the temperature of the water, the variations of the mains supply, the
options and the quantity of dishes can change the values.
5.2 Information for test
institutes
For all the necessary information for test
performance, send an email to:
[email protected]
Write down the product number (PNC)
that is on the rating plate.
6. SETTINGS
6.1 Programme selection mode
and user mode
When the appliance is in programme
selection mode it is possible to set a
programme and to enter the user mode.
In user mode, the following settings
can be changed:
• The level of the water softener
according to the water hardness.
• The activation or the deactivation of
the acoustic signal for end of
programme.
• The activation or deactivation of the
rinse aid empty notification.
These settings will be saved until you
change them again.
How to set the programme
selection mode
The appliance is in programme selection
mode when the display shows the
programme number P1.
When you activate the appliance, usually
it is in programme selection mode.
However, if this does not happen, you
can set the programme selection mode
in the following way:
Press and hold Reset until the appliance
is in programme selection mode.
6.2 The water softener
The water softener removes minerals
from the water supply, which would have
a detrimental effect on the washing
results and on the appliance.
www.electrolux.com8

The higher the content of these minerals,
the harder your water is. Water hardness
is measured in equivalent scales.
The water softener should be adjusted
according to the hardness of the water in
your area. Your local water authority can
advise you on the hardness of the water
in your area. It is important to set the
right level of the water softener to assure
good washing results.
Water hardness
German de‐
grees (°dH)
French de‐
grees (°fH)
mmol/l Clarke de‐
grees
Water softener
level
47 - 50 84 - 90 8.4 - 9.0 58 - 63 10
43 - 46 76 - 83 7.6 - 8.3 53 - 57 9
37 - 42 65 - 75 6.5 - 7.5 46 - 52 8
29 - 36 51 - 64 5.1 - 6.4 36 - 45 7
23 - 28 40 - 50 4.0 - 5.0 28 - 35 6
19 - 22 33 - 39 3.3 - 3.9 23 - 27 5 1)
15 - 18 26 - 32 2.6 - 3.2 18 - 22 4
11 - 14 19 - 25 1.9 - 2.5 13 - 17 3
4 - 10 7 - 18 0.7 - 1.8 5 - 12 2
<4 <7 <0.7 < 5 1 2)
1) Factory setting.
2) Do not use salt at this level.
Whether you use a standard detergent
or multi-tabs (with or without salt), set
the proper water hardness level to
keep the salt refill indicator active.
Multi-tabs containing salt are
not effective enough to
soften hard water.
How to set the water softener
level
The appliance must be in programme
selection mode.
1. To enter the user mode, press and
hold simultaneously and until
the indicators , and start
to flash and the display is blank.
2. Press .
• The indicators and go off.
• The indicator continues to
flash.
• The display shows the current
setting: e.g. = level 5.
3. Press again and again to change
the setting.
4. Press the on/off button to confirm the
setting.
6.3 The rinse aid empty
notification
The rinse aid helps to dry the dishes
without streaks and stains.
The rinse aid is automatically released
during the hot rinse phase.
When rinse aid chamber is empty, the
rinse aid indicator is turned on notifying
to refill rinse aid. If you are using multi-
tabs containing rinse aid and you are
satisfied with the drying result, you can
deactivate the notification for refilling
ENGLISH 9

rinse aid. However, we recommend that
you always use rinse aid for best drying
performance.
If you use standard detergent or multi-
tablets without rinse aid, activate the
notification to keep the rinse aid refill
indicator active.
How to deactivate the rinse aid
empty notification
The appliance must be in programme
selection mode.
1. To enter the user mode, press and
hold simultaneously and until
the indicators , and start
to flash and the display is blank.
2. Press .
• The indicators and go off.
• The indicator continues to
flash.
• The display shows the current
setting.
– = rinse aid empty
notification activated.
– = rinse aid empty
notification deactivated.
3. Press to change the setting.
4. Press the on/off button to confirm the
setting.
6.4 Acoustic signals
Acoustic signals sound when a
malfunction of the appliance occurs. It is
not possible to deactivate these acoustic
signals.
There is also an acoustic signal that
sounds when the programme is
completed. By default this acoustic signal
is deactivated but it is possible to
activate it.
How to activate the acoustic
signal for the end of
programme
The appliance must be in programme
selection mode.
1. To enter the user mode, press and
hold simultaneously and until
the indicators , and start
to flash and the display is blank.
2. Press .
• The indicators and go off.
• The indicator continues to
flash.
• The display shows the current
setting:
– = Acoustic signal off.
– = Acoustic signal on.
3. Press to change the setting.
4. Press the on/off button to confirm the
setting.
7. OPTIONS
Desired options must be
activated every time before
you start a programme.
It is not possible to activate
or deactivate options while a
programme is running.
Not all options are
compatible with each other.
If you have selected non
compatible options, the
appliance will automatically
deactivate one or more of
them. Only the indicators of
the options still active will
stay on.
www.electrolux.com10

7.1 XtraDry
Activate this option when you want to
boost the drying performance. With the
use of this option, the duration of some
programmes, water consumption and the
last rinse temperature can be affected.
The option XtraDry is not a permanent
option and must be selected at every
cycle.
How to activate XtraDry
Press . The related indicator comes
on.
If the option is not applicable to the
programme, the related indicator does
not come on or it flashes quickly for a few
seconds and then goes off.
The display shows the updated
programme duration.
7.2 TimeManager
This option increases the pressure and
the temperature of the water. The
washing and the drying phases are
shorter.
The total programme duration decreases
by approximately 50%.
The washing results are the same as
with the normal programme duration. The
drying results can decrease.
How to activate TimeManager
Press , the related indicator comes
on.
The display shows the updated
programme duration.
8. BEFORE FIRST USE
1. Make sure that the current level of
the water softener agrees with the
hardness of the water supply. If
not, adjust the level of the water
softener.
2. Fill the salt container.
3. Fill the rinse aid dispenser.
4. Open the water tap.
5. Start a programme to remove any
processing residuals that can still be
inside the appliance. Do not use
detergent and do not load the
baskets.
When you start a programme, the
appliance can take up to 5 minutes to
recharge the resin in the water softener.
It seems that the appliance is not
working. The washing phase starts only
after this procedure is completed. The
procedure will be repeated periodically.
8.1 The salt container
CAUTION!
Only use salt specifically
designed for dishwashers.
The salt is used to recharge the resin in
the water softener and to assure good
washing results in the daily use.
How to fill the salt container
1. Turn the cap of the salt container
counterclockwise and remove it.
2. Put 1 litre of water in the salt
container (Only for the first time).
3. Fill the salt container with dishwasher
salt.
4. Remove the salt around the opening
of the salt container.
ENGLISH 11

5. Turn the cap of the salt container
clockwise to close the salt container.
CAUTION!
Water and salt can come out
of the salt container when
you fill it. After you fill the
salt container, immediately
start a programme to
prevent corrosion.

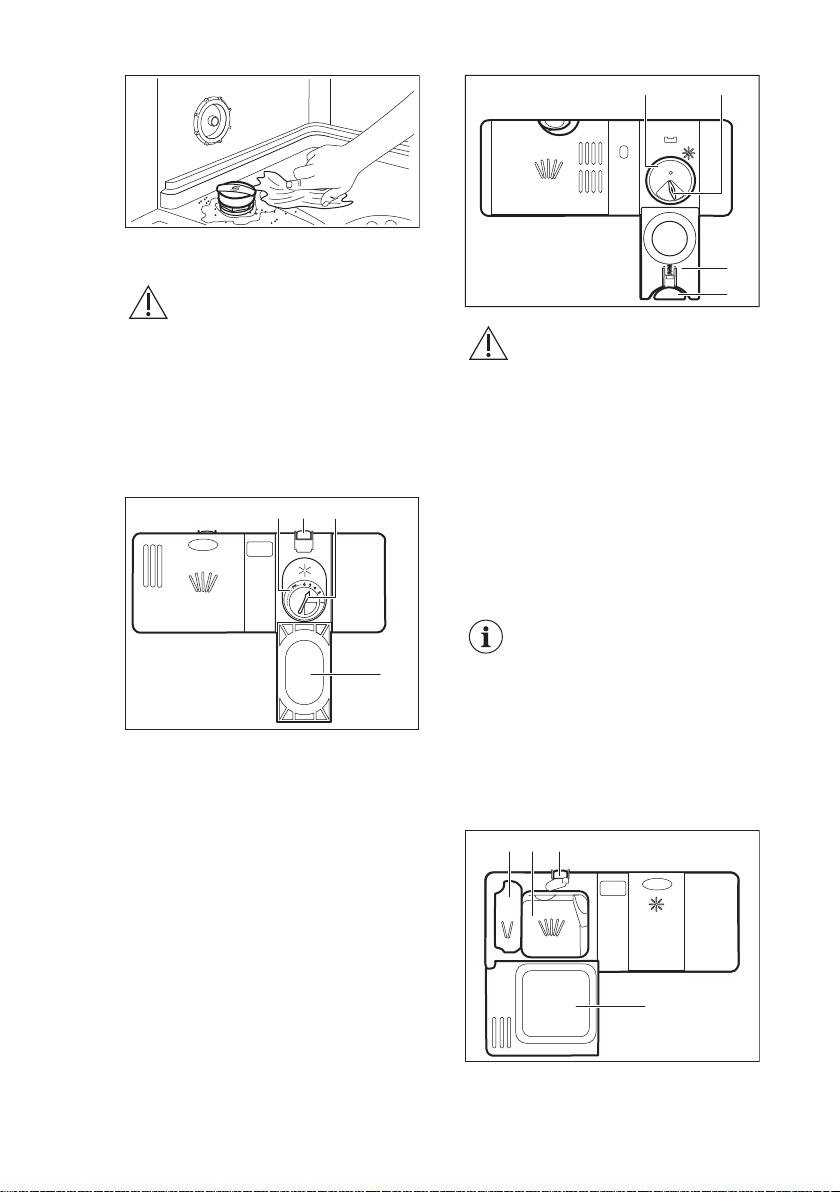

8.2 How to fill the rinse aid
dispenser
AB
D
C
M
A
X
1
2
3
4
+
-
AB
D
C
CAUTION!
Only use rinse aid
specifically designed for
dishwashers.
1. Press the release button (D) to open
the lid (C).
2. Pour the rinse aid in the dispenser
(A) until the liquid reaches the fill
level 'max'.
3. Remove the spilled rinse aid with an
absorbent cloth to prevent too much
foam.
4. Close the lid. Make sure that the
release button locks into position.
You can turn the selector of
the released quantity (B)
between position 1 (lowest
quantity) and position 4 or 6
(highest quantity).
9. DAILY USE
1. Open the water tap.
2. Press the on/off button to activate the
appliance.
Make sure that the appliance is in
programme selection mode.
• If the salt indicator is on, fill the
salt container.
• If the rinse aid indicator is on, fill
the rinse aid dispenser.
3. Load the baskets.
4. Add the detergent.
5. Set and start the correct programme
for the type of load and the degree of
soil.

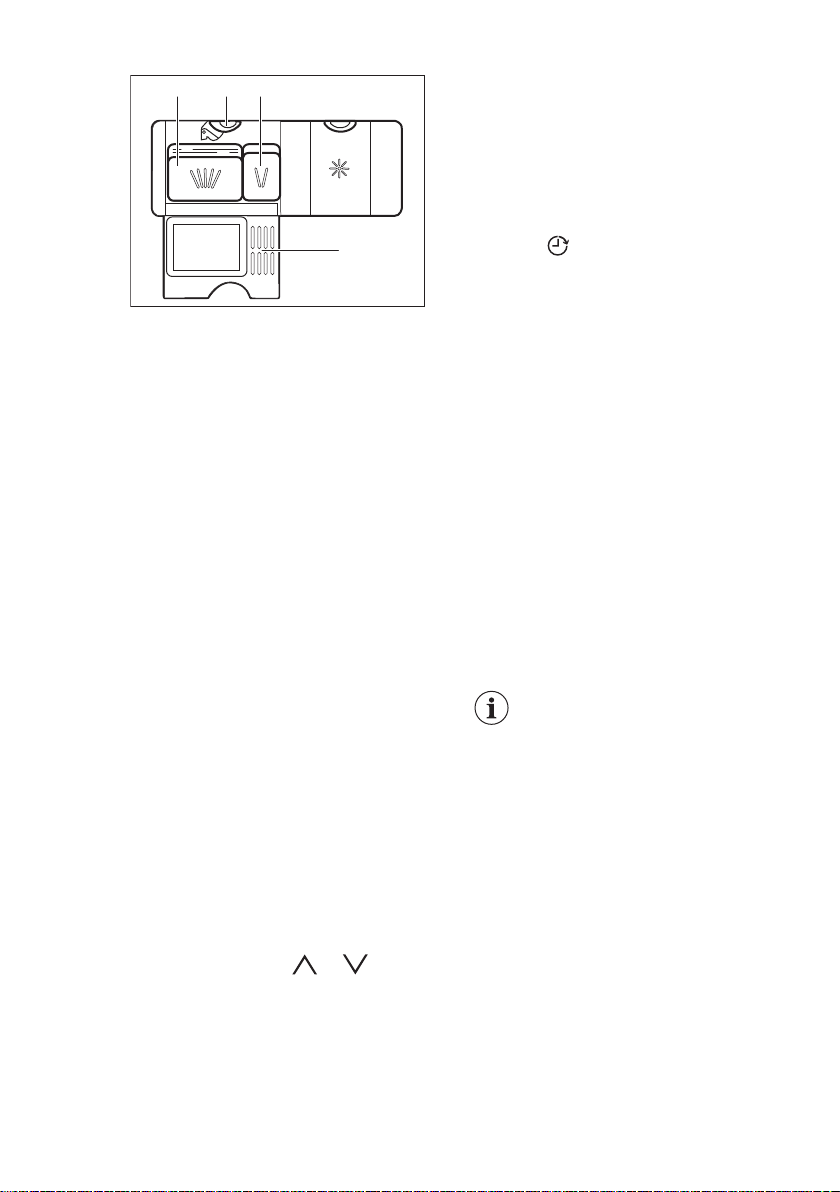

9.1 Using the detergent
30
20
A BD
C
www.electrolux.com12

20
30
B
A D
C
1. Press the release button (B) to open
the lid (C).
2. Put the detergent, in powder or
tablets, in the compartment (A).
3. If the programme has a prewash
phase, put a small quantity of
detergent in the compartment (D).
4. Close the lid. Make sure that the
release button locks into position.
9.2 Setting and starting a
programme
The Auto Off function
This function decreases energy
consumption by deactivating
automatically the appliance when it is not
operating.
The function comes into operation:
• 5 minutes after the completion of the
programme.
• After 5 minutes if the programme has
not started.
Starting a programme
1. Keep the appliance door ajar.
2. Press the on/off button to activate the
appliance. Make sure that the
appliance is in programme selection
mode.
3. Press repeatedly or until the
display shows the number of the
programme you want to start. The
display will show the programme
number for approximately 3 seconds
and then show the programme
duration.
4. Set the applicable options.
5. Close the appliance door to start the
programme.
Starting a programme with
delay start
1. Set a programme.
2. Press again and again until the
display shows the delay time you
want to set (from 1 to 24 hours).
The delay indicator comes on.
3. Close the appliance door to start the
countdown.
While a countdown is running it is
possible to increase the delay time but
not to change the selection of the
programme and options.
When the countdown is completed, the
programme starts.
Opening the door while the
appliance operates
If you open the door while a programme
is running, the appliance stops. It may
affect the energy consumption and the
programme duration. When you close
the door, the appliance continues from
the point of interruption.
If the door is opened for
more than 30 seconds
during the drying phase, the
running programme will end.
Cancelling the delay start while
the countdown operates
When you cancel the delay start you
have to set the programme and options
again.
Press and hold Reset until the appliance
is in programme selection mode.
Cancelling the programme
Press and hold Reset until the appliance
is in programme selection mode.
ENGLISH 13

Make sure that there is detergent in the
detergent dispenser before you start a
new programme.
End of the programme
When the programme is completed the
display shows 0:00 .
1. Press the on/off button or wait for the
Auto Off function to automatically
deactivate the appliance.
2. Close the water tap.
10. HINTS AND TIPS
10.1 General
The following hints will ensure optimal
cleaning and drying results in daily use
and also help to protect the environment.
• Remove larger residues of food from
the dishes into the waste bin.
• Do not pre-rinse dishes by hand.
When needed, use the prewash
programme (if available) or select a
programme with a prewash phase.
• Always use the whole space of the
baskets.
• When loading the appliance, make
sure that the dishes can be
completely reached and washed by
the water released from the spray arm
nozzles. Make sure that items do not
touch or cover each other.
• You can use dishwasher detergent,
rinse aid and salt separately or you
can use the multi-tablets (e.g. ''3in1'',
''4in1'', ''All in 1''). Follow the
instructions written on the packaging.
• Select the programme according to
the type of load and degree of soil.
With the ECO programme you have
the most efficient use of water and
energy consumption for crockery and
cutlery with normal soil.
10.2 Using salt, rinse aid and
detergent
• Only use salt, rinse aid and detergent
for dishwasher. Other products can
cause damage to the appliance.
• In areas with hard and very hard
water we recommend to use plain
dishwasher detergent (powder, gel,
tablets containing no additional
agents), rinse aid and salt separately
for optimal cleaning and drying
results.
• At least once a month run the
appliance with the use of appliance
cleaner which is particularly suitable
for this purpose.
• Detergent tablets do not fully dissolve
with short programmes. To prevent
detergent residues on the tableware,
we recommend that you use the
tablets with long programmes.
• Do not use more than the correct
quantity of detergent. Refer to the
instructions on the detergent
packaging.
10.3 What to do if you want to
stop using multi-tablets
Before you start to use separately
detergent, salt and rinse aid do the
following procedure.
1. Set the highest level of the water
softener.
2. Make sure that the salt and rinse aid
containers are full.
3. Start the shortest programme with a
rinsing phase. Do not add detergent
and do not load the baskets.
4. When the programme is completed,
adjust the water softener according
to the water hardness in your area.
5. Adjust the released quantity of rinse
aid.
6. Activate the rinse aid empty
notification.
10.4 Loading the baskets
• Only use the appliance to wash items
that are dishwasher-safe.
www.electrolux.com14

• Do not put in the appliance items
made of wood, horn, aluminium,
pewter and copper.
• Do not put in the appliance items that
can absorb water (sponges,
household cloths).
• Remove remaining food from the
items.
• Make soft the remaining burned food
on the items.
• Put hollow items (cups, glasses and
pans) with the opening down.
• Make sure that cutlery and dishes do
not bond together. Mix spoons with
other cutlery.
• Make sure that glasses do not touch
other glasses.
• Put small items in the cutlery basket.
• Put light items in the upper basket.
Make sure that the items do not
move.
• Make sure that the spray arm can
move freely before you start a
programme.
10.5 Before starting a
programme
Make sure that:
• The filters are clean and correctly
installed.
• The cap of the salt container is tight.
• The spray arms are not clogged.
• There is dishwasher salt and rinse aid
(unless you use multi- tablets).
• The position of the items in the
baskets is correct.
• The programme is applicable for the
type of load and for the degree of soil.
• The correct quantity of detergent is
used.
10.6 Unloading the baskets
1. Let the tableware cool down before
you remove it from the appliance. Hot
items can be easily damaged.
2. First remove items from the lower
basket, then from the upper basket.
At the end of the program
water can still remain on the
sides and on the door of the
appliance.
11. CARE AND CLEANING
WARNING!
Before maintenance,
deactivate the appliance and
disconnect the mains plug
from the main socket.
Dirty filters and clogged
spray arms decrease the
washing results. Make a
check regularly and, if
necessary, clean them.
11.1 Cleaning the filters

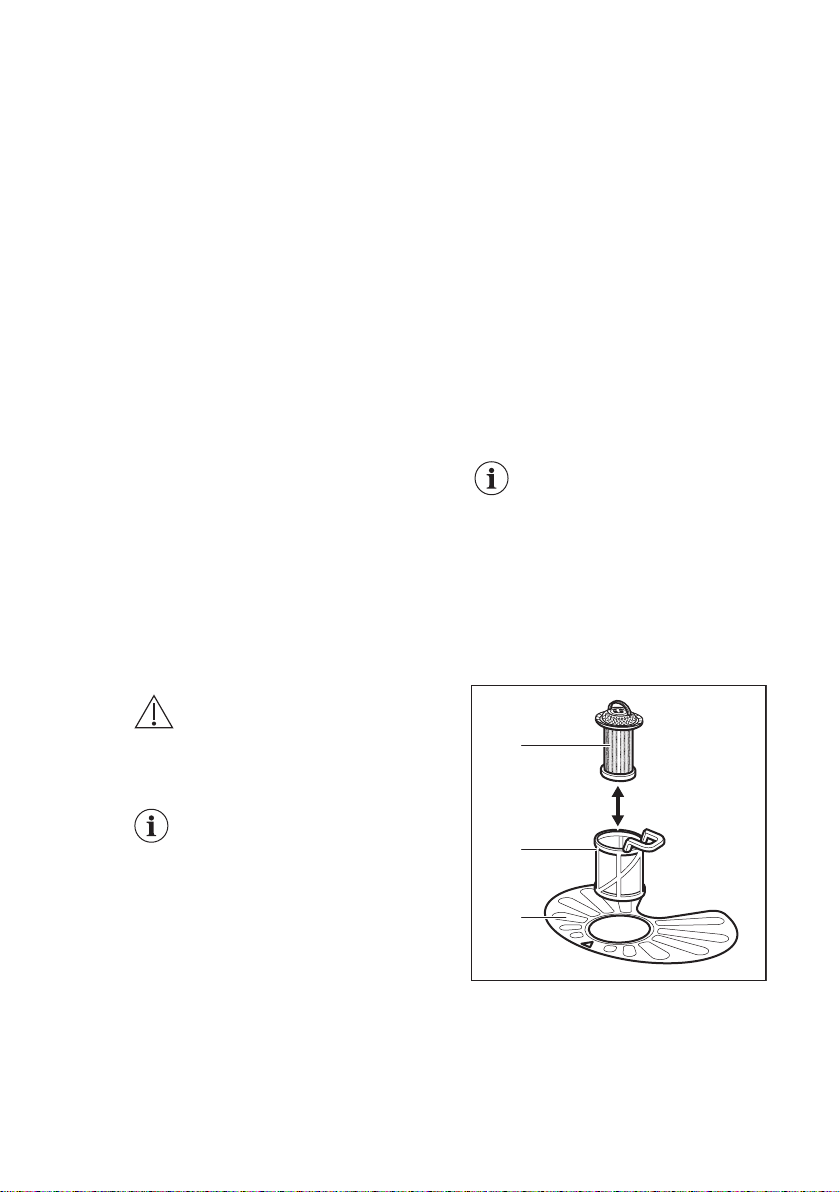

The filter system is made of 3 parts.
C
B
A
1. Turn the filter (B) counterclockwise
and remove it.
ENGLISH 15

2. Remove the filter (C) out of filter (B).
3. Remove the flat filter (A).
4. Wash the filters.
5. Make sure that there are no residues
of food or soil in or around the edge
of the sump.
6. Put back in place the flat filter (A).
Make sure that it is correctly
positioned under the 2 guides.
7. Reassemble the filters (B) and (C).
8. Put back the filter (B) in the flat filter
(A). Turn it clockwise until it locks.
CAUTION!
An incorrect position of the
filters can cause bad
washing results and damage
to the appliance.
11.2 Cleaning the spray arms
Do not remove the spray arms. If the
holes in the spray arms are clogged,
remove remaining parts of soil with a thin
pointed object.
11.3 External cleaning
• Clean the appliance with a moist soft
cloth.
• Only use neutral detergents.
• Do not use abrasive products,
abrasive cleaning pads or solvents.
11.4 Internal cleaning
• Carefully clean the appliance,
including the rubber gasket of the
door, with a soft damp cloth.
www.electrolux.com16

• If you regularly use short duration
programmes, these can leave
deposits of grease and limescale
inside the appliance. To prevent this,
we recommend to run long duration
programmes at least 2 times per
month.
• To maintain the performance of your
appliance at its best, we recommend
to use monthly a specific cleaning
product for dishwashers. Follow
carefully the instructions on the
packaging of the product.
12. TROUBLESHOOTING
If the appliance does not start or it stops
during operation, first check if you can
solve the problem by yourself with the
help of the information in the table or
contact an Authorised Service Centre.
WARNING!
Repairs not properly done
may result in serious risk to
the safety of the user. Any
repairs must be performed
by qualified personnel.
With some problems, the display
shows an alarm code.
The majority of problems that can
occur can be solved without the need
to contact an Authorised Service
Centre.
Problem and alarm code Possible cause and solution
You cannot activate the
appliance.
• Make sure that the mains plug is connected to the
mains socket.
• Make sure that there is no damaged fuse in the fuse
box.
The program does not
start.
• Make sure that the appliance door is closed.
• If the delay start is set, cancel the setting or wait for
the end of the countdown.
• The appliance has started the procedure to recharge
the resin inside the water softener. The duration of
the procedure is approximately 5 minutes.
The appliance does not fill
with water.
The display shows .
• Make sure that the water tap is open.
• Make sure that the pressure of the water supply is
not too low. For this information, contact your local
water authority.
• Make sure that the water tap is not clogged.
• Make sure that the filter in the inlet hose is not clog‐
ged.
• Make sure that the inlet hose has no kinks or bends.
The appliance does not
drain the water.
The display shows .
• Make sure that the sink spigot is not clogged.
• Make sure that the filter in the outlet hose is not clog‐
ged.
• Make sure that the interior filter system is not clog‐
ged.
• Make sure that the drain hose has no kinks or bends.
ENGLISH 17

Problem and alarm code Possible cause and solution
The anti-flood device is on.
The display shows .
• Close the water tap and contact an Authorised Serv‐
ice Centre.
The appliance stops and
starts more times during
operation.
• It is normal. It provides optimal cleaning results and
energy savings.
The program lasts too
long.
• Select the TimeManager option to shorten the pro‐
gram time.
• If the delayed start option is set, cancel the delay set‐
ting or wait for the end of the countdown.
The remaining time in the
display increases and
skips nearly to the end of
program time.
• This is not a defect. The appliance is working cor‐
rectly.
Small leak from the appli‐
ance door.
• The appliance is not levelled. Loosen or tighten the
adjustable feet (if applicable).
• The appliance door is not centred on the tub. Adjust
the rear foot (if applicable).
The appliance door is diffi‐
cult to close.
• The appliance is not levelled. Loosen or tighten the
adjustable feet (if applicable).
• Parts of the tableware are protruding from the bas‐
kets.
Rattling/knocking sounds
from inside the appliance.
• The tableware is not properly arranged in the bas‐
kets. Refer to basket loading leaflet.
• Make sure that the spray arms can rotate freely.
The appliance trips the cir‐
cuit-beaker.
• The amperage is insufficient to supply simultaneous‐
ly all the appliances in use. Check the socket amper‐
age and the capacity of the meter or turn off one of
the appliances in use.
• Internal electrical fault of the appliance. Contact an
Authorised Service Centre.
Refer to "Before first use",
"Daily use", or "Hints and
tips" for other possible
causes.
Once you have checked the appliance,
deactivate and activate the appliance. If
the problem occurs again, contact an
Authorised Service Centre.
For alarm codes not described in the
table, contact an Authorised Service
Centre.
www.electrolux.com18

12.1 The washing and drying results are not satisfactory
Problem Possible cause and solution
Poor washing results. • Refer to "Daily use", "Hints and tips" and basket
loading leaflet.
• Use more intensive washing programmes.
• Clean spray arm jets and filter. Refer to "Care and
Cleaning".
Poor drying results. • Tableware has been left for too long inside a
closed appliance.
• There is no rinse aid or the dosage of rinse aid is
not enough. Set the rinse aid dispenser to a higher
level.
• Plastic items may need to be towel dried.
• For the best drying performance activate the option
XtraDry.
• We recommend to always use rinse aid, even in
combination with multi-tablets.
There are whitish streaks or
bluish layers on glasses and
dishes.
• The release quantity of rinse aid is too much. Ad‐
just the rinse aid level to a lower level.
• The quantity of detergent is too much.
There are stains and dry wa‐
ter drops on glasses and
dishes.
• The released quantity of rinse aid is not sufficient.
Adjust the rinse aid level to a higher level.
• The quality of the rinse aid can be the cause.
The dishes are wet. • For the best drying performance activate the option
XtraDry.
• The programme does not have a drying phase or
has a drying phase with low temperature.
• The rinse aid dispenser is empty.
• The quality of the rinse aid can be the cause.
• The quality of the multi-tablets can be the cause.
Try a different brand or activate the rinse aid dis‐
penser and use rinse aid and multi-tablets together.
• Keep the dishwasher door ajar for some time be‐
fore removing tableware.
The interior of the appliance
is wet.
• This is not a defect of the appliance. it is caused by
the humidity in the air that condenses on the walls.
Unusual foam during wash‐
ing.
• Use the detergent for dishwashers only.
• There is a leak in the rinse aid dispenser. Contact
an Authorised Service Centre.
Traces of rust on cutlery. • There is too much salt in the water used for wash‐
ing. Refer to "The water softener".
• Silver and stainless steel cutlery were placed to‐
gether. Avoid to put silver and stainless steel items
close together.
ENGLISH 19

Problem Possible cause and solution
There are residues of deter‐
gent in the dispenser at the
end of the programme.
• The detergent tablet got stuck in the dispenser and
therefore was not completely washed away by wa‐
ter.
• Water cannot wash away the detergent from the
dispenser. Make sure that the spray arm is not
blocked or clogged.
• Make sure that items in the baskets do not impede
the lid of the detergent dispenser from opening.
Odours inside the appliance. • Refer to "Internal cleaning".
Limescale deposits on the
tableware, on the tub and on
the inside of the door.
• The level of salt is low, check the refill indicator.
• The cap of the salt container is loose.
• Your tap water is hard. Refer to "The water soft‐
ener".
• Even using multi-functional tabs use salt and set
regeneration of the water softener. Refer to "The
water softener".
• If lime scale deposits still remain, clean the appli‐
ance with appliance cleaners which are particularly
suitable for this purpose.
• Try different detergent.
• Contact the detergent manufacturer.
Dull, discoloured or chipped
tableware.
• Make sure that only dishwasher-safe items are
washed in the appliance.
• Load and unload the basket carefully. Refer to bas‐
ket loading leaflet.
• Place delicate items in the upper basket.
Refer to "Before first use",
"Daily use" or "Hints and
tips" for other possible
causes.
13. TECHNICAL INFORMATION
Dimensions Width / height / depth
(mm)
596 / 818 - 898 / 555
Electrical connection 1) Voltage (V) 200 - 240
Frequency (Hz) 50 / 60
Water supply pressure Min. / max. bar (MPa) 0.5 (0.05) / 8 (0.8)
Water supply Cold water or hot water 2) max 60 °C
Capacity Place settings 13
www.electrolux.com20
