Electrolux ESL6350LO User manual

ESL6350LO
................................................ .............................................
EN DISHWASHER USER MANUAL

CONTENTS
1. SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3. CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4. PROGRAMMES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5. OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
6. BEFORE FIRST USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
7. DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
8. HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
9. CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
10. TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
11. TECHNICAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it
decades of professional experience and innovation. Ingenious and stylish, it has been designed
with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great
results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
2www.electrolux.com

1. SAFETY INSTRUCTIONS
Before the installation and use of the ap-
pliance, carefully read the supplied in-
structions. The manufacturer is not re-
sponsible if an incorrect installation and
use causes injuries and damages. Always
keep the instructions with the appliance
for future reference.
1.1 Children and vulnerable
people safety
WARNING!
Risk of suffocation, injury or per-
manent disability.
• Do not let persons, children included,
with reduced physical sensory, reduced
mental functions or lack of experience
and knowledge use the appliance. They
must have supervision or instruction for
the operation of the appliance by a per-
son who is responsible for their safety.
• Do not let children play with the appli-
ance.
• Keep all packaging away from children.
• Keep all detergents away from children.
• Keep children and pets away from the
appliance door when it is open.
1.2 Installation
• Remove all the packaging.
• Do not install or use a damaged appli-
ance.
• Do not install or use the appliance
where the temperature is less than 0
°C.
• Obey the installation instruction sup-
plied with the appliance.
• Make sure that the appliance is installed
below and adjacent to safe structures.
Electrical connection
WARNING!
Risk of fire and electrical shock.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the pow-
er supply. If not, contact an electrician.
• Always use a correctly installed shock-
proof socket.
• Do not use multi-plug adapters and ex-
tension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the appliance power supply ca-
ble need to be replaced, this must be
carried out by our Service Centre.
• Connect the mains plug to the mains
socket only at the end of the installa-
tion. Make sure that there is access to
the mains plug after the installation.
• Do not pull the mains cable to discon-
nect the appliance. Always pull the
mains plug.
• Do not touch the mains cable or the
mains plug with wet hands.
• This appliance complies with the E.E.C.
Directives.
Water connection
• Make sure not to cause damage to the
water hoses.
• Before you connect the appliance to
new pipes or pipes not used for a long
time, let the water flow until it is clean.
• The first time you use the appliance,
make sure that there is no leakage.
• The water inlet hose has a safety valve
and a sheath with an inner mains cable.
WARNING!
Dangerous voltage.
• If the water inlet hose is damaged, im-
mediately disconnect the mains plug
from the mains socket. Contact the
Service to replace the water inlet hose.
ENGLISH 3

1.3 Use
• This appliance is intended to be used in
household and similar applications such
as:
– Staff kitchen areas in shops, offices
and other working environments
– Farm houses
– By clients in hotels, motels and other
residential type environments
– Bed and breakfast type environ-
ments.
WARNING!
Risk of injury, burns, electrical
shock or fire.
• Do not change the specification of this
appliance.
• Put knives and cutlery with sharp points
in the cutlery basket with the points
down or in a horizontal position.
• Do not keep the appliance door open
without supervision to prevent to fall on
it.
• Do not sit or stand on the open door.
• Dishwasher detergents are dangerous.
Obey the safety instructions on the de-
tergent packaging.
• Do not drink and play with the water in
the appliance.
• Do not remove the dishes from the ap-
pliance until the programme is comple-
ted. There can be detergent on the
dishes.
• The appliance can release hot steam if
you open the door while a programme
operates.
• Do not put flammable products or items
that are wet with flammable products
in, near or on the appliance.
• Do not use water spray and steam to
clean the appliance.
1.4 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent chil-
dren and pets to get closed in the ap-
pliance.
4www.electrolux.com

2. PRODUCT DESCRIPTION
12
43
7
9 5
6
11
8
10
1Upper spray arm
2Lower spray arm
3Filters
4Rating plate
5Salt container
6Water hardness dial
7Rinse aid dispenser
8Detergent dispenser
9Cutlery basket
10 Lower basket
11 Upper basket
2.1 Light beam
• When a programme starts to operate, a
red light beam shows on the floor be-
low the appliance door. When the pro-
gramme is completed the light beam
goes off.
• When the appliance has a malfunction,
the red light beam flashes.
3. CONTROL PANEL
54
12 3
1On/off button
2Display
3Delay button
4Programme buttons
5Indicators
ENGLISH 5

Indicators Description
Salt indicator. It is always off while the programme operates.
Rinse aid indicator. It is always off while the programme operates.
Multitab indicator.
4. PROGRAMMES
Pro-
gramme
1)
Degree of
soil
Type of
load
Programme
phases
Dura-
tion
(min)
Energy
(kWh)
Water
(l)
2)
Normal soil
Crockery
and cutlery
Prewash
Wash 50 °C
Rinses
Dry
168 1.01 12.4
3)
All
Crockery,
cutlery, pots
and pans
Prewash
Wash 45 °C or 70
°C
Rinses
Dry
40 - 150 0.6 - 1.4 8 - 14
Heavy soil
Crockery,
cutlery, pots
and pans
Prewash
Wash 70 °C
Rinses
Dry
110 -
120
1.8 - 2.0 22 - 24
4)
Fresh soil
Crockery
and cutlery
Wash 60 °C
Rinse
30 0.9 9
5)
All Prewash 12 0.1 4
1) The pressure and the temperature of the water, the variations of the mains supply, the
options and the quantity of dishes can change the programme duration and the
consumption values.
2) With this programme you have the most efficient use of water and energy consumption for
crockery and cutlery with normal soil. (This is the standard programme for test institutes).
3) The appliance senses the degree of soil and the quantity of items in the baskets. It
automatically adjusts the temperature and quantity of the water, the energy consumption
and the programme duration.
4) With this programme you can wash a load with fresh soil. It gives good washing results in a
short time.
5) Use this programme to quickly rinse the dishes. This prevents the remaining food to bond
on the dishes and bad odours to come out from the appliance.
Do not use detergent with this programme.
6www.electrolux.com

Information for test institutes
For all the necessary information for test performance. send an email to:
[e-mail]
Write down the product number (PNC) that is on the rating plate.
5. OPTIONS
Activate or deactivate the Multitab
option before the start of a pro-
gramme. You cannot activate or
deactivate the option while a pro-
gramme operates.
5.1 Multitab
Activate this option only when you use the
combi detergent tablets.
This option deactivates the use of rinse
aid and salt. The related indicators stay
off.
The programme duration can increase.
How to activate the Multitab option
1. Press the on/off button to activate the
appliance.
2. Do the Reset function.
3. Press and hold, at the same time,
and until the Multitab indica-
tor comes on.
If you stop to use the combi
detergent tablets, before you start to
use separately detergent, rinse aid
and dishwasher salt, do these steps:
1. Set the water softener to the highest
level.
2. Make sure that the salt container and
the rinse aid dispenser are full.
3. Start the shortest programme with a
rinsing phase, without detergent and
without dishes.
4. Adjust the water softener to the water
hardness in your area.
5. Adjust the released quantity of rinse
aid.
5.2 Acoustic signals
The acoustic signals operate when the
appliance has a malfunction or when the
adjustment of the level of the water soft-
ener occurs. It is not possible to deacti-
vate these acoustic signals.
There is also an acoustic signal that oper-
ates when the programme is completed.
By default, this acoustic signal is off, but it
is possible to activate it.
How to activate the acoustic signal
for the end of programme
1. Press the on/off button to activate the
appliance.
2. Do the Reset function.
3. Press and hold, at the same time,
and until the ,
and indicators start
to flash.
4. Press .
•The and indicators go
off.
•The indicator continues
to flash.
• The display shows the current set-
ting.
Acoustic signal on.
Acoustic signal off.
5. Press to change the set-
ting.
6. Press the on/off button to deactivate
the appliance and to confirm the set-
ting.
ENGLISH 7

6. BEFORE FIRST USE
1. Make sure that the set level of the wa-
ter softener agrees with the water
hardness in your area. If not, adjust
the water softener. Contact your local
water authority to know the water
hardness in your area.
2. Fill the salt container.
3. Fill the rinse aid dispenser.
4. Open the water tap.
5. Processing residues can stay in the
appliance. Start a programme to re-
move them. Do not use detergent and
do not load the baskets.
If you use the combi detergent
tablets, activate the multitab op-
tion.
6.1 Adjusting the water softener
Water hardness Water softener
adjustment
German
degrees
(°dH)
French
degrees
(°fH)
mmol/l Clarke
degrees
Manual Elec-
tronic
51 - 70 91 - 125 9.1 - 12.5 64 - 88 2
1)
10
43 - 50 76 - 90 7.6 - 9.0 53 - 63 2
1)
9
37 - 42 65 - 75 6.5 - 7.5 46 - 52 2
1)
8
29 - 36 51 - 64 5.1 - 6.4 36 - 45 2
1)
7
23 - 28 40 - 50 4.0 - 5.0 28 - 35 2
1)
6
19 - 22 33 - 39 3.3 - 3.9 23 - 27 2
1)
5
1)
15 - 18 26 - 32 2.6 - 3.2 18 - 22 1 4
11 - 14 19 - 25 1.9 - 2.5 13 - 17 1 3
4 - 10 7 - 18 0.7 - 1.8 5 - 12 1 2
< 4 < 7 < 0.7 < 5 1
2)
1
2)
1) Factory position.
2) Do not use salt at this level.
You must adjust the water soften-
er manually and electronically.
Manual adjustment
Turn the water hardness dial to the posi-
tion 1 or 2.
8www.electrolux.com

Electronic adjustment
1. Press the on/off button to activate the
appliance.
2. Do the Reset function.
3. Press and hold, at the same time,
and until the ,
and indicators start
to flash.
4. Press .
•The and indica-
tors go off.
•The indicator continues to
flash.
• The acoustic signals operate. E.g.
five intermittent acoustic signals =
level 5.
• The display shows the setting of the
water softener. E.g. = level 5.
5. Press again and again to change
the setting.
6. Press the on/off button to deactivate
the appliance and to confirm the set-
ting.
6.2 Filling the salt container
1. Turn the cap counterclockwise and
open the salt container.
2. Put 1 litre of water in the salt contain-
er (only for the first time).
3. Fill the salt container with dishwasher
salt.
4. Remove the salt around the opening
of the salt container.
5. Turn the cap clockwise to close the
salt container.
CAUTION!
Water and salt can come out from
the salt container when you fill it.
Risk of corrosion. To prevent it,
after you fill the salt container,
start a programme.
ENGLISH 9

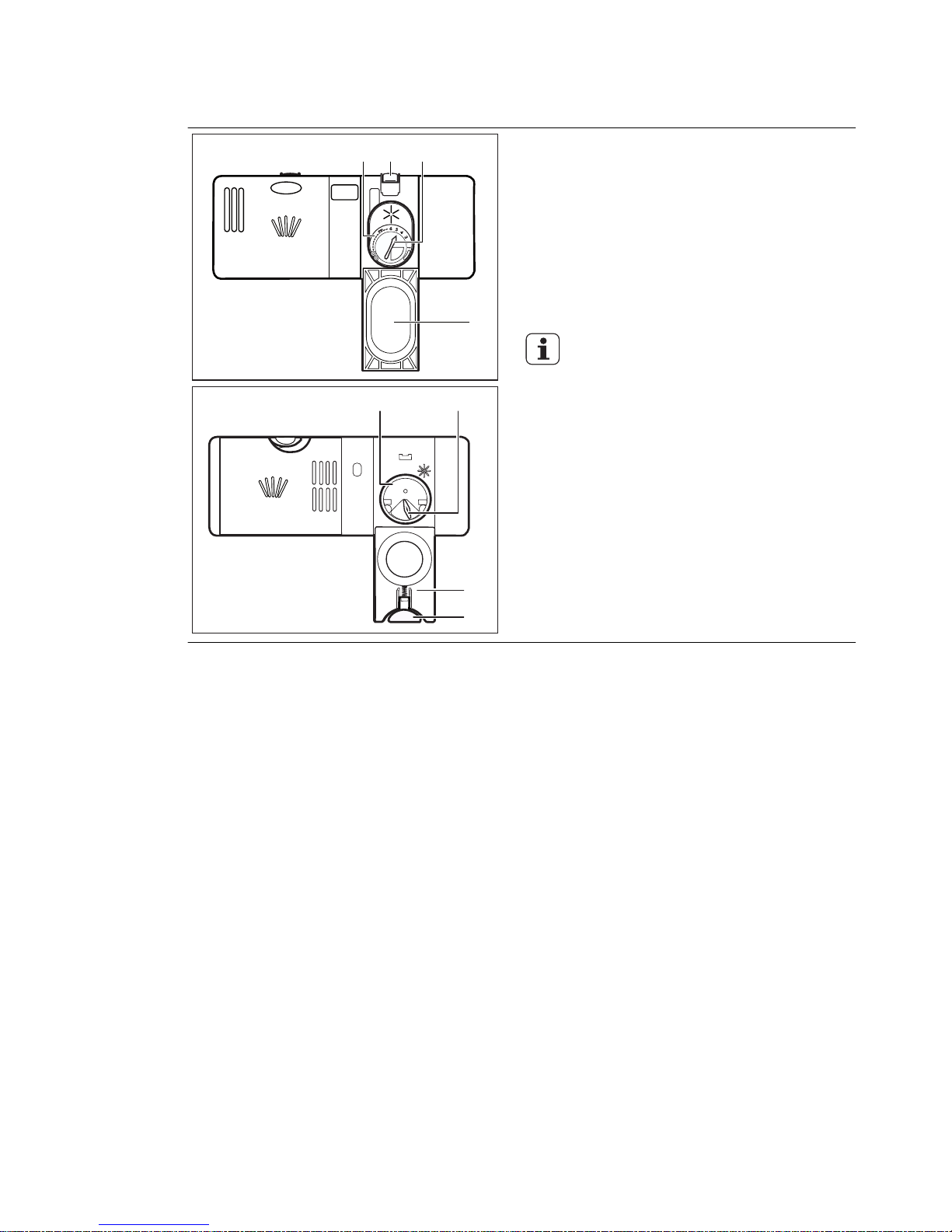

6.3 Filling the rinse aid dispenser
AB
D
C
M
A
X
1
2
3
4
+
-
AB
D
C
1. Press the release button (D) to open
the lid (C).
2. Fill the rinse aid dispenser (A), no
more than the mark 'max'.
3. Remove the spilled rinse aid with an
absorbent cloth to prevent too much
foam.
4. Close the lid. Make sure that the re-
lease button locks into position.
You can turn the selector of the
released quantity (B) between po-
sition 1 (lowest quantity) and posi-
tion 4 or 6 (highest quantity).
7. DAILY USE
1. Open the water tap.
2. Press the on/off button to activate the
appliance.
• If the salt indicator is on, fill the salt
container.
• If the rinse aid indicator is on, fill the
rinse aid dispenser.
3. Load the baskets.
4. Add the detergent.
5. Set and start the correct programme
for the type of load and the degree of
soil.
10 www.electrolux.com

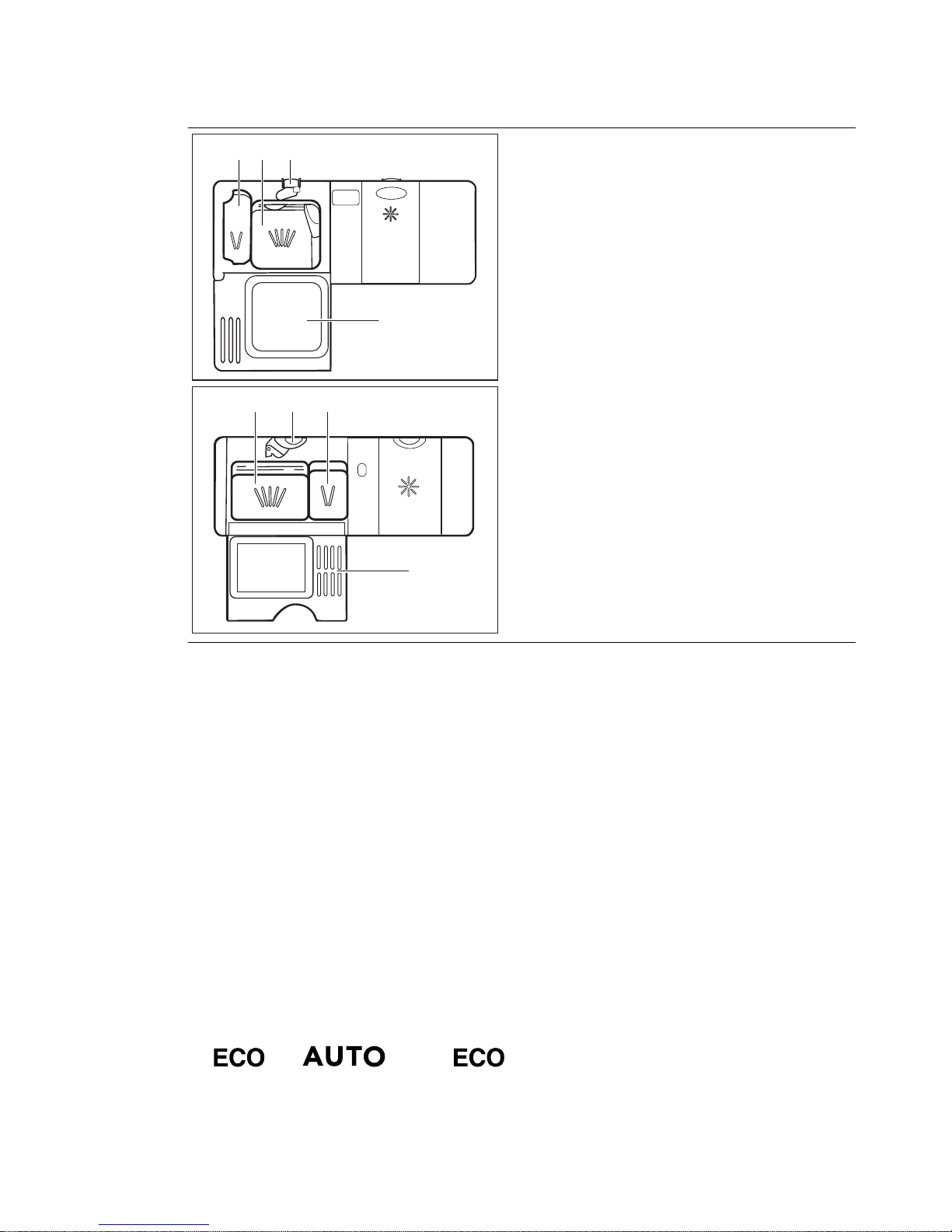

7.1 Using the detergent
AB
D
30
20
C
M
A
X
1
2
3
4
+
-
B
2
0
0
3
A D
C
1. Press the release button (B) to open
the lid (C).
2. Put the detergent in the compartment
(A) .
3. If the programme has a prewash
phase, put a small quantity of deter-
gent in the compartment (D).
4. If you use detergent tablets, put the
tablet in the compartment (A).
5. Close the lid. Make sure that the re-
lease button locks into position.
7.2 Setting and starting a
programme
The Auto Off function
To decrease the energy consumption, this
function automatically deactivates the ap-
pliance a few minutes after:
• You have not closed the door to start
the programme.
• The programme is completed.
Reset function
For some settings it is necessary that the
appliance is in user mode.
To set the appliance in user mode, do the
Reset function.
1. Press and hold, at the same time,
and until the
indicator comes on.
Starting a programme without
delay start
1. Open the water tap.
2. Press the on/off button to activate the
appliance. The indicator of the ECO
programme comes on. The display
shows the duration of the programme.
3. Set a programme.
• If you want to start the ECO pro-
gramme, close the appliance door.
• If you want to set a different pro-
gramme, press the button of the
programme you want to set. The
display shows the duration of the
programme.
4. Close the appliance door. The pro-
gramme starts. The programme dura-
tion starts to decrease with steps of 1
minute.
Starting a programme with delay
start
1. Set the programme.
ENGLISH 11

2. Press again and again until the
display shows the delay time you want
to set (from 1 to 24 hours).
• The display shows intermittently the
programme duration and the delay
time.
•The indicator comes on.
3. Close the appliance door. The count-
down starts.
• When the countdown is completed,
the programme starts.
Opening the door while the
appliance operates
If you open the door, the appliance stops.
When you close the door, the appliance
continues from the point of interruption.
Cancelling the delay start while
the countdown operates
Do the Reset function.
When you cancel the delay start
you have to set the programme
and options again.
Cancelling the programme
Do the Reset function.
Make sure that there is detergent
in the detergent dispenser before
you start a new programme.
At the end of the programme
When the programme is completed, the
display shows 0:00.
1. Press the on/off button or wait for the
Auto Off function to automatically de-
activate the appliance.
2. Close the water tap.
Important
• Let the dishes become cold before you
remove them from the appliance. Hot
dishes can be easily damaged.
• First remove the items from the lower
basket, then from the upper basket.
• There can be water on the sides and on
the door of the appliance. Stainless
steel becomes cool more quickly than
the dishes.
8. HINTS AND TIPS
8.1 The water softener
Hard water contains a high quantity of
minerals that can cause damage to the
appliance and bad washing results. The
water softener neutralises these minerals.
The dishwasher salt keeps the water soft-
ener clean and in good conditions. It is
important to set the right level of the water
softener. This makes sure that the water
softener uses the correct quantity of dish-
washer salt and water.
8.2 Using salt, rinse aid and
detergent
• Only use salt, rinse aid and detergent
for dishwasher. Other products can
cause damage to the appliance.
• The rinse aid helps, during the last rins-
ing phase, to dry the dishes without
streaks and stains.
• Combi detergent tablets contain deter-
gent, rinse aid and other added agents.
Be sure that these tablets are applica-
ble to the water hardness in your area.
Refer to the instructions on the packag-
ing of the products.
If you want to use these tablets out of
the applicable water hardness, you
must also use dishwasher salt. First ac-
tivate the Multitab option, then adjust
the water softener to the water hard-
ness in your area and use dishwasher
salt.
• Detergent tablets do not fully dissolve
with short programmes. To prevent de-
tergent residues on the tableware, we
recommend that you use the tablets
with long programmes.
Do not use more than the correct
quantity of detergent. Refer to the
12 www.electrolux.com

instructions on the detergent
packaging.
8.3 Loading the baskets
Refer to the supplied leaflet with
examples of the load of the bas-
kets.
• Only use the appliance to wash items
that are dishwasher-safe.
• Do not put in the appliance items made
of wood, horn, aluminium, pewter and
copper.
• Do not put in the appliance items that
can absorb water (sponges, household
cloths).
• Remove remaining food from the items.
• To remove easily remaining burned
food, soak pots and pans in water be-
fore you put them in the appliance.
• Put hollow items (cups, glasses and
pans) with the opening down.
• Make sure that cutlery and dishes do
not bond together. Mix spoons with
other cutlery.
• Make sure that glasses do not touch
other glasses.
• Put the small items in the cutlery bas-
ket.
• Put the light items in the upper basket.
Make sure that they do not move.
• Make sure that the spray arms can
move freely before you start a pro-
gramme.
8.4 Before starting a
programme
Make sure that:
• The filters are clean and correctly instal-
led.
• The spray arms are not clogged.
• The position of the items in the baskets
is correct.
• The programme is applicable for the
type of load and for the degree of soil.
• The correct quantity of detergent is
used.
• There is dishwasher salt and rinse aid
(unless you use combi detergent tab-
lets).
• The cap of the salt container is tight.
9. CARE AND CLEANING
WARNING!
Before maintenance, deactivate
the appliance and disconnect the
mains plug from the mains socket.
Dirty filters and clogged spray
arms decrease the washing re-
sults.
Make a check regularly and, if
necessary, clean them.

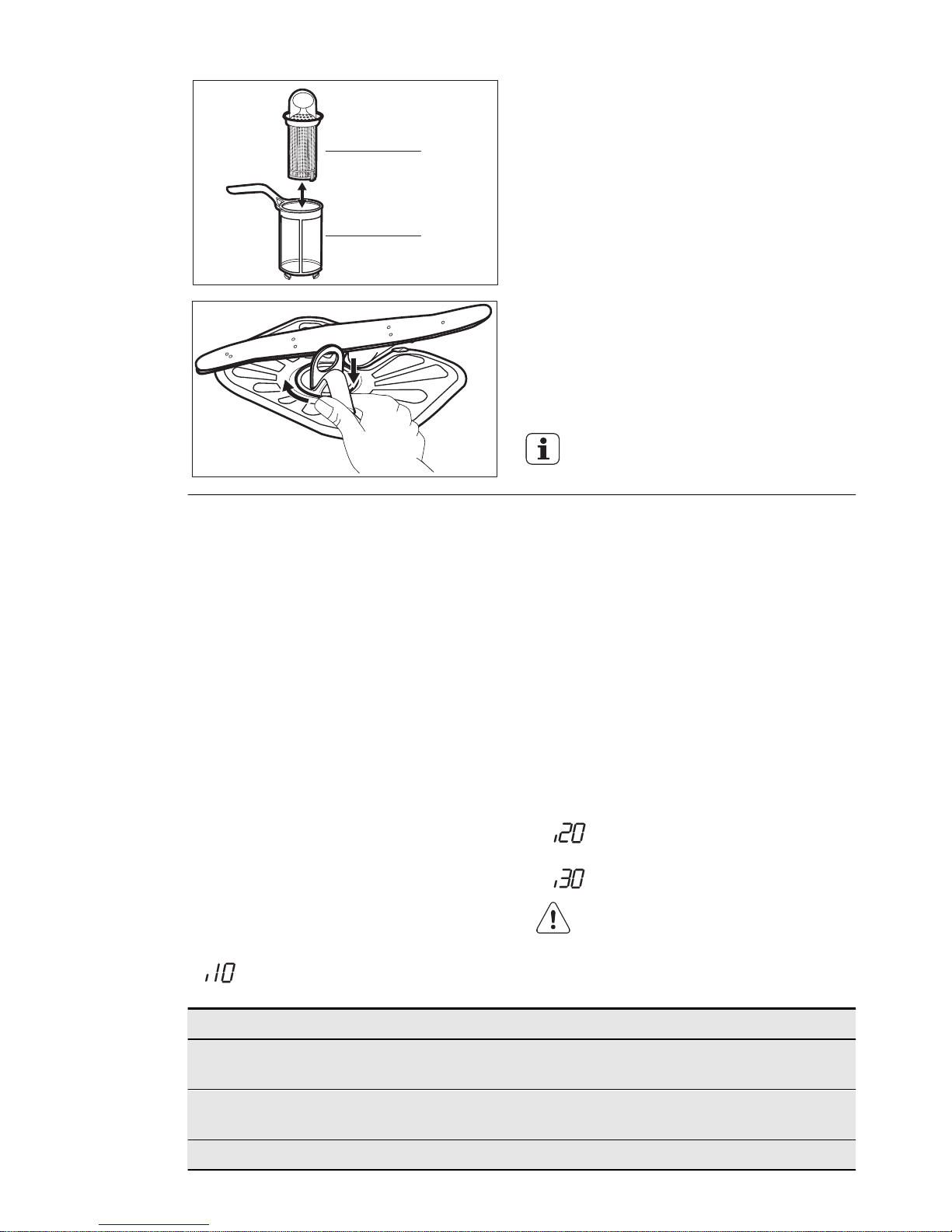

9.1 Cleaning the filters
C
BA
1. Turn the filter (A) counterclockwise
and remove it.
ENGLISH 13

A1
A2
2. To disassemble the filter (A), pull
apart (A1) and (A2).
3. Remove the filter (B).
4. Wash the filters with water.
5. Before you put the filter (B) back,
make sure that there are no residues
of food or soil in or around the edge
of the sump.
6. Make sure that the filter (B) is cor-
rectly positioned under the 2 guides
(C).
7. Assemble the filter (A) and put it back
in filter (B). Turn it clockwise until it
locks.
An incorrect position of the filters
can cause bad washing results
and damage to the appliance.
9.2 Cleaning the spray arms
Do not remove the spray arms.
If the holes in the spray arms are clogged,
remove remaining parts of soil with a thin
pointed object.
9.3 External cleaning
Clean the appliance with a moist soft
cloth.
Only use neutral detergents. Do not use
abrasive products, abrasive cleaning pads
or solvents.
10. TROUBLESHOOTING
The appliance does not start or it stops
during operation.
Before you contact the Service, refer to
the information that follows for a solution
to the problem.
With some problems, the display
shows an alarm code:
•- The appliance does not fill with
water.
•- The appliance does not drain the
water.
•- The anti-flood device is on.
WARNING!
Deactivate the appliance before
you do the checks.
Problem Possible solution
You cannot activate the appli-
ance.
Make sure that the mains plug is connected
to the mains socket.
Make sure that there is not a damaged fuse in
the fuse box.
The programme does not start. Make sure that the appliance door is closed.
14 www.electrolux.com

Problem Possible solution
If the delay start is set, cancel the setting or
wait for the end of the countdown.
The appliance does not fill with
water.
Make sure that the water tap is open.
Make sure that the pressure of the water sup-
ply is not too low. For this information, con-
tact your local water authority.
Make sure that the water tap is not clogged.
Make sure that the filter in the inlet hose is not
clogged.
Make sure that the inlet hose has no kinks or
bends.
The appliance does not drain the
water.
Make sure that the sink spigot is not clogged.
Make sure that the drain hose has no kinks or
bends.
The anti-flood device is on. Close the water tap and contact the Service.
After the checks are completed, activate
the appliance. The programme continues
from the point of interruption.
If the problem occurs again, contact the
Service.
If the display shows other alarm codes,
contact the Service.
10.1 If the washing and drying
results are not satisfactory
Whitish streaks or bluish layers on
glasses and dishes
• The released quantity of rinse aid is too
much. Adjust the rinse aid selector to a
lower position.
• The quantity of detergent is too much.
Stains and dry water drops on
glasses and dishes
• The released quantity of rinse aid is not
sufficient. Adjust the rinse aid selector
to a higher position.
• The quality of the detergent can be the
cause.
Dishes are wet
• The programme is without a drying
phase or with a low temperature drying
phase.
• The rinse aid dispenser is empty.
• The quality of the rinse aid can be the
cause.
• The quality of the combi detergent tab-
lets can be the cause. Try a different
brand or activate the rinse aid dispens-
er and use rinse aid together with the
combi detergent tablets.
Refer to ‘HINTS AND TIPS’ for
other possible causes.
10.2 How to activate the rinse
aid dispenser
The activation of the rinse aid dispenser
can occur only with the Multitab option
activated.
1. Press the on/off button to activate the
appliance.
2. Do the Reset function.
3. Press and hold, at the same time,
and until the ,
and indicators start
to flash.
4. Press .
•The and indicators
go off.
•The indicator continues to
flash.
ENGLISH 15

• The display shows the current set-
ting.
Rinse aid dispenser off.
Rinse aid dispenser on.
5. Press to change the setting.
6. Press the on/off button to deactivate
the appliance and to confirm the set-
ting.
7. Adjust the released quantity of rinse
aid.
8. Fill the rinse aid dispenser.
11. TECHNICAL INFORMATION
Dimensions Width / Height / Depth (mm) 596 / 818 - 898 / 555
Electrical connection Refer to the rating plate.
Voltage 220-240 V
Frequency 50 Hz
Water supply pressure Min. / max. (bar / MPa) (0.5 / 0.05 ) / (8 / 0.8 )
Water supply
1)
Cold water or hot water
2)
max. 60 °C
Capacity Place settings 12
Power consumption Left-on mode 0.10 W
Off-mode 0.10 W
1) Connect the water inlet hose to a water tap with a 3/4'' thread.
2) If the hot water comes from alternative sources of energy, (e.g. solar panels, aeolian
energy), use the hot water supply to decrease energy consumption.
12. ENVIRONMENT CONCERNS
Recycle the materials with the symbol
. Put the packaging in applicable
containers to recycle it.
Help protect the environment and human
health and to recycle waste of electrical
and electronic appliances. Do not dispose
appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
16 www.electrolux.com

ENGLISH 17

18 www.electrolux.com

ENGLISH 19

www.electrolux.com/shop
156966270-A-062013
