Electrolux FAVORIT 30010 I User manual

FAVORIT 30010 I
User manual Dishwasher

Dear Customer
Thank you for choosing one of our high-quality products.
With this appliance you will experience the perfect combination of functional
design and cutting edge technology.
Convince yourself that our appliances are engineered to deliver the best
performance and control - indeed we are setting the highest standards of
excellence.
In addition to this you find environmental and energy saving aspects as an integral
part of our products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfectly
and most efficiently. To refer to this manual any time you need to, we recommend
you to keep it in a safe place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
The following symbols are used in this user manual:
Important information concerning your personal safety and information on how
to avoid damaging the appliance.
General information and tips
Environmental information
2

Contents
Operating instruction 5
Safety information 5
Correct use 5
General safety 6
Child safety 6
Installation 6
Product description 7
Control panel 8
Programme knob and On/Off indicator light 9
First use 9
Set the water softener 10
Setting manually 10
Setting electronically 11
Use of dishwasher salt 12
Use of rinse aid 13
Adjusting the dosage of rinse aid 14
Daily use 14
Loading cutlery and dishes 14
The lower basket 16
The cutlery basket 16
The upper basket 17
Adjusting the height of the upper basket 18
Use of detergent 19
Fill with detergent 19
Use of combi detergent tablets 20
Washing programmes 21
Select and start a washing programme 22
Setting and starting the programme with "delay start" 23
Unloading the dishwasher 24
Contents 3
156991050-112007

Care and cleaning 24
Cleaning the filters 24
Cleaning the spray arms 26
External cleaning 26
Internal cleaning 26
Prolonged periods of non-operation 26
Frost precautions 26
Moving the machine 27
What to do if ... 27
Technical data 29
Hints for test institutes 30
Installation instructions 32
Installation 32
Fixing to the adjacent units 32
Levelling 32
Water supply connections 33
Water inlet hose with safety valve 33
Water outlet hose connection 34
Electrical connection 35
Environment concerns 36
Packaging material 36
Subject to change without notice
4Contents

Operating instruction
Safety information
In the interest of your safety and to ensure the correct use, before installing and
first using the appliance, read this user manual carefully, including its hints and
warnings. To avoid unnecessary mistakes and accidents, it is important to ensure
that all people using the appliance are thoroughly familiar with its operation and
safety features. Save these instructions and make sure that they remain with the
appliance if it is moved or sold, so that everyone using it through its life will be
properly informed on appliance use and safety.
Correct use
• This dishwasher is only intended for washing household utensils suitable for
machine washing.
• Do not put any solvents in the dishwasher. This could cause an explosion.
• Knives and other items with sharp points must be loaded in the cutlery basket
with their points down or placed in a horizontal position in the upper basket.
• Only use products (detergent, salt and rinse aid) suitable for dishwashers.
• Avoid opening the door whilst the appliance is in operation, hot steam may
escape.
• Do not take any dishes out of the dishwasher before the end of the dishwashing
cycle.
• After use, isolate the appliance from the power supply and turn off the water
supply.
• This product should be serviced only by an authorised service engineer, and only
genuine spare parts should be used.
• Under no circumstances should you attempt to repair the machine yourself.
Repairs carried out by inexperienced persons will cause injury or serious mal-
functioning. Contact your local Service Force Centre. Always insist on genuine
spare parts.
Safety information 5

General safety
• Dishwasher detergents can cause chemical burns to eyes, mouth and throat.
Could endanger life! Comply with the safety instructions of the dishwasher de-
tergent manufacturer.
• The water in your dishwasher is not for drinking. Detergent residues may still be
present in your machine.
• Ensure that the door of the dishwasher is always closed when it is not being
loaded or unloaded. In this way you will avoid anybody tripping over the open
door and hurting themselves.
• Do not sit or stand on the open door.
Child safety
• This appliance is designed to be operated by adults. Don’t allow children to use
the dishwasher unsupervised.
• Keep all packaging well away from children. There is risk of suffocation.
• Keep all detergents in a safe place out of children’s reach.
• Keep children well away from the dishwasher when the door is open.
Installation
• Check your dishwasher for any transport damage. Never connect a damaged
machine. If your dishwasher is damaged contact your supplier.
• All packaging must be removed before use.
• Any electrical and plumbing work required to install this appliance must be
carried out by a qualified and competent person.
• For safety reasons it is dangerous to alter the specifications or attempt to modify
this product in any way.
• Never use the dishwasher if the electrical supply cable and water hoses are
damaged; or if the control panel, work top or plinth area are damaged such that
the inside of the appliance is freely accessible. Contact your local Service Force
centre, in order to avoid hazard.
• All sides of the dishwasher must never be drilled to prevent damage to hydraulic
and electric components.
6Safety information

WARNING!
For electrical and water connection carefully follow the instructions given in
specific paragraphs.
Product description
1Upper basket
2Water hardness dial
3Salt container
4Detergent dispenser
5Rinse aid dispenser
6Rating plate
7Filters
8Lower spray arm
9Upper spray arm
Product description 7

Control panel
30 MIN
1Programme knob
2START/RESET button
3Delay start button
4Indicator lights
5On/Off indicator light
6Programme marker
Indicator lights
Wash Illuminates when the washing and rinsing pha-
ses are running.
Dry Illuminates when the drying phase is running.
End of programme Illuminates when the washing programme has
ended. It also has added functions of visual sig-
nalling as:
• the setting of the water softener,
• intervention of an alarm due to the malfunc-
tion of the machine.
Salt refilling
1)
Illuminates when special salt needs to be filled.
8Control panel

Indicator lights
Rinse aid
1)
Illuminates when rinse aid needs to be filled.
1) The salt and rinse aid indicator lights are never illuminated while a washing programme is running even if filling
with salt and rinse aid is necessary.
Programme knob and On/Off indicator light
•The selection of a washing programme occurs by turning the programme
knob clockwise or anticlockwise, until the programme marker, placed on the
knob, corresponds with the desired washing programme indicated on the control
panel.
The On/Off indicator light illuminates (position ON)
•To switch off the appliance turn the programme knob until the programme
marker corresponds with the On/Off indicator light. The On/Off indicator
light turns off (position OFF).
With the programme knob it is also possible to set the level of the water softener.
First use
Before using your dishwasher for the first time:
• Ensure that the electrical and water connections comply with the installation
instructions
• Remove all packaging from inside the appliance
• Set the water softener
• Pour 1 litre of water inside the salt container and then fill with dishwasher salt
• Fill the rinse aid dispenser
If you want to use combi detergent tablets ("3 in 1", "4 in 1", "5 in 1" etc... ) follow
the instructions given in "Use of detergent".
First use 9

Set the water softener
The dishwasher is equipped with a water softener designed to remove minerals and
salts from the water supply, which would have a detrimental or adverse effect on
the operation of the appliance.
The higher the content of these minerals and salts, the harder your water is. Water
hardness is measured in equivalent scales, German degrees (°dH), French degrees
(°TH) and mmol/l (millimol per litre - international unit for the hardness of water).
The softener should be adjusted according to the hardness of the water in your
area. Your local Water Authority can advise you on the hardness of the water in
your area.
Water hardness Adjusting the water hardness
setting
Use of salt
°dH °TH mmol/l manually electronically
51 - 70 91 - 125 9,1 - 12,5 2level 10 yes
43 - 50 76 - 90 7,6 - 8,9 2level 9 yes
37 - 42 65 - 75 6,5 - 7,5 2level 8 yes
29 - 36 51 - 64 5,1 - 6,4 2level 7 yes
23 - 28 40 - 50 4,0 - 5,0 2level 6 yes
19 - 22 33 - 39 3,3 - 3,9 2level 5 yes
15 - 18 26 - 32 2,6 - 3,2 1level 4 yes
11 - 14 19 - 25 1,9 - 2,5 1level 3 yes
4 - 10 7 - 18 0,7 - 1,8 1level 2 yes
< 4 < 7 < 0,7 1level 1 no
The water softener must be set in both ways: manually, using the water hardness
dial and electronically.
Setting manually
The dishwasher is factory set at position 2.
10 Set the water softener

1. Open the dishwasher door.
2. Remove the lower basket from the
dishwasher.
3. Turn the water hardness dial to posi-
tion 1 or 2 (see table).
4. Replace the lower basket.
Setting electronically
The dishwasher is factory set at level 5.
1. The dishwasher must be switched off.
Keep the START/RESET button pressed and turn the programme knob clock-
wise until the programme marker corresponds with the first washing pro-
gramme.
2. Release the START/RESET button , the On/Off and START/RESET indicator
lights start to flash indicating that you have activated the water softener
setting function.
3. At the same time, the end of programme indicator light starts to flash.
The current level is indicated by the number of flashes of end of programme
indicator light and a pause of about 3 seconds.
Examples:
5 flashes, pause, 5 flashes, pause, etc... = level 5
6 flashes, pause, 6 flashes, pause, etc... = level 6
4. To change the level, press the START/RESET button . Each time the button is
pressed the level changes.
Examples:
if the current level is 5, by pressing START/RESET button once, level 6 is
selected.
if the current level is 10, by pressing START/RESET button once, level 1 is
selected.
5. To memorize the operation, switch off the dishwasher by returning the pro-
gramme knob to the Off position.
Set the water softener 11

Use of dishwasher salt
WARNING!
Only use salt specifically designed for use in dishwashers. All other types of salt not
specifically designed for use in a dishwasher, especially table salt, will damage the
water softener. Only fill with salt just before starting one of the complete washing
programmes. This will prevent any grains of salt or salty water, which may have
been spilt, remaining on the bottom of the machine for any period of time, which
may cause corrosion.
To fill:
1. Open the door, remove the lower basket and unscrew the cap of the salt
container by turning it anticlockwise.
2. Pour 1 litre of water inside the container (this is necessary only before filling
with salt for the first time) .
3. Using the funnel provided, pour in
the salt until the container is full.
4. Replace the cap making sure that
there is no trace of salt on the screw
thread or on the gasket.
5. Replace the cap tightly turning it
clockwise until it stops with a click.
Do not worry if water overflows from the
unit when filling with salt, this is quite
normal.
The salt indicator light on the control panel can remain illuminated for 2-6 hours
after the salt has been replenished, assuming the dishwasher remains switched on.
If you are using salts that take longer to dissolve then this can take longer. The
function of the machine is not affected.
12 Use of dishwasher salt

Use of rinse aid
WARNING!
Only use branded rinse aid for dishwashers.
Never fill the rinse aid dispenser with any other substances (e.g. dishwasher clean-
ing agent, liquid detergent). This would damage the appliance.
Rinse aid ensures thorough rinsing, and spot and streak free drying.
Rinse aid is automatically added during the last rinse.
1. Open the container by pressing the
release button (A).
2. Add the rinse aid in the container. The
maximum level for filling is indicated
by "max".
The dispenser holds about 110 ml of
rinse aid, which is sufficient for be-
tween 16 and 40 dishwashing cycles,
depending upon the dosage setting.
3. Ensure that the lid is closed after every
refill.
Clean up any rinse aid spilt during filling
with an absorbent cloth to avoid excess
foaming during the next wash.
Use of rinse aid 13

Adjusting the dosage of rinse aid
According to the finish and drying results obtained, adjust the dose of rinse aid by
means of the 6 position selector (position 1= minimum dosage, position 6= maxi-
mum dosage).
The dose is factory set in position 4.
Increase the dose if there are drops of water
or lime spots on the dishes after washing.
Reduce it if there are sticky whitish streaks on
the dishes or a bluish film on glassware or
knife blades.
Daily use
• Check if it's necessary to refill with dishwasher salt or rinse aid.
• Load cutlery and dishes into the dishwasher.
• Fill with dishwasher detergent.
• Select a wash programme suitable for the cutlery and dishes.
• Start the wash programme.
Loading cutlery and dishes
Sponges, household cloths and any object that can absorb water may not be washed
in the dishwasher.
• Before loading the dishes, you should:
– Remove all left over food and debris.
– Soften remnants of burnt food in pans
14 Daily use

• When loading the dishes and cutlery, please note:
– Dishes and cutlery must not impede the rotation of the spray arms.
– Load hollow items such as cups, glasses, pans, etc. with the opening down-
wards so that water cannot collect in the container or a deep base.
– Dishes and items of cutlery must not lie inside one another, or cover each
other.
– To avoid damage to glasses, they must not touch.
– Lay small objects in the cutlery basket.
• Plastic items and pans with non stick coatings have a tendency to retain water
drops; these items will not dry as well as porcelain and steel items.
• Light items (plastic bowls etc.) must be loaded in the upper basket and arranged
so they do not move.
For washing in the dishwasher the following cutlery and dishes
are not suitable: are of limited suitability:
• Cutlery with wooden, horn, china or mother-
of-pearls handles.
• Plastic items that are not heat resistant.
• Older cutlery with glued parts that are not
temperature resistant.
• Bonded cutlery items or dishes.
• Pewter or copper items.
• Lead crystal glass.
• Steel items prone to rusting.
• Wooden platters.
• Items made from synthetics fibres.
• Only wash stoneware in the dishwasher if it
is specially marked as being dishwasher-safe
by the manufacturer.
• Glazed patterns may fade if machine washed
frequently.
• Silver and aluminium parts have a tendency
to discolour during washing: Residues, e.g.
egg white, egg yolk and mustard often cause
discolouring and staining on silver. Therefore
always clean left-overs from silver
immediately, if it is not to be washed straight
after use.
Open the door and slide out the baskets to load the dishes.
Loading cutlery and dishes 15

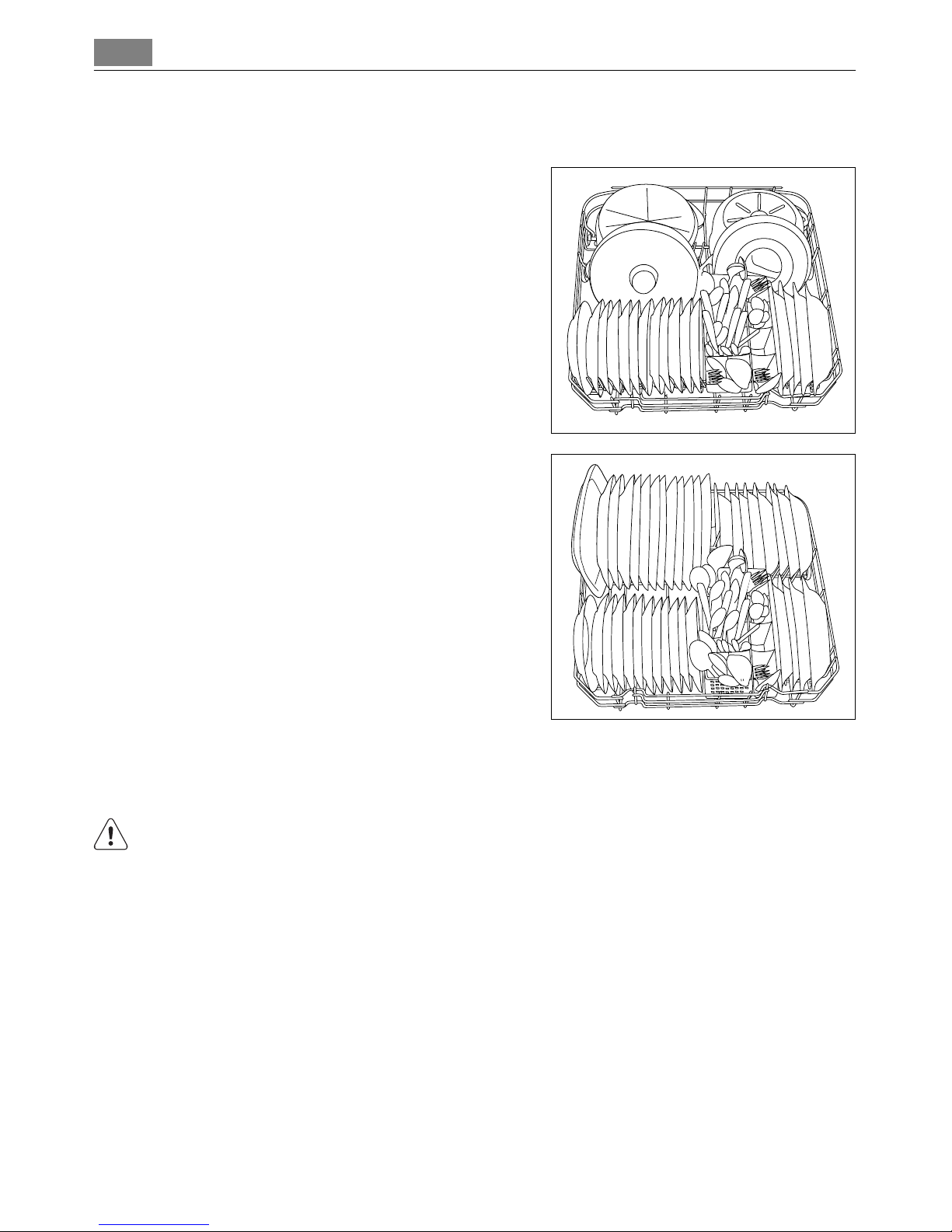

The lower basket
The lower basket is designed to take saucepan,
lids, plates, salad bowls, cutlery ect.
Service dishes and large lids should be ar-
ranged around the edge of the basket, ensur-
ing that the spray arms can turn freely.
The cutlery basket
WARNING!
Long bladed knives stored in an upright position are a potential hazard. Long and/
or sharp items of cutlery such as carving knives must be positioned horizontally in
the upper basket. Take care when loading or unloading sharp items such as knives.
To ensure that all items of cutlery in the cutlery basket can be reached by the water,
you should:
16 Loading cutlery and dishes

1. Place the grid insert on the cutlery
basket.
2. Place forks and spoon in the cutlery
basket with their handles pointing
downwards.
For larger utensils, such as whisks,
leave off one half of the cutlery grid.

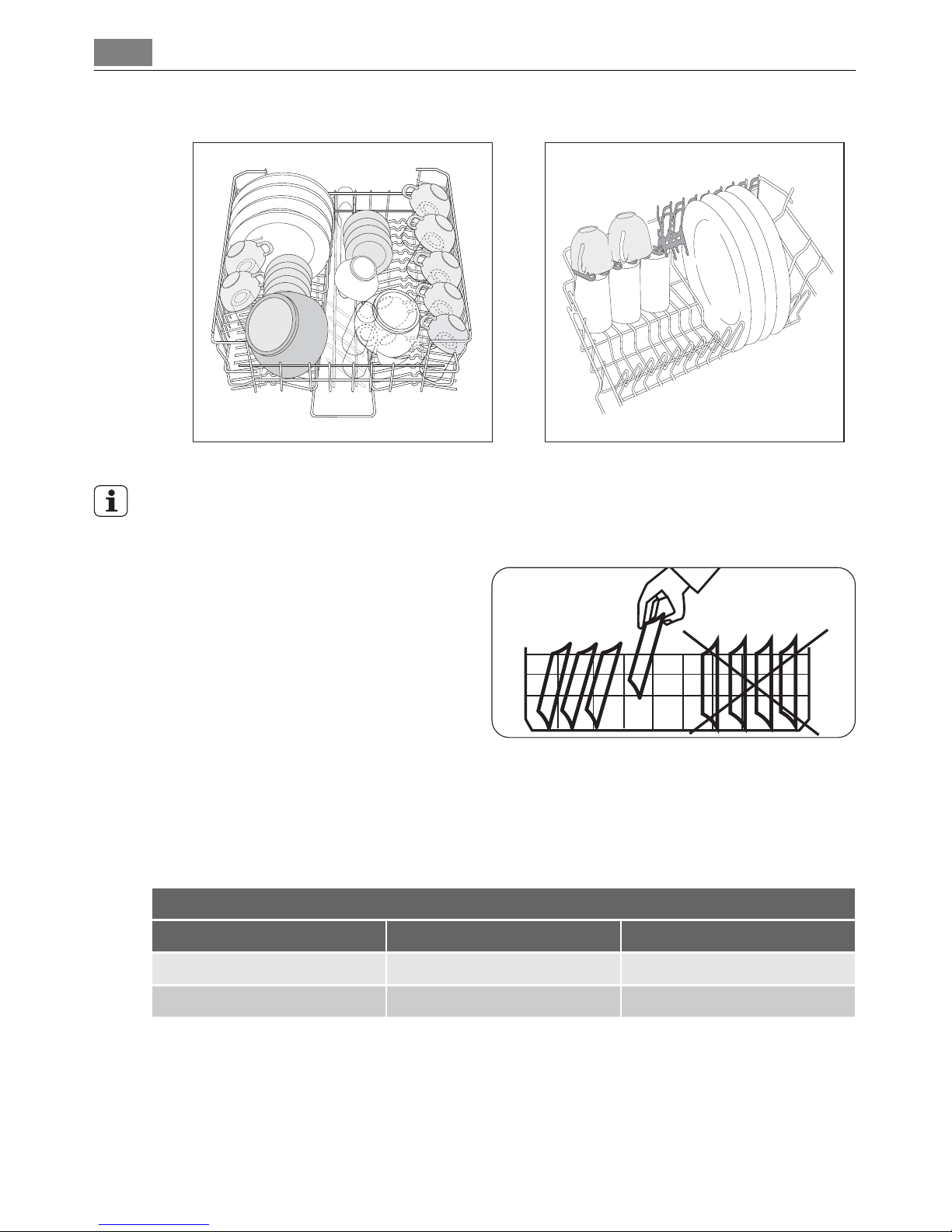

The upper basket
The upper basket is designed for plates (dessert plates, saucers, dinner plates of up
to 24 cm in diameter), salad bowls, cups and glasses
Arrange items on and underneath the cup racks so that water can reach all surfaces.
Glasses with long stems can be placed upside down in the cup racks. For taller items,
the cup racks can be folded upwards.
Glasses with long stems can be placed upside down in the cup racks.
For taller items, the cup racks can be folded upwards.
Light items ( plastic bowls etc.) must be loaded in the upper basket and arranged
so they do not move.
Loading cutlery and dishes 17

In case that plates are loaded in the upper basket, load them starting from the rear
positions of the basket, tilting them slightly forwards and avoiding the front po-
sitions near the door.
Before closing the door, ensured that
the spray arms can rotate freely.
Adjusting the height of the upper basket
If washing very large plates you can load them in the lower basket after moving
the upper basket to the higher position.
Maximum height of the dishes in:
the upper basket the lower basket
With upper basket raised 20 cm 31 cm
With upper basket lowered 24 cm 27 cm
To move to the higher position proceed as follows:
18 Loading cutlery and dishes

1. Move the front runner stops (A) of the
upper basket outwards and slide the
basket out.
2. Refit the basket in the higher position
and replace the stops (A) in their origi-
nal position.
When the upper basket is raised you will
not be able to use the cup racks.
WARNING!
After loading your machine always close
the door, as an open door can be a hazard.
Use of detergent
Only use detergents specifically designed for use in dishwashers.
Please observe the manufacturer's dosing and storage recommendations as stated
on the detergent packaging.
Using no more than the correct amount of detergent contributes to reducing pol-
lution.
Fill with detergent
1. Open the lid.
Use of detergent 19

2. Fill the detergent dispenser (1) with
detergent. The marking indicates the
dosing levels:
20 = approximately 20 g of detergent
30 = approximately 30 g of detergent.
3. All programmes with prewash need
an additional detergent dose (5/10 g)
that must be placed in the prewash
detergent chamber (2).
This detergent will take effect during
the prewash phase.
4. When using detergent tablets, place
the tablet in compartment (1)
5. Close the lid and press until it locks in
place.
Detergent tablets
Detergent tablets from different manu-
factures dissolve at different rates. For this
reason, some detergent tablets do not at-
tain their full cleaning power during short
washing programmes. Therefore, please
use long washing programmes when us-
ing detergent tablets, to ensure the complete removal of detergent residuals.
Use of combi detergent tablets
These products are detergents with a combined cleaning, rinsing and salt functions.
They can also contain other different agents depending on which kind of tablets
you choose («3 in 1», «4 in 1», «5 in 1» etc...).
1. Check whether these detergents are suitable for your water hardness. See the
manufacturers instructions.
2. Select the lowest setting for water hardness and rinse aid dosage.
3. Before the start of the washing programme put the combi detergent tablet in
the detergent dispenser.
20 Use of detergent
