Electrolux EDE1072PDW User manual

EDE1072PDW
EN Tumble Dryer User Manual 2
FR Sèche-linge Notice d'utilisation 20
RU Сушильный барабан Инструкция по эксплуатации 40

CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................5
3. PRODUCT DESCRIPTION................................................................................ 7
4. ACCESSORIES..................................................................................................7
5. CONTROL PANEL............................................................................................. 8
6. PROGRAMME TABLE....................................................................................... 9
7. OPTIONS..........................................................................................................10
8. SETTINGS........................................................................................................11
9. BEFORE FIRST USE....................................................................................... 12
10. DAILY USE..................................................................................................... 12
11. HINTS AND TIPS........................................................................................... 13
12. CARE AND CLEANING..................................................................................13
13. TROUBLESHOOTING....................................................................................15
14. TECHNICAL DATA.........................................................................................16
15. INSTALLATION.............................................................................................. 17
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2

1. SAFETY INFORMATION
Before beginning the installation and use of this
appliance, carefully read the supplied instructions. The
manufacturer is not responsible for any injuries or
damages that are the result of incorrect installation or
usage. Always keep the instructions in a safe and
accessible location for future reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent
disability.
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Do not let children play with the appliance.
•Children aged 3 years and under must be kept away
from this appliance when it is in operation at all times.
•Keep all packaging away from children and dispose of
it appropriately.
•Keep detergents away from children.
•Keep children and pets away from the appliance door
when it is open.
•If the appliance has a child safety device, this should
be activated.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•Do not change the specification of this appliance.
•If the tumble dryer is put on top of a washing machine,
use the stacking kit. The stacking kit, available from
your authorized vendor, can be used only with the
ENGLISH 3

appliance specified in the instructions, supplied with
the accessory. Read it carefully before installation
(Refer to the Installation leaflet).
•The appliance can be installed as freestanding or
below the kitchen counter with correct space (Refer to
the Installation leaflet).
•Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite
side, that would prevent the appliance door from being
fully opened.
•The ventilation opening in the base (if applicable) must
not be covered by a carpet, mat, or any floor covering.
•WARNING: The appliance must not be supplied
through an external switching device, such as timer, or
connected to a circuit that is regularly switched on and
off by a utility.
•Connect the mains plug to the mains socket only at
the end of the installation process. Make sure that the
mains plug is accessible after installation.
•Ensure good air ventilation in the located room to
avoid the backflow of unwanted gases into the room
from appliances burning gas or other fuels, including
open fires.
•Exhaust air must not be discharged into a flue which is
used for exhausting fumes from any appliances
burning gas or other fuels.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
•Do not exceed the maximum load of 7 kg (refer to the
"Programme chart" chapter).
•Do not use the appliance if items have been soiled
with industrial chemicals.
•Wipe away lint or packaging debris that has
accumulated around the appliance.
www.electrolux.com4

•Do not run the appliance without a filter. Clean the lint
filter before or after each use.
•Do not dry unwashed items in the tumble dryer.
•Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers
should be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.
•Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be
dried in the tumble dryer.
•Fabric softeners, or similar products, should only be
used as specified by the product manufacturer’s
instructions.
•Remove all objects from items that could be a source
of fire ignition such as lighters or matches.
•Never stop a tumble dryer before the end of the drying
cycle unless all items are quickly removed and spread
out so that the heat is dissipated.
•The final part of a tumble dryer cycle occurs without
heat (cool down cycle) to ensure that the items are left
at a temperature that ensures that the items will not be
damaged.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use the appliance
where the temperature can be less
than 5°C or higher than 35°C.
• The floor area where the appliance is
to be installed must be flat, stable,
heat resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• Always keep the appliance vertical
when being moved.
• The rear surface of the appliance
must be put against the wall.
ENGLISH 5

• When the appliance is in its
permanent position, check that it is
fully level with the aid of a spirit level.
If it is not, adjust the feet accordingly.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Do not touch the mains cable or the
mains plug with wet hands.
• This appliance complies with the
E.E.C. Directives.
2.3 Use
WARNING!
Risk of injury, electrical
shock, fire, burns or damage
to the appliance.
• This appliance is for household use
only.
• Do not dry damaged (torn, frayed)
items that contain padding or fillings.
• Only dry fabrics which are applicable
to dry in the tumble dryer. Follow the
instructions on the fabric label.
• If you have washed your laundry with
a stain remover start an extra rinse
cycle before you start the dryer.
• Do not drink or prepare food with the
condensed water/distilled water. It can
cause health problems to people and
pets.
• Do not sit or stand on the open door.
• Do not dry dripping wet clothes in the
tumble dryer.
2.4 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products,
abrasive cleaning pads, solvents or
metal objects.
2.5 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains electrical and water supplies.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
• Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).
www.electrolux.com6

3. PRODUCT DESCRIPTION
1
3
2
5
6
7
4
1Control panel
2Appliance door (reversible)
3Primary Filter
4Adjustable feet
5Plastic ring
6Side/rear ventilation opening
7Rating plate
4. ACCESSORIES
4.1 Stacking kit
Product name: SKP11.
Available from your authorized dealer.
Stacking kit can be used only with the
washing machines specified in the
leaflet. See leaflet attached. Read
carefully the instructions supplied with
the kit.
ENGLISH 7

4.2 Pedestal with the drawer
Product name: PDSTP10.
Available from your authorized dealer. To
put the appliance higher at the level
which helps to easy load and remove the
laundry.
The drawer can be use for laundry
storage e.g. : towels, cleaning products
and more. Read carefully the instructions
supplied with the accessory.
4.3 Vent kit
Universal kit for vented dryers where an
outdoor outlet is not possible. The tank
collects lint and condensation, thus
avoiding dirt and damage due to
moisture in the room where the tumble
dryer is placed.
Read carefully the instructions supplied
with the kit.

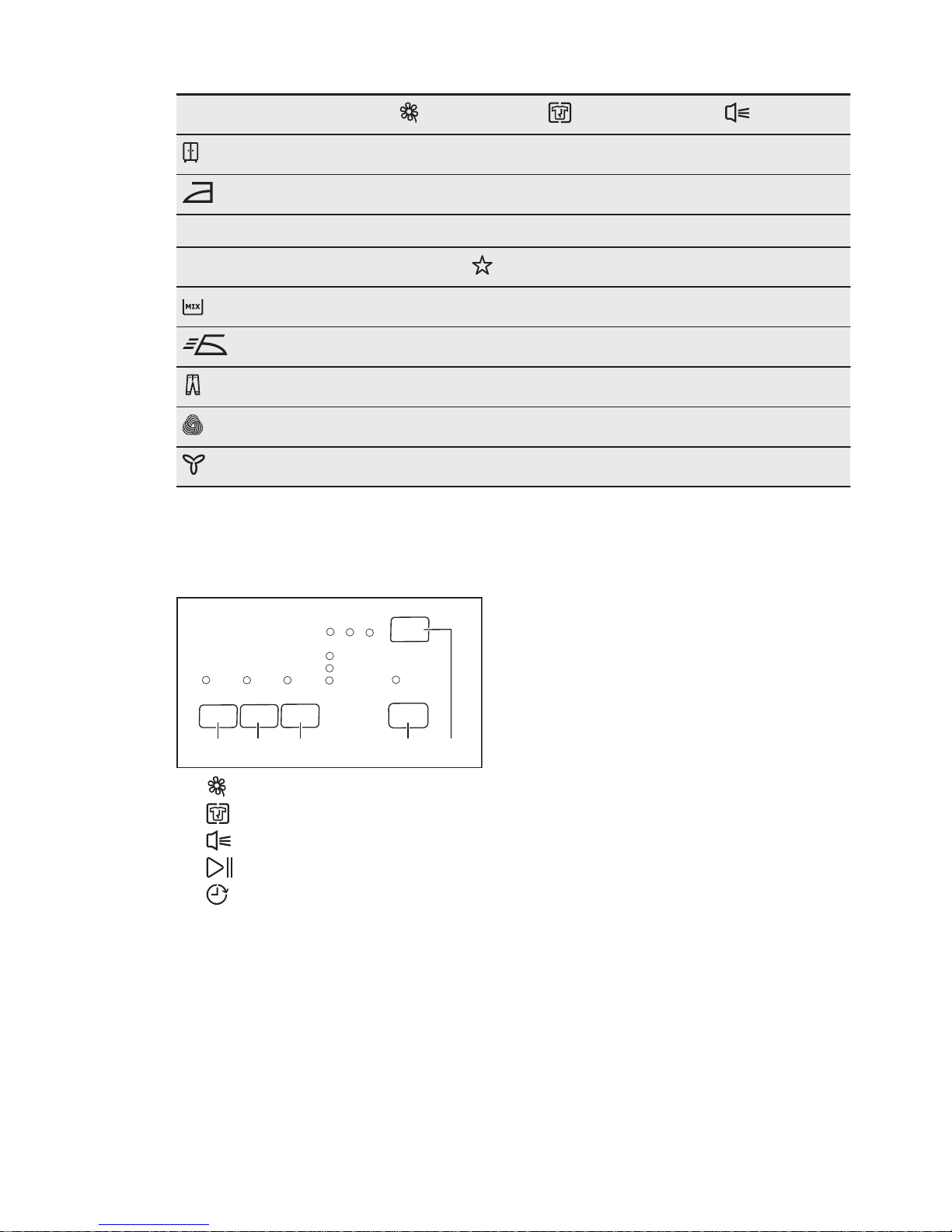

5. CONTROL PANEL
1 2 3 4 6 75
1Programme knob and OFF switch
2 Delicate button
3 Anticrease button
4 Buzzer button
5Indicators: Drying (Drying), Cooling
(Cooling), End/Anticrease (End/
Anticrease), Filter
6 Start/Pause button
7 Delay button
www.electrolux.com8

6. PROGRAMME TABLE
Programmes Type of load Load (max.)1) /
Fabric mark
Cotton
Extra Dry Drying level: extra dry. 7kg/
Strong Dry Drying level: strong dry. 7kg/
Cupboard
Dry2)3) Drying level: cupboard dry. 7kg/
Damp Drying level: textiles which are still to be
ironed. 7kg/
Iron Dry3) Drying level: suitable for ironing. 7kg/
Synthetic
Extra Dry Drying level: extra dry. 3kg/
Cupboard Dry3) Drying level: cupboard dry. 3kg/
Iron Dry Drying level: suitable for ironing. 3kg/
30' Time programme to dry individual items
of laundry. 1kg/
Special
Mix
Cotton and synthetic fabrics. Low tem‐
perature programme. Delicate pro‐
gramme with warm air. 3kg/
Easy Iron
Easy care fabrics for which a minimum
of ironing is necessary. The drying re‐
sults can be different from one type of
fabric to another. Shake the items be‐
fore putting them in the appliance. When
the programme has ended, immediately
remove the items and put them on a
hanger.
1kg (or 5 shirts)/
Jeans
Leisure clothing such as jeans, sweat-
shirts of different material thicknesses
(e.g. at the neck, cuffs and seams). 7kg/
Wool Refresh
Refreshing a wool fabrics. Wool items
become soft and cosy. Remove the
items immediately after the programme
end.
1kg
ENGLISH 9

Programmes Type of load Load (max.)1) /
Fabric mark
Cooling Refreshing a textiles that were in stor‐
age. 1kg
1) The maximum weight refers to dry items.
2) The Cotton Cupboard Dry programme is the “Standard cotton programme”. It is
suitable for drying normal wet cotton laundry and it is the most efficient programme in terms
of energy consumption for drying wet cotton laundry.
3) For test institutes only: Standard programmes for tests are specified in the EN 61121
document.
7. OPTIONS
7.1 Delicate
With this option you can set a delicate
drying programme that has a low
temperature. Use this option with a
fabrics that have the symbol on the
fabric label (e.g. acrylic, viscose).
7.2 Anticrease
Extends of 60 minutes the standard
anticrease phase (30 minutes) at the end
of the drying cycle. This function keeps
the load tumbling for the selected
amount of time, preventing the laundry
from creases. The laundry can be
removed during the anticrease phase.
7.3 Buzzer
you can hear the buzzer at the:
• cycle end
• start and end of crease guard phase
• cycle interruption
The buzzer function is by default always
on. You can use this function to activate
or deactivate the sound.
You can activate the Buzzer
option with all programmes.
7.4 Options table
Programmes1) Delicate Anticrease Buzzer
Cotton
Extra Dry ■■■
Strong Dry ■■■
Cupboard Dry ■■■
Damp ■■■
Iron Dry ■■■
Synthetic
Extra Dry ■■■
www.electrolux.com10
