Electrolux EDE1072PDW User manual

EDE1072PDW
EN Tumble Dryer User Manual

CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................5
3. PRODUCT DESCRIPTION................................................................................ 7
4. ACCESSORIES..................................................................................................7
5. CONTROL PANEL............................................................................................. 8
6. PROGRAMME TABLE....................................................................................... 9
7. OPTIONS..........................................................................................................10
8. SETTINGS........................................................................................................11
9. BEFORE FIRST USE....................................................................................... 12
10. DAILY USE..................................................................................................... 12
11. HINTS AND TIPS........................................................................................... 13
12. CARE AND CLEANING..................................................................................13
13. TROUBLESHOOTING....................................................................................15
14. TECHNICAL DATA.........................................................................................16
15. INSTALLATION.............................................................................................. 17
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2

1. SAFETY INFORMATION
Before beginning the installation and use of this
appliance, carefully read the supplied instructions. The
manufacturer is not responsible for any injuries or
damages that are the result of incorrect installation or
usage. Always keep the instructions in a safe and
accessible location for future reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent
disability.
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away unless continuously supervised.
•Children of less than 3 years of age should be kept
away unless continuously supervised.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of
it appropriately.
•Keep detergents away from children.
•Keep children and pets away from the appliance when
the door is open.
•If the appliance has a child safety device, it should be
activated.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•Do not change the specification of this appliance.
ENGLISH 3

•If the tumble dryer is put on top of a washing machine,
use the stacking kit. The stacking kit, available from
your authorized vendor, can be used only with the
appliance specified in the instructions supplied with
the accessory. Read it carefully before installation
(refer to the Installation leaflet).
•The appliance can be installed as freestanding or
below a kitchen counter with correct space (refer to
the Installation leaflet).
•Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite
side, that would prevent the appliance door from being
fully open.
•The ventilation opening in the base must not be
covered by a carpet, mat, or any floor covering.
•WARNING: The appliance must not be supplied
through an external switching device, such as a timer,
or connected to a circuit that is regularly switched on
and off by a utility.
•Connect the mains plug to the mains socket only at
the end of the installation process. Make sure that the
mains plug is accessible after installation.
•Ensure good air ventilation in the room where the
appliance is installed to avoid the backflow of
unwanted gases into the room from appliances
burning gas or other fuels, including open fires.
•Exhaust air must not be discharged into a flue which is
used for exhausting fumes from any appliances
burning gas or other fuels.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
•Do not exceed the maximum load of 7 kg (refer to the
"Programme chart" chapter).
•Do not use the appliance if items have been soiled
with industrial chemicals.
www.electrolux.com4

•Wipe away lint or packaging debris that has
accumulated around the appliance.
•Do not run the appliance without a filter. Clean the lint
filter before or after each use.
•Do not dry unwashed items in the tumble dryer.
•Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers
should be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.
•Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be
dried in the tumble dryer.
•Fabric softeners, or similar products, should only be
used as specified by the product manufacturer’s
instructions.
•Remove all objects from items that could be a source
of fire ignition such as lighters or matches.
•WARNING: Never stop a tumble dryer before the end
of the drying cycle unless all items are quickly
removed and spread out so that the heat is dissipated.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use the appliance
where the temperature can be lower
than 5°C or higher than 35°C.
• The floor area on which the appliance
is to be installed must be flat, stable,
heat resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• Always keep the appliance vertical
when it is being moved.
• The rear surface of the appliance
must be put against a wall.
• When the appliance is in its
permanent position, check if it is
levelled correctly with the aid of a
spirit level. If it is not, adjust the feet
accordingly.
ENGLISH 5

2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Do not touch the mains cable or the
mains plug with wet hands.
• This appliance complies with the
E.E.C. Directives.
2.3 Use
WARNING!
Risk of injury, electric shock,
fire, burns or damage to the
appliance.
• This appliance is for household use
only.
• Do not dry damaged (torn, frayed)
items that contain padding or fillings.
• Only dry fabrics which are suitable for
drying in a tumble dryer. Follow the
instructions on the fabric label.
• If you have washed your laundry with
a stain remover start an extra rinse
cycle before you start the dryer.
• Do not drink or prepare food with the
condensed water/distilled water. It can
cause health problems to people and
pets.
• Do not sit or stand on the open door
of the appliance.
• Do not dry dripping wet clothes in a
tumble dryer.
2.4 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products,
abrasive cleaning pads, solvents or
metal objects.
2.5 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains electrical and water supplies.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
• Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).
www.electrolux.com6

3. PRODUCT DESCRIPTION
1
3
2
5
6
7
4
1Control panel
2Appliance door (reversible)
3Primary Filter
4Adjustable feet
5Plastic ring
6Side/rear ventilation opening
7Rating plate
4. ACCESSORIES
4.1 Stacking kit
Product name: SKP11.
Available from your authorized dealer.
Stacking kit can be used only with the
washing machines specified in the
leaflet. See leaflet attached. Read
carefully the instructions supplied with
the kit.
ENGLISH 7

4.2 Pedestal with the drawer
Product name: PDSTP10.
Available from your authorized dealer. To
put the appliance higher at the level
which helps to easy load and remove the
laundry.
The drawer can be use for laundry
storage e.g. : towels, cleaning products
and more. Read carefully the instructions
supplied with the accessory.
4.3 Vent kit
Universal kit for vented dryers where an
outdoor outlet is not possible. The tank
collects lint and condensation, thus
avoiding dirt and damage due to
moisture in the room where the tumble
dryer is placed.
Read carefully the instructions supplied
with the kit.
5. CONTROL PANEL
1 2 3 4 6 75
1Programme knob and OFF switch
2 Delicate button
3 Anticrease button
4 Buzzer button
5Indicators: Drying (Drying), Cooling
(Cooling), End/Anticrease (End/
Anticrease), Filter
6 Start/Pause button
7 Delay button
www.electrolux.com8

6. PROGRAMME TABLE
Programmes Type of load Load (max.)1) /
Fabric mark
Cotton
Extra Dry Drying level: extra dry. 7kg/
Strong Dry Drying level: strong dry. 7kg/
Cupboard
Dry2)3) Drying level: cupboard dry. 7kg/
Damp Drying level: textiles which are still to be
ironed. 7kg/
Iron Dry3) Drying level: suitable for ironing. 7kg/
Synthetic
Extra Dry Drying level: extra dry. 3kg/
Cupboard Dry3) Drying level: cupboard dry. 3kg/
Iron Dry Drying level: suitable for ironing. 3kg/
30' Time programme to dry individual items
of laundry. 1kg/
Special
Mix
Cotton and synthetic fabrics. Low tem‐
perature programme. Delicate pro‐
gramme with warm air. 3kg/
Easy Iron
Easy care fabrics for which a minimum
of ironing is necessary. The drying re‐
sults can be different from one type of
fabric to another. Shake the items be‐
fore putting them in the appliance. When
the programme has ended, immediately
remove the items and put them on a
hanger.
1kg (or 5 shirts)/
Jeans
Leisure clothing such as jeans, sweat-
shirts of different material thicknesses
(e.g. at the neck, cuffs and seams). 7kg/
Wool Care
Refreshing a wool fabrics. Wool items
become soft and cosy. Remove the
items immediately after the programme
end.
1kg
ENGLISH 9

Programmes Type of load Load (max.)1) /
Fabric mark
Cooling Refreshing textiles that were in storage. 1kg
1) The maximum weight refers to dry items.
2) The Cotton Cupboard Dry ECO programme is the “Standard cotton programme” ac‐
cording to Commission Regulation EU No. 392/2012. It is suitable for drying normal wet cot‐
ton laundry and it is the most efficient programme in terms of energy consumption for drying
wet cotton laundry.
3) For test institutes only: Standard programmes for tests are specified in the EN 61121
document.
7. OPTIONS
7.1 Delicate
With this option you can set a delicate
drying programme that has a low
temperature. Use this option with a
fabrics that have the symbol on the
fabric label (e.g. acrylic, viscose).
7.2 Anticrease
Extends up to 90 minutes the anticrease
phase (30 minutes) at the end of the
drying cycle. After drying phase drum
rotates time to time what prevents the
mclothes from creases. Laundry can be
removed during the anti-crease phase.
7.3 Buzzer
you can hear the buzzer at the:
• cycle end
• start and end of crease guard phase
• cycle interruption
The buzzer function is by default always
on. You can use this function to activate
or deactivate the sound.
You can activate the Buzzer
option with all programmes.
7.4 Options table

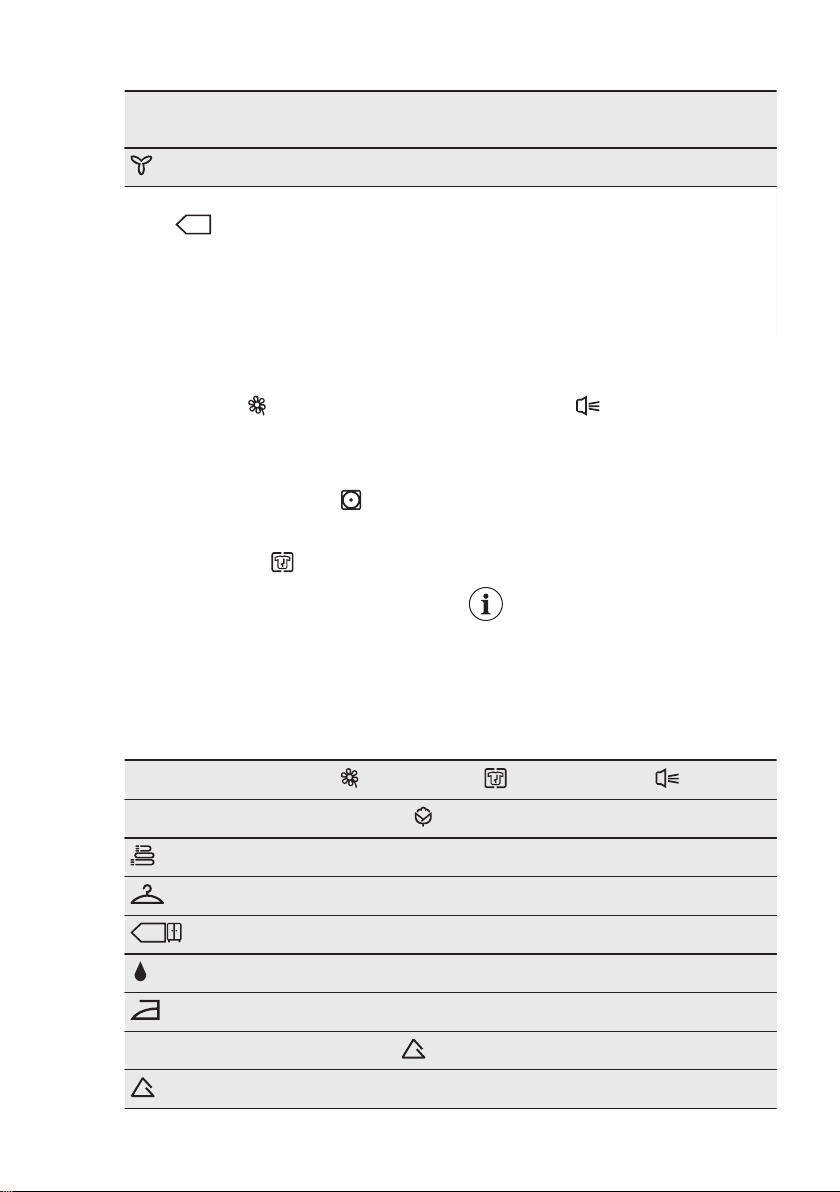

Programmes1) Delicate Anticrease Buzzer
Cotton
Extra Dry ■■■
Strong Dry ■■■
Cupboard Dry ■■■
Damp ■■■
Iron Dry ■■■
Synthetic
Extra Dry ■■■
www.electrolux.com10

Programmes1) Delicate Anticrease Buzzer
Cupboard Dry ■■■
Iron Dry ■■■
30' ■■■
Special
Mix ■■■
Easy Iron ■■■
Jeans ■■■
Wool Care ■ ■
Cooling ■
1) Together with the programme you can set 1 or more options. To activate or deactivate
them, press the related touch button.
8. SETTINGS
A B C D E
A. Delicate button
B. Anticrease button
C. Buzzer button
D. Start/Pause button
E. Delay button
8.1 Adjustment of the remaining
laundry moisture degree
To change the default degree of the
remaining moisture of the laundry:
1. Use the programme knob to set any
programme.
2. Wait approximately 8 seconds.
3. Press and hold buttons (B) and (D) at
the same time.
One of the these indicators comes on:
•End/Anticrease - the maximum
dry laundry
•Cooling - the more dry laundry
•End/Anticrease and Cooling the
standard dry laundry
4. Press the button (D) again and again
until the indicator of the correct level
comes on.
5. To confirm the adjustment, press and
hold buttons (B) and (D) at the same
time for approximately 2 seconds.
8.2 Buzzer permanent off
To deactivate or activate the acoustic
signals, press and hold for approximately
2 seconds touchpads (A) and (B) at the
same time.
ENGLISH 11

9. BEFORE FIRST USE
Before you use the appliance for the first
time:
• Clean the tumble dryer drum with a
moist cloth.
• Start a 1 hour programme with moist
laundry.
10. DAILY USE
10.1 Start a programme without
delay start
1. Prepare the laundry and load the
appliance.
CAUTION!
Make sure that when
you close the door, the
laundry does not get
caught between the
appliance door and the
rubber seal.
2. Set the correct programme and
options for the type of load.
3. Press the Start/Pause touch button.
The programme starts.
10.2 Starting the programme
with delay start
1. Set the correct programme and
options for the type of load.
2. Press the delay start button again
and again as necessary.
You can delay the start
of a programme by 3, 6
or 9 hours.
3. Press the Start/Pause button.
The LEDs (9H, 6H, 3H) change on each
3 hours.
10.3 Change a programme
1. Turn the Programme knob to OFF
2. Set the programme.
10.4 At the end of the
programme
When the programme is completed:
• An intermittent acoustic signal
operates.
• The indicators End/Anticrease (End/
Anticrease) , comes on.
• The Start/Pause indicator is on.
The appliance continues to operate with
the crease guard phase for
approximately other 30 minutes.
The crease guard phase removes
creases from your laundry.
You can remove the laundry before the
crease guard phase is completed. We
recommend, for better results, that you
remove the laundry when the phase is
almost completed or completed.
When the crease guard phase is
completed:
• The indicators End/Anticrease End/
Anticrease , Filter comes on.
• Start/Pause indicator goes off.
1. Turn the Programme knob to OFF
2. Open the appliance door.
3. Remove the laundry.
4. Close the appliance door.
Always clean the filter and
empty the water container
when a programme is
completed.
10.5 Stand-by function
To decrease the energy consumption,
this function automatically deactivates
the appliance:
• After 5 minutes if you do not start the
programme.
• After 5 minutes from the end of the
programme.
10.6 Indicator lights
These lights indicate the following
functions:
www.electrolux.com12

•Drying (Drying) : This light indicates
that the appliance is in the drying
phase.
•Cooling (Cooling): This light indicates
that the appliance is in the cooling
phase.
•End/Anticrease (End/Anticrease) :
This light indicates that the appliance
is in the anticreasing phase and at the
end of the programme.
• Filter : This light illuminates at the
end of the programme to remind you
that the filters must be cleaned.
11. HINTS AND TIPS
11.1 Preparing the laundry
• Close the zips.
• Close the fasteners of duvet covers.
• Do not dry ties or ribbons loose (e.g.
apron ribbons). Tie them before you
start a programme.
• Remove all items from pockets.
• Turn items with the internal layer
made of cotton inside out. Cotton
layer must be faced outwards.
• Always set the programme suitable
for the type of laundry.
• Do not put light and dark colours
together.
• Use suitable programme for cottons,
jersey and knitwear to reduce
shrinkage.
• Do not exceed the maximum load
stated in the programmes chapter or
shown on the display.
• Dry only the laundry that is suitable
for tumble drying. Refer to the fabric
label on the items.
• Do not dry large and small items
together. Small items can be trapped
inside the large items and remain wet.
Fabric label Description
Laundry is suitable for tumble drying.
Laundry is suitable for tumble drying at higher temperatures.
Laundry is suitable for tumble drying at low temperatures only.
Laundry is not suitable for tumble drying.
12. CARE AND CLEANING
12.1 Cleaning the filter
At the end of each cycle the filter
indicator is on to tell you that the filter
must be cleaned.
The filter collects the fluff.
The fluff occurs while the
cloths are dried in the tumble
dryer.
1. Open the door.
ENGLISH 13

2. Pull the filter.
3. Open the filter.
4. Use a moist hand to clean the filter.
5. If necessary clean the filter with
warm water using a brush.
6. Close the filter.
7. Remove fluff from the filter socket.
For this a vacuum cleaner can be
used.
8. Put the filter inside the filter socket .
12.2 Cleaning the drum
WARNING!
Disconnect the appliance
before you clean it.
Use a standard neutral soap detergent to
clean the inner surface of the drum and
drum lifters. Dry the cleaned surfaces
with a soft cloth.
CAUTION!
Do not use abrasive
materials or steel wool to
clean the drum.
12.3 Cleaning the control panel
and housing
Use a standard neutral soap detergent to
clean the control panel and housing.
Use a moist cloth to clean. Dry the
cleaned surfaces with a soft cloth.
CAUTION!
Do not use furniture cleaning
agents or cleaning agents
which can cause corrosion.
www.electrolux.com14

13. TROUBLESHOOTING
Problem Possible solution
You cannot activate the appliance. Make sure that the mains plug is connec‐
ted to the mains socket.
Check fuse in fuse box (domestic installa‐
tion).
The programme does not start. Press Start/Pause.
Make sure that the appliance door is
closed.
The appliance door does not close. Make sure that the installation of the filter
is correct.
Make sure that the laundry does not
catch between the appliance door and
the rubber seal.
The display shows a long programme du‐
ration. 1)
Make sure that the weight of the laundry
is applicable to the duration of the pro‐
gramme.
Make sure that the filter is clean.
The laundry is too wet. Spin the laundry
in the washing machine again.
Make sure that the room temperature is
not too warm.
The display shows a short programme
duration.
Set the Time Drying or the Extra Dry pro‐
gramme.
The display shows Err2).If you want to set a new programme, de‐
activate and activate the appliance.
Make sure that the options are applicable
to the programme.
The display shows (e.g. E51)2).Deactivate and activate the appliance.
Start a new programme. If the problem
occurs again, contact the Service.
1) After maximum 5 hours, the programme ends automatically
2) only dryers with the display.
If the drying results are not
satisfactory
• The set programme was incorrect.
• The filter is clogged.
• There was too much laundry in the
appliance.
• The drum is dirty.
• Incorrect setting of the conductivity
sensor.
• The airflow slots are clogged.
ENGLISH 15

14. TECHNICAL DATA
Height x Width x Depth 850 x 600 x 600 mm (maximal 630 mm)
Max. depth with the appliance door open 1090 mm
Max. width with the appliance door open 950 mm
Adjustable height 850 mm (+ 15 mm - feet regulation)
Drum volume 108 l
Maximum load volume 7 kg
Voltage 220-240 V
Frequency 50 Hz
Sound power level 64 dB
Total power 2600 W
Energy efficiency class C
Energy consumption on the standard cot‐
ton programme with the full load. 1)
4,25 kWh
Energy consumption on the standard cot‐
ton programme with the partial load. 2)
2,35 kWh
Annual energy consumption3) 510 kWh
Left-on mode power absorption 0,50 W
Off mode power absorption 0,50 W
Type of use Household
Allowed ambient temperature + 5°C to + 35°C
Level of protection against ingress of sol‐
id particles and moisture ensured by the
protective cover, except where the low
voltage equipment has no protection
against moisture
IPX4
1) With reference to EN 61121. 7 kg of cotton centrifuged at 1000 rpm.
2) With reference to EN 61121. 3,5 kg of cotton centrifuged at 1000 rpm.
3) Energy consumption per year in kWh, based on 160 drying cycles of the standard cotton
programme at full and partial load, and the consumption of the low-power modes. Actual en‐
ergy consumption per cycle will depend on how the appliance is used (REGULATION (EU)
No. 392/2012).
www.electrolux.com16

14.1 Consumption data
Programme Spun at / residual humidity Drying
time1)
Energy
consump‐
tion2)
Cotton Eco 7 kg
Cupboard Dry 1400 rpm / 50% 110 min. 3,70 kWh
1000 rpm / 60% 125 min. 4,25 kWh
Iron Dry 1400 rpm / 50% 85 min. 2,55 kWh
1000 rpm / 60% 97 min. 3,20 kWh
Cotton Eco 3,5 kg
Cupboard Dry 1400 rpm / 50% 66 min. 2,05 kWh
1000 rpm / 60% 75 min. 2,35 kWh
Synthetic 3 kg
Cupboard Dry 1200 rpm / 40% 44 min. 1,20 kWh
800 rpm / 50% 49 min. 1,47 kWh
1) For partial loads, the cycle time is shorter and appliance uses less energy.
2) Improper ambient temperature and/or poorly centrifuged laundry can prolong cycle time
and increase the energy consumption.
15. INSTALLATION
15.1 Unpacking
CAUTION!
Before use all parts of the
transport packaging must be
removed.
1. Open loading door.
2. Pull off adhesive strips from inside
machine on top of drum.
3. Remove foil hose and polystyrene
padding from the machine.
ENGLISH 17

15.2 Vent hose
As to the outlet itself, if you
have decided on a install
wall/window grille, a good
local builder’s merchant can
supply you with the
necessary fittings and
installation advice.
Make sure that the vent
hose length is less than 2 m,
and that it contains no more
than 2 bends.
WARNING!
It is important not to connect
the vent hose to, for
example, a cooker hood, or
a chimney or flue pipe
designed to transmit the
exhaust from a fuel burning
appliance.
Note that to prevent condensation
problems, it is essential that the dryer be
installed with the flexible hose to transmit
its “exhaust” at least beyond the kitchen
units; preferable outside the kitchen. In
order to prevent the appliance from
overheating, it is important that the
steam exhaust is unobstructed. Thus, if a
permanent hose installed to an external
wall or ceiling, it must be ensured an
exhaust capacity of minimum 150 m3/h.
If the dryer is installed adjacent to
kitchen units, make sure that the vent
hose is not squashed. If the hose is not
fully squashed, drying efficiency will be
decreased , resulting in longer drying
times and higher energy consumption. If
the hose is fully squashed, the automatic
cut-outs with which the appliance is fitted
can operate. When operating the tumble
dryer, the room temperature must not be
lower than +5°C and higher than +35°C,
as it can affect the performance of the
appliance.
If the hose is long and the
room temperature low, the
moisture might condense to
water inside the hose. This
is an usual occurrence. To
prevent this water from the
hose, it is recommend to drill
a small hole (via. 3 mm) in
the lowest point of the hose
and to put a small container
below it. (See picture, point
B).
B
www.electrolux.com18

Installation
There are 3 vent outlets: on
the left, right side and at the
rear.
1. Pull the ring nut A from the vent
outlet at the rear.
A
A
2. Screw on the ring nut to the hose and
push it into position.
A
3. The not used vents must be sealed
with supplied covers.
15.3 Door Reversal
To make it easier to load or unload the
laundry, the door can be reversed. The
door must only be reversed by an
authorised service engineer. Please
contact the Authorised Service Centre.
The engineer will carry out the door
reversal at your cost.
16. ENVIRONMENTAL CONCERNS
Recycle materials with the symbol .
Put the packaging in relevant containers
to recycle it. Help protect the
environment and human health by
recycling waste of electrical and
electronic appliances. Do not dispose of
appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
*
ENGLISH 19

www.electrolux.com/shop
136957110-A-232018
