1. SAFETY INFORMATION
Before beginning the installation and use of this
appliance, carefully read the supplied instructions.
The manufacturer is not responsible for any injuries
or damages that are the result of incorrect installation

ENGLISH 3
or usage. Always keep the instructions in a safe and
accessible location for future reference.
- Read the supplied instructions.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision
or instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
• Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away from the appliance unless continuously
supervised.
• Children of less than 3 years of age should be
kept away from the appliance unless continuously
supervised.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of
it appropriately.
• Keep detergents away from children.
• Keep children and pets away from the appliance when
the door is open.
• If the appliance has a child safety device, it should be
activated.
• Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
• Do not change the specication of this appliance.
• If the tumble dryer is put on top of a washing machine,
use the stacking kit. The stacking kit, available from

4 www.electrolux.com
your authorized vendor, can be used only with the
appliance specied in the instructions supplied with the
accessory. Read it carefully before installation (refer to
the Installation leaet).
• The appliance can be installed as freestanding or
below a kitchen counter with correct space (refer to the
Installation leaet).
• Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite side,
that would prevent the appliance door from being fully
open.
• The ventilation opening in the base must not be
covered by a carpet, mat, or any oor covering.
• WARNING: The appliance must not be supplied
through an external switching device, such as a timer,
or connected to a circuit that is regularly switched on
and off by a utility.
• Connect the mains plug to the mains socket only at
the end of the installation process. Make sure that the
mains plug is accessible after installation.
• If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service
Centre or similarly qualied persons to avoid an
electrical hazard.
• Do not exceed the maximum load of 9 kg (refer to the
"Programme chart" chapter).
• Do not use the appliance if items have been soiled with
industrial chemicals.
• Wipe away lint or packaging debris that has
accumulated around the appliance.
• Do not run the appliance without a lter. Clean the lint
lter before or after each use.
• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substances such
as cooking oil, acetone, alcohol, petrol, kerosene,
spot removers, turpentine, waxes and wax removers
should be washed in hot water with an extra amount of

ENGLISH 5
detergent before being dried in the tumble dryer.
• Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes
or pillows tted with foam rubber pads should not be
dried in the tumble dryer.
• Fabric softeners, or similar products, should only
be used as specied by the product manufacturer’s
instructions.
• Remove all objects from items that could be a source
of re ignition such as lighters or matches.
• WARNING: Never stop a tumble dryer before the end
of the drying cycle unless all items are quickly removed
and spread out so that the heat is dissipated.
• Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use the appliance
where the temperature can be lower
than 5°C or higher than 35°C.
• The floor area on which the appliance
is to be installed must be flat, stable,
heat resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• Always keep the appliance vertical
when it is being moved.
• The rear surface of the appliance
must be put against a wall.
• When the appliance is in its
permanent position, check if it is
levelled correctly with the aid of a
spirit level. If it is not, adjust the feet
accordingly.
2.2 Electrical connection
WARNING!
Risk of re and electrical shock.
• Connect the mains plug to the
mains socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Do not touch the mains cable or the
mains plug with wet hands.
• This appliance complies with the
E.E.C. Directives.

6 www.electrolux.com
2.3 Use
WARNING!
Risk of injury, electric shock,
re, burns or damage to the
appliance.
• This appliance is for household use
only.
• Do not dry damaged (torn, frayed)
items that contain padding or fillings.
• Only dry fabrics which are suitable for
drying in a tumble dryer. Follow the
instructions on the fabric label.
• If you have washed your laundry with
a stain remover start an extra rinse
cycle before you start the dryer.
• Do not drink or prepare food with the
condensed water/distilled water. It
can cause health problems to people
and pets.
• Do not sit or stand on the open door
of the appliance.
• Do not dry dripping wet clothes in a
tumble dryer.
2.4 Internal lighting
WARNING!
Risk of injury.
• Visible LED radiation, do not look
directly into the beam.
• The LED lamp is dedicated to drum
lighting. This lamp cannot be reused
for other lighting purposes.
• To replace the internal lighting,
contact the Authorised Service
Centre.
2.5 Care and cleaning
WARNING!
Risk of injury or damage to the
appliance.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents.
Do not use any abrasive products,
abrasive cleaning pads, solvents or
metal objects.
• To prevent damage to the cooling
system be careful when you clean the
appliance.
2.6 Compressor
WARNING!
Risk of damage to the
appliance.
• The compressor and its system in the
tumble dryer is filled with a special
agent which is free from fluoro-chloro-
hydrocarbons. This system must stay
tight. The damage of the system can
cause a leakage.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains electrical and water supplies.
• Cut off the mains electrical cable
close to the appliance and dispose
of it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
• Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).

ENGLISH 7

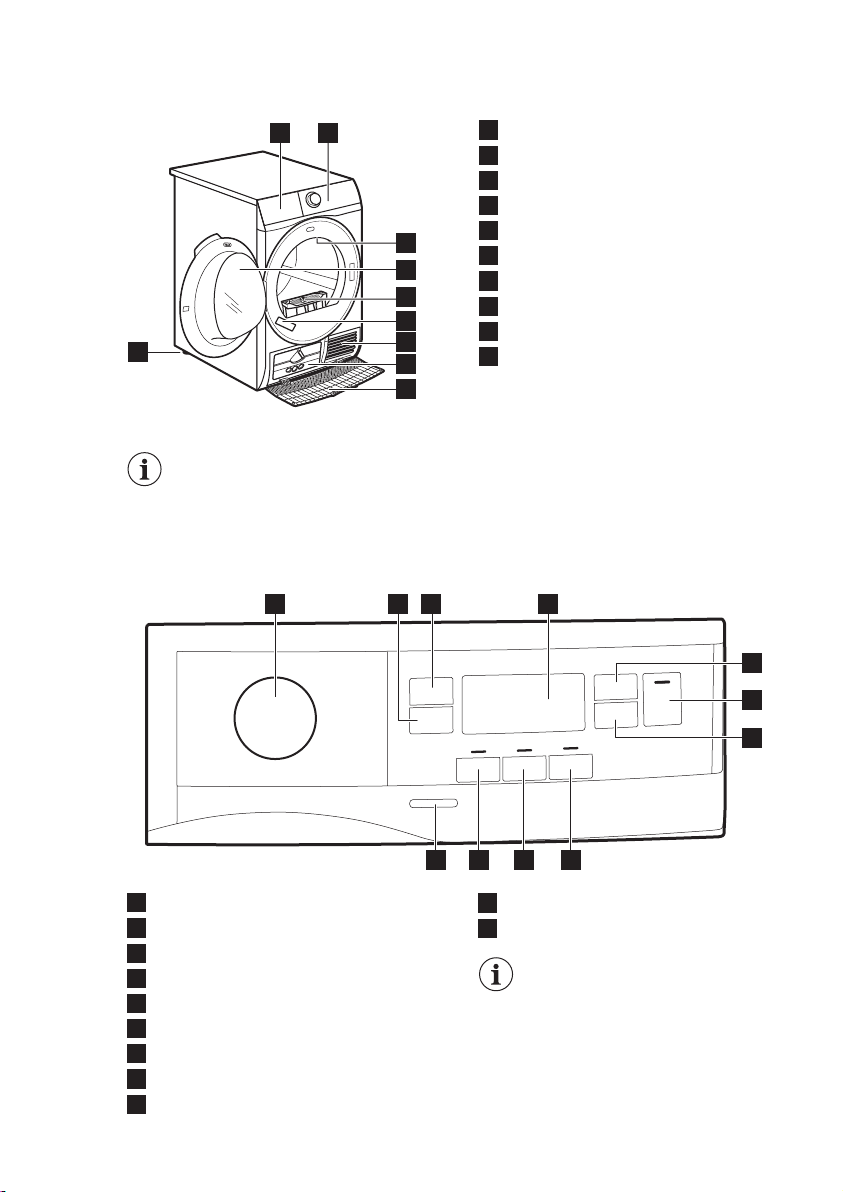

3. PRODUCT DESCRIPTION
1 2
6
3
4
5
7
8
9
10
1Water container
2Control panel
3Internal light
4Appliance door
5Filter
6Rating plate
7Airow slots
8Heat Exchanger lid
9Heat Exchanger cover
10 Adjustable feet
For ease of loading laundry or
ease of installation the door
is reversible. (see separate
leaet).
4. CONTROL PANEL
1
1011 9 8
5
7
6
432
1Programme knob
Press the touch buttons with
your nger in the area with the
symbol or name of the option.
Do not wear gloves when you
operate the control panel. Make
sure that the control panel is
always clean and dry.
2Extra Anticrease touch button
3Dryness Level touch button
4Display
5Time Dry touch button
6Start/Pause touch button
7Delay Start touch button
8End Alert touch button
9Reverse Plus touch button
10 Extra Silent touch button
11 On/Off button

8 www.electrolux.com

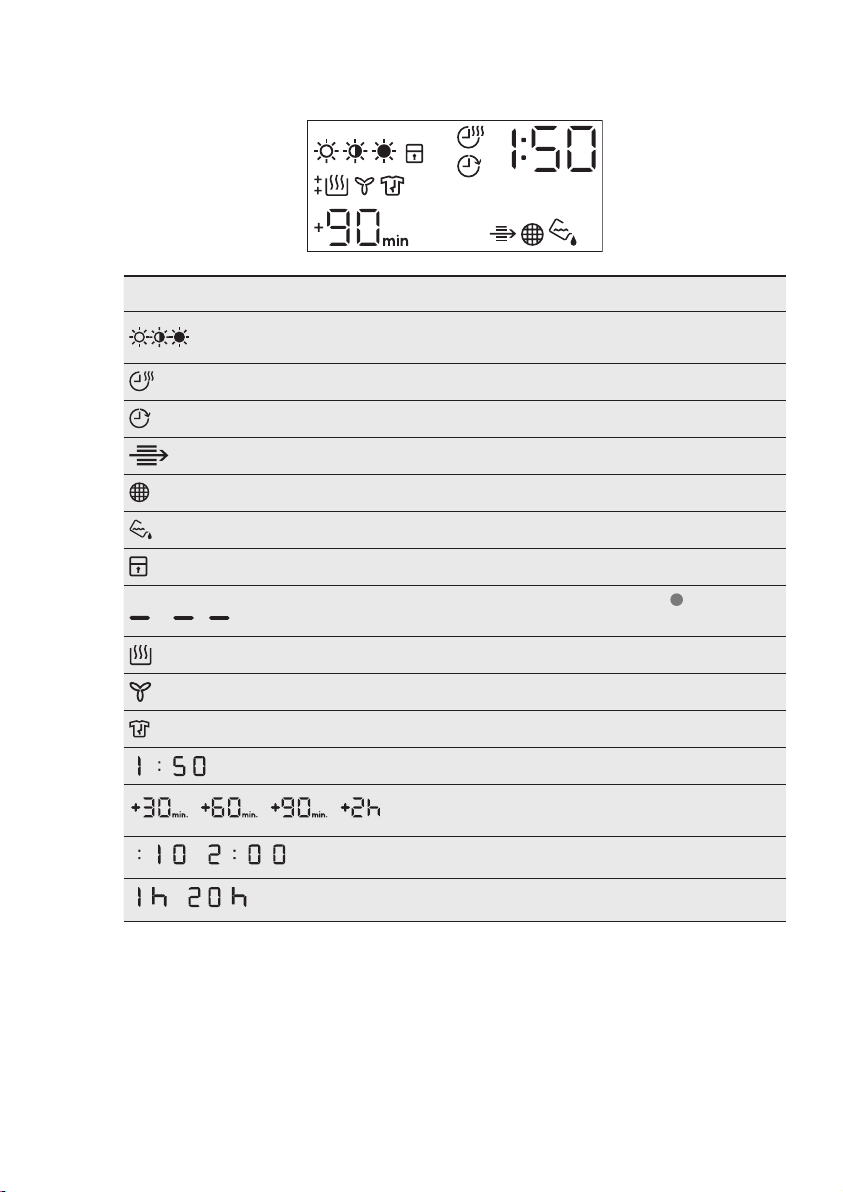

4.1 Display
Symbol on the display Symbol description
laundry dryness option: iron dry, cupboard dry,
extra dry
time drying option on
delay start option on
indicator: check Heat Exchanger
indicator: clean lter
indicator: drain the water container
child lock on
wrong selection or knob is in the "Reset"
position
indicator: drying phase
indicator: cooling phase
indicator: anti-crease phase
programme duration
  
extension of default anti-crease phase:
+30min, +60min, +90min, +2h)
 
time drying selection (10min-2h)
 
delay start selection (1h-20h)

ENGLISH 9
5. PROGRAMME TABLE
Programme Load 1) Properties / Fabric type2)
Favourite
Depends on
a memorised
programme
You can do your conguration of programme
and options and memorise in the appliance
memory (See chapter "Settings - Favourite
").
Cottons 9 kg Cotton fabrics. /
Mixed + 6 kg
Mix of garments made of cotton,
cotton-synthetic blend and
synthetic fabric.
/
Bedding + 4,5 kg Up to three bed linen sets, one of
which can be double size. /
Synthetics 3,5 kg Synthetic and mixed fabrics. /
Energy Saver 9 kg
Cycle to be used to dry cotton
with "cotton cupboard" dryness
level, with maximum energy
saving.
/
Refresh 1 kg Refreshing textiles that were in storage.
Drying Rack 1kg (or 1 pair of
sport shoes)
For drying sport shoes only with Drying Rack
(see separate user manual provided with
Drying Rack).
Sports 2 kg Sportswear, thin and light fabrics,
microber, polyester. /
Silk 1 kg Gentle drying of hand-washable
silks.
Shirts 1,5kg
(or 7 shirts)/
Easy care fabrics for which a
minimum of ironing is necessary.
The drying results can be different
from one type of fabric to the
other. Shake the items before you
put them in the appliance.
When the programme is completed,
Immediately remove the items and
put them on a hanger.
/

10 www.electrolux.com
Programme Load 1) Properties / Fabric type2)
Wool 1 kg
Woollen fabrics. Gentle drying for hand-wash-
able woollens. Remove items immediately
when the programme is completed.
The wool drying cycle of this machine has
been approved by The Woolmark Company
for the drying of wool garments labelled as
"hand wash" provided that the garments are
dried according to the instructions issued
by the manufacturer of this machine. Follow
the garment care label for other laundry
instructions. M1717
Delicates 4 kg Delicate fabrics such as viscose,
rayon, acrylic, and their blends. /
1) The maximum weight refers to dry items.
2) For fabric mark meaning see chapter HINTS AND TIPS: Preparing the laundry.
6. OPTIONS
6.1 Extra Anticrease
Extends the anti-crease phase by 30,60,
90 or 2 hours at the end of the drying
cycle. This function reduces creases.
The laundry can be removed during the
anti-crease phase.
6.2 Dryness Level
This function helps to increase dryness of
the laundry. There are 3 options:
• Extra Dry
• Cupboard Dry
• Iron Dry
6.3 Time Dry
You can set the programme duration,
from a minimum of 10 minutes to a
maximum of 2 hours. The required
duration is related to the quantity of
laundry in the appliance.
We recommend that you set
a short duration for small
quantities of laundry or for only
one item.
6.4 Time Dry on Wool
programme
Option suitable for Wool programme to
adjust nal dryness level.
6.5 Time Dry on Drying Rack
programme
Option suitable for Drying Rack
programme.
You can set the programme duration,
from a minimum of 10 minutes to a
