Installation manual
Tumble dryers
T4900, T41200
Type N4...
Original instructions

3
Contents
Contents
Safety precautions ................................................................................. 5
Technical data ........................................................................................ 7
Setup .................................................................................................... 13
Unpacking ...................................................................................... 13
Installation ............................................................................................ 17
Mechanical installation ................................................................... 17
Exhaust system .................................................................................... 19

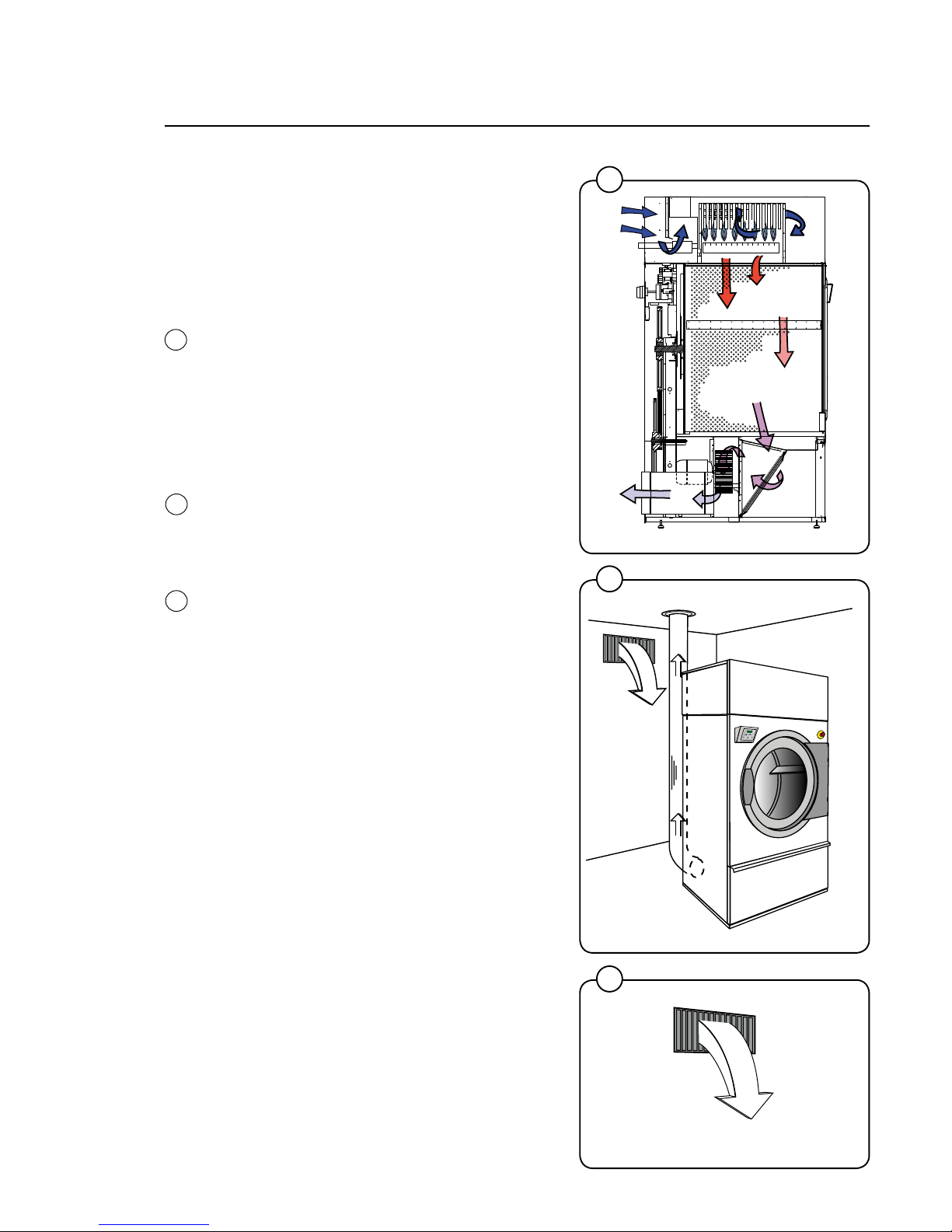

Air principle .................................................................................... 19
Fresh-air ......................................................................................... 19
Exhaust duct .................................................................................. 20
Steam installation ................................................................................. 23
Gas installation..................................................................................... 25
Electric installation ............................................................................... 35
Function check..................................................................................... 39
Dimenstion sketch – Adapter for direct fresh-air intake ...................... 41
The manufacturer reserves the right to make changes to design and
com ponent specifications.

4
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
Children of less than 3 years should be kept away unless
continuously supervised.
The machine is not to be used if industrial chemicals have
been used for cleaning.
Do not dry unwashed items in the machine.
Items that have been soiled with substances such as cooking
oil, acetone, alcohol, petrol, kerosene, spot removers,
turpentine, waxes and wax removers should be washed in hot
water with an extra amount of detergent before being dried in
the machine.
Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes or
pillows fitted with foam rubber pads should not be dried in the
machine.
Fabric softeners or similar products should be used as
specified by the fabric softener instructions.
The final part of a drying cycle occurs without heat (cool down
cycle) to ensure that the items are left at a temperature that
ensures that the items will not be damaged.
Remove all objects from pockets such as lighters and
matches.
Safety Precautions

5
Safety Precautions
WARNING. Never stop the machine before the end of the
drying cycle unless all items are quickly removed and spread
out so that the heat is dissipated.
Adequate ventilation has to be provided to avoid the back
flow of gases into the room for appliances burning other fuels,
including open fires.
Exhaust air must not be discharged into a flue which is used
for exhausting fumes from appliances burning gas or other
fuels.
The machine must not be installed behind a lockable door, a
sliding door or a door with a hinge on the opposite side to that
of the machine in such a way that a full opening of the machine
is restricted.
If the machine has a lint trap this has to be cleaned frequently.
The lint must not be accumulated around the machine.
DO NOT MODIFY THIS APPLIANCE.
Servicing shall be carried out only by authorized personnel.
Only authorized spare parts shall be used.
When performing service or replacing parts, the power must
be disconnected.
In accordance with the wiring rules: mount a multi-pole switch
prior to the machine to facilitate installation and service
operations.

6Safety Precautions
Gas heated tumble dryer:
Before installation, check that the local distribution conditions,
nature of gas and pressure and the adjustment of the
appliance are compatible.
The machine is not to be installed in rooms containing cleaning
machines with perchloroethylene, TRICHLOROETHYLENE or
CHLOROFLUOROCONTAINING HYDROCARBONS as cleaning
agents.
CAUTION: This appliance shall not be installed where the
public has access.
If you can smell gas:
• Do not switch on any equipment
• Do not use electrical switches
• Do not use telephones in the building
• Evacuate the room, building or area
• Contact the person responsible for the machine
In order to prevent damage to the electronics (and other parts) that may occur as
the result of condensation, the machine should be placed in room temperature for 24
hours before being used for the first time.
CAUTION
Caution
Read the instructions before using the machine
Symbols
Caution, hot surface

7
AB
P
D
C
(a)
C
(b)
C
(c)
Q
E
G
H
L
4
2
1
3
5
6
M
7
F
K
J
G
H
R
8
9
6
N
7
F
K
J
S
G
H
6
7
F
K
J
Technical data
Gas
A B C (a) C (b) C (c) D E F G H J K L M N
T4900 1290 1295 2465 1965 500 850 790 230 245 1590 165 180 2055 410 530
T41200 1290 1485 2465 1965 500 850 790 230 245 1590 165 180 2055 410 530
1 Heating unit
2 Delivery height, excl. 100 mm packaging
3 Operating panel
4 Door opening, Ø 940 mm
5 Gas connection
6 Electric connection
7 Exhaust duct
8 Steam inlet
9 Steam return
P Q R S
T4900 2400 1868 2350 2060
T41200 2590 1868 2350 2060
W00133
Steam Electric

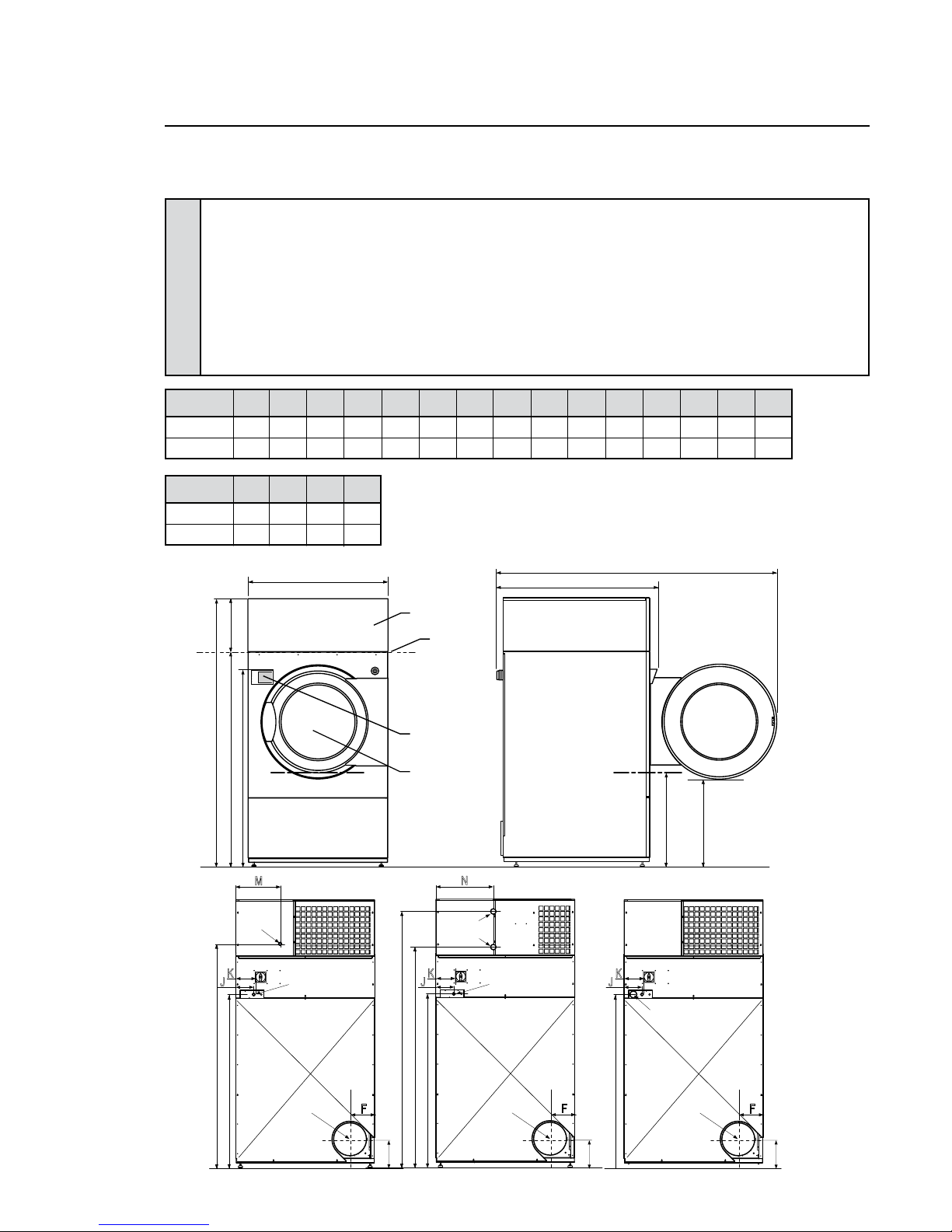

Dimension sketch. Dryer with standard loading door

8Technical data
U V
T4900 1314 1290
T41200 1314 1480
10 Sliding Door, Door opening Ø 940
Where nothing else is mentioned the dimension sketch applies to “Dryer with standard loading door”
W00134
U
V
10

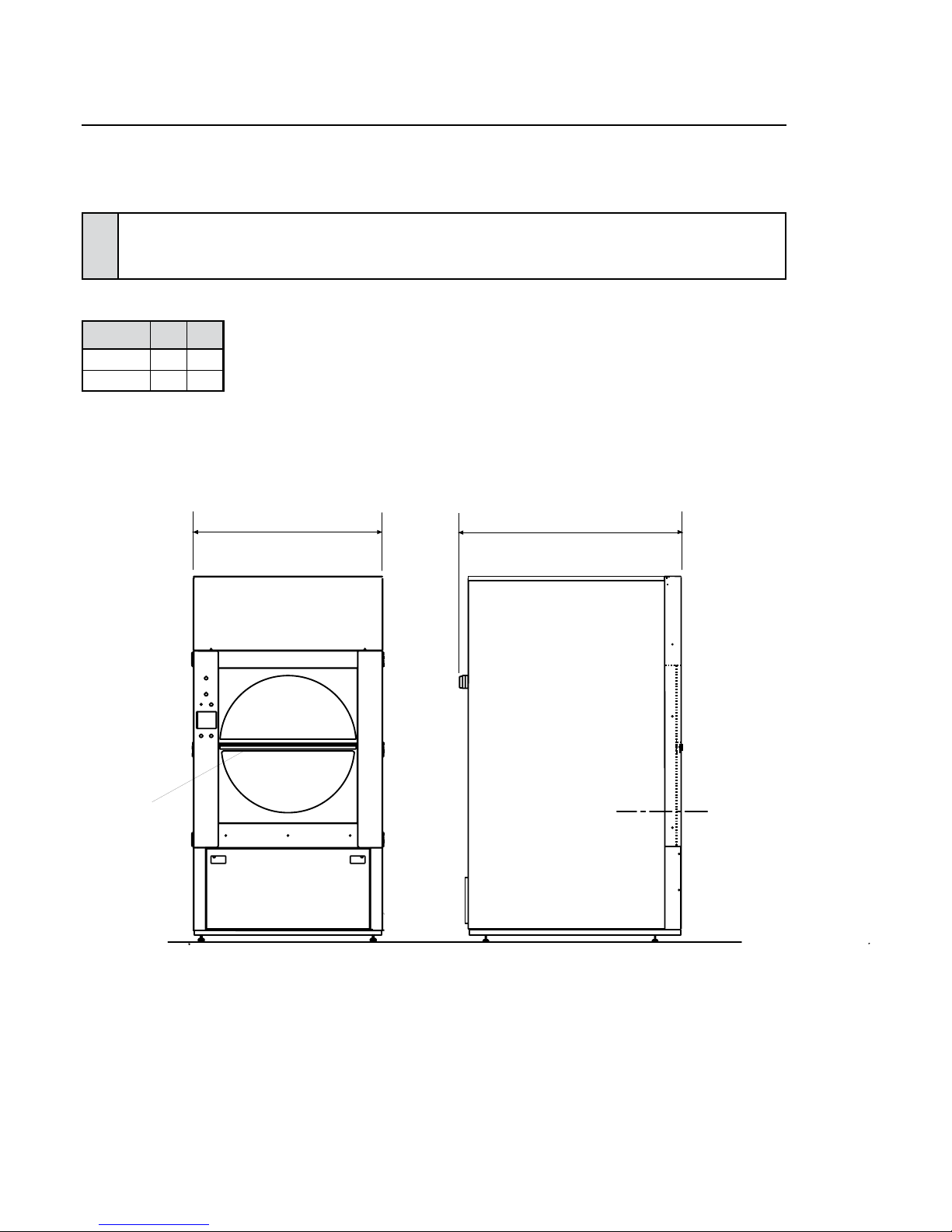

Dimension sketch. Dryer with Sliding Door

9
A
C
(a)
C
(b)
C
(c)
4
2
1
3
G
H
5
6
M
7
F
K
J
G
H
R
8
9
6
N
7
F
K
J
S
G
H
6
7
F
K
J
L
D
Q
P
B
Technical data
Gas
A B C (a) C (b) C (c) D E F G H J K L M N
T4900 1320 1295 2550 2045 500 930 - 230 330 1670 165 180 2130 410 530
T41200 1320 1485 2550 2045 500 930 - 230 330 1670 165 180 2130 410 530
1 Heating unit
2 Delivery height, excl. 100 mm packaging
3 Operating panel
4 Door opening, Ø 940 mm
5 Gas connection
6 Electric connection
7 Exhaust duct
8 Steam inlet
9 Steam return
P Q R S
T4900 1540 2660 2425 2130
T41200 1740 2680 2425 2130
W00135
Steam Electric

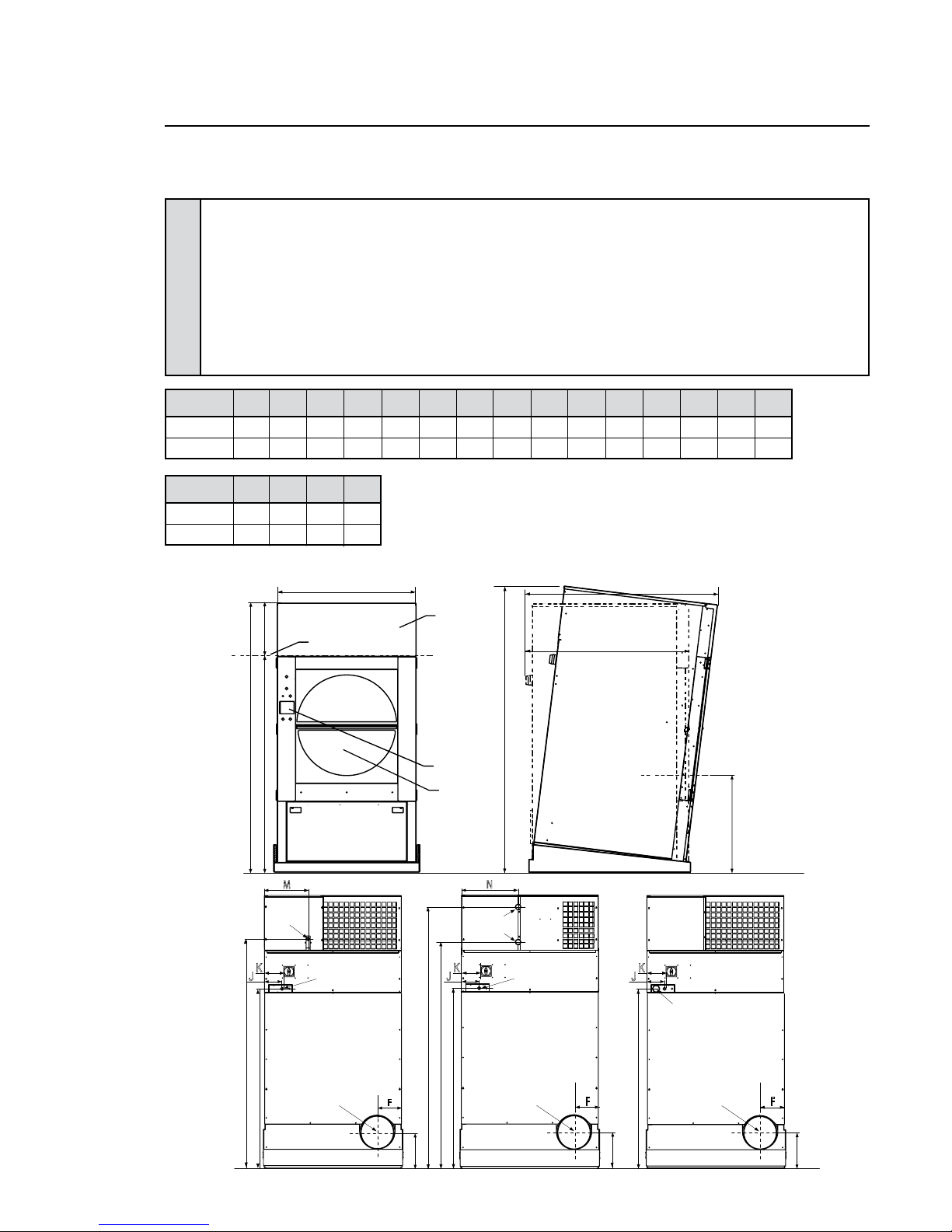

Dimension sketch. Dryer with Sliding Door and tilt

10 Technical data
Gas Steam Electric
900 900 900
545 545 545
599 599 599
651 651 651
39 50 42
66 66 66
1240 1240 1240
770 770 770
38 38 38
45 45 45
64 * 48/60
2300 2300 2300
315 315 315
ISO 7/1-R1 - -
- ISO 228/1-G1 -
- ISO 228/1-G1 -
100 100 100
** - -
Cylinder volume litres
Weight net
Basic machine kg
with Sliding Door kg
with Sliding Door and tilt kg
Heating unit kg
Tilting unit kg
Cylinder
diameter mm
depth mm
revolutions per minute rpm
Capacity kg
Heat effect kW
Air consumption, max. m3/h
Piping
Exhaust duct Ø
Gas connection
Steam in
Steam out
Pressure drop, max. Pa
Gas pressure
Technical data T4900
* Depending on steam pressure
** See page regarding pressure
Sound pressure
level dB(A) < 70 < 70 < 70

11
Technical data
Gas Steam Electric
1200 1200 1200
580 580 580
634 634 634
686 686 686
46 50 42
66 66 66
1240 1240 1240
1000 1000 1000
38 38 38
60 60 60
82 * 60/72
2500 2500 2500
315 315 315
ISO 7/1-R1 - -
- ISO 228/1-G1 -
- ISO 228/1-G1 -
100 100 100
** - -
Cylinder volume litres
Weight net
Basic machine kg
with Sliding Door kg
with Sliding Door and tilt kg
Heating unit kg
Tilting unit kg
Cylinder
diameter mm
depth mm
revolutions per minute rpm
Capacity kg
Heat effect kW
Air consumption, max. m3/h
Piping
Exhaust duct Ø
Gas connection
Steam in
Steam out
Pressure drop, max. Pa
Gas pressure
Technical data T41200
* Depending on steam pressure
** See page regarding pressure
Sound pressure
level dB(A) < 70 < 70 < 70

12 Technical data
T4900, T41200
1.1
2800
3400
1.5
1440
1730
Blower motor 3-phase
Effect kW
Revolutions per minute 50 Hz rpm
Revolutions per minute 60 Hz rpm
Drum motor 3-phase
Effect kW
Revolutions per minute 50 Hz rpm
Revolutions per minute 60 Hz rpm
Motor specifications

13
Setup
Setup
Unpacking
Place the dryer in its place before unpacking it.
When unpacking the dryer, handle it with care.
Positioning
Place the dryer in such a way that work can be
done as easily as possible by the user and the
service technician alike.
The distance to the wall or other equipment be-
hind the dryer should be min. 500 mm.
However, there should be free access to the
back of the dryer for the purpose of servicing it.
Dryer with standard loading door
Apart from the minimum distances shown on fig.
1 there are no further requirements to the dis-
tance around the dryer.
Dryer with Sliding Door and tilt
Apart from the minimum distances shown on fig.
2 there are no further requirements to the dis-
tance around the dryer.
1
2
W00136
1
W00137
2
10 mm 10 mm
500 mm
500 mm 100 mm 50 mm

14 Setup
Removal from transportation pallet
1. Demount back plates and filter door.
2. Knock the two wood boards loose, one in
front and one in the back, with a hammer.
3. Demount the 4 screws holding the bars.
4. Lift the dryer with pallet truck or fork-lift truck
and remove the bars.
5. Mount the four feet in the bottom bearers.
6. T41200 only.
When pallet truck or fork-lift truck is removed
the 2 steel sections are disengaged.
Remove steel sections and the remainder from
transportation pallet.
3
4
W00138
3
W00139
4

15
Setup
Dryer with tilting function
Before installing the dryer follow the tilt installation manual.
Flexible piping connection, gas heated dryers
Due to the tilting function gas pipe A must end 30 cm before the dryer and
the last piece of it must be flexible eg. an approved 60 cm gas hose.
Flexible piping connection, steam heated dryers
Due to the tilting function the steam hoses must have an excessive length
of 30 cm.
Outlet duct, all heating types
Due to the tilting function the outlet duct B must have a flexible hose 20
cm before the dryer.
5
W00140
5
20 cm
30 cm
A
B
5

17
Installation
W00141
1
1
Installation
Mechanical installation
Adjust the dryer to ensure that it is horizontal
and stands firmly on all four feet (the height
adjustment must be as low as possible).
The maximum height adjustment of the feet is
70 mm and is only to be used cautiously while
removing lifting truck or fork truck.
Heating unit
The heating unit is to be mounted on top of the
dryer.
During transport the top plate for the heating unit
is placed on top of the dryer.
Equally during transport the two side panels and
the bracing bar A are placed in the back of the
dryer.
See the installation manual for the heating unit.
Transportation fittings
During transport the transmission is secured.
Remove the transportation securing B by cutting
the strips.
2
A
B
W00142
2
2

19
Installation
3
Exhaust system
Air principle
The blower creates low pressure in the dryer,
drawing air into the cylinder via the heating unit.
The heated air passes through the garments and
the cylinder vents.
The air then flows out through a lint filter positio-
ned immediately below the drum. After this, the
air is evacuated through the blower and exhaust
system.
It is very important that the dryer gets enough
fresh air, see next section.
Fresh-air
For maximum efficiency and the shortest pos-
sible drying time, it is important to ensure that
fresh air is able to enter the room from the out-
side in the same volume as that blown out of the
room.
To avoid a draught in the room, it is advisable to
place the air inlet behind the dryer.
The area* of the air inlet opening must be 5 times
the size of the exhaust pipe area.
See table on the following page.
The resistance in the grating/slats on the air inlet
cover plate should not exceed 10 Pa
(0.1 mbar).
Note! Gratings/slatted covers often block half of
the total fresh air vent area. Remember to take
this into account.
*The area of the inlet opening is the area through
which the air can flow without resistance from
grating/slatted cover.
W00143
3
W00144
4
5
W00048
5 x A
4
5
5 x A
A
P

20 Installation
Exhaust duct
It applies to the exhaust duct that:
• The exhaust duct must be smooth on the inside (low air resistance).
• The exhaust duct must lead into the open.
• The exhaust duct must lead clear of the building as condensation may
cause frost damage to the building.
• The exhaust duct must be protected against rain and foreign objects.
• The exhaust duct must have gentle bends.
It applies to the installation of several dryers on a shared exhaust duct
that:
• The exhaust duct diameter must increase after each dryer.
The table below shows the exhaust duct diameter and the necessary
fresh-air inlet area.
• The exhaust duct must have a nonreturn flap after each dryer.
Note! It is recommended that each dryer is connected to a separate
exhaust duct.
The exhaust duct diameter must not be reduced.
No. of dryers 1 2 3 4 5 6 7 8
Air outlet pipe
diameter in mm 315 450 560 630 710 800 800 900
Required area of
fresh-air inlet m2 0.4 0.8 1.2 1.6 2.0 2.4 2.8 3.2
Each dryer requires a fresh-air aperture of min. 624 x 624 mm.
6
7
Service organization/dealer
If you have questions relating to the design of the exhaust system,
please contact your local dealer or service organization.
