Electrolux UltimateCare 700 User manual

EDH803R7WB
EN Tumble Dryer User Manual

CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. CONDITIONS OF USE.......................................................................................6
3. SAFETY INSTRUCTIONS..................................................................................6
4. PRODUCT DESCRIPTION................................................................................ 8
5. CONTROL PANEL............................................................................................. 9
6. WI-FI - CONNECTIVITY SETUP.............................................................. 10
7. PROGRAM TABLE...........................................................................................12
8. OPTIONS..........................................................................................................14
9. SETTINGS........................................................................................................15
10. BEFORE FIRST USE..................................................................................... 17
11. DAILY USE..................................................................................................... 18
12. HINTS AND TIPS........................................................................................... 19
13. CARE AND CLEANING..................................................................................20
14. TROUBLESHOOTING....................................................................................22
15. TECHNICAL DATA.........................................................................................25
16. WARRANTY .................................................................................................. 25
17. ENVIRONMENTAL CONCERNS................................................................... 28
IMPORTANT INFORMATION THAT MAY IMPACT
YOUR MANUFACTURER'S WARRANTY
Adherence to the directions for use in this manual is extremely important for
health and safety. Failure to strictly adhere to the requirements in this manual
may result in personal injury, property damage and affect your ability to make a
claim under the Electrolux manufacturer’s warranty provided with your product.
Products must be used, installed and operated in accordance with this manual.
You may not be able to claim on the Electrolux manufacturer’s warranty in the
event that your product fault is due to failure to adhere to this manual.
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time. Welcome to
Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.registerelectrolux.com
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
www.electrolux.com2

The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes
injuries and damage. Always keep the instructions with
the appliance for future reference.
- Read the supplied instructions.
Warning: Risk of fire / Flammable materials.
The appliance contains flammable gas, propane (R290),
a gas with a high level of environmental compatibility.
Keep fire and ignition sources away from the appliance.
Be careful not to cause damage to the refrigerant circuit
containing propane.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent
disability.
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away from the appliance unless continuously
supervised.
ENGLISH 3

•Children of less than 3 years of age should be kept
away from the appliance unless continuously
supervised.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of
it appropriately.
•Keep detergents away from children.
•Keep children and pets away from the appliance when
the door is open.
•If the appliance has a child safety device, it should be
activated.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•Do not change the specification of this appliance.
•The appliance can be installed as freestanding or
below a kitchen counter with correct space (refer to
the Installation leaflet).
•Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite
side, that would prevent the appliance door from being
fully open.
•The ventilation opening in the base must not be
covered by a carpet, mat, or any floor covering.
•WARNING: The appliance must not be supplied
through an external switching device, such as a timer,
or connected to a circuit that is regularly switched on
and off by a utility.
•Connect the mains plug to the mains socket only at
the end of the installation process. Make sure that the
mains plug is accessible after installation.
•Ensure good air ventilation in the room where the
appliance is installed to avoid the backflow of
unwanted gases into the room from appliances
burning gas or other fuels, including open fires.
•WARNING: Do not install the appliance in an
environment with no air exchange.
www.electrolux.com4

The appliance contains flammable gas, propane
(R290), a gas with a high level of environmental
compatibility. Keep fire and ignition sources away from
the appliance. Be careful not to cause damage to the
refrigerant circuit containing propane.
•WARNING: In the appliance enclosure or in the built -
in structure, keep ventilation opening clear of
obstruction.
•WARNING: Do not damage the refrigerant circuit.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
•Do not exceed the maximum load of 8,0 kg (refer to
the "Programme chart" chapter).
•Do not use the appliance if items have been soiled
with industrial chemicals.
•Wipe away lint or packaging debris that has
accumulated around the appliance.
•Do not run the appliance without a filter. Clean the lint
filter before or after each use.
•Do not dry unwashed items in the tumble dryer.
•Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers
should be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.
•Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be
dried in the tumble dryer.
•Fabric softeners, or similar products, should only be
used as specified by the product manufacturer’s
instructions.
•Oil-affected items can ignite spontaneously, especially
when exposed to heat sources such as in a tumble
dryer. The items become warm, causing an oxidation
reaction in the oil. Oxidation creates heat. If the heat
ENGLISH 5

cannot escape, the items can become hot enough to
catch fire. Piling, stacking or storing oil-affected items
can prevent heat from escaping and create a fire
hazard.
•If it is unavoidable that fabrics that contain vegetable
or cooking oil or have been contaminated by hair care
products be placed in a tumble dryer they should first
be washed in hot water with extra detergent -this will
reduce, but not eliminate, the hazard.
•Remove all objects from items that could be a source
of fire ignition such as lighters or matches.
•WARNING: Never stop a tumble dryer before the end
of the drying cycle unless all items are quickly
removed and spread out so that the heat is dissipated.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
2. CONDITIONS OF USE
This appliance is intended to be used in
household and similar applications such
as:
• farm houses;
• by clients in hotels, motels, bed &
breakfast and other residential type
environments;
• areas for communal use in blocks of
flats or in launderettes.
3. SAFETY INSTRUCTIONS
3.1 Installation
Warning: Risk of fire / Flammable
materials.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Do not install the appliance in an
environment with no air exchange
The appliance contains flammable
gas, propane (R290), a gas with a
high level of environmental
compatibility. Keep fire and ignition
sources away from the appliance. Be
careful not to cause damage to the
refrigerant circuit containing propane.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use the appliance
where the temperature can be lower
than 5°C or higher than 35°C.
• The floor area on which the appliance
is to be installed must be flat, stable,
heat resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• Always keep the appliance vertical
when it is being moved.
www.electrolux.com6

• The rear surface of the appliance
must be put against a wall.
• When the appliance is in its
permanent position, check if it is
levelled correctly with the aid of a
spirit level. If it is not, adjust the feet
accordingly.
3.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Do not touch the mains cable or the
mains plug with wet hands.
3.3 Use
WARNING!
Risk of injury, electric shock,
fire, burns or damage to the
appliance.
Warning: Risk of fire / Flammable
materials. The appliance contains
flammable gas, propane (R290), a gas
with a high level of environmental
compatibility. Keep fire and ignition
sources away from the appliance. Be
careful not to cause damage to the
refrigerant circuit containing propane.
• This appliance is for household
(indoors) use only.
• Do not dry damaged (torn, frayed)
items that contain padding or fillings.
• If laundry has been washed with a
stain remover, carry out an additional
rinse cycle before starting a drying
cycle.
• Dry only fabrics that are suitable to
dry in the appliance. Follow the
cleaning instruction on the item label.
• Do not drink or prepare food with the
condensed water/distilled water. It can
cause health problems to people and
pets.
• Do not sit or stand on the open door
of the appliance.
• Do not dry dripping wet clothes in the
appliance.
3.4 Internal lighting
WARNING!
Risk of injury.
• Visible LED radiation, do not look
directly into the beam.
• To replace the internal lighting,
contact the Authorised Service
Centre.
3.5 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
Warning: Risk of fire / Flammable
materials. The appliance contains
flammable gas, propane (R290), a gas
with a high level of environmental
compatibility. Keep fire and ignition
sources away from the appliance. Be
careful not to cause damage to the
refrigerant circuit containing propane.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Use only neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal
objects.
• Be careful when you clean the
appliance to prevent damage to the
cooling system.
ENGLISH 7

3.6 Compressor
WARNING!
Risk of damage to the
appliance.
• The compressor and its system in the
tumble dryer is filled with a special
agent which is free from fluoro-chloro-
hydrocarbons. This system must stay
tight. The damage of the system can
cause a leakage.
3.7 Service
• To repair the appliance contact the
Authorised Service Centre.
• Use original spare parts only.
3.8 Disposal
WARNING!
Risk of injury or suffocation.
Warning: Risk of fire / Risk of
material damage and damage to the
appliance.
• Disconnect the appliance from the
mains electrical and water supplies.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• The appliance contains flammable
gas (R290). Contact your municipal
authority for information on how to
discard the appliance correctly.
• Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
• Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).

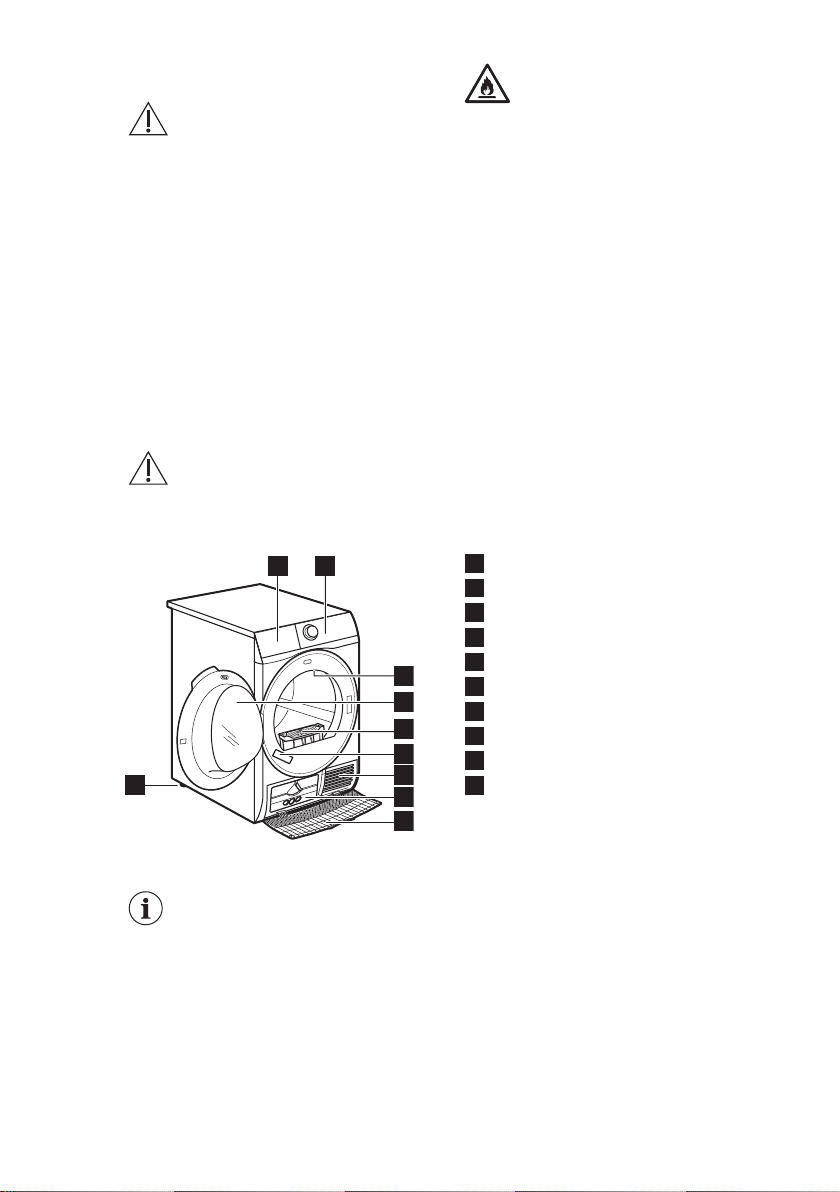

4. PRODUCT DESCRIPTION
1 2
6
3
4
5
7
8
9
10
1Water container
2Control panel
3Internal light
4Appliance door
5Filter
6Rating plate
7Airflow slots
8Heat Exchanger lid
9Heat Exchanger cover
10 Adjustable feet
For ease of loading laundry
or ease of installation the
door is reversible. (see
separate leaflet).
www.electrolux.com8

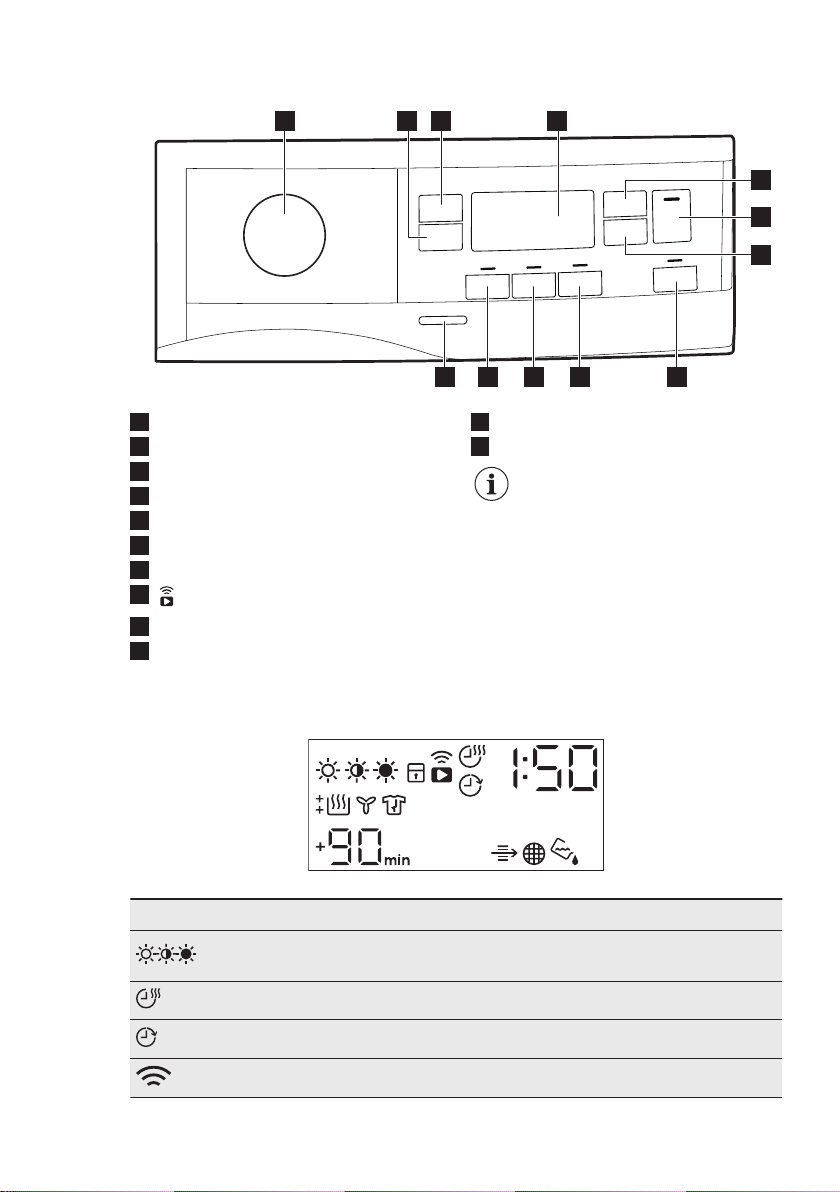

5. CONTROL PANEL
1
1112 10 9 8
5
7
6
432
1Program knob
2Extra Anticrease touch button
3Dryness Level touch button
4Display
5Time Dry touch button
6Start/Pause touch button
7Delay Start touch button
8 Remote touch button
9End Alert touch button
10 Reverse Plus touch button
11 Extra Silent touch button
12 On/Off button
Press the touch buttons with
your finger in the area with
the symbol or name of the
option. Do not wear gloves
when you operate the
control panel. Make sure
that the control panel is
always clean and dry.
5.1 Display
Symbol on the display Symbol description
laundry dryness option: iron dry, cupboard dry,
extra dry
time drying option on
delay start option on
indicator: Wi-Fi connection
ENGLISH 9

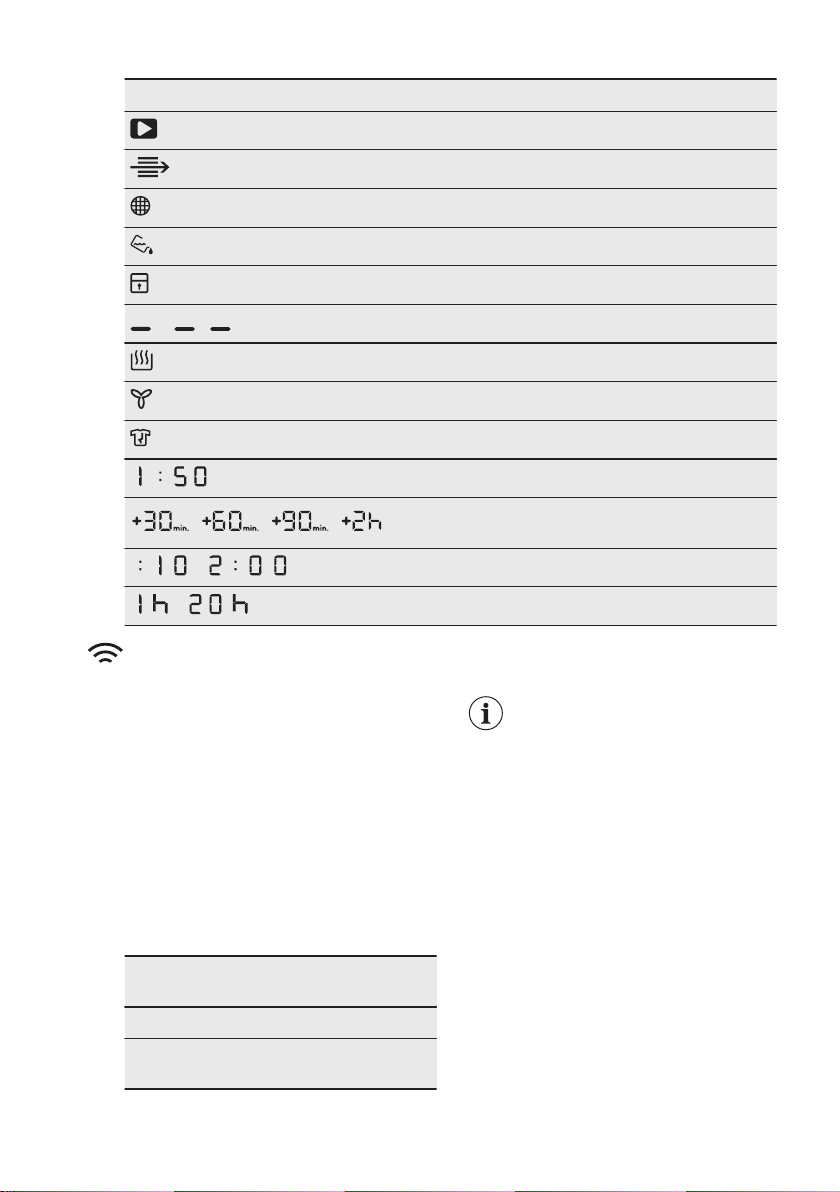

Symbol on the display Symbol description
remote start option on
indicator: check Heat Exchanger
indicator: clean filter
indicator: drain the water container
child lock on
wrong selection
indicator: drying phase
indicator: cooling phase
indicator: anti-crease phase
program duration
, , , extension of default anti-crease phase:
+30min, +60min, +90min, +2h)
- time drying selection (10min-2h)
- delay start selection (1h-20h)
6. WI-FI - CONNECTIVITY SETUP
This chapter describes how to connect
the smart appliance to the Wi-Fi network
and to link it to a mobile devices.
By this functionality you can receive
notifications, monitor and control your
tumble dryer from your mobile devices.
To connect the appliance to enjoy the full
range of features and services you need:
• Wireless network at home with
internet connection enabled.
• Mobile device connected to wireless
network.
Frequency 2.4 GHz according to
local country regulation
Protocol IEEE 802.11b/g/n
Max power According to local
country regulation
Minimum requirements:
Operating system
compatibility iOS 9.3/Android
5.1 and above. Install the
Electrolux Life app, create
an account and accept the
Terms and Conditions and
Electrolux's Privacy Policy to
use the connected features.
Stable Internet and good Wi-
Fi connection with 2.4GHz
wireless frequency is
required. Minimum
requirements, apps and
services are subject to
change without notice.
6.1 Installing Electrolux Life
When connecting the tumble dryer to the
application, stand near it with Your smart
device.
www.electrolux.com10
