Table of contents
Finding Information .............................. 2
Installation Checklist ............................. 2
Safety .................................................... 3
Feature Overview .................................. 5
Installation ............................................ 6
Installing Door Handle & Leveling ........ 7
Door Removal &Temperature Control ..... 9
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Electrolux model number
Electrolux serial number
Electronic Control & Alarms ............... 10
Alarms & Sabbath Mode .................... 1 1
Air Filter & Theater TM LED Lighting ....... 1 2
Water Supply ...................................... 13
Connecting Water Supply .................. 14
Ice Service .......................................... 15
Storage Components ......................... 16
Storage Components &
ii!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!!i;!_ii

Safety
Important safety instructions
Safety Precautions
Do not attempt to installor operate your unit
until you have read the safety precautions
in this manual. Safety items throughout this
manual are labeled with a Danger, Warning,
or Caution based on the risk type.
Definitions
_! This isthe safetyalert symbol. Itis
used to alert you to potential personal injury
hazards. Obey all safety messages that follow
this symbol to avoid possible injuryor death.
General Safety
• Remove all staples from the carton to
avoid injury. Staples can also damage
finishes if they come in contact with
other appliances or furniture. ,...................................................................
Child Safety ..................................................................
Packing Materials: .............................................................
Packing cartons covered with rugs,
bedspreads, plastic sheets, or stretch
wrap may become airtight chambers
and can quickly cause suffocation.
•Destroy or recycle the product's carton,
plastic bags, and any other exterior
wrapping material immediately after the
unit is unpacked. Children should never
play with these items.
Ch,dEntrapmentandSu ecat on"
= These problems are not limited to the ...............................................
past. Whether junked, abandoned,
or temporarily stored (even for a
few hours), unattended appliances
are dangerous. Please take the
precautions listed below.
Proper Disposal of Appliance .........................................
We strongly encourage responsible
appliance recycling/disposal methods.
Check with your utility company or visit
www.energystar.gov/recycle for more
information on recycling your old unit.
Before you recycle or dispose of your
old appliance:
• Remove the doors.
• Leave the shelves and baskets in place
so children may not easily climb inside.
Have refrigerant and compressor
oil removed by a qualified service
technician.
• Do not store or use gasoline or other
flammable liquids near this or any
other appliance. Read product labels
for warnings regarding flammability
and other hazards.
Do not operate the appliance in the
presence of explosive fumes.
Avoid contact with any moving parts
of the automatic ice maker.
iill_iii_i_ill
i_iiiii_i!i_
JJ

ii ii!! Safety
......................................................................................Electrical information
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii i1 !i!iiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_:_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_:_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii;_
iiiiiiiiiiiiii!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiii_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_i!_!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_i!_!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
...............................'ii......
The unit must be plugged into its own Grounding type wall receptacle
dedicated 115 Volt, 60 Hz, AC-only
non-GFCI electric outlet. The power
cord of the appliance is equipped
with a three-prong grounding
plug for your protection against
electrical shock hazards. It must
be plugged directly into a properly
grounded three-prong receptacle,
The receptacle must be installed in
accordance with local codes and
ordinances. Consult a qualified
electrician. Do not use an extension
cord or adapter plug.
• If the power cord is damaged,
it should be replaced by the
manufacturer, service technician, or a
qualified person.
Never unplug the appliance by pulling
on the power cord, Always grip the
plug firmly and pull straight out from
the receptacle to prevent damaging
the power cord.
To avoid electrical shock, unplug
the unit before cleaning and before
replacing a light bulb or LED light.
Performance may be affected
if the voltage varies by 10% or
more. Operating the appliance with
insufficient power can damage the
compressor. Such damage is not
covered under your warranty.
Do not plug the unit into an outlet
controlled by a wall switch or pull
cord to prevent the appliance from
being turned off accidentally.
not, under *"_
any circumstances, I
cut, remove, |
or bypass the |
grounding prong.j/
Power cord with
3-P[ong grounded plug

FeotoreOvorviowL :
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Understandingfeaturesandterms iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Your Electrolux appliance is designed for optimal convenience and storage flexibility. The iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
illustration below is provided to assist you with familiarizing yourself with product features iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
andterrninology, iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Adjustable
Two Liter Bins,
So_ Freeze Bin
Retainer
Condiment
Shelf
Baffle
Theater TM
LED Ramp-up
Lighting iii
Mid Level
Baskets .........................................
Theater TM
LED Ramp-up
Lighting
Basket
Bottom Hinge
Toe Grille Light
Switch

Installation _ __
Required Tools
Adi
#2 Square ,I!Y _" .nd
...................................Drive Head "_!_V
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
Socket
Wrench Set
This Use & Care Guide provides general
installationand operating instructions
for your model. We recommend using a
service or kitchen contracting professional
to install your appliance. Use the unit only
as instructed in this Use & Care Guide,
Before starting the appliance, follow
these important first steps.
Location
Choose a place that is near a
grounded, non-GFCI, electrical outlet.
Do Not use an extension cord or an
adapter plug.
*If possible, place the unit out of direct
sunlight and away from the range,
dishwasher, or other heat sources,
The appliance must be installed on a
floor that is level and strong enough
to support a fully loaded unit.
Consider water supply availability for
models equipped with an automatic
ice maker.
Installation
*Allowthe following clearances
for ease of installation, proper
air circulation, and plumbing and
electrical connections:
Sides 3/8" (9.5 ram)
Top &Back 1" (25.4 ram)
Allow for trim kit if it to be installed
with the unit.
1" (25 ram)
Freezer
ii!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!!i;!_ii

Installing Door Handle & Leveling
:::::::::::::::::::::::::::::::::::::::::
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

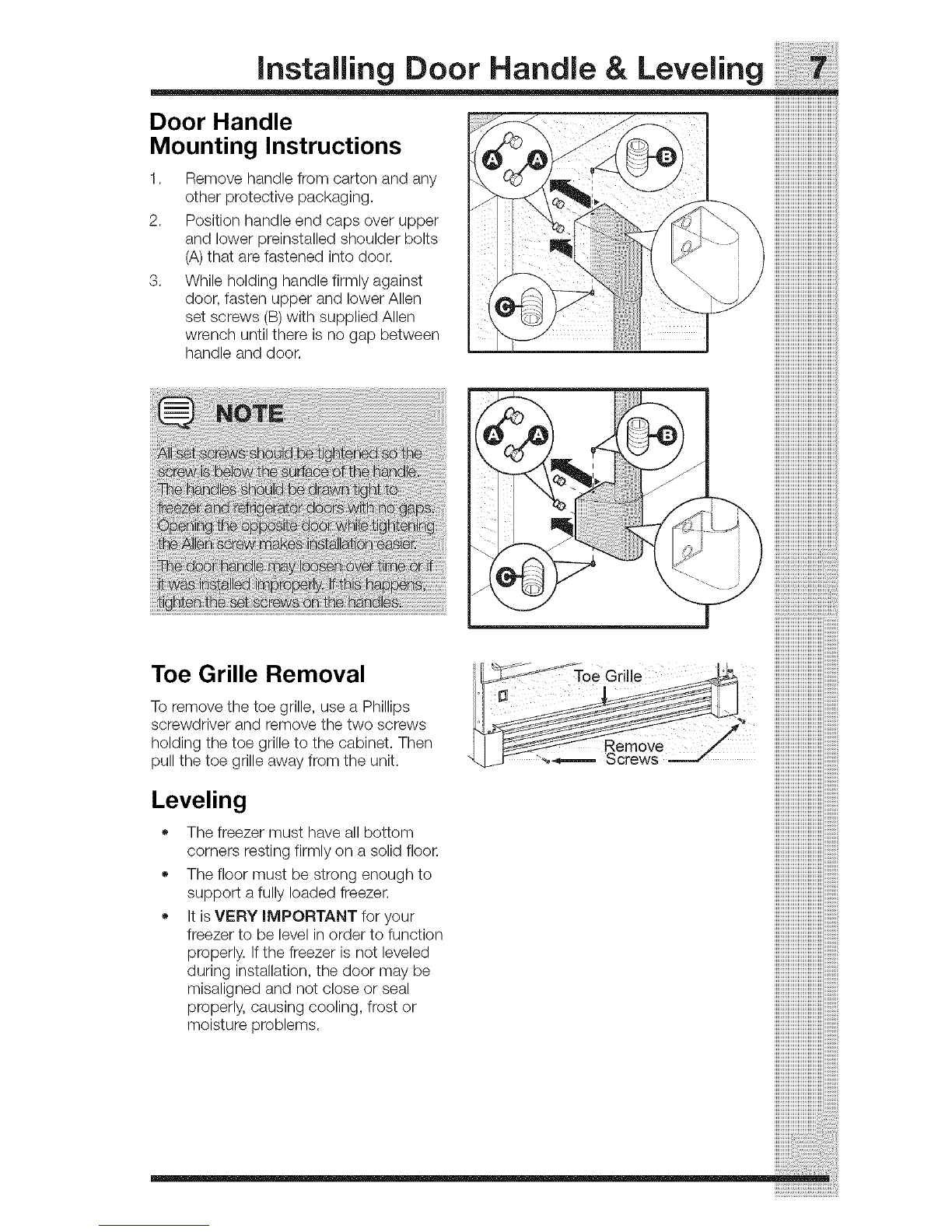

Door Handle
Mounting Instructions iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
1. Remove handle from carton and any
other protective packaging.
2. Position handle end caps over upper
and lower preinstalled shoulder bolts
(A)that are fastened into door.
3. While holding handle firmly against
door, fasten upper and lower Allen
set screws (B) with supplied Allen
wrench until there is no gap between
handle and door.
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
Toe Grille Removal
To remove the toe grille, use a Phillips
screwdriver and remove the two screws
holding the toe grille to the cabinet. Then
pull the toe grille away from the unit.
Leveling
• The freezer must have all bottom
corners resting firmly on a solid floor.
The floor must be strong enough to
support a fully loaded freezer.
It is VERY IMPORTANT for your
freezer to be level in order to function
properly. Ifthe freezer is not leveled
during installation, the door may be
misaligned and not close or seal
properly, causing cooling, frost or
moisture problems.
Grille

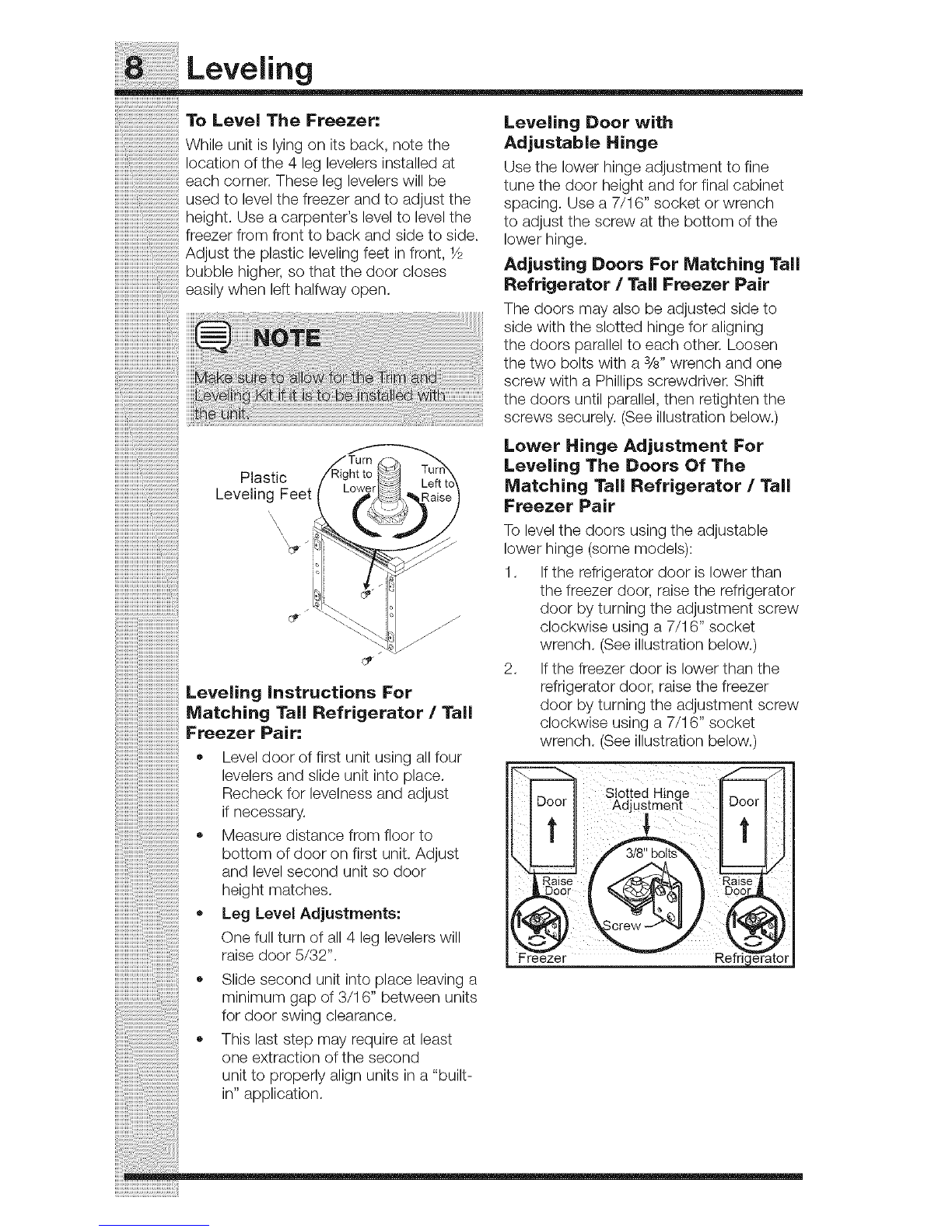

To Level The Freezer:
Whileunitislyingon itsback,notethe
locationofthe4 leglevelersinstalbdat
each corner. These leg levelers will be
iiiiiiiiiiiiiiii!}ii:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i
iiiiiiiiiiiiiiiiiiii!}ii:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i
iiiiiiiiiiiiiiiiiiiiiii!}ii:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i
iiiiiiiiiiiiiiiiiiiiiiiiii!}ii:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i
iii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii:_
iii
used to level the freezer and to adjust the
height. Use a carpenter's level to level the
freezer from front to back and side to side.
Adjust the plastic leveling feet in front, 1/2
bubble higher, so that the door closes
easily when left halfway open.
Plastic! _eft to'_
Leveling'_Feet ii_ e
'i
O_ _
Leveling Instructions For
Matching Tall Refrigerator /Tall
Freezer Pair:
= Level door of first unit using all four
levelers and slide unit into place.
Recheck for levelness and adjust
if necessary.
• Measure distance from floor to
bottom of door on first unit. Adjust
and level second unit so door
height matches.
•Leg Level Adjustments:
One full turn of all 4 leg levelers will
raise door 5/32".
Slide second unit into place leaving a
Leveling Door with
Adjustable Hinge
Use the lower hinge adjustment to fine
tune the door height and for final cabinet
spacing. Use a 7/16" socket or wrench
to adjust the screw at the bottom of the
lower hinge.
Adjusting Doors For Matching Tall
Refrigerator /Tall Freezer Pair
The doors may also be adjusted side to
side with the slotted hinge for aligning
the doors parallel to each other. Loosen
the two bolts with a %" wrench and one
screw with a Phillips screwdriver. Shift
the doors until parallel, then retighten the
screws securely. (See illustration below.)
Lower Hinge Adjustment For
Leveling The Doors Of The
Matching Tall Refrigerator /Tall
Freezer Pair
To level the doors using the adjustable
lower hinge (some models):
1. Ifthe refrigerator door is lower than
the freezer door, raise the refrigerator
door by turning the adjustment screw
clockwise using a 7/16" socket
wrench. (See illustration below.)
2. Ifthe freezer door is lower than the
refrigerator door, raise the freezer
door by turning the adjustment screw
clockwise using a 7/16" socket
wrench. (See illustration below.)
S!otted Hinge ir_! _ I
Adjustmen! ui_r
ii!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!£i;!iii

Door Removal & Temperature Control
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
Door Removal iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
,fdoormustberemoved: iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
• Unplug the unit or switch the breaker Hinge
that supplies power to the unit to the
off position.
Remove the plastic top hinge cover.
Hold the door in place while removing
the top hinge from the cabinet.
• Remove the two 3/8"hex head bolts
from the top hinge with a 3/8"wrench
or socket.
Hinge Bolts (2) .._._
Hinge Plate
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii;i_
'_ iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
Lift the door upwards and pull up
and away from the cabinet until free
of the bottom hinge pin mounted on
the front of the cabinet.
To replace the door, reverse the above
procedures and securely tighten all
screws to prevent hinge slippage.
Setting The Custom Set TM Electronic Control
COOL DOWN PERIOD
For safe food storage, allow 4 hours for the appliance to cool down completely. The unit
will run continuously for the first several hours.
CUSTOM SET TM ELECTRONIC CONTROL
The Custom Set TM Electronic Control is located inside the appliance. Temperature is
factory preset to provide satisfactory food storage temperatures. However, the temperature
control is adjustable to provide a range of temperatures for your personal satisfaction.
I __ITM I ._.,_._._._,,.,__ _:-__,_'_,__.'_,_,
TOadjust the temperature setting, press the UP (+)key for warmer temperature and DOWN
(-) key for colder temperature on the control panel. Allow several hours for the temperature
to stabilize between adjustments. The unit can be adjusted between -10°F (-23°C) and
10°F (-12°C).. By pressing the TEMP MODE key, the temperature display will toggle
between °F to °C.
To turn the appliance OFF, press the UP (+)key until the warmest temperature setting of
10°F (-12°C). show in the display. Then press the UP (+) key 3 times within 3 seconds to
turn the unit OFR The display will then scroll "OFF" across the display. To turn the unit back
ON, press the DOWN key 3 times within 3 seconds. The control will then display "10°F
(-12°C).)'' and may be adjusted to the desired temperature.

uuuuuuuuuuuuuuuuuuuuuu_
Custom Set TMElectronic Control Features
Replace F.ter
When the "REPLACE AIR FILTER" LED is illuminatedyellow, the air filter needs to be
replaced. The control will signal for air filter replacement after 3600 hours of operation.
After replacing the air filter, reset the air filter timer by pressing the AIR FILTER key for
3 seconds. The "REPLACE AIR FILTER" LED will be illuminated green for 3 seconds,
confirming a timer reset.
iiiiiiiiii!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiii!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiii!iiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiii!iiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiii!iiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiii!iiiiiiiiiiiiiiiiii
iii
uuuuuuuuuuuuuuuuu__
uuuuuuuuuuuuuuuuuu_
uuuuuuuuuuuuuuuuuu__
uuuuuuuuuuuuuuuuuuu_
uuuuuuuuuuuuuuuuuuu__
uuuuuuuuuuuuuuuuuuu,_
uuuuuuuuuuuuuuuuuuuu__
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii;
[{ E/ec{;ro/ux _c ®NLi *'
Control Lock
To disable the keypads on the control, begin by pressing the CONTROL LOCK key for
,,,,,,,,,,,,,.......................................................3 seconds until "LO" is displayed for 1 second. With the control locked, when keys are
pressed on the control panel, "LO" will be displayed. To unlockthe control, pressthe
CONTROL LOCK keglerS seconds. The display will show "UL" for 1 second.
''0 .........................................
Power Fail
The POWER FAIL indicator lightinforms you that due to a power failure the cabinet
temperature exceeded 23°F (-5°C). If the power failure lasted more than 1 hour the
display alternates between showing the power failure duration (Hours and DURATION
LED illuminate in the display) and the cabinet temperature (°For °C illuminates) every 1/p
second. This safety feature will aid in determining what food spoilage action to take.
The Power Fail indicator light and duration display can be turned off by pressing the
Alarm Off Key.
[;_]J_i[ectrebN ICON
Alarms
There are 4 possible conditions that will cause the alarm tone to sound.
High Temp Alarm
If the temperature inside the cabinet exceeds 23°F (-5°C), the HIGH TEMP LED
will illuminate, and after 1 hour, the HIGH TEMP Alarm will sound and the cabinet
temperature is shown in the display. The LED and temperature alarm will remain active
until the cabinet temperature is below 23°F (-5°C).
The audible alarm can be turned off by pressing ALARM OFF key.
)

Alarms &Sabbath Mode
L ........
Door Ajar Alarm
This alarm will sound to alert you that the door has been open for 5 minutes or more. The ............................
DOOR AJAR LED will illuminateand the audible alarm will sound until the door isclosed.
The audible alarm can be tumed off by pressing the ALARM OFF key or by closing the
door. If the door isajar for 35 minutes, the interiorlightwill turn off.
Temp Sensing Error Alarm
The sensor alarm signals you that a problem exists with a temperature sensor. The
audible alarm will sound after 1 hour and the display will alternate between "E8" or "E9"
and -10_'F (-23°C) at 1/_second intervals.The control will then enter a mode that runs the
appliance in a manner that maintains the factory set cabinet temperature.
The audible alarm can be turned off by pressing the ALARM OFF key.
Stuck Key Alarm ;;;;;;;;;;;;;;;;;;
The stuck key alarm will sound if the control reads a keypress for longer than 30 ;;;;;;;;;;;;;;;;
seconds. The audible alarm will sound and will be limited to 1minuteoand will stop
1
automatically. The display will alternate between "E7" and -10 F (-23 C) at b second
intervals. The control will then enter a mode that runs the unit in a manner that maintains .....
the factory set cabinet temperature until the condition is resolved.
The audible alarm can be turned off by pressing the ALARM OFF key.
Sabbath Mode
The Sabbath Mode is a feature that disables portions of the appliance and its controls in
accordance with the observance of the weekly Sabbath and religious holidays within the
Orthodox Jewish community.
To initiate or cancel Sabbath Mode, press the CONTROL LOCK and TEMP MODE keys
at the same time and hold for 3 seconds. The display will now show "Sb" and the confi
rmation tone will sound. When AC power is cycled while the control is in Sabbath mode,
the control enters into Sabbath mode automatically. "Sb" will again be displayed. While in
Sabbath Mode, the display will show "Sb" for one second if any key is pressed.
Inthe interest of food safety, only the HIGH TEMP Alarm remains active and takes
precedence over other Sabbath Mode features.
._For assistance, guidelines proper usage a complete
further for and list of models
with the Sabbath feature, please visit the web at http:\\www.star-k.org.
[ sb. ...................
I :.... ..................
/,_:,\

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Pure Advantage TM Air
Filter
Your new Pure Advantage TM air filter is
........................................................located inside one of the 2-Liter Door
..................................................Bins, The air filter cover is located on
..........................................the upper right side of the control box,
In general, you should change the air
filter with Part Number "EAFCBF" every
6 months to ensure optimal filtering of
freezer odors. The replacement air filter
, can be purchased on the Electrolux ICON
, website (http://www.electroluxicon.com)
!!!!!!!!!!!!!!!!!!!!! or call toll free in the U,S, and Canada:
1-877-4ELEOTROLUX (1-877-435-3287).
........................................................................Your electronic control is equipped with a
ii! ..................................................................Change Filter Indicator to remind you to
change your filter, See "Replace Air Filter",iiiii!
To Install Or Replace The Air
Filter
Pull down on the front of the Pure
Advantage TM air filter cover. This
releases the hinged bottom cover to
drop open.
Remove the old filter and discard it.
Unpackage the new filter and place it
inside the hinged bottom cover of the
housing.
Push the hinged bottom cover
upward until the tab snaps into
closed position.
Open air filter cover
Theater TM LED Lighting
The interior cabinet lighting features LED
lights that gradually ramp up in intensity
after the door is opened.
To replace an LED:
1, Unplug the electrical cord or switch
OFF the power supply breaker.
2, Push down on the LED cover and then
pull away from the cabinet interior.
3, From the inside of the LED cover,
remove the wire harness connector
by pressing on the latch with a small
flat-bladed screwdriver. Pull the wire
harness connector out of the LED.
4, Replace with a new LED and install in
the reverse order,
Remove air filter

s.pply
Before installing The Water Supply Line, You Will Need:
= Basic Tools: adjustable wrench, flat-blade screwdriver, and Phillips screwdriver
= Access to a household cold water line with water pressure between 30 and 100 psi.
• A water supply line made of 1Ainch (6.4 mm) OD, copper or stainless steel tubing. To
determine the length of tubing needed, measure the distance from the ice maker inlet
valve at the back of the freezer to your cold water pipe. Then add approximately 7
feet (2.1 meters), so the freezer can be moved out for cleaning (asshown).
A shutoff valve to connect the water supply line to your household water system.
DO NOT use a self-piercing type shutoff valve.
A compression nut and ferrule (sleeve) for connecting a copper water supply line to
the ice maker inlet valve.

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiil
2.
3.
4.
power source.
Place end of water supply line into
sink or bucket. Turn ON water supply
and flush supply line until water
is clear. Turn OFF water supply at
shutoff valve.
Remove plastic cap from water valve
inlet and discard cap.
if you use copper tubing - Slide
brass compression nut, then ferrule
(sleeve) onto water supply line. Push
water supply line into water valve inlet
as far as it will go (1/4"/6.4 mm). Slide
ferrule (sleeve) into valve inlet and
finger tighten compression nut onto
valve. Tighten another half turn with
a wrench; DO NOT overtighten. See
Figure 1.
if you use stainless steel tubing
- The nut and ferrule are already
assembled on the tubing. Slide
compression nut onto valve inlet and
finger tighten compression nut onto
valve. Tighten another half turn with
freezer as shown and arrange coils
so they do not vibrate or wear
against any other surface.
Turn ON water supply at shutoff valve
and tighten any connections that leak.
Reconnect freezer to electrical
power source.
To turn ice maker on, lower wire
signal arm (side mounted) or set the
ice maker's On/Off power switch to
the "l" position (rear mounted).
_lastic Water Tubing
Ice Maker Clamp
Compression
Nut
_le
(Sleeve)
water line
Water Valve
Bracket
inlet
Water Valve
Copper water line
from household
water supply
include enough tubing in loop to
al ow moving refrigerator out
for cleaning)
Figure 1
Plastic Water Tubing
to Ice Maker
Fill Tube Steel
Clamp
_--- Stainless
Steel
water Line
-Water Valve
/_ Bracket
///_ _ Valve inlet
- WaterValve
///6 ft. Stainless Steel water line
f from household water supply
ii!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!!i;!_ii

__ __ ,ooso,v,oo

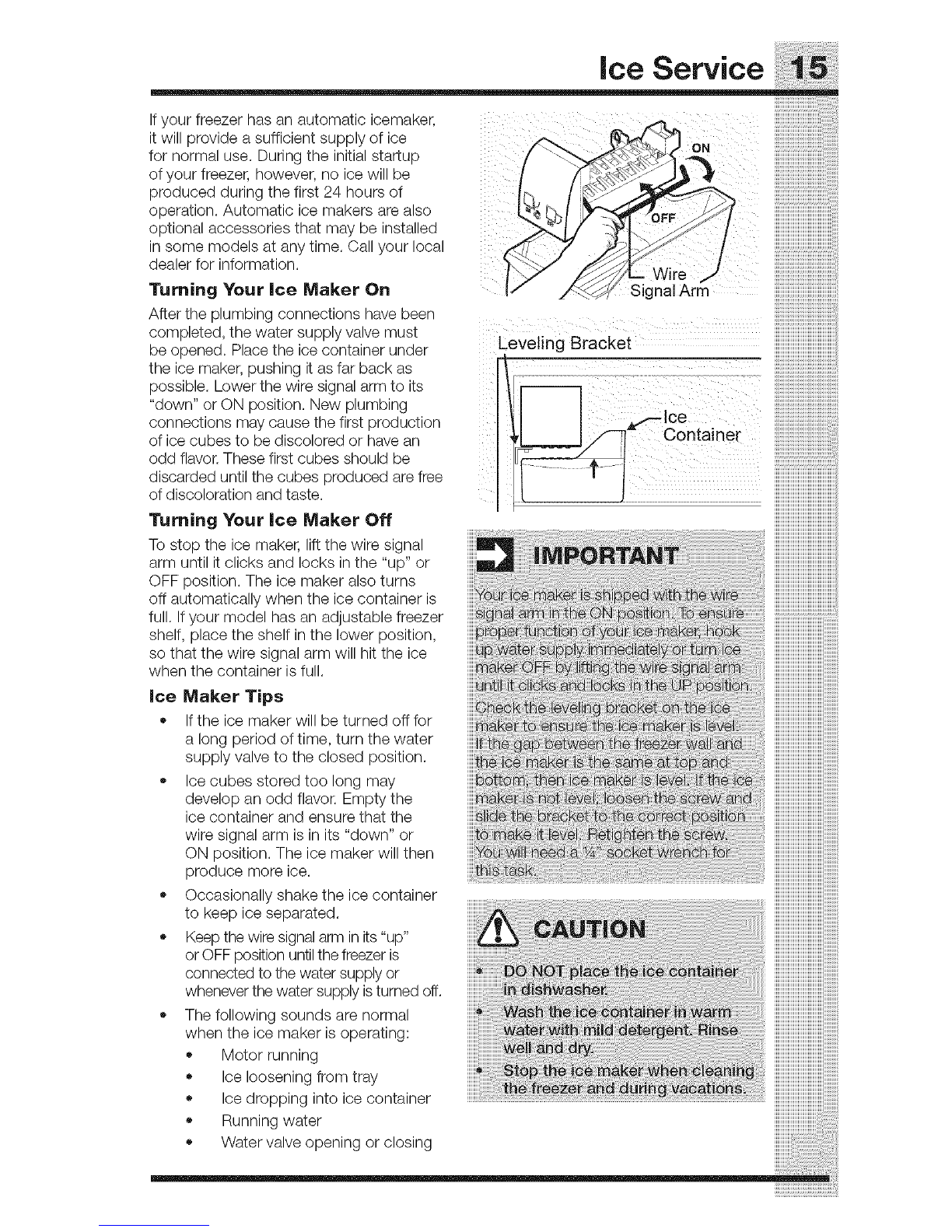

Ifyour freezer has an automatic icemaker,
it will provide a sufficient supply of ice
for normal use. During the initial star[up
of your freezer, however, no ice will be
produced during the first 24 hours of
operation. Automatic ice makers are also
optional accessories that may be installed
in some models at any time. Call your local
dealer for information.
Turning Your Ice Maker On
After the plumbing connections have been
completed, the water supply valve must
be opened. Place the ice container under
the ice maker, pushing it as far back as
possible. Lower the wire signal arm to its
"down" or ON position. New plumbing
connections may cause the first production
of ice cubes to be discolored or have an
odd flavor. These first cubes should be
discarded until the cubes produced are free
of discoloration and taste.
!/ f._._ Signal Arm
Leveling Bracket
Turning Your ice Maker Off
To stop the ice maker, lift the wire signal
arm until it clicks and locks in the "up" or
OFF position. The ice maker also turns
off automatically when the ice container is
full. Ifyour model has an adjustable freezer
shelf, place the shelf in the lower position,
so that the wire signal arm will hit the ice
when the container is full.
Ice Maker Tips
=Ifthe ice maker will be turned off for
a long period of time, turn the water
supply valve to the closed position.
• Ice cubes stored too long may
develop an odd flavor. Empty the
ice container and ensure that the
wire signal arm is in its "down" or
ON position. The ice maker will then
produce more ice.
• Occasionally shake the ice container
to keep ice separated.
Keep the wire signal arm in its "up"
or OFF position untilthe freezer is
connected to the water supply or
whenever the water supply isturned off.
• The following sounds are normal
when the ice maker is operating:
Motor running
Ice loosening from tray
Ice dropping into ice container
Running water
Water valve opening or closing

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_i!_!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_i!_!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
' iii.
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

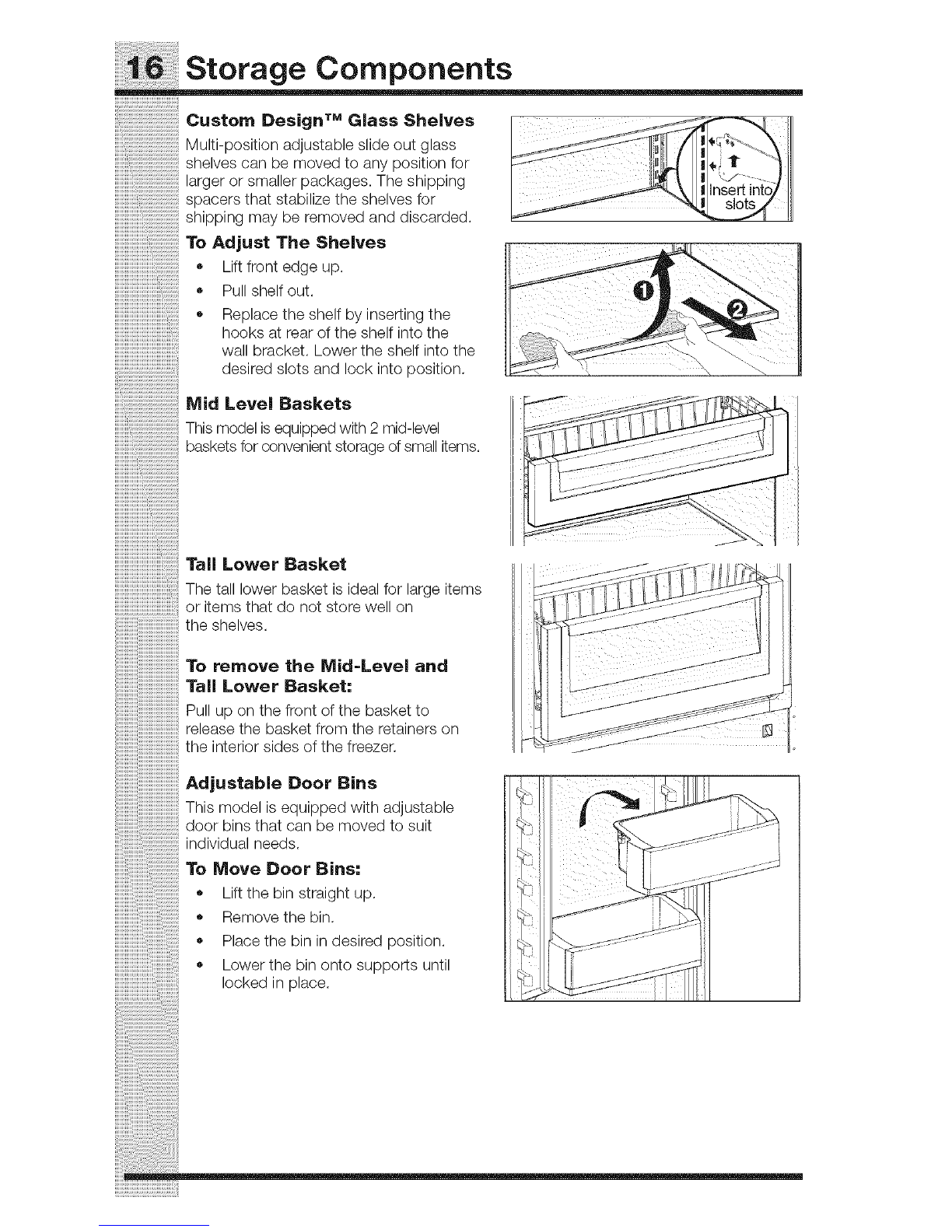

Custom Design TM Glass Shelves
Multi-positionadjustableslideoutglass
shelves can be moved to any position for
............................................................................larger or smaller packages. The shipping
P
,,,,,,,,,,,,,,,,........................................................s acers that stabilize the shelves for
shipping may be removed and discarded.
To Adjust The Shelves
Lift front edge up.
Pull shelf out.
Replace the shelf by inserting the
hooks at rear of the shelf into the
wall bracket. Lower the shelf into the
desired slots and lock into position.
Mid Level Baskets
This model is equipped with 2 mid-level
baskets for convenient storage ofsmall items.
Tall Lower Basket
The tall lower basket is ideal for large items
.........................................or items that do not store well on
the shelves.
To remove the Mid-Level and
Tall Lower Basket:
Pull up on the front of the basket to
release the basket from the retainers on
the interior sides of the freezer.
Adjustable Door Bins
This model is equipped with adjustable
door bins that can be moved to suit
individual needs.
To Move Door Bins:
• Lift the bin straight up.
Remove the bin.
Place the bin in desired position.
Lower the bin onto supports until
locked in place.
%

Storage Components & Energy=Saving Tips
Soft Freeze Tilt-Out Bin
The soft freeze tilt out bin isdesigned to
be warmer than the freezer compartment.
It is ideal for keeping ice cream and frozen
yogurtreadytosere.
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii;_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_i
Condiment Shelf II
The condiment shelf is designed to hold small
items to help keep your freezerorganized.
Energy-Saving Tips
• Locate the unit in the coolest part of ..................
the room, out of direct sunlight, and ............
away from heating ducts or registers.
Do not place the unit next to heat-
producing appliances such as a
range, oven, or dishwasher. Ifthis is
not possible, a section of cabinetry or
an added layer of insulation between
the two appliances will help the unit
operate more efficiently.
Level the appliance so that the door
closes tightly.
Refer to the "SETTING THE
TEMPERATURE CONTROL" section
for the suggested temperature
control settings.
Do not overcrowd the unit or block cold air vents. Doing so causes the appliance to
run longer and use more energy.
Cover foods and wipe containers dry before placing them in the unit. This cuts
down on moisture build-up inside the unit.
Organize the appliance to reduce door openings. Remove as many items as
needed at one time and close the door as soon as possible.

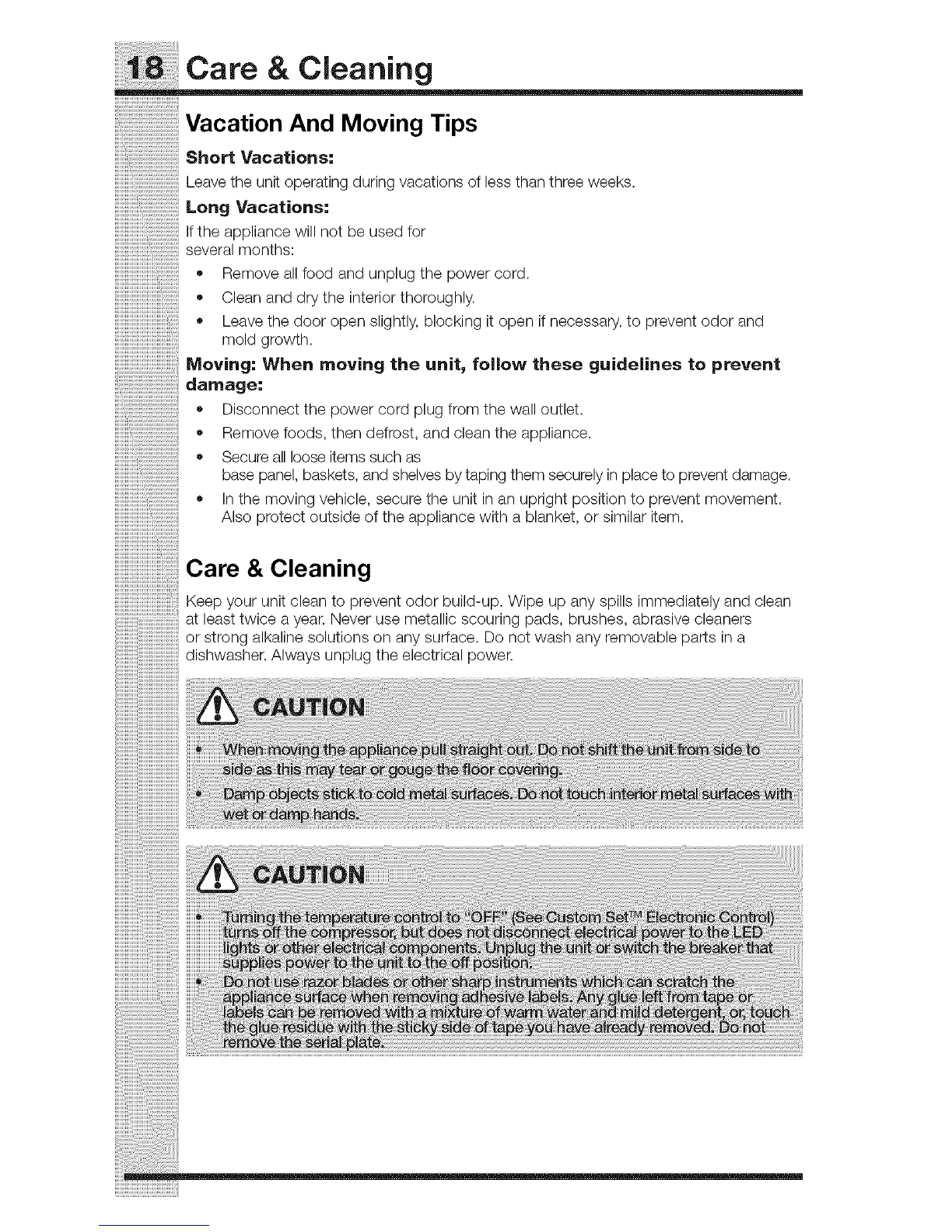

Vacation And Moving Tips
ShortVacations:
Leavetl_eunitoperatingduringvacationsoflesstl_anthreeweeks.
LongVacations:
If the appliance will not be used for
several months:
....................Removeallfoodandunplugthepowercord.
• Clean and dry the interior thoroughly.
• Leave the dooropen slightly, blocking it open if necessary, to prevent odorand
mold growth.
Moving: When moving the unit, follow these guidelines to prevent
damage:
= Disconnect the power cord plug from the wall outlet.
• Remove foods, then defrost, and clean the appliance.
Secure all loose items such as
basepanel, baskets, andshelvesbytapingthemsecurelyinplacetopreventdamage.
In the moving vehicle, secure the unit in an upright position to prevent movement.
..............................Also protect outside of the appliance with a blanket, or similar item.

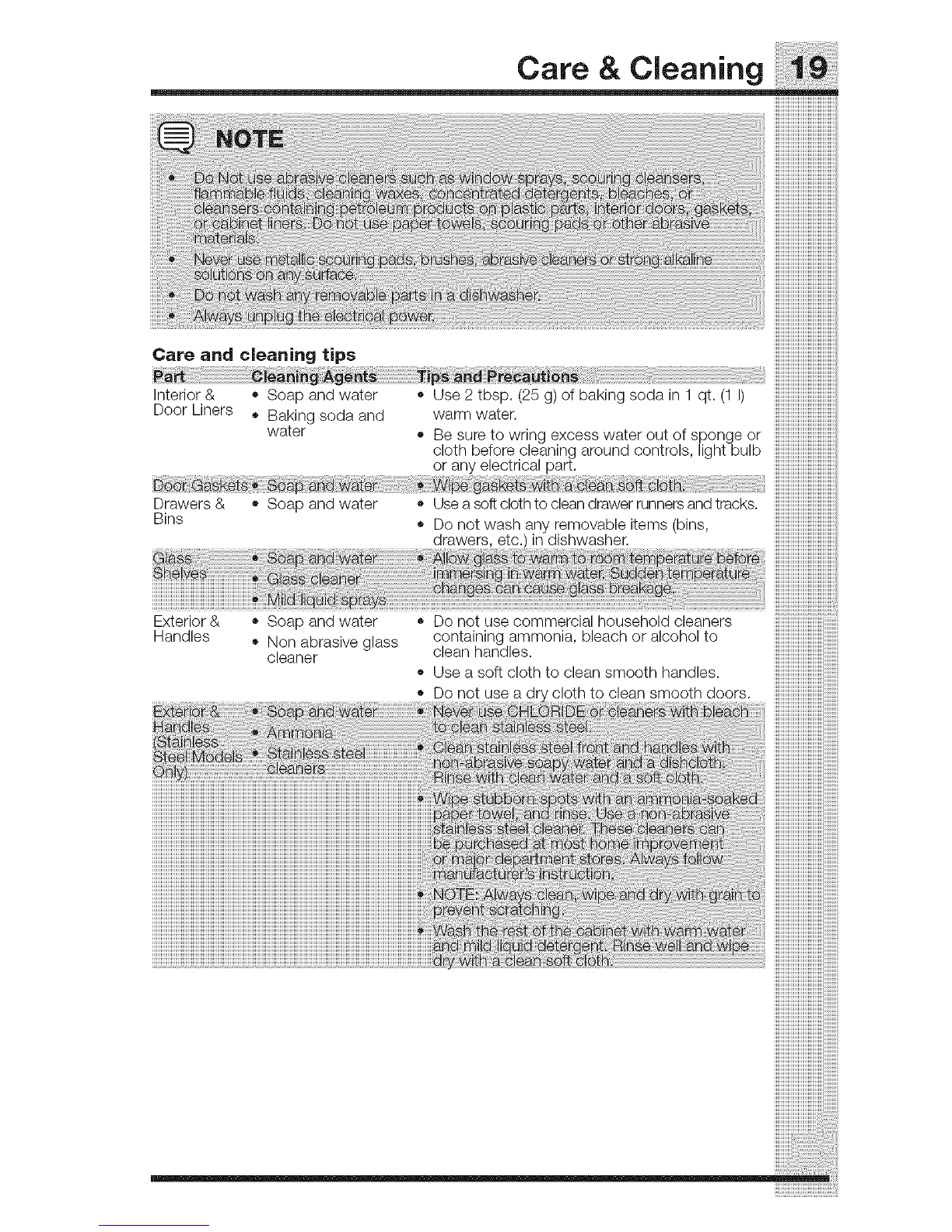

Care & Cleaning
.........................................Keep your unit clean to prevent odor build-up. Wipe up any spills immediately and clean
at least twice a year Never use metallic scouring pads, brushes, abrasive cleaners
or strong alkaline solutions on any surface. Do not wash any removable parts in a
dishwasher. Always unplug the electrical power

Interior& • Soapandwater
DoorLiners• Bakingsodaand
water Use2tbsp.(25g)ofbakingsodain1qt.(1I)
warmwater.
*Be sure to wring excess water out of sponge or
Bins
Exterior & • Soap and water
Handles • Non abrasive glass
cleaner
• Do not wash any removable items (bins,
drawers etc in dishwasher.
• Do not use commercial household cleaners
containing ammonia, bleach or alcohol to
clean handles.
• Use a soft cloth to clean smooth handles.
• Do not use cloth to clean smooth doors.

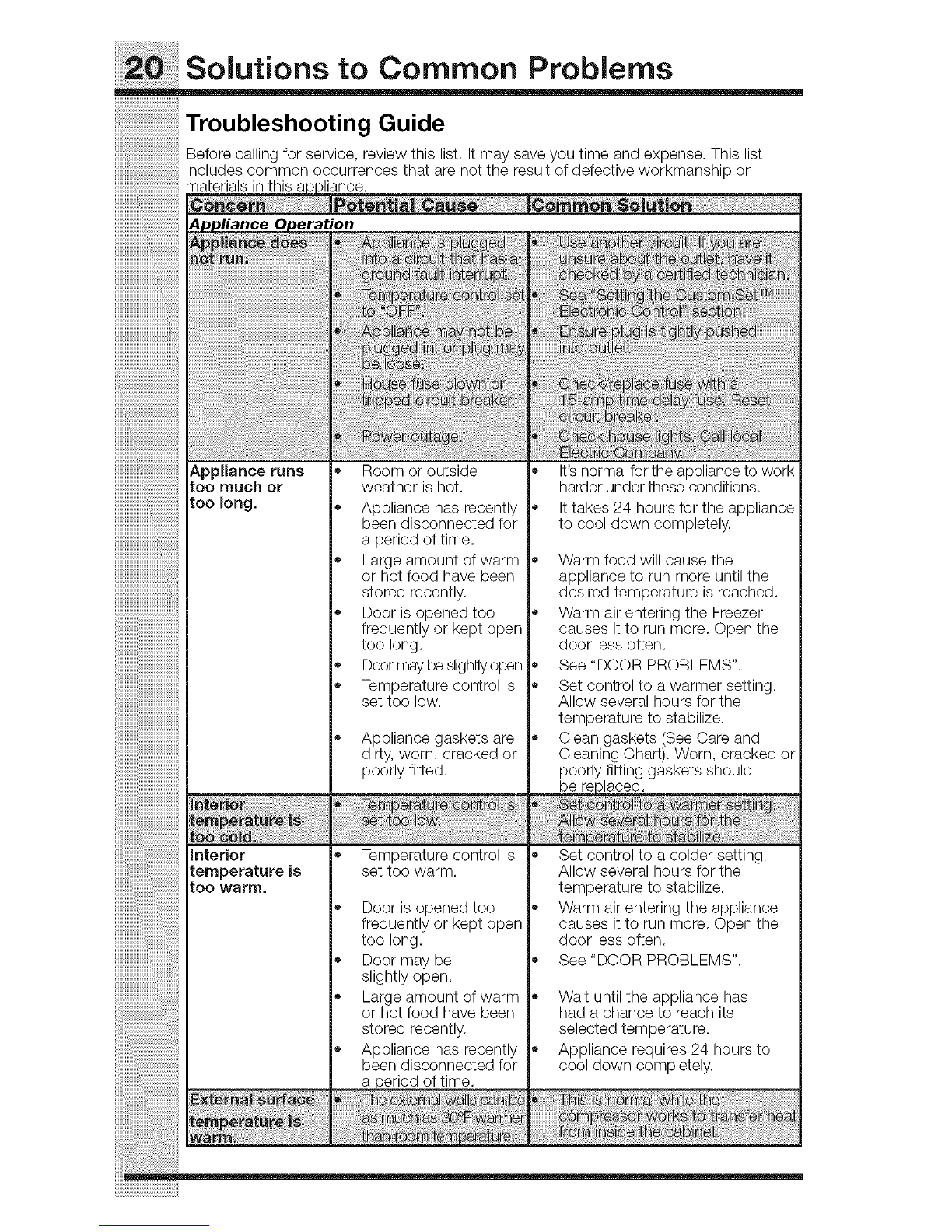

Solutions to Common Problems
Troubleshooting Guide
Before calling for service, review this list. It may save you time and expense. This list
includes common occurrences that are not the result of defective workmanship or
materials in this
A liance 0 eration
ot_
Appliance runs •
too much or
too long.
interior
temperature is
too warm.
Room or outside
weather is hot.
Appliance has recently
been disconnected for
a period of time.
• Large amount of warm
or hot food have been
stored recently.
• Door is opened too
frequently or kept open
too long.
• Door may be slightlyopen
• Temperature control is
set too low.
Appliance gaskets are
dirty, worn, cracked or
poorly fitted.
Temperature control is
set too warm.
• Door is opened too
frequently or kept open
too long.
• Door may be
slightly open.
• Large amount of warm
or hot food have been
stored recently.
• Appliance has recently
been disconnected for
a period of time.
It's normal for the appliance to work
harder under these conditions.
It takes 24 hours for the appliance
to cool down completely.
Warm food will cause the
appliance to run more until the
desired temperature is reached.
Warm air entering the Freezer
causes it to run more. Open the
door less often.
• See "DOOR PROBLEMS".
Set control to a warmer setting.
Allow several hours for the
temperature to stabilize.
• Clean gaskets (See Care and
Cleaning Chart). Worn, cracked or
poorly fitting gaskets should
be replaced.
• Set control to a colder setting.
Allow several hours for the
temperature to stabilize.
Warm air entering the appliance
causes it to run more. Open the
door less often.
• See "DOOR PROBLEMS".
• Wait until the appliance has
had a chance to reach its
selected temperature.
Appliance requires 24 hours to
cool down completely.
