Electrolux ERU0943FOV User manual

ERU0943FOV
EN Freezer User Manual

CONTENTS
1. SAFETY INFORMATION....................................................................................2
2. SAFETY INSTRUCTIONS..................................................................................4
3. OPERATION.......................................................................................................6
4. DAILY USE......................................................................................................... 7
5. HINTS AND TIPS............................................................................................... 8
6. CARE AND CLEANING......................................................................................8
7. TROUBLESHOOTING......................................................................................10
8. INSTALLATION................................................................................................ 12
9. TECHNICAL DATA...........................................................................................13
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the
result of incorrect installation or usage. Always keep the
www.electrolux.com2

instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•This appliance may be used by children between 3
and 8 years of age and persons with very extensive
and complex disabilities, if they have been properly
instructed.
•Children of less than 3 years of age should be kept
away unless continuously supervised.
•Do not let children play with the appliance.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
•Keep all packaging away from children and dispose of
it appropriately.
1.2 General Safety
•This appliance is intended to be used in household
and similar applications such as:
–Farm houses; staff kitchen areas in shops, offices
and other working environments
–By clients in hotels, motels, bed and breakfast and
other residential type environments
•Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
•Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
•Do not damage the refrigerant circuit.
ENGLISH 3

•Do not use electrical appliances inside the food
storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
•Do not use water spray and steam to clean the
appliance.
•Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
•Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging and the
transit bolts.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Make sure the air can circulate
around the appliance.
• At first installation or after reversing
the door wait at least 4 hours before
connecting the appliance to the power
supply. This is to allow the oil to flow
back in the compressor.
• Before carrying out any operations on
the appliance (e.g. reversing the
door), remove the plug from the
power socket.
• Do not install the appliance close to
radiators or cookers, ovens or hobs.
• Do not install the appliance where
there is direct sunlight.
• Do not install this appliance in areas
that are too humid or too cold.
• When you move the appliance, lift it
by the front edge to avoid scratching
the floor.
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the electrical components (e.g. mains
plug, mains cable, compressor).
Contact the Authorised Service
Centre or an electrician to change the
electrical components.
• The mains cable must stay below the
level of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
www.electrolux.com4

• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
2.3 Use
WARNING!
Risk of injury, burns, electric
shock or fire.
• Do not change the specification of this
appliance.
• Do not put electrical appliances (e.g.
ice cream makers) in the appliance
unless they are stated applicable by
the manufacturer.
• Be careful not to cause damage to the
refrigerant circuit. It contains
isobutane (R600a), a natural gas with
a high level of environmental
compatibility. This gas is flammable.
• If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
• Do not let hot items to touch the
plastic parts of the appliance.
• Do not put soft drinks in the freezer
compartment. This will create
pressure on the drink container.
• Do not store flammable gas and liquid
in the appliance.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
• Do not remove or touch items from
the freezer compartment if your hands
are wet or damp.
• Do not freeze again food that has
been thawed.
• Obey the storage instructions on the
packaging of frozen food.
2.4 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• This appliance contains hydrocarbons
in the cooling unit. Only a qualified
person must do the maintenance and
the recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the
appliance.
2.5 Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children
and pets to be closed inside of the
appliance.
• The refrigerant circuit and the
insulation materials of this appliance
are ozone-friendly.
• The insulation foam contains
flammable gas. Contact your
municipal authority for information on
how to discard the appliance
correctly.
• Do not cause damage to the part of
the cooling unit that is near the heat
exchanger.
ENGLISH 5

3. OPERATION
3.1 Control panel

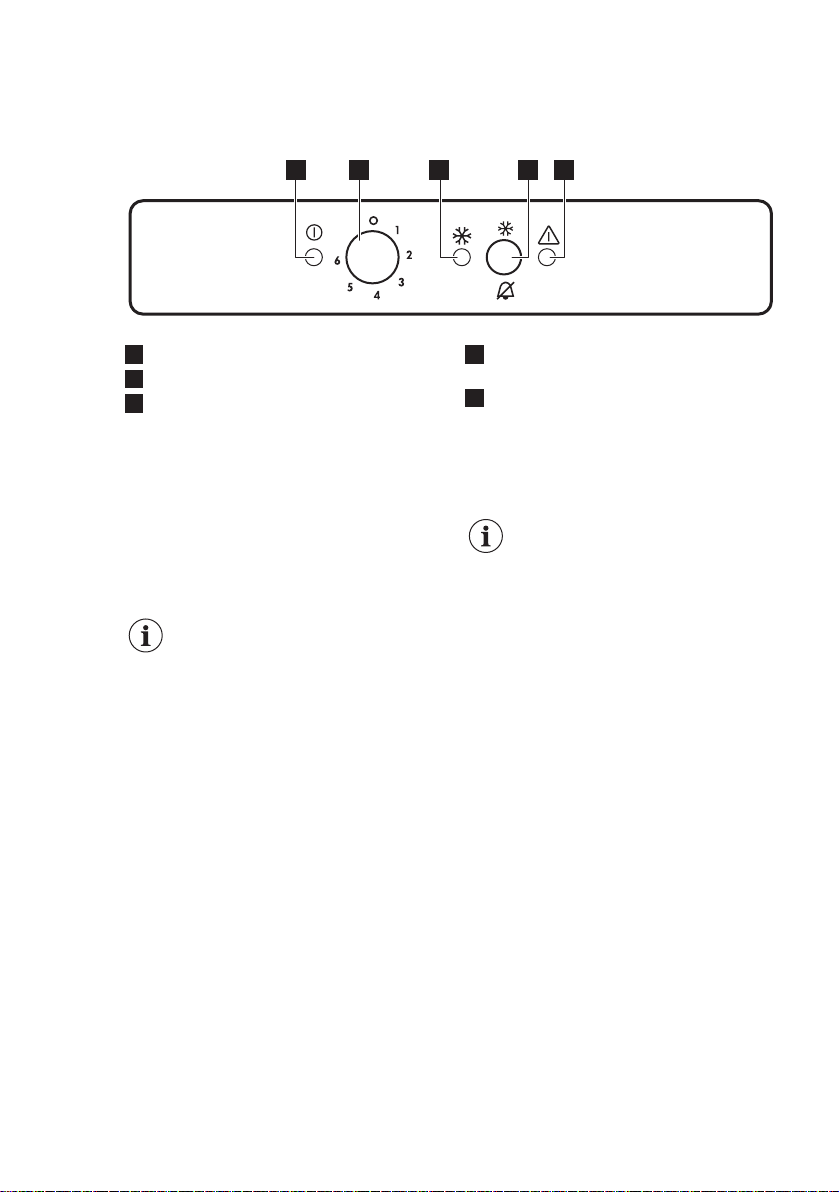

1 2 3 4 5
1Power indicator light
2Temperature regulator
3FastFreeze light
4FastFreeze switch and alarm reset
switch
5Alarm light
3.2 Switching on
Connect the appliance to the main power
supply.
1. Turn the Temperature regulator
clockwise to a medium setting.
The power indicator light will light up and
a sound will signal for 2 seconds.
If the temperature inside the
appliance is too high, the
Alarm light will blink and the
sound signal alarm will turn
on.
2. Push the FastFreeze switch and the
sound signal alarm will get off.
3. Push the FastFreeze switch once
again and the FastFreeze light will
light up. The appliance will start to
operate.
3.3 Switching off
Turn the Temperature regulator to the
"O" position and a sound is on only for 2
seconds .
The power indicator light will switch off.
3.4 Temperature regulation
The temperature is regulated
automatically.
1. Turn the Temperature regulator
toward lower settings to obtain the
minimum coldness.
2. Turn the Temperature regulator
toward higher settings to obtain the
maximum coldness.
A medium setting is
generally the most suitable.
However, the exact setting
should be chosen keeping in
mind that the temperature
inside the appliance
depends on:
• room temperature,
• how often the door is
opened,
• the quantity of food
stored,
• the location of the
appliance.
3.5 FastFreeze function
The FastFreeze function accelerates the
freezing of fresh food and, at the same
time, protects foodstuffs already stored
from undesirable warming.
To activate this function press the
FastFreeze button.
The FastFreeze indicator appears.
This function stops automatically after 52
hours.
You can deactivate the FastFreeze
function before its automatic end by
pressing the FastFreeze button again.
The FastFreeze indicator will turn off.
www.electrolux.com6

The function switches off by
selecting a different set
temperature.
3.6 Door open alarm
An acoustic alarm will sound when the
door is left open for around 80 seconds.
When normal conditions are restored
(door closed), the acoustic alarm will
stop.
In any case, press the Alarm reset switch
to deactivate the acoustic alarm.
3.7 High temperature alarm
An acoustic alarm will sound when the
temperature inside the freezer has risen
to a point where the safe storage of
frozen food is no longer ensured.
When normal conditions are restored,
the acoustic alarm will stop.
In any case, press the Alarm
Reset Switch to deactivate
the acoustic alarm.
4. DAILY USE
WARNING!
Refer to Safety chapters.
4.1 Freezing fresh food
The freezer compartment is suitable for
freezing fresh food and storing frozen
and deep-frozen food for a long time.
To freeze fresh food activate the
FastFreeze function and place the food
to be frozen in the freezer compartment.
Place the fresh food to be frozen in the
bottom compartment.
The maximum amount of food that can
be frozen in 24 hours is specified on the
rating plate, a label located on the
inside of the appliance.
The freezing process lasts 24 hours:
during this period do not add other food
to be frozen.
When the freezing process is completed,
return to the required temperature (see
"FastFreeze Function").
4.2 Storage of frozen food
When first starting-up or after a period
out of use, before putting the products in
the compartment let the appliance run at
least 2 hours with the FastFreeze
function turned on.
In the event of accidental
defrosting, for example due
to a power failure, if the
power has been off for
longer that the value shown
in the technical data chart
under "Rising time", the
defrosted food must be
consumed quickly or cooked
immediately and then re-
frozen (after cooling).
4.3 Thawing
Deep-frozen or frozen food, prior to
being used, can be thawed in the
refrigerator compartment or at room
temperature, depending on the time
available for this operation.
Small pieces may even be cooked still
frozen, directly from the freezer: in this
case, cooking will take longer.
4.4 Cold accumulators
The freezer contains at least one cold
accumulator which increases storage
time in the event of a power cut or
breakdown.
This shall be placed on top of the frozen
food in the front part.
ENGLISH 7

5. HINTS AND TIPS
5.1 Normal operating sounds
The following sounds are normal during
operation:
• A faint gurgling and bubbling sound
from coils sound when refrigerant is
pumped.
• A whirring and pulsating sound from
the compressor when refrigerant is
pumped.
• A sudden cracking noise from inside
appliance caused by thermic dilatation
(a natural and not dangerous physical
phenomenon).
• A faint click noise from the
temperature regulator when the
compressor switches on or off.
5.2 Hints for energy saving
• Do not open the door frequently or
leave it open longer than absolutely
necessary.
• Do not remove the cold accumulators
from the freezer basket.
5.3 Hints for freezing
To help you make the most of the
freezing process, here are some
important hints:
• the maximum quantity of food which
can be frozen in 24 hours is shown on
the rating plate;
• the freezing process takes 24 hours
no further food to be frozen should be
added during this period;
• freeze only top quality, fresh and
thoroughly cleaned, foodstuffs;
• prepare food in small portions to
enable it to be rapidly and completely
frozen and to make it possible
subsequently to thaw only the quantity
required;
• wrap up the food in aluminium foil or
polythene and make sure that the
packages are airtight;
• do not allow fresh, unfrozen food to
touch food which is already frozen,
thus avoiding a rise in temperature of
the latter;
• lean foods store better and longer
than fatty ones; salt reduces the
storage life of food;
• water ices, if consumed immediately
after removal from the freezer
compartment, can possibly cause the
skin to be freeze burnt;
• it is advisable to show the freezing in
date on each individual pack to
enable you to keep tab of the storage
time.
5.4 Hints for storage of frozen
food
To obtain the best performance from this
appliance, you should:
• make sure that the commercially
frozen foodstuffs were adequately
stored by the retailer;
• be sure that frozen foodstuffs are
transferred from the foodstore to the
freezer in the shortest possible time;
• not open the door frequently or leave
it open longer than absolutely
necessary;
• once defrosted, food deteriorates
rapidly and cannot be refrozen;
• do not exceed the storage period
indicated by the food manufacturer.
6. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
6.1 General warnings
CAUTION!
Unplug the appliance before
carrying out any
maintenance operation.
www.electrolux.com8

This appliance contains
hydrocarbons in its cooling
unit; maintenance and
recharging must therefore
only be carried out by
authorized technicians.
The accessories and parts of
the appliance are not
suitable for washing in a
dishwasher.
6.2 Cleaning the interior
Before using the appliance for the first
time, the interior and all internal
accessories should be washed with
lukewarm water and some neutral soap
to remove the typical smell of a brand-
new product, then dried thoroughly.
CAUTION!
Do not use detergents,
abrasive powders, chlorine
or oil-based cleaners as they
will damage the finish.
6.3 Periodic cleaning
CAUTION!
Do not pull, move or damage
any pipes and/or cables
inside the appliance.
CAUTION!
Do not damage the cooling
system.
The equipment has to be cleaned
regularly:
1. Clean the inside and accessories
with lukewarm water and some
neutral soap.
2. Regularly check the door seals and
wipe them clean to ensure they are
clean and free from debris.
3. Rinse and dry thoroughly.
4. If accessible, clean the condenser
and the compressor at the back of
the appliance with a brush.
This will improve the performance of
the appliance and save electricity
consumption.
6.4 Cleaning the air channels

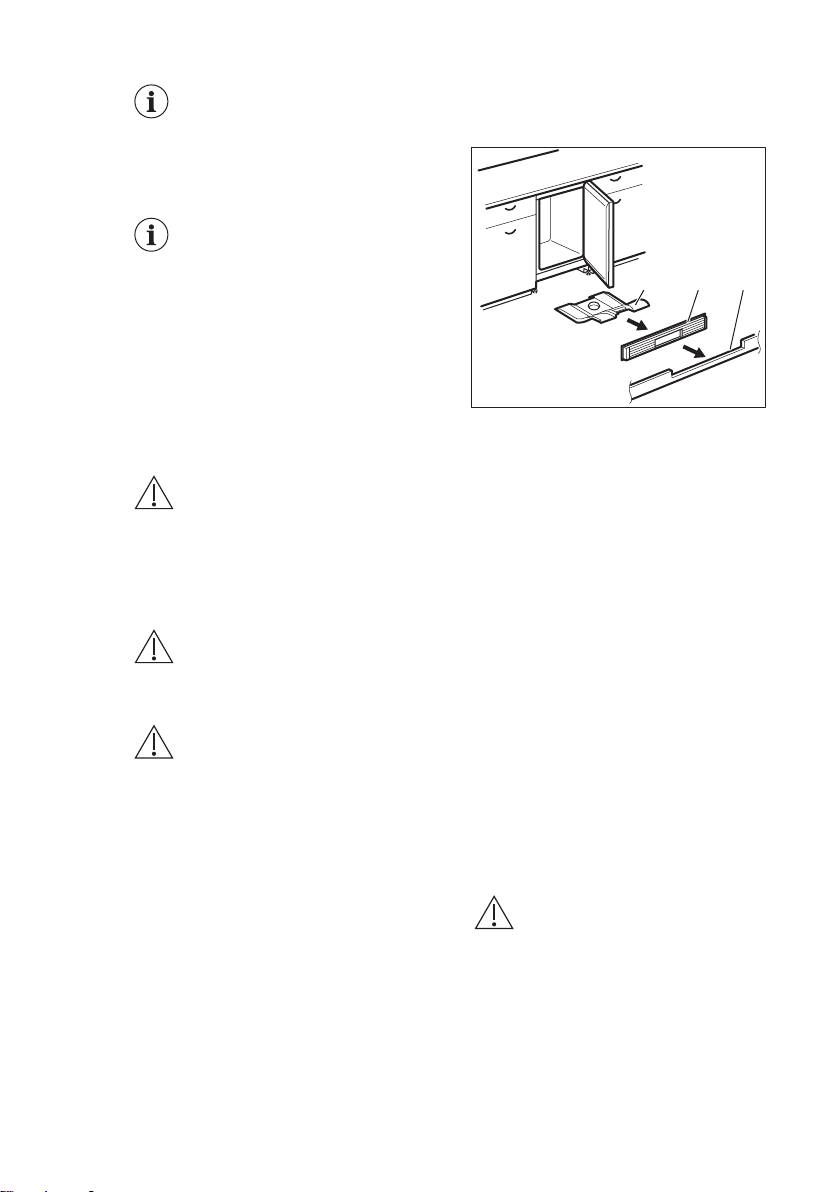

1. Remove the plinth (A), then the
ventilation grid (B).
C AB
2. Clean the ventilation grid.
3. Carefully pull the air deflector out (C),
checking that there is no water left
from the defrosting.
4. Clean the lower part of the appliance
with a vacuum cleaner.
6.5 Defrosting of the freezer
The freezer compartment is frost free.
This means that there is no build up of
frost when it is in operation, neither on
the internal walls, nor on the foods.
6.6 Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
1. Disconnect the appliance from
electricity supply.
2. Remove all food.
3. Clean the appliance and all
accessories.
4. Leave the door/doors open to
prevent unpleasant smells.
WARNING!
If you want to keep the
appliance switched on, ask
somebody to check it once
in a while to prevent the food
inside from spoiling in case
of a power failure.
ENGLISH 9

7. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
7.1 What to do if...
Problem Possible cause Solution
The appliance does not
operate.
The appliance is switched
off.
Switch on the appliance.
The mains plug is not con‐
nected to the mains socket
correctly.
Connect the mains plug to
the mains socket correctly.
There is no voltage in the
mains socket.
Connect a different electri‐
cal appliance to the mains
socket. Contact a qualified
electrician.
The appliance is noisy. The appliance is not sup‐
ported properly.
Check if the appliance
stands stable.
Audible or visual alarm is
on.
The cabinet has been re‐
cently switched on.
Refer to "Door Open
Alarm"or "High Tempera‐
ture Alarm".
The temperature in the ap‐
pliance is too high.
Refer to "Door Open
Alarm"or "High Tempera‐
ture Alarm".
The door is left open. Close the door.
Power indicator light is
flashing.
An error has occurred in
measuring the tempera‐
ture.
Contact a qualified electri‐
cian or contact the nearest
Authorized Service Centre.
The appliance is not work‐
ing properly.
Contact a qualified electri‐
cian or contact the nearest
Authorized Service Centre.
The temperature in the ap‐
pliance is too high.
Contact a qualified electri‐
cian or contact the nearest
Authorized Service Centre.
The compressor operates
continually.
Temperature is set incor‐
rectly.
Refer to "Operation" chap‐
ter.
Many food products to be
frozen were put in at the
same time.
Wait a few hours and then
check the temperature
again.
The room temperature is
too high.
Refer to climate class chart
on the rating plate.
www.electrolux.com10

Problem Possible cause Solution
Food products placed in
the appliance were too
warm.
Allow food products to cool
to room temperature be‐
fore storing.
The door is not closed cor‐
rectly.
Refer to "Closing the door".
The FastFreeze function is
switched on.
Refer to "FastFreeze func‐
tion".
There is too much frost
and ice.
The door is not closed cor‐
rectly or the gasket is de‐
formed/dirty.
Refer to "Closing the door".
Food products are not
wrapped properly.
Wrap the food products
better.
The compressor does not
start immediately after
pressing the FastFreeze,
or after changing the tem‐
perature.
This is normal, no error
has occurred.
The compressor starts af‐
ter a period of time.
Water flows on the rear
plate of the refrigerator.
During the automatic de‐
frosting process, frost
melts on the rear plate.
This is correct.
Water flows on the floor. The melting water outlet is
not connected to the evap‐
orative tray above the com‐
pressor.
Attach the melting water
outlet to the evaporative
tray.
Temperature cannot be
set.
The FastFreeze function is
switched on.
Switch off FastFreeze
manually, or wait until the
function resets automati‐
cally to set the tempera‐
ture. Refer to "FastFreeze
function"
The temperature in the ap‐
pliance is too low/too high.
The temperature regulator
is not set correctly.
Set a higher/lower temper‐
ature.
The door is not closed cor‐
rectly.
Refer to "Closing the door".
The food products' temper‐
ature is too high.
Let the food products tem‐
perature decrease to room
temperature before stor‐
age.
Many food products are
stored at the same time.
Store less food products at
the same time.
The door has been opened
often.
Open the door only if nec‐
essary.
ENGLISH 11

Problem Possible cause Solution
The FastFreeze function is
switched on.
Refer to "FastFreeze func‐
tion".
There is no cold air circula‐
tion in the appliance.
Make sure that there is
cold air circulation in the
appliance.
Door does not open easily. You attempted to re-open
the door immediately after
closing.
Wait a few seconds be‐
tween closing and re-open‐
ing of the door.
If the advice does not lead to
the desired result, call the
nearest Authorized Service
Centre.
7.2 Closing the door
1. Clean the door gaskets.
2. If necessary, adjust the door. Refer
to assembly instructions.
3. If necessary, replace the defective
door gaskets. Contact the Authorised
Service Centre.
8. INSTALLATION
WARNING!
Refer to Safety chapters.
8.1 Location
Refer to the assembly
instructions for the
installation.
To ensure best performance, install the
appliance well away from sources of heat
such as radiators, boilers, direct sunlight
etc. Make sure that air can circulate
freely around the back of the cabinet.
8.2 Positioning
Install the appliance in a dry, well
ventilated indoors where the ambient
temperature corresponds to the climate
class indicated on the rating plate of the
appliance.
Climate
class
Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
Climate
class
Ambient temperature
ST +16°C to + 38°C
T +16°C to + 43°C
Some functional problems
might occur for some types
of models when operating
outside of that range. The
correct operation can only
be guaranteed within the
specified temperature range.
If you have any doubts
regarding where to install the
appliance, please turn to the
vendor, to our customer
service or to the nearest
Authorised Service Centre.
www.electrolux.com12

8.3 Electrical Connection
CAUTION!
Any electrical work required
to install this appliance
should be carried out by a
qualified electrician or
competent person.
WARNING!
This appliance must be
earthed.
The manufacturer declines
any liability should these
safety measures not be
observed.

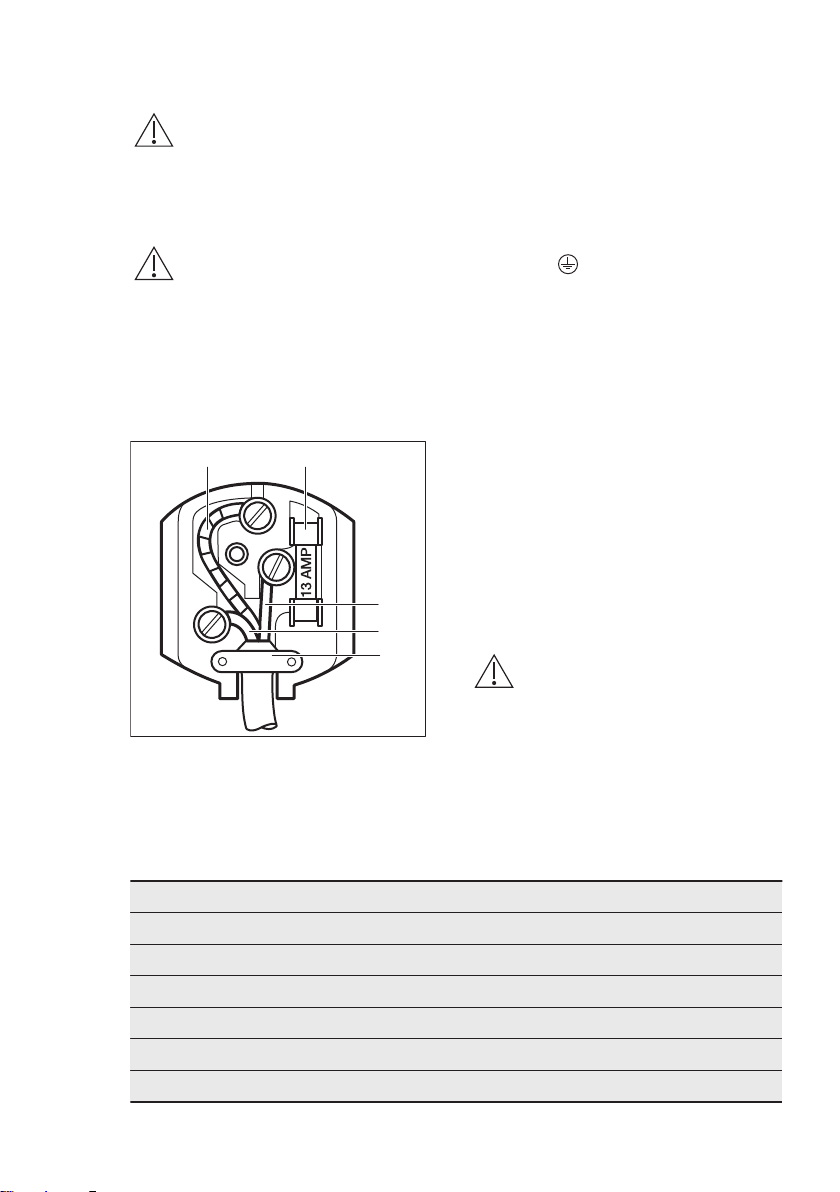

The wires in the mains lead are coloured
in accordance with the following code:
A B
C
D
E
•A - green and yellow: Earth
•C - brown: Live
•D - blue: Neutral
As the colours of the wires in the mains
lead of this appliance may not
correspond with the coloured markings
identifying the terminals in your plug,
proceed as follows:
1. Connect the wire coloured green and
yellow to the terminal marked either
with the letter “E“ or by the earth
symbol or coloured green and
yellow.
2. Connect the wire coloured blue to the
terminal either marked with the letter
“N“ or coloured black.
3. Connect the wire coloured brown to
the terminal either marked with the
“L“ or coloured red.
4. Check that no cut, or stray strands of
wire is present and the cord clamp
(E) is secure over the outer sheath.
Make sure the electricity supply
voltage is the same as that indicated
on the appliance rating plate.
5. Switch on the appliance.
The appliance is supplied with a 13 amp
fuse (B). In the event of having to
change the fuse in the plug supplied, a
13 amp ASTA approved (BS 1362) fuse
must be used.
WARNING!
A cut off plug inserted into a
13 amp socket is a serious
safety (shock) hazard.
Ensure that it is disposed of
safely.
9. TECHNICAL DATA
9.1 Technical data
Height mm 815
Width mm 596
Depth mm 550
Rising time Hours 13
Voltage Volts 230 - 240
Frequency Hz 50
ENGLISH 13

The technical information is situated in
the rating plate, on the external or
internal side of the appliance and in the
energy label.
10. ENVIRONMENTAL CONCERNS
Recycle materials with the symbol .
Put the packaging in relevant containers
to recycle it. Help protect the
environment and human health by
recycling waste of electrical and
electronic appliances. Do not dispose of
appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
*
www.electrolux.com14

ENGLISH 15

www.electrolux.com/shop
211624465-A-102018
