1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the
www.electrolux.com2

result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Do not let children play with the appliance.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
•Keep all packaging away from children and dispose of
it appropriately.
1.2 General Safety
•This appliance is intended to be used in household
and similar applications such as:
–Farm houses; staff kitchen areas in shops, offices
and other working environments
–By clients in hotels, motels, bed and breakfast and
other residential type environments
•Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
•Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
•Do not damage the refrigerant circuit.
•Do not use electrical appliances inside the food
storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
•Do not use water spray and steam to clean the
appliance.
ENGLISH 3

•Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
•Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging and the
transit bolts.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Make sure the air can circulate
around the appliance.
• At first installation or after reversing
the door wait at least 4 hours before
connecting the appliance to the power
supply. This is to allow the oil to flow
back in the compressor.
• Before carrying out any operations on
the appliance (e.g. reversing the
door), remove the plug from the
power socket.
• Do not install the appliance close to
radiators or cookers, ovens or hobs.
• Do not install the appliance where
there is direct sunlight.
• Do not install this appliance in areas
that are too humid or too cold, such
as the construction appendices,
garages or wine cellars.
• When you move the appliance, lift it
by the front edge to avoid scratching
the floor.
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the electrical components (e.g. mains
plug, mains cable, compressor).
Contact the Authorised Service
Centre or an electrician to change the
electrical components.
• The mains cable must stay below the
level of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
2.3 Use
WARNING!
Risk of injury, burns, electric
shock or fire.
• Do not change the specification of this
appliance.
www.electrolux.com4

• Do not put electrical appliances (e.g.
ice cream makers) in the appliance
unless they are stated applicable by
the manufacturer.
• Be careful not to cause damage to the
refrigerant circuit. It contains
isobutane (R600a), a natural gas with
a high level of environmental
compatibility. This gas is flammable.
• If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
• Do not let hot items to touch the
plastic parts of the appliance.
• Do not put soft drinks in the freezer
compartment. This will create
pressure on the drink container.
• Do not store flammable gas and liquid
in the appliance.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
• Do not remove or touch items from
the freezer compartment if your hands
are wet or damp.
• Do not freeze again food that has
been thawed.
• Obey the storage instructions on the
packaging of frozen food.
2.4 Internal light
WARNING!
Risk of electric shock.
• The type of lamp used for this
appliance is for household appliances
only. Do not use it for house lighting.
2.5 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• This appliance contains hydrocarbons
in the cooling unit. Only a qualified
person must do the maintenance and
the recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the
appliance.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children
and pets to be closed inside of the
appliance.
• The refrigerant circuit and the
insulation materials of this appliance
are ozone-friendly.
• The insulation foam contains
flammable gas. Contact your
municipal authority for information on
how to discard the appliance
correctly.
• Do not cause damage to the part of
the cooling unit that is near the heat
exchanger.
3. OPERATION

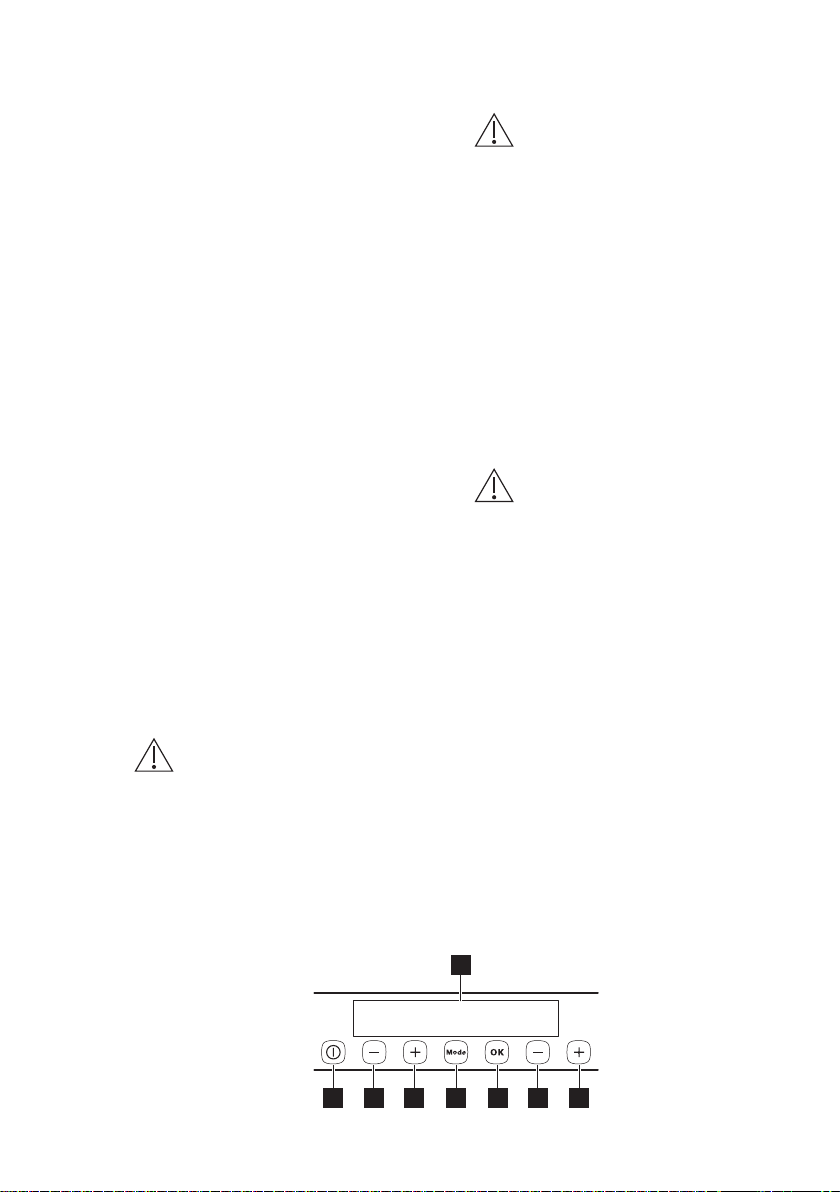

3.1 Control Panel
1
2345678
ENGLISH 5

1Display
2Freezer Temperature warmer button
3Freezer Temperature colder button
4OK
5Mode
6Fridge Temperature warmer button
7Fridge Temperature colder button
8ON/OFF
It is possible to change predefined sound
of buttons by pressing together Mode
and temperature colder button for a few
seconds. Change is reversible.

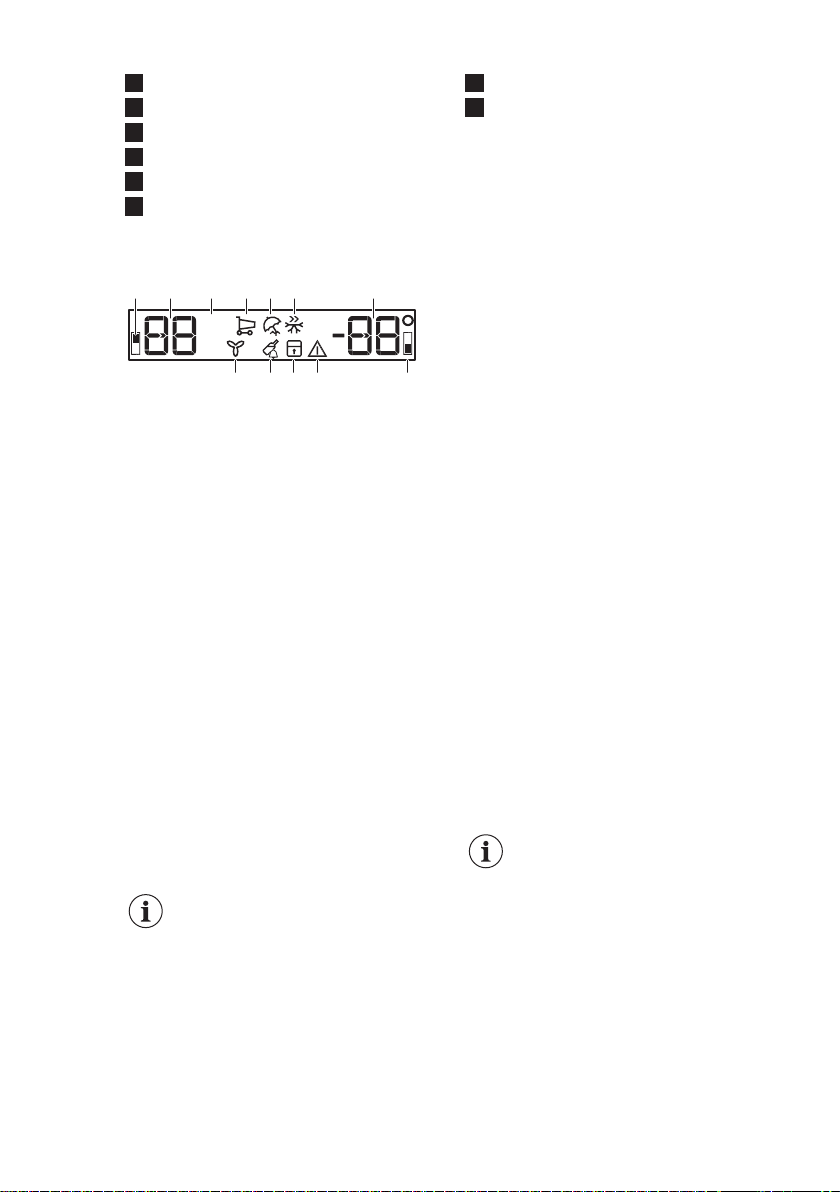

3.2 Display
Off
min
A B C D E F G
I HJKL
A. Fridge compartment indicator
B. Timer indicator
/Temperature indicator
C. ON/OFF indicator
D. FastCool function
E. Holiday function
F. FastFreeze function
G. Temperature indicator
H. Freezer compartment indicator
I. Alarm indicator
J. ChildLock function
K. DrinksChill function
L. DYNAMICAIR function
3.3 Switching on
Connect the mains plug to the power
socket.
Press the appliance ON/OFF button if
the display is off.
The alarm buzzer could operate after few
seconds.
The temperature indicators show the set
default temperature.
To reset the alarm refer to "High
temperature alarm".
To select a different set temperature
refer to "Temperature regulation".
If DEMO appears on the display, refer to
"Troubleshooting".
If the door remains open for
some minutes, the light will
turn off automatically. The
light is reset by closing and
opening the door itself.
3.4 Switching off
Press the ON/OFF button for 5 seconds.
The display turns off.
To disconnect the appliance from the
power, disconnect the mains plug from
the power socket.
3.5 Switching on the fridge
To switch on the fridge it is enough to
press the fridge temperature regulator.
To switch on the fridge in the other way:
1. Press Mode until the corresponding
icon appears.
The Fridge OFF indicator flashes.
2. Press OK to confirm.
The fridge OFF indicator goes off.
To select a different set
temperature refer to
"Temperature regulation".
3.6 Switching off the fridge
1. Press Mode until the corresponding
icon appears.
The fridge OFF indicator and the fridge
compartment indicator flash.
The fridge temperature indicator shows
dashes.
2. Press OK to confirm.
The fridge OFF indicator is shown.
www.electrolux.com6

3.7 Temperature regulation
Set the temperature of the appliance by
pressing the temperature regulators.
Default set temperature:
• +5°C for the fridge ;
• -18°C for the freezer.
The temperature indicators show the set
temperature.
The set temperature will be
reached within 24 hours.
After a power failure the set
temperature remains stored.
3.8 FastCool function
If you need to insert a large amount of
warm food, for example after doing the
grocery shopping, we suggest activating
the FastCool function to chill the
products more rapidly and to avoid
warming the other food which is already
in the refrigerator.
1. Press the Mode until the
corresponding icon appears.
The FastCool indicator flashes.
2. Press the OK to confirm.
The FastCool indicator is shown.
The FastCool function shuts off
automatically after approximately 6
hours.
To switch off the function before its
automatic end, repeat the procedure.
The function switches off by
selecting a different fridge
set temperature.
3.9 Holiday function
This function allows you to keep the
refrigerator closed and empty during a
long holiday period without the formation
of a bad smell.
Empty the fridge
compartment before turning
the Holiday function on.
1. Press the Mode until the Holiday
indicator icon appears.
The Holiday icon flashes.
The fridge temperature indicator shows
the set temperature.
2. Press the OK to confirm.
The Holiday icon appears.
To turn off the Holiday function, repeat
the procedure until the Holiday indicator
icon goes off.
3.10 FastFreeze function
The FastFreeze function accelerates the
freezing of fresh food and, at the same
time, protects foodstuffs already stored
from undesirable warming.
1. To activate this function press the
Mode button until the corresponding
icon appears.
The FastFreeze indicator flashes.
2. Press the OK button to confirm.
TheFastFreeze indicator is shown.
This function stops automatically after 52
hours.
To switch off the function before its
automatic end repeat the procedure until
the FastFreeze indicator turns off.
The function switches off by
selecting a different set
temperature.
3.11 High temperature alarm
An increase in the temperature in the
freezer compartment (for example due to
an earlier power failure) is indicated by
flashing the alarm icon and freezer
temperature indicators, and sounding of
buzzer.
Press any button.
The buzzer switches off.
The freezer temperature indicator shows
the highest temperature reached for a
few seconds, then displays the set
temperature again.
The alarm indicator
continues to flash until the
normal conditions are
restored.
3.12 Door open alarm
An acoustic alarm will sound if the door is
left open for a few minutes. The door
open alarm conditions are indicated by:
• a flashing Alarm indicator;
• an acoustic buzzer.
ENGLISH 7

When normal conditions are restored
(door closed), the alarm will stop. The
buzzer can also be switched off by
pressing any button.
3.13 ChildLock function
Activate the ChildLock function to lock
the buttons from unintentional operation.
1. Press Mode button until the
corresponding icon appears.
The ChildLock indicator flashes.
2. Press OK to confirm.
The ChildLock indicator is shown.
To deactivate the ChildLock function,
repeat the procedure until the ChildLock
indicator goes off.
3.14 DrinksChill function
The DrinksChill function is to be used to
set an acoustic alarm at the preferred
time, useful for example when a recipe
requires to cool down food products for a
certain period of time.
It is also useful when a reminder is
needed in order not to forget the bottles
placed in the freezer for fast cooling.
1. Press Mode until the corresponding
icon appears.
The DrinksChill indicator flashes.
The Timer shows the set value (30
minutes) for a few seconds.
2. Press the Timer regulator to change
the Timer set value from 1 to 90
minutes.
3. Press OK to confirm.
TheDrinksChill indicator is shown.
The Timer start to flash (min).
At the end of the countdown the
DrinksChill indicator flashes and an
audible alarm sounds. Press OK to
switch off the sound and terminate the
function.
To switch off the function repeat the
procedure until the DrinksChill goes off.
It is possible to change the
time at any time during the
countdown and at the end by
pressing the Temperature
colder button and the
Temperature warmer button.
3.15 DYNAMICAIR function
To switch on the function:
1. Press the Mode button until the
corresponding icon appears.
The DYNAMICAIR indicator flashes.
2. Press the OK button to confirm.
The DYNAMICAIR indicator is
shown.
To switch off the function repeat the
procedure until the DYNAMICAIR
indicator icon goes off.
If the function is activated
automatically the
DYNAMICAIR indicator is
not shown (refer to "Daily
use").
The activation of the
DYNAMICAIR function
increase the energy
consumption.
4. FIRST USE
4.1 Cleaning the interior
Before using the appliance for the first
time, the interior and all internal
accessories should be washed with
lukewarm water and some neutral soap
to remove the typical smell of a brand-
new product, then dried thoroughly.
CAUTION!
Do not use detergents,
abrasive powders, chlorine
or oil-based cleaners as they
will damage the finish.
5. DAILY USE
WARNING!
Refer to Safety chapters.
www.electrolux.com8

5.1 Movable shelves
The walls of the refrigerator are equipped
with a series of runners so that the
shelves can be positioned as desired.
Do not move the glass shelf
above the vegetable drawer
to ensure correct air
circulation.
5.2 Using a foldable shelf
This appliance is equipped with a shelf
consisting of two parts. The front half of
the shelf can be placed under the second
half to make better use of space.
To fold the shelf:
1. Take out the front half gently.
2. Slide it onto the lower rail and under
the second half.
1
2
5.3 Positioning the door
shelves
To permit storage of food packages of
various sizes, the door shelves can be
placed at different heights.
1. Gradually pull the shelf in the
direction of the arrows until it comes
free.
2. Reposition as required.

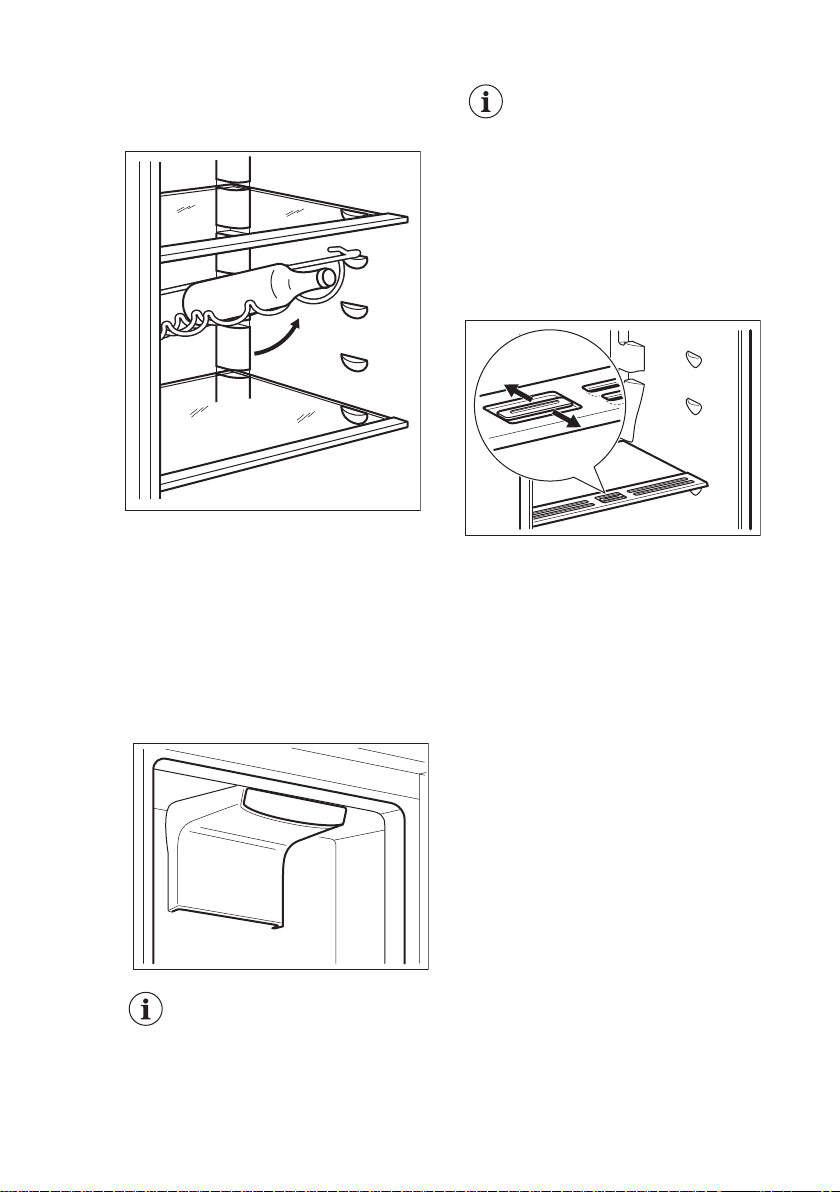

5.4 Bottle rack
1. Place the bottles (with the opening
facing front) in the pre-positioned
shelf.
If the shelf is positioned
horizontally, place only
closed bottles.
ENGLISH 9

2. To store previously opened bottles,
pull the shelf up so it can rotate
upwards and be placed on the next
higher level.
5.5 DYNAMICAIR
The refrigerator compartment is
equipped with a device that allows rapid
cooling of food and keeps a more
uniform temperature in the compartment.
This device activates automatically when
needed, for example for a quick
temperature recovery after door opening
or when the ambient temperature is high.
It is possible to switch on the
device manually when
needed (refer to
"DYNAMICAIR function").
The DYNAMICAIR device
stops when the door is open
and restarts immediately
after the door closing.
5.6 Humidity control
The glass shelf incorporates a device
with slits (adjustable by means of a
sliding lever), which makes it possible to
regulate the humidity in the vegetable
drawer(s).
When the ventilation slots are closed:
the natural moisture content of the food
in the fruit and vegetable compartments
is preserved for longer.
When the ventilation slots are opened:
more air circulation results in a lower air
moisture content in the fruit and
vegetable compartments.
5.7 Freezing fresh food
The freezer compartment is suitable for
freezing fresh food and storing frozen
and deep-frozen food for a long time.
To freeze fresh food activate the
FastFreeze function and place the food
to be frozen in the freezer compartment.
To freeze fresh food activate the
FastFreeze function at least 24 hours
before placing the food to be frozen in
the freezer compartment.
Place the fresh food to be frozen in the
two top compartments.
The maximum amount of food that can
be frozen in 24 hours is specified on the
rating plate, a label located on the
inside of the appliance.
www.electrolux.com10

The freezing process lasts 24 hours:
during this period do not add other food
to be frozen.
When the freezing process is completed,
return to the required temperature (see
"FastFreeze Function").
In this condition, the
refrigerator compartment
temperature might drop
below 0°C. If this occurs
reset the temperature
regulator to a warmer
setting.
5.8 Thawing
Deep-frozen or frozen food, prior to
being used, can be thawed in the
refrigerator compartment or at room
temperature, depending on the time
available for this operation.
Small pieces may even be cooked still
frozen, directly from the freezer: in this
case, cooking will take longer.
5.9 Ice-cube production
This appliance is equipped with one or
more trays for the production of ice-
cubes.
Do not use metallic
instruments to remove the
trays from the freezer.
1. Fill these trays with water
2. Put the ice trays in the freezer
compartment.
6. HINTS AND TIPS
6.1 Normal operating sounds
The following sounds are normal during
operation:
• A faint gurgling and bubbling sound
from coils sound when refrigerant is
pumped.
• A whirring and pulsating sound from
the compressor when refrigerant is
pumped.
• A sudden cracking noise from inside
appliance caused by thermic dilatation
(a natural and not dangerous physical
phenomenon).
• A faint click noise from the
temperature regulator when the
compressor switches on or off.
6.2 Hints for energy saving
• Do not open the door frequently or
leave it open longer than absolutely
necessary.
• If the ambient temperature is high and
the Temperature Regulator is set to
low temperature and the appliance is
fully loaded, the compressor may run
continuously, causing frost or ice on
the evaporator. If this happens, set
the Temperature Regulator toward
warmer settings to allow automatic
defrosting and so a saving in
electricity consumption.
6.3 Hints for fresh food
refrigeration
To obtain the best performance:
• do not store warm food or evaporating
liquids in the refrigerator
• do cover or wrap the food, particularly
if it has a strong flavour
• position food so that air can circulate
freely around it
6.4 Hints for refrigeration
Useful hints:
• Meat (all types): wrap in a suitable
packaging and place it on the glass
shelf above the vegetable drawer.
Store meat for at most 1-2 days.
• Cooked foods, cold dishes: cover and
place on any shelf.
• Fruit and vegetables: clean thoroughly
and place in a special drawer.
Bananas, potatoes, onions and garlic
must not be kept in the refrigerator if
not packed.
• Butter and cheese: place in a special
airtight container or wrap in an
aluminium foil or a polythene bag to
exclude as much air as possible.
• Bottles: close with a cap and place on
the door bottle shelf, or (if available)
on the bottle rack.
ENGLISH 11

6.5 Hints for freezing
To help you make the most of the
freezing process, here are some
important hints:
• the maximum quantity of food which
can be frozen in 24 hours is shown on
the rating plate;
• the freezing process takes 24 hours
no further food to be frozen should be
added during this period;
• freeze only top quality, fresh and
thoroughly cleaned, foodstuffs;
• prepare food in small portions to
enable it to be rapidly and completely
frozen and to make it possible
subsequently to thaw only the quantity
required;
• wrap up the food in aluminium foil or
polythene and make sure that the
packages are airtight;
• do not allow fresh, unfrozen food to
touch food which is already frozen,
thus avoiding a rise in temperature of
the latter;
• lean foods store better and longer
than fatty ones; salt reduces the
storage life of food;
• water ices, if consumed immediately
after removal from the freezer
compartment, can possibly cause the
skin to be freeze burnt;
• it is advisable to show the freezing in
date on each individual pack to
enable you to keep tab of the storage
time.
6.6 Hints for storage of frozen
food
To obtain the best performance from this
appliance, you should:
• make sure that the commercially
frozen foodstuffs were adequately
stored by the retailer;
• be sure that frozen foodstuffs are
transferred from the foodstore to the
freezer in the shortest possible time;
• not open the door frequently or leave
it open longer than absolutely
necessary;
• once defrosted, food deteriorates
rapidly and cannot be refrozen;
• do not exceed the storage period
indicated by the food manufacturer.
7. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
7.1 General warnings
CAUTION!
Unplug the appliance before
carrying out any
maintenance operation.
This appliance contains
hydrocarbons in its cooling
unit; maintenance and
recharging must therefore
only be carried out by
authorized technicians.
The accessories and parts of
the appliance are not
suitable for washing in a
dishwasher.
7.2 Periodic cleaning
CAUTION!
Do not pull, move or damage
any pipes and/or cables
inside the cabinet.
CAUTION!
Take care of not to damage
the cooling system.
CAUTION!
When moving the cabinet, lift
it by the front edge to avoid
scratching the floor.
The equipment has to be cleaned
regularly:
1. Clean the inside and accessories
with lukewarm water and some
neutral soap.
www.electrolux.com12

2. Regularly check the door seals and
wipe clean to ensure they are clean
and free from debris.
3. Rinse and dry thoroughly.
4. If accessible, clean the condenser
and the compressor at the back of
the appliance with a brush.
This operation will improve the
performance of the appliance and
save electricity consumption.

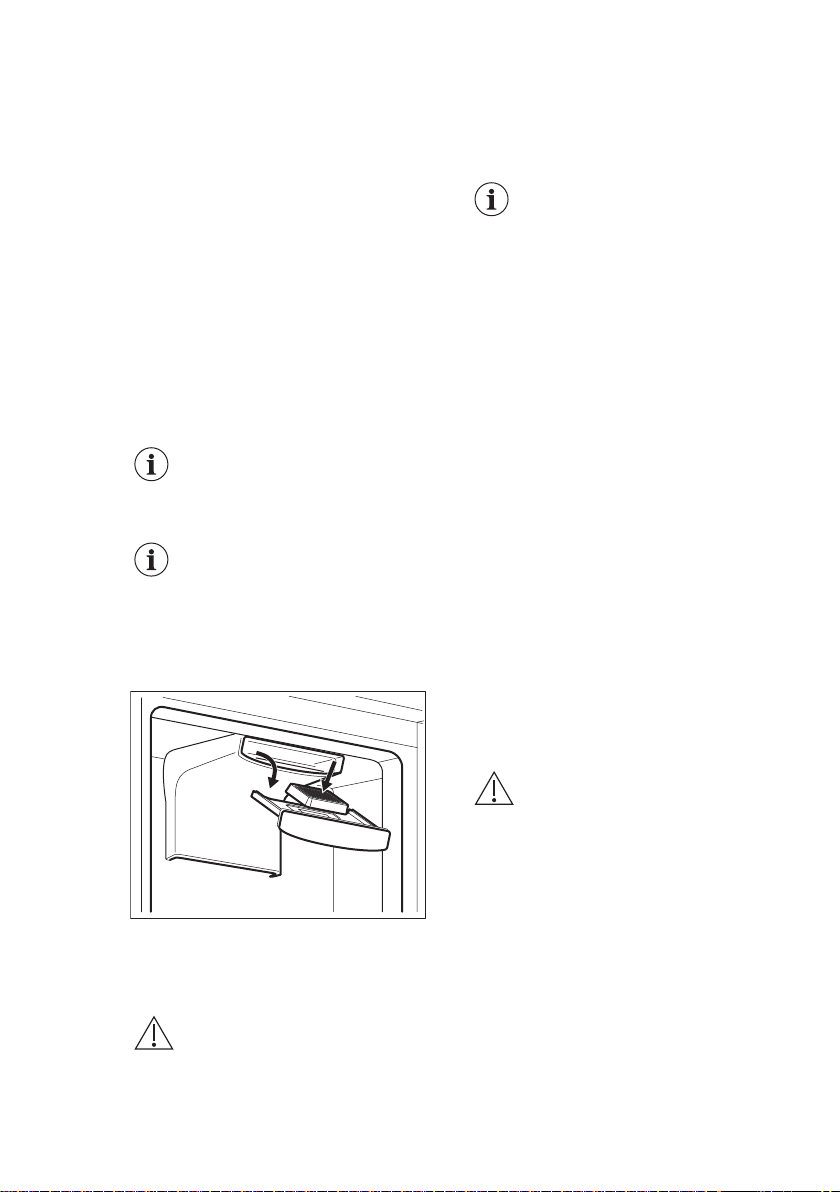

7.3 Replacing the CLEANAIR
filter
The carbon air filter is an active carbon
filter which absorbs bad odors and
permits to maintain the best flavour and
aroma for all foodstuffs without risk of
odor cross contamination.
The air filter should be
handled carefully to prevent
its surface from being
scratched.
On delivery, the carbon filter
is in a plastic bag to
preserve performance. Place
the filter in the slot before
activating the appliance.
1. Open the drawer.
2. Pull out the exhausted air filter.
3. Insert the new air filter in the slot.
4. Close the drawer.
To get the best performance the drawer
should be placed properly and the
CLEANAIR filter should be changed
once every year.
The air filter is a consumable
accessory and as such is not
covered by the guarantee.
New active air filters can be
purchased from your local
dealer. To change the air
filter repeat the procedure.
7.4 Defrosting
Your appliance is frost free. This means
that there is no build up of frost when it is
in operation, neither on the internal walls
nor on the foods.
The absence of frost is due to the
continuous circulation of cold air inside
the compartment, driven by an
automatically controlled fan.
7.5 Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
1. Disconnect the appliance from
electricity supply.
2. Remove all food.
3. Clean the appliance and all
accessories.
4. Leave the door/doors open to
prevent unpleasant smells.
WARNING!
If you want to keep the
appliance switched on, ask
somebody to check it once
in a while to prevent the food
inside from spoiling in case
of a power failure.
We recommend activating
Holiday mode.
8. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
ENGLISH 13

8.1 What to do if...
Problem Possible cause Solution
The appliance does not
operate.
The appliance is switched
off.
Switch on the appliance.
The mains plug is not con‐
nected to the mains socket
correctly.
Connect the mains plug to
the mains socket correctly.
There is no voltage in the
mains socket.
Connect a different electri‐
cal appliance to the mains
socket. Contact a qualified
electrician.
The appliance is noisy. The appliance is not sup‐
ported properly.
Check if the appliance
stands stable.
Audible or visual alarm is
on.
The cabinet has been re‐
cently switched on.
Refer to "Door Open
Alarm"or "High Tempera‐
ture Alarm".
The temperature in the ap‐
pliance is too high.
Refer to "Door Open
Alarm"or "High Tempera‐
ture Alarm".
The door is left open. Close the door.
A square symbol is shown
instead of numbers on the
Temperature Display.
Temperature sensor prob‐
lem.
Contact the nearest Au‐
thorized Service Centre
(the cooling system will
continue to keep food
products cold, but temper‐
ature adjustment will not
be possible).
The lamp does not work. The lamp is in stand-by. Close and open the door.
The lamp is defective. Contact the nearest Au‐
thorized Service Centre.
The compressor operates
continually.
Temperature is set incor‐
rectly.
Refer to "Operation" chap‐
ter.
Many food products to be
frozen were put in at the
same time.
Wait a few hours and then
check the temperature
again.
The room temperature is
too high.
Refer to climate class chart
on the rating plate.
Food products placed in
the appliance were too
warm.
Allow food products to cool
to room temperature be‐
fore storing.
The door is not closed cor‐
rectly.
Refer to "Closing the door".
www.electrolux.com14

Problem Possible cause Solution
The FastFreeze function is
switched on.
Refer to "FastFreeze func‐
tion".
The FastCool function is
switched on.
Refer to "FastCool func‐
tion".
The compressor does not
start immediately after
pressing the Fast‐
Freeze,FastCool or after
changing the temperature.
This is normal, no error
has occurred.
The compressor starts af‐
ter a period of time.
Water flows on the rear
plate of the refrigerator.
During the automatic de‐
frosting process, frost
melts on the rear plate.
This is correct.
Water flows into the refrig‐
erator.
The water outlet is clog‐
ged.
Clean the water outlet.
Food products prevent that
water flows into the water
collector.
Make sure that food prod‐
ucts do not touch the rear
plate.
Water flows on the floor. The melting water outlet is
not connected to the evap‐
orative tray above the com‐
pressor.
Attach the melting water
outlet to the evaporative
tray.
Temperature cannot be
set.
The FastFreeze function is
switched on.
Switch off FastFreeze
manually, or wait until the
function resets automati‐
cally to set the tempera‐
ture. Refer to "FastFreeze
function"
Temperature cannot be
set.
The FastCool function is
switched on.
Switch off FastCool man‐
ually, or wait until the func‐
tion resets automatically to
set the temperature. Refer
to "FastCool function".
DEMO appears on the dis‐
play.
The appliance is in demon‐
stration mode.
Keep the OK button press‐
ed for approximately 10
seconds until a long sound
is heard and display shuts
off for a short time.
The temperature in the ap‐
pliance is too low/too high.
The temperature regulator
is not set correctly.
Set a higher/lower temper‐
ature.
The door is not closed cor‐
rectly.
Refer to "Closing the door".
ENGLISH 15

Problem Possible cause Solution
The food products' temper‐
ature is too high.
Let the food products tem‐
perature decrease to room
temperature before stor‐
age.
Many food products are
stored at the same time.
Store less food products at
the same time.
The door has been opened
often.
Open the door only if nec‐
essary.
The FastFreeze function is
switched on.
Refer to "FastFreeze func‐
tion".
The FastCool function is
switched on.
Refer to "FastCool func‐
tion".
There is no cold air circula‐
tion in the appliance.
Make sure that there is
cold air circulation in the
appliance.
There is too much con‐
densed water on the rear
wall of the refrigerator.
Door was opened too fre‐
quently.
Open the door only when
necessary.
Door was not closed com‐
pletely.
Make sure the door is
closed completely.
Stored food was not wrap‐
ped.
Wrap food in suitable
packaging before storing it
in the appliance.
Door does not open easily. You attempted to re-open
the door immediately after
closing.
Wait a few seconds be‐
tween closing and re-open‐
ing of the door.
If the advice does not lead to
the desired result, call the
nearest Authorized Service
Centre.
8.2 Replacing the lamp
The appliance is equipped with a longlife
LED interior light.
Only service is allowed to replace the
lighting device. Contact your Authorised
Service Centre.
8.3 Closing the door
1. Clean the door gaskets.
2. If necessary, adjust the door. Refer
to assembly instructions.
3. If necessary, replace the defective
door gaskets. Contact the Authorised
Service Centre.
9. INSTALLATION
WARNING!
Refer to Safety chapters.
www.electrolux.com16

9.1 Location
Refer to the assembly
instructions for the
installation.
To ensure best performance, install the
appliance well away from sources of heat
such as radiators, boilers, direct sunlight
etc. Make sure that air can circulate
freely around the back of the cabinet.
9.2 Positioning
Install the appliance in a dry, well
ventilated indoors where the ambient
temperature corresponds to the climate
class indicated on the rating plate of the
appliance.
Climate
class
Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C
Some functional problems
might occur for some types
of models when operating
outside of that range. The
correct operation can only
be guaranteed within the
specified temperature range.
If you have any doubts
regarding where to install the
appliance, please turn to the
vendor, to our customer
service or to the nearest
Authorised Service Centre.
9.3 Electrical connection
• Before plugging in, ensure that the
voltage and frequency shown on the
rating plate correspond to your
domestic power supply.
• The appliance must be earthed. The
power supply cable plug is provided
with a contact for this purpose. If the
domestic power supply socket is not
earthed, connect the appliance to a
separate earth in compliance with
current regulations, consulting a
qualified electrician.
• The manufacturer declines all
responsibility if the above safety
precautions are not observed.
• This appliance complies with the
E.E.C. Directives.
10. TECHNICAL DATA
10.1 Technical data
Height mm 1523
Width mm 547
Depth mm 575
Rising time Hours 16
ENGLISH 17

Voltage Volts 230 - 240
Frequency Hz 50
The technical information is situated in
the rating plate, on the external or
internal side of the appliance and in the
energy label.
11.
CH
GUARANTEE
Customer Service Centres
Point of Service
Industriestrasse 10
5506 Mägenwil
Le Trési 6
1028 Préverenges
Via Violino 11
6928 Manno
Morgenstrasse 131
3018 Bern
Zürcherstrasse 204E
9000 St. Gallen
Seetalstrasse 11
6020 Emmenbrücke
Schlossstrasse 1
4133 Pratteln
Comercialstrasse 19
7000 Chur
Spare parts service Industriestrasse 10,
5506 Mägenwil, Tel. [phone]
Specialist advice/Sale Badenerstrasse
587, 8048 Zürich, Tel. [phone]
Warranty For each product we provide a
two-year guarantee from the date of
purchase or delivery to the consumer
(with a guarantee certificate, invoice or
sales receipt serving as proof). The
guarantee covers the costs of materials,
labour and travel. The guarantee will
lapse if the operating instructions and
conditions of use are not adhered to, if
the product is incorrectly installed, or in
the event of damage caused by external
influences, force majeure, intervention by
third parties or the use of non-genuine
components.
12. ENVIRONMENTAL CONCERNS
Recycle materials with the symbol .
Put the packaging in relevant containers
to recycle it. Help protect the
environment and human health by
recycling waste of electrical and
electronic appliances. Do not dispose of
appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
For Switzerland:
Where should you take your
old equipment?
Anywhere that sells new
equipment or hand it in to
official SENS collection
points or official SENS
recycling firms.
The list of official SENS
collection points can be
found at www.erecycling.ch
www.electrolux.com18

INHALTSVERZEICHNIS
1. SICHERHEITSHINWEISE................................................................................19
2. SICHERHEITSANWEISUNGEN...................................................................... 21
3. BETRIEB.......................................................................................................... 23
4. ERSTE INBETRIEBNAHME.............................................................................26
5. TÄGLICHER GEBRAUCH................................................................................26
6. TIPPS UND HINWEISE....................................................................................29
7. REINIGUNG UND PFLEGE............................................................................. 31
8. FEHLERSUCHE............................................................................................... 32
9. MONTAGE........................................................................................................36
10. TECHNISCHE DATEN................................................................................... 37
11. GARANTIE..................................................................................................... 37
WIR DENKEN AN SIE
Vielen Dank, dass Sie sich für ein Gerät von Electrolux entschieden haben. Sie
haben ein Produkt gewählt, hinter dem jahrzehntelange professionelle Erfahrung
und Innovation stehen. Bei der Entwicklung dieses großartigen und eleganten
Geräts haben wir an Sie gedacht. So haben Sie bei jedem Gebrauch die
Gewissheit, dass Sie stets großartige Ergebnisse erzielen werden.
Willkommen bei Electrolux.
Besuchen Sie uns auf unserer Website, um:
Sich Anwendungshinweise, Prospekte, Fehlerbehebungs- und Service-
Informationen zu holen:
www.electrolux.com/webselfservice
Ihr Produkt für einen besseren Service zu registrieren:
www.registerelectrolux.com
Zubehör, Verbrauchsmaterial und Original-Ersatzteile für Ihr Gerät zu kaufen:
www.electrolux.com/shop
REPARATUR- UND KUNDENDIENST
Bitte verwenden Sie ausschließlich Original-Ersatzteile für Ihre Produkte.
Halten Sie folgende Angaben bereit, wenn Sie sich an den Kundendienst
wenden: Modell, Produktnummer (PNC), Seriennummer.
Diese Informationen finden Sie auf dem Typenschild.
Warnungs-/Sicherheitshinweise
Allgemeine Informationen und Empfehlungen
Informationen zum Umweltschutz
Änderungen vorbehalten.
1. SICHERHEITSHINWEISE
Lesen Sie vor der Montage und dem Gebrauch des
Geräts zuerst die Gebrauchsanleitung. Bei Verletzungen
DEUTSCH 19

oder Schäden infolge nicht ordnungsgemäßer Montage
oder Verwendung des Geräts übernimmt der Hersteller
keine Haftung. Bewahren Sie die Anleitung immer an
einem sicheren und zugänglichen Ort zum späteren
Nachschlagen auf.
1.1 Sicherheit von Kindern und schutzbedürftigen
Personen
•Das Gerät kann von Kindern ab 8 Jahren und
Personen mit eingeschränkten physischen,
sensorischen oder geistigen Fähigkeiten oder mit
mangelnder Erfahrung und/oder mangelndem Wissen
nur dann verwendet werden, wenn sie durch eine für
ihre Sicherheit zuständige Person beaufsichtigt
werden oder in die sichere Verwendung des Geräts
eingewiesen wurden und die mit dem Gerät
verbundenen Gefahren verstanden haben.
•Kinder dürfen nicht mit dem Gerät spielen.
•Kinder dürfen keine Reinigung und Wartung ohne
Beaufsichtigung durchführen.
•Halten Sie sämtliches Verpackungsmaterial von
Kindern fern und entsorgen Sie es auf angemessene
Weise.
1.2 Allgemeine Sicherheit
•Dieses Gerät ist für die Verwendung im Haushalt und
ähnliche Zwecke vorgesehen, wie z. B.:
–Bauernhöfe, Personalküchenbereiche in
Geschäften, Büros und anderen Arbeitsumfeldern
–Für Gäste in Hotels, Motels, Pensionen und
anderen wohnungsähnlichen Räumlichkeiten
•Achten Sie darauf, dass die Belüftungsöffnungen im
Gehäuse, um das Gerät und in der Einbaunische nicht
blockiert sind.
•Versuchen Sie nicht, den Abtauvorgang durch andere
als vom Hersteller empfohlene mechanische oder
sonstige Hilfsmittel zu beschleunigen.
www.electrolux.com20
