66320 K-MN
User manual Ceramic glass hob

2
Dear Customer
Thank you for choosing one of our high-quality products.
With this appliance you will experience the perfect combination of functional
design and cutting edge technology.
Convince yourself that our appliances are engineered to deliver the best per-
formance and control - indeed we are setting the highest standards of excel-
lence.
In addition to this you find environmental and energy saving aspects as an inte-
gral part of our products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfect-
ly and most efficiently.
To refer to this manual any time you need to, we recommend you to keep it in a
safe place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
Th
e
f
o
ll
ow
i
ng sym
b
o
l
s are use
d
i
n t
hi
s user
i
n
f
ormat
i
on:
1
Warning! This must be read! Important advice for the safety of persons and
information on avoiding damage to the appliance
3General information and advice
2Information on environmental protection
zDangerous voltage

3Contents
Contents
Operating Instructions 4
Safety instructions 4
Description of the Appliance 6
Cooking surface layout 6
Control panel layout 6
Touch Control sensor fields 7
Displays 8
Residual heat indicator 8
Operating the appliance 9
Switching the appliance on and off 9
Setting the heat setting 9
Deactivating pan recognition 9
Switching outside rings on and off manually 10
Using the automatic warm-up function 11
Using the child safety device 12
Using the timer 13
Automatic switch off 16
Tips on Cooking and Frying 17
Cookware 17
Energy saving 17
Examples of cooking applications 18
Cleaning and Care 19
What to do if … 20
Disposal 22
Installation Instructions 23
Safety instructions 23
Assembly 24
Rating Plates 27
Guarantee/Customer Service 28
Service 31

Operating Instructions4
Operating Instructions
1Safety instructions
Please comply with these instructions. If you do not, any damage resulting is not
covered by the warranty.
Correct use
•This appliance is not intended for use by children or other persons whose
physical, sensory or mental capabilities or lack of experience and knowledge
prevents them from using the appliance safely without supervision or instruc-
tion by a responsible person to ensure that they can use the appliance safely.
•Do not leave the appliance unattended during operation.
•This appliance should be used only for normal domestic cooking and frying of
food.
•The appliance must not be used as a work surface or as a storage surface.
•Additions or modifications to the appliance are not permitted.
•Do not place or store flammable liquids, highly inflammable materials or fusi-
ble objects (e.g. plastic film, plastic, aluminium) on or near the appliance.
Children’s safety
•Small children must be kept away from the appliance.
•Only let bigger children work on the appliance under supervision.
•To avoid small children and pets unintentionally switching the appliance on,
we recommend activation of the child safety device.
General safety
•The appliance may only be installed and connected by trained, registered
service engineers.
•Built-in appliances may only be used after they have built in to suitable built-
in units and work surfaces that meet standards.
•In the event of faults with the appliance or damage to the glass ceramic
(cracks, scratches or splits), the appliance must be switched off and discon-
nected from the electrical supply, to prevent the possibility of an electric
shock.
•Repairs to the appliance must only be carried out by trained registered service
engineers.

5Safety instructions
Safety during use
•Overheated fats and oils can ignite very quickly. Warning! Fire hazard!
•There is the risk of burns from the appliance if used carelessly.
•Remove stickers and film from the glass ceramic.
•Cables from electrical appliances must not touch the hot surface of the appli-
ance or hot cookware.
•Switch the cooking zones off after each use.
Safety when cleaning
•For cleaning, the appliance must be switched off and cooled down.
•For safety reasons, the cleaning of the appliance with steam jet or high-pres-
sure cleaning equipment is not permitted.
How to avoid damage to the appliance
•The glass ceramic can be damaged by objects falling onto it.
•The edge of the glass ceramic can be damaged by being knocked by the cook-
ware.
•Cookware made of cast iron, cast aluminium or with damaged bottoms can
scratch the glass ceramic if pushed across the surface.
•Objects that melt and things that boil over can burn onto the glass ceramic
and should be removed straightaway.
•To avoid damaging cookware and glass ceramics, do not allow saucepans or
frying pans to boil dry.
•Do not use the cooking zones with empty cookware or without cookware.

Description of the Appliance6
Description of the Appliance

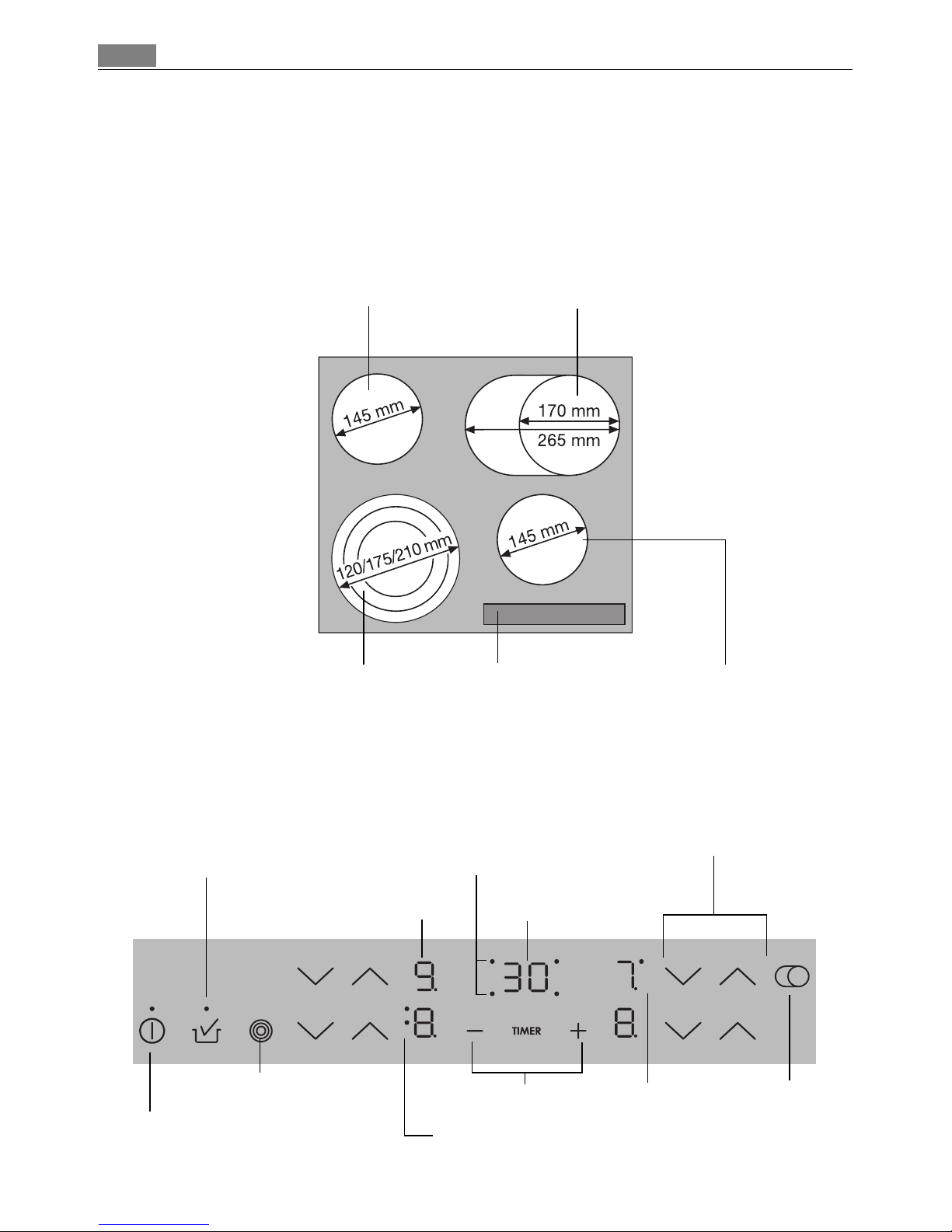

Cooking surface layout
Control panel layout
Triple cooking zone
800/1600/2300W
Multi-purpose zone
1500/2400W
Single cooking zone
1200W
Control panel Single cooking zone
1200W
On/Off
with power indicator
Timer display
Cooking zone indicators
Timer function
pan recognition pilot light Heat setting selection
Timer
Display
Outside ring
On/Off
Triple ring pilot light
Outside/middle ring
On/Off Multi-purpose
zone pilot light

7Description of the Appliance
Touch Control sensor fields
The appliance is operated using Touch Control sensor fields. Functions are con-
trolled by touching sensor fields and confirmed by displays and acoustic signals.
Touch the sensor fields from above, without covering other sensor fields.
3 If the control panel is covered up by things, an acoustic signal sounds until the
objects are removed.
Sensor field Function
On / Off To switch the appliance on and off
Increase settings To increase heat settings
Reduce settings To reduce heat settings
Timer Timer selection
Increase settings To increase Timer time
Reduce settings To reduce Timer time
Pan recognition To switch off pan recognition
Triple ring switch To switch outer rings
on and off
Multi-purpose zone switch To switch the outside ring on and off

Description of the Appliance8
Displays
Residual heat indicator
1Warning! Risk of burns from residual heat. After being switched off, the cook-
ing zones need some time to cool down. Look at the residual heat indicator .
3Residual heat can be used for melting and keeping food warm.
Display Description
Cooking zone is switched off
Keep warm setting Keep warm setting is set
- Heat settings Heat setting is set
- Heating setting plus
decimal point
Intermediate heat setting is set
Automatic warm up func-
tion
Automatic warm-up function is acti-
vated
Fault Malfunction has occurred
Pan detection Cookware is unsuitable
Residual heat Cooking zone is still hot
Child safety device Lock/child safety device is engaged
Automatic switch off Switch off is active.

9Operating the appliance
Operating the appliance
Switching the appliance on and off
3After switching on, within approx. 10 seconds a heat setting or a function must
be set, otherwise the appliance automatically switches itself off.
Setting the heat setting
3The keep warm setting lies between and . It is used to keep food warm.
Deactivating pan recognition
Using sensors under the cooking field the appliance recognises the what the
cookware is made of and the size of the bottom of the pots and pans. If the pots
and pans are big enough, the outer rings of multi-ring zones and multi-purpose
zones automatically switch on.
3Pan recognition is always active after the appliance is switched on.
3Pan recognition is deactivated for this use of the appliance, until the appliance
is next switched off again.
Control panel Display Pilot light
Switch on Touch for 2 seconds / lights up
Switch off Touch for 1 second / none goes out
Control panel Indicator
To increase Touch to
To decrease Touch to
To switch off Touch and at the same time
Pan recognition Pilot light
To switch off Touch for 1 second goes out

Operating the appliance10
Switching outside rings on and off manually
By switching the outside rings on or off, the heating surfaces can be manually
matched to the size of the cookware.
3Pan recognition must be switched off.
3Before an outside ring can be switched on, the corresponding inside ring must
be switched on.
Triple cooking zone Sensor panel Power indicator
To switch on middle ring Touch for 1-2 seconds.One power indicator is lit.
To switch on outside ring Touch for 1-2 seconds.Two power indicators are lit.
To switch off outside ring Touch for 1-2 seconds.Second power indicator goes
out.
To switch off middle ring Touch for 1-2 seconds.First power indicator goes out.
Roasting zone Sensor panel Power indicator
To switch on outside ring Touch for 1-2 seconds is lit
To switch off outside ring Touch for 1-2 seconds goes out

11Operating the appliance
Using the automatic warm-up function
All cooking zones are equpped with an automatic warm up function When set-
ting a heat setting using , when starting from , the cooking zone switches
to full power for a certain amount of time and then automatically switches back
to the heat setting set.
3If during the automatic warm up a higher heat setting is selected, e.g. from
to , the automatic warm up is adjusted.
3If there is still residual heat on the cooking zone (display ), the automatic
warm up is not performed.
The length of time that the automatic warm up function operates depends on
the heat setting selected.
Control
panel
possible heat
settings
Display
Switch on
(only when starting at
)
Touch to (after 5 seconds)
Switch off Touch to / to
Not used Touch to to
Heat
setting
Length of the
automatic warm up
[min:sec]
Intermedi-
ate heat
setting
Length of the
automatic warm up
[min:sec]
v0:30
11:00
21:40 2. 2:40
34:50 3. 5:30
46:30 4. 8:10
510:10 5. 12:20
62:00 6. 2:30
73:30
84:30
9---

Operating the appliance12
Using the child safety device
The child safety device prevents unintentional use of the appliance.
Activating the child safety device
Overriding the child safety device
The child safety device can be released in this way for a single cooking session; it
remains activated afterwards.
3After overriding the child safety device, a heat setting or a function must be set
within approx. 10 seconds, otherwise the appliance automatically switches itself
off.
Deactivating the child safety device
Step Control panel Indicator/Signal
1. Switch on the appliance (Do not
set a heat setting)
2. Touch for 3 seconds Power indicator goes out,
2x acoustic signal
3. Touch of any one of the cooking
zones
Appliance switches off. The child safety device is switched on.
Step control panel Indicator/Signal
1. Switch on the appliance
2. and touch any one of the
cooking zones
acoustic signal
Until the appliance is next switched off, it can be used as normal.
Step Control panel Indicator/Signal
1. Switch on the appliance
2. Touch for 3 seconds acoustic signal
3. Touch of any one of the cooking zones
Appliance switches off. The child safety device is switched off.

13Operating the appliance
Using the timer
3If a cooking zone is switched off, the timer function set is also switched off.
3If a heat setting is set on this cooking zone in addition to a countdown timer,
the cooking zone is switched off after the time set has elapsed.
Selecting a cooking zone
3If the pilot light is flashing more slowly, the heat setting can be set or modified.
3If other timer functions are set, after a few seconds the shortest remaining time
of all the timer functions is displayed and the corresponding pilot light flashes.
Function Condition Outcome after the
time has elapsed
Automatic cut-out a heat setting is set acoustic signal
00 flashes
Cooking zone switches
off
Countdown timer cooking zones not in use acoustic signal
00 flashes
Step Control panel Display
1. Touch once Pilot light of the first cook-
ing zone flashes
2. Touch once Pilot light of the second
cooking zone flashes
3. Touch once Pilot light of the third
cooking zone flashes
4. Touch once Pilot light of the fourth
cooking zone flashes

Operating the appliance14
Setting the time
Switching off the timer function
Changing the time
Step Control panel Indicator
1. Select cooking
zone
Pilot light for the cooking zone selected
flashes
2. Touch or 00 to 99 minutes
After a few seconds the pilot light flashes more slowly.
The time is set.
The time counts down.
Step Control panel Indicator
1. Select cooking
zone
Pilot light of cooking zone selected flash-
es faster
Time remaining is displayed
2. Touch The time remaining counts backwards to
00.
The pilot light goes out.
The Timer function for the selected cooking zone is switched off.
Step Control panel Indicator
1. Select cooking
zone
Pilot light of the selected cooking zone
flashes faster
Time remaining is displayed
2. Touch or 01 to 99 minutes
After a few seconds, the pilot light flashes more slowly.
The time is set.
The time counts down.

15Operating the appliance
Displaying the time remaining for a cooking zone
Switching off the acoustic signal
Step Control panel field Display
1. Select cooking
zone
Pilot light of the cooking zone selected
flashes faster
The time remaining is displayed
After a few seconds the pilot light flashes more slowly.
Step Control panel field Acoustic signal
1. Touch Acoustic signal to acknowledge.
Acoustic signal stops.

Operating the appliance16
Automatic switch off
Cooking surface
•If after switching on the cooking surface, a heat setting is not set for a cook-
ing zone within approx. 10 seconds, the cooking surface automatically switch-
es itself off.
•If one or more sensor fields are covered for longer than approx. 10 seconds,
e.g. by a pan placed upon it, a signal sounds and the cooking surface switches
off automatically.
•If all cooking zones are switched off, the cooking surface automatically
switches itself off after approx. 10 seconds.
Control panel
•When the appliance is switched off, if one or more of the sensor fields on the
control panel are covered for more that 10 seconds, an acoustic signal sounds.
The acoustic signal switches itself off automatically when the sensor fields are
no longer covered.
Cooking zones
•If one of the cooking zones is not switched off after a certain time, or if the
heat setting is not modified, the relevant cooking zone switches off automati-
cally. is displayed. Before being used again, the cooking zone must be set to
.
Heat setting Switches off after
v, 1 - 26 hours
3- 45 hours
54 hours
6- 91.5 hours

17Tips on Cooking and Frying
Tips on Cooking and Frying
3Information on acrylamides
According to the latest scientific knowledge, intensive browning of food, espe-
cially in products containing starch, can constitute a health risk due to acryla-
mides. Therefore we recommend cooking at the lowest possible temperatures
and not browning foods too much.
Cookware
•You can recognise good cookware from the bottoms of the pans. The bottom
should be as thick and flat as possible.
•Cookware made of enamelled steel or with aluminium or copper bottoms can
leave discolorations on the glass ceramic surface which are difficult or impos-
sible to remove.
3Unsuitable cookware for pan and multi-ring recognition
–Glassware, earthenware or ceramic ware
–Pots and pans with uneven bottoms
–Cookware with diameter smaller than 12 cm.
If you would nevertheless like to use the cookware mentioned above, you can
switch off the automatic pan and multi-ring recognition.
Energy saving

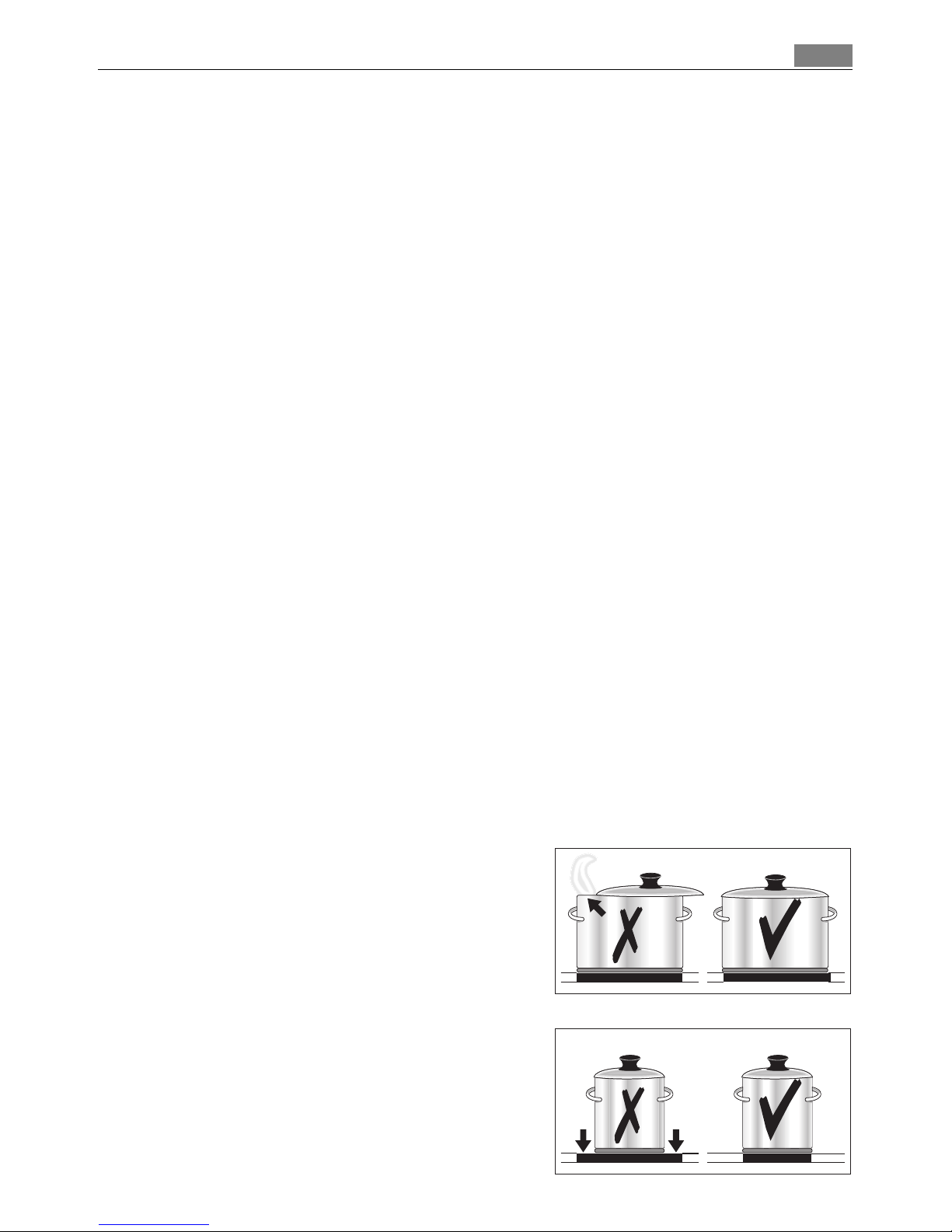

2Always place cookware on the cooking
zone before it is switched on.
2If possible, always place lids on the pans.
2Switch cooking zones off before the end of
the cooking time, to take advantage of re-
sidual heat.
2Bottom of pans and cooking zones should
be the same size.

Tips on Cooking and Frying18
Examples of cooking applications
The information given in the following table is for guidance only.
Heat
setting
Cooking-
process suitable for Cooking time Tips/Hints
0Residual heat, Off position
VKeeping
food warm Keeping cooked foods warm as required Cover
1-2 Melting
Hollandaise sauce,
melting butter, chocolate,
gelatine
5-25 mins. Stir occasionally
Solidifying Fluffy omelettes, baked eggs 10-40 mins. Cook with lid on
2-3
Simmer-
ing on low
heat
Simmering rice and milk-
based dishes
Heating up ready-cooked
meals
25-50 mins.
Add at least twice as
much liquid as rice, stir
milk dishes part way
through cooking
3-4 Steaming
Braising
Steaming vegetables, fish
braising meat 20-45 mins.
With vegetables add only
a little liquid (a few table-
spoons)
4-5 Boiling
Steaming potatoes 20-60 mins.
Use only a little liquid, e.
g.: max. ¼l water for
750 g potatoes
Cooking larger quantities of
food, stews and soups 60-150 mins. Up to 3 l liquid plus in- gredients
6-7 Gentle
Frying
Frying escalopes, veal cor-
don bleu, cutlets, rissoles,
sausages, liver, roux, eggs,
pancakes, doughnuts
Steady frying Turn halfway through
cooking
7-8 Heavy
Frying
Hash browns, loin steaks,
steaks, Flädle (pancakes for
garnishing soup)
5-15 mins.
per pan
Turn halfway through
cooking
9
Boiling
Searing
Deep
frying
Boiling large quantities of water, cooking pasta, searing meat (goulash,
pot roast), deep frying chips

19Cleaning and Care
Cleaning and Care
1Take care! Risk of burns from residual heat.
1Warning! Sharp objects and abrasive cleaning materials will damage the appli-
ance. Clean with water and washing up liquid.
1Warning! Residues from cleaning agents will damage the appliance. Remove
residues with water and washing up liquid.
Cleaning the appliance after each use
1. Wipe the appliance with a damp cloth and a little washing up liquid.
2. Rub the appliance dry using a clean cloth.
Removing deposits
1. Place a scraper on the glass ceramic surface at an angle.
2. Remove residues by sliding the blade over the surface.
3. Wipe the appliance with a damp cloth and a little washing up liquid.
4. Rub the appliance dry using a clean cloth.
*Scrapers and cleaners for glass ceramic and stainless steel can be purchased in specialist shops
3Remove stubborn residues with a cleaner for glass ceramic or stainless steel.
3Scratches or dark stains on the glass ceramic that cannot be removed do not
however affect the functioning of the appliance.
Remove
Type of dirt immedi-
ately
when the appliance has
cooled down using
sugar, food containing sugar yes --- a scraper*
plastics, tin foil yes ---
limescale and water rings --- yes
cleaner for glass ceram-
ic or stainless steel*
fat splashes --- yes
shiny metallic discolouration --- yes

What to do if …20
What to do if …
Problem Possible cause Remedy
The cooking zones will not
switch on or are not function-
ing
More than 10 seconds have
passed since the appliance was
switched on
Switch the appliance on again.
The child safety device is
switched on
Deactivate the child safety de-
vice (See the section “Child
safety device”)
Several sensor fields were
touched at the same time
Only touch one sensor field
Automatic switch off has been
triggered
Remove any objects (pan,
cloths, etc.) that are lying on
the control panel. Switch the
appliance on again
Acoustic signal sounds when
appliance is switched off
The control panel is wholly or
partly covered by objects.
Remove objects.
The residual heat indicator is
not displaying anything
The cooking zone was only on
for a short time and is there-
fore not hot
If the cooking zone is sup-
posed to be hot, call the Cus-
tomer Service Department.
The automatic warm up func-
tion is not switching itself on
There is still residual heat on
the cooking zone Let the cooking zone cool down
The highest heat setting is set The highest heat setting has
the same power as the auto-
matic warm up function
The heat setting was set using
the sensor field
1. Switching off the cooking
zone
1. Set the cooking zone using
the sensor field
Acoustic signal sounds and
appliance switches itself on
and then off again; after 5
seconds another acoustic sig-
nal sounds
The On/Off sensor field has
been covered up, e.g. by a
cloth
Do not place any objects on
the control panel
is lit Overheating protection for the
cooking zone has been trig-
gered
Switch off the cooking zone.
Switch the cooking zone on
again
Automatic switch off has been
triggered
Switch off the cooking zone.
Switch the cooking zone on
again
