Electrolux 92558 G User manual

92558 G
Instruction Booklet Gas Hob
AU

2
Welcome to the world of Electrolux
Thank you for choosing a first class product from Electrolux, which hopefully will
provide you with lots of pleasure in the future.
The Electrolux ambition is to offer a wide variety of quality products that make your
life more comfortable.
You find some examples on the cover in this manual. Please take a few minutes to
study this manual so that you can take advantage of the benefits of your new machine.
We promise that it will provide a superior User Experience delivering Ease-of-Mind.
Good luck!

3
Important Safety Information
You MUST read hese warnings carefully before installing or using the
hob. If you need assistance, contact our local Customer Care Department
Installation
• This hob must be installed by qualified personnel, according to the manufacturer’s
instructions and to the relevant Australian Standards.
• Any gas installation must be carried out by a registered installer.
• Remove all packaging before using the hob.
• Ensure that the gas and electrical supply complies with the type stated on the
rating plate, located near the gas supply pipe on the appliance.
• Do not attempt to modify the hob in any way.
• The appliance must be installed at a minimum distance of 50 cm from curtains
or other combustible material.
• Where this appliance is installed in marine craft or in caravans, it shall not be
used as a space heater.
Child Safety
••
••
• This hob is designed to be operated by adults. Do not allow children to play near
or with the hob.
••
••
• The hob gets hot when it is in use.
••
••
• Children should be kept away until it has cooled.
••
••
• Children can also injure themselves by pulling pans or pots off the hob.
••
••
• This appliance is not intended for use by children or other persons whose physical,
sensory or mental capabilities or lack of experience and knowledge prevents
them from using the appliance safely without supervision or instruction by a
responsible person to ensure that they can use the appliance safely.
During Use
••
••
• This hob is intended for domestic cooking only. It is not designed for commercial
or industrial purposes.
• Ensure a good ventilation around the appliance. A poor air supply could cause
lack of oxygen.
• This appliance is not connected to a combustion products evacuation device. It
must be installed and connected in accordance with current installation
regulations. Particular attention shall be given to the relevant requirements
regarding ventilation.
••
••
• When in use a gas cooking appliance will produce heat and moisture in the
room in which it has been installed. Ensure there is a continuous air supply,
keeping air vents in good condition or installing a cooker hood with a venting
hose.
Important safety information

4
••
••
• When using the hob for a long period of time, the ventilation should be improved,
by opening a window or increasing the extractor speed.
••
••
• Do not use this hob if it is in contact with water. Do not operate the hob with
wet hands.
••
••
• Ensure the control knobs are in the ‘OFF’ position when not in use.
••
••
• When using other electrical appliances, ensure the cable does not come into
contact with the hot surfaces of the cooking appliance.
••
••
• Unstable or misshapen pans should not be used on the hob as unstable pans
can cause an accident by tipping or spillage.
••
••
• Never leave the hob unattended when cooking with oil and fats.
••
••
• Never use plastic or aluminium foil dishes on the hob.
••
••
• Perishable food, plastic items and aerosols may be affected by heat and should
not be stored above or below the hob unit.
••
••
• Do not spray aerosols in the vicinity of this appliance while it is in operation.
••
••
• This appliance cannot be cleaned with steam or with a steam cleaning machine.
Service
••
••
• This hob should only be repaired or serviced by an authorised Service Engineer
and only genuine approved spare parts should be used.
Environmental Information
••
••
• After installation, please dispose of the packaging with due regard to safety
and the environment.
••
••
• When disposing of an old appliance, make it unusable, by cutting off the cable.
••
••
• The symbol on the product or on its packaging indicates that this product
may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human health, which
could otherwise be caused by inappropriate waste handling of this product. For
more detailed information about recycling of this product, please contact your
local city office, your household waste disposal service or the shop where you
purchased the product.
Important safety information

5
Contents
For the User
Important Safety Information 3
Description of the Hob 6
Operation 7
Maintenance and Cleaning 8
Something Not Working? 9
For the Installer
Instructions for the Installer 10
Important safety requirements 12
Installation 13
Electrical connections 15
Adaptation to different types of gas 16
Building In 17
Guide to Use the instructions
The following symbols will be found in the text to guide you throughout the
Instructions:
Safety Instructions
Step by step instructions for an operation
Hints and Tips
Environmental Information
!
Keep this instruction book for future reference and ensure it is passed on
to any new owner.
Contents

6
Description of the Hob
1.1.
1.1.
1. Hob Top
2.2.
2.2.
2. Rapid Burner
3.3.
3.3.
3. Semi-rapid Burners
4.4.
4.4.
4. Triple crown Burner
5.5.
5.5.
5. Auxiliary Burner
6.6.
6.6.
6. Control knobs
123
5
3
4
6
Description of the Hob

7
Operation
Hob Burners
To light a burner:
• push in the relevant control knob and
turn it anticlockwise to maximum
position;
• upon ignition, keep the knob pushed
down about 5 seconds5 seconds
5 seconds5 seconds
5 seconds. This will allow
the "thermocouple" (Fig. 1 - letter D) to
be heated and the safety device to be
switched off, otherwise the gas supply
would be interrupted;
• then adjust the flame as required.
If the burner does not ignite, turn the
control knob to zero, and try again.
To ensure maximum burner efficiency, you
should only use pots and pans with a flat
bottom fitting the size of the burner used
(see table).
If you use a saucepan which is smaller
than the recommended size, the flame will
spread beyond the bottom of the vessel,
causing the handle to overheat.
As soon as a liquid starts boiling, turn down
the flame so that it will barely keep the
liquid simmering.
TT
TT
Take carake car
ake carake car
ake care when frying food in hot oil ore when frying food in hot oil or
e when frying food in hot oil ore when frying food in hot oil or
e when frying food in hot oil or
fat, as the overheated splashes could eas-fat, as the overheated splashes could eas-
fat, as the overheated splashes could eas-fat, as the overheated splashes could eas-
fat, as the overheated splashes could eas-
ily ignite.ily ignite.
ily ignite.ily ignite.
ily ignite.
If the control knobs become difficult to
turn, please contact your local Service
Centre.
Fig. 1Fig. 1
Fig. 1Fig. 1
Fig. 1
AA
AA
A - Burner cap
BB
BB
B - Burner crown
CC
CC
C - Ignition electrode
DD
DD
D - Thermocouple
Burner minimum maximum
diameter diameter
Triple crown 180 mm. 260 mm.
Large (rapid) 180 mm. 260 mm.
Medium (semi-rapid) 120 mm. 220 mm.
Small (Auxiliary) 80 mm. 160 mm.
!
Operation

8
Maintenance and Cleaning
Before any maintenance or cleaning can
be carried out, you must DISCONNECTDISCONNECT
DISCONNECTDISCONNECT
DISCONNECT
the hob from the electricity supply.
The hob is best cleaned whilst it is still
warm, as spillage can be removed more
easily than if it is left to cool.
This appliance cannot be cleaned withThis appliance cannot be cleaned with
This appliance cannot be cleaned withThis appliance cannot be cleaned with
This appliance cannot be cleaned with
steam or with a steam cleaning ma-steam or with a steam cleaning ma-
steam or with a steam cleaning ma-steam or with a steam cleaning ma-
steam or with a steam cleaning ma-
chine.chine.
chine.chine.
chine.
The Hob Top
Regularly wipe over the hob top using a soft
cloth well wrung out in warm water to which a
little washing up liquid has been added. Avoid
the use of the following:
- household detergent and bleaches;
- impregnated pads unsuitable for non-stick saucepans;
- steel wool pads;
- bath/sink stain removers.
Pan Supports
The pan supports are dishwasher proof. If washing them by hand, take care when
drying them as the enamelling process occasionally leaves rough edges. If necessay,
remove stubborn stains using a paste cleaner.
The Burners
The burner caps and crowns can be removed for cleaning.
Wash the burner caps and crowns using hot soapy water, and remove marks
with a mild paste cleaner. A well moistened soap impregnated steel wool pad can
be used with caution, if the marks are particularly difficult to remove.
After cleaning, be sure to wipe dry with a soft cloth.
Ignition electrode
The electric ignition is obtained through a ceramic "electrode" and a metal elec-
trode (Fig. 1 - letter C). Keep these components very clean, to avoid lighting dif-
ficulties, and check that the burner crown holes are not obstructed.
Manteinance and Cleaning

9
Something Not Working?
If the hob is not working correctly, please carry out the following checks before
contacting your local Service Force Centre.
SYMPTOM
"There is no spark when lighting
the gas
"The gas ring burns unevenly
SOLUTION
#Check that the unit is plugged in and the
electrical supply is switched on
#Check that the RCCB has not tripped (if fitted)
#Check the mains fuse has not blown
#Check the burner cap and crown have been
replaced correctly, e.g. after cleaning.
#Check the main jet is not blocked and the
burner crown is clear of food particles.
#Check the burner cap and crown have been
replaced correctly, e.g. after cleaning.
If after all these checks, your hob still does not operate correctly, contact your
local Service Force Centre (see pages 19, 20, 21 and 22).
Something Not Working?

10
Instructions for the Installer
Engineers technical data
OVERALL DIMENSIONS
Width: 860 mm.
Depth: 500 mm.
CUT OUT DIMENSIONS
Width: 830 mm.
Depth: 470 mm.
SUPPLY CONNECTIONS
Gas:
RC 1/2 inch (1/2 inch male) Rear right hand corner
Electric:
230-240 V 50 Hz supply
APPLIANCE GAS SUPPLY:
Natural gas 1.0 kPa - Universal LPG 2.75 kPa
Instructions for the Installer

11
TYPE TYPE NOZZLE NOMINAL GAS NOMINAL
OF GAS OF BURNER MARKS CONSUMPTION PRESSURE
1/100 mm MJ/h kPa
Triple Crown 157 13.00
Rapid (large) 150 11.00
Semi-rapid (medium) 111 6.80 1.00
Auxiliary (small) 89 3.80
Triple Crown 97 13.00
Rapid (large) 93 11.00
Semi-rapid (medium) 71 6.30 2.75
Auxiliary (small) 55 3.80
NATURAL
GAS
U-LPG
Burner Dia. Tap By-pass 1/100 mm
Auxiliary 28
Semi-rapid 35
Rapid 42
Triple crown 42
Aeration adjustment none
Instructions for the Installer

12
Important safety requirements
This hob must be installed by qualified personnel, according to the manufacturer’s
instructions and to the relevant Australian Standards.
The hob should not be installed in a bed sitting room with a volume of less than
20 m3. If it is installed in a room of volume less than 5 m3an air vent of effective
area of 110 cm2is required. If it is installed in a room of volume between 5 m3and
10 m3an air vent of effective area of 50 cm2is required, while if the volume
exceeds 11 m3no air vent is required. However, if the room has a door which
opens directly to the outside no air vent is required even if the volume is between
5 m3 and 11 m3.
Location
Choose a location free of draughts and open doors and clear of combustible
materials or other fire hazards such as curtains, etc. The location should ensure
convenience of operation and service. The hob may be located in a kitchen, a
kitchen/diner or a room frequently occupied by people, but not in a bathroom or
shower room. Before making the cut out in the worktop ensure that there is a
minimum distance of 55 mm. between the rear edge of the hob and the wall.
A minimum distance of 100 mm. must be left between the side edges of the hob
and any adjacent cabinets or walls. The minimum distance combustible material
can be fitted above the hob in line with the edges of the hob is 400 mm. If it is
fitted below 400 mm. a space of 50 mm. must be allowed from the edges of the
hob.
The minimum distance
combustible material can
be fitted directly above
the hob is 700 mm.

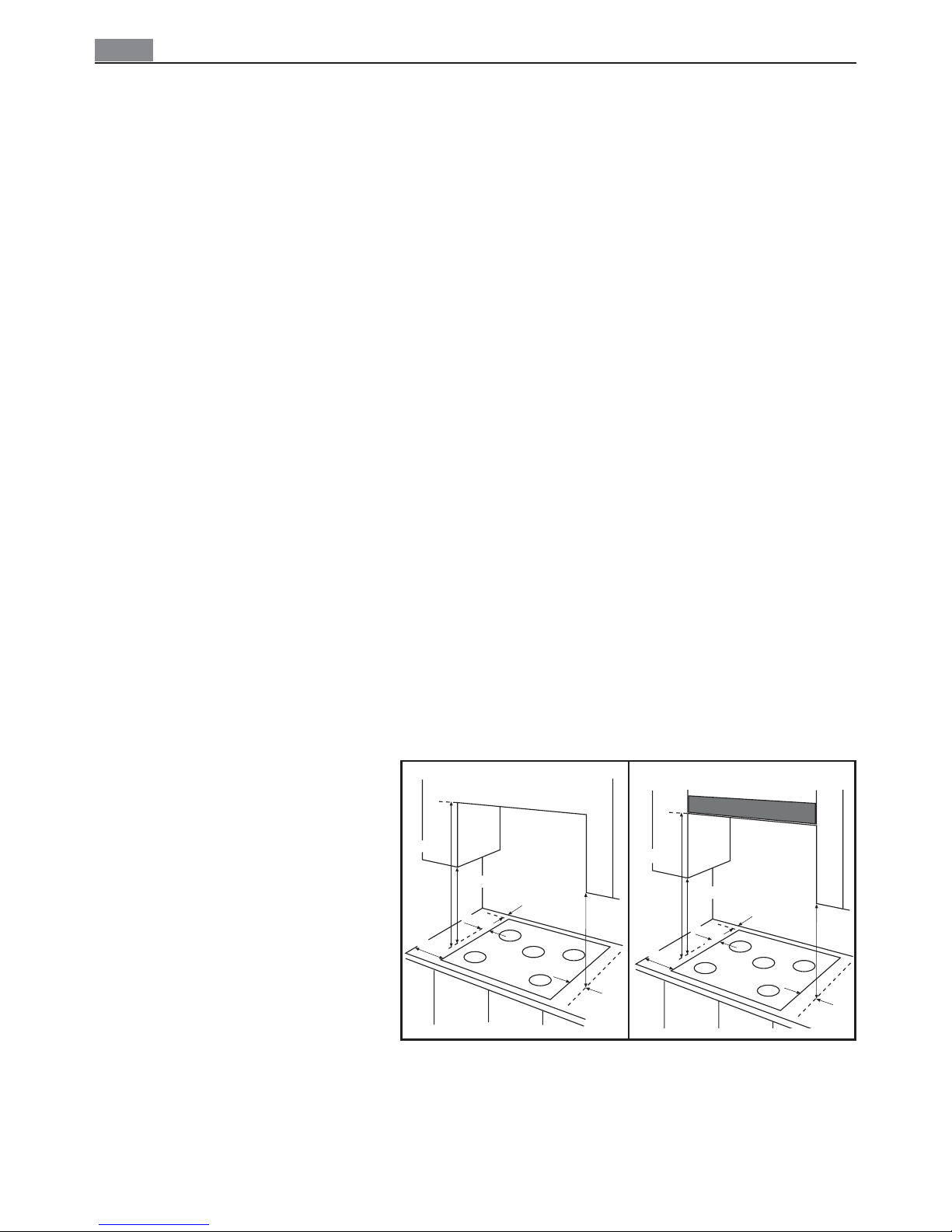

CLEARANCES REQUIRED WHEN FITTING THE
GAS HOB WITH A COOKER HOOD ABOVE
700 mm
400 mm
100 mm
400 mm
50 mm
50 mm
55 mm
700 mm
400 mm
400 mm
100 mm
50 mm
50 mm
55 mm
700 mm
CLEARANCES REQUIRED WHEN FITTING THE
GAS HOB WITHOUT A COOKER HOOD ABOVE
Important safety requirements

13
Installation
Important
This appliance must be installed by qualified personnel.
The installer shall verify the satisfactory operation of the ignition system on all
burners both individually and in combination.
The manufacturer will not accept liability, should the above instructions or any of
the other safety instructions incorporated in this book be ignored.
Regulations
This appliance shall be installed in accordance with the manufacturer’s installation
instructions, local gas fitting regulations, municipal building codes, AS5601 (AG601)
and any other relevant statutory regulations.
Data label
The data label is located on the bottom of the hob. This appliance is suitable for
Natural or Universal LPG. Ensure that the gas supply matches the data label. A
duplicate of the data label is supplied in the packaging of the user manual and
must be attached to readily accessible adjacent surfaces of the appliances.
Connection to the gas supply
Gas connection must be carried out in conformity with the regulations in force.
The appliance leaves the factory tested and regulated for the type of gas indicated
on the plate which is situated in the lower position near the gas connection tube.
Ascertain that the type of gas with which the appliance will be supplied is the
same as that indicated on the plate.
If different carry out all the operations according to the indications cited in the
paragraph “adaption to different types of gas”.
For a maximum output and minimum consumption ascertain that the pressure of
the gas used has the values indicated in the table of “burner characteristics”.
The joint is mounted on the intake area of the pipe, fitted with a filleted nut G 1/
2", between the sealing components. Screw the parts without forcing, turn the
joint in the direction required and then tighten everything.
Installation

14
Connection
Carry out the connection to the gas plant only by means of a rigid metallic pipe
conforming to the regulations in force.
This appliance is not suitable for connection with a hose assembly.
The joint for the entry of gas into the appliance is threaded R 1/2" (male thread).
Carry out the connection avoiding any type of stress on the appliance.
It is important to install the elbow correctly, with the shoulder on the end of the
thread, fitted to the hob connecting pipe. Failure to ensure the correct assembly
will cause leakage of gas.
Natural gas appliances must be fitted with a pressure regulator and be installed
at the inlet connection. The gas pressure must then be set as a part of the
commissioning procedures.
For U-LPG the pressure adjustment is made via the regulator fitted at the domestic
cylinder. The natural gas regulator and U-LPG pressure test point must be accessible
with the appliance installed.
Important
Upon completion of installation, always check:
• that all the joints are completely sealed by using a soapy solution, never a
flame;
• that the gas pressure has been regulated to 1.00kPa for Natural Gas and 2.75kPa
for Universal-LPG. The pressure test point is located on the regulator. The pressure
should be measured and adjusted with the Wok burner on high flame;
• that the automatic ignition system is operating satisfactory on all burners, both
individually and in combination;
• that the burners operate correctly, are stable, without yellow tipping or excessive
noise on high and low flame.
Then demonstrate to the customer the appliance operation and leave
these instructions.

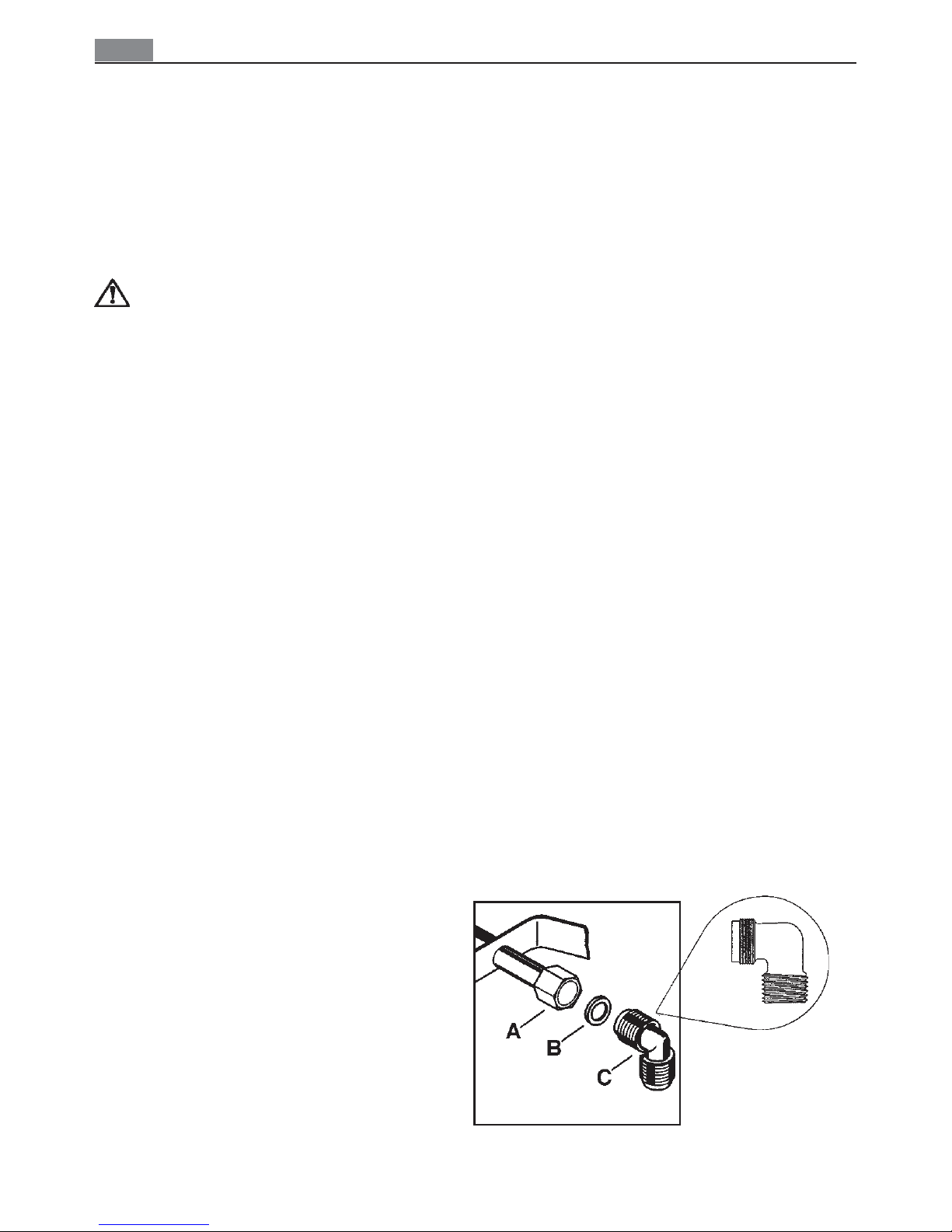

A) End of shaft
with nut
B) Washer
C) Elbow
Installation

15
Electrical connections
The appliance is designed to be connected to 230-240 V monophase electricity
supply.
The connection must be carried out in compliance with the laws and regulations
in force.
Before the appliance is connected:
1) check that the main fuse and the domestic installation can support the load
(see the rating label);
2) check that the power supply is properly earthed in compliance with the current
rules;
3) check the socket or the double pole switch used for the electrical connection
can be easily reached with the appliance built in the furniture unit.
The appliance is supplied with a connection cable provided with a plug, able to
support the load marked on the identification plate. The plug has to be fitted in
a proper socket.
If connecting the appliance directly to the electric system, it is necessary that
you install a double pole switch between the appliance and the electricity supply,
with a minimum gap of 3 mm. between the switch contacts and of a type suitable
for the required load in compliance with the current rules.
The connection cable has to be placed in order that, in each part, it cannot reach
a temperature 50 °C higher than the room temperature.
The brown coloured phase cable (fitted in the terminal block contact marked
with "L") must always be connected to the network phase.
Electrical connections

16
Adaptation to different types of gas
WARNING: Servicing shall only be carried out by authorised personnel.
Substitution of the nozzles
- Remove all pan supports, burner caps,
rings and crowns;
- With a tubular spanner no. 7 unscrew
and remove (see diagram) the nozzles
substituting them with those
corresponding to the type of gas used
(see Tables on page 11);
- Remount the parts carrying out the
operations described in reverse. Upon
completion remove existing gas type
label and stick the relevant gas type
label near the gas supply pipe.
If the pressure of gas used is different (or
variable) from that foreseen an
appropriate pressure regulator should be installed on the entry tube. In case
pressure regulators for U-LPG are used these should conform to the regulations
in force.
Regulation of the minimum
To regulate the minimum:
- bring the tap to the minimum flame
position.
- extract the knob.
- in case of conversion from natural gas
to U-LPG, tightly screw the by-pass
screw (see diagram);
- when converting from U-LPG to
natural gas unscrew about ½ turn by-
pass screw, until a regular small flame
is reached.
Finally check that by quickly turning the tap from the maximum position to
the minimum position the burner is not extinguished; remount the parts
carrying out the operations described in reverse.
By pass screw
Adaptation to different types of gas

17
Building In
Building over a cupboard or drawer
If the hob is to be installed above a cup-
board or drawer it will be necessary to fit a
heat resistant board below the base of the
hob on the underside of the work surface.
It is also recommended to carry out the
electrical connection to the hob as shown in
diagrams 1 and 2.
Building over a kitchen unit with door
Proper arrangements must be taken in
designing the furniture unit, in order to
avoid any contact with the bottom of the
hob which can be heated when it is oper-
ated. The recommended solution is shown in
diagram 3.
The panel fitted under the hob ("a") should
be easily removable to allow easy access if
technical assistance is needed. The space
behind the kitchen unit ("b") can be used for
connections.
Cut Out Size
The dimensions of the cut-out are given in the
diagram.
860
500
R 60
20
830
470 55 min.
117
ON/OFF SWITCH
FLEX
OUTLET
ON/OFF SWITCH
FLEX
OUTLET
Dimensions are given in mm.
1
2
Building In

18
3
Fitting the hob to the worktop
Before fitting the hob into the cut out, a
sealing gasket supplied with the hob must
be fitted to the edge of the cut out. It is
essential that no gaps are left in this seal
in order to prevent spillage near the hob
seeping into the cabinet below.
1) Place the sealing gasket all around the
edge of the cut out.
2) Place the hob into the cut out and secure
it by means of the relevant fixing clamps
and screws, as shown in the diagram.
3) Remove the excess seal
The edge of the hob forms a double seal
which prevents the ingress of liquids.
Seal
Building In

19
AEG WARRANTY AUSTRALIA
Nothing in this warranty, limits any rights you may have under the Trade Prac-
tices Act or any other Commonwealth or State legislation. Such rights cannot be
changed by the conditions in this warranty.
Subject to the conditions below, this appliance is warranted by Andi-Co Aus-
tralia Pty. Ltd. A.B.N. 68 005899 365, (the “Company”), to be free from defects in
materials and workmanship for a period of 36 months following the date of
purchase (the “Warranty Period”).
Conditions of the warranty:
1 During the Warranty Period the Company, or its service agent, will only pay the
cost of repairing or replacing all Company parts on your appliance which the
Company finds to be defective.
2 The Company will decide if there are any defects in material and/or workmanship.
3 Light globes, batteries and filters are replaceable parts and are not covered under
this warranty.
4 This warranty applies only for mainland Australia and Tasmania.
5 The appliance must be installed and operated in accordance with the Company’s
instructions.
6 This warranty does not apply to normal wear and tear, or any service, which is
needed after an accident, alteration, negligence, misuse, fire or flood.
7 This warranty does not apply to damage caused if your appliance has been dis-
mantled, repaired or serviced by any person other than someone authorised by
the Company.
8 If you live outside the service area of the Company or one of its service agents,
this warranty does not cover the cost of transport of the appliance for service nor
the service agent’s travelling costs to and from your home.
9 If you are required to transport the appliance to the Company or its service agent,
you must ensure it is securely packed and insured. The Company does not accept
any responsibility for loss or damage of the appliance prior to it being received by
the Company or its service agent.
AEG WARRANTY- AUSTRALIA

20
10 This warranty does not cover loss, damage or expense to this appliance caused
directly or indirectly by power surges, electrical storm damage or incorrect power
current.
11 The Company (and any company related to the Company) will not be liable for
any special, incidental or consequential damages or for loss, damage or expense
or for personal injury or loss or destruction of property arising directly or indi-
rectly from the use or inability to use this appliance or any of its parts.
12 This warranty applies only to the original buyer.
13 This warranty is the only express warranty given by the Company.
14 If you are the original buyer, please keep your proof of purchase, which will be
required, if you request service under this warranty.
15 The Warranty Period is only applicable when your appliance is used at home by
you and your family as consumers.
16 Use of this appliance for commercial purposes is covered by this warranty for a
period of 3 months from the date of purchase.
FOR SERVICE IN AUSTRALIA OR SPARE PARTS IN AUSTRALIA
PLEASE CALL PLEASE CALL
1300 650 020 (03) 9569 7744
AEG WARRANTY - AUSTRALIA
