Electrolux EHH3320FOK User manual

EHH3320FOK
.................................................. ...............................................
EN HOB USER MANUAL

CONTENTS
SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
HELPFUL HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
TECHNICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
ENVIRONMENT CONCERNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it
decades of professional experience and innovation. Ingenious and stylish, it has been designed with
you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results
every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
2www.electrolux.com

SAFETY INFORMATION
Before the installation and use of the appli-
ance, carefully read the supplied instruc-
tions. The manufacturer is not responsible
if an incorrect installation and use causes
injuries and damages. Always keep the in-
structions with the appliance for future ref-
erence.
CHILDREN AND VULNERABLE
PEOPLE SAFETY
WARNING!
Risk of suffocation, injury or perma-
nent disability.
• Do not let persons, children included,
with reduced physical sensory, reduced
mental functions or lack of experience
and knowledge use the appliance. They
must have supervision or instruction for
the operation of the appliance by a per-
son who is responsible for their safety.
• Do not let children play with the appli-
ance.
• Keep all packaging away from children.
• Keep children and pets away from the
appliance when it operates or when it
cools down. Accessible parts are hot.
• If the appliance has a child safety device,
we recommend that you activate it.
INSTALLATION
WARNING!
Only a qualified person must install
this appliance.
• Remove all the packaging.
• Do not install or use a damaged appli-
ance.
• Obey the installation instruction supplied
with the appliance.
• Keep the minimum distance from the
other appliances and units.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Seal the cut surfaces with a sealant to
prevent moisture to cause swelling.
• Protect the bottom of the appliance from
steam and moisture.
• Do not install the appliance adjacent to a
door or under a window. This prevents
hot cookware to fall from the appliance
when the door or the window is opened.
• If the appliance is installed above draw-
ers make sure that the space, between
the bottom of the appliance and the up-
per drawer, is sufficient for air circulation.
• Make sure that the ventilation space of 5
mm, between the worktop and the front
of the below unit, is free. The warranty
does not cover damages caused by the
lack of an adequate ventilation space.
• The bottom of the appliance can get hot.
We recommend to install a non-combus-
tile separation panel under the appliance
to prevent access to the bottom.
Electrical connection
WARNING!
Risk of fire and electrical shock.
• All electrical connections must be made
by a qualified electrician.
• Before every wiring make sure the main
terminal of the appliance is not live.
• Make sure the appliance is installed cor-
rectly. Loose and incorrect plug and
socket can make the terminal become
too hot.
• Make sure that a shock protection is in-
stalled.
• Do not let the electricity bonds touch the
appliance or hot cookware, when you
connect the appliance to the near sock-
ets.
• Do not let the electricity bonds tangle.
• Use a strain relief clamp on cable.
• Use the correct mains cable.
• Make sure not to cause damage to the
mains plug and to the mains cable. Con-
tact the Service or an electrician to
change a damaged mains cable.
• The electrical installation must have an
isolation device which lets you discon-
nect the appliance from the mains at all
poles. The isolation device must have a
contact opening width of minimum 3
mm.
ENGLISH 3

• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contractors.
USE
WARNING!
Risk of injury, burns or electric
shock.
• Use this appliance in a household envi-
ronment.
• Do not change the specification of this
appliance.
• Do not use an external timer or a sepa-
rate remote-control system to operate
the appliance.
• Do not let the appliance stay unattended
during operation.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not put cutlery or saucepan lids on
the cooking zones. They can become
hot.
• Set the cooking zone to “off” after each
use. Do not rely on the pan detector.
• Do not use the appliance as a work sur-
face or as a storage surface.
• If there is a crack on the surface, discon-
nect power supply to prevent the electri-
cal shock.
• Users with a pacemaker must keep a
distance of minimum 30 cm from the in-
duction cooking zones when the appli-
ance is in operation.
WARNING!
Risk of fire or explosion.
• Fats and oil when heated can release
flammable vapours. Keep flames or
heated objects away from fats and oils
when you cook with them.
• The vapours that very hot oil releases
can cause spontaneous combustion.
• Used oil, that can contain food rem-
nants, can cause fire at a lower tempera-
ture than oil used for the first time.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
• Do not try to extinguish a fire with water.
Disconnect the appliance and cover the
flame with a lid or a fire blanket.
WARNING!
Risk of damage to the appliance.
• Do not keep hot cookware on the con-
trol panel.
• Do not let cookware to boil dry.
• Be careful not let objects or cookware
fall on the appliance. The surface can be
damaged.
• Do not activate the cooking zones with
empty cookware or without cookware.
• Do not put aluminium foil on the appli-
ance.
• Cookware made of cast iron, aluminium
or with a damaged bottom can cause
scratches on the glass ceramic. Always
lift these objects up when you have to
move them on the cooking surface.
CARE AND CLEANING
WARNING!
Risk of damage to the appliance.
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal objects.
DISPOSAL
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
4www.electrolux.com

PRODUCT DESCRIPTION
GENERAL OVERVIEW
145 mm
210 mm
1
2
3
1
Induction cooking zone.
2
Induction cooking zone.
3
Control panel
CONTROL PANEL LAYOUT
1 2 4 5 63
7810 9
Use the sensor fields to operate the appliance. The displays, indicators and
sounds tell which functions operate.
sensor field function
1
To activate and deactivate the appliance.
2
To lock/unlock the control panel.
3
/ To increase or decrease the heat setting.
4
A heat setting display To show the heat setting.
5
Timer indicators of cooking
zones
To show for which zone you set the time.
6
The timer display To show the time in minutes.
7
To select a cooking zone.
8
/ To increase or decrease the time.
9
To activate the Power function.
ENGLISH 5

sensor field function
10 To activate and deactivates the STOP+GO
function.
HEAT SETTING DISPLAYS
Display Description
The cooking zone is deactivated.
Keep warm/STOP+GO function operates.
- / - The cooking zone operates.
Automatic Heat Up function operates.
Not correct cookware or too small cookware or no cook-
ware on the cooking zone.
There is a malfunction
A cooking zone is still hot (residual heat)
Lock/ The Child Safety device operates.
Power function operates.
The Automatic Switch Off operates.
RESIDUAL HEAT INDICATOR
WARNING!
The risk of burns from residual
heat!
The induction cooking zones make the
heat necessary for cooking directly in the
bottom of the cookware. The glass ceramic
is hot from the heat of the cookware.
6www.electrolux.com

DAILY USE
ACTIVATION AND
DEACTIVATION
Touch for 1 second to activate or deac-
tivate the appliance.
AUTOMATIC SWITCH OFF
The function deactivates the appliance
automatically if:
•All cooking zones are deactivated ( ).
• You do not set the heat setting after you
activate the appliance.
• You spill something or put something on
the control panel for more than 10 sec-
onds, (a pan, a cloth, etc.). An acoustic
signal sounds some time and the appli-
ance deactivates. Remove the object or
clean the control panel.
• The appliance becomes too hot (e.g.
when, a saucepan boils dry). Before you
use the appliance again, the cooking
zone must be cool.
• You use incorrect cookware. The symbol
comes on and the cooking zone de-
activates automatically after 2 minutes.
• You do not deactivate a cooking zone or
change the heat setting. After some time
comes on and the appliance deacti-
vates. See below.
• The relation between heat setting and
times of the Automatic Switch Off func-
tion:
•, - — 6 hours
•- — 5 hours
•— 4 hours
•- — 1.5 hours
THE HEAT SETTING
Touch to increase the heat setting.
Touch to decrease the heat setting. The
display shows the heat setting. Touch
and at the same time to deactivate the
cooking zone.
AUTOMATIC HEAT UP
You can get a necessary heat setting in a
shorter time if you activate the Automatic
Heat Up function. This function sets the
highest heat setting for some time (see the
diagram), and then decreases to the nec-
essary heat setting.
To start the Automatic Heat Up function for
a cooking zone:
1.
Touch . The symbol comes on
in the display.
2.
Immediately touch . The symbol
comes on in the display.
3.
Immediately touch again and again
until the necessary heat setting comes
on. After 3 seconds comes on in
the display.
To stop the function, touch .
1
2
3
4
5
6
7
8
9
10
11
0
123456789
POWER FUNCTION
The Power function makes more power
available to the induction cooking zones.
The Power function can be activated for a
limited period of time ( see Technical infor-
mation chapter). After that, the induction
cooking zone automatically sets back to
highest heat setting. To activate, touch
, comes on. To deactivate, change the
heat setting.
POWER MANAGEMENT

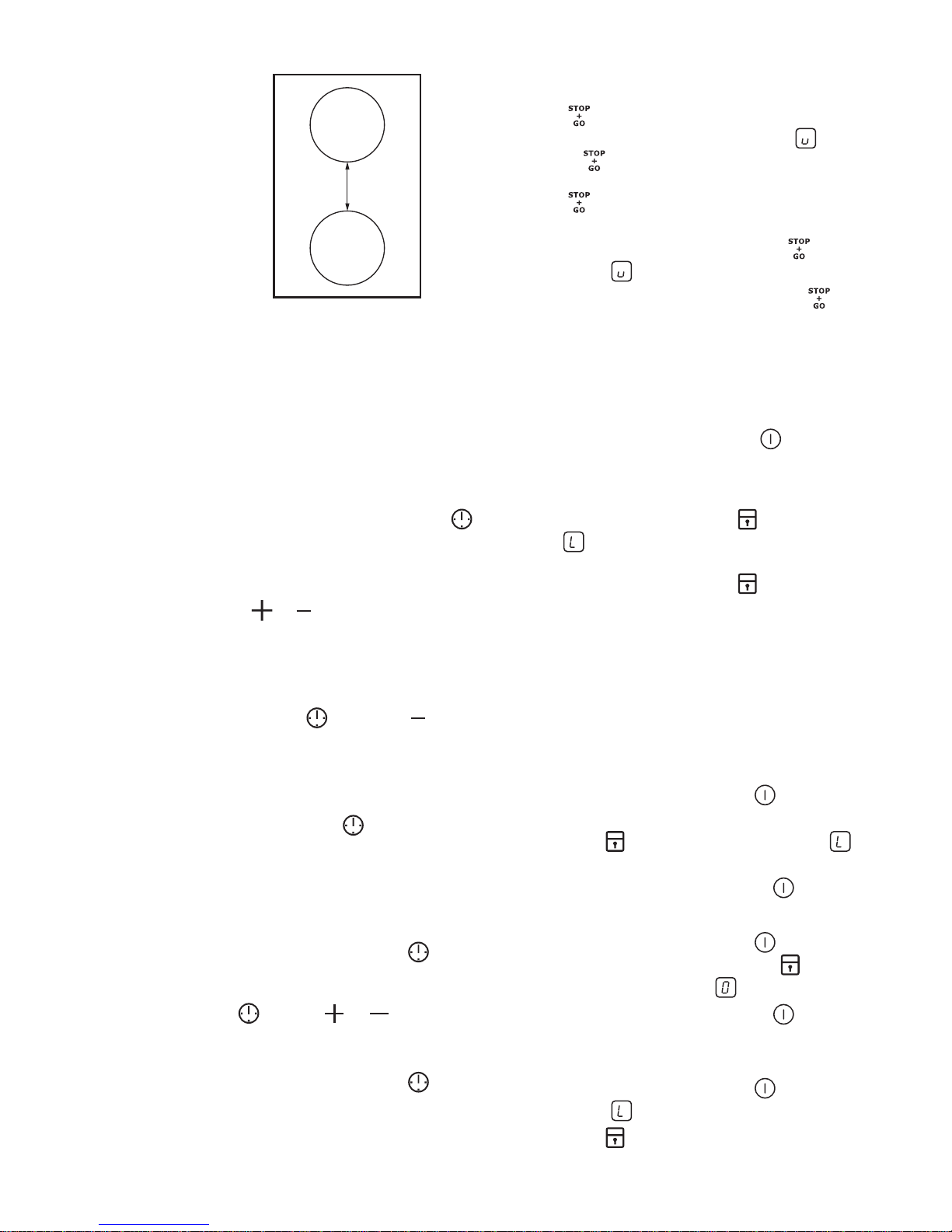

The power management divides the power
between two cooking zones in a pair (see
the illustration). The power function increa-
ses the power to the maximum level for
one cooking zone in the pair. The power in
the second cooking zone automatically de-
creases. The heat setting display for the re-
duced zone changes between two levels.
ENGLISH 7

TIMER
Use the Count Down Timer to set how long
the cooking zone operates for only this one
time.
Set the Timer after the selection of the
cooking zone.
You can set the heat setting before or after
you set the timer.
•To set the cooking zone:touch
again and again until the indicator of a
necessary cooking zone comes on.
•To activate or change the Timer:
touch or of the timer to set the
time (
00
-
99
minutes). When the indi-
cator of the cooking zone starts to flash
slow, the time counts down.
•To deactivate the Timer: set the cook-
ing zone with and touch to deacti-
vate the Timer. The remaining time
counts back to
00
. The indicator of the
cooking zone goes out.
•To see the remaining time: set the
cooking zone with . The indicator of
the cooking zone starts to flash quickly.
The display shows the remaining time.
When the time comes to an end, the sound
operates and
00
flashes. The cooking
zone deactivates.
•To stop the sound: touch
You can use the Timer as a minute mind-
er while the cooking zones do not operate.
Touch . Touch or to set the time.
When the time comes to an end, the sound
operates and
00
flashes
•To stop the sound: touch
STOP+GO
The function sets all cooking zones that
operate to the lowest heat setting ( ).
When operates, you cannot change the
heat setting.
The function does not stop the timer
function.
•To activate this function touch . The
symbol comes on.
•To deactivate this function touch .
The heat setting that you set before
comes on.
LOCK
When the cooking zones operate, you can
lock the control panel, but not . It pre-
vents an accidental change of the heat set-
ting.
First set the heat setting.
To start this function touch . The sym-
bol comes on for 4 seconds.
The Timer stays on.
To stop this function touch . The heat
setting that you set before comes on.
When you stop the appliance, you also
stop this function.
THE CHILD SAFETY DEVICE
This function prevents an accidental opera-
tion of the appliance.
To activate the child safety device
•Activate the appliance with . Do not
set the heat settings.
•Touch for 4 seconds. The symbol
comes on.
•Deactivate the appliance with .
To deactivate the child safety device
•Activate the appliance with . Do not
set the heat settings. Touch for 4
seconds. The symbol comes on.
•Deactivate the appliance with .
To override the child safety device for
only one cooking time
•Activate the appliance with . The
symbol comes on.
•Touch for 4 seconds. Set the heat
setting in 10 seconds. You can oper-
ate the appliance.
8www.electrolux.com

• When you deactivate the appliance with
, the child safety device operates
again.
ENGLISH 9

HELPFUL HINTS AND TIPS
INDUCTION COOKING ZONES
For induction cooking zones a strong elec-
tro-magnetic field creates the heat in the
cookware very quickly.
COOKWARE FOR INDUCTION
COOKING ZONES
Use the induction cooking zones
with correct cookware.
Cookware material
•correct: cast iron, steel, enamelled
steel, stainless steel, the bottom made of
multi-layer (with correct mark from a
manufacturer).
•not correct: aluminium, copper, brass,
glass, ceramic, porcelain.
Cookware is correct for an induction
hob if …
• ... some water boils very quickly on a
zone set to the highest heat setting.
• ... a magnet pulls on to the bottom of the
cookware.
The bottom of the cookware
must be as thick and flat as possi-
ble.
Cookware dimensions: induction cook-
ing zones adapt to the dimension of the
bottom of the cookware automatically to
some limit.
THE NOISES DURING
OPERATION
If you can hear
• crack noise: cookware is made of differ-
ent materials (Sandwich construction).
• whistle sound: you use one or more
cooking zones with high power levels
and the cookware is made of different
materials (Sandwich construction).
• humming: you use high power levels.
• clicking: electric switching occurs.
• hissing, buzzing: the fan operates.
The noises are normal and do not refer
to appliance malfunction.
ENERGY SAVING
How to save energy
• If it is possible, always put the lids on the
cookware.
• Put cookware on a cooking zone before
you start it.
• Use the residual heat to keep the food
warm or to melt it.
The cooking zone efficiency
The cooking zone efficiency is related to
the diameter of the cookware . The cook-
ware with a smaller diameter than the mini-
mum receives only a part of the power
generated by the cooking zone. For the
minimum diameters see the Technical data
chapter.
THE EXAMPLES OF COOKING
APPLICATIONS
The relation between the heat setting and
the cooking zone consumption of power is
not linear.
When you increase the heat setting it is not
proportional to the increase of the cooking
zone consumption of power.
It means that the cooking zone with the
medium heat setting uses less than a half
of its power.
The data in the table is for guid-
ance only.
10 www.electrolux.com

He
at
set
tin
g
Use to: Time Hints Nominal
power con-
sumption
1
Keep warm the food
you cooked
as required Put a lid on a cook-
ware
3 %
1 -
2
Hollandaise sauce,
melt: butter, chocolate,
gelatine
5 - 25 min Mix from time to time 3 – 5 %
1 -
2
Solidify: fluffy omelettes,
baked eggs
10 - 40 min Cook with a lid on 3 – 5 %
2 -
3
Simmer rice and milk-
based dishes, heating
up ready-cooked meals
25 - 50 min Add the minimum
twice as much liquid
as rice, mix milk
dishes part procedure
through
5 – 10 %
3 -
4
Steam vegetables, fish,
meat
20 - 45 min Add some table-
spoons of liquid
10 – 15 %
4 -
5
Steam potatoes 20 - 60 min Use max. ¼ l water for
750 g of potatoes
15 – 21 %
4 -
5
Cook larger quantities
of food, stews and
soups
60 - 150
min
Up to 3 l liquid plus in-
gredients
15 – 21 %
6 -
7
Gentle fry: escalope,
veal cordon bleu, cut-
lets, rissoles, sausages,
liver, roux, eggs, pan-
cakes, doughnuts
as necessa-
ry
Turn halfway through 31 – 45 %
7 -
8
Heavy fry, hash browns,
loin steaks, steaks
5 - 15 min Turn halfway through 45 – 64 %
9Boil water, cook pasta, sear meat (goulash, pot roast), deep-fry
chips
100 %
Boil large quantities of water. Power management is activated.
Information on acrylamides
Important! According to the newest
scientific knowledge, if you brown food
(specially the one which contains starch),
acrylamides can pose a health risk. Thus,
we recommend that you cook at the lowest
temperatures and do not brown food too
much.
ENGLISH 11

CARE AND CLEANING
Clean the appliance after each use.
Always use cookware with clean bottom.
Scratches or dark stains on the
glass-ceramic cause no effect on
how the appliance operates.
To remove the dirt:
1.
–Remove immediately: melted
plastic, plastic foil, and food with
sugar. If not, the dirt can cause
damage to the appliance. Use a
special scraper for the glass . Put
the scraper on the glass surface at
an acute angle and move the blade
on the surface .
–Remove after the appliance is
sufficiently cool: limescale rings ,
water rings, fat stains, shiny metallic
discolorations. Use a special clean-
ing agent for glass ceramic or stain-
less steel.
2.
Clean the appliance with a moist cloth
and some detergent.
3.
At the end rub the appliance dry
with a clean cloth.
12 www.electrolux.com

TROUBLESHOOTING
Problem Possible cause and Remedy
You cannot activate the
appliance or operate it.
Activate the appliance
again and set the heat set-
ting in less than 10 sec-
onds.
You touched 2 or more
sensor fields at the same
time.
Touch only one sensor
field.
The Stop+Go function
operates.
Refer to the chapter “Daily
Use”.
There is water or fat
stains on the control pan-
el.
Clean the control panel.
An acoustic signal sounds
and the appliance deacti-
vates.
An acoustic signal sounds
when the appliance is de-
activated.
You put something on
one or more sensor fields.
Remove the object from
the sensor fields.
The appliance deactivates. You put something on the
sensor field .
Remove the object from
the sensor field.
The residual heat indicator
does not come on.
The cooking zone is not
hot because it operated
only for a short time.
If the cooking zone operat-
ed sufficiently long to be
hot, speak to the service
centre.
The Automatic Heat Up
function does not operate.
The cooking zone is hot. Let the cooking zone be-
come sufficiently cool.
The highest heat setting is
set.
The highest heat setting
has the same power as the
Automatic Heat Up func-
tion.
The heat setting changes
between two levels.
The Power management
is activated.
Refer to “Power manage-
ment”.
The sensor fields become
hot.
The cookware is too large
or you put it too near to
the controls.
Put large cookware on the
rear cooking zones if nec-
essary.
comes on. The Automatic Switch Off
operates.
Deactivate the appliance
and activate it again.
comes on. The Child Safety Device
or the Lock function oper-
ates.
Refer to the chapter “Daily
Use”.
comes on. No cookware is on the
cooking zone.
Put cookware on the cook-
ing zone.
ENGLISH 13

Problem Possible cause and Remedy
The cookware is incor-
rect.
Use the correct cookware.
The diameter of the bot-
tom of the cookware is
too small for the cooking
zone.
Move cookware to a small-
er cooking zone.
and a number come
on.
There is an error in the
appliance.
Disconnect the appliance
from the electrical supply
for some time. Disconnect
the fuse from the electrical
system of the house. Con-
nect it again. If comes
on again, speak to the
service centre.
comes on. There is an error in the
appliance because a
cookware boils dry. The
overheating protection for
the cooking zones and
the Automatic Switch Off
operate.
Deactivate the appliance.
Remove the hot cookware.
After, approximately 30
seconds, activate the
cooking zone again. If the
cookware was the prob-
lem, the error message
goes out of the display, but
the residual heat indicator
can stay. Let the cookware
become sufficiently cool
and refer to “Cookware for
the induction cooking
zone” to see if your cook-
ware is compatible with the
appliance.
If you tried the above solutions and cannot
repair the problem, speak to your dealer or
the customer service. Give the data from
the rating plate, three digit letter code for
the glass ceramic (it is in the corner of the
glass surface) and an error message that
comes on.
Make sure, you operated the appliance
correctly. If not the servicing by a customer
service technician or dealer will not be free
of charge, also during the warranty period.
The instructions about the customer serv-
ice and conditions of guarantee are in the
guarantee booklet.
14 www.electrolux.com

INSTALLATION
WARNING!
Refer to "Safety information" chap-
ter.
Before the installation
Before the installation of the appliance, re-
cord the information below from the rating
plate. The rating plate is on the bottom of
the appliance casing.
• Model ...........................
• PNC .............................
• Serial number ....................
BUILT-IN APPLIANCES
• Only use the built-in appliances after you
assemble the appliance into correct
built-in units and work surfaces that align
to the standards.
CONNECTION CABLE
• The appliance is supplied with the con-
nection cable.
• Replace the damaged mains cable with
a special cable (type H05BB-F Tmax
90°C; or higher). Speak to your local
Service Centre.
TO ATTACH THE SEAL.
• Clean the worktop in the area of the cut
out section.
• Bond the seal stripe supplied on the low-
er edge of the appliance along the outer
edge of the glass ceramic. Do not ex-
tend it. Let stay the cut ends in the mid-
dle of one side. When, you cut it to
length (add some mm), push the two
ends together.
ASSEMBLY
min.
50mm
min.
50mm
min.
500mm
min.
5mm
==
490+1mm
270+1mm
600mm
R 5mm
ENGLISH 15

min.
25 mm
min.
5 mm
min.
20 mm
min.
38 mm
min.
5 mm
TECHNICAL DATA
Modell EHH3320FOK Prod.Nr. 949 596 012 00
Typ 58 GAD D9 AT 220-240 V 50-60 Hz
Induction 3.7 kW Made in Germany
Ser.Nr. .......... 3.7 kW
ELECTROLUX
Cooking zones power
Cooking zone Nominal
Power (Max
heat setting)
[W]
Power Func-
tion activated
[W]
Power func-
tion maxi-
mum dura-
tion [min]
Minimum
cookware di-
ameter [mm]
Middle rear —
145 mm
1400 W 2500 W 4125
Middle front —
210 mm
2300 W 3700 W 10 180
ENVIRONMENT CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable containers
to recycle it.
Help protect the environment and human
health and to recycle waste of electrical
and electronic appliances. Do not dispose
16 www.electrolux.com

appliances marked with the symbol with
the household waste. Return the product
to your local recycling facility or contact
your municipal office.
ENGLISH 17

18 www.electrolux.com

ENGLISH 19

www.electrolux.com/shop 892952011-D-112012
