Electrolux EHP30020P User manual

Induction hob
EHP30020P
user manual

We were thinking of you
when we made this product

electrolux 3
Welcome to the world of Electrolux
Thank you for choosing a first class
product from Electrolux, which hopefully
will provide you with lots of pleasure in
the future. The Electrolux ambition is to
offer a wide variety of quality products
that make your life more comfortable.
You will find some examples on the cov-
er in this manual. Please take a few min-
utes to study this manual so that you
can take advantage of the benefits of
your new machine. We promise that it
will provide a superior User Experience
delivering Ease-of-Mind. Good luck!

4electrolux contents
Contents
Safety instructions 5
Description of the Appliance 7
Operating the appliance 9
Tips on Cooking and Frying 10
Cleaning and Care 13
What to do if … 15
Disposal 16
Installation Instructions 17
Assembly 18
Service 22
1
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
3General information and tips
2Environmental information
hefollowing symbols are used in this user manual:
T

safety instructions electrolux 5
Safety instructions
Please comply with these instruc-
tions. If you do not, any damage re-
sulting is not covered by the
warranty.
5
This appliance conforms with the
following EU Directives:
– 73/23/EEC dated 19.02.1973 Low
Voltage Directive
– 89/336/EEC dated 03.05.1989 EMC
Directive inclusive of Amending Di-
rective 92/31/EEC
– 93/68/EEC dated 22.07.1993 CE
Marking Directive
Correct use
• This appliance should be used only
for normal domestic cooking and fry-
ing of food.
• The appliance must not be used as a
work surface or as a storage surface.
• Additions or modifications to the ap-
pliance are not permitted.
• Do not place or store flammable liq-
uids, highly inflammable materials or
fusible objects (e.g. plastic film, plas-
tic, aluminium) on or near the appli-
ance.
Children’s safety
• Small children must be kept away
from the appliance.
• Only let bigger children work on the
appliance under supervision.
General safety
• The appliance may only be installed
and connected by trained, registered
service engineers.
• Built-in appliances may only be used
after they have built in to suitable
built-in units and work surfaces that
meet standards.
• In the event of faults with the appli-
ance or damage to the glass ceramic
(cracks, scratches or splits), the ap-
pliance must be switched off and
disconnected from the electrical
supply, to prevent the possibility of
an electric shock.
• Repairs to the appliance must only
be carried out by trained registered
service engineers.
Safety during use
• Remove stickers and film from the
glass ceramic.
• There is the risk of burns from the
appliance if used carelessly.
• Cables from electrical appliances
must not touch the hot surface of the
appliance or hot cookware.
• Overheated fats and oils can ignite
very quickly. When cooking with fat
or oil (e.g. chips) do not leave the ap-
pliance unattended.
• Switch the cooking zones off after
each use.
Safety when cleaning
• For cleaning, the appliance must be
switched off and cooled down.
• For safety reasons, the cleaning of
the appliance with steam jet or high-
pressure cleaning equipment is not
permitted.

6electrolux safety instructions
How to avoid damage to the appli-
ance
• The glass ceramic can be damaged
by objects falling onto it.
• The edge of the glass ceramic can
be damaged by being knocked by
the cookware.
• Cookware made of cast iron, cast
aluminium or with damaged bottoms
can scratch the glass ceramic if
pushed across the surface.
• Objects that melt and things that boil
over can burn onto the glass ceramic
and should be removed straighta-
way.
• To avoid damaging cookware and
glass ceramics, do not allow sauce-
pans or frying pans to boil dry.
• Do not use the cooking zones with
empty cookware or without cook-
ware.

description of the appliance electrolux 7
Description of the Appliance

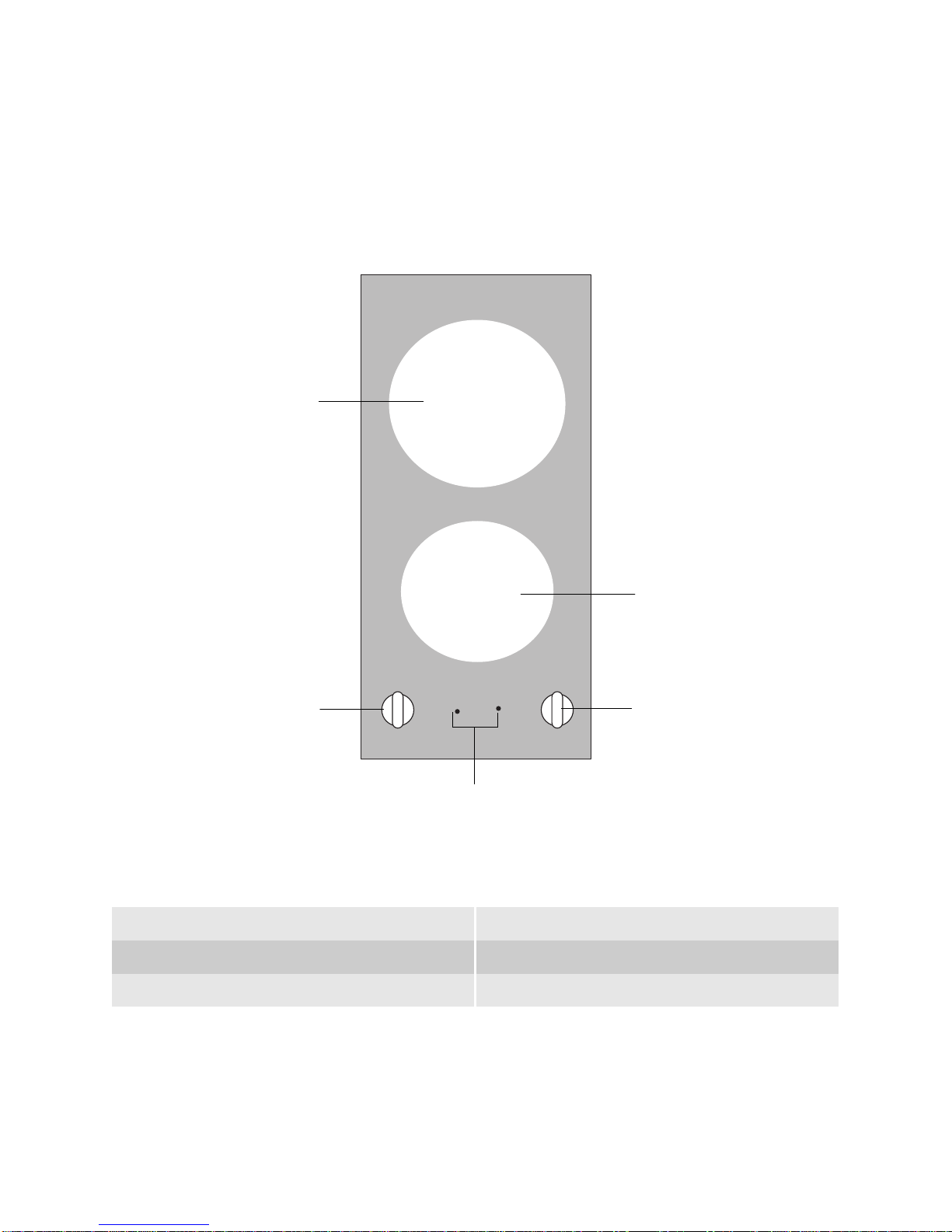

Cooking zones and control panel
Control Knobs
The cooking power can be set any-
where between level 1 and 12.
Single cooking zone
1800W
Residual heat
indicator
Single cooking zone
1200W
Control Knob
for Front Cooking
Zone
Control Knob
for Rear Cooking
Zone
1
lowest power
12
highest power
0
Off position

8electrolux description of the appliance
Residual heat indicator
The residual heat indicator lights up, as
soon as one cooking zone is hot.
Caution Risk of burns from residual
heat. After being switched off, the
cooking zones need some time to
cool down. Look at the residual heat
indicator.
Residual heat can be used for melt-
ing and keeping food warm.

operating the appliance electrolux 9
Operating the appliance
When a cooking zone is switched
on, it may hum briefly. This is a char-
acteristic of all ceramic glass cook-
ing zones and does not impair either
the function or the life of the appli-
ance.
Setting the heat setting
1. When boiling water/searing food, se-
lect a high heat setting.
2. As soon as steam forms or the fat or
oil is hot, set a lower heat setting.
3. To end the cooking process, turn to
the Off position.

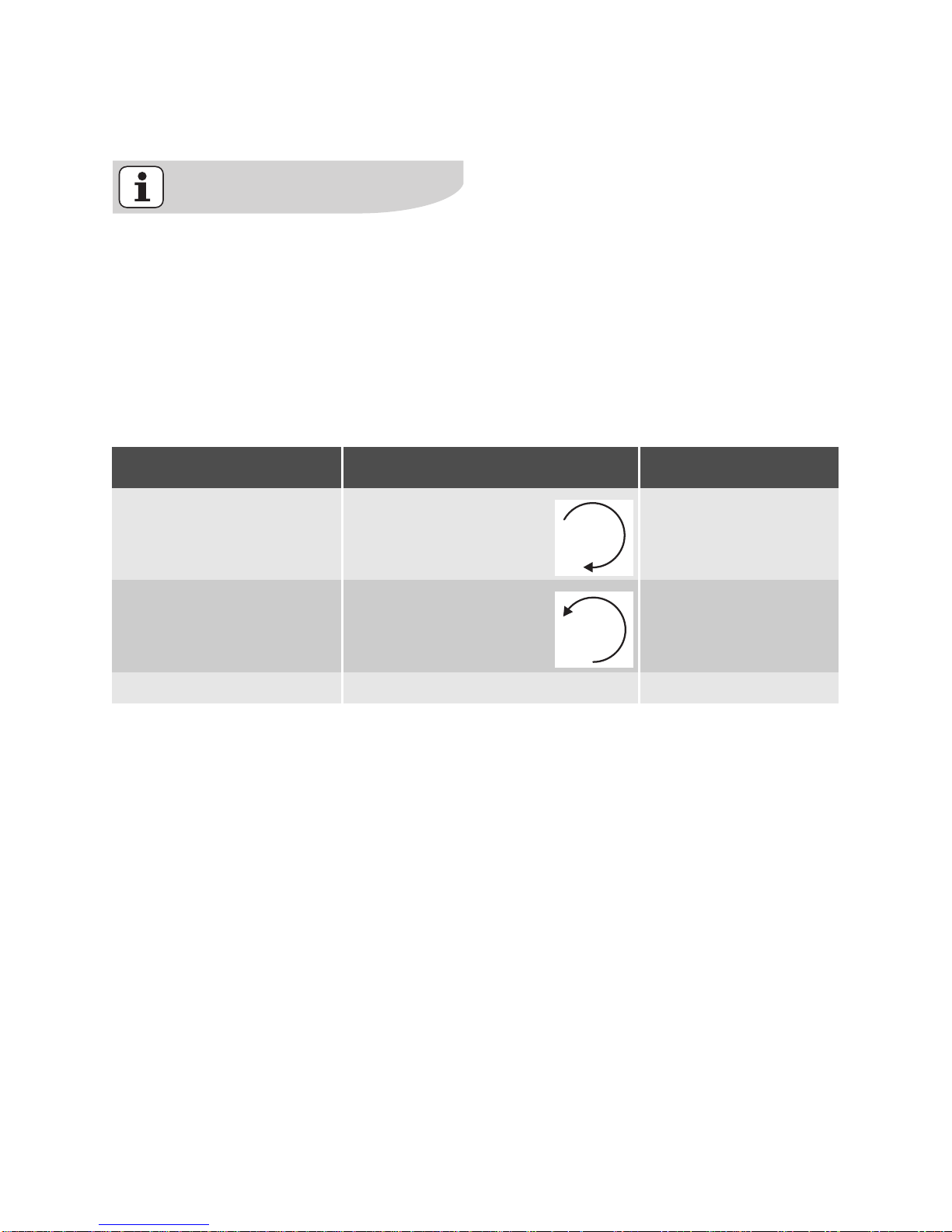

Heat setting Ring control knob Knob setting
To increase
turn clockwise
1 - 12
To r e d u c e
turn anti-clockwise
12 - 1
switch off 0

10 electrolux tips on cooking and frying
Tips on Cooking and Frying
Information on acrylamides
According to the latest scientific
knowledge, intensive browning of
food, especially in products con-
taining starch, can constitute a
health risk due to acrylamides.
Therefore we recommend cooking
at the lowest possible temperatures
and not browning foods too much.
Cookware
• You can recognise good cookware
from the bottoms of the pans. The
bottom should be as thick and flat as
possible.
• Cookware made of enamelled steel
or with aluminium or copper bottoms
can leave discolorations on the glass
ceramic surface which are difficult or
impossible to remove.

tips on cooking and frying electrolux 11
Energy saving
Always place cookware on the
cooking zone before it is switched
on.
If possible, always place lids on the
pans.
Switch cooking zones off before the
end of the cooking time, to take ad-
vantage of residual heat.
Bottom of pans and cooking zones
should be the same size.

12 electrolux tips on cooking and frying
Examples of cooking applications
The information given in the following table is for guidance only.
Heat
set-
ting
Cooking-
process suitable for Cooking time Tips/Hints
0Residual heat, Off position
 1
Keeping
food
warm
Keeping cooked foods warm as required Cover
1-3
Melting
Hollandaise sauce,
melting butter, chocolate,
gelatine
5-25 mins. Stir occasionally
Solidi-
fying
Fluffy omelettes, baked eggs 10-40 mins. Cook with lid on
3-5
Simmer-
ing on low
heat
Simmering rice and milk-
based dishes
Heating up ready-cooked
meals
25-50 mins.
Add at least twice as
much liquid as rice, stir
milk dishes part way
through cooking
4-6
Steaming
Braising
Steaming vegetables, fish
braising meat 20-45 mins.
With vegetables add only
a little liquid (a few table-
spoons)
5-7 Boiling
Steaming potatoes 20-60 mins.
Use only a little liquid, e.
g.: max.
¼ l water for
750 g potatoes
Cooking larger quantities of
food, stews and soups 60-150 mins. Up to 3 l liquid plus ingre- dients
8-9
Gentle
Frying
Frying escalopes, veal cor-
don bleu, cutlets, rissoles,
sausages, liver, roux, eggs,
pancakes, doughnuts
Steady frying Turn halfway through
cooking
10-11
Heavy
Frying
Hash browns, loin steaks,
steaks, Flädle (pancakes for
garnishing soup)
5-15 mins.
per pan
Turn halfway through
cooking
11-12
Boiling
Searing
Deep
frying
Boiling large quantities of water, cooking pasta, searing meat (goulash,
pot roast), deep frying chips

cleaning and care electrolux 13
Cleaning and Care
Take care! Risk of burns from resid-
ual heat.
Warning! Sharp objects and abra-
sive cleaning materials will damage
the appliance. Clean with water and
washing up liquid.
Warning! Residues from cleaning
agents will damage the appliance.
Remove residues with water and
washing up liquid.
Cleaning the appliance after each use
1. Wipe the appliance with a damp
cloth and a little washing up liquid.
2. Rub the appliance dry using a clean
cloth.

14 electrolux cleaning and care
Removing deposits
1. Place a scraper on the glass ceramic
surface at an angle.
2. Remove residues by sliding the
blade over the surface.
3. Wipe the appliance with a damp
cloth and a little washing up liquid.
4. Rub the appliance dry using a clean
cloth.
*Scrapers and cleaners for glass ceramic and
stainless steel can be purchased in specialist
shops
Remove stubborn residues with a
cleaner for glass ceramic or stain-
less steel.
Scratches or dark stains on the
glass ceramic that cannot be re-
moved do not however affect the
functioning of the appliance.
Remove
Type of dirt
im-
medi-
ately
when the appliance
has cooled down using
sugar, food containing sugar yes --- a scraper*
plastics, tin foil yes ---
limescale and water rings --- yes cleaner for glass ce-
ramic or stainless
steel*
fat splashes --- yes
shiny metallic discolouration --- yes

what to do if … electrolux 15
What to do if …
If you are unable to remedy the
problem by following the above
suggestions, please contact your
dealer or the Customer Care De-
partment.
Warning! Repairs to the appliance
are only to be carried out by quali-
fied service engineers. Considera-
ble danger to the user may result
from improper repairs.
If the appliance has been wrongly
operated, the visit from the custom-
er service technician or dealer may
not take place free of charge, even
during the warranty period.
Problem Possible cause Remedy
The cooking zones are not
functioning.
The desired heat setting is not
set.
Set the heat setting.
The fuse in the house’s electri-
cal wiring (fuse box) has been
tripped.
Check the fuse.
If the fuses trip a number of
times, please call an author-
ised electrician.
The residual heat indicator is
not displaying anything
The cooking zone was only on
for a short time and is therefore
not hot
If the cooking zone is sup-
posed to be hot, call the Cus-
tomer Service Department.

16 electrolux disposal
Disposal
Packaging material
The packaging materials are envi-
ronmentally friendly and can be re-
cycled. The plastic components are
identified by markings, e.g. >PE<,
>PS<, etc. Please dispose of the
packaging materials in the appro-
priate container at the community
waste disposal facilities.
Old appliance
The symbol Won the product or on
its packaging indicates that this
product may not be treated as
household waste. Instead it shall be
handed over to the applicable col-
lection point for the recycling of
electrical and electronic equipment.
By ensuring this product is dis-
posed of correctly, you will help pre-
vent potential negative
consequences for the environment
and human health, which could oth-
erwise be caused by inappropriate
waste handling of this product. For
more detailed information about re-
cycling of this product, please con-
tact your local city office, your
household waste disposal service
or the shop where you purchased
the product.

installation instructions electrolux 17
Installation Instructions
Safety instructions
The laws, ordinances, directives and
standards in force in the country of use
are to be followed (safety regulations,
proper recycling in accordance with the
regulations, etc.)
Installation may only be carried out by a
qualified electrician.
The minimum distances to other appli-
ances and units are to be observed.
Anti-shock protection must be provided
by the installation, for example drawers
may only be installed with a protective
floor directly underneath the appliance.
The cut surfaces of the worktop are to
be protected against moisture using a
suitable sealant.
The sealant seals the appliance to the
work top with no gap.
Avoid installing the appliance next to
doors and under windows. Otherwise
hot cookware may be knocked off the
rings when doors and windows are
opened.
WARNING!
Risk of injury from electrical cur-
rent.
• The electrical mains terminal is live.
• Make electrical mains terminal free of
voltage.
• Observe connection schematic.
• Observe electrical safety rules.
• Ensure anti-shock protection
through correct installation by a
qualified electrician.
• The appliance must be connected to
the electrical supply by a qualified
electrician.
IMPORTANT!
Risk of injury from electrical cur-
rent.
Loose and inappropriate plug and sock-
et connections can make the terminal
overheat.
• Have the clamping joints correctly in-
stalled by a qualified electrician.
• Use strain relief clamp on cable.
• In the event of single-phase or two-
phase connection, the appropriate
mains cable of type H05BB-F Tmax
90°C(or higher) must be used.
• If this appliance’s mains cable is
damaged, it must be replaced by a
special cable (type H05BB-F Tmax
90°C; or higher). The latter is availa-
ble from the Customer Care Depart-
ment.
A device must be provided in the electri-
cal installation which allows the appli-
ance to be disconnected from the mains
at all poles with a contact opening width
of at least 3 mm.
Suitable isolation devices include line
protecting cut-outs, fuses (screw type
fuses are to be removed from the hold-
er), earth leakage trips and contactors.
Sticking on the seal
• Clean the worktop around the cut-
out area.
• Stick the single-sided adhesive seal-
ing tape provided on the underside
of the hob around the outside edge
ensuring that it is not stretched. The
two ends of the tape should join in
the middle of one side. After trim-
ming the tape (allow it to overlap by
2-3 mm), press the two ends togeth-
er.

18 electrolux assembly
Assembly

assembly electrolux 19

20 electrolux assembly
